482
uuWhen Driving uPrecautions While Driving
Driving
Precautions While Driving
Avoid driving in deep water and on flooded roads. This can damage the engine or
driveline, or cause electrical component failure.
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
■In Rain
■Other Precautions
1 Precautions While Driving
NOTICE
Do not change the gear position while pressing the
accelerator pedal. You could damage the
transmission.
NOTICE
If you repeatedly turn the steering wheel at an
extremely low speed, or hold the steering wheel in
the full left or right position for a while, the electric
power steering (EPS) system heats up. The system
goes into a protective mode, and limits its
performance. The steering wheel becomes harder
and harder to operate. Once the system cools down,
the EPS system is restored.
Repeated operation under these conditions can
eventually damage the system.
If the power mode is set to ACCESSORY while
driving, the engine will shut down and all steering
and brake power assist functi ons will stop, making it
difficult to control the vehicle.
Do not select
( N while driving as you will lose engine
braking (and accelera tion) performance.
During the first 600 miles (1,000 km) of operation,
avoid sudden acceleration or full throttle operation so
as not to damage the engine or powertrain.
Avoid hard braking for the first 200 miles (300 km)
after purchasing your new vehicle or replacing the
brake pads or rotors, to allow for proper break-in.
23 US ODYSSEY-31THR6500.book 482 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

587
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 588
Safety When Performing Maintenance .... 589
Parts and Fluids Used in Maintenance Service ........................................... 590
Maintenance Minder
TM..................... 591
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 597
Opening the Hood ........................... 598
Recommended Engine Oil ................ 600
Oil Check ......................................... 601
Adding Engine Oil ............................ 602
Changing the Engine Oil and Oil Filter ..... 603
Engine Coolant ................................ 605
Transmission Fluid ............................ 607
Brake Fluid ....................................... 608
Refilling Window Washer Fluid......... 609
Replacing Light Bulbs ....................... 610
Checking and Maintaining Wiper Blades.... 617Checking and Maintaining Tires
Checking Tires ................................. 621
Tire and Loading Information Label ..... 622Tire Labeling .................................... 622DOT Tire Quality Grading (U.S. Vehicles) ...... 624Wear Indicators................................ 626 Tire Service Life ................................ 626
Tire and Wheel Replacement ........... 627
Tire Rotation .................................... 628
Winter Tires ..................................... 629
Battery ............................................... 630
Remote Transmitter Care ................. 632
Remote Control and Wireless Headphone Care
*........................... 633Climate Control System Maintenance.... 635Cleaning Interior Care .................................... 636
Exterior Care.................................... 639
Accessories and Modifications ........ 642
* Not available on all models
23 US ODYSSEY-31THR6500.book 587 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

607
uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change th e automatic transmission fluid yourself.
■Automatic Transmission Fluid
Specified fluid: Honda ATF-Type 2
1Automatic Transmission Fluid
NOTICE
Honda ATF-Type 2 fluid must not be mixed with
other transmission fluids.
Using a transmission flui d other than Honda ATF-
Type 2 may adversely affect the operation and
durability of your vehicle’ s transmission, and damage
the transmission.
Any damage caused by using a transmission fluid that
is not equivalent to Honda ATF-Type 2 is not covered
by Honda’s new vehicle limited warranty.
23 US ODYSSEY-31THR6500.book 607 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

665
uuIndicator, Comi ng On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks
Handling the Unexpected

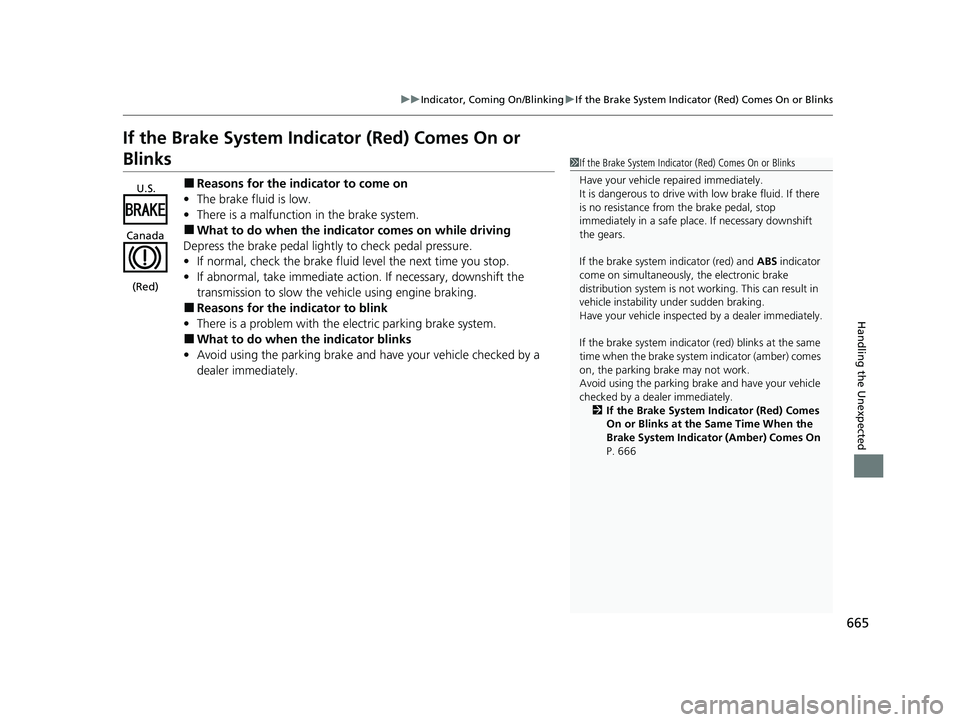

If the Brake System Indicator (Red) Comes On or
Blinks
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
■Reasons for the indicator to blink
• There is a problem with the electric parking brake system.
■What to do when the indicator blinks
• Avoid using the parking brake and have your vehicle checked by a
dealer immediately.
1If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator (red) and ABS indicator
come on simultaneously , the electronic brake
distribution system is not wo rking. This can result in
vehicle instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking br ake may not work.
Avoid using the parking brak e and have your vehicle
checked by a dealer immediately.
2 If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 666
U.S.
Canada
(Red)
23 US ODYSSEY-31THR6500.book 665 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

697
Index
Automatic Operation (automatic lighting control) ................................................... 193
Automatic Transmission .......................... 483
Creeping......................................... 481, 483
Fluid ....................................................... 607
Kickdown ............................................... 483
Shift Operation ....................................... 486
Shifting ................................................... 484
Auxiliary Input Jack ................................. 261
Average Fuel Economy ............................ 133
B
Battery...................................................... 630
Charging System Indicator ................ 92, 664
If the Battery Is Dead............................... 659
Maintenance (Checking the Battery) ....... 630
Maintenance (Replacing) ................. 632, 633
Belts (Seat) .................................................. 40
Beverage Holders ..................................... 234
Blank ......................................................... 139
Blind spot information System ................ 506
Bluetooth ® Audio ..................................... 320
Bluetooth ® HandsFreeLink ®................... 435
Blu-ray/DVD Rear Entertainment System ..................................................... 365
Audio Sources for Front and Rear Seats... 386
Auxiliary Console Panels.......................... 367
DVD or Blu-ray
TM Player Error Messages... 411
Front Control Panel Operation ................ 378
HDMI
TM Port............................................ 368 How Much Farther?
TM.............................. 385
Media Servers .......................................... 385
Operating the System .............................. 369
Overhead Screen ..................................... 368
Playable Disc Region Codes ..................... 409
Playable Disc Types .................................. 409
Playable Discs .......................................... 387
Playing a Disc in the Rear ......................... 383
Playing a DVD/Blu-ray
TM........................... 372
Playing a Video Using the HDMITM........... 384
Playing an iPod and a USB Flash Drive in the
Rear....................................................... 383
Playing Apps ............................................ 381
Rear DVD or Blu-ray
TM Menu .................... 373
Rear System Setup ................................... 379
Recommended Discs ................................ 410
Selecting the Audio Source using Front
Control Panel......................................... 378
Setting the DVD or Blu-ray
TM Menu .......... 380
System Controls .............................. 372, 382
System Settings ....................................... 376
Video Accessibility ................................... 370
Wireless Headphones .............................. 366
Booster Seats (For Children) ...................... 84
Brake System ............................................. 561
Anti-lock Brake System (ABS) ................... 567
Brake Assist System ................................. 568
Fluid ........................................................ 608
Foot Brake ............................................... 564
Indicator (Amber) ........................ 89, 90, 666
Indicator (Red) ........................... 88, 665, 666 Parking Brake .......................................... 561
Brightness Control (Instrument Panel) .... 205
Built-in Key ............................................... 147
Bulb Replacement .................................... 610
Back-Up Lights/Taillights .......................... 615
Brake, Rear Turn Signal Lights, and Rear Side Marker/Taillights .................................... 613
Front Side Marker Lights.......................... 612
Front Turn Signal Lights ........................... 611
High-Mount Brake Light .......................... 616
Parking/Daytime Running Lights .............. 610
Rear License Plate Light ........................... 616
Side Turn Signal/Emergency Indicator Lights .................................................... 612
Bulb Specifications ................................... 684
C
CabinTalk®.............................................. 461
CabinWatch ®........................................... 460
Car Wash Mode ........................................ 488
Carbon Monoxide Gas ............................... 85
Cargo Hooks ............................................. 237
Carrying Cargo ................................. 465, 467
Center Pocket ........................................... 233
Certification Label .................................... 686
Changing Bulbs ........................................ 610
Charging System Indicator ................. 92, 664
Child Safety ................................................. 67
Childproof Door Locks............................. 159
23 US ODYSSEY-31THR6500.book 697 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

699
Index
Adding to the Reserve Tank .................... 605
Overheating ............................................ 661
Temperature Gauge ................................ 127
Engine Oil ................................................. 600
Adding ................................................... 602
Checking ................................................ 601
Displaying Maintenance Minder Information ........................................... 592
Engine Oil Low Warning ......................... 663
Recommended Engine Oil ....................... 600
Engine Oil Low Warning ......................... 663
ENGINE START/STOP Button .................... 188
Exhaust Gas Hazard (Carbon Monoxide) .. 85
Exterior Care (Cleaning) .......................... 639
Exterior Mirrors ........................................ 210
F
Features.................................................... 257
File Manager ............................................ 285
Filters
Dust and Pollen....................................... 635
Oil .......................................................... 603
Flat Tire ..................................................... 647
Floor Mats ................................................ 637
Fluids Automatic Transmission .......................... 607
Brake ...................................................... 608
Engine Coolant ....................................... 605
Windshield Washer ................................. 609
FM/AM Radio ........................................... 297 Fog Light Indicator
..................................... 98
Folding Down the Rear Seats .......... 216, 221
Foot Brake ................................................. 564
Front Airbags (SRS) ..................................... 52
Front Seat Heaters .................................... 247
Front Seat Heaters and Seat Ventilation .............................................. 248
Front Seats ................................................ 212
Adjusting ................................................. 212
Fuel ...................................................... 27, 582
Economy ................................................. 585
Gauge ..................................................... 127
Instant Fuel Economy ............................... 133
Low Fuel Indicator ..................................... 94
Range ...................................................... 133
Recommendation .................................... 582
Refueling ................................................. 582
Fuel Economy ............................................ 585
Fuel Fill Door ....................................... 27, 583
Fuses .......................................................... 669
Inspecting and Changing ......................... 675
Locations ................................. 669, 671, 674
G
Gasoline (Fuel) Economy ................................................. 585
Gauge ..................................................... 127
Information ............................................. 582
Instant Fuel Economy ............................... 133
Low Fuel Indicator ..................................... 94 Refueling................................................. 582
Gauges ...................................................... 127
Gear Position Indicator .............................. 92
Glass (care) ........................................ 636, 641
Glove Box .................................................. 231
Grocery Bag Hooks ................................... 238
H
Handling the Unexpected ........................ 645
HandsFreeLink ® (HFL) ............................... 435
Automatic Import of Cellular Phonebook and Call History ..................................... 444
Automatic Transferring............................ 443
Displaying Messages................................ 454
Favorite Contacts .................................... 445
HFL Buttons............................................. 435
HFL Menus .............................................. 438
HFL Status Display ................................... 437
In Case of Emergency .............................. 458
Limitations for Manual Operation ............ 437
Making a Call .......................................... 447
Options During a Call .............................. 450
Phone Setup............................................ 440
Receiving a Call ....................................... 450
Receiving a Text Message ........................ 452
Ring Tone................................................ 443
Selecting a Phone .................................... 453
To Set Up a Text Message Options .......... 451
Hazard Warning Button .............................. 6
HD Radio
TM............................................... 299
23 US ODYSSEY-31THR6500.book 699 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

701
Index
K
Key Number Tag...................................... 147
Keyless Access with Push Button Start System ..................................................... 149
Keyless Lockout Prevention ..................... 155
Keys ........................................................... 146
Lockout Prevention ................................. 155
Number Tag............................................ 147
Rear Door Won’t Open ........................... 159
Remote Transmitter ................................ 153
Types and Functions................................ 146
Kickdown (Automatic Transmission) ...... 483
Knee Airbags .............................................. 57
L
Lane Keeping Assist System (LKAS) ........ 539
LATCH (Child Seats) ................................... 72
Lights ................................................ 192, 610
Automatic............................................... 193
Bulb Replacement ................................... 610
Daytime Running Lights .......................... 196
Fog Lights ............................................... 195
High Beam Indicator ................................. 97
Interior.................................................... 229
Light Switches......................................... 192
Lights On Indicator.................................... 98
Turn Signals ............................................ 191
Load Limits ............................................... 467
Locking/Unlocking ................................... 146
Auto Door Locking/Unlocking ................. 160 Childproof Door Locks ............................. 159
From Inside .............................................. 156
From Outside ........................................... 149
Keys ........................................................ 146
Using a Key ............................................. 154
Lockout Prevention System ...................... 155
Low Battery Charge .................................. 664
Low Fuel Indicator ...................................... 94
Low Keyless Remote Signal Strength ...... 148
Lower Anchors ............................................ 72
Luggage (Maximum Load Limit) ............. 467
M
Magic Slide® 2nd-Row Seats .................... 219
Maintenance ..................................... 137, 587
Battery .................................................... 630
Brake Fluid .............................................. 608
Cleaning .................................................. 636
Climate Control System ........................... 635
Coolant ................................................... 605
Maintenance Minder
TM............................ 591
Oil ........................................................... 601
Precautions .............................................. 588
Radiator .................................................. 606
Remote Contro l and Wireless
Headphones .......................................... 633
Remote Transmitter ................................. 632
Replacing Light Bulbs ............................... 610
Safety ...................................................... 589
Service Items ........................................... 594 Tires ........................................................ 621
Transmission Fluid ................................... 607
Under the Hood ...................................... 597
Malfunction Indicator Lamp .............. 91, 664
Map Light Switches .................................. 230
Maximum Load Limit ............................... 467
Meters, Gauges ......................................... 127
Mirrors ...................................................... 209
Adjusting ................................................ 209
Door ....................................................... 210
Exterior ................................................... 210
Interior Rearview ..................................... 209
Modifications (and Accessories) .............. 642
Moonroof ................................................. 187
MP3/WMA/AAC ................................ 313, 316
Multi-View Rear Camera .......................... 580
My Honda Music ....................................... 316
N
Navigation................................................ 134
Now Playing .............................................. 139
Numbers (Identification) .......................... 686
O
Odometer................................................. 129
Oil (Engine) ............................................... 600
Adding .................................................... 602
Checking................................................. 601
23 US ODYSSEY-31THR6500.book 701 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

703
Index
Seats.......................................................... 212
Adjusting ................................................ 212
Front Seats.............................................. 212
Seat Heaters ................................... 247, 248
Second Row Seats................................... 215
Third Row Seats ...................................... 220
Second Row Seats Adjusting ................................................ 215
Security System ........................................ 181
Immobilizer System Indicator..................... 98
Security System Alarm Indicator ................ 98
Select Buttons .................................... 24, 484
Operation ............................................... 486
Selecting a Child Seat ................................ 71
Settings Arrange Apps ......................................... 141
Show Tachometer ................................... 142
Shifting (Transmission) ............................ 484
Shoulder Anchor ........................................ 44
Show Tachometer .................................... 142
Show/Hide Apps ....................................... 140
Side Airbags ............................................... 60
Side Curtain Airbags .................................. 62
Siri Eyes Free ............................................. 331
SiriusXM ® Radio ....................................... 300
Sliding Doors ............................................ 172
Power Sliding Doors ................................ 174
Snow Mode Indicator ................................ 99
Snow Tires ................................................ 629
Social Playlist ............................................ 322
Spare Tire ......................................... 647, 685 Spark Plugs
................................................ 684
Specifications ............................................ 684
Specified Fuel .................................... 582, 684
Speedometer ............................................ 128
SRS Airbags (Airbags) ................................. 52
Starting the Engine .................................. 476
Does Not Start ......................................... 656
If the Battery Is Dead ............................... 659
Steering Wheel Adjusting ................................................. 208
Stopping .................................................... 569
Summer Tires ............................................ 629
Sunglasses Holder ..................................... 239
Supplemental Restraint System (SRS) ........ 52
Switches (Around the Steering Wheel) ............................................. 6, 7, 188
System Message Indicator .......................... 99
System Updates ........................................ 279
T
Tachometer............................................... 128
Tailgate ..................................................... 161
Unable to Open ....................................... 678
Temperature Gauge ..................................................... 127
Outside Temperature Display ................... 129
Temperature Gauge ................................. 127
Temperature Sensor ......................... 129, 256
Third Row Seat Access .............................. 216
Time (Adjusting) ....................................... 144 Tire Pressure
............................................. 137
Tire Pressure Monitoring System (TPMS)
Indicator............................................ 97, 667
Tires ........................................................... 621
Air Pressure ..................................... 622, 685
Checking and Maintaining ...................... 621
Inspection ............................................... 621
Labeling .................................................. 622
Puncture (Flat Tire) .................................. 647
Regulations ............................................. 624
Rotation .................................................. 628
Spare Tire ........................................ 647, 685
Summer .................................................. 629
Tire Chains .............................................. 629
Wear Indicators ....................................... 626
Winter..................................................... 629
Tools .......................................................... 646
Towing a Trailer ....................................... 470
Equipment and Accessories ..................... 471
Load Limits .............................................. 470
Towing Your Vehicle ................................ 475
Emergency .............................................. 676
TPMS (Tire Pressure Monitoring System) Indicator............................................ 97, 667
Traffic Sign Recognition System .............. 553
Transmission ............................................. 484
Automatic ............................................... 483
Fluid ........................................................ 607
Gear Position Indicator .............................. 92
Number................................................... 686
23 US ODYSSEY-31THR6500.book 703 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

704
Index
Transmission SystemIndicator ............................................ 93, 668
Trip Computer ........................................... 132
Trip Meter ................................................. 133
Troubleshooting ....................................... 645
Blown Fuse .............................. 669, 671, 674
Brake Pedal Vibrates .................................. 31
Buzzer Sounds When Opening Door .......... 32
Emergency Towing .................................. 676
Engine Won’t Start .................................. 656
Noise When Braking .................................. 32
Overheating............................................. 661
Puncture/Flat Tire ..................................... 647
Sliding Door Won’t Open................... 31, 159
Warning Indicators ............................ 88, 663
Turn Signals ............................................... 191
Indicators (Instrum ent Panel) ...................... 97
U
Units.......................................................... 138
Unlocking the Doors ................................. 149
Unlocking the Front Doors from the Inside ................................................. 156
USB Flash Drives ................................ 313, 344
USB Ports ................................................... 259
Using the Keyless Access System .............. 149
V
Vanity Mirrors............................................... 9
Vehicle Identification Number ................ 686
Vehicle Stability Assist
TM (VSA ®) .............. 499
Off Button............................................... 500
Off Indicator.............................................. 96
System Indicator ........................................ 96
Viscosity (Oil) .................................... 600, 685
Voice Control Operation .......................... 294
Audio Commands ................................... 296
Phone Commands ................................... 296
Voice Portal Screen.................................. 295
Voice Recognition ................................... 294
VSA ® (Vehicle Stability Assist
TM) .............. 499
W
Wallpaper ................................................. 269
Warning and Information Messages ....... 108
Warning Indicator On/Blinking ............... 663
Warning Labels ........................................... 86
Warnings ................................................... 136
Warranties (Warranty Manual provided separately) .............................................. 691
Watts ......................................................... 684
Wear Indicators (Tire) .............................. 626
Wheel Nut Wrench (Jack Handle) ........... 650
Wi-Fi Connection ...................................... 329
Window Washers ..................................... 200
Adding/Refilling Fluid .............................. 609
Switch ..................................................... 200 Windows (Opening and Closing)
............ 184
Windshield ............................................... 200
Cleaning ......................................... 636, 641
Defrosting............................................... 252
Washer Fluid ........................................... 609
Wiper Blades........................................... 617
Wipers and Washers ............................... 200
Winter Tires
Snow Tires .............................................. 629
Tire Chains.............................................. 629
Wipers and Washers ................................ 200
Checking and Replaci ng the Front Wiper
Blades ................................................... 617
Checking and Replaci ng the Rear Wiper
Blade .................................................... 619
Wireless Charger ...................................... 243
Worn Tires ................................................ 621
23 US ODYSSEY-31THR6500.book 704 ページ ２０２２年１月２４日　月曜日　午前１１時３５分
