overheating HONDA ODYSSEY 2023 Owners Manual

Contents
Child Safety P. 67Exhaust Gas Hazard P. 85Safety Labels P. 86
Tailgate P. 161 Sliding Doors P. 172
Moonroof* P. 187 Operating the Switches Around the Steering Wheel P. 188
Interior Convenience Items P. 229 Climate Control System P. 250
Audio Error Messages P. 339General Information on the Audio System P. 341
Customized Features P. 413 HomeLink® Universal Transceiver* P. 432 Bluetooth ® HandsFreeLink ® P. 435
When Driving P. 476 Honda Sensing® P. 509 Braking P. 561
Refueling P. 582 Fuel Economy and CO
2 Emissions P. 585
Maintenance Under the Hood P. 597 Replacing Light Bulbs P. 610
Checking and Maintaining Tires P. 621 Battery P. 630 Remote Transmitter Care P. 632
Climate Control System Maintenance P. 635 Clea ning P. 636 Accessories and Modifications P. 642
Engine Does Not Start P. 656If the Battery Is Dead P. 659Overheating P. 661
Emergency Towing P. 676 If You Cannot Unlock the Fuel Fill Door P. 677
When You Cannot Close the Power S liding Doors P. 680 Refueling P. 681
Devices that Emit Radio Waves P. 687 Reporting Safety Defects P. 688 Emissions Testing P. 689
Customer Service Information P. 695
Quick Reference GuideP. 6
Safe DrivingP. 35
Instrument PanelP. 87
ControlsP. 143
FeaturesP. 257
DrivingP. 463
MaintenanceP. 587
Handling the UnexpectedP. 645
InformationP. 683
IndexP. 696
23 US ODYSSEY-31THR6500.book 5 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

30
Quick Reference Guide
Handling the Unexpected (P645)
Flat Tire (P647)
●Park in a safe location and replace the
flat tire with the compact spare tire under
the floor between the front seats and the
second row seats.
Indicators Come On
(P 663)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P656)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P669)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P661)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P676)
●Call a professional towing service if you
need to tow your vehicle.
23 US ODYSSEY-31THR6500.book 30 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

111
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when the engine coolant temperature gets
abnormally high.
2 Overheating P. 661
•Appears when there is a problem with the power
tailgate system.
• Manually open or close the power tailgate.
• Have your vehicle checked by a dealer.
•Appears when the starter system has a problem.•As a temporary measure, press and hold the ENGINE
START/STOP button for up to 15 seconds while
pressing the brake pedal and manually start the engine.
• Have your vehicle checked by a dealer.
U.S.
CanadaModels with power tailgate
U.S.
Canada
23 US ODYSSEY-31THR6500.book 111 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

116
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when you press and hold (N button for
more than two seconds.• Disappears when you set the gear position to other
than
(N.
2 If you want to keep the transmission in (N
position [car wash mode] P. 488
•Appears if there is a problem with the cooling
system.•Drive slowly to prevent overheating and have your
vehicle checked by a deal er as soon as possible.
•Appears if there is a problem with the headlights.•Appears while driving - The headlights may not be
on. When conditions allow you to drive safety, have
your vehicle checked by a dealer as soon as possible.
•Appears if there is a problem with the parking sensor
system.
•Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on or the
beeper does not stop even after you clean the area,
have the system checked by a dealer.Models with parking sensor system
23 US ODYSSEY-31THR6500.book 116 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

127
Instrument Panel
Gauges and Driver Information Interface
Gauges
Gauges include the fuel gauge, temperature gauge, and related indicators. They are
displayed when the power mode is set to ON.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
■Fuel Gauge
■Temperature Gauge
1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal. 2 Overheating P. 661
23 US ODYSSEY-31THR6500.book 127 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

621
Maintenance
Checking and Maintaining Tires
Checking Tires
To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.
■Inflation guidelines
Properly inflated tires provide the best combination of handling, tread life, and
comfort. Refer to the driver’s doorjamb labe l or specifications page for the specified
pressure.
Underinflated tires wear unev enly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.
Overinflated tires make your vehicle ride ha rshly, are more prone to road hazards,
and wear unevenly.
Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.
At least once a month or before long trips , use a gauge to measure the pressure in
all tires, including the spare. Even tires in good condition can lose 1-2 psi (10-20 kPa,
0.1-0.2 kgf/cm
2) per month.
■Inspection guidelines
Every time you check inflation, also examine the tires and valve stems. Look for:
• Bumps or bulges on the side or in the tread. Replace the tire if you find any cuts,
splits, or cracks in the side of the tire . Replace it if you see fabric or cord.
• Remove any foreign objects and inspect for air leaks.
• Uneven tread wear. Have a deal er check the wheel alignment.
• Excessive tread wear.
2 Wear Indicators P. 626
•Cracks or other damage around valve stem.
1Checking Tires
Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or releas e air until the specified
pressure is reached.
If checked when hot, tire pressure can be as much as
4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm
2) higher than if
checked when cold.
Have a dealer check the tires if you feel a consistent
vibration while driving. Ne w tires and any that have
been removed and reinst alled should be properly
balanced.
3WARNING
Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding ti re inflation and
maintenance.
23 US ODYSSEY-31THR6500.book 621 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

645
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 646
If a Tire Goes Flat Changing a Flat Tire ......................... 647
Engine Does Not Start Checking the Engine ........................ 656
If the Remote Battery is Weak .......... 657
Emergency Engine Stop ................... 658
If the Battery Is Dead ....................... 659
Overheating How to Handle Overheating ............. 661
Indicator, Coming On/Blinking
If the Engine Oil Low Warning Appears ....... 663
If the Charging System Indicator Comes
On ................................................. 664
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 664
If the Brake System Indicator (Red) Comes
On or Blinks ................................... 665
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On ..... 666
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 667
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks........................ 667 If the Transmission System Indicator Blinks
along with the Warning Message... 668
Fuses Fuse Locations ................................. 669
Inspecting and Changing Fuses ........ 675
Emergency Towing ........................... 676
If You Cannot Unlock the Fuel Fill Door ... 677
If You Cannot Open the Tailgate .... 678
When You Cannot Close the Power Sliding Doors ................................... 680
Refueling
Refueling From a Portable Fuel Container .... 681
23 US ODYSSEY-31THR6500.book 645 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

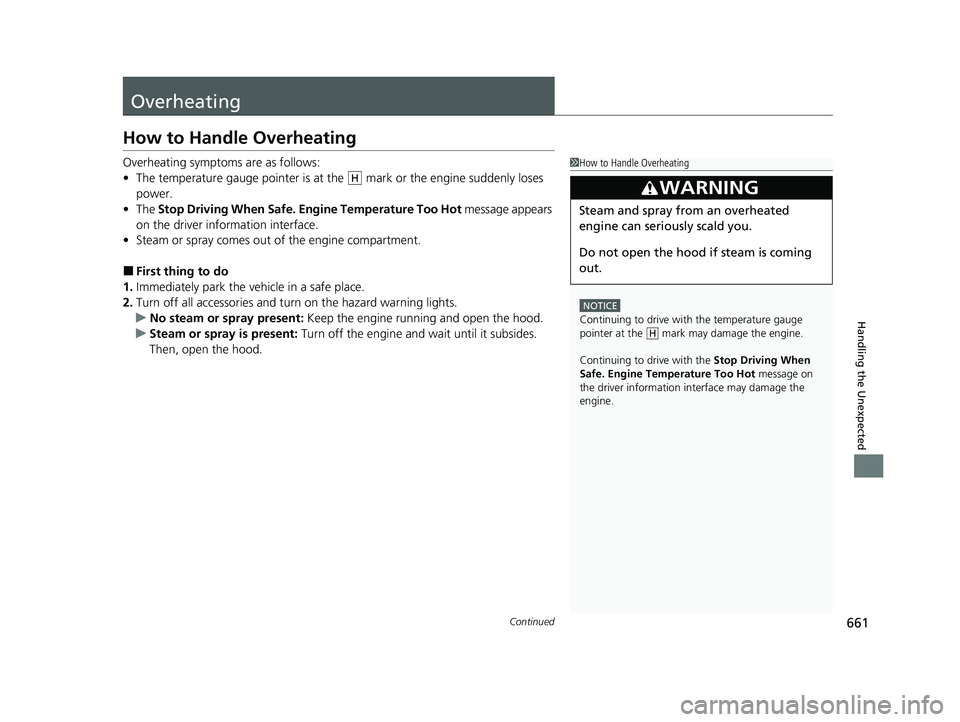

661Continued
Handling the Unexpected
Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•The temperature gauge pointer is at th e mark or the engine suddenly loses
power.
• The Stop Driving When Safe. Engine Temperature Too Hot message appears
on the driver information interface.
• Steam or spray comes out of the engine compartment.
■First thing to do
1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present: Keep the engine running and open the hood.
u Steam or spray is present: Turn off the engine and wait until it subsides.
Then, open the hood.
1 How to Handle Overheating
NOTICE
Continuing to drive with the temperature gauge
pointer at the mark may damage the engine.
Continuing to drive with the Stop Driving When
Safe. Engine Temperature Too Hot message on
the driver information interface may damage the
engine.
3WARNING
Steam and spray from an overheated
engine can seri ously scald you.
Do not open the hood if steam is coming
out.
H
H
23 US ODYSSEY-31THR6500.book 661 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

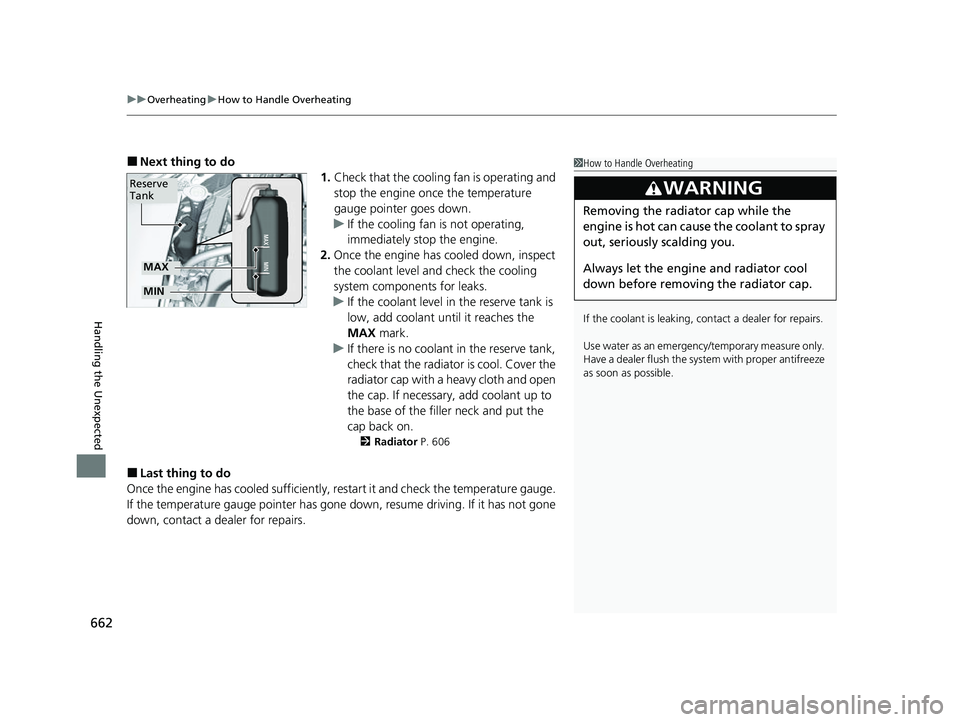

uuOverheating uHow to Handle Overheating
662
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once the temperature
gauge pointer goes down.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck and put the
cap back on.
2 Radiator P. 606
■Last thing to do
Once the engine has cooled sufficiently, re start it and check the temperature gauge.
If the temperature gauge pointer has gone down, resume driving. If it has not gone
down, contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
MAX
Reserve
Tank
MIN
23 US ODYSSEY-31THR6500.book 662 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

698
Index
Child Seat.................................................... 67
Booster Seats ............................................. 84
Child Seat for Infants ................................. 69
Child Seat for Small Children ..................... 70
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 77
Larger Children .......................................... 83
Rear-facing Child Seat ............................... 69
Selecting a Child Seat ................................ 71
Using a Tether ........................................... 79
Childproof Door Locks .............................. 159
Cleaning the Exterior ............................... 639
Cleaning the Interior ................................ 636
Climate Control System ............................ 250
Changing the Mode ................................ 250
Defrosting the Windshield and Windows ............................................... 252
Dust and Pollen Filter ............................... 635
Recirculation/Fresh Air Mode ................... 252
Sensors .................................................... 256
Using Automatic Climate Control ............ 250
Clock .......................................................... 144
Coat Hooks ................................................ 236
Compact Spare Tire .......................... 647, 685
Console Box ............................................... 232
Console Compartment with Lid ............... 233
Controls ..................................................... 143
Coolant (Engine) ....................................... 605
Adding to the Radiator ............................ 606
Adding to the Reserve Tank ..................... 605
Overheating............................................. 661 Temperature Gauge ................................ 127
Creeping (Automatic
Transmission) .................................. 481, 483
Cup Holders .............................................. 234
Customer Service Information ................. 695
Customized Features ................................ 413
D
Daytime Running Lights .......................... 196
Dead Battery ............................................. 659
Defaulting All the Settings ...................... 431
Defrosting the Windshield and
Windows ................................................. 252
Detachable Anchor .................................... 45
Devices that Emit Radio Waves ............... 687
Dimming Headlights ............................................... 192
Rearview Mirror....................................... 209
Dipstick (Engine Oil) ................................. 601
Directional Signals (Turn Signal) ............. 191
Door Mirrors ............................................. 210
Doors ......................................................... 146
Auto Door Locking .................................. 160
Auto Door Unlocking .............................. 160
Door and Tailgate Open Message .............. 39
Keys ........................................................ 146
Locking/Unlocking the Doors from the Inside .............................................. 156
Locking/Unlocking the Doors from
the Outside ........................................... 149 Lockout Prevention System ..................... 155
DOT Tire Quality Grading ........................ 624
Driver Information Interface ................... 128
Accessing Content .................................. 130
Warning and Information Messages ........ 108
Driving ...................................................... 463
Automatic Transmission .......................... 483
Braking ................................................... 561
Shifting Gear .......................................... 484
Starting the Engine ................................. 476
Driving Position Memory System ............ 206
Dust and Pollen Filter .............................. 635
E
Eco Assist® System ...................................... 13
Econ Mode Indicator ................................................... 99
Electric Power Steering (EPS) System Indicator ........................................... 96, 667
Electronic Stability Control (ESC) ............ 499
Emergency ................................................ 676
Emergency Engine Stop ........................... 658
Emissions Testing (Readiness Codes) ...... 689
Engine ....................................................... 686
Coolant .................................................. 605
If the Battery Is Dead............................... 659
Oil .......................................................... 600
Starting................................................... 476
Engine Coolant ........................................ 605
Adding to the Radiator ........................... 606
23 US ODYSSEY-31THR6500.book 698 ページ ２０２２年１月２４日　月曜日　午前１１時３５分
