Additiona
l Safet y
Precaution s
Use child-safe door locks to
prevent children from opening the doors. Using this feature
will prevent children from
opening the doors and
accidentally falling out (see
page 101). Use the main power window
switch to prevent children
from opening the rear windows. Using this feature
will prevent children from
playing with the windows, which could expose them to
hazards or distract the driver (see page 103). Do not leave children alone in
your vehicle. Leaving children without adult supervision isillegal in most states and can be
very hazardous. For example, infants and small children left
in a vehicle on a hot day can
die from heat stroke. And
children left alone with the key in the ignition can accidentally
set the vehicle in motion,
possibly injuring themselves or
others.
Genera l Guideline s fo r
Usin g Chil d Seat s
The following pages give general guidelines for selecting and
installing child seats for infants
and small children.
Selecting a Child Seat
To provide proper protection,
a child seat should meet three
requirements:1 . The child seat should meet
safety standards. Th
e child
seat should meet Federal
Motor Vehicle Safety Standard
213 (FMVSS 213). Look for
the manufacturer's statement
of compliance on the box and
seat.
2 . The child seat should be of
the proper type
and
size to fit
the child.
Drive r an d Passenge r Safet y
Page 41 of 267
To fasten the belt, insert the latch
plate into the buckle, then tug on
the belt to make sure the buckle is
latched.
To unlock the belt, push the red PRESS button on the buckle.
Guide the belt across your body to
the door pillar. After exiting the
vehicle, be sure the belt is out of
the way and will not get closed in
the door.
All lap/shoulder belts have an emergency locking retractor. In
normal driving, the retractor lets
you move freely in your seat while it keeps some tension on the
belt. During a collision or suddenstop, the retractor automatically
locks the belt to help restrain your
body.
Drive r an d Passenge r Safet y
Additiona
l Informatio n Abou t You r Sea t Belt s
Sea t Bel t Syste m
Component s
Your seat belt system includes
lap/shoulder belts in the front seats and the outer back seats, and
a lap belt in the center back seat.
Lap/Shoulde
r Bel t
This seat-belt has a single belt that
goes over your shoulder, across
your chest, and across your hips.
The system also includes
a light on the instrument
panel to remind you and your
passengers to fasten your belts. If the driver's seat belt is not
fastened before the ignition is turned ON (II), the light will come
on and a beeper will also sound.
The beeper will stop after a few seconds, but the light will stay on
until the driver's seat belt is
fastened.
Page 44 of 267
Sensors that can detect a
moderate to severe frontal
collision.
A sophisticated electronic system that continually
monitors the sensors, control unit, the airbag activators and
all related wiring when the
ignition is ON (II).
An indicator light on the instrument panel to alert you to
a possible problem with the
system (see page 42).
Emergency backup power in
case your vehicle's electrical system is disconnected in a
crash.
Ho
w You r Airbag s Wor k
If you ever have a moderate to severe frontal collision, the
sensors will detect rapid
deceleration and signal the control
unit to instantly inflate the
airbags.
During a crash, your seat belt
helps restrain your lower body and torso. Your airbag provides a
cushion to help restrain and
protect your head and chest.
Since both airbags use the same
sensors, both airbags normally
inflate at the same time. However, it is possible for only one airbag
to inflate.
This can occur when the severity of a collision is at the margin, or
threshold, that determines whether
or not the airbags will deploy. Insuch cases, the seat belt will
provide sufficient protection and the supplemental protection
provided by the airbag would be minimal.
Drive r an d Passenge r Safet y
Page 45 of 267
After inflating, the airbags
immediately deflate so they won't
interfere with the driver's
visibility, or the ability to steer or
operate other controls.
The total time for inflation and
deflation is approximately
one-tenth of a second, so fast that most occupants are not aware that
the airbags deployed until they
see them lying in their laps. After a crash, you may see what
looks like smoke. This is actually
powder from the airbag's surface.
Although the powder is not
harmful, people with respiratory problems may experience some
temporary discomfort. If this
occurs, get out of the vehicle as soon as it is safe to do so.
For additional information on how
your airbags work, see the booklet titled SRS: What You Need to
Know About Airbags that came with your owner's manual. Ho
w You r SR S Indicato r
Ligh t Work s
The purpose of the SRS light is to alert you to a
potential problem with your Supplemental Restraint System.
When you turn the ignition ON
(II), this indicator will blink seven
times, then go out. This tells you
that the system is working
properly.
However, if the light comes on at
any other time, you should have
the system checked by your
dealer. For example:
If the SRS indicator light does
not come on after you turn the
ignition ON (II).
Drive r an d Passenge r Safet y
AI
R
BA G
Page 53 of 267
Interio
r
D IGNITION SWITCH
See page 97.
E STARTING THE ENGINE
See page 153.
F GAUGES
See page 56.
G ADJUSTING REAR AND
SIDE VIEW MIRRORS
See page 101.
H SHIFTING
For automatic, see page 74.
For manual, see page 81.
For four-wheel drive, see pages
78 and 82.
I
PARKING BRAKE
See page 84.
J HEADLIGHTS
See page 70.
K WINDSHIELD WIPERS
See page 68.
L TURN SIGNALS
See page 73.
M HEATER CONTROLS
See page 116.
N MAP LIGHT AND
MOONROOF
See pages 108. O
PUTTING FUEL IN
THE VEHICLE
See page 193.
Of f t o a Goo d Star t
Page 68 of 267
as indicated by the "U/S" (upshift)
light on the instrument panel.
If vehicle speed drops below
20 mph (30 km/h), or if the
engine is not running smoothly,
you should downshift to the next lower gear. You may need to
downshift two or more gears to
keep the engine running smoothly or for satisfactory performance.
This indicator comes on for a fewseconds when you turn the
ignition switch to the "ON"
position. 4-Whee
l Driv e
(4WD ) Indicato r
4WD models only
This indicator lights when the 4-Wheel Drive system is engaged.
With the 4WD-2WD switch in the "OFF" or 2WD position, this light
will come on to provide a "bulb
check" when the key is turned to the "ON" position, but should go
out after the engine is started.
If the 4WD-2WD switch is in the "ON" or 4WD position, this light
will come on when the key is
turned to the "ON" position and
remain on after the engine is
started.
Anti-Loc
k Indicato r
This light will come on and go out when the ignition switch is turned
to the "ON" position. (If the light
does not come on, see your Honda
dealer to have the system
repaired.)
If the light remains on after
engine start-up or comes on
during operation of the vehicle, stop as soon as possible and turn
the key off. Then start the engine
to reset the system. If the light stays on, or it comes on again
while you're driving, the anti-lock
brake system should be checked at your Honda dealer.
Until you get it fixed, you'll have
normal brakes, but you won't
have anti-lock.
Instrument s an d Control s
AB
S
Page 69 of 267
Chec
k Automati c
Transmissio n Indicato r
The indicator light comes on for a
few seconds when the ignition
switch is turned to the "ON"
position.
If the light flashes, it means the
computer controlling the
transmission has found a problem.
Have the automatic transmission checked by your Honda dealer as
soon as possible. You can safely
drive the vehicle while the light is
flashing, but the computer may
put the transmission into its "backup mode."
In the backup mode, the
transmission may not shiftautomatically. If the transmission
does not shift automatically, you must move the shift lever to
change gears. This chart shows the shift lever position and the
gear range that will result. "L" position First gear
"2" position Third gear
"3" position Fourth gear
"D" position Fourth gear
When the transmission is in
backup mode and does not shift
automatically, you should move
the selector lever to the
appropriate position for your
driving needs, as follows:
Select "3" or "D" for high speed
driving (over 50 mph, 80 km/h).
Select "2" for moderate speed
driving (between 15 mph [25
km/h] and 50 mph [80 km/h]).
Select "L" when starting from a
stop, driving up or down a steep
hill, or for engine braking when
towing a trailer downhill.
Do not exceed 65 mph (45 mph if
towing a trailer).
Instrument s an d Control s
Page 70 of 267
Depending on the type of problem,
the "CHECK TRANS" light will
flash but the transmission may continue to shift automatically. If
the transmission is shifting
normally, you do not have tochoose gears with the shift lever.
However, continued operation of the vehicle with this light flashingcan cause serious mechanical
damage. You should have the vehicle serviced by your Honda
dealer as soon as possible.
Winte r Driv e Indicato r
Automatic Transmission only
The "Winter Drive" light will
come on when you push the
Winter Drive button with the
engine running and the
transmission lever in the "D"
range.
It also comes on for a few seconds
when you turn the ignition switch
to the "ON" position.
Refer to "Driving PatternSelector" later in this section.
Powe r Driv e Indicato r
Automatic Transmission only
The "Power Drive" light will
come on when you push the
Power Drive button with the
engine running.
It also comes on for a few seconds
when you turn the ignition switch
to the "ON" position.
Refer to "Driving PatternSelector" later in this section.
Instrument s an d Control s
NOTIC
E
Page 71 of 267

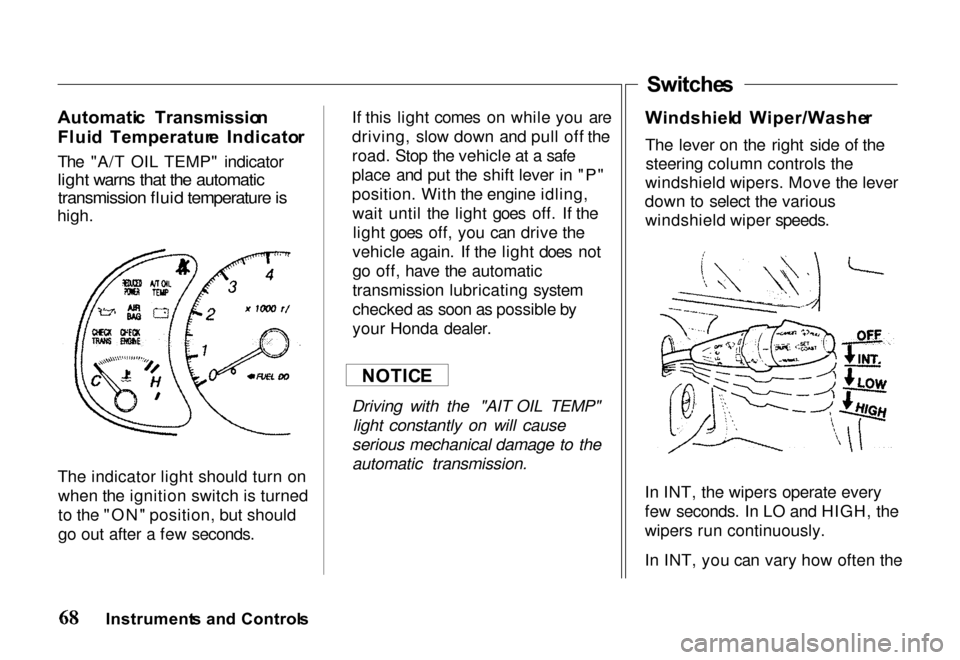

Automati
c Transmissio n
Flui d Temperatur e Indicato r
The "A/T OIL TEMP" indicator
light warns that the automatic
transmission fluid temperature is
high.
The indicator light should turn onwhen the ignition switch is turned
to the "ON" position, but should
go out after a few seconds. If this light comes on while you are
driving, slow down and pull off the
road. Stop the vehicle at a safe
place and put the shift lever in "P"
position. With the engine idling,
wait until the light goes off. If thelight goes off, you can drive the
vehicle again. If the light does not
go off, have the automatic
transmission lubricating system
checked as soon as possible by
your Honda dealer.
Driving with the "AIT OIL TEMP" light constantly on will cause
serious mechanical damage to the
automatic transmission. Windshiel
d Wiper/Washe r
The lever on the right side of the steering column controls the
windshield wipers. Move the lever
down to select the various windshield wiper speeds.
In INT, the wipers operate every
few seconds. In LO and HIGH, the
wipers run continuously.
In INT, you can vary how often the
Instrument s an d Control s
Switche
s
NOTIC E
Page 74 of 267
Headlights-On Reminder
You will hear a continuous tone
when the key is out of the ignitionswitch and the driver's door is
opened with the headlight switch in the "ON" position. This will
remind you to turn the headlights off. Never leave the headlights onwhen the engine is not running.
They can rapidly discharge the
battery.
Fo
g Light s
EX model only
When fog or heavy mist reducesyour forward vision, push thisswitch to turn the fog lights on.
The indicator light in the switch
turns on. Push the switch again to turn off the fog lights.
The fog lights operate only when the headlight low beams are in
use.
Illuminatio
n Contro l
The instrument panel lights turn on when the light switch is on.
Brightness of the instrument panel
lights is controlled by turning the illumination control knob
clockwise for brighter or counterclockwise for dimmer.
Instrument s an d Control s
DIMMER BRIGHTE
R
