service indicator HONDA PASSPORT 2019 Owner's Manual (in English)

26

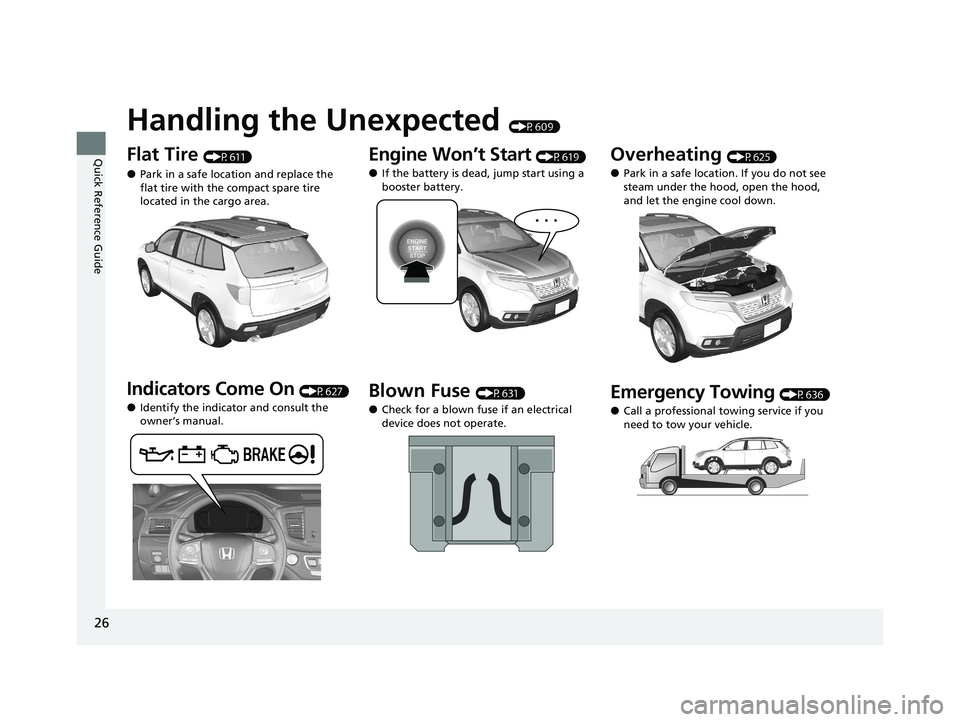

Quick Reference Guide
Handling the Unexpected (P609)
Flat Tire (P611)
●Park in a safe location and replace the
flat tire with the compact spare tire
located in the cargo area.
Indicators Come On (P627)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P619)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P631)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P625)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P636)
●Call a professional towing service if you
need to tow your vehicle.
19 PASSPORT-31TGS6020.book 26 ページ ２０２０年２月２０日　木曜日　午後３時２９分

552
Driving

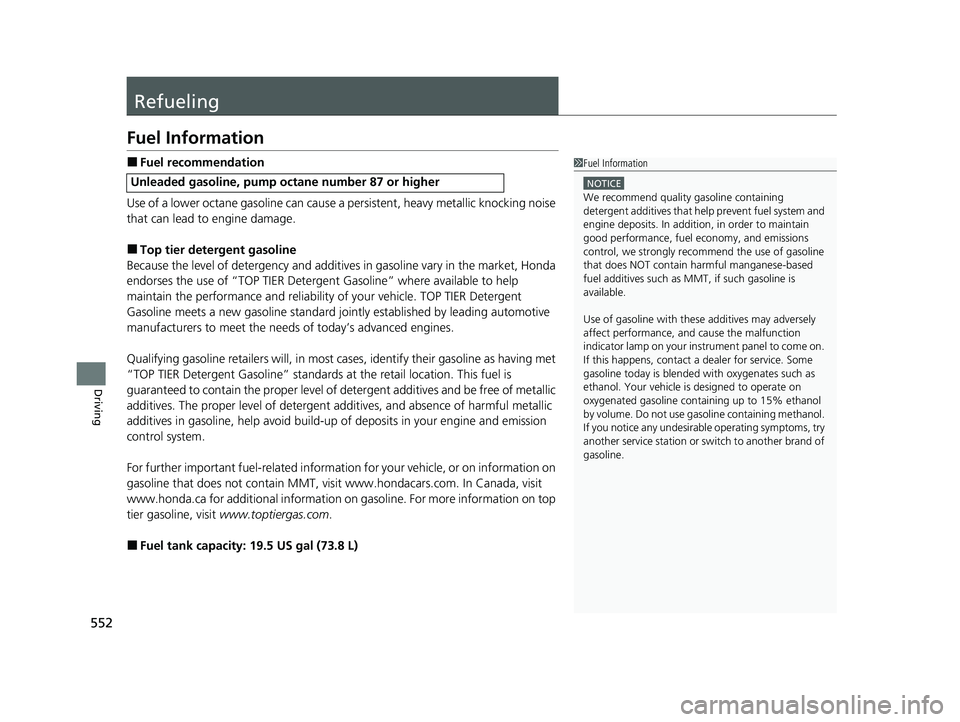

Refueling
Fuel Information
■Fuel recommendation
Use of a lower octane gasoline can cause a persistent, heavy metallic knocking noise
that can lead to engine damage.
■Top tier detergent gasoline
Because the level of detergency and additive s in gasoline vary in the market, Honda
endorses the use of “TOP TIER Deterg ent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard join tly established by leading automotive
manufacturers to meet the need s of today’s advanced engines.
Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of detergent additives and be free of metallic
additives. The proper level of detergent additives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.
For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, visit www.hondacars.com. In Canada, visit
www.honda.ca for additional information on gasoline. For more information on top
tier gasoline, visit www.toptiergas.com .
■Fuel tank capacity: 19.5 US gal (73.8 L)
Unleaded gasoline, pump octane number 87 or higher
1Fuel Information
NOTICE
We recommend quality ga soline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly reco mmend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.
Use of gasoline with these additives may adversely
affect performance, a nd cause the malfunction
indicator lamp on your inst rument panel to come on.
If this happens, contact a dealer for service. Some
gasoline today is blended with oxygenates such as
ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use ga soline containing methanol.
If you notice any undesira ble operating symptoms, try
another service station or sw itch to another brand of
gasoline.
19 PASSPORT-31TGS6020.book 552 ページ ２０２０年２月２０日　木曜日　午後３時２９分

557
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 558
Safety When Performing Maintenance..... 559Parts and Fluids Used in Maintenance Service ........................................... 560
Maintenance Minder
TM..................... 561
Maintenance Under the Hood
Maintenance Items Under the Hood ..... 567Opening the Hood ........................... 568
Engine Compartment Cover ............. 569
Recommended Engine Oil ................ 570
Oil Check ......................................... 571
Adding Engine Oil ............................ 572
Changing the Engine Oil and Oil Filter ..... 573Engine Coolant ................................ 575
Transmission Fluid ............................ 577
Brake Fluid ....................................... 578
Refilling Window Wa sher Fluid......... 578
Replacing Light Bulbs ....................... 579
Checking and Maintaining Wiper
Blades .......................................... 584
Checking and Maintaining Tires
Checking Tires ................................. 588
Tire and Loading Information Label .. 589
Tire Labeling .................................... 589
DOT Tire Quality Grading (U.S. Vehicles) .. 591
Wear Indicators ............................... 593
Tire Service Life ................................ 593
Tire and Wheel Replacement ........... 594
Tire Rotation .................................... 595
Winter Tires ..................................... 596
Battery ............................................... 597
Remote Transmitter Care ................. 599
Climate Control System Maintenance..... 600Cleaning
Interior Care .................................... 602
Exterior Care.................................... 604
Accessories and Modifications ........ 607
19 PASSPORT-31TGS6020.book 557 ページ ２０２０年２月２０日　木曜日　午後３時２９分

563
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
*1:Models with color audio system
*2:Models with Display Audio

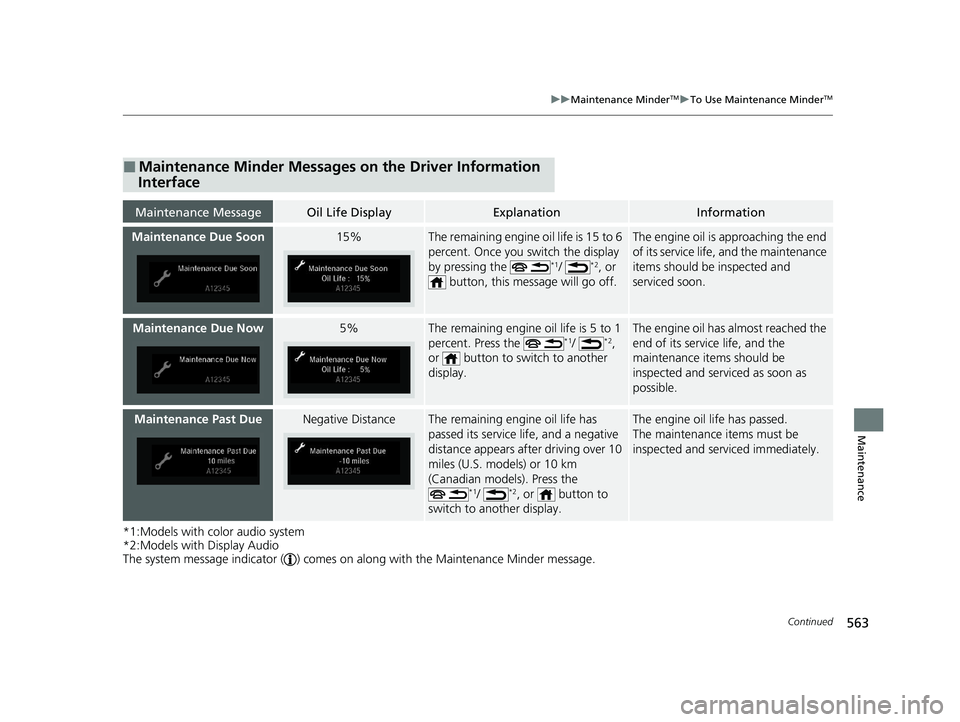

The system message indicator ( ) comes on along with the Maintenance Minder message.
■Maintenance Minder Messages on the Driver Information
Interface
Maintenance MessageOil Life DisplayExplanationInformation
Maintenance Due Soon15%The remaining engine oil life is 15 to 6
percent. Once you switch the display
by pressing the
*1/ *2, or
button, this mess age will go off.
The engine oil is approaching the end
of its service life, and the maintenance
items should be inspected and
serviced soon.
Maintenance Due Now5%The remaining engine oil life is 5 to 1
percent. Press the *1/ *2,
or button to switch to another
display.
The engine oil has almost reached the
end of its service life, and the
maintenance items should be
inspected and servic ed as soon as
possible.
Maintenance Past DueNegative DistanceThe remaining engine oil life has
passed its service life, and a negative
distance appears after driving over 10
miles (U.S. models) or 10 km
(Canadian models). Press the
*1/ *2, or button to
switch to another display.
The engine oil life has passed.
The maintenance items must be
inspected and serviced immediately.
19 PASSPORT-31TGS6020.book 563 ページ ２０２０年２月２０日　木曜日　午後３時２９分

564
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance

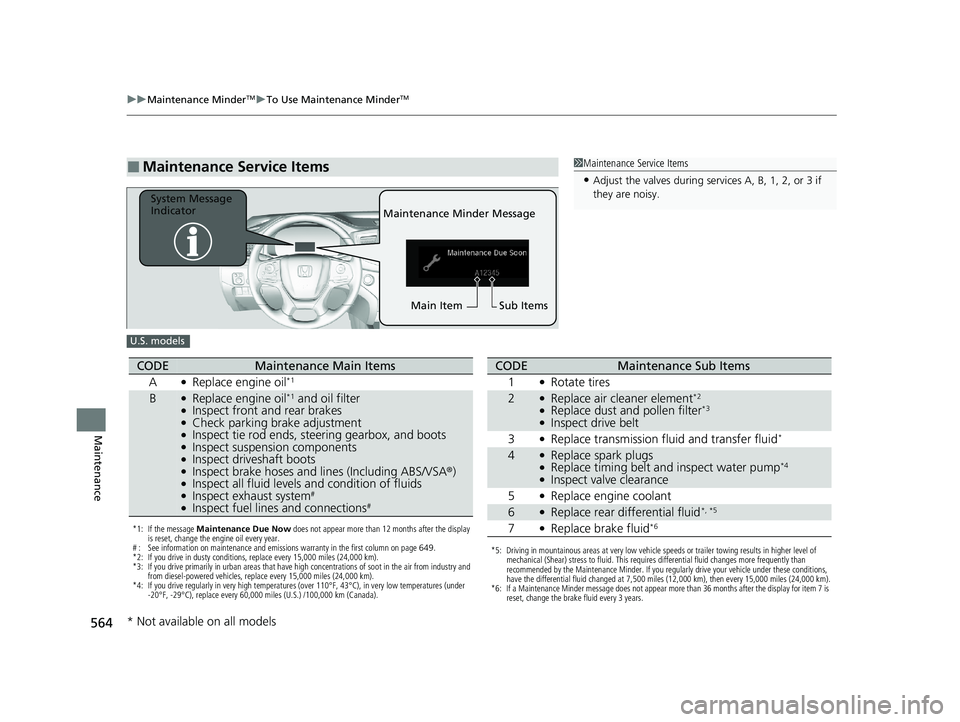

■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If the message Maintenance Due Now does not appear more than 12 months after the display
is reset, change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 649.
*2: If you drive in dusty conditions, replace every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace every 15,000 miles (24,000 km).
*4: If you drive regularly in very high temperatures (over 110°F, 43°C), in very low temperatures (under -20°F, -29°C), replace every 60,000 miles (U.S.) /100,000 km (Canada).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*5: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher level of
mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than
recommended by the Maintenance Minder. If you regularly drive your vehicle under these conditions,
have the differential fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
*6: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid and transfer fluid*
4●Replace spark plugs●Replace timing belt and inspect water pump*4
●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*, *5
7●Replace brake fluid*6
* Not available on all models
19 PASSPORT-31TGS6020.book 564 ページ ２０２０年２月２０日　木曜日　午後３時２９分

593
uuChecking and Maintaining Tires uWear Indicators
Maintenance

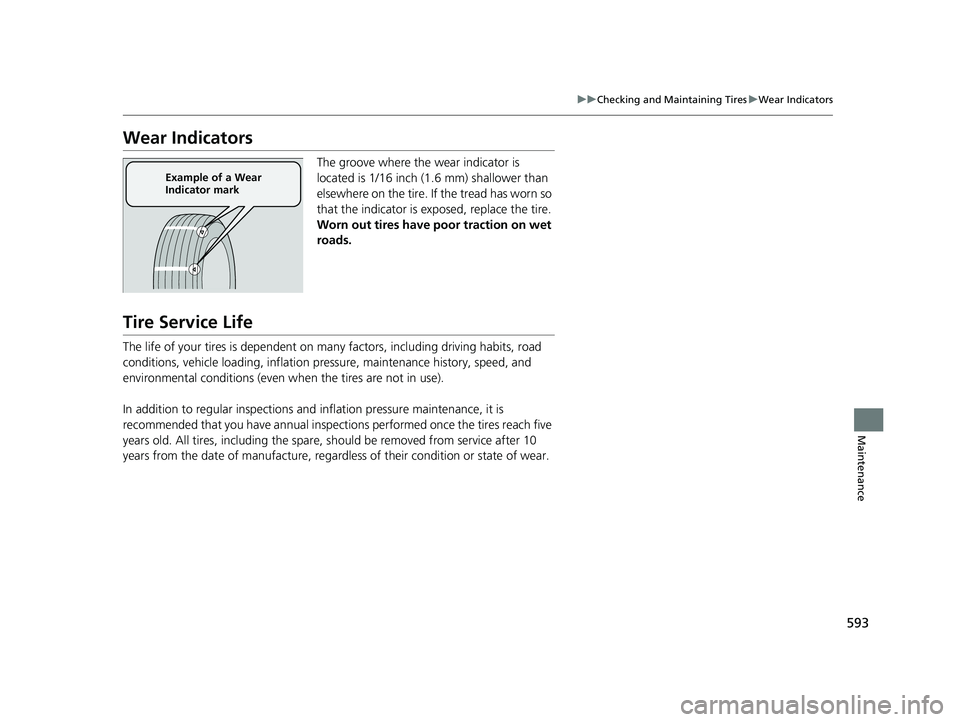

Wear Indicators
The groove where the wear indicator is
located is 1/16 inch (1.6 mm) shallower than
elsewhere on the tire. If the tread has worn so
that the indicator is ex posed, replace the tire.
Worn out tires have po or traction on wet
roads.
Tire Service Life
The life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even wh en the tires are not in use).
In addition to regular inspections and in flation pressure maintenance, it is
recommended that you have annual inspections performed once the tires reach five
years old. All tires, including the spare, should be removed from service after 10
years from the date of manufacture, regardle ss of their condition or state of wear.
Example of a Wear
Indicator mark
19 PASSPORT-31TGS6020.book 593 ページ ２０２０年２月２０日　木曜日　午後３時２９分

630
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/Tire Pressure Monitoring System (TPMS) Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/Tire Pressure Monitoring
System (TPMS) Indicato r Comes On or Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the compact spare tire is installed, the indicator
blinks for about one mi nute, and then stays on.
■What to do when the indicator comes on
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
■What to do when the indica tor blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
If the Transmission Indicato r Blinks along with the
Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehi cle inspected by a dealer.
• Change the gear position to
(N after starting the engine.
u Check if the
(N position in the instrume nt panel and the indicator
on the
(N button light/blink.
u The engine cannot be turned on unless the parking brake is set.
2 Starting the Engine P. 452
1If the Low Tire Pressure/Tire Pressure Monitoring System (TPMS)
Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS with Tire Fill Assist provides visual and audible
assistance during tire pre ssure adjustment. With the
power mode in ON, while y ou adjust tire pressure up
or down, the system alerts you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for ~ five seconds.
Above recommended pressure: The beeper
sounds and lights flash twice every three seconds.
1 If the Transmission Indicator Blinks along with the Warning
Message
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 636
19 PASSPORT-31TGS6020.book 630 ページ ２０２０年２月２０日　木曜日　午後３時２９分

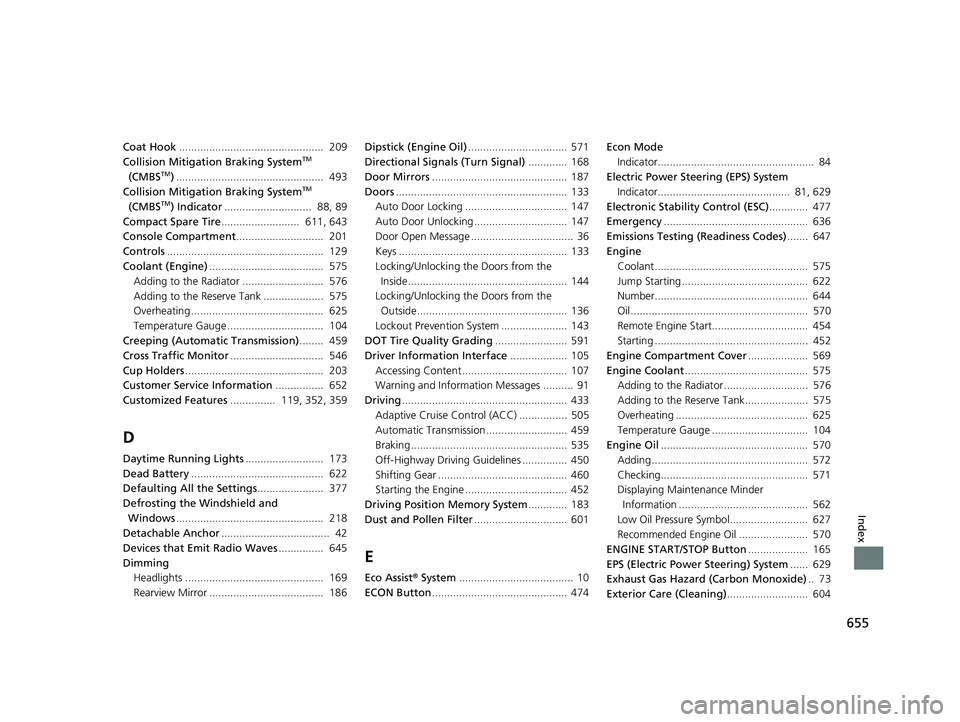

655
Index
Coat Hook................................................ 209
Collision Mitigation Braking SystemTM
(CMBSTM) ................................................. 493
Collision Mitigation Braking SystemTM
(CMBSTM) Indicator ............................. 88, 89
Compact Spare Tire .......................... 611, 643
Console Compartment ............................. 201
Controls .................................................... 129
Coolant (Engine) ...................................... 575
Adding to the Radiator ........................... 576
Adding to the Reserve Tank .................... 575
Overheating ............................................ 625
Temperature Gauge ................................ 104
Creeping (Automatic Transmission) ........ 459
Cross Traffic Monitor ............................... 546
Cup Holders .............................................. 203
Customer Service Information ................ 652
Customized Features ............... 119, 352, 359
D
Daytime Running Lights .......................... 173
Dead Battery ............................................ 622
Defaulting All the Settings ...................... 377
Defrosting the Windshield and Windows ................................................. 218
Detachable Anchor .................................... 42
Devices that Emit Radio Waves ............... 645
Dimming Headlights .............................................. 169
Rearview Mirror ...................................... 186 Dipstick (Engine Oil)
................................. 571
Directional Signals (Turn Signal) ............. 168
Door Mirrors ............................................. 187
Doors ......................................................... 133
Auto Door Locking .................................. 147
Auto Door Unlocking ............................... 147
Door Open Message .................................. 36
Keys ........................................................ 133
Locking/Unlocking the Doors from the Inside..................................................... 144
Locking/Unlocking the Doors from the
Outside.................................................. 136
Lockout Prevention System ...................... 143
DOT Tire Quality Grading ........................ 591
Driver Information Interface ................... 105
Accessing Content ................................... 107
Warning and Information Messages .......... 91
Driving ....................................................... 433
Adaptive Cruise Control (ACC) ................ 505
Automatic Transmission ........................... 459
Braking .................................................... 535
Off-Highway Driving Guidelines ............... 450
Shifting Gear ........................................... 460
Starting the Engine .................................. 452
Driving Position Memory System ............. 183
Dust and Pollen Filter ............................... 601
E
Eco Assist® System ...................................... 10
ECON Button ............................................. 474 Econ Mode
Indicator.................................................... 84
Electric Power Steering (EPS) System Indicator............................................ 81, 629
Electronic Stability Control (ESC) ............. 477
Emergency ................................................ 636
Emissions Testing (Readiness Codes) ....... 647
Engine
Coolant ................................................... 575
Jump Starting .......................................... 622
Number................................................... 644
Oil ........................................................... 570
Remote Engine Start................................ 454
Starting ................................................... 452
Engine Compartment Cover .................... 569
Engine Coolant ......................................... 575
Adding to the Radiator ............................ 576
Adding to the Reserve Tank..................... 575
Overheating ............................................ 625
Temperature Gauge ................................ 104
Engine Oil ................................................. 570
Adding .................................................... 572
Checking................................................. 571
Displaying Maintenance Minder Information ........................................... 562
Low Oil Pressure Symbol.......................... 627
Recommended Engine Oil ....................... 570
ENGINE START/STOP Button .................... 165
EPS (Electric Power Steering) System ...... 629
Exhaust Gas Hazard (Carbon Monoxide) .. 73
Exterior Care (Cleaning) ........................... 604
19 PASSPORT-31TGS6020.book 655 ページ ２０２０年２月２０日　木曜日　午後３時２９分

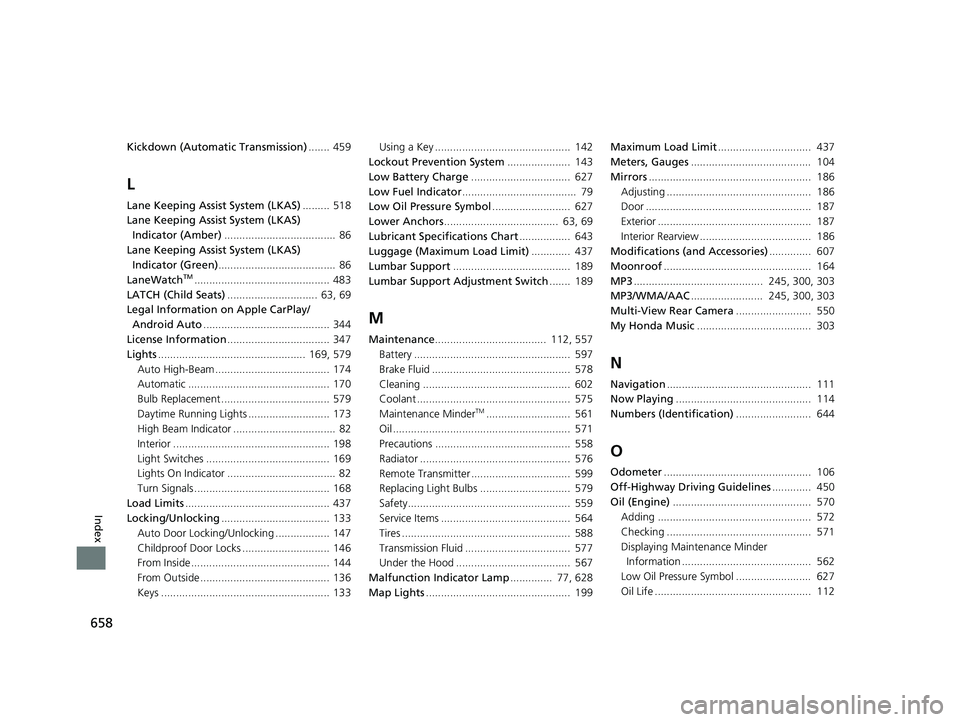

658
Index
Kickdown (Automatic Transmission)....... 459
L
Lane Keeping Assist System (LKAS)......... 518
Lane Keeping Assist System (LKAS) Indicator (Amber) ..................................... 86
Lane Keeping Assist System (LKAS) Indicator (Green) ....................................... 86
LaneWatch
TM............................................. 483
LATCH (Child Seats) .............................. 63, 69
Legal Information on Apple CarPlay/ Android Auto .......................................... 344
License Information .................................. 347
Lights ................................................. 169, 579
Auto High-Beam ...................................... 174
Automatic ............................................... 170
Bulb Replacement .................................... 579
Daytime Running Lights ........................... 173
High Beam Indicator .................................. 82
Interior .................................................... 198
Light Switches ......................................... 169
Lights On Indicator .................................... 82
Turn Signals ............................................. 168
Load Limits ................................................ 437
Locking/Unlocking .................................... 133
Auto Door Locking/Unlocking .................. 147
Childproof Door Locks ............................. 146
From Inside .............................................. 144
From Outside ........................................... 136
Keys ........................................................ 133 Using a Key ............................................. 142
Lockout Prevention System ..................... 143
Low Battery Charge ................................. 627
Low Fuel Indicator ...................................... 79
Low Oil Pressure Symbol .......................... 627
Lower Anchors ...................................... 63, 69
Lubricant Specifications Chart ................. 643
Luggage (Maximum Load Limit) ............. 437
Lumbar Support ....................................... 189
Lumbar Support Adjustment Switch ....... 189
M
Maintenance..................................... 112, 557
Battery .................................................... 597
Brake Fluid .............................................. 578
Cleaning ................................................. 602
Coolant ................................................... 575
Maintenance Minder
TM............................ 561
Oil ........................................................... 571
Precautions ............................................. 558
Radiator .................................................. 576
Remote Transmitter ................................. 599
Replacing Light Bulbs .............................. 579
Safety...................................................... 559
Service Items ........................................... 564
Tires ........................................................ 588
Transmission Fluid ................................... 577
Under the Hood ...................................... 567
Malfunction Indicator Lamp .............. 77, 628
Map Lights ................................................ 199 Maximum Load Limit
............................... 437
Meters, Gauges ........................................ 104
Mirrors ...................................................... 186
Adjusting ................................................ 186
Door ....................................................... 187
Exterior ................................................... 187
Interior Rearview ..................................... 186
Modifications (and Accessories) .............. 607
Moonroof ................................................. 164
MP3 ........................................... 245, 300, 303
MP3/WMA/AAC ........................ 245, 300, 303
Multi-View Rear Camera ......................... 550
My Honda Music ...................................... 303
N
Navigation................................................ 111
Now Playing ............................................. 114
Numbers (Identification) ......................... 644
O
Odometer................................................. 106
Off-Highway Driving Guidelines ............. 450
Oil (Engine) .............................................. 570
Adding ................................................... 572
Checking ................................................ 571
Displaying Mainte nance Minder
Information ........................................... 562
Low Oil Pressure Symbol ......................... 627
Oil Life .................................................... 112
19 PASSPORT-31TGS6020.book 658 ページ ２０２０年２月２０日　木曜日　午後３時２９分
