uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
1Maintenance Service Items
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If the message Maintenance Due Now does not appear more than 12 months after the display
is reset, change the engine oil every year.
*2: If you drive in dusty conditions, replace every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace every 24,000 km (15,000 miles).
*4: If you drive regularly in very high temperatures (over 43ºC, 110ºF), in very low temperatures (under -29ºC, -20ºF), replace every 100,000 km (60,000 miles).
*5: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher level of mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than
recommended by the Maintenance Minder. If you regularly drive your vehicle under these conditions,
have the differential fluid changed at 12,000km (7,500 miles), then every 24,000 km (15,000 miles).
*6: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty in the first column on page 651.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid and transfer fluid
4●Replace spark plugs●Replace timing belt and inspect water pump*4
●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*5
7●Replace brake fluid*6
9●Service front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and lines (including ABS/VSA ®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
20 PASSPORT-31TGS6100.book 567 ページ ２０１９年８月３０日　金曜日　午後６時２２分

uuMaintenance MinderTMuTo Use Maintenance MinderTM
568
Maintenance

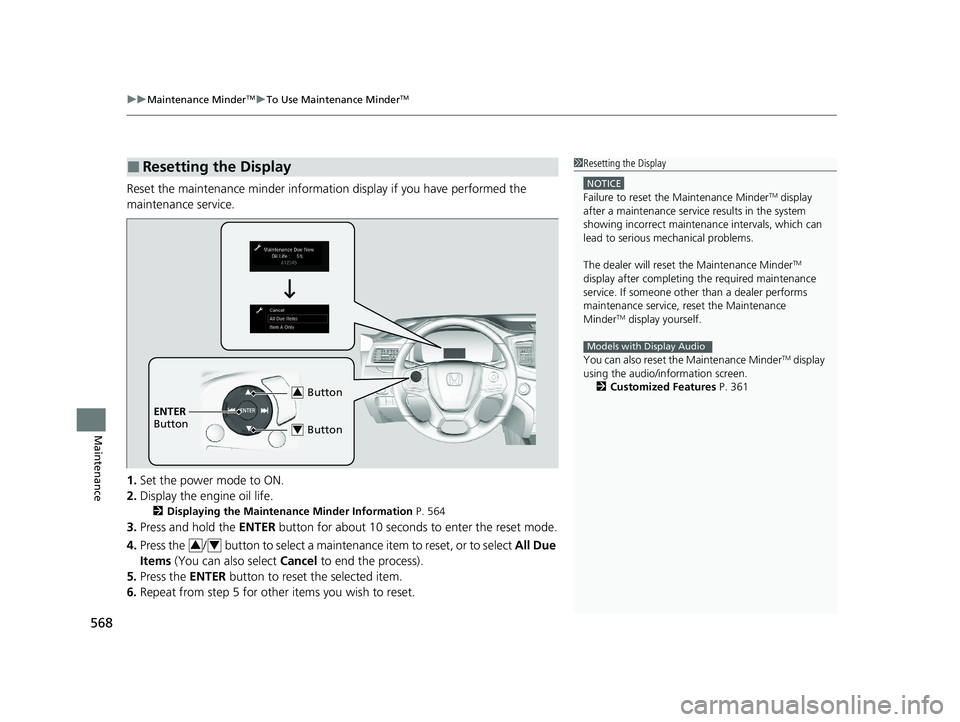

Reset the maintenance minder informat ion display if you have performed the
maintenance service.
1. Set the power mode to ON.
2. Display the engine oil life.
2 Displaying the Maintenance Minder Information P. 564
3.Press and hold the ENTER button for about 10 seconds to enter the reset mode.
4. Press the / button to select a maintenance item to reset, or to select All Due
Items (You can also select Cancel to end the process).
5. Press the ENTER button to reset the selected item.
6. Repeat from step 5 for other items you wish to reset.
■Resetting the Display1Resetting the Display
NOTICE
Failure to reset the Maintenance MinderTM display
after a maintenance servic e results in the system
showing incorrect maintenance intervals, which can
lead to serious mechanical problems.
The dealer will reset the Maintenance Minder
TM
display after completing th e required maintenance
service. If someone other than a dealer performs
maintenance service, reset the Maintenance
Minder
TM display yourself.
You can also reset the Maintenance Minder
TM display
using the audio/information screen.
2 Customized Features P. 361
Models with Display Audio
Button3
ENTER
Button
Button4
34
20 PASSPORT-31TGS6100.book 568 ページ ２０１９年８月３０日　金曜日　午後６時２２分

599
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information interface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery termina ls for corrosion monthly.
To access the battery terminals:
1. Remove the engine compartment cover.
2 Engine Compartment Cover P. 571
2.Remove the clips using a Ph illips-head screwdriver, then remove the air intake
duct.
2 High Beam Headlights P. 581
If your vehicle’s battery is disconnected or goes dead:
•The audio system is disabled.
2 Audio System Theft Protection P. 231
•The clock resets*.
2 Clock P. 130
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
* Not available on all models
20 PASSPORT-31TGS6100.book 599 ページ ２０１９年８月３０日　金曜日　午後６時２２分

Index
655
Index
Index
A
AAC........................................... 247, 302, 305
ABS (Anti-lock Brake System) .................. 539
AC Power Outlet ...................................... 206
Accessories and Modifications ................ 609
Accessory Power Sockets ......................... 205
Adaptive Cruise Control (ACC) ................ 507
Adaptive Cruise Control (ACC) Indicator
(Amber) ..................................................... 88
Adaptive Cruise Control (ACC) Indicator (Green) ...................................................... 88
Additives Coolant .................................................. 577
Engine Oil ............................................... 572
Washer ................................................... 580
Additives, Engine Oil ............................... 572
Adjusting
Armrest .................................................. 197
Front Seats.............................................. 188
Head Restraints ............................... 194, 195
Mirrors.................................................... 186
Rear Seats ............................................... 192
Steering Wheel ....................................... 185
Agile Handling Assist ............................... 481
Air Conditioning System (Climate
Control System) ...................................... 219
Changing the Mode................................ 219
Defrosting the Windshield and
Windows .............................................. 220
Dust and Pollen Filter .............................. 603
Recirculation/Fresh Air Mode................... 220 Sensor ..................................................... 225
Synchronization Mode ............................. 222
Using Automatic Climate Control ............ 219
Air Pressure ....................................... 591, 645
Airbags ........................................................ 45
Advanced Airbags ..................................... 51
After a Collision ......................................... 49
Airbag Care ............................................... 57
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 48
Indicator .............................................. 55, 80
Passenger Airbag Off Indicator .................. 56
Sensors ...................................................... 45
Side Airbags .............................................. 52
Side Curtain Airbags .................................. 54
All-wheel drive (AWD) Indicator ............... 85
AM/FM Radio .................................... 242, 285
Android Auto ............................................ 324
Anti-lock Brake System (ABS) .................. 539
Indicator .................................................... 79
Apple CarPlay ........................................... 321
Armrest ..................................................... 197
Audio Remote Controls ............................ 232
Audio System ............................ 228, 235, 253
Adjusting the Sound ........................ 240, 279
AM/FM Radio .................................. 242, 285
Android Auto .......................................... 324
Apple CarPlay .......................................... 321
Audio/Information Screen ................ 236, 254
Auxiliary Input Jack .................................. 230
Changing the Screen Brightness .............. 280 Display Setup .................................. 241, 280
Error Messages ........................................ 328
File Manager ........................................... 273
General Information ................................ 331
HD Subchannel ....................................... 288
Home Screen........................................... 259
HondaLink
®........................................... 313
How to Delete a File ................................ 276
How to Transfer a File ............................. 273
How to Update Wirelessly ....................... 267
How to Update with a USB Device........... 271
iPod ................................................ 244, 299
Limitations for Manual Operation ............ 281
MP3/WMA/AAC ...................... 247, 302, 305
My Honda Music ..................................... 305
Playing AM/FM Radio .............................. 285
Playing Bluetooth ® Audio ................ 250, 309
Playing SiriusXM ® Radio .......................... 289
Playing Social Playlist ............................... 311
Reactivating ............................................ 231
Remote Controls ..................................... 232
Security Code .......................................... 231
Selecting an Audio Source ....................... 281
Siri Eyes Free ........................................... 320
Status Area ............................................. 264
System Updates....................................... 267
Theft Protection ...................................... 231
Updating Apps ........................................ 265
USB Flash Drives

...................... 247, 302, 333
USB Port.................................................. 229
Wallpaper Setup.............................. 238, 257
20 PASSPORT-31TGS6100.book 655 ページ ２０１９年８月３０日　金曜日　午後６時２２分

657
Index
Coat Hook................................................ 210
Collision Mitigation Braking SystemTM
(CMBSTM) ................................................. 495
Collision Mitigation Braking SystemTM
(CMBSTM) Indicator ............................. 88, 89
Compact Spare Tire .......................... 613, 645
Console Compartment ............................. 201
Controls .................................................... 129
Coolant (Engine) ...................................... 577
Adding to the Radiator ........................... 578
Adding to the Reserve Tank .................... 577
Overheating ............................................ 627
Temperature Gauge ................................ 104
Creeping (Automatic Transmission) ........ 461
Cross Traffic Monitor ............................... 548
Cup Holders .............................................. 203
Customer Service Information ................ 654
Customized Features ............... 119, 354, 361
D
Daytime Running Lights .......................... 173
Dead Battery ............................................ 624
Defaulting All the Settings ...................... 379
Defrosting the Windshield and Windows ................................................. 220
Detachable Anchor .................................... 42
Devices that Emit Radio Waves ............... 647
Dimming Headlights .............................................. 169
Rearview Mirror ...................................... 186 Dipstick (Engine Oil)
................................. 573
Directional Signals (Turn Signal) ............. 168
Door Mirrors ............................................. 187
Doors ......................................................... 133
Auto Door Locking .................................. 147
Auto Door Unlocking ............................... 147
Door Open Message .................................. 36
Keys ........................................................ 133
Locking/Unlocking the Doors from the Inside..................................................... 144
Locking/Unlocking the Doors from the
Outside.................................................. 136
Lockout Prevention System ...................... 143
DOT Tire Quality Grading ........................ 593
Driver Information Interface ................... 105
Accessing Content ................................... 107
Warning and Information Messages .......... 91
Driving ....................................................... 435
Adaptive Cruise Control (ACC) ................ 507
Automatic Transmission ........................... 461
Braking .................................................... 537
Off-Highway Driving Guidelines ............... 452
Shifting Gear ........................................... 462
Starting the Engine .................................. 454
Driving Position Memory System ............. 183
Dust and Pollen Filter ............................... 603
E
Eco Assist® System ...................................... 10
ECON Button ............................................. 476 Econ Mode
Indicator.................................................... 84
Electric Power Steering (EPS) System Indicator............................................ 81, 631
Electronic Stability Control (ESC) ............. 479
Emergency ................................................ 638
Emissions Testing (Readiness Codes) ....... 649
Engine
Coolant ................................................... 577
Jump Starting .......................................... 624
Number................................................... 646
Oil ........................................................... 572
Remote Engine Start................................ 456
Starting ................................................... 454
Engine Compartment Cover .................... 571
Engine Coolant ......................................... 577
Adding to the Radiator ............................ 578
Adding to the Reserve Tank..................... 577
Overheating ............................................ 627
Temperature Gauge ................................ 104
Engine Oil ................................................. 572
Adding .................................................... 574
Checking................................................. 573
Displaying Maintenance Minder Information ........................................... 564
Low Oil Pressure Symbol.......................... 629
Recommended Engine Oil ....................... 572
ENGINE START/STOP Button .................... 165
EPS (Electric Power Steering) System ...... 631
Exhaust Gas Hazard (Carbon Monoxide) .. 73
Exterior Care (Cleaning) ........................... 606
20 PASSPORT-31TGS6100.book 657 ページ ２０１９年８月３０日　金曜日　午後６時２２分

658
Index
Exterior Mirrors......................................... 187
F
Features..................................................... 227
File Manager ............................................. 273
Filters
Dust and Pollen ....................................... 603
Oil ........................................................... 575
Flat Tire ..................................................... 613
Floor Mats ................................................. 605
Fluids Automatic Transmission ........................... 579
Brake ....................................................... 580
Engine Coolant ........................................ 577
Windshield Washer .................................. 580
FM/AM Radio .................................... 242, 285
Fog Light Indicator ..................................... 83
Fog Lights .................................................. 172
Folding Down the Rear Seat .................... 193
Foot Brake ................................................. 538
Front Airbags (SRS) ..................................... 48
Front Seats ................................................ 188
Adjusting ................................................. 188
Front Sensor Camera ................................ 534
Fuel ...................................................... 23, 554
Economy ................................................. 557
Gauge ..................................................... 104
Instant Fuel Economy ............................... 110
Low Fuel Indicator ..................................... 79
Range ...................................................... 110 Recommendation .................................... 554
Refueling................................................. 554
Fuel Economy ........................................... 557
Fuel Fill Cap .............................................. 556
Fuel Fill Door ...................................... 23, 555
Unable to Unlock .................................... 639
Fuses .......................................................... 633
Inspecting and Changing......................... 637
Locations......................... 633, 634, 635, 636
G
Gasoline (Fuel)
Economy ................................................. 557
Gauge ..................................................... 104
Information ............................................. 554
Instant Fuel Economy .............................. 110
Low Fuel Indicator ..................................... 79
Refueling................................................. 554
Gauges ...................................................... 104
Gear Position Indicator ...................... 77, 464
Gear Shift Positions Automatic Transmission .......................... 462
Glass (care) ................................................ 607
Glove Box .................................................. 201
H
Handling the Unexpected ....................... 611
HandsFreeLink® (HFL)...................... 383, 408
Automatic Import of Cellular Phonebook
and Call History............................. 397, 417
Automatic Transferring ........................... 416
Caller’s ID Information ............................ 395
Displaying Messages ............................... 427
Favorite Contacts .................................... 418
HFL Buttons .................................... 383, 408
HFL Menus...................................... 385, 411
HFL Status Display ........................... 384, 410
In Case of Emergency ............................. 431
Limitations for Manual Operation .... 384, 410
Making a Call ................................. 402, 420
Options During a Call...................... 407, 423
Phone Setup ................................... 389, 413
Receiving a Call............................... 406, 423
Receiving a Text Message........................ 425
Ring Tone ....................................... 395, 416
Selecting a Phone ................................... 426
Speed Dial .............................................. 398
To Clear the System ................................ 396
To Set Up a Text Message Options .......... 424
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 288
Head Restraints ................................ 194, 195
Headlights ................................................ 169
Auto High-Beam ..................................... 174
Automatic Operation .............................. 170
Dimming......................................... 169, 173
20 PASSPORT-31TGS6100.book 658 ページ ２０１９年８月３０日　金曜日　午後６時２２分

660
Index
Kickdown (Automatic Transmission)....... 461
L
Lane Keeping Assist System (LKAS)......... 520
Lane Keeping Assist System (LKAS) Indicator (Amber) ..................................... 86
Lane Keeping Assist System (LKAS) Indicator (Green) ....................................... 86
LaneWatch
TM............................................. 485
LATCH (Child Seats) .............................. 63, 69
Legal Information on Apple CarPlay/ Android Auto .......................................... 346
License Information .................................. 349
Lights ................................................. 169, 581
Auto High-Beam ...................................... 174
Automatic ............................................... 170
Bulb Replacement .................................... 581
Daytime Running Lights ........................... 173
High Beam Indicator .................................. 82
Interior .................................................... 198
Light Switches ......................................... 169
Lights On Indicator .................................... 82
Turn Signals ............................................. 168
Load Limits ................................................ 439
Locking/Unlocking .................................... 133
Auto Door Locking/Unlocking .................. 147
Childproof Door Locks ............................. 146
From Inside .............................................. 144
From Outside ........................................... 136
Keys ........................................................ 133 Using a Key ............................................. 142
Lockout Prevention System ..................... 143
Low Battery Charge ................................. 629
Low Fuel Indicator ...................................... 79
Low Oil Pressure Symbol .......................... 629
Lower Anchors ...................................... 63, 69
Lubricant Specifications Chart ................. 645
Luggage (Maximum Load Limit) ............. 439
Lumbar Support ....................................... 189
Lumbar Support Adjustment Switch ....... 189
M
Maintenance..................................... 112, 559
Battery .................................................... 599
Brake Fluid .............................................. 580
Cleaning ................................................. 604
Coolant ................................................... 577
Maintenance Minder
TM............................ 563
Oil ........................................................... 573
Precautions ............................................. 560
Radiator .................................................. 578
Remote Transmitter ................................. 601
Replacing Light Bulbs .............................. 581
Safety...................................................... 561
Service Items ........................................... 566
Tires ........................................................ 590
Transmission Fluid ................................... 579
Under the Hood ...................................... 569
Malfunction Indicator Lamp .............. 77, 630
Map Lights ................................................ 199 Maximum Load Limit
............................... 439
Meters, Gauges ........................................ 104
Mirrors ...................................................... 186
Adjusting ................................................ 186
Door ....................................................... 187
Exterior ................................................... 187
Interior Rearview ..................................... 186
Modifications (and Accessories) .............. 609
Moonroof ................................................. 164
MP3 ........................................... 247, 302, 305
MP3/WMA/AAC ........................ 247, 302, 305
Multi-View Rear Camera ......................... 552
My Honda Music ...................................... 305
N
Navigation................................................ 111
Now Playing ............................................. 114
Numbers (Identification) ......................... 646
O
Odometer................................................. 106
Off-Highway Driving Guidelines ............. 452
Oil (Engine) .............................................. 572
Adding ................................................... 574
Checking ................................................ 573
Displaying Mainte nance Minder
Information ........................................... 564
Low Oil Pressure Symbol ......................... 629
Oil Life .................................................... 112
20 PASSPORT-31TGS6100.book 660 ページ ２０１９年８月３０日　金曜日　午後６時２２分

661
Index
Recommended Engine Oil ....................... 572
Viscosity.................................................. 572
Open Source Licenses .............................. 348
Opening/Closing Hood ...................................................... 570
Moonroof ............................................... 164
Power Windows...................................... 161
Tailgate................................................... 148
Operating the Switches Around the Steering Wheel ....................................... 165
Outside Temperature Display ................. 106
Overheating ............................................. 627
P
Paddle Shifters (Sequential Mode) ... 22, 469
Panic Mode ............................................... 160
Parking ..................................................... 541
Parking Brake ........................................... 537
Parking Brake and Brake System Indicator ................................................. 631
Parking Brake and Brake System Indicator (Amber) ..................................... 76
Parking Brake and Brake System
Indicator (Red) .......................................... 76
Parking Sensor System ............................. 543
Passenger Airbag Off Indicator ................. 56
Passing Indicators ..................................... 169
Phone ........................................................ 113
Playing Bluetooth ® Audio ............... 250, 309
Power Tailgate ......................................... 150 Power Windows
........................................ 161
Precautions While Driving ....................... 460
Driving Guidelines for Your Utility Vehicle .................................................. 460
Rain ......................................................... 460
Pregnant Women ....................................... 43
Puncture (Tire) .......................................... 613
R
Radiator.................................................... 578
Radio (FM/AM) .................................. 242, 285
Radio (SiriusXM ®) ..................................... 289
Radio Data System (RDS) .................. 243, 287
Range ........................................................ 110
RDS (Radio Data System) .................. 243, 287
Readiness Codes (Emissions Testing) ....... 649
Rear Climate Control System
From the Rear Panel ................................ 224
Rear Defogger/Heated Door Mirror Button ..................................................... 180
Rear Outer Seats Heaters ......................... 215
Rear Seat (Folding Down) ........................ 193
Rear Seats .................................................. 192
Rearview Mirror ........................................ 186
Refueling ................................................... 554
Fuel Gauge .............................................. 104
Gasoline .......................................... 554, 644
Low Fuel Indicator ..................................... 79
Regulations ............................... 490, 593, 647
Remote Engine Start ................................ 456 Remote Transmitter
................................. 141
Replacement
Battery .................................................... 601
Bulbs ....................................................... 581
Front Wiper Blade Rubber ....................... 586
Fuses ............................... 633, 634, 635, 636
Rear Wiper Blade Rubber......................... 588
Tires ........................................................ 596
Reporting Safety Defects ......................... 648
Reverse Tilt Door Mirror .......................... 187
Road Departure Mitigation (RDM) ......... 529
On and Off.............................................. 531
Road Departure Mitigation (RDM) Indicator .................................................... 87
S
Safe Driving ................................................ 31
Safety Check ............................................... 36
Safety Labels ............................................... 74
Safety Message ............................................. 1
Seat Belts .................................................... 37
Adjusting the Shoulder Anchor.................. 41
Automatic Seat Belt Tensioners ................. 39
Checking................................................... 44
Detachable Anchor.................................... 42
Fastening .................................................. 40
Installing a Child Seat with a Lap/ Shoulder Seat Belt ................................... 66
Pregnant Women ...................................... 43
Reminder .................................................. 38
20 PASSPORT-31TGS6100.book 661 ページ ２０１９年８月３０日　金曜日　午後６時２２分

662
Index
Warning Indicator ................................ 38, 79
Seat Heaters .............................. 213, 214, 215
Seat Ventilation ........................................ 214
Seats .......................................................... 188
Adjusting ................................................. 188
Driver’s Seat Lumbar Support................... 189
Folding Down the Rear Seat..................... 193
Front Seats .............................................. 188
Rear Seats................................................ 192
Seat Heaters ............................ 213, 214, 215
Seat Ventilation ....................................... 214
Security System ......................................... 158
Immobilizer System Indicator ..................... 83
Security System Alarm Indicator ................. 83
Select Button ....................................... 21, 462
Operation .......................................... 21, 464
Selecting a Child Seat ................................. 62
Selector Knob (Audio) .............................. 235
Sequential Mode ...................................... 468
Sequential Mode Operation .................... 469
Setting the Clock ...................................... 130
Settings
Arrange Apps .......................................... 117
Show Tachometer.................................... 118
Shift Button......................................... 21, 462
Shifting (Transmission) ....................... 21, 462
Shoulder Anchor ......................................... 41
Show Tachometer ..................................... 118
Show/Hide Apps ........................................ 116
Side Airbags ................................................ 52
Side Curtain Airbags ................................... 54 Siri Eyes Free
............................................. 320
SiriusXM ® Radio ........................................ 289
Snow Tires ................................................. 598
Social Playlist ............................................ 311
Spare Tire .......................................... 613, 645
Spark Plugs ............................................... 644
Specifications ............................................ 644
Specified Fuel ................................... 554, 644
Speedometer ............................................ 105
SRS Airbags (Airbags) ................................. 48
Starting Assist Brake Function ................. 475
Starting the Engine .................................. 454
Does Not Start......................................... 621
Jump Starting .......................................... 624
Remote Engine Start................................ 456
Steering Wheel ......................................... 185
Adjusting ................................................ 185
Heater ..................................................... 216
Stopping ................................................... 541
Summer Tires ............................................ 598
Sunglasses Holder ..................................... 211
Sunshades ................................................. 212
Supplemental Restraint System (SRS) ........ 48
Switches (Around the Steering Wheel) ............................................. 4, 5, 165
SYNC Mode ............................................... 222
System Message Indicator .......................... 84
System Updates ........................................ 267T
Tachometer.............................................. 105
Tailgate ..................................................... 148
Unable to Open ...................................... 641
Temperature
Gauge .................................................... 104
Outside Temperature Display .................. 106
Temperature Gauge ................................ 104
Temperature Sensor ........................ 106, 225
Tie-down Anchors .................................... 217
Time (Setting) ........................................... 130
Tire Fill Assist ............................................ 632
Tire Pressure ............................................. 112
Tire Pressure Monitoring System (TPMS)
Indicator ................................................... 82
Tires .......................................................... 590
Air Pressure..................................... 591, 645
Checking and Maintaining ...................... 590
Inspection ............................................... 590
Labeling .................................................. 591
Puncture (Flat Tire) .................................. 613
Regulations ............................................. 593
Rotation.................................................. 597
Spare Tire ....................................... 613, 645
Summer .................................................. 598
Tire Chains.............................................. 598
Wear Indicators....................................... 595
Winter .................................................... 598
Tools ......................................................... 612
Towing a Trailer ....................................... 442
Equipment and Accessories ..................... 445
20 PASSPORT-31TGS6100.book 662 ページ ２０１９年８月３０日　金曜日　午後６時２２分
