uuChecking and Maintaining Tires uTire and Wheel Replacement
Maintenance

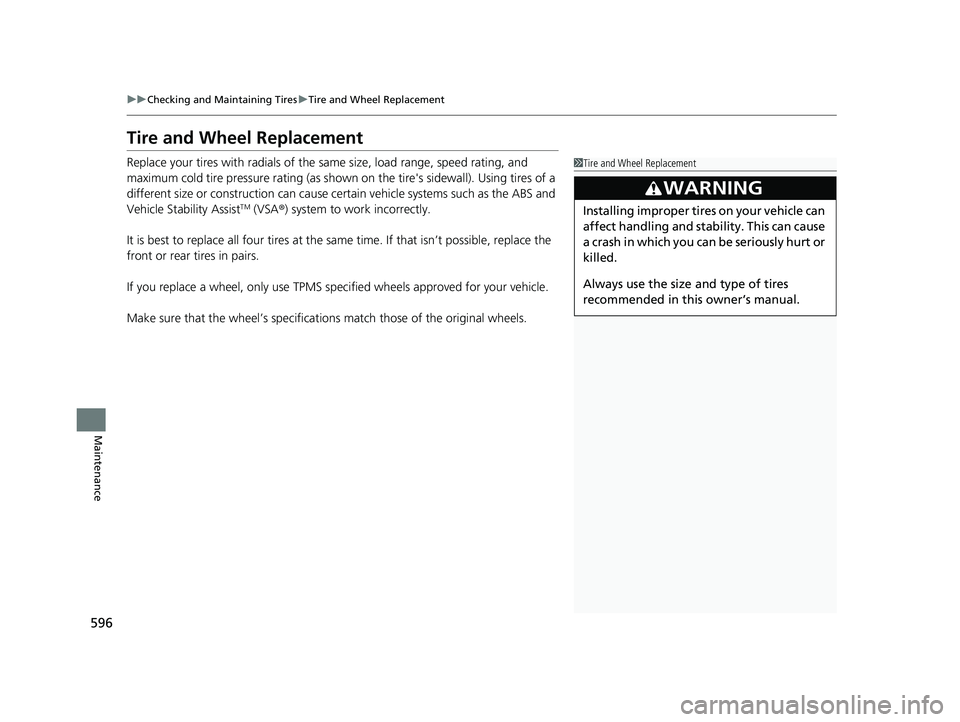

Tire and Wheel Replacement
Replace your tires with radials of the sa me size, load range, speed rating, and
maximum cold tire pressure ra ting (as shown on the tire's sidewall). Using tires of a
different size or construction can cause ce rtain vehicle systems such as the ABS and
Vehicle Stability Assist
TM (VSA ®) system to work incorrectly.
It is best to replace all four tires at the same time. If that isn’t possible, replace the
front or rear tires in pairs.
If you replace a wheel, only use TPMS sp ecified wheels approved for your vehicle.
Make sure that the wheel’s specifications match thos e of the original wheels.
1Tire and Wheel Replacement
3WARNING
Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this owner’s manual.
20 PASSPORT-31TGS6100.book 596 ページ ２０１９年８月３０日　金曜日　午後６時２２分

611
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 612
If a Tire Goes Flat Changing a Flat Tire ......................... 613
Engine Does Not Start Checking the Engine ........................ 621
If the Smart Entry Remote Battery is Weak .......................................... 622
Emergency Engine Stop ................... 623
Jump Starting .................................... 624
Overheating How to Handle Overheating ............. 627 Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears ...... 629
If the Charging System Indicator Comes
On ................................................. 629
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 630
If the Brake System Indicator (Red) Comes On ................................................. 631
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 631
If the Low Tire Pressure/Tire Pressure
Monitoring System (TPMS) Indicator
Comes On or Blinks........................ 632 If the Transmission I
ndicator Blinks along
with the Warning Message ............ 632
Fuses Fuse Locations ................................. 633
Inspecting and Changing Fuses ........ 637
Emergency Towing ........................... 638
When You Cannot Unlock the Fuel Fill Door ................................................. 639
Refueling
Refueling From a Portable Fuel Container ................................... 640
When You Cannot Open the Tailgate .. 641
20 PASSPORT-31TGS6100.book 611 ページ ２０１９年８月３０日　金曜日　午後６時２２分

uuIf a Tire Goes Flat uChanging a Flat Tire
620
Handling the Unexpected
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressure
Monitor Problem appears on the driver informati on interface, but this is normal.
If you replace the tire with a specified regular tire, the warning message on the
driver information interface and the low tire pressure/TPMS indi cator will go off after
a few miles (kilometers).
■TPMS with Tire Fill Assist and the Compact Spare Tire1 TPMS with Tire Fill Assist and the Compact Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific wheels. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the valve stem.
20 PASSPORT-31TGS6100.book 620 ページ ２０１９年８月３０日　金曜日　午後６時２２分

632
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/Tire Pressure Monitoring System (TPMS) Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/Tire Pressure Monitoring
System (TPMS) Indicato r Comes On or Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the compact spare tire is installed, the indicator
blinks for about one mi nute, and then stays on.
■What to do when the indicator comes on
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
■What to do when the indica tor blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
If the Transmission Indicator Blinks along with the Warning Message
■Reasons for the in dicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehi cle inspected by a dealer.
• Change the gear position to
(N after starting the engine.
u Check if the
(N position in the instrume nt panel and the indicator
on the
(N button light/blink.
u The engine cannot be turned on unless the parking brake is set.
2 Starting the Engine P. 454
1If the Low Tire Pressure/Tire Pressure Monitoring System (TPMS)
Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS with Tire Fill Assist provides visual and audible
assistance during tire pre ssure adjustment. With the
power mode in ON, while y ou adjust tire pressure up
or down, the system alerts you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for ~ five seconds.
Above recommended pressure: The beeper
sounds and lights flash twice every three seconds.
1If the Transmission Indicator Blin ks along with the Warning Message
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 638
20 PASSPORT-31TGS6100.book 632 ページ ２０１９年８月３０日　金曜日　午後６時２２分

659
Index
Operating ............................................... 169
Heated Steering Wheel ........................... 216
Heated Windshield Button ...................... 181
Heater (Steering Wheel) .......................... 216
Heaters (Seat) ........................... 213, 214, 215
HFL (HandsFreeLink ®) ...................... 383, 408
High Beam Indicator .................................. 82
Hill Start Assist System ............................. 459
HomeLink ® Universal Transceiver ........... 380
Honda App License Agreement .............. 334
Honda Sensing ®........................................ 24
HondaLink ®............................................ 313
I
Identification Numbers ............................ 646
Engine and Transmission ......................... 646
Vehicle Identification............................... 646
Illumination Control ................................ 182
Button .................................................... 182
Immobilizer System .................................. 158
Indicator ................................................... 83
Indicators .................................................... 76
Adaptive Cruise Control (ACC) (Amber) .... 88
Adaptive Cruise Control (ACC) (Green) ..... 88
All-wheel drive (AWD)............................... 85
Anti-lock Brake System (ABS) .................... 79
Auto High-Beam ....................................... 80
Auto Idle Stop (Amber) ............................. 85
Auto Idle Stop (Green) .............................. 85
Blind spot information ...................... 90, 483 Brake System (Red) .................................. 631
Charging System ............................... 77, 629
Collision Mitigation Braking System
TM
(CMBSTM) ........................................... 88, 89
Econ Mode ................................................ 84
Electric Power Steering (EPS) System .. 81, 631
Fog Light ................................................... 83
Gear Position ............................................. 77
Hazard Warning ........................................ 82
High Beam ................................................ 82
Immobilizer System .................................... 83
Lane Keeping Assist System (LKAS) .......... 522
Lane Keeping Assist System (LKAS) (Amber) ................................................... 86
Lane Keeping Assist System (LKAS) (Green) .................................................... 86
Lights On ................................................... 82
Low Fuel .................................................... 79
Low Oil Pressure Symbol .......................... 629
Low Tire Pressure/TPMS ..................... 82, 632
Malfunction Indicator Lamp ............... 77, 630
Parking Brake and Brake System .............. 631
Parking Brake and Brake System (Amber) ... 76
Parking Brake and Brake System (Red) ....... 76
Road Departure Mitigation (RDM) .............. 87
Seat Belt Reminder .............................. 38, 79
Security System Alarm ............................... 83
Supplemental Restraint System ............ 55, 80
System Message ........................................ 84
Turn Signal ................................................ 82
Vehicle Stability Assist
TM (VSA ®) OFF ... 81, 480 Vehicle Stability Assist
TM (VSA
®)
System ............................................ 80, 479
Information .............................................. 643
Instant Fuel Economy ............................... 110
Instrument Panel ........................................ 75
Brightness Control................................... 182
Integrated Sunshades .............................. 212
Intelligent Traction Management
System ..................................................... 477
Intelligent VTM4 (i-VTM4
TM) .................... 487
Interior Lights ........................................... 198
Interior Rearview Mirror .......................... 186
iPad ........................................................... 332
iPhone ....................................................... 332
iPod ........................................... 244, 299, 332
J
Jack (Wheel Nut Wrench) ........................ 617
Jump Starting ........................................... 624
K
Key Number Tag ....................................... 134
Keyless Lockout Prevention ..................... 143
Keys ........................................................... 133
Lockout Prevention.................................. 143
Number Tag ............................................ 134
Rear Door Won’t Open............................ 146
Remote Transmitter ................................. 141
Types and Functions ................................ 133
20 PASSPORT-31TGS6100.book 659 ページ ２０１９年８月３０日　金曜日　午後６時２２分

662
Index
Warning Indicator ................................ 38, 79
Seat Heaters .............................. 213, 214, 215
Seat Ventilation ........................................ 214
Seats .......................................................... 188
Adjusting ................................................. 188
Driver’s Seat Lumbar Support................... 189
Folding Down the Rear Seat..................... 193
Front Seats .............................................. 188
Rear Seats................................................ 192
Seat Heaters ............................ 213, 214, 215
Seat Ventilation ....................................... 214
Security System ......................................... 158
Immobilizer System Indicator ..................... 83
Security System Alarm Indicator ................. 83
Select Button ....................................... 21, 462
Operation .......................................... 21, 464
Selecting a Child Seat ................................. 62
Selector Knob (Audio) .............................. 235
Sequential Mode ...................................... 468
Sequential Mode Operation .................... 469
Setting the Clock ...................................... 130
Settings
Arrange Apps .......................................... 117
Show Tachometer.................................... 118
Shift Button......................................... 21, 462
Shifting (Transmission) ....................... 21, 462
Shoulder Anchor ......................................... 41
Show Tachometer ..................................... 118
Show/Hide Apps ........................................ 116
Side Airbags ................................................ 52
Side Curtain Airbags ................................... 54 Siri Eyes Free
............................................. 320
SiriusXM ® Radio ........................................ 289
Snow Tires ................................................. 598
Social Playlist ............................................ 311
Spare Tire .......................................... 613, 645
Spark Plugs ............................................... 644
Specifications ............................................ 644
Specified Fuel ................................... 554, 644
Speedometer ............................................ 105
SRS Airbags (Airbags) ................................. 48
Starting Assist Brake Function ................. 475
Starting the Engine .................................. 454
Does Not Start......................................... 621
Jump Starting .......................................... 624
Remote Engine Start................................ 456
Steering Wheel ......................................... 185
Adjusting ................................................ 185
Heater ..................................................... 216
Stopping ................................................... 541
Summer Tires ............................................ 598
Sunglasses Holder ..................................... 211
Sunshades ................................................. 212
Supplemental Restraint System (SRS) ........ 48
Switches (Around the Steering Wheel) ............................................. 4, 5, 165
SYNC Mode ............................................... 222
System Message Indicator .......................... 84
System Updates ........................................ 267T
Tachometer.............................................. 105
Tailgate ..................................................... 148
Unable to Open ...................................... 641
Temperature
Gauge .................................................... 104
Outside Temperature Display .................. 106
Temperature Gauge ................................ 104
Temperature Sensor ........................ 106, 225
Tie-down Anchors .................................... 217
Time (Setting) ........................................... 130
Tire Fill Assist ............................................ 632
Tire Pressure ............................................. 112
Tire Pressure Monitoring System (TPMS)
Indicator ................................................... 82
Tires .......................................................... 590
Air Pressure..................................... 591, 645
Checking and Maintaining ...................... 590
Inspection ............................................... 590
Labeling .................................................. 591
Puncture (Flat Tire) .................................. 613
Regulations ............................................. 593
Rotation.................................................. 597
Spare Tire ....................................... 613, 645
Summer .................................................. 598
Tire Chains.............................................. 598
Wear Indicators....................................... 595
Winter .................................................... 598
Tools ......................................................... 612
Towing a Trailer ....................................... 442
Equipment and Accessories ..................... 445
20 PASSPORT-31TGS6100.book 662 ページ ２０１９年８月３０日　金曜日　午後６時２２分

663
Index
Load Limits ............................................. 442
Towing Your Vehicle ............................... 451
Emergency .............................................. 638
TPMS (Tire Pressure Monitoring System) Indicator ................................................... 82
TPMS with Tire Fill Assist ......................... 488
Indicator ................................................. 632
Tire Fill Assist .......................................... 632
Trailer Stability Assist ............................... 449
Transmission ....................................... 21, 462
Automatic......................................... 21, 462
Fluid ....................................................... 579
Gear Position Indicator ...................... 77, 464
Number .................................................. 646
Sequential Mode..................................... 468
Trip Computer .......................................... 109
Trip Meter ................................................ 110
Troubleshooting ...................................... 611
Blown Fuse ..................... 633, 634, 635, 636
Brake Pedal Vibrates ................................. 27
Buzzer Sounds When Opening Door ......... 28
Emergency Towing ................................. 638
Engine Won’t Start ................................. 621
Noise When Braking ................................. 28
Overheating ............................................ 627
Puncture/Flat Tire .................................... 613
Rear Door Won’t Open ..................... 27, 146
Warning Indicators.................................... 76
Turn Signals .............................................. 168
Indicators (Instrume nt Panel) ..................... 82U
Under-floor Storage Area ........................ 218
Units .......................................................... 114
Unlocking the Doors ................................ 136
Unlocking the Front Doors from the
Inside ....................................................... 144
USB Flash Drives ........................ 247, 302, 333
USB Port .................................................... 229
V
Vanity Mirrors ............................................... 7
Vehicle Customization ............................. 119
Vehicle Identification Number ................ 646
Vehicle Stability Assist
TM (VSA ®)............... 479
Off Button ............................................... 480
System Indicator ................................ 80, 479
Ventilation ............................................... 220
Viscosity (Oil) .................................... 572, 645
Voice Control Operation .......................... 282
Audio Commands ................................... 284
Phone Commands ................................... 284
Voice Portal Screen .................................. 283
Voice Recognition .................................... 282
W
Wallpaper ......................................... 238, 257
Warning and Information Messages ......... 91
Warning Indicator On/Blinking ............... 629
Warning Labels ........................................... 74 Warnings
................................................... 111
Warranties (Warranty Manual provided
separately) .............................................. 651
Watts ......................................................... 644
Wear Indicators (Tire) .............................. 595
Wheel Nut Wrench (Jack Handle) ........... 617
Wi-Fi Connection ...................................... 318
Window Washers ..................................... 177
Adding/Refilling Fluid .............................. 580
Switch ..................................................... 177
Windows (Opening and Closing) ............ 161
Windshield ................................................ 177
Cleaning ......................................... 604, 607
Defrosting/Defogging .............................. 220
Washer Fluid ........................................... 580
Wiper Blades ........................................... 586
Wipers and Washers................................ 177
Winter Tires .............................................. 598
Snow Tires .............................................. 598
Tire Chains .............................................. 598
Wipers and Washers ................................. 177
Automatic Intermittent Wipers ................ 178
Checking and Replacing Wiper Blades ..... 586
Front ....................................................... 177
Rear ........................................................ 179
Wireless Charger ...................................... 207
WMA ......................................... 247, 302, 305
Worn Tires ................................................ 590
20 PASSPORT-31TGS6100.book 663 ページ ２０１９年８月３０日　金曜日　午後６時２２分
