Continued457
uuWhen Driving uStarting the Engine
Driving
To extend the run time for another 10 mi nutes during the first run, press the
button, then press an d hold the button.
u Some exterior lights flash six times if a 10-minute extension request was
transmitted successfully.

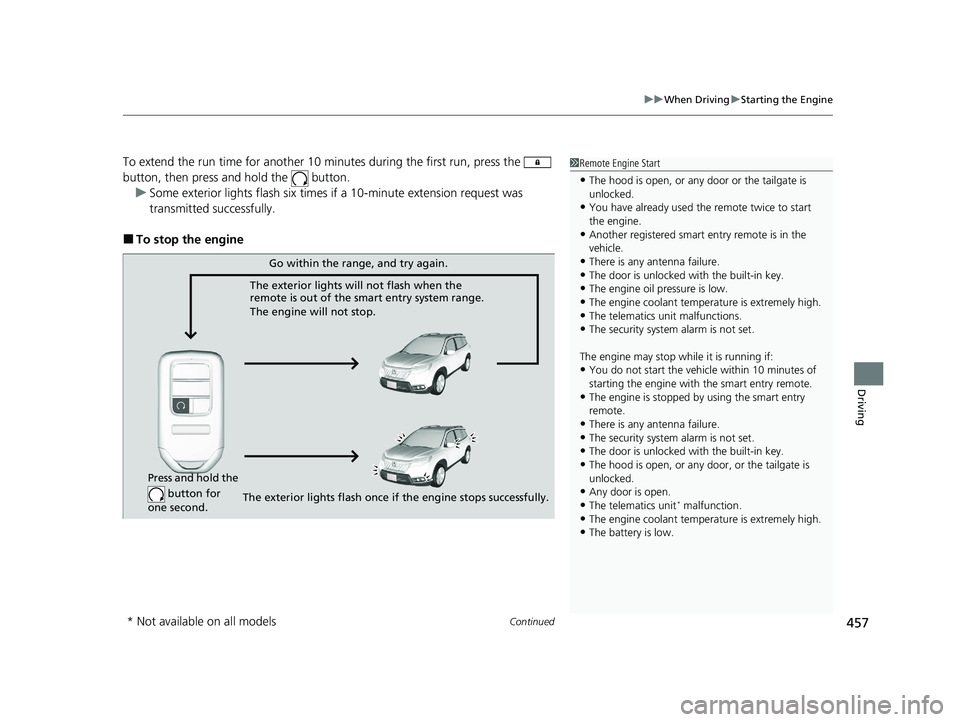

■To stop the engine
Press and hold the
button for
one second.
Go within the range, and try again.
The exterior lights will not flash when the
remote is out of the sm art entry system range.
The engine will not stop.
The exterior lights flash once if the engine stops successfully.
1 Remote Engine Start
•The hood is open, or any door or the tailgate is
unlocked.
•You have already used the remote twice to start
the engine.
•Another registered smart entry remote is in the
vehicle.
•There is any antenna failure.•The door is unlocked with the built-in key.
•The engine oil pressure is low.
•The engine coolant temper ature is extremely high.•The telematics unit malfunctions.
•The security system alarm is not set.
The engine may stop whil e it is running if:
•You do not start the vehicl e within 10 minutes of
starting the engine with the smart entry remote.
•The engine is stopped by using the smart entry
remote.
•There is any antenna failure.
•The security system alarm is not set.•The door is unlocked with the built-in key.
•The hood is open, or any door, or the tailgate is
unlocked.
•Any door is open.
•The telematics unit* malfunction.
•The engine coolant temper ature is extremely high.•The battery is low.
* Not available on all models
20 PASSPORT-31TGS6100.book 457 ページ ２０１９年８月３０日　金曜日　午後６時２２分

uuWhen Driving uStarting the Engine
458
Driving

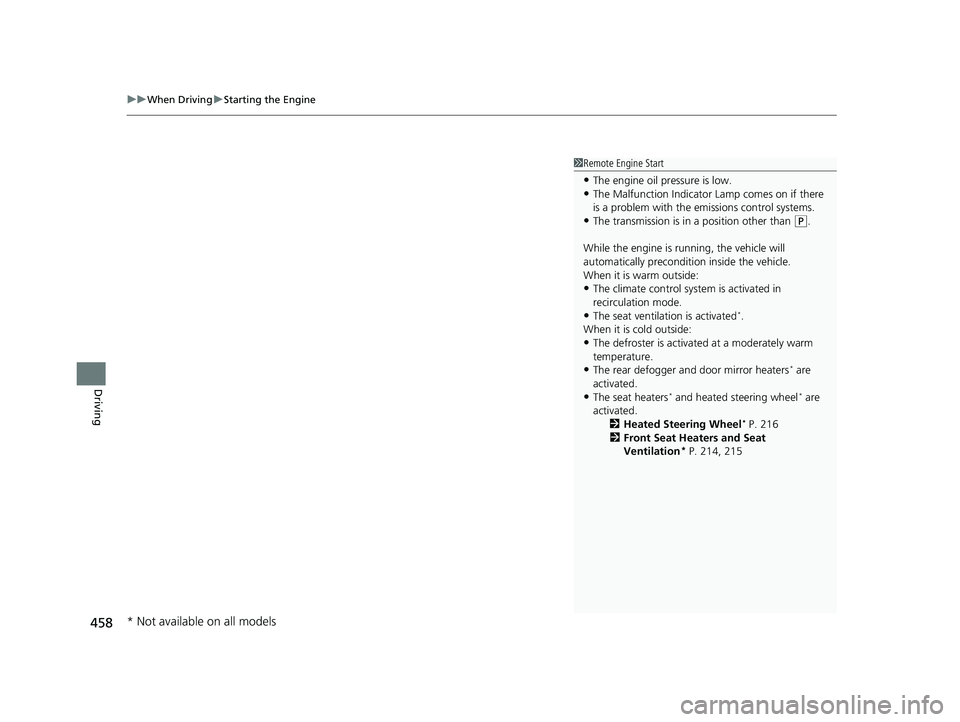

1Remote Engine Start
•The engine oil pressure is low.•The Malfunction Indicator Lamp comes on if there
is a problem with the em issions control systems.
•The transmission is in a position other than (P.
While the engine is running, the vehicle will
automatically preconditi on inside the vehicle.
When it is warm outside:
•The climate control system is activated in
recirculation mode.
•The seat ventilation is activated*.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger and door mirror heaters* are
activated.
•The seat heaters* and heated steering wheel* are
activated. 2Heated Steering Wheel
* P. 216
2 Front Seat Heaters and Seat
Ventilation
* P. 214, 215
* Not available on all models
20 PASSPORT-31TGS6100.book 458 ページ ２０１９年８月３０日　金曜日　午後６時２２分

459
uuWhen Driving uStarting the Engine
Driving
1. Depress the brake pedal and press the ENGINE START/STOP button
simultaneously.
2. Keeping your right foot on the brake pedal, release the parking brake. Check that
the parking brake and brake system indicator has gone off.
2 Parking Brake P. 537
3.Put the transmission into (D. Select (R when reversing.
4. Gradually release the brake pedal and gently depress the accelerator pedal to pull
away.
■Hill start assist system
Hill start assist keeps the brake engaged br iefly to help prevent the vehicle from
rolling on inclines as you move your foot from the brake pedal to the accelerator.
Put the transmission into
(D or (S when facing uphill, or (R when facing downhill,
then release the brake pedal.
■Starting to Drive1 Starting to Drive
The engine stops when th e transmission position is
changed from
( P before the ENGINE START/STOP
button is pressed. Follow step 1 when starting to
drive.
When the engine was started using the smart entry
remoteWhen the engine was started using the smart entry remote
When the engine was started in any case
1 Hill start assist system
Hill start assist may not prevent the vehicle from
rolling downhill on a very st eep or slippery slope, and
will not operate on small inclines.
Hill start assist is not a replacement for the parking
brake.
Hill start assist will operate even when VSA ® is
switched off.
20 PASSPORT-31TGS6100.book 459 ページ ２０１９年８月３０日　金曜日　午後６時２２分

611
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 612
If a Tire Goes Flat Changing a Flat Tire ......................... 613
Engine Does Not Start Checking the Engine ........................ 621
If the Smart Entry Remote Battery is Weak .......................................... 622
Emergency Engine Stop ................... 623
Jump Starting .................................... 624
Overheating How to Handle Overheating ............. 627 Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears ...... 629
If the Charging System Indicator Comes
On ................................................. 629
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 630
If the Brake System Indicator (Red) Comes On ................................................. 631
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 631
If the Low Tire Pressure/Tire Pressure
Monitoring System (TPMS) Indicator
Comes On or Blinks........................ 632 If the Transmission I
ndicator Blinks along
with the Warning Message ............ 632
Fuses Fuse Locations ................................. 633
Inspecting and Changing Fuses ........ 637
Emergency Towing ........................... 638
When You Cannot Unlock the Fuel Fill Door ................................................. 639
Refueling
Refueling From a Portable Fuel Container ................................... 640
When You Cannot Open the Tailgate .. 641
20 PASSPORT-31TGS6100.book 611 ページ ２０１９年８月３０日　金曜日　午後６時２２分

621
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the driver information interface.
●If the To Start, Hold Remote Near Start Button message appears
2If the Smart Entry Remote Battery is Weak P. 622
uMake sure the smart entry remote is in its operating range.
2 ENGINE START/STOP Button Operating Range P. 165
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2Battery P. 599●If the interior lights come on normally 2 Fuses P. 633
The starter turns over normally
but the engine doesn’t start.
There may be a problem with a
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 454
Check the immobilize r system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2 Immobilizer System P. 158
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 104
Check the fuses.
Check all fuses, or have the vehicle checked by a dealer.
2 Inspecting and Changing Fuses P. 637
If the problem continues:
2Emergency Towing P. 638
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 624
20 PASSPORT-31TGS6100.book 621 ページ ２０１９年８月３０日　金曜日　午後６時２２分

622
uuEngine Does Not Start uIf the Smart Entry Remote Battery is Weak
Handling the Unexpected

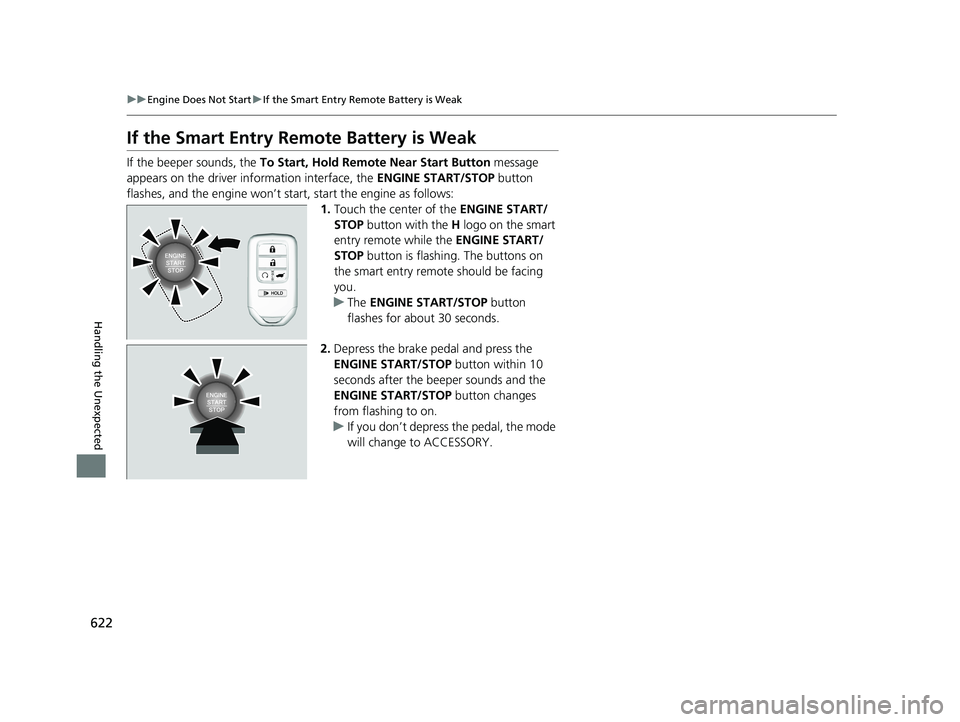

If the Smart Entry Remote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver information interface, the ENGINE START/STOP button
flashes, and the engine won’t star t, start the engine as follows:
1.Touch the center of the ENGINE START/
STOP button with the H logo on the smart
entry remote while the ENGINE START/
STOP button is flashing. The buttons on
the smart entry remote should be facing
you.
u The ENGINE START/STOP button
flashes for about 30 seconds.
2. Depress the brake pedal and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds and the
ENGINE START/STOP button changes
from flashing to on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
20 PASSPORT-31TGS6100.book 622 ページ ２０１９年８月３０日　金曜日　午後６時２２分

657
Index
Coat Hook................................................ 210
Collision Mitigation Braking SystemTM
(CMBSTM) ................................................. 495
Collision Mitigation Braking SystemTM
(CMBSTM) Indicator ............................. 88, 89
Compact Spare Tire .......................... 613, 645
Console Compartment ............................. 201
Controls .................................................... 129
Coolant (Engine) ...................................... 577
Adding to the Radiator ........................... 578
Adding to the Reserve Tank .................... 577
Overheating ............................................ 627
Temperature Gauge ................................ 104
Creeping (Automatic Transmission) ........ 461
Cross Traffic Monitor ............................... 548
Cup Holders .............................................. 203
Customer Service Information ................ 654
Customized Features ............... 119, 354, 361
D
Daytime Running Lights .......................... 173
Dead Battery ............................................ 624
Defaulting All the Settings ...................... 379
Defrosting the Windshield and Windows ................................................. 220
Detachable Anchor .................................... 42
Devices that Emit Radio Waves ............... 647
Dimming Headlights .............................................. 169
Rearview Mirror ...................................... 186 Dipstick (Engine Oil)
................................. 573
Directional Signals (Turn Signal) ............. 168
Door Mirrors ............................................. 187
Doors ......................................................... 133
Auto Door Locking .................................. 147
Auto Door Unlocking ............................... 147
Door Open Message .................................. 36
Keys ........................................................ 133
Locking/Unlocking the Doors from the Inside..................................................... 144
Locking/Unlocking the Doors from the
Outside.................................................. 136
Lockout Prevention System ...................... 143
DOT Tire Quality Grading ........................ 593
Driver Information Interface ................... 105
Accessing Content ................................... 107
Warning and Information Messages .......... 91
Driving ....................................................... 435
Adaptive Cruise Control (ACC) ................ 507
Automatic Transmission ........................... 461
Braking .................................................... 537
Off-Highway Driving Guidelines ............... 452
Shifting Gear ........................................... 462
Starting the Engine .................................. 454
Driving Position Memory System ............. 183
Dust and Pollen Filter ............................... 603
E
Eco Assist® System ...................................... 10
ECON Button ............................................. 476 Econ Mode
Indicator.................................................... 84
Electric Power Steering (EPS) System Indicator............................................ 81, 631
Electronic Stability Control (ESC) ............. 479
Emergency ................................................ 638
Emissions Testing (Readiness Codes) ....... 649
Engine
Coolant ................................................... 577
Jump Starting .......................................... 624
Number................................................... 646
Oil ........................................................... 572
Remote Engine Start................................ 456
Starting ................................................... 454
Engine Compartment Cover .................... 571
Engine Coolant ......................................... 577
Adding to the Radiator ............................ 578
Adding to the Reserve Tank..................... 577
Overheating ............................................ 627
Temperature Gauge ................................ 104
Engine Oil ................................................. 572
Adding .................................................... 574
Checking................................................. 573
Displaying Maintenance Minder Information ........................................... 564
Low Oil Pressure Symbol.......................... 629
Recommended Engine Oil ....................... 572
ENGINE START/STOP Button .................... 165
EPS (Electric Power Steering) System ...... 631
Exhaust Gas Hazard (Carbon Monoxide) .. 73
Exterior Care (Cleaning) ........................... 606
20 PASSPORT-31TGS6100.book 657 ページ ２０１９年８月３０日　金曜日　午後６時２２分

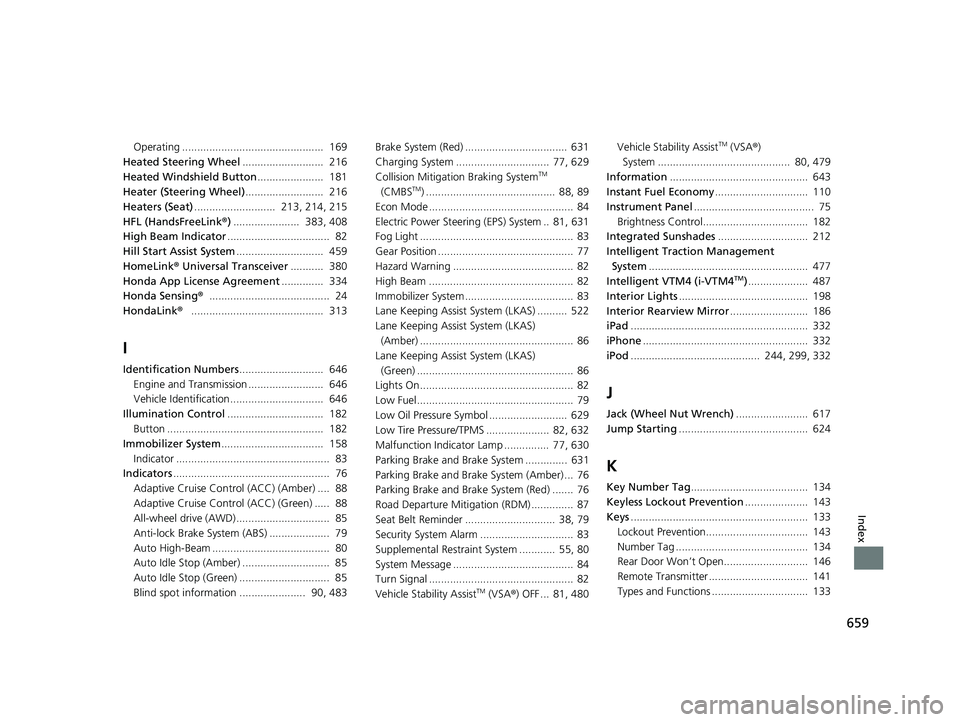

659
Index
Operating ............................................... 169
Heated Steering Wheel ........................... 216
Heated Windshield Button ...................... 181
Heater (Steering Wheel) .......................... 216
Heaters (Seat) ........................... 213, 214, 215
HFL (HandsFreeLink ®) ...................... 383, 408
High Beam Indicator .................................. 82
Hill Start Assist System ............................. 459
HomeLink ® Universal Transceiver ........... 380
Honda App License Agreement .............. 334
Honda Sensing ®........................................ 24
HondaLink ®............................................ 313
I
Identification Numbers ............................ 646
Engine and Transmission ......................... 646
Vehicle Identification............................... 646
Illumination Control ................................ 182
Button .................................................... 182
Immobilizer System .................................. 158
Indicator ................................................... 83
Indicators .................................................... 76
Adaptive Cruise Control (ACC) (Amber) .... 88
Adaptive Cruise Control (ACC) (Green) ..... 88
All-wheel drive (AWD)............................... 85
Anti-lock Brake System (ABS) .................... 79
Auto High-Beam ....................................... 80
Auto Idle Stop (Amber) ............................. 85
Auto Idle Stop (Green) .............................. 85
Blind spot information ...................... 90, 483 Brake System (Red) .................................. 631
Charging System ............................... 77, 629
Collision Mitigation Braking System
TM
(CMBSTM) ........................................... 88, 89
Econ Mode ................................................ 84
Electric Power Steering (EPS) System .. 81, 631
Fog Light ................................................... 83
Gear Position ............................................. 77
Hazard Warning ........................................ 82
High Beam ................................................ 82
Immobilizer System .................................... 83
Lane Keeping Assist System (LKAS) .......... 522
Lane Keeping Assist System (LKAS) (Amber) ................................................... 86
Lane Keeping Assist System (LKAS) (Green) .................................................... 86
Lights On ................................................... 82
Low Fuel .................................................... 79
Low Oil Pressure Symbol .......................... 629
Low Tire Pressure/TPMS ..................... 82, 632
Malfunction Indicator Lamp ............... 77, 630
Parking Brake and Brake System .............. 631
Parking Brake and Brake System (Amber) ... 76
Parking Brake and Brake System (Red) ....... 76
Road Departure Mitigation (RDM) .............. 87
Seat Belt Reminder .............................. 38, 79
Security System Alarm ............................... 83
Supplemental Restraint System ............ 55, 80
System Message ........................................ 84
Turn Signal ................................................ 82
Vehicle Stability Assist
TM (VSA ®) OFF ... 81, 480 Vehicle Stability Assist
TM (VSA
®)
System ............................................ 80, 479
Information .............................................. 643
Instant Fuel Economy ............................... 110
Instrument Panel ........................................ 75
Brightness Control................................... 182
Integrated Sunshades .............................. 212
Intelligent Traction Management
System ..................................................... 477
Intelligent VTM4 (i-VTM4
TM) .................... 487
Interior Lights ........................................... 198
Interior Rearview Mirror .......................... 186
iPad ........................................................... 332
iPhone ....................................................... 332
iPod ........................................... 244, 299, 332
J
Jack (Wheel Nut Wrench) ........................ 617
Jump Starting ........................................... 624
K
Key Number Tag ....................................... 134
Keyless Lockout Prevention ..................... 143
Keys ........................................................... 133
Lockout Prevention.................................. 143
Number Tag ............................................ 134
Rear Door Won’t Open............................ 146
Remote Transmitter ................................. 141
Types and Functions ................................ 133
20 PASSPORT-31TGS6100.book 659 ページ ２０１９年８月３０日　金曜日　午後６時２２分

661
Index
Recommended Engine Oil ....................... 572
Viscosity.................................................. 572
Open Source Licenses .............................. 348
Opening/Closing Hood ...................................................... 570
Moonroof ............................................... 164
Power Windows...................................... 161
Tailgate................................................... 148
Operating the Switches Around the Steering Wheel ....................................... 165
Outside Temperature Display ................. 106
Overheating ............................................. 627
P
Paddle Shifters (Sequential Mode) ... 22, 469
Panic Mode ............................................... 160
Parking ..................................................... 541
Parking Brake ........................................... 537
Parking Brake and Brake System Indicator ................................................. 631
Parking Brake and Brake System Indicator (Amber) ..................................... 76
Parking Brake and Brake System
Indicator (Red) .......................................... 76
Parking Sensor System ............................. 543
Passenger Airbag Off Indicator ................. 56
Passing Indicators ..................................... 169
Phone ........................................................ 113
Playing Bluetooth ® Audio ............... 250, 309
Power Tailgate ......................................... 150 Power Windows
........................................ 161
Precautions While Driving ....................... 460
Driving Guidelines for Your Utility Vehicle .................................................. 460
Rain ......................................................... 460
Pregnant Women ....................................... 43
Puncture (Tire) .......................................... 613
R
Radiator.................................................... 578
Radio (FM/AM) .................................. 242, 285
Radio (SiriusXM ®) ..................................... 289
Radio Data System (RDS) .................. 243, 287
Range ........................................................ 110
RDS (Radio Data System) .................. 243, 287
Readiness Codes (Emissions Testing) ....... 649
Rear Climate Control System
From the Rear Panel ................................ 224
Rear Defogger/Heated Door Mirror Button ..................................................... 180
Rear Outer Seats Heaters ......................... 215
Rear Seat (Folding Down) ........................ 193
Rear Seats .................................................. 192
Rearview Mirror ........................................ 186
Refueling ................................................... 554
Fuel Gauge .............................................. 104
Gasoline .......................................... 554, 644
Low Fuel Indicator ..................................... 79
Regulations ............................... 490, 593, 647
Remote Engine Start ................................ 456 Remote Transmitter
................................. 141
Replacement
Battery .................................................... 601
Bulbs ....................................................... 581
Front Wiper Blade Rubber ....................... 586
Fuses ............................... 633, 634, 635, 636
Rear Wiper Blade Rubber......................... 588
Tires ........................................................ 596
Reporting Safety Defects ......................... 648
Reverse Tilt Door Mirror .......................... 187
Road Departure Mitigation (RDM) ......... 529
On and Off.............................................. 531
Road Departure Mitigation (RDM) Indicator .................................................... 87
S
Safe Driving ................................................ 31
Safety Check ............................................... 36
Safety Labels ............................................... 74
Safety Message ............................................. 1
Seat Belts .................................................... 37
Adjusting the Shoulder Anchor.................. 41
Automatic Seat Belt Tensioners ................. 39
Checking................................................... 44
Detachable Anchor.................................... 42
Fastening .................................................. 40
Installing a Child Seat with a Lap/ Shoulder Seat Belt ................................... 66
Pregnant Women ...................................... 43
Reminder .................................................. 38
20 PASSPORT-31TGS6100.book 661 ページ ２０１９年８月３０日　金曜日　午後６時２２分

662
Index
Warning Indicator ................................ 38, 79
Seat Heaters .............................. 213, 214, 215
Seat Ventilation ........................................ 214
Seats .......................................................... 188
Adjusting ................................................. 188
Driver’s Seat Lumbar Support................... 189
Folding Down the Rear Seat..................... 193
Front Seats .............................................. 188
Rear Seats................................................ 192
Seat Heaters ............................ 213, 214, 215
Seat Ventilation ....................................... 214
Security System ......................................... 158
Immobilizer System Indicator ..................... 83
Security System Alarm Indicator ................. 83
Select Button ....................................... 21, 462
Operation .......................................... 21, 464
Selecting a Child Seat ................................. 62
Selector Knob (Audio) .............................. 235
Sequential Mode ...................................... 468
Sequential Mode Operation .................... 469
Setting the Clock ...................................... 130
Settings
Arrange Apps .......................................... 117
Show Tachometer.................................... 118
Shift Button......................................... 21, 462
Shifting (Transmission) ....................... 21, 462
Shoulder Anchor ......................................... 41
Show Tachometer ..................................... 118
Show/Hide Apps ........................................ 116
Side Airbags ................................................ 52
Side Curtain Airbags ................................... 54 Siri Eyes Free
............................................. 320
SiriusXM ® Radio ........................................ 289
Snow Tires ................................................. 598
Social Playlist ............................................ 311
Spare Tire .......................................... 613, 645
Spark Plugs ............................................... 644
Specifications ............................................ 644
Specified Fuel ................................... 554, 644
Speedometer ............................................ 105
SRS Airbags (Airbags) ................................. 48
Starting Assist Brake Function ................. 475
Starting the Engine .................................. 454
Does Not Start......................................... 621
Jump Starting .......................................... 624
Remote Engine Start................................ 456
Steering Wheel ......................................... 185
Adjusting ................................................ 185
Heater ..................................................... 216
Stopping ................................................... 541
Summer Tires ............................................ 598
Sunglasses Holder ..................................... 211
Sunshades ................................................. 212
Supplemental Restraint System (SRS) ........ 48
Switches (Around the Steering Wheel) ............................................. 4, 5, 165
SYNC Mode ............................................... 222
System Message Indicator .......................... 84
System Updates ........................................ 267T
Tachometer.............................................. 105
Tailgate ..................................................... 148
Unable to Open ...................................... 641
Temperature
Gauge .................................................... 104
Outside Temperature Display .................. 106
Temperature Gauge ................................ 104
Temperature Sensor ........................ 106, 225
Tie-down Anchors .................................... 217
Time (Setting) ........................................... 130
Tire Fill Assist ............................................ 632
Tire Pressure ............................................. 112
Tire Pressure Monitoring System (TPMS)
Indicator ................................................... 82
Tires .......................................................... 590
Air Pressure..................................... 591, 645
Checking and Maintaining ...................... 590
Inspection ............................................... 590
Labeling .................................................. 591
Puncture (Flat Tire) .................................. 613
Regulations ............................................. 593
Rotation.................................................. 597
Spare Tire ....................................... 613, 645
Summer .................................................. 598
Tire Chains.............................................. 598
Wear Indicators....................................... 595
Winter .................................................... 598
Tools ......................................................... 612
Towing a Trailer ....................................... 442
Equipment and Accessories ..................... 445
20 PASSPORT-31TGS6100.book 662 ページ ２０１９年８月３０日　金曜日　午後６時２２分
