uuMaintenance Under the Hood uEngine Coolant
578
Maintenance
1. Make sure the engine and radiator are
cool.
2. Remove the engine compartment cover.
2 Engine Compartment Cover P. 571
3.Turn the radiator cap 1/8 turn counter-
clockwise and relieve any pressure in the
cooling system. Do not push the cap down
when turning.
4. Push down and turn the radiator cap
counter-clockwise to remove it.
5. The coolant level should be up to the base
of the filler neck. Add coolant if it is low.
6. Put the radiator cap back on, and tighten it
fully.
■Radiator1Radiator
NOTICE
Pour the fluid slowly and ca refully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.Radiator
Cap
20 PASSPORT-31TGS6100.book 578 ページ ２０１９年８月３０日　金曜日　午後６時２２分

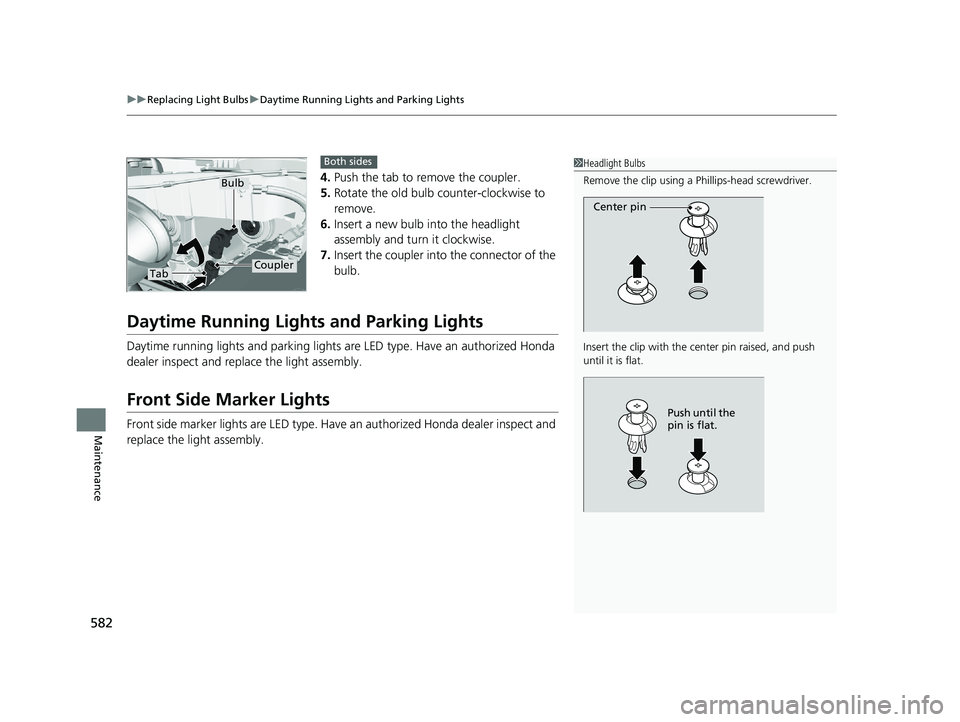

uuReplacing Light Bulbs uDaytime Running Lights and Parking Lights
582
Maintenance
4. Push the tab to remove the coupler.
5. Rotate the old bulb counter-clockwise to
remove.
6. Insert a new bulb into the headlight
assembly and turn it clockwise.
7. Insert the coupler into the connector of the
bulb.
Daytime Running Lights and Parking Lights
Daytime running lights and parking lights are LED type. Have an authorized Honda
dealer inspect and replace the light assembly.
Front Side Marker Lights
Front side marker lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
1Headlight Bulbs
Remove the clip using a Phillips-head screwdriver.
Insert the clip with the center pin raised, and push
until it is flat.
Center pin
Push until the
pin is flat.
TabCoupler
Bulb
Both sides
20 PASSPORT-31TGS6100.book 582 ページ ２０１９年８月３０日　金曜日　午後６時２２分

583

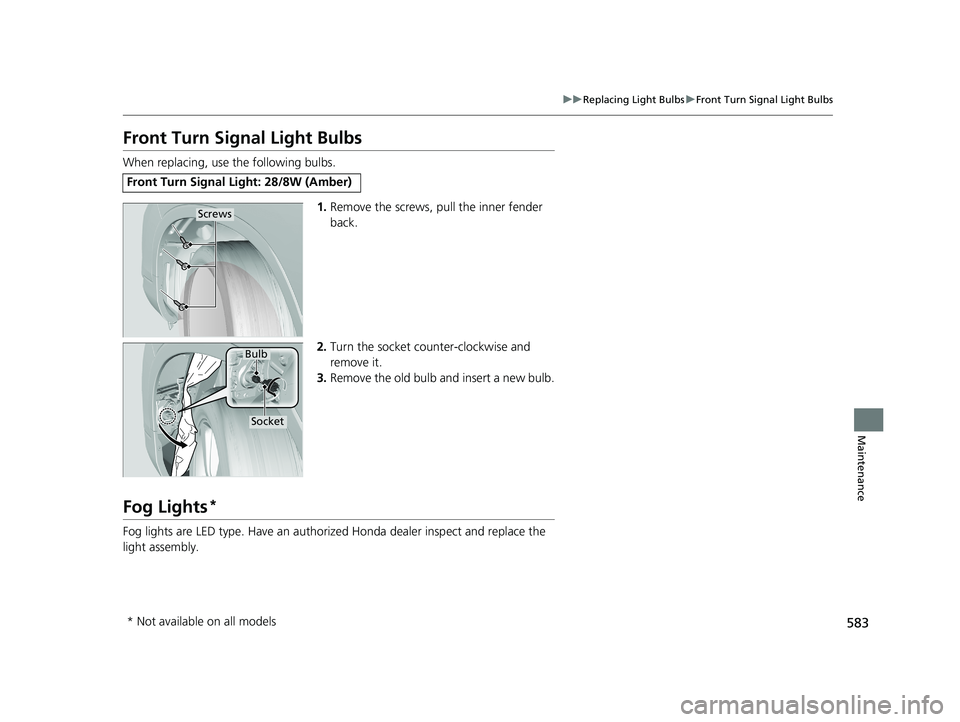

uuReplacing Light Bulbs uFront Turn Signal Light Bulbs
Maintenance
Front Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Remove the screws, pull the inner fender
back.
2. Turn the socket counter-clockwise and
remove it.
3. Remove the old bulb and insert a new bulb.
Fog Lights*
Fog lights are LED type. Have an authoriz ed Honda dealer inspect and replace the
light assembly.
Front Turn Signal Light: 28/8W (Amber)
Screws
Socket
Bulb
* Not available on all models
20 PASSPORT-31TGS6100.book 583 ページ ２０１９年８月３０日　金曜日　午後６時２２分

584

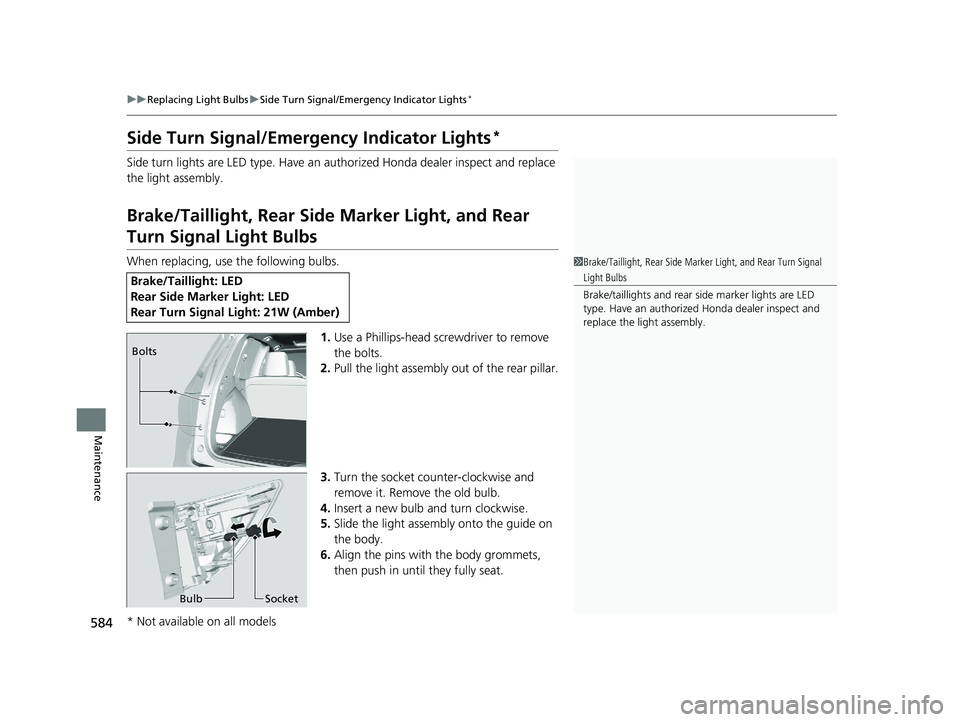

uuReplacing Light Bulbs uSide Turn Signal/Emergency Indicator Lights*
Maintenance
Side Turn Signal/Emergency Indicator Lights*
Side turn lights are LED type. Have an au thorized Honda dealer inspect and replace
the light assembly.
Brake/Taillight, Rear Side Marker Light, and Rear
Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Use a Phillips-head screwdriver to remove
the bolts.
2. Pull the light assembly out of the rear pillar.
3. Turn the socket counter-clockwise and
remove it. Remove the old bulb.
4. Insert a new bulb and turn clockwise.
5. Slide the light assembly onto the guide on
the body.
6. Align the pins with the body grommets,
then push in unt il they fully seat.
Brake/Taillight: LED
Rear Side Marker Light: LED
Rear Turn Signal Light: 21W (Amber)
1Brake/Taillight, Rear Side Marker Light, and Rear Turn Signal
Light Bulbs
Brake/taillights and rear side marker lights are LED
type. Have an authorized Honda dealer inspect and
replace the light assembly.
Bolts
Bulb Socket
* Not available on all models
20 PASSPORT-31TGS6100.book 584 ページ ２０１９年８月３０日　金曜日　午後６時２２分

585

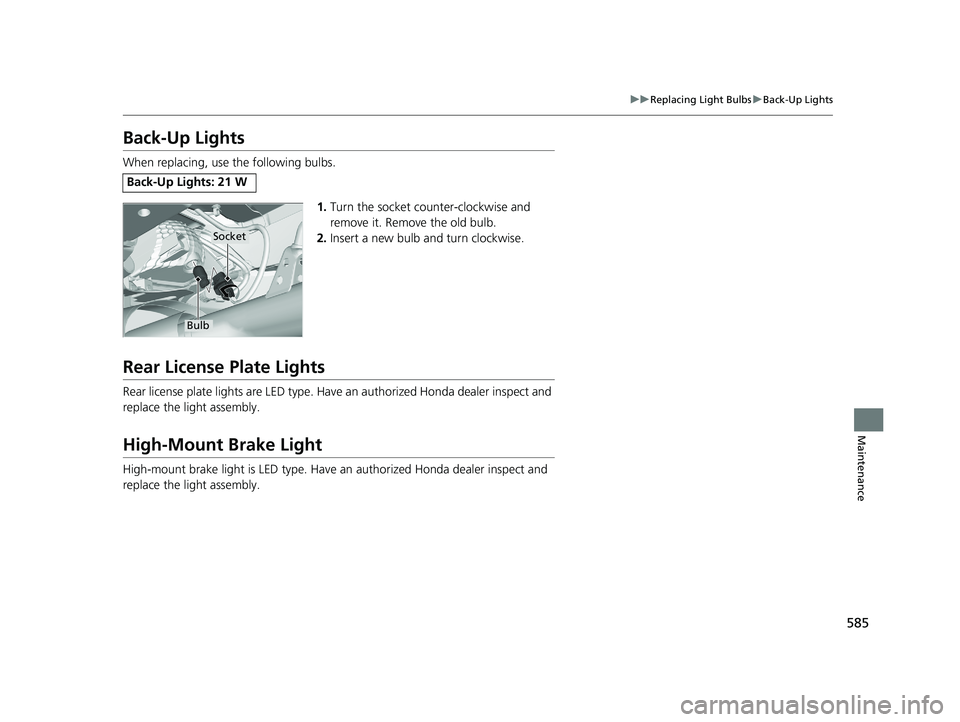

uuReplacing Light Bulbs uBack-Up Lights
Maintenance
Back-Up Lights
When replacing, use the following bulbs.
1.Turn the socket counter-clockwise and
remove it. Remove the old bulb.
2. Insert a new bulb and turn clockwise.
Rear License Plate Lights
Rear license plate lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
Back-Up Lights: 21 W
Socket
Bulb
20 PASSPORT-31TGS6100.book 585 ページ ２０１９年８月３０日　金曜日　午後６時２２分

599
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information interface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery termina ls for corrosion monthly.
To access the battery terminals:
1. Remove the engine compartment cover.
2 Engine Compartment Cover P. 571
2.Remove the clips using a Ph illips-head screwdriver, then remove the air intake
duct.
2 High Beam Headlights P. 581
If your vehicle’s battery is disconnected or goes dead:
•The audio system is disabled.
2 Audio System Theft Protection P. 231
•The clock resets*.
2 Clock P. 130
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
* Not available on all models
20 PASSPORT-31TGS6100.book 599 ページ ２０１９年８月３０日　金曜日　午後６時２２分

656
Index
Wi-Fi Connection ..................................... 318
Audio/Information Screen ................ 236, 254
Authorized Manuals ................................. 653
Auto Door Locking/Unlocking ................. 147
Customize ....................................... 125, 375
Auto High-Beam ....................................... 174
Indicator .................................................... 80
Auto Idle Stop ........................................... 470
OFF Button .............................................. 471
Auto Idle Stop Indicator (Amber) .............. 85
Auto Idle Stop Indicator (Green) ............... 85
Automatic Intermittent Wipers ............... 178
Automatic Lighting .................................. 170
Automatic Transmission ........................... 461
Creeping ................................................. 461
Fluid ........................................................ 579
Kickdown ................................................ 461
Operating the Shift Button....................... 464
Shifting.................................................... 462
Auxiliary Input Jack .................................. 230
Average Fuel Economy ............................. 110
B
Back-Up Light............................................ 585
Battery ....................................................... 599
Charging System Indicator ................. 77, 629
Jump Starting .......................................... 624
Maintenance (Checking the Battery) ........ 599
Belts (Seat) .................................................. 37
Beverage Holders ...................................... 203 Blind Spot Information System
................ 482
Bluetooth® Audio............................. 250, 309
Bluetooth® HandsFreeLink ®........... 383, 408
Booster Seats (For Children) ...................... 72
Brake System ............................................ 537
Anti-lock Brake System (ABS)................... 539
Brake Assist System ................................. 540
Fluid ........................................................ 580
Foot Brake............................................... 538
Indicator............................................ 76, 631
Parking Brake .......................................... 537
Brake System (Red) Indicator.................................................. 631
Brightness Control (Instrument Panel) .... 182
Bulb Replacement .................................... 581
Back-Up Lights ........................................ 585
Brake lights ............................................. 584
Daytime Running Lights........................... 582
Fog Lights ............................................... 583
Front Side Marker Lights.......................... 582
Front Turn Signal Lights ........................... 583
Headlights ............................................... 581
High-Mount Brake Light .......................... 585
Parking Lights.......................................... 582
Rear License Plate Lights .......................... 585
Rear Side Marker Lights ........................... 584
Rear Turn Signal Lights ............................ 584
Side Turn Signal/Emergency Indicator
Lights .................................................... 584
Taillights.................................................. 584
Bulb Specifications ................................... 644
C
Car Wash Mode........................................ 466
Carbon Monoxide Gas ............................... 73
Carrying Cargo ................................. 437, 439
Certification Label ................................... 646
Changing Bulbs ........................................ 581
Charging System Indicator ................ 77, 629
Child Safety ................................................ 58
Childproof Door Locks ............................ 146
Child Seat ................................................... 58
Booster Seats ............................................ 72
Child Seat for Infants ................................ 60
Child Seat for Small Children .................... 61
Installing a Child Seat with a Lap/
Shoulder Seat Belt ................................... 66
Larger Children ......................................... 71
Rear-facing Child Seat............................... 60
Selecting a Child Seat ............................... 62
Childproof Door Locks ............................. 146
Cleaning the Exterior ............................... 606
Cleaning the Interior ............................... 604
Climate Control System ........................... 219
Changing the Mode................................ 219
Defrosting the Windshield and Windows .............................................. 220
Dust and Pollen Filter .............................. 603
Recirculation and Fresh Air Mode ............ 220
Sensors ................................................... 225
Synchronization Mode ............................ 222
Using Automatic Climate Control............ 219
Clock ......................................................... 130
20 PASSPORT-31TGS6100.book 656 ページ ２０１９年８月３０日　金曜日　午後６時２２分

662
Index
Warning Indicator ................................ 38, 79
Seat Heaters .............................. 213, 214, 215
Seat Ventilation ........................................ 214
Seats .......................................................... 188
Adjusting ................................................. 188
Driver’s Seat Lumbar Support................... 189
Folding Down the Rear Seat..................... 193
Front Seats .............................................. 188
Rear Seats................................................ 192
Seat Heaters ............................ 213, 214, 215
Seat Ventilation ....................................... 214
Security System ......................................... 158
Immobilizer System Indicator ..................... 83
Security System Alarm Indicator ................. 83
Select Button ....................................... 21, 462
Operation .......................................... 21, 464
Selecting a Child Seat ................................. 62
Selector Knob (Audio) .............................. 235
Sequential Mode ...................................... 468
Sequential Mode Operation .................... 469
Setting the Clock ...................................... 130
Settings
Arrange Apps .......................................... 117
Show Tachometer.................................... 118
Shift Button......................................... 21, 462
Shifting (Transmission) ....................... 21, 462
Shoulder Anchor ......................................... 41
Show Tachometer ..................................... 118
Show/Hide Apps ........................................ 116
Side Airbags ................................................ 52
Side Curtain Airbags ................................... 54 Siri Eyes Free
............................................. 320
SiriusXM ® Radio ........................................ 289
Snow Tires ................................................. 598
Social Playlist ............................................ 311
Spare Tire .......................................... 613, 645
Spark Plugs ............................................... 644
Specifications ............................................ 644
Specified Fuel ................................... 554, 644
Speedometer ............................................ 105
SRS Airbags (Airbags) ................................. 48
Starting Assist Brake Function ................. 475
Starting the Engine .................................. 454
Does Not Start......................................... 621
Jump Starting .......................................... 624
Remote Engine Start................................ 456
Steering Wheel ......................................... 185
Adjusting ................................................ 185
Heater ..................................................... 216
Stopping ................................................... 541
Summer Tires ............................................ 598
Sunglasses Holder ..................................... 211
Sunshades ................................................. 212
Supplemental Restraint System (SRS) ........ 48
Switches (Around the Steering Wheel) ............................................. 4, 5, 165
SYNC Mode ............................................... 222
System Message Indicator .......................... 84
System Updates ........................................ 267T
Tachometer.............................................. 105
Tailgate ..................................................... 148
Unable to Open ...................................... 641
Temperature
Gauge .................................................... 104
Outside Temperature Display .................. 106
Temperature Gauge ................................ 104
Temperature Sensor ........................ 106, 225
Tie-down Anchors .................................... 217
Time (Setting) ........................................... 130
Tire Fill Assist ............................................ 632
Tire Pressure ............................................. 112
Tire Pressure Monitoring System (TPMS)
Indicator ................................................... 82
Tires .......................................................... 590
Air Pressure..................................... 591, 645
Checking and Maintaining ...................... 590
Inspection ............................................... 590
Labeling .................................................. 591
Puncture (Flat Tire) .................................. 613
Regulations ............................................. 593
Rotation.................................................. 597
Spare Tire ....................................... 613, 645
Summer .................................................. 598
Tire Chains.............................................. 598
Wear Indicators....................................... 595
Winter .................................................... 598
Tools ......................................................... 612
Towing a Trailer ....................................... 442
Equipment and Accessories ..................... 445
20 PASSPORT-31TGS6100.book 662 ページ ２０１９年８月３０日　金曜日　午後６時２２分
