uuOverheating uHow to Handle Overheating
628
Handling the Unexpected

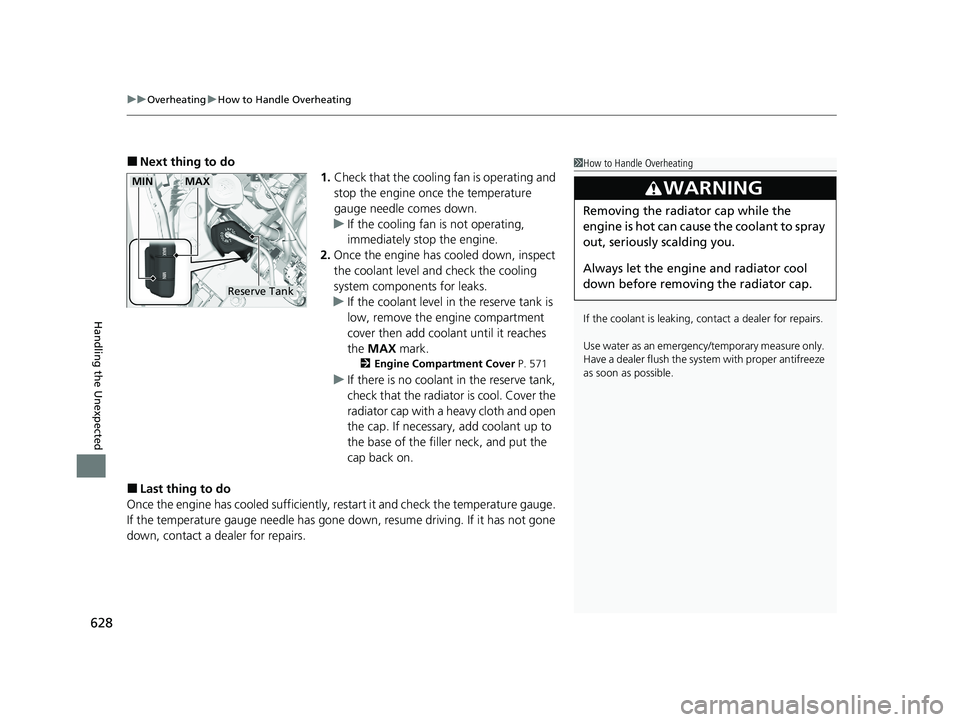

■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once the temperature
gauge needle comes down.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, remove the engine compartment
cover then add coolant until it reaches
the MAX mark.
2Engine Compartment Cover P. 571
uIf there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, re start it and check the temperature gauge.
If the temperature gauge needle has gone do wn, resume driving. If it has not gone
down, contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve Tank
MAXMIN
20 PASSPORT-31TGS6100.book 628 ページ ２０１９年８月３０日　金曜日　午後６時２２分

629
Handling the Unexpected

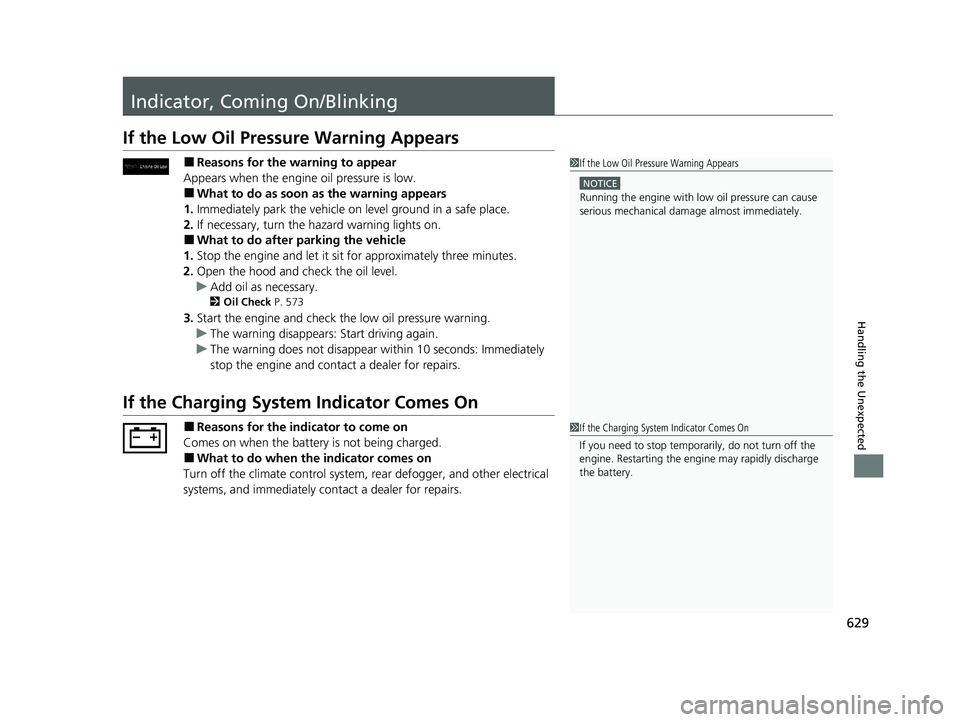

Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears
■Reasons for the warning to appear
Appears when the engine oil pressure is low.
■What to do as soon as the warning appears
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the hazard warning lights on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for approximately three minutes.
2. Open the hood and check the oil level.
u Add oil as necessary.
2 Oil Check P. 573
3.Start the engine and check the low oil pressure warning.
u The warning disappears: Start driving again.
u The warning does not disappear within 10 seconds: Immediately
stop the engine and contact a dealer for repairs.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when th e indicator comes on
Turn off the climate control system, rear defogger, and other electrical
systems, and immediately co ntact a dealer for repairs.
1If the Low Oil Pressure Warning Appears
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
20 PASSPORT-31TGS6100.book 629 ページ ２０１９年８月３０日　金曜日　午後６時２２分

631
uuIndicator, Comin g On/BlinkinguIf the Brake System Indicator (Red) Comes On
Handling the Unexpected

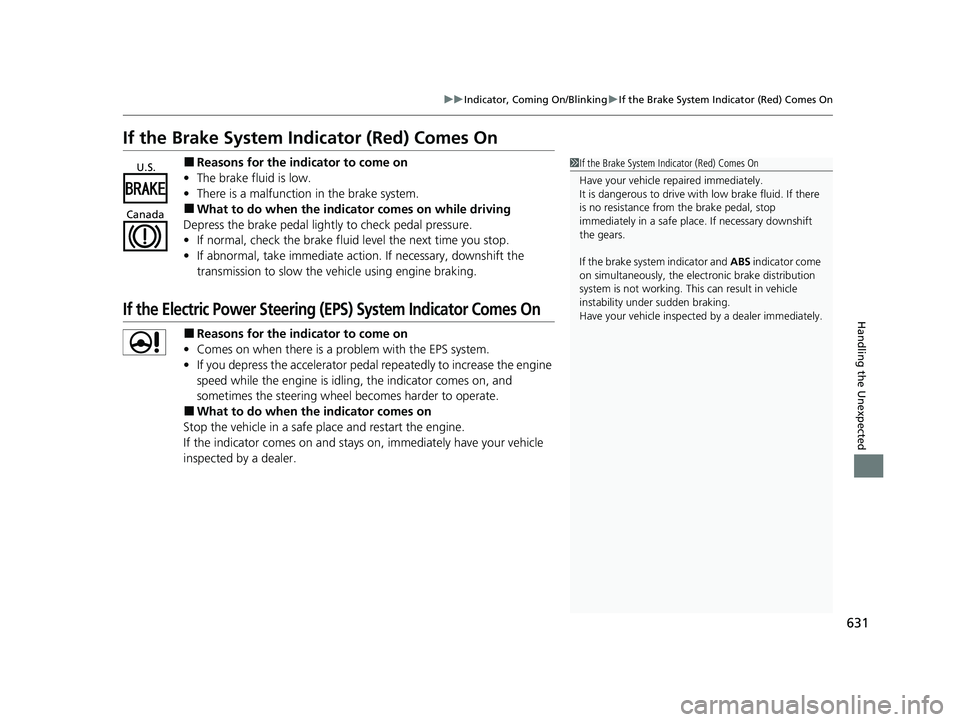

If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steering (EPS) System Indicator Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when th e indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
20 PASSPORT-31TGS6100.book 631 ページ ２０１９年８月３０日　金曜日　午後６時２２分

632
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/Tire Pressure Monitoring System (TPMS) Indicator Comes On or Blinks
Handling the Unexpected

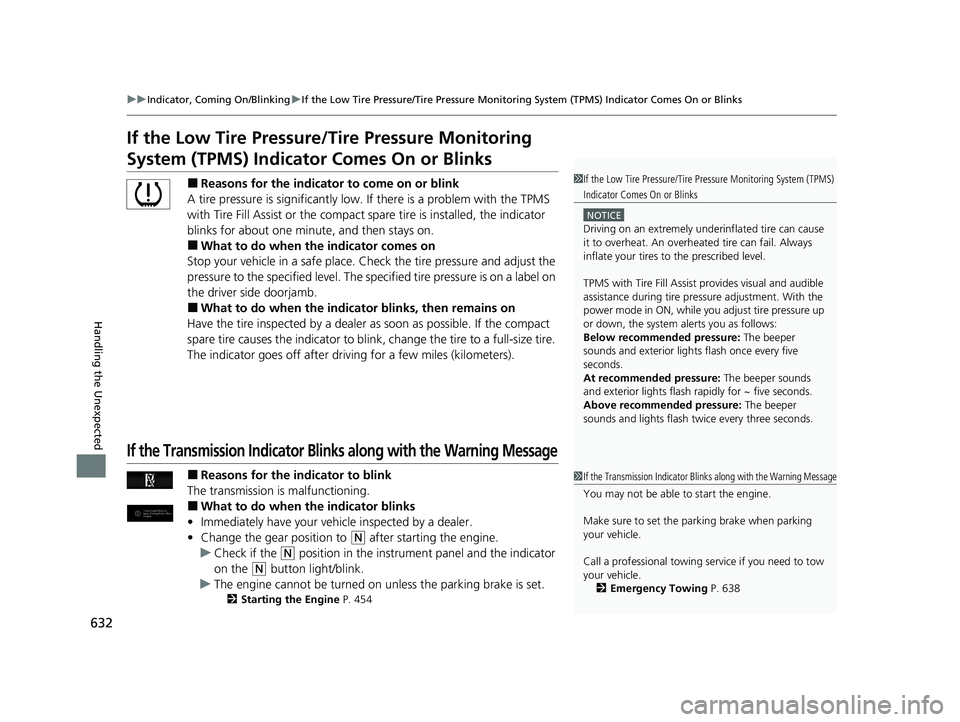

If the Low Tire Pressure/Tire Pressure Monitoring
System (TPMS) Indicato r Comes On or Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the compact spare tire is installed, the indicator
blinks for about one mi nute, and then stays on.
■What to do when the indicator comes on
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
■What to do when the indica tor blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
If the Transmission Indicator Blinks along with the Warning Message
■Reasons for the in dicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehi cle inspected by a dealer.
• Change the gear position to
(N after starting the engine.
u Check if the
(N position in the instrume nt panel and the indicator
on the
(N button light/blink.
u The engine cannot be turned on unless the parking brake is set.
2 Starting the Engine P. 454
1If the Low Tire Pressure/Tire Pressure Monitoring System (TPMS)
Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS with Tire Fill Assist provides visual and audible
assistance during tire pre ssure adjustment. With the
power mode in ON, while y ou adjust tire pressure up
or down, the system alerts you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for ~ five seconds.
Above recommended pressure: The beeper
sounds and lights flash twice every three seconds.
1If the Transmission Indicator Blin ks along with the Warning Message
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 638
20 PASSPORT-31TGS6100.book 632 ページ ２０１９年８月３０日　金曜日　午後６時２２分

633Continued
Handling the Unexpected

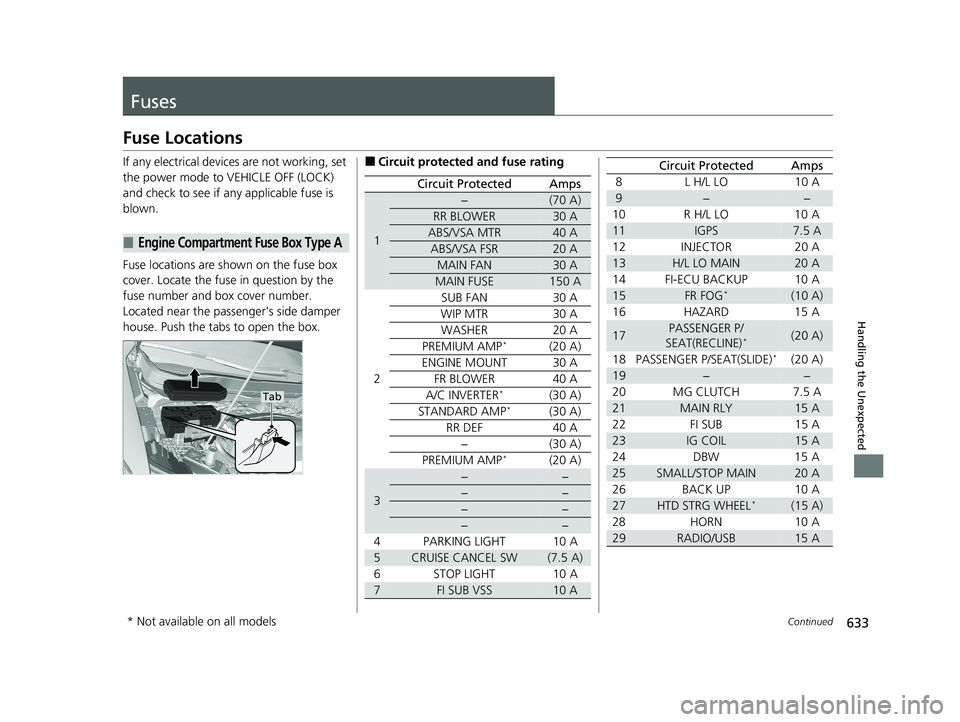

Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the passenger's side damper
house. Push the tabs to open the box.
■Engine Compartment Fuse Box Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
−(70 A)
RR BLOWER30 A
ABS/VSA MTR40 A
ABS/VSA FSR20 A
MAIN FAN30 A
MAIN FUSE150 A
2
SUB FAN30 A
WIP MTR30 A
WASHER20 A
PREMIUM AMP*(20 A)
ENGINE MOUNT30 A
FR BLOWER40 A
A/C INVERTER*(30 A)
STANDARD AMP*(30 A)
RR DEF40 A
−(30 A)
PREMIUM AMP*(20 A)
3
−−
−−
−−
−−
4 PARKING LIGHT 10 A
5CRUISE CANCEL SW(7.5 A)
6 STOP LIGHT 10 A
7FI SUB VSS10 A
8L H/L L O 1 0 A
9−−
10 R H/L LO 10 A
11IGPS7.5 A
12 INJECTOR 20 A
13H/L LO MAIN20 A
14 FI-ECU BACKUP 10 A
15FR FOG*(10 A)
16 HAZARD 15 A
17PASSENGER P/
SEAT(RECLINE)*(20 A)
18 PASSENGER P/SEAT(SLIDE)
*(20 A)
19−−
20 MG CLUTCH 7.5 A
21MAIN RLY15 A
22 FI SUB 15 A
23IG COIL15 A
24 DBW 15 A
25SMALL/STOP MAIN20 A
26 BACK UP 10 A
27HTD STRG WHEEL*(15 A)
28 HORN 10 A
29RADIO/USB15 A
Circuit ProtectedAmps
* Not available on all models
20 PASSPORT-31TGS6100.book 633 ページ ２０１９年８月３０日　金曜日　午後６時２２分

637
uuFuses uInspecting and Changing Fuses
Handling the Unexpected

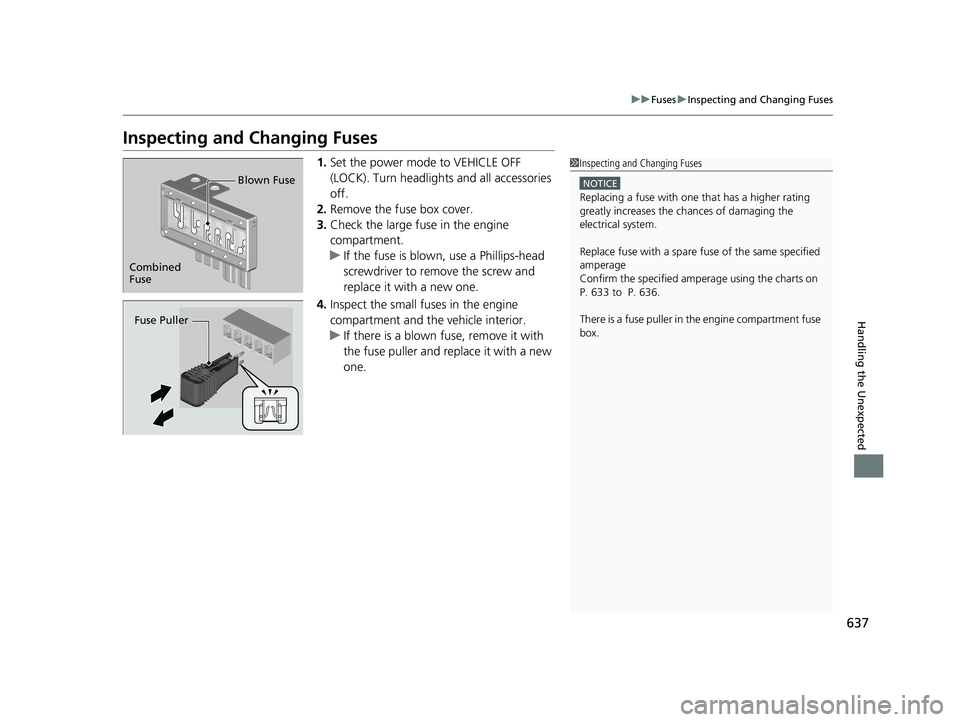

Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage
Confirm the specified amperage using the charts on
P. 633 to P. 636.
There is a fuse puller in the engine compartment fuse
box.
Combined
Fuse Blown Fuse
Fuse Puller
20 PASSPORT-31TGS6100.book 637 ページ ２０１９年８月３０日　金曜日　午後６時２２分

649Continued
Information

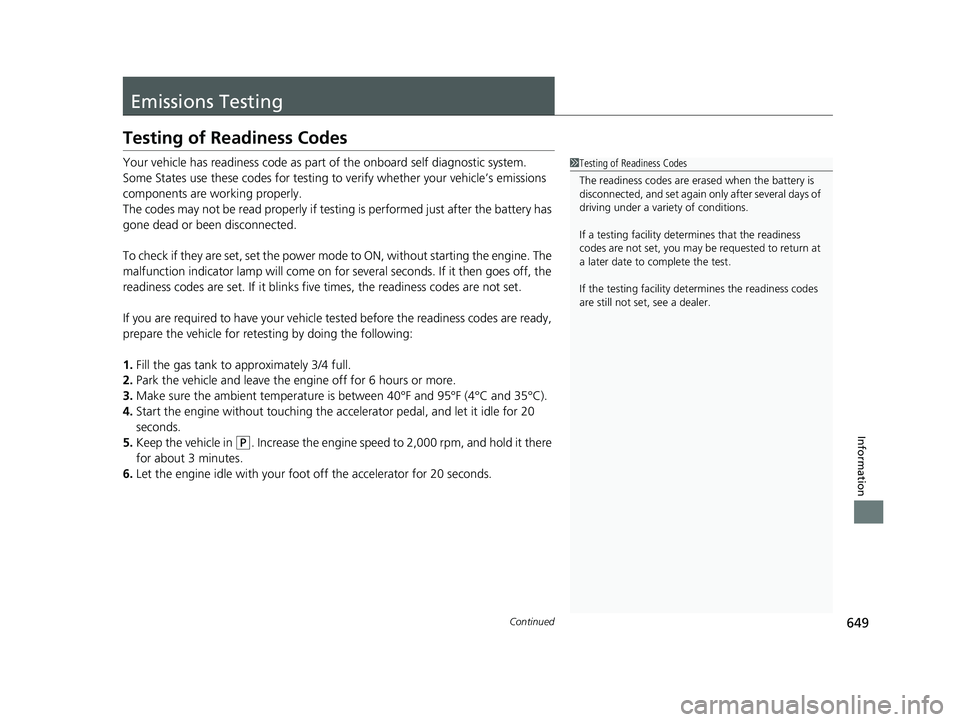

Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
20 PASSPORT-31TGS6100.book 649 ページ ２０１９年８月３０日　金曜日　午後６時２２分

657
Index
Coat Hook................................................ 210
Collision Mitigation Braking SystemTM
(CMBSTM) ................................................. 495
Collision Mitigation Braking SystemTM
(CMBSTM) Indicator ............................. 88, 89
Compact Spare Tire .......................... 613, 645
Console Compartment ............................. 201
Controls .................................................... 129
Coolant (Engine) ...................................... 577
Adding to the Radiator ........................... 578
Adding to the Reserve Tank .................... 577
Overheating ............................................ 627
Temperature Gauge ................................ 104
Creeping (Automatic Transmission) ........ 461
Cross Traffic Monitor ............................... 548
Cup Holders .............................................. 203
Customer Service Information ................ 654
Customized Features ............... 119, 354, 361
D
Daytime Running Lights .......................... 173
Dead Battery ............................................ 624
Defaulting All the Settings ...................... 379
Defrosting the Windshield and Windows ................................................. 220
Detachable Anchor .................................... 42
Devices that Emit Radio Waves ............... 647
Dimming Headlights .............................................. 169
Rearview Mirror ...................................... 186 Dipstick (Engine Oil)
................................. 573
Directional Signals (Turn Signal) ............. 168
Door Mirrors ............................................. 187
Doors ......................................................... 133
Auto Door Locking .................................. 147
Auto Door Unlocking ............................... 147
Door Open Message .................................. 36
Keys ........................................................ 133
Locking/Unlocking the Doors from the Inside..................................................... 144
Locking/Unlocking the Doors from the
Outside.................................................. 136
Lockout Prevention System ...................... 143
DOT Tire Quality Grading ........................ 593
Driver Information Interface ................... 105
Accessing Content ................................... 107
Warning and Information Messages .......... 91
Driving ....................................................... 435
Adaptive Cruise Control (ACC) ................ 507
Automatic Transmission ........................... 461
Braking .................................................... 537
Off-Highway Driving Guidelines ............... 452
Shifting Gear ........................................... 462
Starting the Engine .................................. 454
Driving Position Memory System ............. 183
Dust and Pollen Filter ............................... 603
E
Eco Assist® System ...................................... 10
ECON Button ............................................. 476 Econ Mode
Indicator.................................................... 84
Electric Power Steering (EPS) System Indicator............................................ 81, 631
Electronic Stability Control (ESC) ............. 479
Emergency ................................................ 638
Emissions Testing (Readiness Codes) ....... 649
Engine
Coolant ................................................... 577
Jump Starting .......................................... 624
Number................................................... 646
Oil ........................................................... 572
Remote Engine Start................................ 456
Starting ................................................... 454
Engine Compartment Cover .................... 571
Engine Coolant ......................................... 577
Adding to the Radiator ............................ 578
Adding to the Reserve Tank..................... 577
Overheating ............................................ 627
Temperature Gauge ................................ 104
Engine Oil ................................................. 572
Adding .................................................... 574
Checking................................................. 573
Displaying Maintenance Minder Information ........................................... 564
Low Oil Pressure Symbol.......................... 629
Recommended Engine Oil ....................... 572
ENGINE START/STOP Button .................... 165
EPS (Electric Power Steering) System ...... 631
Exhaust Gas Hazard (Carbon Monoxide) .. 73
Exterior Care (Cleaning) ........................... 606
20 PASSPORT-31TGS6100.book 657 ページ ２０１９年８月３０日　金曜日　午後６時２２分

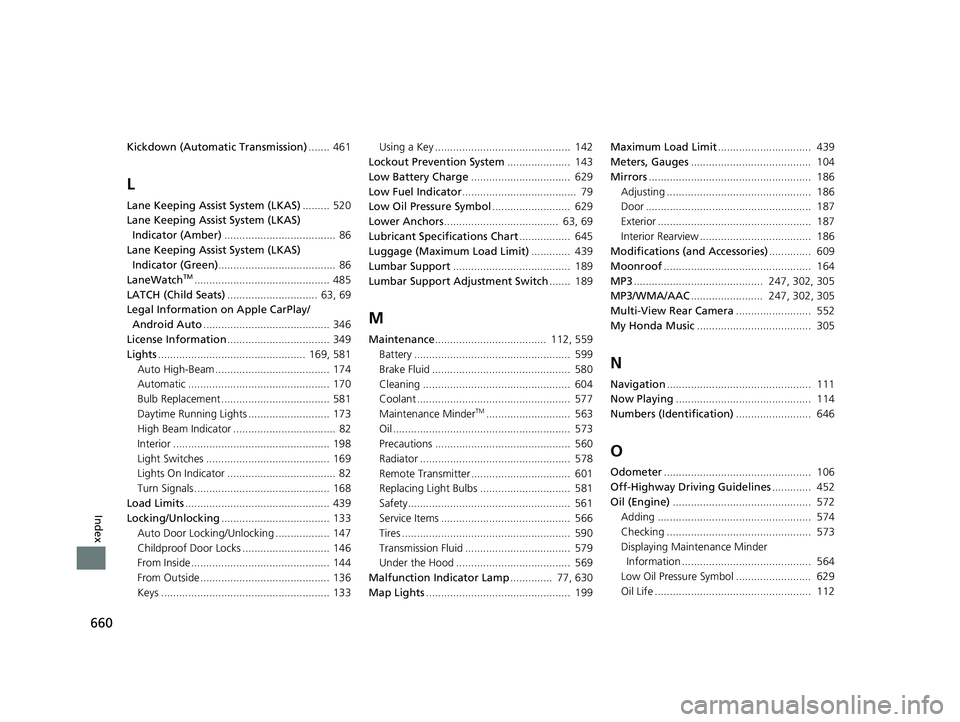

660
Index
Kickdown (Automatic Transmission)....... 461
L
Lane Keeping Assist System (LKAS)......... 520
Lane Keeping Assist System (LKAS) Indicator (Amber) ..................................... 86
Lane Keeping Assist System (LKAS) Indicator (Green) ....................................... 86
LaneWatch
TM............................................. 485
LATCH (Child Seats) .............................. 63, 69
Legal Information on Apple CarPlay/ Android Auto .......................................... 346
License Information .................................. 349
Lights ................................................. 169, 581
Auto High-Beam ...................................... 174
Automatic ............................................... 170
Bulb Replacement .................................... 581
Daytime Running Lights ........................... 173
High Beam Indicator .................................. 82
Interior .................................................... 198
Light Switches ......................................... 169
Lights On Indicator .................................... 82
Turn Signals ............................................. 168
Load Limits ................................................ 439
Locking/Unlocking .................................... 133
Auto Door Locking/Unlocking .................. 147
Childproof Door Locks ............................. 146
From Inside .............................................. 144
From Outside ........................................... 136
Keys ........................................................ 133 Using a Key ............................................. 142
Lockout Prevention System ..................... 143
Low Battery Charge ................................. 629
Low Fuel Indicator ...................................... 79
Low Oil Pressure Symbol .......................... 629
Lower Anchors ...................................... 63, 69
Lubricant Specifications Chart ................. 645
Luggage (Maximum Load Limit) ............. 439
Lumbar Support ....................................... 189
Lumbar Support Adjustment Switch ....... 189
M
Maintenance..................................... 112, 559
Battery .................................................... 599
Brake Fluid .............................................. 580
Cleaning ................................................. 604
Coolant ................................................... 577
Maintenance Minder
TM............................ 563
Oil ........................................................... 573
Precautions ............................................. 560
Radiator .................................................. 578
Remote Transmitter ................................. 601
Replacing Light Bulbs .............................. 581
Safety...................................................... 561
Service Items ........................................... 566
Tires ........................................................ 590
Transmission Fluid ................................... 579
Under the Hood ...................................... 569
Malfunction Indicator Lamp .............. 77, 630
Map Lights ................................................ 199 Maximum Load Limit
............................... 439
Meters, Gauges ........................................ 104
Mirrors ...................................................... 186
Adjusting ................................................ 186
Door ....................................................... 187
Exterior ................................................... 187
Interior Rearview ..................................... 186
Modifications (and Accessories) .............. 609
Moonroof ................................................. 164
MP3 ........................................... 247, 302, 305
MP3/WMA/AAC ........................ 247, 302, 305
Multi-View Rear Camera ......................... 552
My Honda Music ...................................... 305
N
Navigation................................................ 111
Now Playing ............................................. 114
Numbers (Identification) ......................... 646
O
Odometer................................................. 106
Off-Highway Driving Guidelines ............. 452
Oil (Engine) .............................................. 572
Adding ................................................... 574
Checking ................................................ 573
Displaying Mainte nance Minder
Information ........................................... 564
Low Oil Pressure Symbol ......................... 629
Oil Life .................................................... 112
20 PASSPORT-31TGS6100.book 660 ページ ２０１９年８月３０日　金曜日　午後６時２２分

661
Index
Recommended Engine Oil ....................... 572
Viscosity.................................................. 572
Open Source Licenses .............................. 348
Opening/Closing Hood ...................................................... 570
Moonroof ............................................... 164
Power Windows...................................... 161
Tailgate................................................... 148
Operating the Switches Around the Steering Wheel ....................................... 165
Outside Temperature Display ................. 106
Overheating ............................................. 627
P
Paddle Shifters (Sequential Mode) ... 22, 469
Panic Mode ............................................... 160
Parking ..................................................... 541
Parking Brake ........................................... 537
Parking Brake and Brake System Indicator ................................................. 631
Parking Brake and Brake System Indicator (Amber) ..................................... 76
Parking Brake and Brake System
Indicator (Red) .......................................... 76
Parking Sensor System ............................. 543
Passenger Airbag Off Indicator ................. 56
Passing Indicators ..................................... 169
Phone ........................................................ 113
Playing Bluetooth ® Audio ............... 250, 309
Power Tailgate ......................................... 150 Power Windows
........................................ 161
Precautions While Driving ....................... 460
Driving Guidelines for Your Utility Vehicle .................................................. 460
Rain ......................................................... 460
Pregnant Women ....................................... 43
Puncture (Tire) .......................................... 613
R
Radiator.................................................... 578
Radio (FM/AM) .................................. 242, 285
Radio (SiriusXM ®) ..................................... 289
Radio Data System (RDS) .................. 243, 287
Range ........................................................ 110
RDS (Radio Data System) .................. 243, 287
Readiness Codes (Emissions Testing) ....... 649
Rear Climate Control System
From the Rear Panel ................................ 224
Rear Defogger/Heated Door Mirror Button ..................................................... 180
Rear Outer Seats Heaters ......................... 215
Rear Seat (Folding Down) ........................ 193
Rear Seats .................................................. 192
Rearview Mirror ........................................ 186
Refueling ................................................... 554
Fuel Gauge .............................................. 104
Gasoline .......................................... 554, 644
Low Fuel Indicator ..................................... 79
Regulations ............................... 490, 593, 647
Remote Engine Start ................................ 456 Remote Transmitter
................................. 141
Replacement
Battery .................................................... 601
Bulbs ....................................................... 581
Front Wiper Blade Rubber ....................... 586
Fuses ............................... 633, 634, 635, 636
Rear Wiper Blade Rubber......................... 588
Tires ........................................................ 596
Reporting Safety Defects ......................... 648
Reverse Tilt Door Mirror .......................... 187
Road Departure Mitigation (RDM) ......... 529
On and Off.............................................. 531
Road Departure Mitigation (RDM) Indicator .................................................... 87
S
Safe Driving ................................................ 31
Safety Check ............................................... 36
Safety Labels ............................................... 74
Safety Message ............................................. 1
Seat Belts .................................................... 37
Adjusting the Shoulder Anchor.................. 41
Automatic Seat Belt Tensioners ................. 39
Checking................................................... 44
Detachable Anchor.................................... 42
Fastening .................................................. 40
Installing a Child Seat with a Lap/ Shoulder Seat Belt ................................... 66
Pregnant Women ...................................... 43
Reminder .................................................. 38
20 PASSPORT-31TGS6100.book 661 ページ ２０１９年８月３０日　金曜日　午後６時２２分
