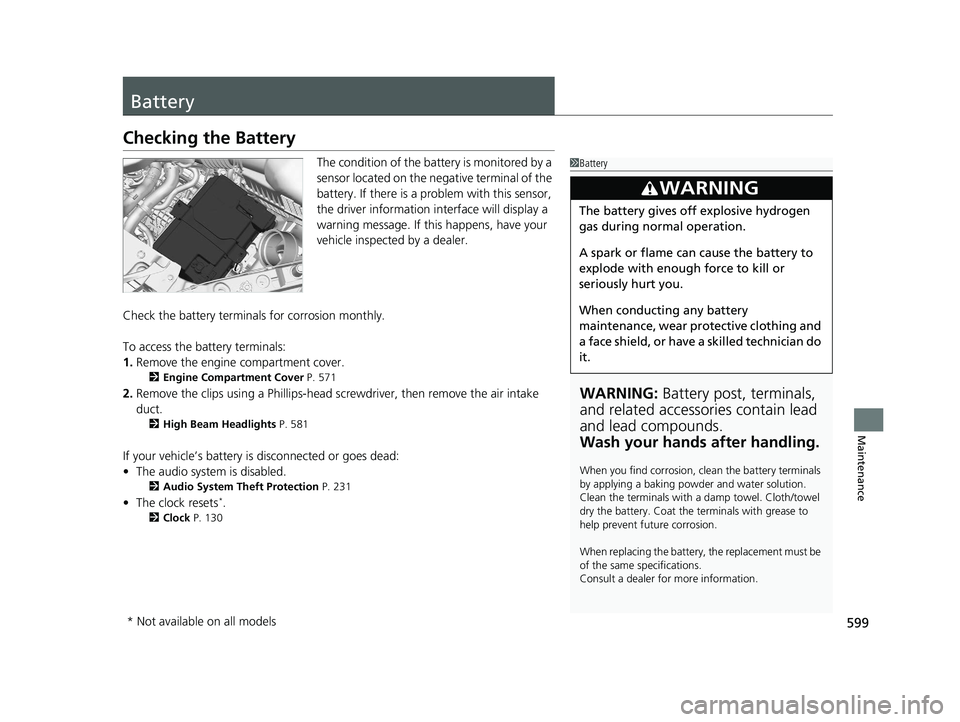

599
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information interface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery termina ls for corrosion monthly.
To access the battery terminals:
1. Remove the engine compartment cover.
2 Engine Compartment Cover P. 571
2.Remove the clips using a Ph illips-head screwdriver, then remove the air intake
duct.
2 High Beam Headlights P. 581
If your vehicle’s battery is disconnected or goes dead:
•The audio system is disabled.
2 Audio System Theft Protection P. 231
•The clock resets*.
2 Clock P. 130
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
* Not available on all models
20 PASSPORT-31TGS6100.book 599 ページ ２０１９年８月３０日　金曜日　午後６時２２分

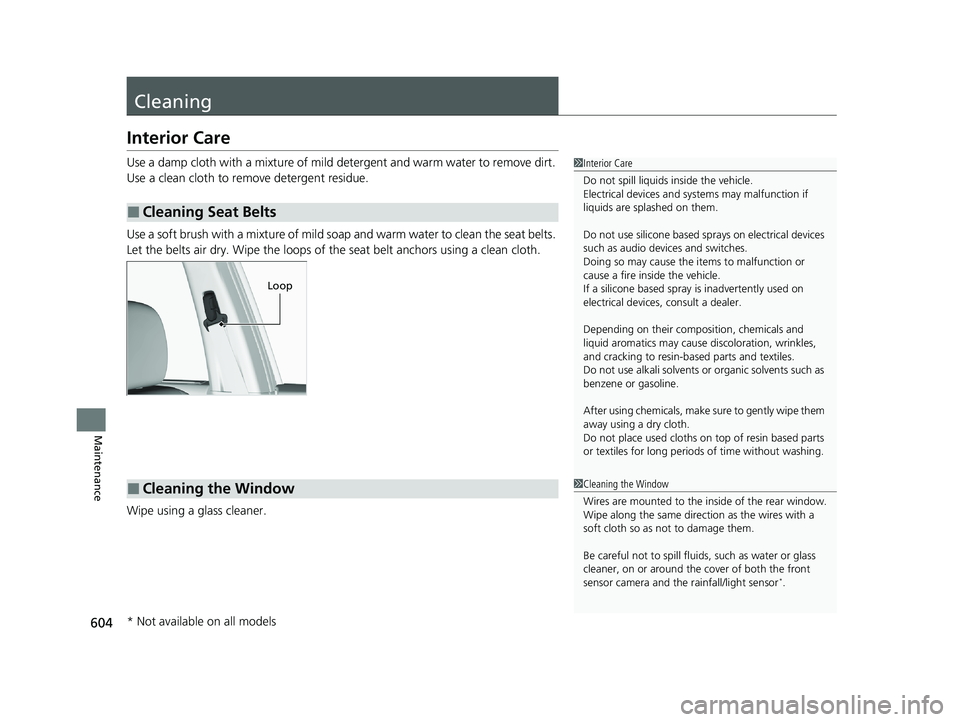

604
Maintenance
Cleaning
Interior Care
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the loops of the seat belt anchors using a clean cloth.
Wipe using a glass cleaner.
■Cleaning Seat Belts
1 Interior Care
Do not spill liquids inside the vehicle.
Electrical devices and sy stems may malfunction if
liquids are splashed on them.
Do not use silicone based sprays on electrical devices
such as audio devices and switches.
Doing so may cause the items to malfunction or
cause a fire inside the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consult a dealer.
Depending on their compos ition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-ba sed parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemicals, make su re to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.
Loop
■Cleaning the Window1Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill fluids, such as water or glass
cleaner, on or around the co ver of both the front
sensor camera and the rainfall/light sensor
*.
* Not available on all models
20 PASSPORT-31TGS6100.book 604 ページ ２０１９年８月３０日　金曜日　午後６時２２分

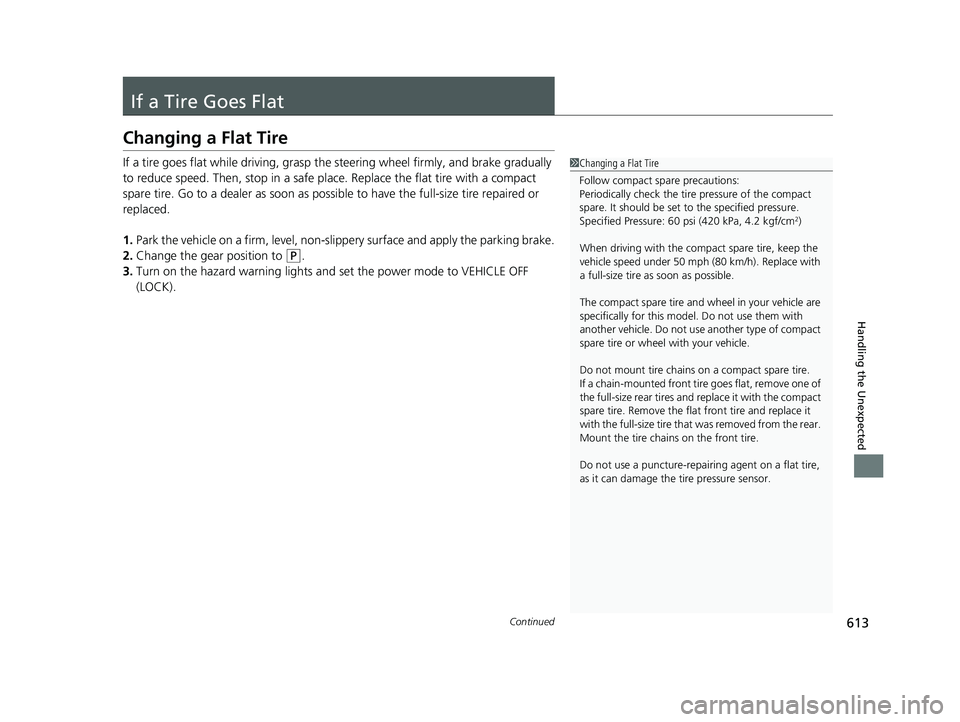

613Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on a firm, level, non-slippery surface and apply the parking brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
1 Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairi ng agent on a flat tire,
as it can damage the tire pressure sensor.
20 PASSPORT-31TGS6100.book 613 ページ ２０１９年８月３０日　金曜日　午後６時２２分

uuIf a Tire Goes Flat uChanging a Flat Tire

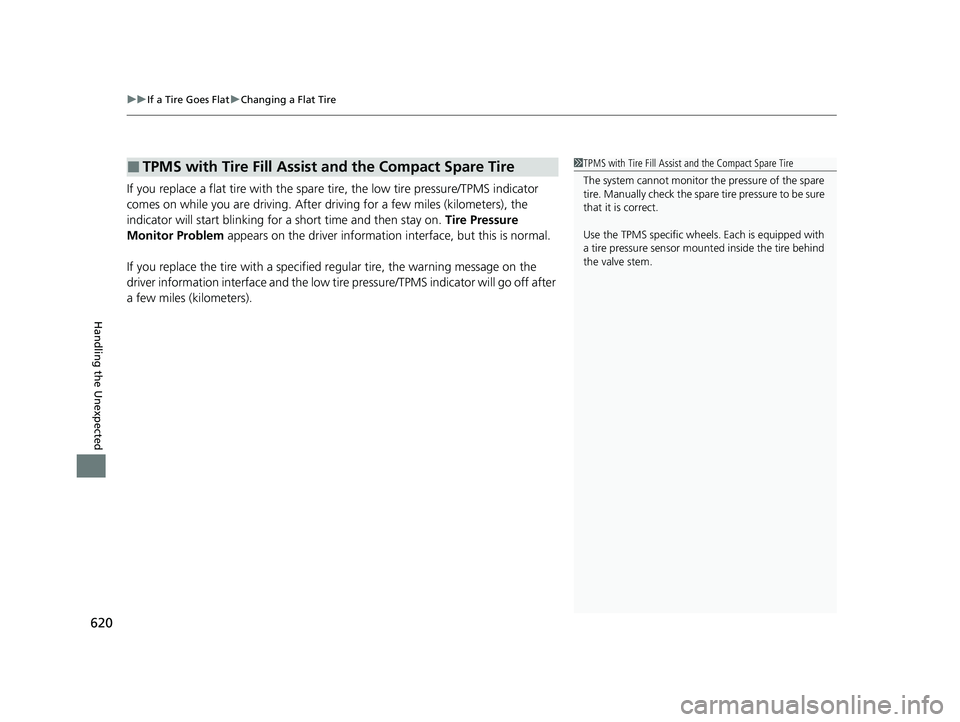

620
Handling the Unexpected
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressure
Monitor Problem appears on the driver informati on interface, but this is normal.
If you replace the tire with a specified regular tire, the warning message on the
driver information interface and the low tire pressure/TPMS indi cator will go off after
a few miles (kilometers).
■TPMS with Tire Fill Assist and the Compact Spare Tire1 TPMS with Tire Fill Assist and the Compact Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific wheels. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the valve stem.
20 PASSPORT-31TGS6100.book 620 ページ ２０１９年８月３０日　金曜日　午後６時２２分

634

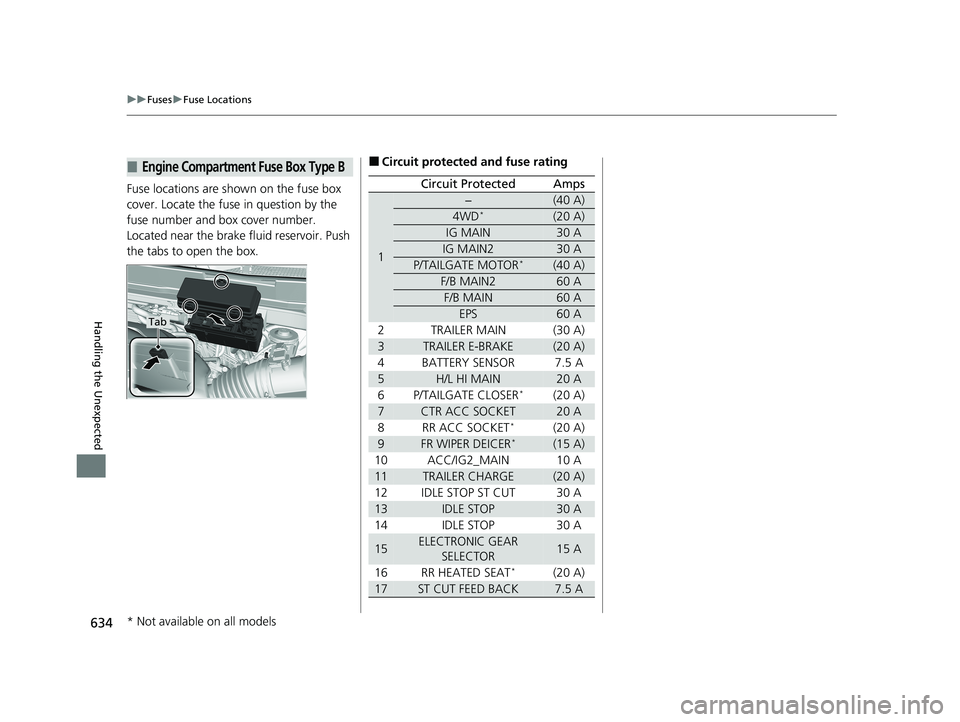

uuFuses uFuse Locations
Handling the Unexpected
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse Box Type B
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
−(40 A)
4WD*(20 A)
IG MAIN30 A
IG MAIN230 A
P/TAILGATE MOTOR*(40 A)
F/B MAIN260 A
F/B MAIN60 A
EPS60 A
2TRAILER MAIN(30 A)
3TRAILER E-BRAKE(20 A)
4 BATTERY SENSOR 7.5 A
5H/L HI MAIN20 A
6 P/TAILGATE CLOSER*(20 A)
7CTR ACC SOCKET20 A
8 RR ACC SOCKET*(20 A)
9FR WIPER DEICER*(15 A)
10 ACC/IG2_MAIN 10 A
11TRAILER CHARGE(20 A)
12IDLE STOP ST CUT30 A
13IDLE STOP30 A
14IDLE STOP30 A
15ELECTRONIC GEAR SELECTOR15 A
16RR HEATED SEAT*(20 A)
17ST CUT FEED BACK7.5 A
* Not available on all models
20 PASSPORT-31TGS6100.book 634 ページ ２０１９年８月３０日　金曜日　午後６時２２分

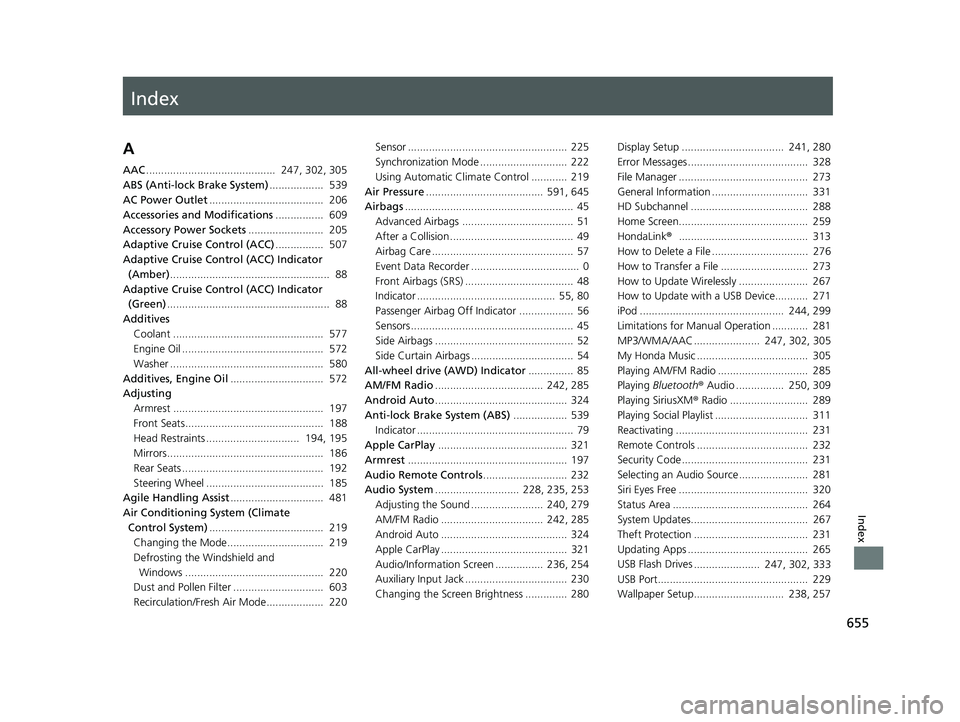

Index
655
Index
Index
A
AAC........................................... 247, 302, 305
ABS (Anti-lock Brake System) .................. 539
AC Power Outlet ...................................... 206
Accessories and Modifications ................ 609
Accessory Power Sockets ......................... 205
Adaptive Cruise Control (ACC) ................ 507
Adaptive Cruise Control (ACC) Indicator
(Amber) ..................................................... 88
Adaptive Cruise Control (ACC) Indicator (Green) ...................................................... 88
Additives Coolant .................................................. 577
Engine Oil ............................................... 572
Washer ................................................... 580
Additives, Engine Oil ............................... 572
Adjusting
Armrest .................................................. 197
Front Seats.............................................. 188
Head Restraints ............................... 194, 195
Mirrors.................................................... 186
Rear Seats ............................................... 192
Steering Wheel ....................................... 185
Agile Handling Assist ............................... 481
Air Conditioning System (Climate
Control System) ...................................... 219
Changing the Mode................................ 219
Defrosting the Windshield and
Windows .............................................. 220
Dust and Pollen Filter .............................. 603
Recirculation/Fresh Air Mode................... 220 Sensor ..................................................... 225
Synchronization Mode ............................. 222
Using Automatic Climate Control ............ 219
Air Pressure ....................................... 591, 645
Airbags ........................................................ 45
Advanced Airbags ..................................... 51
After a Collision ......................................... 49
Airbag Care ............................................... 57
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 48
Indicator .............................................. 55, 80
Passenger Airbag Off Indicator .................. 56
Sensors ...................................................... 45
Side Airbags .............................................. 52
Side Curtain Airbags .................................. 54
All-wheel drive (AWD) Indicator ............... 85
AM/FM Radio .................................... 242, 285
Android Auto ............................................ 324
Anti-lock Brake System (ABS) .................. 539
Indicator .................................................... 79
Apple CarPlay ........................................... 321
Armrest ..................................................... 197
Audio Remote Controls ............................ 232
Audio System ............................ 228, 235, 253
Adjusting the Sound ........................ 240, 279
AM/FM Radio .................................. 242, 285
Android Auto .......................................... 324
Apple CarPlay .......................................... 321
Audio/Information Screen ................ 236, 254
Auxiliary Input Jack .................................. 230
Changing the Screen Brightness .............. 280 Display Setup .................................. 241, 280
Error Messages ........................................ 328
File Manager ........................................... 273
General Information ................................ 331
HD Subchannel ....................................... 288
Home Screen........................................... 259
HondaLink
®........................................... 313
How to Delete a File ................................ 276
How to Transfer a File ............................. 273
How to Update Wirelessly ....................... 267
How to Update with a USB Device........... 271
iPod ................................................ 244, 299
Limitations for Manual Operation ............ 281
MP3/WMA/AAC ...................... 247, 302, 305
My Honda Music ..................................... 305
Playing AM/FM Radio .............................. 285
Playing Bluetooth ® Audio ................ 250, 309
Playing SiriusXM ® Radio .......................... 289
Playing Social Playlist ............................... 311
Reactivating ............................................ 231
Remote Controls ..................................... 232
Security Code .......................................... 231
Selecting an Audio Source ....................... 281
Siri Eyes Free ........................................... 320
Status Area ............................................. 264
System Updates....................................... 267
Theft Protection ...................................... 231
Updating Apps ........................................ 265
USB Flash Drives

...................... 247, 302, 333
USB Port.................................................. 229
Wallpaper Setup.............................. 238, 257
20 PASSPORT-31TGS6100.book 655 ページ ２０１９年８月３０日　金曜日　午後６時２２分

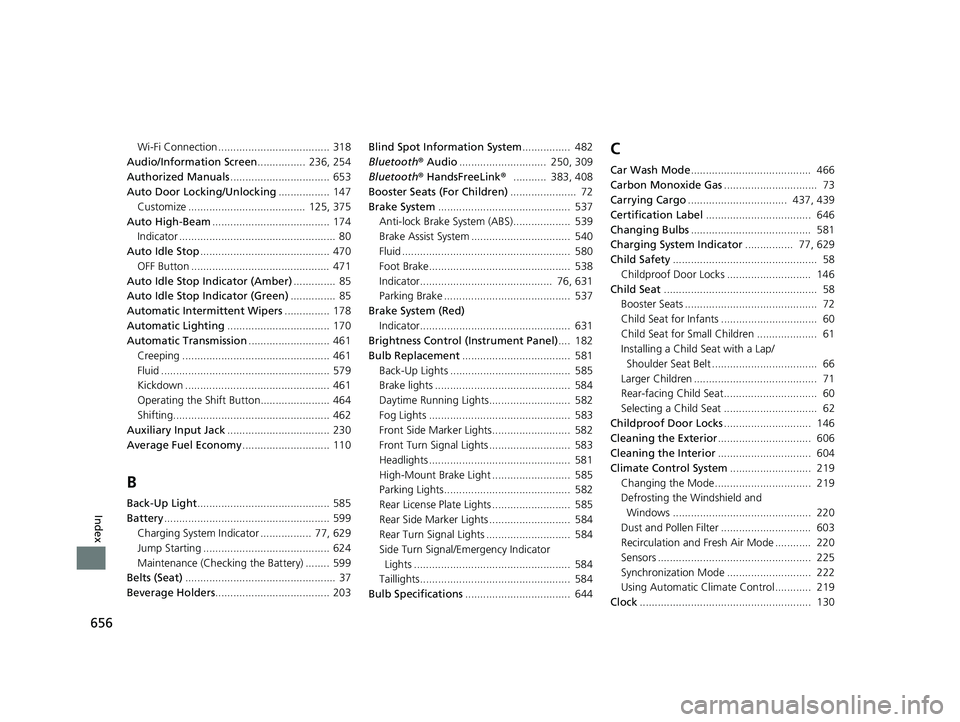

656
Index
Wi-Fi Connection ..................................... 318
Audio/Information Screen ................ 236, 254
Authorized Manuals ................................. 653
Auto Door Locking/Unlocking ................. 147
Customize ....................................... 125, 375
Auto High-Beam ....................................... 174
Indicator .................................................... 80
Auto Idle Stop ........................................... 470
OFF Button .............................................. 471
Auto Idle Stop Indicator (Amber) .............. 85
Auto Idle Stop Indicator (Green) ............... 85
Automatic Intermittent Wipers ............... 178
Automatic Lighting .................................. 170
Automatic Transmission ........................... 461
Creeping ................................................. 461
Fluid ........................................................ 579
Kickdown ................................................ 461
Operating the Shift Button....................... 464
Shifting.................................................... 462
Auxiliary Input Jack .................................. 230
Average Fuel Economy ............................. 110
B
Back-Up Light............................................ 585
Battery ....................................................... 599
Charging System Indicator ................. 77, 629
Jump Starting .......................................... 624
Maintenance (Checking the Battery) ........ 599
Belts (Seat) .................................................. 37
Beverage Holders ...................................... 203 Blind Spot Information System
................ 482
Bluetooth® Audio............................. 250, 309
Bluetooth® HandsFreeLink ®........... 383, 408
Booster Seats (For Children) ...................... 72
Brake System ............................................ 537
Anti-lock Brake System (ABS)................... 539
Brake Assist System ................................. 540
Fluid ........................................................ 580
Foot Brake............................................... 538
Indicator............................................ 76, 631
Parking Brake .......................................... 537
Brake System (Red) Indicator.................................................. 631
Brightness Control (Instrument Panel) .... 182
Bulb Replacement .................................... 581
Back-Up Lights ........................................ 585
Brake lights ............................................. 584
Daytime Running Lights........................... 582
Fog Lights ............................................... 583
Front Side Marker Lights.......................... 582
Front Turn Signal Lights ........................... 583
Headlights ............................................... 581
High-Mount Brake Light .......................... 585
Parking Lights.......................................... 582
Rear License Plate Lights .......................... 585
Rear Side Marker Lights ........................... 584
Rear Turn Signal Lights ............................ 584
Side Turn Signal/Emergency Indicator
Lights .................................................... 584
Taillights.................................................. 584
Bulb Specifications ................................... 644
C
Car Wash Mode........................................ 466
Carbon Monoxide Gas ............................... 73
Carrying Cargo ................................. 437, 439
Certification Label ................................... 646
Changing Bulbs ........................................ 581
Charging System Indicator ................ 77, 629
Child Safety ................................................ 58
Childproof Door Locks ............................ 146
Child Seat ................................................... 58
Booster Seats ............................................ 72
Child Seat for Infants ................................ 60
Child Seat for Small Children .................... 61
Installing a Child Seat with a Lap/
Shoulder Seat Belt ................................... 66
Larger Children ......................................... 71
Rear-facing Child Seat............................... 60
Selecting a Child Seat ............................... 62
Childproof Door Locks ............................. 146
Cleaning the Exterior ............................... 606
Cleaning the Interior ............................... 604
Climate Control System ........................... 219
Changing the Mode................................ 219
Defrosting the Windshield and Windows .............................................. 220
Dust and Pollen Filter .............................. 603
Recirculation and Fresh Air Mode ............ 220
Sensors ................................................... 225
Synchronization Mode ............................ 222
Using Automatic Climate Control............ 219
Clock ......................................................... 130
20 PASSPORT-31TGS6100.book 656 ページ ２０１９年８月３０日　金曜日　午後６時２２分

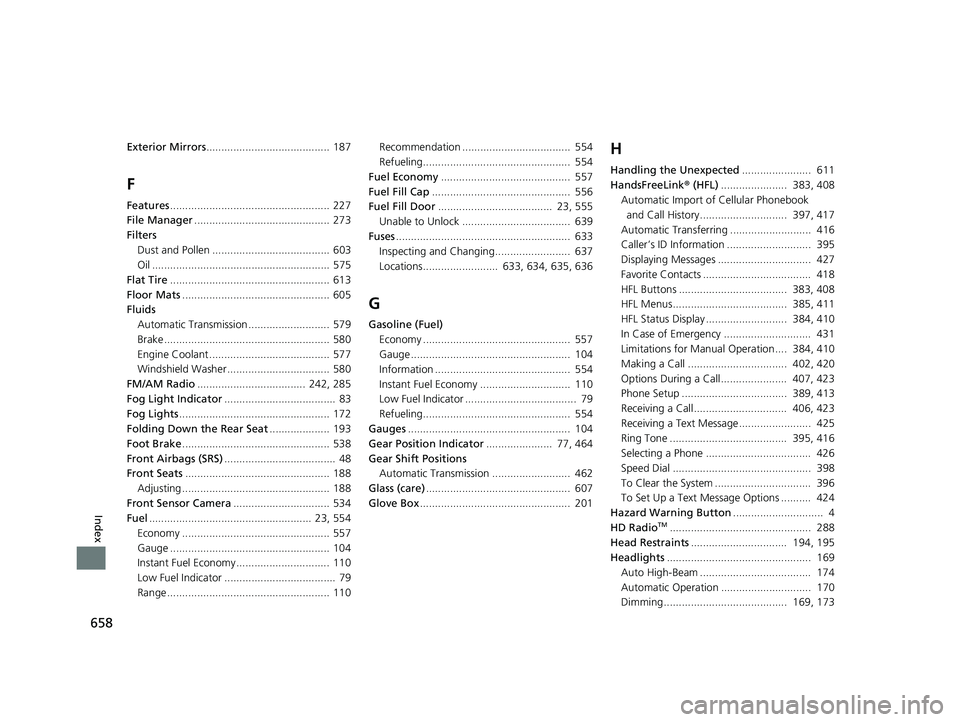

658
Index
Exterior Mirrors......................................... 187
F
Features..................................................... 227
File Manager ............................................. 273
Filters
Dust and Pollen ....................................... 603
Oil ........................................................... 575
Flat Tire ..................................................... 613
Floor Mats ................................................. 605
Fluids Automatic Transmission ........................... 579
Brake ....................................................... 580
Engine Coolant ........................................ 577
Windshield Washer .................................. 580
FM/AM Radio .................................... 242, 285
Fog Light Indicator ..................................... 83
Fog Lights .................................................. 172
Folding Down the Rear Seat .................... 193
Foot Brake ................................................. 538
Front Airbags (SRS) ..................................... 48
Front Seats ................................................ 188
Adjusting ................................................. 188
Front Sensor Camera ................................ 534
Fuel ...................................................... 23, 554
Economy ................................................. 557
Gauge ..................................................... 104
Instant Fuel Economy ............................... 110
Low Fuel Indicator ..................................... 79
Range ...................................................... 110 Recommendation .................................... 554
Refueling................................................. 554
Fuel Economy ........................................... 557
Fuel Fill Cap .............................................. 556
Fuel Fill Door ...................................... 23, 555
Unable to Unlock .................................... 639
Fuses .......................................................... 633
Inspecting and Changing......................... 637
Locations......................... 633, 634, 635, 636
G
Gasoline (Fuel)
Economy ................................................. 557
Gauge ..................................................... 104
Information ............................................. 554
Instant Fuel Economy .............................. 110
Low Fuel Indicator ..................................... 79
Refueling................................................. 554
Gauges ...................................................... 104
Gear Position Indicator ...................... 77, 464
Gear Shift Positions Automatic Transmission .......................... 462
Glass (care) ................................................ 607
Glove Box .................................................. 201
H
Handling the Unexpected ....................... 611
HandsFreeLink® (HFL)...................... 383, 408
Automatic Import of Cellular Phonebook
and Call History............................. 397, 417
Automatic Transferring ........................... 416
Caller’s ID Information ............................ 395
Displaying Messages ............................... 427
Favorite Contacts .................................... 418
HFL Buttons .................................... 383, 408
HFL Menus...................................... 385, 411
HFL Status Display ........................... 384, 410
In Case of Emergency ............................. 431
Limitations for Manual Operation .... 384, 410
Making a Call ................................. 402, 420
Options During a Call...................... 407, 423
Phone Setup ................................... 389, 413
Receiving a Call............................... 406, 423
Receiving a Text Message........................ 425
Ring Tone ....................................... 395, 416
Selecting a Phone ................................... 426
Speed Dial .............................................. 398
To Clear the System ................................ 396
To Set Up a Text Message Options .......... 424
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 288
Head Restraints ................................ 194, 195
Headlights ................................................ 169
Auto High-Beam ..................................... 174
Automatic Operation .............................. 170
Dimming......................................... 169, 173
20 PASSPORT-31TGS6100.book 658 ページ ２０１９年８月３０日　金曜日　午後６時２２分

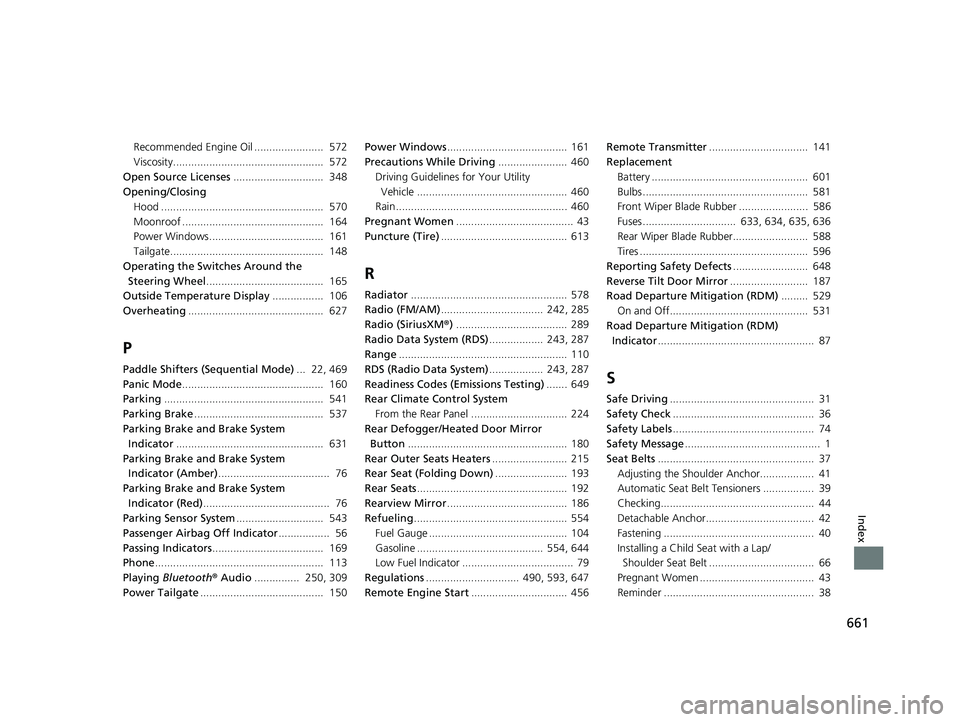

661
Index
Recommended Engine Oil ....................... 572
Viscosity.................................................. 572
Open Source Licenses .............................. 348
Opening/Closing Hood ...................................................... 570
Moonroof ............................................... 164
Power Windows...................................... 161
Tailgate................................................... 148
Operating the Switches Around the Steering Wheel ....................................... 165
Outside Temperature Display ................. 106
Overheating ............................................. 627
P
Paddle Shifters (Sequential Mode) ... 22, 469
Panic Mode ............................................... 160
Parking ..................................................... 541
Parking Brake ........................................... 537
Parking Brake and Brake System Indicator ................................................. 631
Parking Brake and Brake System Indicator (Amber) ..................................... 76
Parking Brake and Brake System
Indicator (Red) .......................................... 76
Parking Sensor System ............................. 543
Passenger Airbag Off Indicator ................. 56
Passing Indicators ..................................... 169
Phone ........................................................ 113
Playing Bluetooth ® Audio ............... 250, 309
Power Tailgate ......................................... 150 Power Windows
........................................ 161
Precautions While Driving ....................... 460
Driving Guidelines for Your Utility Vehicle .................................................. 460
Rain ......................................................... 460
Pregnant Women ....................................... 43
Puncture (Tire) .......................................... 613
R
Radiator.................................................... 578
Radio (FM/AM) .................................. 242, 285
Radio (SiriusXM ®) ..................................... 289
Radio Data System (RDS) .................. 243, 287
Range ........................................................ 110
RDS (Radio Data System) .................. 243, 287
Readiness Codes (Emissions Testing) ....... 649
Rear Climate Control System
From the Rear Panel ................................ 224
Rear Defogger/Heated Door Mirror Button ..................................................... 180
Rear Outer Seats Heaters ......................... 215
Rear Seat (Folding Down) ........................ 193
Rear Seats .................................................. 192
Rearview Mirror ........................................ 186
Refueling ................................................... 554
Fuel Gauge .............................................. 104
Gasoline .......................................... 554, 644
Low Fuel Indicator ..................................... 79
Regulations ............................... 490, 593, 647
Remote Engine Start ................................ 456 Remote Transmitter
................................. 141
Replacement
Battery .................................................... 601
Bulbs ....................................................... 581
Front Wiper Blade Rubber ....................... 586
Fuses ............................... 633, 634, 635, 636
Rear Wiper Blade Rubber......................... 588
Tires ........................................................ 596
Reporting Safety Defects ......................... 648
Reverse Tilt Door Mirror .......................... 187
Road Departure Mitigation (RDM) ......... 529
On and Off.............................................. 531
Road Departure Mitigation (RDM) Indicator .................................................... 87
S
Safe Driving ................................................ 31
Safety Check ............................................... 36
Safety Labels ............................................... 74
Safety Message ............................................. 1
Seat Belts .................................................... 37
Adjusting the Shoulder Anchor.................. 41
Automatic Seat Belt Tensioners ................. 39
Checking................................................... 44
Detachable Anchor.................................... 42
Fastening .................................................. 40
Installing a Child Seat with a Lap/ Shoulder Seat Belt ................................... 66
Pregnant Women ...................................... 43
Reminder .................................................. 38
20 PASSPORT-31TGS6100.book 661 ページ ２０１９年８月３０日　金曜日　午後６時２２分

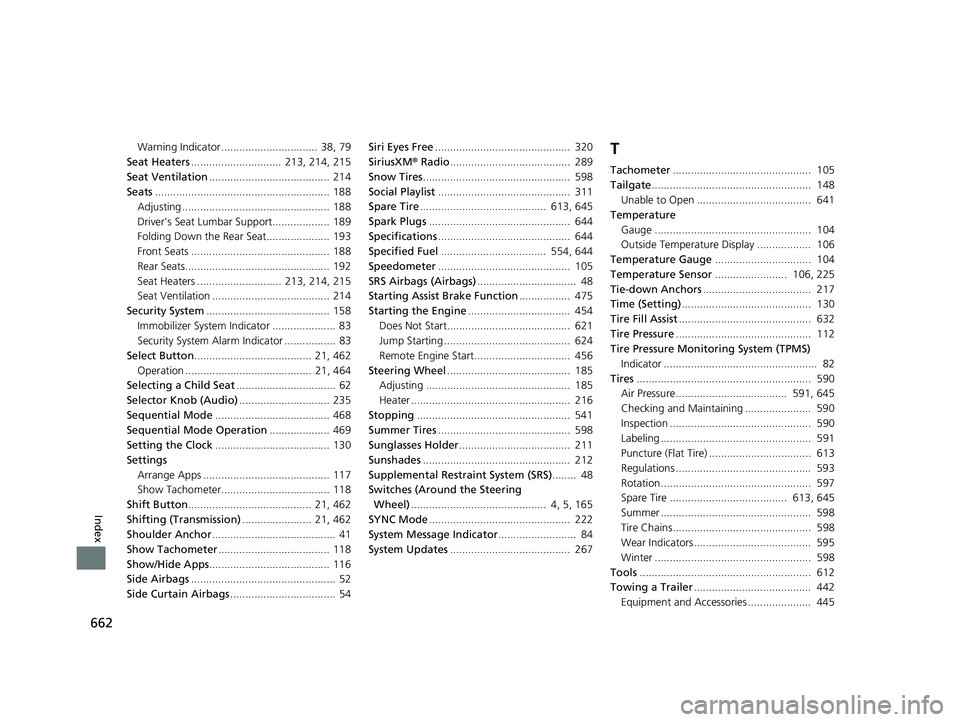

662
Index
Warning Indicator ................................ 38, 79
Seat Heaters .............................. 213, 214, 215
Seat Ventilation ........................................ 214
Seats .......................................................... 188
Adjusting ................................................. 188
Driver’s Seat Lumbar Support................... 189
Folding Down the Rear Seat..................... 193
Front Seats .............................................. 188
Rear Seats................................................ 192
Seat Heaters ............................ 213, 214, 215
Seat Ventilation ....................................... 214
Security System ......................................... 158
Immobilizer System Indicator ..................... 83
Security System Alarm Indicator ................. 83
Select Button ....................................... 21, 462
Operation .......................................... 21, 464
Selecting a Child Seat ................................. 62
Selector Knob (Audio) .............................. 235
Sequential Mode ...................................... 468
Sequential Mode Operation .................... 469
Setting the Clock ...................................... 130
Settings
Arrange Apps .......................................... 117
Show Tachometer.................................... 118
Shift Button......................................... 21, 462
Shifting (Transmission) ....................... 21, 462
Shoulder Anchor ......................................... 41
Show Tachometer ..................................... 118
Show/Hide Apps ........................................ 116
Side Airbags ................................................ 52
Side Curtain Airbags ................................... 54 Siri Eyes Free
............................................. 320
SiriusXM ® Radio ........................................ 289
Snow Tires ................................................. 598
Social Playlist ............................................ 311
Spare Tire .......................................... 613, 645
Spark Plugs ............................................... 644
Specifications ............................................ 644
Specified Fuel ................................... 554, 644
Speedometer ............................................ 105
SRS Airbags (Airbags) ................................. 48
Starting Assist Brake Function ................. 475
Starting the Engine .................................. 454
Does Not Start......................................... 621
Jump Starting .......................................... 624
Remote Engine Start................................ 456
Steering Wheel ......................................... 185
Adjusting ................................................ 185
Heater ..................................................... 216
Stopping ................................................... 541
Summer Tires ............................................ 598
Sunglasses Holder ..................................... 211
Sunshades ................................................. 212
Supplemental Restraint System (SRS) ........ 48
Switches (Around the Steering Wheel) ............................................. 4, 5, 165
SYNC Mode ............................................... 222
System Message Indicator .......................... 84
System Updates ........................................ 267T
Tachometer.............................................. 105
Tailgate ..................................................... 148
Unable to Open ...................................... 641
Temperature
Gauge .................................................... 104
Outside Temperature Display .................. 106
Temperature Gauge ................................ 104
Temperature Sensor ........................ 106, 225
Tie-down Anchors .................................... 217
Time (Setting) ........................................... 130
Tire Fill Assist ............................................ 632
Tire Pressure ............................................. 112
Tire Pressure Monitoring System (TPMS)
Indicator ................................................... 82
Tires .......................................................... 590
Air Pressure..................................... 591, 645
Checking and Maintaining ...................... 590
Inspection ............................................... 590
Labeling .................................................. 591
Puncture (Flat Tire) .................................. 613
Regulations ............................................. 593
Rotation.................................................. 597
Spare Tire ....................................... 613, 645
Summer .................................................. 598
Tire Chains.............................................. 598
Wear Indicators....................................... 595
Winter .................................................... 598
Tools ......................................................... 612
Towing a Trailer ....................................... 442
Equipment and Accessories ..................... 445
20 PASSPORT-31TGS6100.book 662 ページ ２０１９年８月３０日　金曜日　午後６時２２分
