buttons HONDA PASSPORT 2020 Owner's Manual (in English)

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❚Gauges (P104)
❚Driver Information
Interface
(P105)
❚System Indicators (P76)
❚ECON Button (P476)
❚Audio System (P235, 253)
❚Navigation System*
() See the Navigation System Manual
❚ (Vehicle Stability AssistTM (VSA ®)
System OFF) Button
(P480)
❚Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P498)
❚Heated Windshield Button* (P181)
❚Road Departure Mitigation (RDM)
Button
(P531)
❚Parking Sensor System Button* (P544)
❚Steering Wheel Adjustments (P185)
❚ENGINE START/STOP Button (P165)
❚Front Seat Heater Buttons* (P213)
❚Front Seat Heaters and Seat
Ventilation Buttons* (P214)
❚Rear Defogger/Heated Door Mirror*
Button
(P180)
❚Audio/Information Screen (P236, 254)
❚Hazard Warning Button
❚Climate Control System (P219)
20 PASSPORT-31TGS6100.book 4 ページ ２０１９年８月３０日　金曜日　午後６時２２分

5
Quick Reference Guide❚Headlights/Turn Signals (P168, 169)
❚Fog Lights* (P172)
❚LaneWatchTM * (P485)
❚Paddle Shifter (Shift down) (P469)
❚Audio Remote Control Buttons (P232)
❚Wipers/Washers (P177)
❚Paddle Shifter (Shift up) (P469)
❚Brightness Control (P182)
❚Lane Keeping Assist System (LKAS) Button
(P522)
❚Horn (Press an area around .)
❚Navigation System Voice Control Buttons* () See the Navigation System Manual
❚Bluetooth ® HandsFreeLink ® System Voice Control Buttons (P383, 408)
❚Heated Steering Wheel Button* (P216)
❚ENTER Button (P107, 232)
❚Interval Button (P515)
❚Adaptive Cruise Control (ACC) Buttons
(P507)
❚ (home) Button (P107, 232)
❚/ Button (P107, 232)34
❚MAIN Button (P508)
* Not available on all models
20 PASSPORT-31TGS6100.book 5 ページ ２０１９年８月３０日　金曜日　午後６時２２分

Visual Index
6
Quick Reference Guide❚Power Window Switches (P161)
❚Memory Buttons* (P184)
❚SET Button* (P184)
❚Master Door Lock Switch (P146)
❚Power Tailgate Button* (P152)
❚Fuel Fill Door Release Button
(P555)
❚Door Mirror Controls (P187)
❚Driver’s Front Airbag (P48)
❚Hood Release Handle (P570)
❚Glove Box (P201)
❚Interior Fuse Box (P636)
❚Parking Brake (P537)
❚Interior Fuse Box (P635)
❚Accessory Power Socket (P205)
❚USB Port (P229)
❚Rearview Mirror (P186)
❚HomeLink® Buttons* (P381)
❚Passenger’s Front Airbag (P48)
❚Accessory Power Socket (P205)
❚Auxiliary Input Jack (P230)
❚USB Port (P229)
❚Snow Button* (P477)
❚Mode Button* (P477)
❚Auto Idle Stop OFF Button (P471)
❚Shift Button (P462)
20 PASSPORT-31TGS6100.book 6 ページ ２０１９年８月３０日　金曜日　午後６時２２分

7
Quick Reference Guide❚Accessory Power Socket* (P206)
❚LATCH to Secure a Child Seat (P63)
❚Seat Belt (Installing a Child Seat) (P66)
❚Rear Seat (P192)
❚Seat Belt to Secure a Child Seat (P69)
❚Cargo Area Light (P200)
❚Side Curtain Airbags (P54)
❚Rear Seat Heater Buttons* (P215)
❚AC Power Outlet* (P206)
❚USB Ports* (P230)
❚Sun Visors
❚Vanity Mirrors
❚Moonroof Switch* (P164)
❚Map Lights (P199)
❚Sunglasses Holder (P211)
❚Seat Belt with Detachable Anchor (P42)
❚Coat Hook (P210)
❚Side Airbags (P52)
❚Seat Belts (P40)
❚Grab Handle
❚Front Seat (P188)
* Not available on all models
20 PASSPORT-31TGS6100.book 7 ページ ２０１９年８月３０日　金曜日　午後６時２２分

17
Quick Reference Guide
Climate Control System (P219)
●Press the AUTO button to activate th e climate control system.●Press the button to turn the system on or off.●Press the button to de frost the windshield.
Fan Control
Button (Windshield
Defroster) Button
A/C (Air
Conditioning)
Button
Air flows from floor and
windshield defroster vents. Air flows from floor vents. Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation)
Button
Passenger’s Side
Temperature
Control Switch
AUTO
Button
Driver’s Side
Temperature
Control Switch
Mode Control Button
SYNC

(Synchronization) Button (On/Off) Button
Rear Climate Control* (P224)●Press the
AUTO button to activate the
rear climate control system.
●Press the button to turn the system
on or off.
Rear Temperature
Control Buttons /
(Rear Fan
Control) Buttons
Rear AUTO
Button
(Rear On/
Off) Button
Mode Control Button
Air flows from the rear floor vents. Air flow from the rear console
vents and floor vents. Air flows from the rear console vents.
* Not available on all models
20 PASSPORT-31TGS6100.book 17 ページ ２０１９年８月３０日　金曜日　午後６時２２分

18
Quick Reference Guide
Features (P227)
Audio system (P228) (P235)
Models with color audio system
MENU/CLOCK Button
Selector Knob
(Day/Night) Button
(Back) Button
(Sound) Button
VOL
/ (Volume/Power)
Knob
Preset Buttons (1-6) (Phone) Button
RADIO
Button
/
(Skip/Seek) Buttons
MEDIA Button Audio/Information Screen
20 PASSPORT-31TGS6100.book 18 ページ ２０１９年８月３０日　金曜日　午後６時２２分

20
Quick Reference Guide
Audio Remote Controls
(P232)
●(+ / ( - Bar
Press to adjust the volume up/down.
●SOURCE Button
Press to change the audio mode:
FM1/FM2/AM/USB/iPod/
Bluetooth ® Audio/AUX
● / Buttons
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
USB device/ Bluetooth® Audio:
Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Models with color audio system
( + / (- Bar
SOURCE
Button / Buttons
●(
+ / (- Bar
Press to adjust the volume up/down.
● / / / / ENTER Buttons
Press or to select Now Playing on
the home screen of the driver
information interface, and then press the
ENTER button.
Press or to cycle through the audio
mode as follows:
Android Auto/Apple CarPlay/SiriusXM ®
*/
AUX Input/AM/ Bluetooth® Audio/Social
Playlist/FM/My Honda Music/USB/iPod
Models with Display Audio
ENTER Button
/ / / Buttons34
(+ / (- Bar
34
34
34
Radio: Press / to change the
preset station.
USB device/My Honda Music/ Bluetooth®
Audio:
Press / to skip to the
beginning of the next song or
return to the beginning of the
current song.
20 PASSPORT-31TGS6100.book 20 ページ ２０１９年８月３０日　金曜日　午後６時２２分

75
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 76
Driver Information Interface Warning and Information Messages ...................... 91
Gauges and Displays Gauges ............................................ 104
Driver Information Interface ............. 105
20 PASSPORT-31TGS6100.book 75 ページ ２０１９年８月３０日　金曜日　午後６時２２分

uuOperating the Switches Around the Steering Wheel uDriving Position Memory System*
184
Controls
1. Set the power mode to ON. Adjust the
driver’s seat and th e door mirrors to the
desired position.
2. Press the SET button.
u You will hear a beep, and the memory
button indicator light will blink.
3. Press and hold memory button
(1 or (2
within five seconds of pressing the SET
button.
u You will hear two beeps, and the
indicator light on the button you pressed
stays on once the seat and the outside
mirror positions have been memorized.
1. Put the transmission into
(P.
2. Apply the parking brake.
3. Press a memory button (
(1 or (2).
u You will hear a beep, and the indicator
light will blink.
The seat and the door mirrors will
automatically move to the memorized
positions. When it has finished moving, you
will hear the beep, and the indicator light
stays on.
■Storing a Position in Memory1 Storing a Position in Memory
After you press the SET button, the storing operation
will be canceled when:
•You do not press the memory button within five
seconds.
•You readjust the seat position and door mirror
before the double-beep.
•You set the power mode to any position except
ON.
Memory Button 1
Memory Button 2SET Button
■Recalling the Stored Position1Recalling the Stored Position
The seat and the door mirrors will stop moving if you:
•Press the SET button or memory button (1 or (2.
•Adjust the seat position or door mirrors.
•Put the transmission into a position other than (P.Memory Buttons
20 PASSPORT-31TGS6100.book 184 ページ ２０１９年８月３０日　金曜日　午後６時２２分

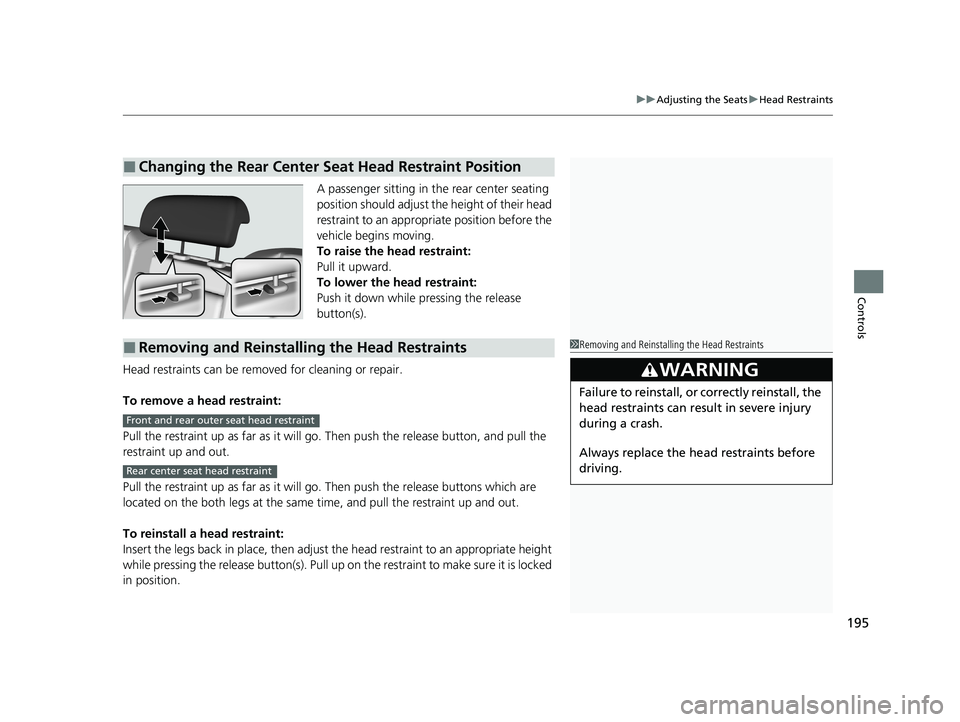

195
uuAdjusting the Seats uHead Restraints
Controls
A passenger sitting in the rear center seating
position should adjust the height of their head
restraint to an appropriate position before the
vehicle begins moving.
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release
button(s).
Head restraints can be removed for cleaning or repair.
To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release button, and pull the
restraint up and out.
Pull the restraint up as far as it will go. Then push the release buttons which are
located on the both legs at the same time, and pull the restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release button (s). Pull up on the restraint to make sure it is locked
in position.
■Changing the Rear Center Seat Head Restraint Position
■Removing and Reinstalling the Head Restraints1 Removing and Reinstalling the Head Restraints
3WARNING
Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.
Always replace the he ad restraints before
driving.
Front and rear outer seat head restraint
Rear center seat head restraint
20 PASSPORT-31TGS6100.book 195 ページ ２０１９年８月３０日　金曜日　午後６時２２分
