keyless HONDA PASSPORT 2020 Owner's Manual (in English)

120
uuGauges and Displays uDriver Information Interface
Instrument Panel
■Customization flow
Press the (home) button.
ENTER“Trip B” Reset Timing
Reverse Alert Tone
Auto Engine Idle Stop Guidance Screens
“Trip A” Reset Timing
Language Selection
Adjust Alarm VolumeMeter Setup
ENTERSettings
Arrange Apps
Show Tachometer3
4
3
4
3
4
3
4
Vehicle Customization
ENTER
P. 117
P. 118
ENTER
ENTERRoad Departure Mitigation Setting
Lane Keeping Assi st Suspend Beep
ACC Forward Vehicle Detect Beep
Forward Collision Warning Distance
Driver Assist System
Setup
3
4
3
4
ENTERKeyless Access Beep
Remote Start System ON/OFF
Keyless Access Light Flash
Door Unlock Mode
Keyless Access Setup3
4
Adjust Outside Temp. Display
Fuel Efficiency Backlight
3
4
20 PASSPORT-31TGS6100.book 120 ページ ２０１９年８月３０日　金曜日　午後６時２２分

121
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel
Default All
ENTER
ENTER
Auto Door Lock
Security Relock Timer
Auto Door Unlock
Key And Remote Unlock Mode
Keyless Lock Answer Back
Door Setup
Exit
3
4
3
4
3
4
3
4
3
4
Interior Light Dimming Time
Auto Headlight ON With Wiper ON
ENTERLighting Setup3
4Auto Light Sensitivity
Headlight Auto OFF Timer
Auto Interior Illu mination Sensitivity
3
4
20 PASSPORT-31TGS6100.book 121 ページ ２０１９年８月３０日　金曜日　午後６時２２分

123
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel
Setup Group Customizable Features Description Selectable settings
Keyless
Access
Setup Door Unlock Mode
Changes which doors unlock when you grab the
driver’s door handle. Driver’s Door Only
*1/
All Doors
Keyless Access Light
Flash Causes some exterior lights to flash when you unlock/
lock the doors.
ON
*1/
OFF
Keyless Access Beep Causes the beeper to so
und when you unlock/lock
the doors. ON
*1/
OFF
Remote Start System
ON/OFF Turns the remote engine start feature on and off.
ON
*1/OFF
Driver Assist
System
Setup
Forward Collision
Warning DistanceChanges the distance at which CMBSTM alerts.Long /Normal*1/ Short
ACC Forward Vehicle
Detect BeepCauses the system to beep when the system detects a
vehicle, or when the vehicle goes out of ACC range.ON /OFF*1
Road Departure
Mitigation SettingChanges the setting for the road departure
mitigation system.Normal*1/Wide /Warning Only
Lane Keeping Assist
Suspend BeepCauses the system to b eep when the LKAS is
suspended.ON /OFF*1
20 PASSPORT-31TGS6100.book 123 ページ ２０１９年８月３０日　金曜日　午後６時２２分

125
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel
*1:Default SettingSetup Group Customizable Features
Description Selectable settings
Door Setup
Auto Door LockChanges the setting for when the doors
automatically lock.With Vehicle Speed*1/Shift
From P /OFF
Auto Door UnlockChanges the setting for when the doors
automatically unlock.
All Doors When Driver’s Door
Opens*1/All Doors When
Shifted To Park/ All Doors When
Ignition Switched OFF /OFF
Key And Remote
Unlock ModeSets up either the driver’s door or all doors to unlock
on the first operation of the remote or built-in key.Driver Door*1/ All Doors
Keyless Lock Answer
BackLOCK/UNLOCK - The exterior lights flash.
LOCK (2nd push)- The beeper sounds.ON*1/OFF
Security Relock Timer
Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening a door.
90sec /60sec /30sec*1
Default All —Cancels customized changes you have made or
restores them to their default setting.
Cancel
/Set
20 PASSPORT-31TGS6100.book 125 ページ ２０１９年８月３０日　金曜日　午後６時２２分

365
uuCustomized Features u
Continued
Features
Vehicle
Driving Position
Setup*Seat Position Movement at Entry/Exit
Memory Position Link
Meter SetupAdjust Outside Temp Display
Trip A Reset Timing
Trip B Reset Timing
Reverse Shift Position Beep
Auto Idle Stop Display
Adjust Alarm Volume
Turn by Turn Display
Power Tailgate
Setup*Power Tailgate Keyless Open Mode
Power Tailgate Open by Outer Handle
Keyless Access SetupDoor Unlock Mode
Keyless Access Light Flash
Keyless Access Beep
Remote Start System On/Off
Walk Away Auto Lock
Fuel Efficiency Backlight
Hands Free Access Power Tailgate*
* Not available on all models
20 PASSPORT-31TGS6100.book 365 ページ ２０１９年８月３０日　金曜日　午後６時２２分

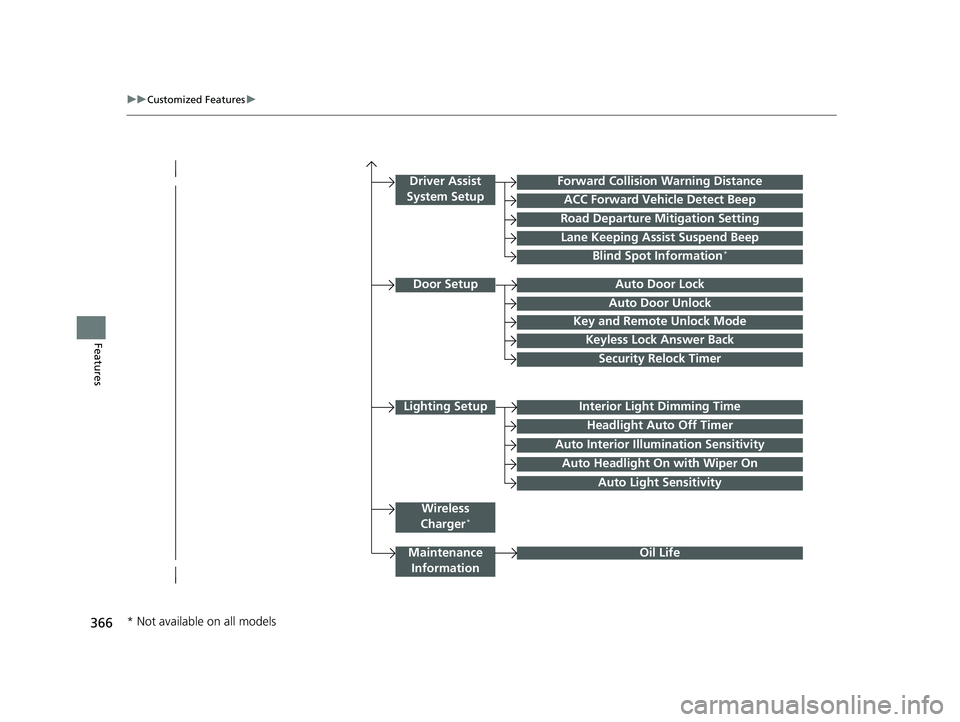

366
uuCustomized Features u
Features
Lighting SetupInterior Light Dimming Time
Headlight Auto Off Timer
Forward Collision Warning Distance
ACC Forward Vehicle Detect Beep
Auto Interior Illu mination Sensitivity
Door SetupAuto Door Lock
Auto Door Unlock
Key and Remote Unlock Mode
Keyless Lock Answer Back
Security Relock Timer
Maintenance
Information
Driver Assist
System Setup
Oil Life
Road Departure Mitigation Setting
Lane Keeping Assist Suspend Beep
Blind Spot Information*
Wireless
Charger*
Auto Headlight On with Wiper On
Auto Light Sensitivity
* Not available on all models
20 PASSPORT-31TGS6100.book 366 ページ ２０１９年８月３０日　金曜日　午後６時２２分

373
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Meter Setup
Turn by Turn DisplaySelects whether the turn-b
y-turn display comes on
during the route guidance.ON*1/ OFF
Fuel Efficiency
BacklightTurns the ambient meter feature on and off.ON*1/OFF
Power
Tailgate
Setup
*
Power Tailgate
Keyless Open ModeChanges the keyless setting for when the power
tailgate opens.Anytime*1/When
Unlocked
Power Tailgate Open
by Outer HandleChanges the setting to open power tailgate by
tailgate outer handle.Off (Manual only) /
On (Power/
Manual)
*1
Hands Free Access
Power Tailgate*
Changes the setting to open power tailgate by a
swift forward in and out kicking motion under the
rear bumper.
ON*1/ OFF
Keyless Access
Setup
Door Unlock ModeChanges which doors unlock when you grab the
driver’s door handle.Driver Door or
Tailgate*1/All Doors
Keyless Access Light
FlashCauses some exterior lights to flash when you
unlock/lock the doors.ON*1/OFF
Keyless Access BeepCauses the beeper to so und when you unlock/lock
the doors.ON*1/ OFF
* Not available on all models
20 PASSPORT-31TGS6100.book 373 ページ ２０１９年８月３０日　金曜日　午後６時２２分

374
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Keyless Access
Setup
Remote Start System
On/OffTurns the remote engine
start feature on and off.ON*1/OFF
Walk Away Auto
LockChanges the settings for the automatic locking the
doors when you walk away from the vehicle while
carrying the remote.
Enable /Disable*1
Driver Assist
System Setup
Forward Collision
Warning DistanceChanges at which distance CMBSTM alerts.Long /Normal*1/
Short
ACC Forward Vehicle
Detect BeepCauses the system to beep when the system
detects a vehicle, or when the vehicle goes out of
the ACC range.
ON /OFF*1
Road Departure
Mitigation SettingChanges the setting for the road departure
mitigation system.Normal*1/ Wide /
Warning Only
Lane Keeping Assist
Suspend BeepCauses the system to b eep when the LKAS is
suspended.ON /OFF*1
Blind Spot
Information*Changes the setting for th e blind spot information.
Audible and Visual
Alert*1/Visual Alert /
OFF
* Not available on all models
20 PASSPORT-31TGS6100.book 374 ページ ２０１９年８月３０日　金曜日　午後６時２２分

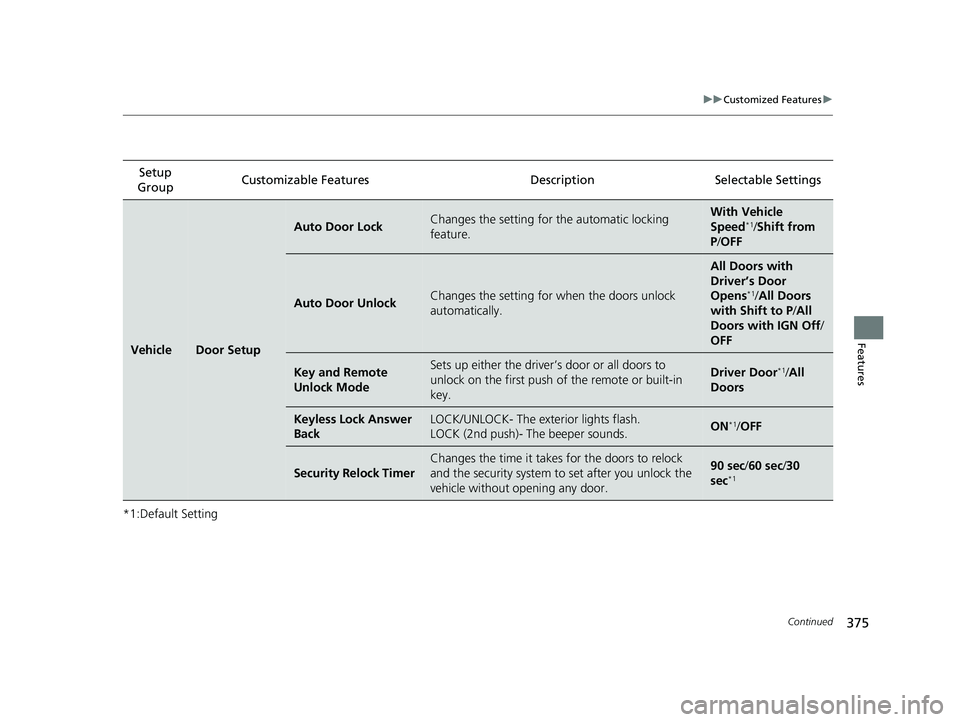

375
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
VehicleDoor Setup
Auto Door LockChanges the setting for
the automatic locking
feature.With Ve hicle
Speed*1/ Shift from
P /OFF
Auto Door UnlockChanges the setting for when the doors unlock
automatically.
All Doors with
Driver’s Door
Opens
*1/ All Doors
with Shift to P /All
Doors with IGN Off /
OFF
Key and Remote
Unlock ModeSets up either the driver’s door or all doors to
unlock on the first push of the remote or built-in
key.Driver Door*1/ All
Doors
Keyless Lock Answer
BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.ON*1/ OFF
Security Relock Timer
Changes the time it takes for the doors to relock
and the security system to set after you unlock the
vehicle without opening any door.90 sec/ 60 sec/30
sec*1
20 PASSPORT-31TGS6100.book 375 ページ ２０１９年８月３０日　金曜日　午後６時２２分

659
Index
Operating ............................................... 169
Heated Steering Wheel ........................... 216
Heated Windshield Button ...................... 181
Heater (Steering Wheel) .......................... 216
Heaters (Seat) ........................... 213, 214, 215
HFL (HandsFreeLink ®) ...................... 383, 408
High Beam Indicator .................................. 82
Hill Start Assist System ............................. 459
HomeLink ® Universal Transceiver ........... 380
Honda App License Agreement .............. 334
Honda Sensing ®........................................ 24
HondaLink ®............................................ 313
I
Identification Numbers ............................ 646
Engine and Transmission ......................... 646
Vehicle Identification............................... 646
Illumination Control ................................ 182
Button .................................................... 182
Immobilizer System .................................. 158
Indicator ................................................... 83
Indicators .................................................... 76
Adaptive Cruise Control (ACC) (Amber) .... 88
Adaptive Cruise Control (ACC) (Green) ..... 88
All-wheel drive (AWD)............................... 85
Anti-lock Brake System (ABS) .................... 79
Auto High-Beam ....................................... 80
Auto Idle Stop (Amber) ............................. 85
Auto Idle Stop (Green) .............................. 85
Blind spot information ...................... 90, 483 Brake System (Red) .................................. 631
Charging System ............................... 77, 629
Collision Mitigation Braking System
TM
(CMBSTM) ........................................... 88, 89
Econ Mode ................................................ 84
Electric Power Steering (EPS) System .. 81, 631
Fog Light ................................................... 83
Gear Position ............................................. 77
Hazard Warning ........................................ 82
High Beam ................................................ 82
Immobilizer System .................................... 83
Lane Keeping Assist System (LKAS) .......... 522
Lane Keeping Assist System (LKAS) (Amber) ................................................... 86
Lane Keeping Assist System (LKAS) (Green) .................................................... 86
Lights On ................................................... 82
Low Fuel .................................................... 79
Low Oil Pressure Symbol .......................... 629
Low Tire Pressure/TPMS ..................... 82, 632
Malfunction Indicator Lamp ............... 77, 630
Parking Brake and Brake System .............. 631
Parking Brake and Brake System (Amber) ... 76
Parking Brake and Brake System (Red) ....... 76
Road Departure Mitigation (RDM) .............. 87
Seat Belt Reminder .............................. 38, 79
Security System Alarm ............................... 83
Supplemental Restraint System ............ 55, 80
System Message ........................................ 84
Turn Signal ................................................ 82
Vehicle Stability Assist
TM (VSA ®) OFF ... 81, 480 Vehicle Stability Assist
TM (VSA
®)
System ............................................ 80, 479
Information .............................................. 643
Instant Fuel Economy ............................... 110
Instrument Panel ........................................ 75
Brightness Control................................... 182
Integrated Sunshades .............................. 212
Intelligent Traction Management
System ..................................................... 477
Intelligent VTM4 (i-VTM4
TM) .................... 487
Interior Lights ........................................... 198
Interior Rearview Mirror .......................... 186
iPad ........................................................... 332
iPhone ....................................................... 332
iPod ........................................... 244, 299, 332
J
Jack (Wheel Nut Wrench) ........................ 617
Jump Starting ........................................... 624
K
Key Number Tag ....................................... 134
Keyless Lockout Prevention ..................... 143
Keys ........................................................... 133
Lockout Prevention.................................. 143
Number Tag ............................................ 134
Rear Door Won’t Open............................ 146
Remote Transmitter ................................. 141
Types and Functions ................................ 133
20 PASSPORT-31TGS6100.book 659 ページ ２０１９年８月３０日　金曜日　午後６時２２分
