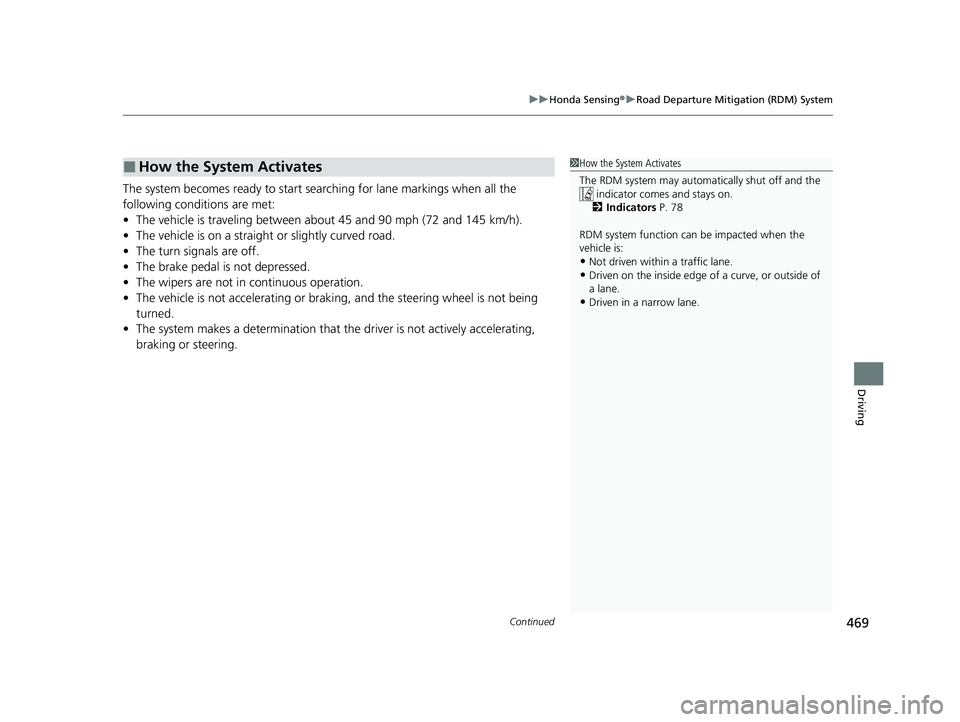

Continued469
uuHonda Sensing ®u Road Departure Mitigation (RDM) System
Driving
The system becomes ready to start sear ching for lane markings when all the
following conditions are met:
• The vehicle is traveling between about 45 and 90 mph (72 and 145 km/h).
• The vehicle is on a straight or slightly curved road.
• The turn signals are off.
• The brake pedal is not depressed.
• The wipers are not in continuous operation.
• The vehicle is not accelera ting or braking, and the steering wheel is not being
turned.
• The system makes a determination that th e driver is not actively accelerating,
braking or steering.
■How the System Activates1 How the System Activates
The RDM system may automa tically shut off and the
indicator comes and stays on.
2 Indicators P. 78
RDM system function can be impacted when the
vehicle is:
•Not driven within a traffic lane.•Driven on the inside edge of a curve, or outside of
a lane.
•Driven in a narrow lane.
21 PASSPORT-31TGS6200.book 469 ページ ２０２０年９月４日　金曜日　午後２時３５分

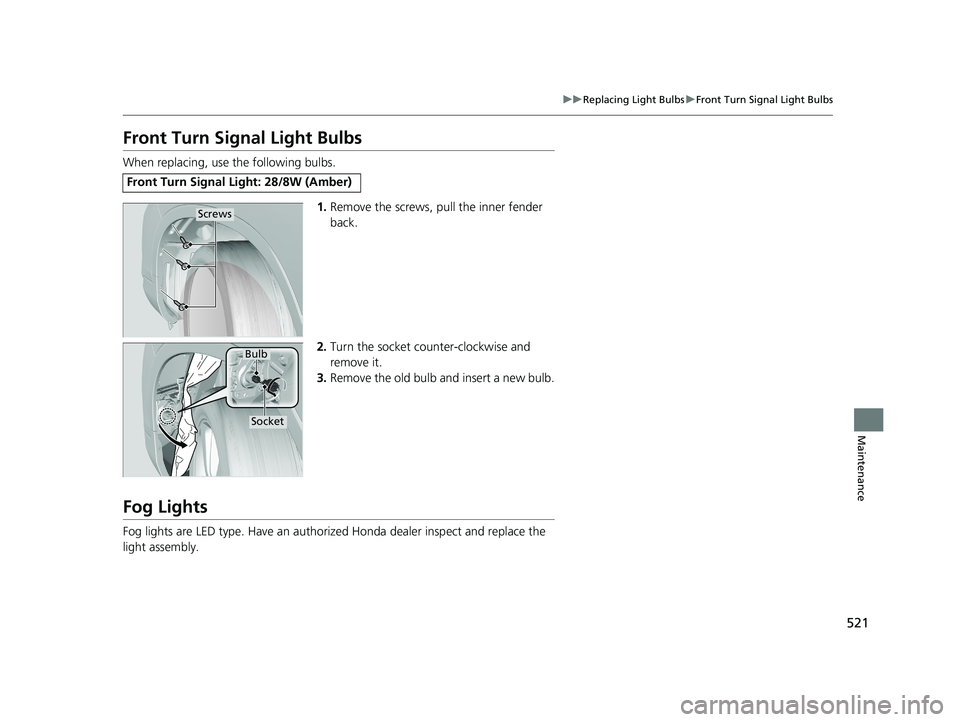

521
uuReplacing Light Bulbs uFront Turn Signal Light Bulbs
Maintenance
Front Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Remove the screws, pull the inner fender
back.
2. Turn the socket counter-clockwise and
remove it.
3. Remove the old bulb and insert a new bulb.
Fog Lights
Fog lights are LED type. Have an authoriz ed Honda dealer inspect and replace the
light assembly.
Front Turn Signal Light: 28/8W (Amber)
Screws
Socket
Bulb
21 PASSPORT-31TGS6200.book 521 ページ ２０２０年９月４日　金曜日　午後２時３５分

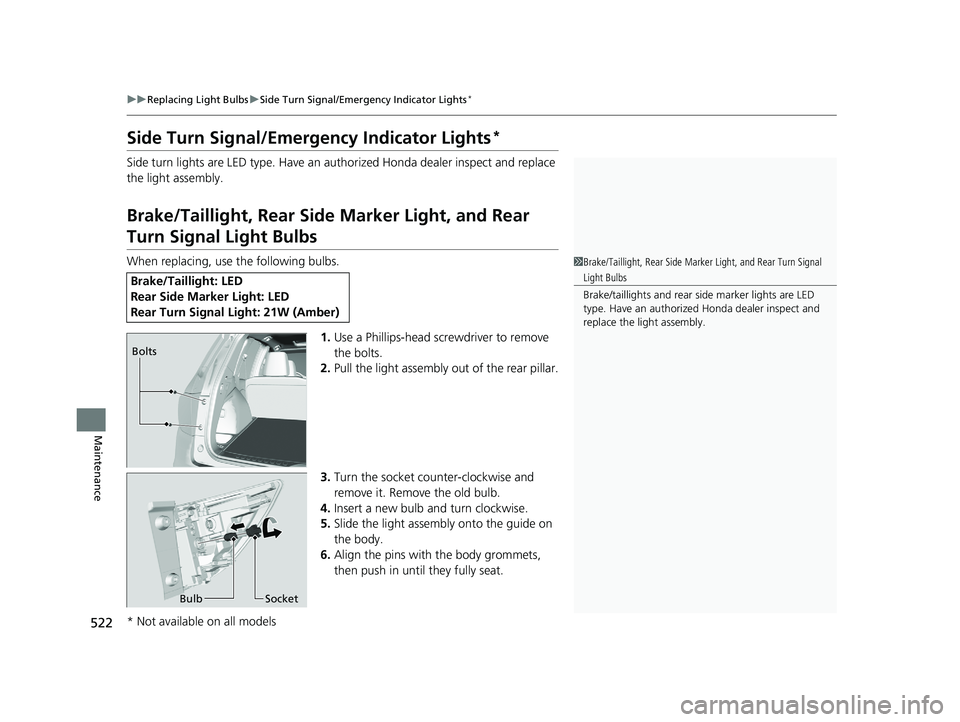

522
uuReplacing Light Bulbs uSide Turn Signal/Emergency Indicator Lights*
Maintenance
Side Turn Signal/Emergency Indicator Lights*
Side turn lights are LED type. Have an au thorized Honda dealer inspect and replace
the light assembly.
Brake/Taillight, Rear Side Marker Light, and Rear
Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Use a Phillips-head screwdriver to remove
the bolts.
2. Pull the light assembly out of the rear pillar.
3. Turn the socket counter-clockwise and
remove it. Remove the old bulb.
4. Insert a new bulb and turn clockwise.
5. Slide the light assembly onto the guide on
the body.
6. Align the pins with the body grommets,
then push in unt il they fully seat.
Brake/Taillight: LED
Rear Side Marker Light: LED
Rear Turn Signal Light: 21W (Amber)
1Brake/Taillight, Rear Side Marker Light, and Rear Turn Signal
Light Bulbs
Brake/taillights and rear side marker lights are LED
type. Have an authorized Honda dealer inspect and
replace the light assembly.
Bolts
Bulb Socket
* Not available on all models
21 PASSPORT-31TGS6200.book 522 ページ ２０２０年９月４日　金曜日　午後２時３５分

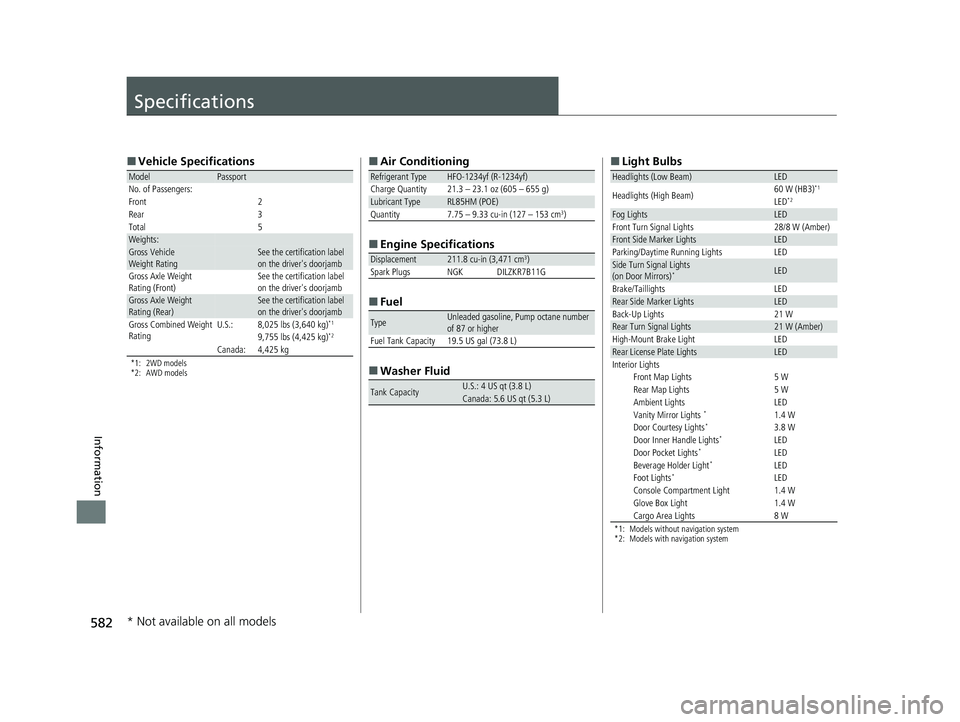

582
Information
Specifications
■Vehicle Specifications
*1: 2WD models
*2: AWD models
ModelPassport
No. of Passengers:
Front 2
Rear 3
Total
5Weights:Gross Vehicle
Weight RatingSee the certification label
on the driver's doorjamb
Gross Axle Weight
Rating (Front)See the certification label
on the driver's doorjamb
Gross Axle Weight
Rating (Rear)See the certification label
on the driver's doorjamb
Gross Combined Weight
RatingU.S.:8,025 lbs (3,640 kg)*1
9,755 lbs (4,425 kg)*2
Canada:4,425 kg
■ Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 21.3 – 23.1 oz (605 – 655 g)
Lubricant TypeRL85HM (POE)
Quantity 7.75 – 9.33 cu-in (127 – 153 cm3)
Displacement211.8 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 19.5 US gal (73.8 L)
Tank CapacityU.S.: 4 US qt (3.8 L)Canada: 5.6 US qt (5.3 L)
■ Light Bulbs
*1: Models without navigation system
*2: Models with navigation system
Headlights (Low Beam)LED
Headlights (High Beam)60 W (HB3)*1
LED*2
Fog LightsLEDFront Turn Signal Lights28/8 W (Amber)Front Side Marker LightsLEDParking/Daytime Running LightsLEDSide Turn Signal Lights
(on Door Mirrors)*LED
Brake/TaillightsLEDRear Side Marker LightsLEDBack-Up Lights21 WRear Turn Signal Lights21 W (Amber)High-Mount Brake LightLEDRear License Plate LightsLEDInterior LightsFront Map Lights5 WRear Map Lights5 WAmbient LightsLEDVanity Mirror Lights *1.4 WDoor Courtesy Lights*3.8 WDoor Inner Handle Lights*LEDDoor Pocket Lights*LEDBeverage Holder Light*LEDFoot Lights*LEDConsole Compartment Light1.4 WGlove Box Light1.4 WCargo Area Lights8 W
* Not available on all models
21 PASSPORT-31TGS6200.book 582 ページ ２０２０年９月４日　金曜日　午後２時３５分

596
Index
USB Port .................................................. 219
Wallpaper Setup ...................................... 228
Wi-Fi Connection ..................................... 288
Audio/Information Screen ........................ 225
Authorized Manuals ................................. 592
Auto Door Locking/Unlocking ................. 138
Customize ............................................... 338
Auto High-Beam ....................................... 165
Indicator .................................................... 82
Auto Idle Stop ........................................... 409
OFF Button .............................................. 410
Auto Idle Stop Indicator (Amber) .............. 87
Auto Idle Stop Indicator (Green) ............... 87
Automatic Intermittent Wipers ............... 169
Automatic Lighting .................................. 161
Automatic Transmission ........................... 400
Creeping ................................................. 400
Fluid ........................................................ 517
Kickdown ................................................ 400
Operating the Shift Button....................... 403
Shifting.................................................... 401
Auxiliary Input Jack .................................. 220
Average Fuel Economy ............................. 112
B
Back-Up Light............................................ 523
Battery ....................................................... 537
Charging System Indicator ................. 79, 568
If the Battery Is Dead ............................... 562
Maintenance (Checking the Battery) ........ 537 Belts (Seat)
.................................................. 37
Beverage Holders ..................................... 194
Blind Spot Information System ................ 421
Bluetooth® Audio..................................... 279
Bluetooth® HandsFreeLink ®................... 346
Booster Seats (For Children) ...................... 74
Brake System ............................................ 476
Anti-lock Brake System (ABS)................... 478
Brake Assist System ................................. 479
Fluid ........................................................ 518
Foot Brake............................................... 477
Indicator............................................ 78, 569
Parking Brake .......................................... 476
Brightness Control (Instrument Panel) .... 173
Bulb Replacement .................................... 519
Back-Up Lights ........................................ 523
Brake lights ............................................. 522
Daytime Running Lights........................... 520
Fog Lights ............................................... 521
Front Side Marker Lights.......................... 520
Front Turn Signal Lights ........................... 521
Headlights ............................................... 519
High-Mount Brake Light .......................... 523
Parking Lights.......................................... 520
Rear License Plate Lights .......................... 523
Rear Side Marker Lights ........................... 522
Rear Turn Signal Lights ............................ 522
Side Turn Signal/Emergency Indicator
Lights .................................................... 522
Taillights.................................................. 522
Bulb Specifications ................................... 582
C
Car Wash Mode........................................ 405
Carbon Monoxide Gas ............................... 75
Carrying Cargo ................................. 375, 377
Certification Label ................................... 584
Changing Bulbs ........................................ 519
Charging System Indicator ................ 79, 568
Child Safety ................................................ 60
Childproof Door Locks ............................ 137
Child Seat ................................................... 60
Booster Seats ............................................ 74
Child Seat for Infants ................................ 62
Child Seat for Small Children .................... 63
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 68
Larger Children ......................................... 73
Rear-facing Child Seat............................... 62
Selecting a Child Seat ............................... 64
Childproof Door Locks ............................. 137
Cleaning the Exterior ............................... 544
Cleaning the Interior ............................... 542
Climate Control System ........................... 210
Changing the Mode................................ 210
Defrosting the Windshield and Windows .............................................. 211
Dust and Pollen Filter .............................. 541
Recirculation and Fresh Air Mode ............ 211
Sensors ................................................... 216
Synchronization Mode ............................ 213
Using Automatic Climate Control............ 210
Clock ......................................................... 122
21 PASSPORT-31TGS6200.book 596 ページ ２０２０年９月４日　金曜日　午後２時３５分

597
Index
Coat Hook................................................ 201
Collision Mitigation Braking SystemTM
(CMBSTM) ................................................. 434
Collision Mitigation Braking SystemTM
(CMBSTM) Indicator ............................. 90, 91
Compact Spare Tire .......................... 551, 583
Console Compartment ............................. 192
Controls .................................................... 121
Coolant (Engine) ...................................... 515
Adding to the Radiator ........................... 516
Adding to the Reserve Tank .................... 515
Overheating ............................................ 565
Temperature Gauge ................................ 106
Creeping (Automatic Transmission) ........ 400
Cross Traffic Monitor ............................... 487
Cup Holders .............................................. 194
Customer Service Information ................ 593
Customized Features ............................... 324
D
Daytime Running Lights .......................... 164
Dead Battery ............................................ 562
Defaulting All the Settings ...................... 342
Defrosting the Windshield and Windows ................................................. 211
Detachable Anchor .................................... 42
Devices that Emit Radio Waves ............... 585
Dimming Headlights .............................................. 160
Rearview Mirror ...................................... 177 Dipstick (Engine Oil)
................................. 511
Directional Signals (Turn Signal) ............. 159
Door Mirrors ............................................. 178
Doors ......................................................... 124
Auto Door Locking .................................. 138
Auto Door Unlocking ............................... 138
Door Open Message .................................. 36
Keys ........................................................ 124
Locking/Unlocking the Doors from the Inside..................................................... 135
Locking/Unlocking the Doors from the
Outside.................................................. 127
Lockout Prevention System ...................... 134
DOT Tire Quality Grading ........................ 531
Driver Information Interface ................... 107
Accessing Content ................................... 109
Warning and Information Messages .......... 93
Driving ....................................................... 373
Adaptive Cruise Control (ACC) ................ 446
Automatic Transmission ........................... 400
Braking .................................................... 476
Off-Highway Driving Guidelines ............... 390
Shifting Gear ........................................... 401
Starting the Engine .................................. 392
Driving Position Memory System ............. 174
Dust and Pollen Filter ............................... 541
E
Eco Assist® System ...................................... 12
ECON Button ............................................. 415 Econ Mode
Indicator.................................................... 86
Electric Power Steering (EPS) System Indicator............................................ 83, 569
Electronic Stability Control (ESC) ............. 418
Emergency ................................................ 577
Emissions Testing (Readiness Codes) ....... 587
Engine
Coolant ................................................... 515
If the Battery Is Dead ............................... 562
Number................................................... 584
Oil ........................................................... 510
Remote Engine Start................................ 394
Starting ................................................... 392
Engine Compartment Cover .................... 509
Engine Coolant ......................................... 515
Adding to the Radiator ............................ 516
Adding to the Reserve Tank..................... 515
Overheating ............................................ 565
Temperature Gauge ................................ 106
Engine Oil ................................................. 510
Adding .................................................... 512
Checking................................................. 511
Displaying Maintenance Minder Information ........................................... 502
Low Oil Pressure Warning........................ 567
Recommended Engine Oil ....................... 510
ENGINE START/STOP Button .................... 156
EPS (Electric Power Steering) System ...... 569
Exhaust Gas Hazard (Carbon Monoxide) .. 75
Exterior Care (Cleaning) ........................... 544
21 PASSPORT-31TGS6200.book 597 ページ ２０２０年９月４日　金曜日　午後２時３５分

599
Index
Heater (Steering Wheel).......................... 207
Heaters (Seat) ........................... 204, 205, 206
HFL (HandsFreeLink ®) .............................. 346
High Beam Indicator .................................. 84
Hill Start Assist System ............................. 398
HomeLink ® Universal Transceiver ........... 343
Honda App License Agreement .............. 304
Honda Sensing ®........................................ 25
HondaLink ®............................................ 283
I
Identification Numbers ............................ 584
Engine and Transmission ......................... 584
Vehicle Identification............................... 584
If the Transmission Indicator Blinks
along with the Warning Message ......... 571
Illumination Control ................................ 173
Button .................................................... 173
Immobilizer System .................................. 149
Indicator ................................................... 85
Indicators .................................................... 78
Adaptive Cruise Control (ACC) (Amber) .... 90
Adaptive Cruise Control (ACC) (Green) ..... 90
All-wheel drive (AWD)............................... 87
Anti-lock Brake System (ABS) .................... 81
Auto High-Beam ....................................... 82
Auto Idle Stop (Amber) ............................. 87
Auto Idle Stop (Green) .............................. 87
Blind spot information ...................... 92, 422
Brake System (Amber) ............................... 78 Brake System (Red) ............................ 78, 569
Charging System ............................... 79, 568
Collision Mitigation Braking System
TM
(CMBSTM) ........................................... 90, 91
Econ Mode ................................................ 86
Electric Power Steering (EPS) System .. 83, 569
Fog Light ................................................... 85
Gear Position ............................................. 79
Hazard Warning ........................................ 84
High Beam ................................................ 84
Immobilizer System .................................... 85
Lane Keeping Assist System (LKAS) (Amber) ................................................... 88
Lane Keeping Assist System (LKAS)
(Green) ............................................ 88, 461
Lights On ................................................... 84
Low Fuel .................................................... 81
Low Oil Pressure Warning ........................ 567
Low Tire Pressure/TPMS ..................... 84, 570
Malfunction Indicator Lamp ............... 79, 568
Parking Brake and Brake System (Amber) ... 78
Parking Brake and Brake System
(Red)................................................ 78, 569
Road Departure Mitigation (RDM) .............. 89
Seat Belt Reminder .............................. 38, 81
Security System Alarm ............................... 85
Supplemental Restraint System ............ 56, 82
System Message ........................................ 86
Turn Signal ................................................ 84
Vehicle Stability Assist
TM (VSA ®) OFF ... 83, 419 Vehicle Stability Assist
TM (VSA
®)
System ............................................ 82, 418
Information .............................................. 581
Instant Fuel Economy ............................... 112
Instrument Panel ........................................ 77
Brightness Control................................... 173
Integrated Sunshades .............................. 203
Intelligent Traction Management
System ..................................................... 416
Intelligent VTM4 (i-VTM4
TM) .................... 426
Interior Lights ........................................... 189
Interior Rearview Mirror .......................... 177
iPad ........................................................... 303
iPhone ....................................................... 303
iPod ................................................... 269, 303
J
Jack (Wheel Nut Wrench) ........................ 555
Jump Starting ........................................... 562
K
Key Number Tag ....................................... 125
Keyless Lockout Prevention ..................... 134
Keys ........................................................... 124
Lockout Prevention.................................. 134
Number Tag ............................................ 125
Rear Door Won’t Open............................ 137
Remote Transmitter ................................. 132
Types and Functions ................................ 124
21 PASSPORT-31TGS6200.book 599 ページ ２０２０年９月４日　金曜日　午後２時３５分

600
Index
Kickdown (Automatic Transmission)....... 400
L
Lane Keeping Assist System (LKAS)......... 459
Lane Keeping Assist System (LKAS) Indicator (Amber) ..................................... 88
Lane Keeping Assist System (LKAS) Indicator (Green) ....................................... 88
LaneWatch
TM............................................. 424
LATCH (Child Seats) .............................. 65, 71
Legal Information on Apple CarPlay/ Android Auto .......................................... 316
License Information .................................. 319
Lights ................................................. 160, 519
Auto High-Beam ...................................... 165
Automatic ............................................... 161
Bulb Replacement .................................... 519
Daytime Running Lights ........................... 164
High Beam Indicator .................................. 84
Interior .................................................... 189
Light Switches ......................................... 160
Lights On Indicator .................................... 84
Turn Signals ............................................. 159
Load Limits ................................................ 377
Locking/Unlocking .................................... 124
Auto Door Locking/Unlocking .................. 138
Childproof Door Locks ............................. 137
From Inside .............................................. 135
From Outside ........................................... 127
Keys ........................................................ 124 Using a Key ............................................. 133
Lockout Prevention System ..................... 134
Low Battery Charge ................................. 568
Low Fuel Indicator ...................................... 81
Low Oil Pressure Warning ....................... 567
Lower Anchors ...................................... 65, 71
Lubricant Specifications Chart ................. 583
Luggage (Maximum Load Limit) ............. 377
Lumbar Support ....................................... 180
Lumbar Support Adjustment Switch ....... 180
M
Maintenance..................................... 114, 497
Battery .................................................... 537
Brake Fluid .............................................. 518
Cleaning ................................................. 542
Coolant ................................................... 515
Maintenance Minder
TM............................ 501
Oil ........................................................... 511
Precautions ............................................. 498
Radiator .................................................. 516
Remote Transmitter ................................. 539
Replacing Light Bulbs .............................. 519
Safety...................................................... 499
Service Items ........................................... 504
Tires ........................................................ 528
Transmission Fluid ................................... 517
Under the Hood ...................................... 507
Malfunction Indicator Lamp .............. 79, 568
Map Lights ................................................ 190 Maximum Load Limit
............................... 377
Meters, Gauges ........................................ 106
Mirrors ...................................................... 177
Adjusting ................................................ 177
Door ....................................................... 178
Exterior ................................................... 178
Interior Rearview ..................................... 177
Modifications (and Accessories) .............. 547
Moonroof ................................................. 155
MP3 ................................................... 272, 275
MP3/WMA/AAC ................................ 272, 275
Multi-View Rear Camera ......................... 491
My Honda Music ...................................... 275
N
Navigation................................................ 113
Now Playing ............................................. 116
Numbers (Identification) ......................... 584
O
Odometer................................................. 108
Off-Highway Driving Guidelines ............. 390
Oil (Engine) .............................................. 510
Adding ................................................... 512
Checking ................................................ 511
Displaying Mainte nance Minder
Information ........................................... 502
Low Oil Pressure Warning ....................... 567
Oil Life .................................................... 114
21 PASSPORT-31TGS6200.book 600 ページ ２０２０年９月４日　金曜日　午後２時３５分

603
Index
Load Limits ............................................. 380
Towing Your Vehicle ............................... 389
Emergency .............................................. 577
TPMS (Tire Pressure Monitoring System) Indicator ................................................... 84
TPMS with Tire Fill Assist ......................... 427
Indicator ................................................. 570
Tire Fill Assist .......................................... 570
Trailer Stability Assist ............................... 387
Transmission ....................................... 22, 401
Automatic......................................... 22, 401
Fluid ....................................................... 517
Gear Position Indicator ...................... 79, 403
Number .................................................. 584
Sequential Mode..................................... 407
Trip Computer .......................................... 111
Trip Meter ................................................ 112
Troubleshooting ...................................... 549
Blown Fuse ..................... 572, 573, 574, 575
Brake Pedal Vibrates ................................. 28
Buzzer Sounds When Opening Door ......... 29
Emergency Towing ................................. 577
Engine Won’t Start ................................. 559
Noise When Braking ................................. 29
Overheating ............................................ 565
Puncture/Flat Tire .................................... 551
Rear Door Won’t Open ..................... 28, 137
Warning Indicators.................................... 78
Turn Signals .............................................. 159
Indicators (Instrume nt Panel) ..................... 84U
Under-floor Storage Area ........................ 209
Units .......................................................... 116
Unlocking the Doors ................................ 127
Unlocking the Front Doors from the
Inside ....................................................... 135
USB Flash Drives ................................ 272, 303
USB Port .................................................... 219
V
Vanity Mirrors ............................................... 9
Vehicle Identification Number ................ 584
Vehicle Stability Assist
TM (VSA ®)............... 418
Off Button ............................................... 419
System Indicator ................................ 82, 418
Ventilation ............................................... 211
Viscosity (Oil) .................................... 510, 583
Voice Control Operation .......................... 253
Audio Commands ................................... 255
Phone Commands ................................... 255
Voice Portal Screen .................................. 254
Voice Recognition .................................... 253
W
Wallpaper ................................................. 228
Warning and Information Messages ......... 93
Warning Indicator On/Blinking ............... 567
Warning Labels ........................................... 76
Warnings ................................................... 113 Warranties (Warranty Manual
provided separately) .............................. 589
Watts ......................................................... 582
Wear Indicators (Tire) .............................. 533
Wheel Nut Wrench (Jack Handle) ........... 555
Wi-Fi Connection ...................................... 288
Window Washers ..................................... 168
Adding/Refilling Fluid .............................. 518
Switch ..................................................... 168
Windows (Opening and Closing) ............ 152
Windshield ................................................ 168
Cleaning ......................................... 542, 545
Defrosting/Defogging .............................. 211
Washer Fluid ........................................... 518
Wiper Blades ........................................... 524
Wipers and Washers................................ 168
Winter Tires .............................................. 536
Snow Tires .............................................. 536
Tire Chains .............................................. 536
Wipers and Washers ................................. 168
Automatic Intermittent Wipers ................ 169
Checking and Replacing Wiper Blades ..... 524
Front ....................................................... 168
Rear ........................................................ 170
Wireless Charger ...................................... 198
WMA ................................................. 272, 275
Worn Tires ................................................ 528
21 PASSPORT-31TGS6200.book 603 ページ ２０２０年９月４日　金曜日　午後２時３５分
