seats HONDA PASSPORT 2021 Navigation Manual (in English)

Continued205
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The seat heaters or ventilators can be used
when the power mode is in ON.
The seat heaters: Use them to warm up the
seat.
The seat ventilators: Use them when you
want to ventilate the surface of the seats.
When used with the air conditioning, the
surface of the seats will become easier to cool.
Press the seat heater or the seat ventilation
button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO se tting (one indicator
on)
Four times - The OFF setting (no indicators on)
When the power mode is turned on after it is
turned off, the previous setting is maintained.
■Front Seat Heaters and Seat Ventilation*1 Front Seat Heaters and Seat Ventilation*
Do not use the seat heater s and the seat ventilation
even in LO when the engine is off. Under such
conditions, the battery ma y be weakened, making
the engine difficult to start.
After a certain period of time, the strength setting for
the seat heaters will automatically be reduced by one
level at a time until the seat heater shuts off. The
elapsed time varies according to the interior
environment.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
21 PASSPORT-31TGS6200.book 205 ページ ２０２０年９月４日　金曜日　午後２時３５分

213
uuClimate Control System uSynchronization Mode
Controls

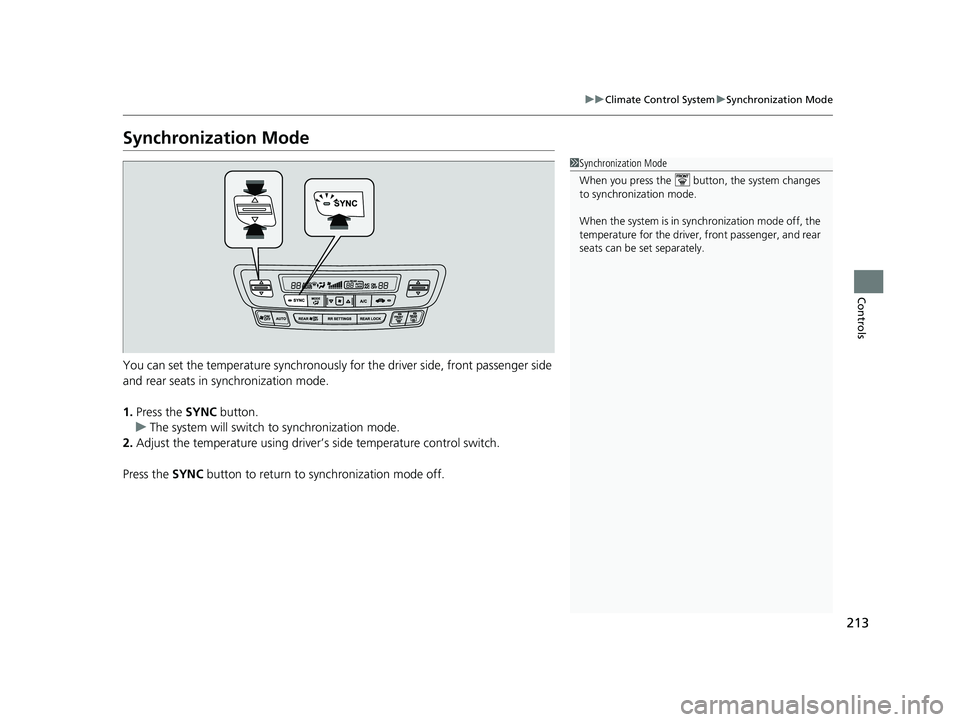

Synchronization Mode
You can set the temperature synchronously fo r the driver side, front passenger side
and rear seats in synchronization mode.
1. Press the SYNC button.
u The system will switch to synchronization mode.
2. Adjust the temperature using driver’s side temperature control switch.
Press the SYNC button to return to sy nchronization mode off.
1Synchronization Mode
When you press the button, the system changes
to synchronization mode.
When the system is in synchronization mode off, the
temperature for the driver, front passenger, and rear
seats can be set separately.
21 PASSPORT-31TGS6200.book 213 ページ ２０２０年９月４日　金曜日　午後２時３５分

Continued375
uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 377
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driving and a crash could occur.
• Securely close and lock al l doors and the tailgate.
2Locking/Unlocking the Doors from the Inside P. 135
•Adjust your seating position properly.
u Adjust the head restraint, too.
2Adjusting the Seats P. 179
2 Adjusting the Front and Rear Oute r Seat Head Restraint Positions P. 185
•Adjust the mirrors and steering wheel properly.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Steering Wheel P. 176
2 Adjusting the Mirrors P. 177
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
21 PASSPORT-31TGS6200.book 375 ページ ２０２０年９月４日　金曜日　午後２時３５分

376
uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver’s ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 40
•Make sure that the indicators in the instrument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 78
21 PASSPORT-31TGS6200.book 376 ページ ２０２０年９月４日　金曜日　午後２時３５分

380
Driving
Towing a Trailer
Towing Preparation
Your vehicle can tow a trailer if you carefully observe the load limits, use the proper
equipment, and follow the towing guidelin es. Check the load limits before driving.
■Total trailer weight
Do not exceed the maximum allowable
weight of the trailer, cargo, and everything in
or on it shown in the table.
Towing loads in excess of this can seriously
affect vehicle handling and performance and
can damage the engine and drivetrain.
Each weight limit is calculated based on the following conditions:
• Occupants fill seats from the front of the vehicle to the back.
• Each occupant weights 150 lbs (68 kg).
• Each occupant has 17.6 lb (8 kg) cargo in the cargo area.
Any additional weight, cargo or accessori es reduce the maximum trailer weight and
maximum tongue load.
■Towing Load Limits1 Towing Load Limits
Check if all loads are within limits at a public scale.
If a public scale is not av ailable, add the estimated
weight of your cargo load to the weight of your
trailer (as quoted by the manufacturer), and then
measure the tongue load with an appropriate scale or
tongue gauge or estima te it based on cargo
distribution.
Refer to the trailer owner’s manual for additional
information.
Break-in Period
Avoid towing a trailer duri ng your vehicle’s first 600
miles (1,000 km).
Never exceed the gross weight ratings.
Gross weight information 2 Vehicle Specifications P. 582
3WARNING
Exceeding any load limit or improperly
loading your vehicle and trailer can cause a
crash in which you can be seriously hurt or
killed.
Check the loading of your vehicle and
trailer carefully before starting to drive.
Total Load
Number of
occupantsAWD models with ATF coolerAWD models
without ATF cooler2WD models
25,000 lbs (2,268 kg)3,500 lbs (1,588 kg)3,500 lbs (1,588 kg)
34,750 lbs (2,155 kg)3,250 lbs (1,474 kg)3,250 lbs (1,474 kg)
44,500 lbs (2,041 kg)3,000 lbs (1,361 kg)3,000 lbs (1,361 kg)
54,250 lbs (1,928 kg)2,750 lbs (1,247 kg)2,750 lbs (1,247 kg)
21 PASSPORT-31TGS6200.book 380 ページ ２０２０年９月４日　金曜日　午後２時３５分

543
uuCleaning uInterior Care
Maintenance
The front and rear floor mats hook over floor
anchors, which keep them from sliding
forward. To remove a mat for cleaning, turn
the anchor knobs to the unlock position.
When reinstalling the mat after cleaning, turn
the knobs to the lock position.
Do not put additional floor mats on top of
the anchored mats.
To properly clean leather:
1. Use a vacuum or soft dry cloth first to remove any dirt or dust.
2. Clean the leather with a soft cloth dampen ed with a solution comprised of 90%
water and 10% neutral soap.
3. Wipe away any soap residu e with a clean damp cloth.
4. Wipe away residual water and allo w leather to air dry in the shade.
■Floor Mats1Floor Mats
If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific ve hicle, fit correctly, and
are securely anchored by the floor anchors.
Position the rear seat floor mats properly. If they are
not properly positioned, the floor mats can interfere
with the front seat functions.
Lock
Unlock
■Maintaining Genuine Leather*1
Maintaining Genuine Leather*
It is important to clean or wipe away dirt or dust as
soon as possible. Spills can soak into leather resulting
in stains. Dirt or dust ca n cause abrasions in the
leather. In addition, pl ease note that some dark
colored clothing can rub onto the leather seats
resulting in discol oration or stains.
* Not available on all models
21 PASSPORT-31TGS6200.book 543 ページ ２０２０年９月４日　金曜日　午後２時３５分

547
Maintenance
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windsh ield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any accessories over areas marked SRS Airbag, on the sides or backs
of the front seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not overload electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 572
•Before installing any electro nic accessory, have the installer contact a dealer for
assistance. If possible, have a deal er inspect the final installation.
1Accessories and Modifications
Honda Genuine accessor ies are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding accessories and
modifications.
21 PASSPORT-31TGS6200.book 547 ページ ２０２０年９月４日　金曜日　午後２時３５分

Index
595
Index
Index
A
AAC................................................... 272, 275
ABS (Anti-lock Brake System) .................. 478
AC Power Outlet ...................................... 197
Accessories and Modifications ................ 547
Accessory Power Sockets ......................... 196
Adaptive Cruise Control (ACC) ................ 446
Adaptive Cruise Control (ACC) Indicator
(Amber) ..................................................... 90
Adaptive Cruise Control (ACC) Indicator (Green) ...................................................... 90
Additives Coolant .................................................. 515
Engine Oil ............................................... 510
Washer ................................................... 518
Additives, Engine Oil ............................... 510
Adjusting
Armrest .................................................. 188
Front Seats.............................................. 179
Head Restraints ............................... 185, 186
Mirrors.................................................... 177
Rear Seats ............................................... 183
Steering Wheel ....................................... 176
Agile Handling Assist ............................... 420
Air Conditioning System
(Climate Control System) ....................... 210
Changing the Mode................................ 210
Defrosting the Windshield and
Windows .............................................. 211
Dust and Pollen Filter .............................. 541
Recirculation/Fresh Air Mode................... 211 Sensor ..................................................... 216
Synchronization Mode ............................. 213
Using Automatic Climate Control ............ 210
Air Pressure ....................................... 529, 583
Airbags ........................................................ 45
Advanced Airbags ..................................... 51
After a Collision ......................................... 49
Airbag Care ............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 48
Indicator .............................................. 56, 82
Passenger Airbag Off Indicator .................. 57
Sensors ...................................................... 45
Side Airbags .............................................. 53
Side Curtain Airbags .................................. 55
All-wheel drive (AWD) Indicator ............... 87
AM/FM Radio ............................................ 256
Android Auto ............................................ 295
Anti-lock Brake System (ABS) .................. 478
Indicator .................................................... 81
Apple CarPlay ........................................... 292
Armrest ..................................................... 188
AT&T Hotspot ........................................... 290
Audio Remote Controls ............................ 222
Audio System .................................... 218, 224
Adjusting the Sound ................................ 250
AM/FM Radio .......................................... 256
Android Auto .......................................... 295
Apple CarPlay .......................................... 292
AT&T Hotspot .......................................... 290
Audio/Information Screen ........................ 225 Auxiliary Input Jack.................................. 220
Changing the Screen Brightness .............. 251
Display Setup .......................................... 251
Error Messages ........................................ 299
File Manager ........................................... 244
General Information ................................ 302
HD Subchannel ....................................... 258
Home Screen........................................... 230
HondaLink
®........................................... 283
How to Delete a File ................................ 247
How to Transfer a File ............................. 244
How to Update Wirelessly ....................... 238
How to Update with a USB Device........... 242
iPod ........................................................ 269
Limitations for Manual Operation ............ 252
MP3/WMA/AAC .............................. 272, 275
My Honda Music ..................................... 275
Playing AM/FM Radio .............................. 256
Playing Bluetooth ® Audio ........................ 279
Playing SiriusXM ® Radio .......................... 259
Playing Social Playlist ............................... 281
Reactivating ............................................ 221
Remote Controls ..................................... 222
Security Code .......................................... 221
Selecting an Audio Source ....................... 252
Siri Eyes Free ........................................... 291
Status Area ............................................. 235
System Updates....................................... 238
Thef

t Protection ...................................... 221
Updating Apps ........................................ 236
USB Flash Drives .............................. 272, 303
21 PASSPORT-31TGS6200.book 595 ページ ２０２０年９月４日　金曜日　午後２時３５分

596
Index
USB Port .................................................. 219
Wallpaper Setup ...................................... 228
Wi-Fi Connection ..................................... 288
Audio/Information Screen ........................ 225
Authorized Manuals ................................. 592
Auto Door Locking/Unlocking ................. 138
Customize ............................................... 338
Auto High-Beam ....................................... 165
Indicator .................................................... 82
Auto Idle Stop ........................................... 409
OFF Button .............................................. 410
Auto Idle Stop Indicator (Amber) .............. 87
Auto Idle Stop Indicator (Green) ............... 87
Automatic Intermittent Wipers ............... 169
Automatic Lighting .................................. 161
Automatic Transmission ........................... 400
Creeping ................................................. 400
Fluid ........................................................ 517
Kickdown ................................................ 400
Operating the Shift Button....................... 403
Shifting.................................................... 401
Auxiliary Input Jack .................................. 220
Average Fuel Economy ............................. 112
B
Back-Up Light............................................ 523
Battery ....................................................... 537
Charging System Indicator ................. 79, 568
If the Battery Is Dead ............................... 562
Maintenance (Checking the Battery) ........ 537 Belts (Seat)
.................................................. 37
Beverage Holders ..................................... 194
Blind Spot Information System ................ 421
Bluetooth® Audio..................................... 279
Bluetooth® HandsFreeLink ®................... 346
Booster Seats (For Children) ...................... 74
Brake System ............................................ 476
Anti-lock Brake System (ABS)................... 478
Brake Assist System ................................. 479
Fluid ........................................................ 518
Foot Brake............................................... 477
Indicator............................................ 78, 569
Parking Brake .......................................... 476
Brightness Control (Instrument Panel) .... 173
Bulb Replacement .................................... 519
Back-Up Lights ........................................ 523
Brake lights ............................................. 522
Daytime Running Lights........................... 520
Fog Lights ............................................... 521
Front Side Marker Lights.......................... 520
Front Turn Signal Lights ........................... 521
Headlights ............................................... 519
High-Mount Brake Light .......................... 523
Parking Lights.......................................... 520
Rear License Plate Lights .......................... 523
Rear Side Marker Lights ........................... 522
Rear Turn Signal Lights ............................ 522
Side Turn Signal/Emergency Indicator
Lights .................................................... 522
Taillights.................................................. 522
Bulb Specifications ................................... 582
C
Car Wash Mode........................................ 405
Carbon Monoxide Gas ............................... 75
Carrying Cargo ................................. 375, 377
Certification Label ................................... 584
Changing Bulbs ........................................ 519
Charging System Indicator ................ 79, 568
Child Safety ................................................ 60
Childproof Door Locks ............................ 137
Child Seat ................................................... 60
Booster Seats ............................................ 74
Child Seat for Infants ................................ 62
Child Seat for Small Children .................... 63
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 68
Larger Children ......................................... 73
Rear-facing Child Seat............................... 62
Selecting a Child Seat ............................... 64
Childproof Door Locks ............................. 137
Cleaning the Exterior ............................... 544
Cleaning the Interior ............................... 542
Climate Control System ........................... 210
Changing the Mode................................ 210
Defrosting the Windshield and Windows .............................................. 211
Dust and Pollen Filter .............................. 541
Recirculation and Fresh Air Mode ............ 211
Sensors ................................................... 216
Synchronization Mode ............................ 213
Using Automatic Climate Control............ 210
Clock ......................................................... 122
21 PASSPORT-31TGS6200.book 596 ページ ２０２０年９月４日　金曜日　午後２時３５分

598
Index
Exterior Mirrors......................................... 178
F
Features..................................................... 217
File Manager ............................................. 244
Filters
Dust and Pollen ....................................... 541
Oil ........................................................... 513
Flat Tire ..................................................... 551
Floor Mats ................................................. 543
Fluids Automatic Transmission ........................... 517
Brake ....................................................... 518
Engine Coolant ........................................ 515
Windshield Washer .................................. 518
FM/AM Radio ............................................ 256
Fog Light Indicator ..................................... 85
Fog Lights .................................................. 163
Folding Down the Rear Seat .................... 184
Foot Brake ................................................. 477
Front Airbags (SRS) ..................................... 48
Front Seats ................................................ 179
Adjusting ................................................. 179
Front Sensor Camera ................................ 473
Fuel ...................................................... 24, 493
Economy ................................................. 496
Gauge ..................................................... 106
Instant Fuel Economy ............................... 112
Low Fuel Indicator ..................................... 81
Range ...................................................... 112 Recommendation .................................... 493
Refueling................................................. 493
Fuel Economy ........................................... 496
Fuel Fill Cap .............................................. 495
Fuel Fill Door ...................................... 24, 494
Unable to Unlock .................................... 578
Fuses .......................................................... 572
Inspecting and Changing......................... 576
Locations......................... 572, 573, 574, 575
G
Gasoline (Fuel)
Economy ................................................. 496
Gauge ..................................................... 106
Information ............................................. 493
Instant Fuel Economy .............................. 112
Low Fuel Indicator ..................................... 81
Refueling................................................. 493
Gauges ...................................................... 106
Gear Position Indicator ...................... 79, 403
Gear Shift Positions Automatic Transmission .......................... 401
Glass (care) ................................................ 545
Glove Box .................................................. 192
H
Handling the Unexpected ....................... 549
HandsFreeLink® (HFL).............................. 346
Automatic Import of Cellular Phonebook
and Call History..................................... 355
Automatic Transferring ........................... 354
Displaying Messages ............................... 365
Favorite Contacts .................................... 356
HFL Buttons ............................................ 346
HFL Menus.............................................. 349
HFL Status Display ................................... 348
In Case of Emergency ............................. 369
Limitations for Manual Operation ............ 348
Making a Call ......................................... 358
Options During a Call.............................. 361
Phone Setup ........................................... 351
Receiving a Call....................................... 361
Receiving a Text Message........................ 363
Ring Tone ............................................... 354
Selecting a Phone ................................... 364
To Set Up a Text Message Options .......... 362
Hazard Warning Button .............................. 6
HD Radio
TM............................................... 258
Head Restraints ................................ 185, 186
Headlights ................................................ 160
Auto High-Beam ..................................... 165
Automatic Operation .............................. 161
Dimming......................................... 160, 164
Operating ............................................... 160
Heated Steering Wheel ........................... 207
Heated Windshield Button ...................... 172
21 PASSPORT-31TGS6200.book 598 ページ ２０２０年９月４日　金曜日　午後２時３５分
