uuEngine Does Not Start uIf the Smart Entry Remote Battery is Weak
Handling the Unexpected
If the Smart Entry Remote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver information interface, the ENGINE START/STOP button
flashes, and the engine won’t star t, start the engine as follows:
1.Touch the center of the ENGINE START/
STOP button with the H logo on the smart
entry remote while the ENGINE START/
STOP button is flashing. The buttons on
the smart entry remote should be facing
you.
u The ENGINE START/STOP button
flashes for about 30 seconds.
2. Depress the brake pedal and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds and the
ENGINE START/STOP button changes
from flashing to on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
21 PASSPORT-31TGS6200.book 560 ページ ２０２０年９月４日　金曜日　午後２時３５分

561
uuEngine Does Not Start uEmergency Engine Stop
Handling the Unexpected
Emergency Engine Stop
The ENGINE START/STOP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button three times.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.
The gear position automatically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
The gear position automatically changes to
(P after the vehicle comes to a complete
stop. Then press the ENGINE START/STOP button twice without depressing the
brake pedal to change the mode VEHICLE OFF.
1 Emergency Engine Stop
Do not press the ENGINE START/STOP button while
driving unless it is absolute ly necessary for the engine
to be turned off.
If you press the ENGINE START/STOP button while
driving, the beeper sounds.
U.S. models
Canadian models
21 PASSPORT-31TGS6200.book 561 ページ ２０２０年９月４日　金曜日　午後２時３５分

uuOverheating uHow to Handle Overheating
566
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once the temperature
gauge needle comes down.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, remove the engine compartment
cover then add coolant until it reaches
the MAX mark.
2Engine Compartment Cover P. 509
uIf there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, re start it and check the temperature gauge.
If the temperature gauge needle has gone do wn, resume driving. If it has not gone
down, contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve Tank
MAXMIN
21 PASSPORT-31TGS6200.book 566 ページ ２０２０年９月４日　金曜日　午後２時３５分

567
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears
■Reasons for the warning to appear
Appears when the engine oil pressure is low.
■What to do as soon as the warning
appears
1. Immediately park the vehicle on level
ground in a safe place.
2. If necessary, turn the hazard warning lights
on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for
approximately three minutes.
2. Open the hood and ch eck the oil level.
u Add oil as necessary.
2 Oil Check P. 511
3.Start the engine and check the low oil
pressure warning.
u The warning disappears: Start driving
again.
u The warning does not disappear within
10 seconds: Immediately stop the engine
and contact a dealer for repairs.
1If the Low Oil Pressure Warning Appears
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
21 PASSPORT-31TGS6200.book 567 ページ ２０２０年９月４日　金曜日　午後２時３５分

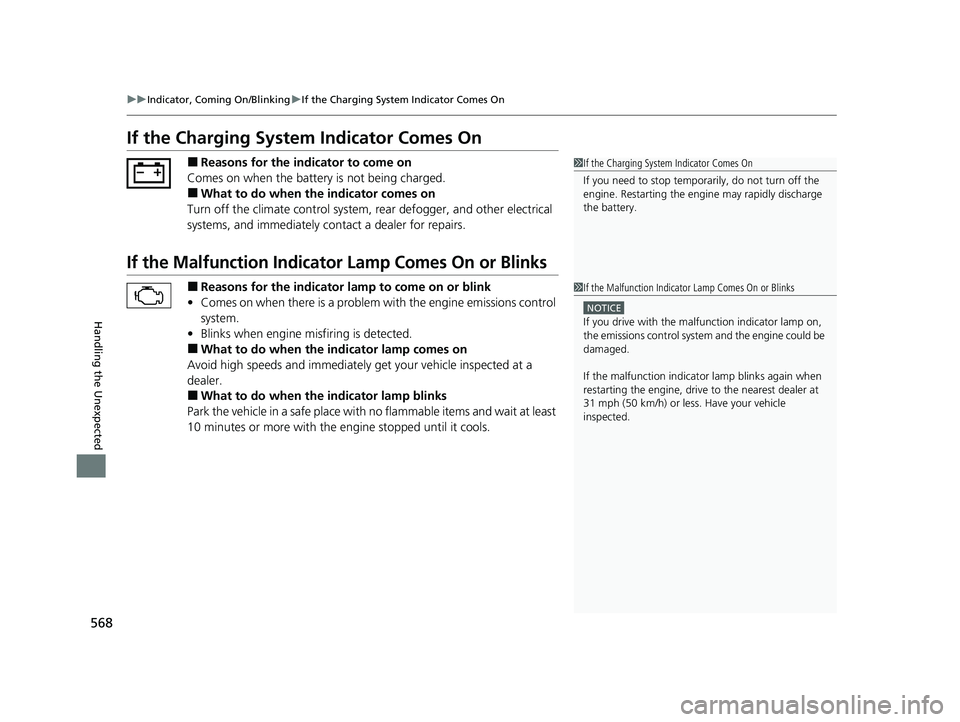

568
uuIndicator, Coming On/Blinking uIf the Charging System Indicator Comes On
Handling the Unexpected
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when the indicator comes on
Turn off the climate con trol system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.
If the Malfunction Indicator Lamp Comes On or Blinks
■Reasons for the indicator la mp to come on or blink
• Comes on when there is a problem with the engine emissions control
system.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
1 If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
21 PASSPORT-31TGS6200.book 568 ページ ２０２０年９月４日　金曜日　午後２時３５分

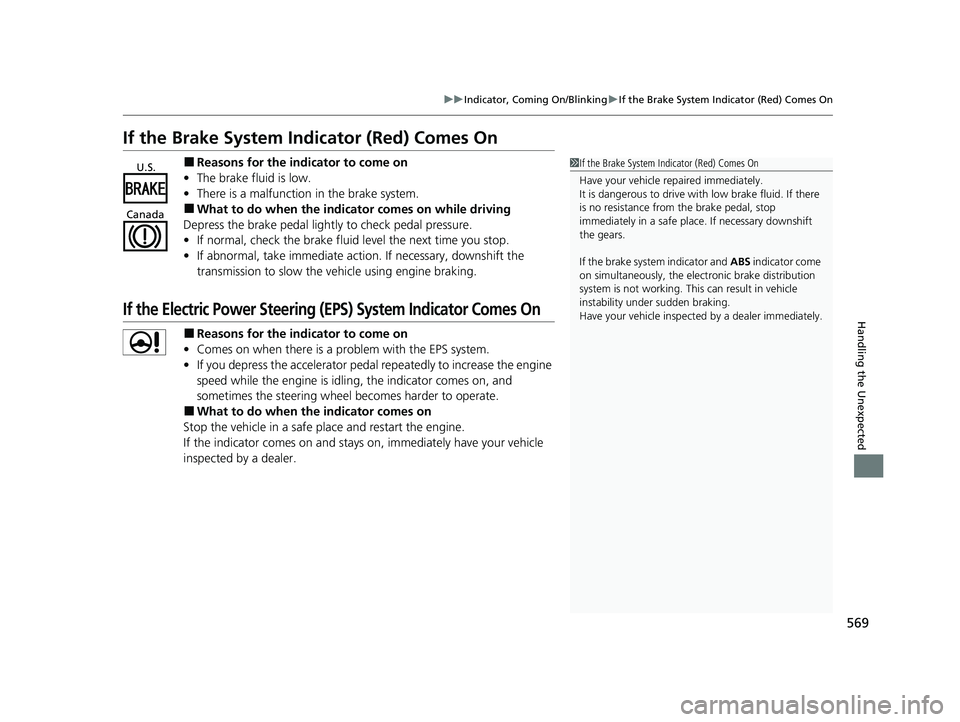

569
uuIndicator, Comin g On/BlinkinguIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steering (EPS) System Indicator Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when th e indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
21 PASSPORT-31TGS6200.book 569 ページ ２０２０年９月４日　金曜日　午後２時３５分

597
Index
Coat Hook................................................ 201
Collision Mitigation Braking SystemTM
(CMBSTM) ................................................. 434
Collision Mitigation Braking SystemTM
(CMBSTM) Indicator ............................. 90, 91
Compact Spare Tire .......................... 551, 583
Console Compartment ............................. 192
Controls .................................................... 121
Coolant (Engine) ...................................... 515
Adding to the Radiator ........................... 516
Adding to the Reserve Tank .................... 515
Overheating ............................................ 565
Temperature Gauge ................................ 106
Creeping (Automatic Transmission) ........ 400
Cross Traffic Monitor ............................... 487
Cup Holders .............................................. 194
Customer Service Information ................ 593
Customized Features ............................... 324
D
Daytime Running Lights .......................... 164
Dead Battery ............................................ 562
Defaulting All the Settings ...................... 342
Defrosting the Windshield and Windows ................................................. 211
Detachable Anchor .................................... 42
Devices that Emit Radio Waves ............... 585
Dimming Headlights .............................................. 160
Rearview Mirror ...................................... 177 Dipstick (Engine Oil)
................................. 511
Directional Signals (Turn Signal) ............. 159
Door Mirrors ............................................. 178
Doors ......................................................... 124
Auto Door Locking .................................. 138
Auto Door Unlocking ............................... 138
Door Open Message .................................. 36
Keys ........................................................ 124
Locking/Unlocking the Doors from the Inside..................................................... 135
Locking/Unlocking the Doors from the
Outside.................................................. 127
Lockout Prevention System ...................... 134
DOT Tire Quality Grading ........................ 531
Driver Information Interface ................... 107
Accessing Content ................................... 109
Warning and Information Messages .......... 93
Driving ....................................................... 373
Adaptive Cruise Control (ACC) ................ 446
Automatic Transmission ........................... 400
Braking .................................................... 476
Off-Highway Driving Guidelines ............... 390
Shifting Gear ........................................... 401
Starting the Engine .................................. 392
Driving Position Memory System ............. 174
Dust and Pollen Filter ............................... 541
E
Eco Assist® System ...................................... 12
ECON Button ............................................. 415 Econ Mode
Indicator.................................................... 86
Electric Power Steering (EPS) System Indicator............................................ 83, 569
Electronic Stability Control (ESC) ............. 418
Emergency ................................................ 577
Emissions Testing (Readiness Codes) ....... 587
Engine
Coolant ................................................... 515
If the Battery Is Dead ............................... 562
Number................................................... 584
Oil ........................................................... 510
Remote Engine Start................................ 394
Starting ................................................... 392
Engine Compartment Cover .................... 509
Engine Coolant ......................................... 515
Adding to the Radiator ............................ 516
Adding to the Reserve Tank..................... 515
Overheating ............................................ 565
Temperature Gauge ................................ 106
Engine Oil ................................................. 510
Adding .................................................... 512
Checking................................................. 511
Displaying Maintenance Minder Information ........................................... 502
Low Oil Pressure Warning........................ 567
Recommended Engine Oil ....................... 510
ENGINE START/STOP Button .................... 156
EPS (Electric Power Steering) System ...... 569
Exhaust Gas Hazard (Carbon Monoxide) .. 75
Exterior Care (Cleaning) ........................... 544
21 PASSPORT-31TGS6200.book 597 ページ ２０２０年９月４日　金曜日　午後２時３５分

599
Index
Heater (Steering Wheel).......................... 207
Heaters (Seat) ........................... 204, 205, 206
HFL (HandsFreeLink ®) .............................. 346
High Beam Indicator .................................. 84
Hill Start Assist System ............................. 398
HomeLink ® Universal Transceiver ........... 343
Honda App License Agreement .............. 304
Honda Sensing ®........................................ 25
HondaLink ®............................................ 283
I
Identification Numbers ............................ 584
Engine and Transmission ......................... 584
Vehicle Identification............................... 584
If the Transmission Indicator Blinks
along with the Warning Message ......... 571
Illumination Control ................................ 173
Button .................................................... 173
Immobilizer System .................................. 149
Indicator ................................................... 85
Indicators .................................................... 78
Adaptive Cruise Control (ACC) (Amber) .... 90
Adaptive Cruise Control (ACC) (Green) ..... 90
All-wheel drive (AWD)............................... 87
Anti-lock Brake System (ABS) .................... 81
Auto High-Beam ....................................... 82
Auto Idle Stop (Amber) ............................. 87
Auto Idle Stop (Green) .............................. 87
Blind spot information ...................... 92, 422
Brake System (Amber) ............................... 78 Brake System (Red) ............................ 78, 569
Charging System ............................... 79, 568
Collision Mitigation Braking System
TM
(CMBSTM) ........................................... 90, 91
Econ Mode ................................................ 86
Electric Power Steering (EPS) System .. 83, 569
Fog Light ................................................... 85
Gear Position ............................................. 79
Hazard Warning ........................................ 84
High Beam ................................................ 84
Immobilizer System .................................... 85
Lane Keeping Assist System (LKAS) (Amber) ................................................... 88
Lane Keeping Assist System (LKAS)
(Green) ............................................ 88, 461
Lights On ................................................... 84
Low Fuel .................................................... 81
Low Oil Pressure Warning ........................ 567
Low Tire Pressure/TPMS ..................... 84, 570
Malfunction Indicator Lamp ............... 79, 568
Parking Brake and Brake System (Amber) ... 78
Parking Brake and Brake System
(Red)................................................ 78, 569
Road Departure Mitigation (RDM) .............. 89
Seat Belt Reminder .............................. 38, 81
Security System Alarm ............................... 85
Supplemental Restraint System ............ 56, 82
System Message ........................................ 86
Turn Signal ................................................ 84
Vehicle Stability Assist
TM (VSA ®) OFF ... 83, 419 Vehicle Stability Assist
TM (VSA
®)
System ............................................ 82, 418
Information .............................................. 581
Instant Fuel Economy ............................... 112
Instrument Panel ........................................ 77
Brightness Control................................... 173
Integrated Sunshades .............................. 203
Intelligent Traction Management
System ..................................................... 416
Intelligent VTM4 (i-VTM4
TM) .................... 426
Interior Lights ........................................... 189
Interior Rearview Mirror .......................... 177
iPad ........................................................... 303
iPhone ....................................................... 303
iPod ................................................... 269, 303
J
Jack (Wheel Nut Wrench) ........................ 555
Jump Starting ........................................... 562
K
Key Number Tag ....................................... 125
Keyless Lockout Prevention ..................... 134
Keys ........................................................... 124
Lockout Prevention.................................. 134
Number Tag ............................................ 125
Rear Door Won’t Open............................ 137
Remote Transmitter ................................. 132
Types and Functions ................................ 124
21 PASSPORT-31TGS6200.book 599 ページ ２０２０年９月４日　金曜日　午後２時３５分

602
Index
Warning Indicator ................................ 38, 81
Seat Heaters .............................. 204, 205, 206
Seat Ventilation ........................................ 205
Seats .......................................................... 179
Adjusting ................................................. 179
Driver’s Seat Lumbar Support................... 180
Folding Down the Rear Seat..................... 184
Front Seats .............................................. 179
Rear Seats................................................ 183
Seat Heaters ............................ 204, 205, 206
Seat Ventilation ....................................... 205
Security System ......................................... 149
Immobilizer System Indicator ..................... 85
Security System Alarm Indicator ................. 85
Select Button ....................................... 22, 401
Operation .......................................... 22, 403
Selecting a Child Seat ................................. 64
Sequential Mode ...................................... 407
Sequential Mode Operation .................... 408
Setting the Clock ...................................... 122
Settings Arrange Apps .......................................... 119
Show Tachometer.................................... 120
Shift Button......................................... 22, 401
Shifting (Transmission) ....................... 22, 401
Shoulder Anchor ......................................... 41
Show Tachometer ..................................... 120
Show/Hide Apps ........................................ 118
Side Airbags ................................................ 53
Side Curtain Airbags ................................... 55
Siri Eyes Free ............................................. 291 SiriusXM
® Radio ........................................ 259
Snow Tires ................................................. 536
Social Playlist ............................................ 281
Spare Tire .......................................... 551, 583
Spark Plugs ............................................... 582
Specifications ............................................ 582
Specified Fuel ................................... 493, 582
Speedometer ............................................ 107
SRS Airbags (Airbags) ................................. 48
Starting Assist Brake Function ................. 414
Starting the Engine .................................. 392
Does Not Start......................................... 559
If the Battery Is Dead ............................... 562
Remote Engine Start................................ 394
Steering Wheel ......................................... 176
Adjusting ................................................ 176
Heater ..................................................... 207
Stopping ................................................... 480
Summer Tires ............................................ 536
Sunglasses Holder ..................................... 202
Sunshades ................................................. 203
Supplemental Restraint System (SRS) ........ 48
Switches (Around the Steering Wheel) ........ 6, 7, 156
SYNC Mode ............................................... 213
System Message Indicator .......................... 86
System Updates ........................................ 238T
Tachometer.............................................. 107
Tailgate ..................................................... 139
Unable to Open ...................................... 580
Temperature
Gauge .................................................... 106
Outside Temperature Display .................. 108
Temperature Gauge ................................ 106
Temperature Sensor ........................ 108, 216
Tie-down Anchors .................................... 208
Time (Setting) ........................................... 122
Tire Fill Assist ............................................ 570
Tire Pressure ............................................. 114
Tire Pressure Monitoring System (TPMS)
Indicator ................................................... 84
Tires .......................................................... 528
Air Pressure..................................... 529, 583
Checking and Maintaining ...................... 528
Inspection ............................................... 528
Labeling .................................................. 529
Puncture (Flat Tire) .................................. 551
Regulations ............................................. 531
Rotation.................................................. 535
Spare Tire ....................................... 551, 583
Summer .................................................. 536
Tire Chains.............................................. 536
Wear Indicators....................................... 533
Winter .................................................... 536
Tools ......................................................... 550
Towing a Trailer ....................................... 380
Equipment and Accessories ..................... 383
21 PASSPORT-31TGS6200.book 602 ページ ２０２０年９月４日　金曜日　午後２時３５分
