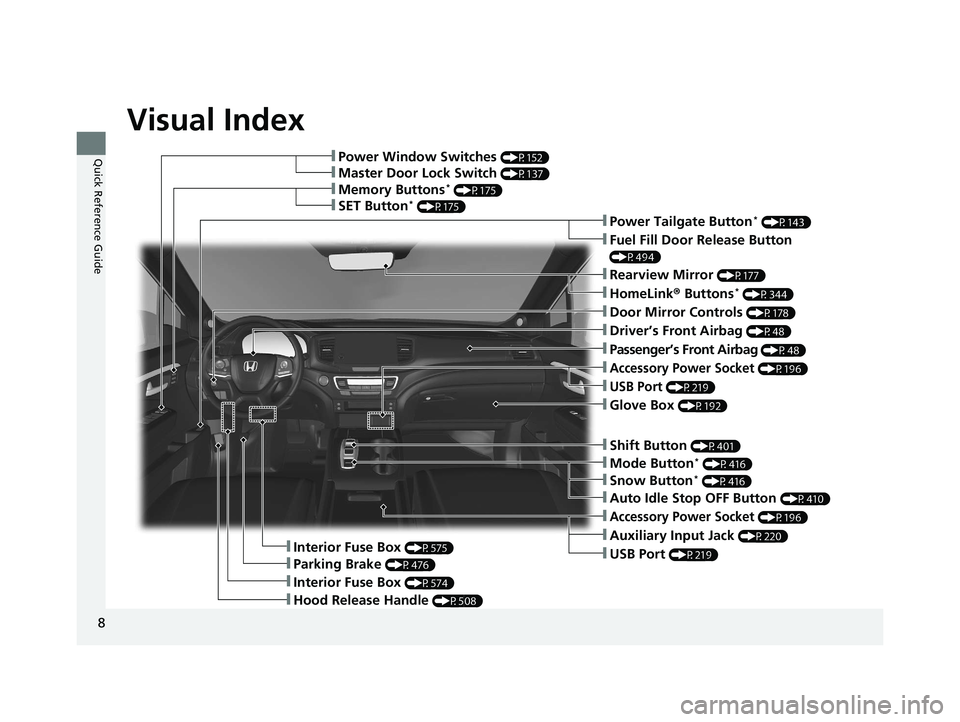

Visual Index
8
Quick Reference Guide❚Power Window Switches (P152)
❚Memory Buttons* (P175)
❚SET Button* (P175)
❚Master Door Lock Switch (P137)
❚Power Tailgate Button* (P143)
❚Fuel Fill Door Release Button
(P494)
❚Door Mirror Controls (P178)
❚Driver’s Front Airbag (P48)
❚Hood Release Handle (P508)
❚Glove Box (P192)
❚Interior Fuse Box (P575)
❚Parking Brake (P476)
❚Interior Fuse Box (P574)
❚Accessory Power Socket (P196)
❚USB Port (P219)
❚Rearview Mirror (P177)
❚HomeLink® Buttons* (P344)
❚Passenger’s Front Airbag (P48)
❚Accessory Power Socket (P196)
❚Auxiliary Input Jack (P220)
❚USB Port (P219)
❚Snow Button* (P416)
❚Mode Button* (P416)
❚Auto Idle Stop OFF Button (P410)
❚Shift Button (P401)
21 PASSPORT-31TGS6200.book 8 ページ ２０２０年９月４日　金曜日　午後２時３５分

9

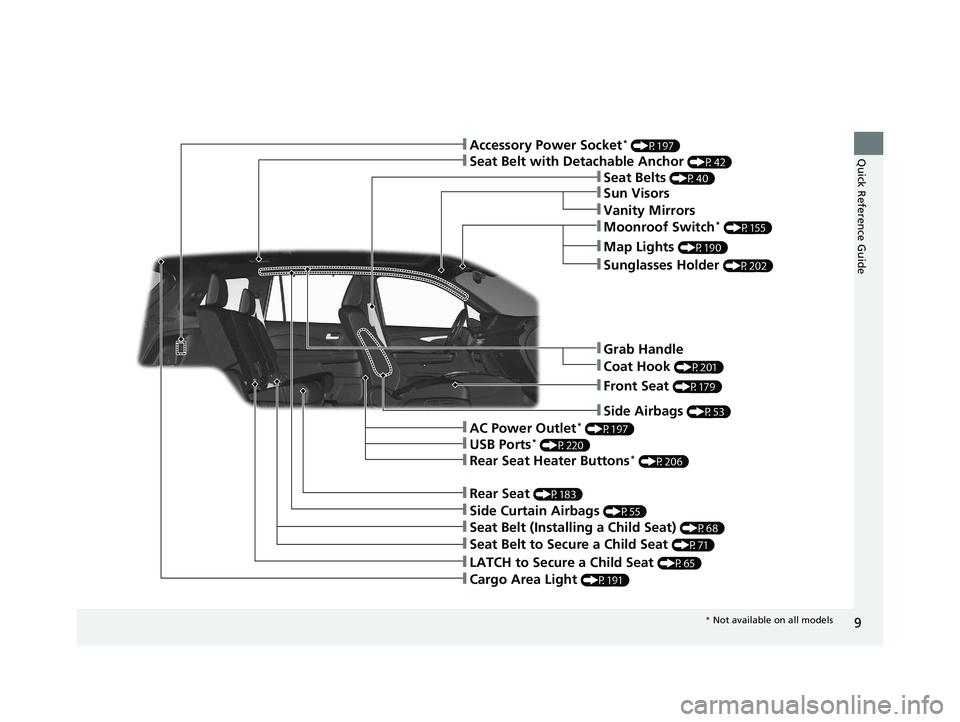

Quick Reference Guide❚Accessory Power Socket* (P197)
❚LATCH to Secure a Child Seat (P65)
❚Seat Belt (Installing a Child Seat) (P68)
❚Rear Seat (P183)
❚Seat Belt to Secure a Child Seat (P71)
❚Cargo Area Light (P191)
❚Side Curtain Airbags (P55)
❚Rear Seat Heater Buttons* (P206)
❚AC Power Outlet* (P197)
❚USB Ports* (P220)
❚Sun Visors
❚Vanity Mirrors
❚Moonroof Switch* (P155)
❚Map Lights (P190)
❚Sunglasses Holder (P202)
❚Seat Belt with Detachable Anchor (P42)
❚Coat Hook (P201)
❚Side Airbags (P53)
❚Seat Belts (P40)
❚Grab Handle
❚Front Seat (P179)
* Not available on all models
21 PASSPORT-31TGS6200.book 9 ページ ２０２０年９月４日　金曜日　午後２時３５分

21
Quick Reference Guide

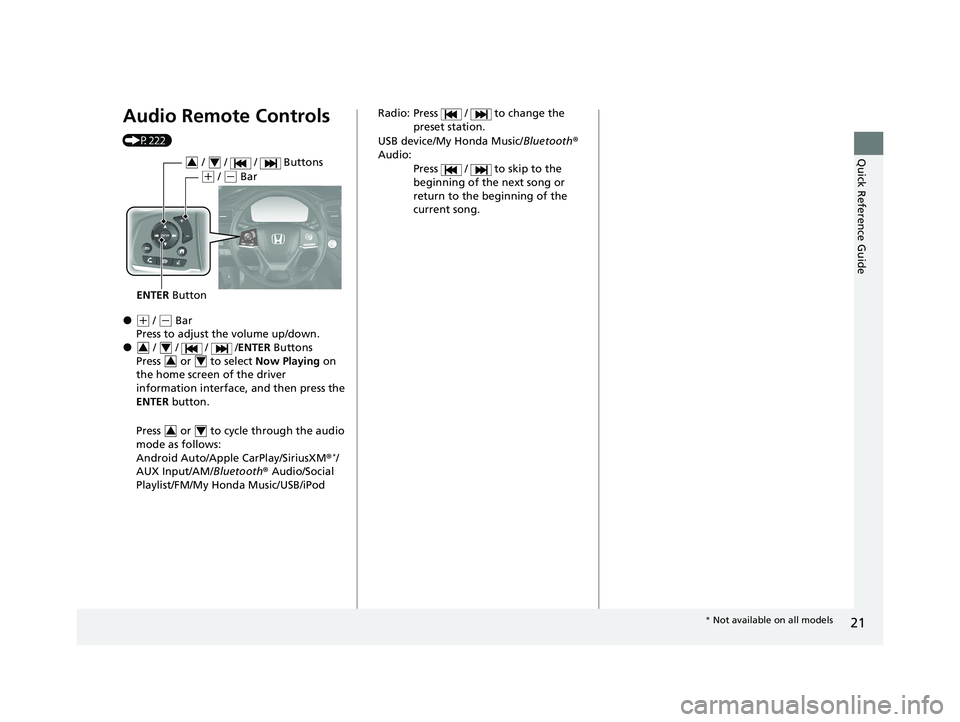

Audio Remote Controls
(P222)
●(+ / (- Bar
Press to adjust the volume up/down.
● / / / /ENTER Buttons
Press or to select Now Playing on
the home screen of the driver
information interface, and then press the
ENTER button.
Press or to cycl e through the audio
mode as follows:
Android Auto/Apple CarPlay/SiriusXM ®
*/
AUX Input/AM/ Bluetooth® Audio/Social
Playlist/FM/My Honda Music/USB/iPod
ENTER Button
/ / / Buttons34
(+ / (- Bar
34
34
34
Radio: Press / to change the
preset station.
USB device/My Honda Music/ Bluetooth®
Audio:
Press / to skip to the
beginning of the next song or
return to the beginning of the
current song.
* Not available on all models
21 PASSPORT-31TGS6200.book 21 ページ ２０２０年９月４日　金曜日　午後２時３５分

uuGauges and Displays uDriver Information Interface
118

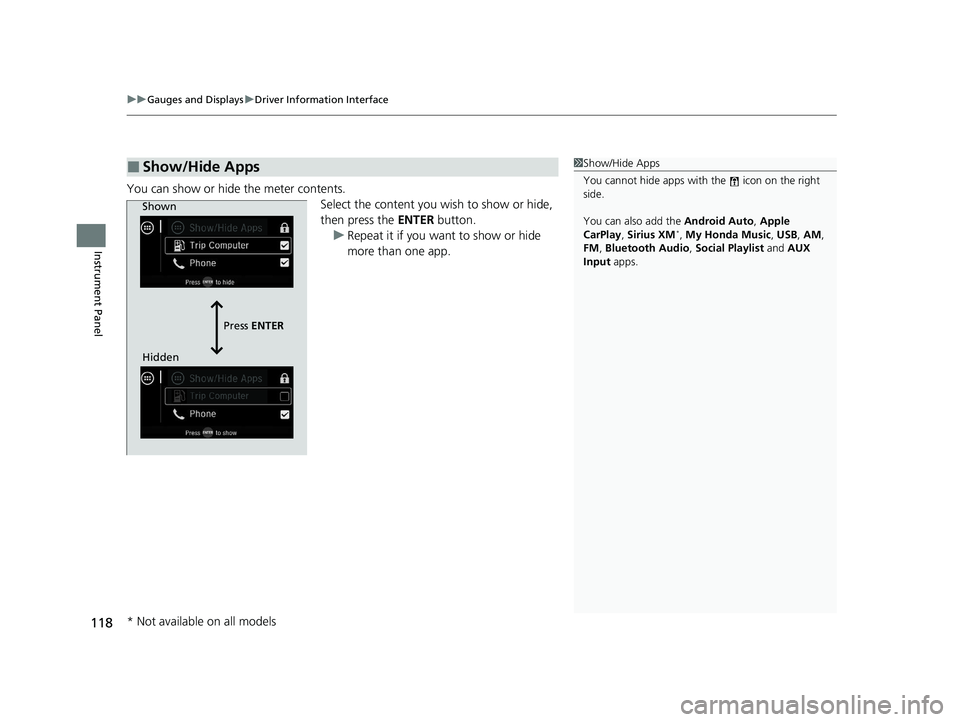

Instrument Panel
You can show or hide the meter contents.
Select the content you wish to show or hide,
then press the ENTER button.
u Repeat it if you want to show or hide
more than one app.
■Show/Hide Apps1Show/Hide Apps
You cannot hide apps with the icon on the right
side.
You can also add the Android Auto, Apple
CarPlay , Sirius XM
*, My Honda Music , USB, AM,
FM , Bluetooth Audio , Social Playlist and AUX
Input apps.
Shown
Press ENTER
Hidden
* Not available on all models
21 PASSPORT-31TGS6200.book 118 ページ ２０２０年９月４日　金曜日　午後２時３５分

217
Features
This chapter describes how to operate technology features.
Audio System
About Your Audio System ................ 218
USB Ports ......................................... 219
Auxiliary Input Jack .......................... 220
Audio System Theft Protection ......... 221
Audio Remote Controls .................... 222
Audio System Basic Operation ............. 224
Audio Error Messages
iPod/USB Flash Drive ........................ 299
Android/Apps .................................. 301 General Information on the Audio
System SiriusXM ® Radio Service
*................. 302
Compatible iPod, iPad, iPhone, and USB Flash Drives .................................... 303
Honda App License Agreement ........ 304
Legal Information on Apple CarPlay/
Android Auto ................................. 316
About Open Source Licenses ............ 318
License Information.......................... 319
Customized Features ........................ 324
HomeLink ® Universal Transceiver
*.. 343 Bluetooth®
HandsFreeLink® ............. 346
* Not available on all models
21 PASSPORT-31TGS6200.book 217 ページ ２０２０年９月４日　金曜日　午後２時３５分

218
Features
Audio System
About Your Audio System
The audio system features AM/FM radio and SiriusXM® Radio* service. It can also
play USB flash drives, and iPod, iPhone, iPad and Bluetooth® devices.
You can operate the audio system from the knobs on the panel, the remote controls
on the steering wheel, or the icons on the touchscreen interface.1About Your Audio System
SiriusXM ® Radio is available on a subscription basis
only. For more information on SiriusXM ® Radio,
contact a dealer.
*
2 General Information on the Audio System
P. 302
SiriusXM ® Radio is available in the United States and
Canada, except Ha waii, Alaska, and Puerto Rico.
*
SiriusXM® is a registered trademark of SiriusXM
Radio, Inc.*
iPod, iPad, iPhone and iT unes are trademarks of
Apple Inc.
State or local laws may pr ohibit the operation of
handheld electronic devices while operating a
vehicle.
After you set the power m ode to VEHICLE OFF, you
can use the audio system for up to 30 minutes per
driving cycle, or until opening the driver's door.
However, whether you can continue using the audio
system depends on the batter y condition. Repeatedly
using this feature ma y drain the battery.
Remote Controls iPod
USB Flash Drive
* Not available on all models
21 PASSPORT-31TGS6200.book 218 ページ ２０２０年９月４日　金曜日　午後２時３５分

219
uuAudio System uUSB Ports
Continued
Features
USB Ports
■On the console panel
The USB port (2.5A) is for charging devices,
playing audio files and connecting compatible
phones with Apple CarPlay or Android Auto. u To prevent any potenti al issues, be sure
to use an Apple MFi Certified Lightning
Connector for Apple CarPlay, and for
Android Auto, the USB cables should be
certified by USB-IF to be compliant with
USB 2.0 Standard.
■In the consol e compartment
The USB port (2.5A) is only for charging
devices.
1 USB Ports
•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend that you us e a USB cable if you are
attaching a USB flash drive to the USB port.
•Do not connect the iPod or USB flash drive using a hub.
•Do not use a device such as a card reader or hard disk
drive, as the device or your files may be damaged.
•We recommend backing up yo ur data before using
the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
The USB port can supply up to 2.5A of power. It does
not output 2.5A unless requested by the device.
For amperage details, read the operating manual of
the device that ne eds to be charged.
This port is for battery charge only. You cannot play
music even if you have conne cted a music player to it.
USB charge
In the console compartment
On the console panel
In the console compartment
21 PASSPORT-31TGS6200.book 219 ページ ２０２０年９月４日　金曜日　午後２時３５分

uuAudio System uAuxiliary Input Jack
220
Features

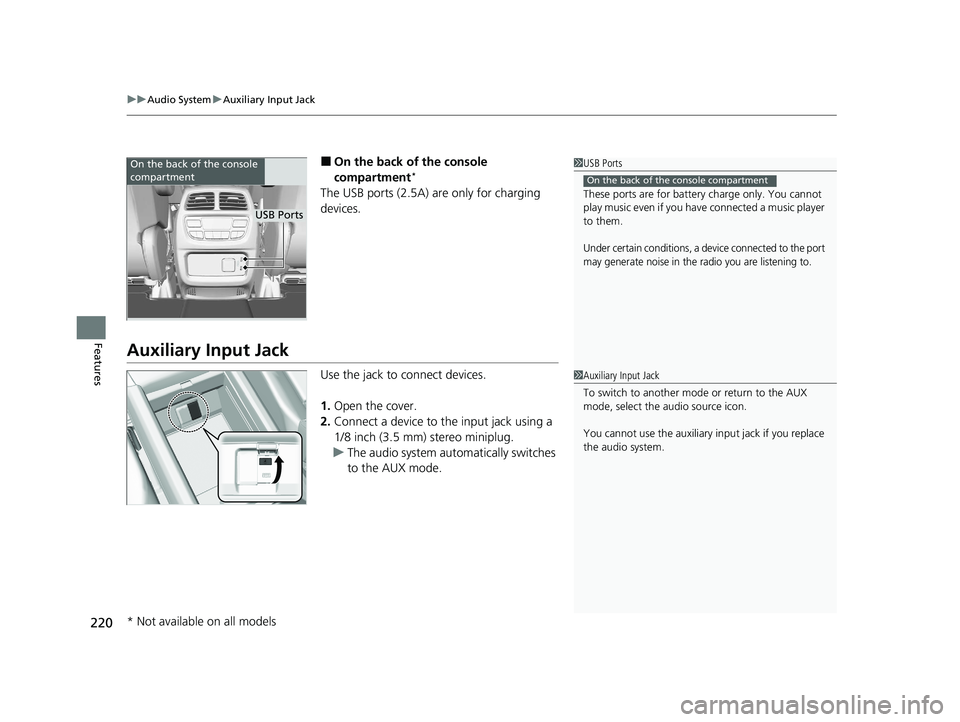

■On the back of the console
compartment*
The USB ports (2.5A) are only for charging
devices.
Auxiliary Input Jack
Use the jack to connect devices.
1. Open the cover.
2. Connect a device to the input jack using a
1/8 inch (3.5 mm) stereo miniplug.
u The audio system automatically switches
to the AUX mode.
1USB Ports
These ports are for battery charge only. You cannot
play music even if you have connected a music player
to them.
Under certain conditions, a device connected to the port
may generate noise in the radio you are listening to.
On the back of the console compartment
On the back of the console
compartment
USB Ports
1 Auxiliary Input Jack
To switch to another mode or return to the AUX
mode, select the audio source icon.
You cannot use the auxiliary input jack if you replace
the audio system.
* Not available on all models
21 PASSPORT-31TGS6200.book 220 ページ ２０２０年９月４日　金曜日　午後２時３５分

223
uuAudio System uAudio Remote Controls
Features
/ / / /ENTER Buttons
• When selecting the audio mode
Press or to select Now Playing on the home screen of the driver
information interface, and then press the ENTER button.
Press or : To cycles through the audio modes as follows:
Android Auto/Apple CarPlay SiriusXM ®
*AUX Input AM 
Bluetooth ® AudioSocial Playlist FM My Honda Music USB/iPod
• When listening to the radio
Press : To select the next preset radio station.
Press : To select the previous preset radio station.
• When listening to an iPod, USB flash drive, My Honda Music, or Bluetooth® Audio
Press : To skip to the next song.
Press : To go back to the beginning of the current or previous song.
34
34
34
* Not available on all models
21 PASSPORT-31TGS6200.book 223 ページ ２０２０年９月４日　金曜日　午後２時３５分

226
uuAudio System Basic Operation uAudio/Information Screen
Features
■Phone
Displays the HFL information.
2 Bluetooth ® HandsFreeLink ® P. 346
■Trip Computer
Displays the trip computer information.
• Current Drive tab: Displays the current trip information.
• Trip A /Trip B tab: Displays information for the current and three previous drives.
The information is stored every time you reset Trip A/B.
To reset Trip A/B, select Reset.
To change the setting of how to reset Trip A/B, select Settings, then select Trip
A Reset Method or Trip B Reset Method .
■Clock
Displays the clock.
■System Updates
Updates the software versi on of the audio system.
2System Updates P. 238
■FM/AM/Sirius XM*/USB/Bluetooth Audio/AUX Input/My Honda Music/
Social Playlist
Displays the each audio information.
■Settings
Enters the customiz ing menu screen.
2Customized Features P. 324
* Not available on all models
21 PASSPORT-31TGS6200.book 226 ページ ２０２０年９月４日　金曜日　午後２時３５分
