set clock HONDA PASSPORT 2021 Navigation Manual (in English)

15
Quick Reference Guide
Controls (P121)
Clock (P122)
To adjust time
To adjust date
aSelect , then select Settings.
bSelect System , then Date & Time .
cSelect Set Date & Time .
dSelect Automatic Date & Time , then
select OFF.
eSelect Set Date or Set Time.
fAdjust the dates, hours and minutes by
selecting / .
gSelect Save to set the time.
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
ENGINE START/STOP
Button
(P156)
Press the button to ch ange the vehicle’s
power mode.
34
Models with navigation system
Turn Signals (P159)
Lights (P160)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
* Not available on all models
21 PASSPORT-31TGS6200.book 15 ページ ２０２０年９月４日　金曜日　午後２時３５分

122
Controls

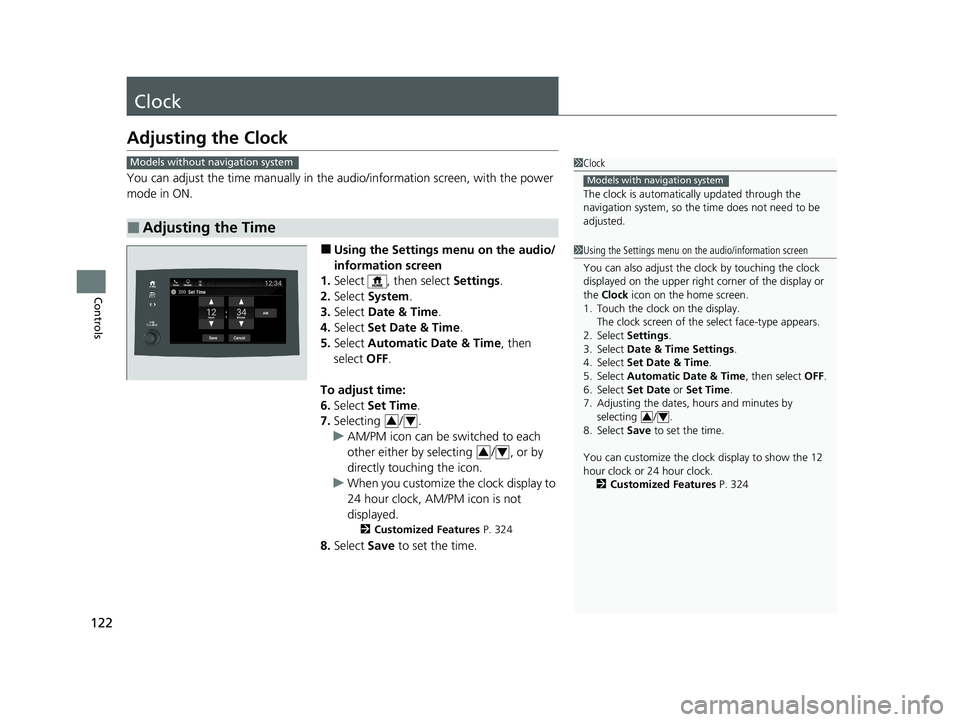

Clock
Adjusting the Clock
You can adjust the time manually in the audio/information screen, with the power
mode in ON.
■Using the Settings menu on the audio/
information screen
1. Select , then select Settings.
2. Select System .
3. Select Date & Time .
4. Select Set Date & Time .
5. Select Automatic Date & Time , then
select OFF.
To adjust time:
6. Select Set Time .
7. Selecting / .
u AM/PM icon can be switched to each
other either by selecting / , or by
directly touching the icon.
u When you customize the clock display to
24 hour clock, AM/PM icon is not
displayed.
2 Customized Features P. 324
8.Select Save to set the time.
■Adjusting the Time
1Clock
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
Models with navigation system
Models without navigation system
1 Using the Settings menu on the audio/information screen
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display or
the Clock icon on the home screen.
1. Touch the clock on the display. The clock screen of the select face-type appears.
2. Select Settings .
3. Select Date & Time Settings .
4. Select Set Date & Time .
5. Select Automatic Date & Time , then select OFF.
6. Select Set Date or Set Time.
7. Adjusting the dates, hours and minutes by
selecting / .
8. Select Save to set the time.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 324
3434
34
21 PASSPORT-31TGS6200.book 122 ページ ２０２０年９月４日　金曜日　午後２時３５分

123
uuClock uAdjusting the Clock
Controls

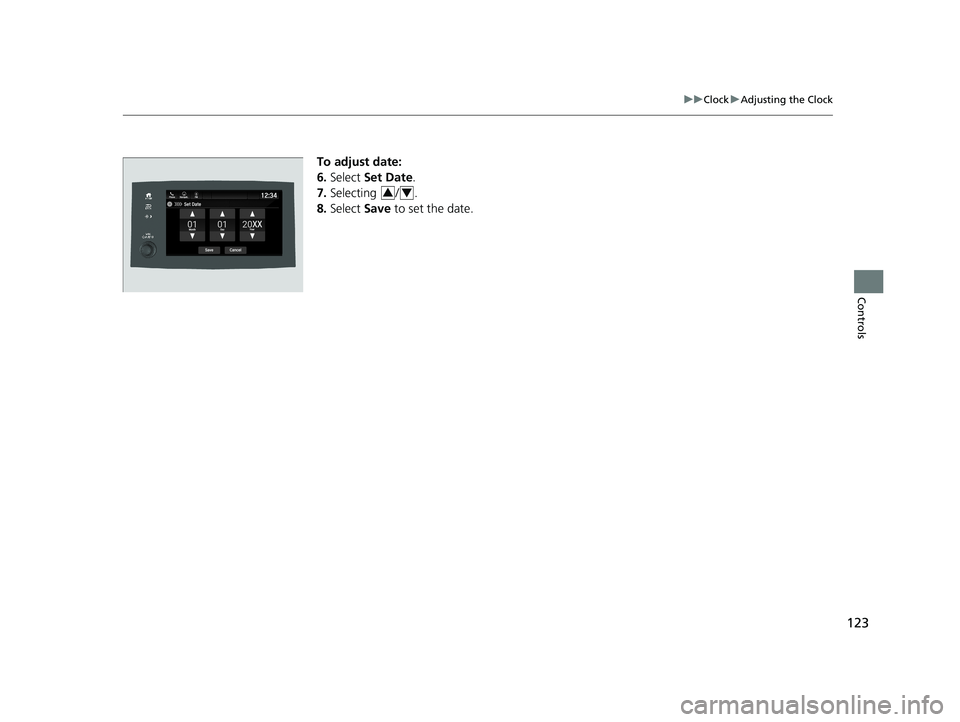

To adjust date:
6. Select Set Date.
7. Selecting / .
8. Select Save to set the date.
34
21 PASSPORT-31TGS6200.book 123 ページ ２０２０年９月４日　金曜日　午後２時３５分

226
uuAudio System Basic Operation uAudio/Information Screen
Features
■Phone
Displays the HFL information.
2 Bluetooth ® HandsFreeLink ® P. 346
■Trip Computer
Displays the trip computer information.
• Current Drive tab: Displays the current trip information.
• Trip A /Trip B tab: Displays information for the current and three previous drives.
The information is stored every time you reset Trip A/B.
To reset Trip A/B, select Reset.
To change the setting of how to reset Trip A/B, select Settings, then select Trip
A Reset Method or Trip B Reset Method .
■Clock
Displays the clock.
■System Updates
Updates the software versi on of the audio system.
2System Updates P. 238
■FM/AM/Sirius XM*/USB/Bluetooth Audio/AUX Input/My Honda Music/
Social Playlist
Displays the each audio information.
■Settings
Enters the customiz ing menu screen.
2Customized Features P. 324
* Not available on all models
21 PASSPORT-31TGS6200.book 226 ページ ２０２０年９月４日　金曜日　午後２時３５分

uuAudio System Basic Operation uAudio/Information Screen
228
Features

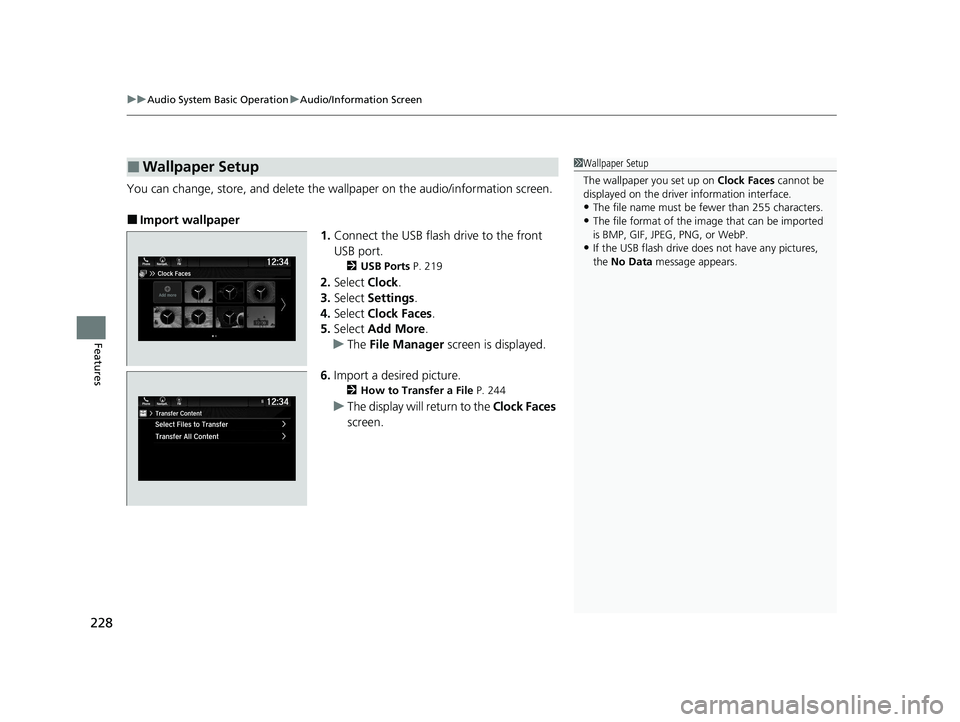

You can change, store, and delete the wallpaper on the audio/information screen.
■Import wallpaper
1.Connect the USB flash drive to the front
USB port.
2 USB Ports P. 219
2.Select Clock.
3. Select Settings .
4. Select Clock Faces .
5. Select Add More .
u The File Manager screen is displayed.
6. Import a desired picture.
2 How to Transfer a File P. 244
uThe display will return to the Clock Faces
screen.
■Wallpaper Setup1 Wallpaper Setup
The wallpaper you set up on Clock Faces cannot be
displayed on the driver information interface.
•The file name must be fewer than 255 characters.
•The file format of the im age that can be imported
is BMP, GIF, JPEG, PNG, or WebP.
•If the USB flash drive doe s not have any pictures,
the No Data message appears.
21 PASSPORT-31TGS6200.book 228 ページ ２０２０年９月４日　金曜日　午後２時３５分

229
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features

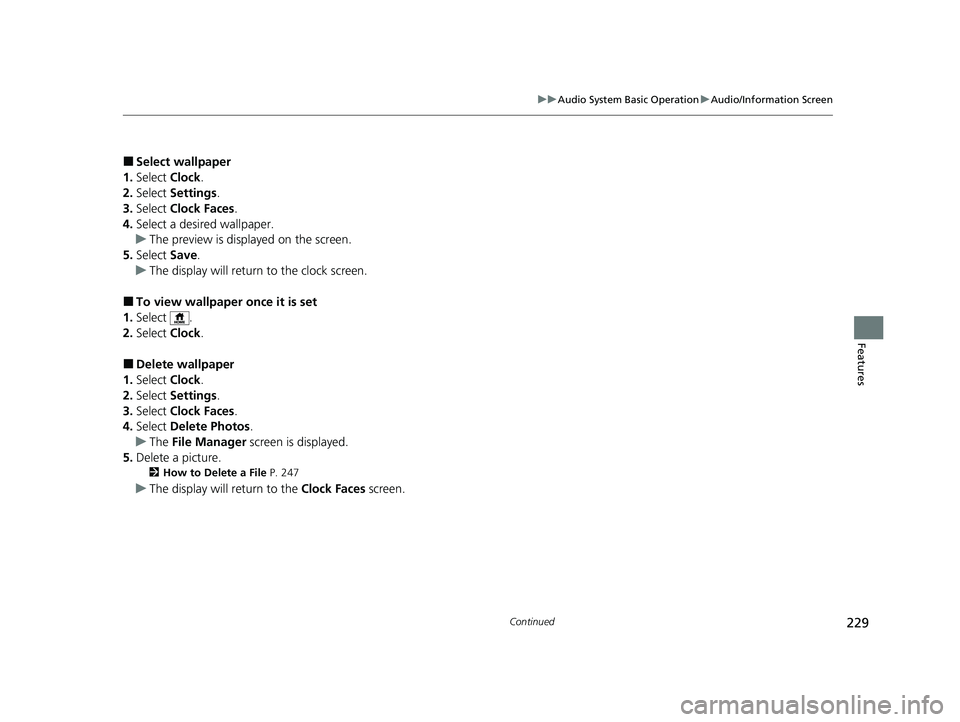

■Select wallpaper
1. Select Clock.
2. Select Settings .
3. Select Clock Faces .
4. Select a desired wallpaper.
u The preview is displayed on the screen.
5. Select Save.
u The display will return to the clock screen.
■To view wallpaper once it is set
1. Select .
2. Select Clock.
■Delete wallpaper
1. Select Clock.
2. Select Settings .
3. Select Clock Faces .
4. Select Delete Photos .
u The File Manager screen is displayed.
5. Delete a picture.
2 How to Delete a File P. 247
uThe display will return to the Clock Faces screen.
21 PASSPORT-31TGS6200.book 229 ページ ２０２０年９月４日　金曜日　午後２時３５分

331
uuCustomized Features u
Continued
Features
■List of customizable options
*1:Default Setting Setup
Group Customizable Features Description Selectable Settings
SystemDate & Time
Set
Date &
Time
Automatic
Date &
TimeSelects
ON to have the GPS automatically adjust
the clock. Select OFF to cancel this function.ON*1/OFF
Set DateAdjusts date.
2 Adjusting the Clock P. 122—
Set TimeAdjusts clock.
2Adjusting the Clock P. 122—
Set
Time
ZoneAutomatic
Time Zone*
Sets the navigation system to automatically adjust
the clock when driving through different time
zones.
ON*1/ OFF
Select time
zoneChanges the time zone manually.—
Select Time FormatSelects the digital clock display from 12H to 24H.12H*1/24H
* Not available on all models
21 PASSPORT-31TGS6200.book 331 ページ ２０２０年９月４日　金曜日　午後２時３５分

537
Maintenance

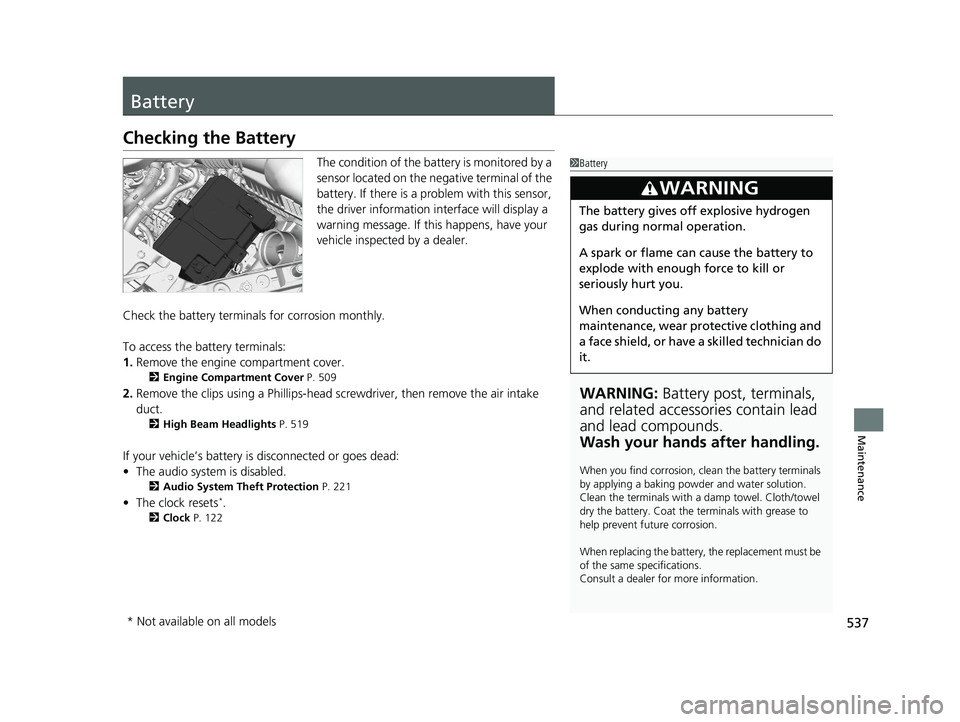

Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information interface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery termina ls for corrosion monthly.
To access the battery terminals:
1. Remove the engine compartment cover.
2 Engine Compartment Cover P. 509
2.Remove the clips using a Ph illips-head screwdriver, then remove the air intake
duct.
2 High Beam Headlights P. 519
If your vehicle’s battery is disconnected or goes dead:
•The audio system is disabled.
2 Audio System Theft Protection P. 221
•The clock resets*.
2 Clock P. 122
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
* Not available on all models
21 PASSPORT-31TGS6200.book 537 ページ ２０２０年９月４日　金曜日　午後２時３５分

596
Index
USB Port .................................................. 219
Wallpaper Setup ...................................... 228
Wi-Fi Connection ..................................... 288
Audio/Information Screen ........................ 225
Authorized Manuals ................................. 592
Auto Door Locking/Unlocking ................. 138
Customize ............................................... 338
Auto High-Beam ....................................... 165
Indicator .................................................... 82
Auto Idle Stop ........................................... 409
OFF Button .............................................. 410
Auto Idle Stop Indicator (Amber) .............. 87
Auto Idle Stop Indicator (Green) ............... 87
Automatic Intermittent Wipers ............... 169
Automatic Lighting .................................. 161
Automatic Transmission ........................... 400
Creeping ................................................. 400
Fluid ........................................................ 517
Kickdown ................................................ 400
Operating the Shift Button....................... 403
Shifting.................................................... 401
Auxiliary Input Jack .................................. 220
Average Fuel Economy ............................. 112
B
Back-Up Light............................................ 523
Battery ....................................................... 537
Charging System Indicator ................. 79, 568
If the Battery Is Dead ............................... 562
Maintenance (Checking the Battery) ........ 537 Belts (Seat)
.................................................. 37
Beverage Holders ..................................... 194
Blind Spot Information System ................ 421
Bluetooth® Audio..................................... 279
Bluetooth® HandsFreeLink ®................... 346
Booster Seats (For Children) ...................... 74
Brake System ............................................ 476
Anti-lock Brake System (ABS)................... 478
Brake Assist System ................................. 479
Fluid ........................................................ 518
Foot Brake............................................... 477
Indicator............................................ 78, 569
Parking Brake .......................................... 476
Brightness Control (Instrument Panel) .... 173
Bulb Replacement .................................... 519
Back-Up Lights ........................................ 523
Brake lights ............................................. 522
Daytime Running Lights........................... 520
Fog Lights ............................................... 521
Front Side Marker Lights.......................... 520
Front Turn Signal Lights ........................... 521
Headlights ............................................... 519
High-Mount Brake Light .......................... 523
Parking Lights.......................................... 520
Rear License Plate Lights .......................... 523
Rear Side Marker Lights ........................... 522
Rear Turn Signal Lights ............................ 522
Side Turn Signal/Emergency Indicator
Lights .................................................... 522
Taillights.................................................. 522
Bulb Specifications ................................... 582
C
Car Wash Mode........................................ 405
Carbon Monoxide Gas ............................... 75
Carrying Cargo ................................. 375, 377
Certification Label ................................... 584
Changing Bulbs ........................................ 519
Charging System Indicator ................ 79, 568
Child Safety ................................................ 60
Childproof Door Locks ............................ 137
Child Seat ................................................... 60
Booster Seats ............................................ 74
Child Seat for Infants ................................ 62
Child Seat for Small Children .................... 63
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 68
Larger Children ......................................... 73
Rear-facing Child Seat............................... 62
Selecting a Child Seat ............................... 64
Childproof Door Locks ............................. 137
Cleaning the Exterior ............................... 544
Cleaning the Interior ............................... 542
Climate Control System ........................... 210
Changing the Mode................................ 210
Defrosting the Windshield and Windows .............................................. 211
Dust and Pollen Filter .............................. 541
Recirculation and Fresh Air Mode ............ 211
Sensors ................................................... 216
Synchronization Mode ............................ 213
Using Automatic Climate Control............ 210
Clock ......................................................... 122
21 PASSPORT-31TGS6200.book 596 ページ ２０２０年９月４日　金曜日　午後２時３５分

602

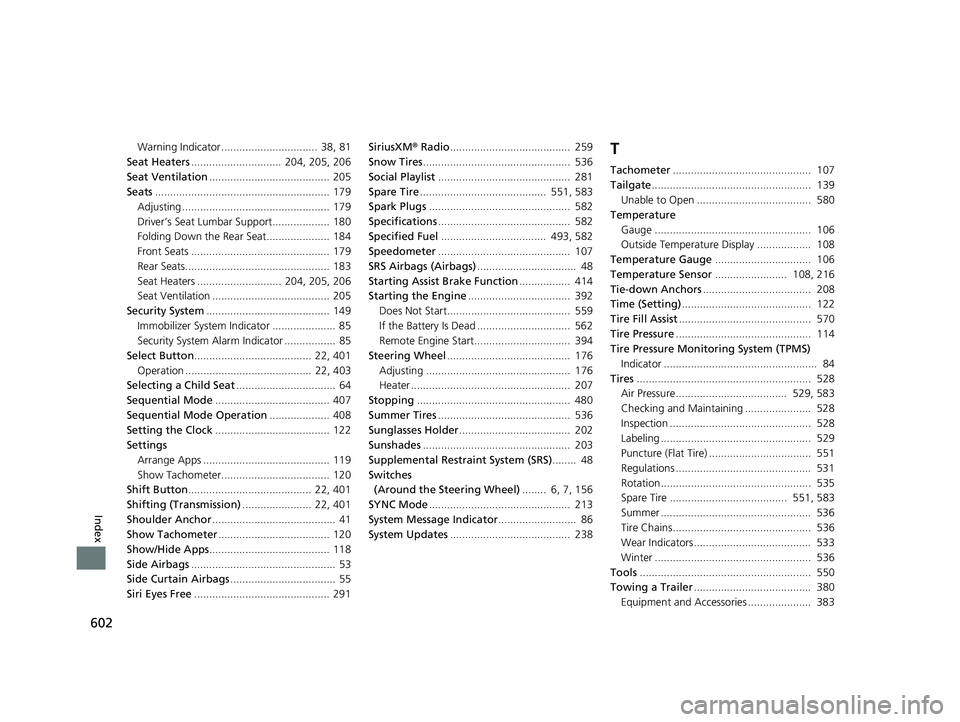

Index
Warning Indicator ................................ 38, 81
Seat Heaters .............................. 204, 205, 206
Seat Ventilation ........................................ 205
Seats .......................................................... 179
Adjusting ................................................. 179
Driver’s Seat Lumbar Support................... 180
Folding Down the Rear Seat..................... 184
Front Seats .............................................. 179
Rear Seats................................................ 183
Seat Heaters ............................ 204, 205, 206
Seat Ventilation ....................................... 205
Security System ......................................... 149
Immobilizer System Indicator ..................... 85
Security System Alarm Indicator ................. 85
Select Button ....................................... 22, 401
Operation .......................................... 22, 403
Selecting a Child Seat ................................. 64
Sequential Mode ...................................... 407
Sequential Mode Operation .................... 408
Setting the Clock ...................................... 122
Settings Arrange Apps .......................................... 119
Show Tachometer.................................... 120
Shift Button......................................... 22, 401
Shifting (Transmission) ....................... 22, 401
Shoulder Anchor ......................................... 41
Show Tachometer ..................................... 120
Show/Hide Apps ........................................ 118
Side Airbags ................................................ 53
Side Curtain Airbags ................................... 55
Siri Eyes Free ............................................. 291 SiriusXM
® Radio ........................................ 259
Snow Tires ................................................. 536
Social Playlist ............................................ 281
Spare Tire .......................................... 551, 583
Spark Plugs ............................................... 582
Specifications ............................................ 582
Specified Fuel ................................... 493, 582
Speedometer ............................................ 107
SRS Airbags (Airbags) ................................. 48
Starting Assist Brake Function ................. 414
Starting the Engine .................................. 392
Does Not Start......................................... 559
If the Battery Is Dead ............................... 562
Remote Engine Start................................ 394
Steering Wheel ......................................... 176
Adjusting ................................................ 176
Heater ..................................................... 207
Stopping ................................................... 480
Summer Tires ............................................ 536
Sunglasses Holder ..................................... 202
Sunshades ................................................. 203
Supplemental Restraint System (SRS) ........ 48
Switches (Around the Steering Wheel) ........ 6, 7, 156
SYNC Mode ............................................... 213
System Message Indicator .......................... 86
System Updates ........................................ 238T
Tachometer.............................................. 107
Tailgate ..................................................... 139
Unable to Open ...................................... 580
Temperature
Gauge .................................................... 106
Outside Temperature Display .................. 108
Temperature Gauge ................................ 106
Temperature Sensor ........................ 108, 216
Tie-down Anchors .................................... 208
Time (Setting) ........................................... 122
Tire Fill Assist ............................................ 570
Tire Pressure ............................................. 114
Tire Pressure Monitoring System (TPMS)
Indicator ................................................... 84
Tires .......................................................... 528
Air Pressure..................................... 529, 583
Checking and Maintaining ...................... 528
Inspection ............................................... 528
Labeling .................................................. 529
Puncture (Flat Tire) .................................. 551
Regulations ............................................. 531
Rotation.................................................. 535
Spare Tire ....................................... 551, 583
Summer .................................................. 536
Tire Chains.............................................. 536
Wear Indicators....................................... 533
Winter .................................................... 536
Tools ......................................................... 550
Towing a Trailer ....................................... 380
Equipment and Accessories ..................... 383
21 PASSPORT-31TGS6200.book 602 ページ ２０２０年９月４日　金曜日　午後２時３５分
