Page 168 of 607

uuOperating the Switches Around the Steering Wheel uAuto High-Beam
166
Controls
■Automatic switching between high-beam and low-beam
When auto high-beam is ac tive, the headlights switch between high beam and low
beam based on the following conditions.
■Manual switching between high-beam and low-beam
If you want to manually switch the headlights between high beam and low beam,
follow either of the proced ures below. Note that when you do this, the auto high-
beam indicator will turn off and the auto high-beam will be deactivated.
Using the lever:
Pull the lever toward you fo r flashing the high beams then release it within about
one second while driving. u To reactivate the auto high-beam, pull the lever toward you for flashing the
high beams then release it while driving. The auto high-beam indicator will
come on.
Using the light switch:
Turn the light switch to . u To reactivate the auto high-be am, turn the light switch to AUTO when the
lever is in the low beam position, the auto high-beam indicator will come on.
Switching to high beam:Switching to low beam:
All of the following conditions must
be met before the high beams turn
on.
●Your vehicle speed is 45mph
(72 km/h) or more.
●There are no preceding or
oncoming vehicle with headlights
or taillights turned on.
●There are few street lights on the
road ahead.
One of the following conditions
must be met before the low beams
turn on.
●Your vehicle speed is 30 mph
(48 km/h) or less.
●There is a preceding or oncoming
vehicle with headlights or
taillights turned on.
●There are many street lights on
the road ahead.
1 How to Use the Auto High-Beam
In the following cases, th e auto high-beam system
may not switch the head lights properly or the
switching timing may be ch anged. In case of the
automatic switching operati on does not fit for your
driving habits, please swit ch the headlights manually.
•The brightness of the lights from the preceding or
oncoming vehicle is intense or poor.
•Visibility is poor due to the weather (rain, snow,
fog, windshield frost, etc.).
•Surrounding light sources, such as street lights,
electric billboards and traf fic lights are illuminating
the road ahead.
•The brightness level of th e road ahead constantly
changes.
•The road is bumpy or has many curves.•A vehicle suddenly appears in front of you, or a
vehicle in front of you is not in the preceding or
oncoming direction.
•Your vehicle is tilted with a heavy load in the rear.•A traffic sign, mirror, or other reflective object
ahead is reflecting strong light toward the vehicle.
•The oncoming vehicle freq uently disappears under
roadside trees or be hind median barriers.
•The preceding or oncoming vehicle is a motorcycle,
bicycle, mobility scooter, or other small vehicle.
The auto high-beam system keeps the headlight low
beam when:
•Windshield wipers are operating.
•The camera has dete cted a dense fog.
21 PASSPORT-31TGS6200.book 166 ページ 2020年9月4日 金曜日 午後2時35分
Page 387 of 607

Continued385
uuTowing a Trailer uTowing Preparation
Driving
■Trailer light
Trailer lights and equipment must comply with federal, state, province/territory, and
local regulations. Check with your local trailer sales or rental agency for the
requirements in the area where you plan to tow.
We recommend that you have a dealer inst all a Honda wiring harness and converter.
They are designed for your vehicle.
■Hitches
Read the trailer manufacturer ’s instructions, and select the appropriate draw bar for
the height of the trailer you will be towing.
■Weight distribution hitches
Your vehicle is designed to tow without the need for a load distributing hitch. If you
wish to use one, please consult your trailer maker for proper installation and set-up.
Improper set-up could degrade the handling, stability, and braking performance of
your vehicle.
1 Trailer light
The trailer lighting connect or is located behind the
left side panel in the cargo area.
Even if you are planning to use the non-Honda trailer
lighting harness and converte r, ask a dealer for the
correct connector and pins.
+B Trailer Main (Red)
+B Trailer Charge
(Sky Blue) +B ELEC Brake (Brown)
IG2 HAC (Light Green) Back Light (Brown)
Trailer Small Light (Red)
Stop Light (Beige)
Pins’ wiring color codes and their purposes:
Right Turn Signal (Green) Left
Turn Signal (Blue)
21 PASSPORT-31TGS6200.book 385 ページ 2020年9月4日 金曜日 午後2時35分
Page 389 of 607

387
uuTowing a Trailer uTrailer Stability Assist
Driving

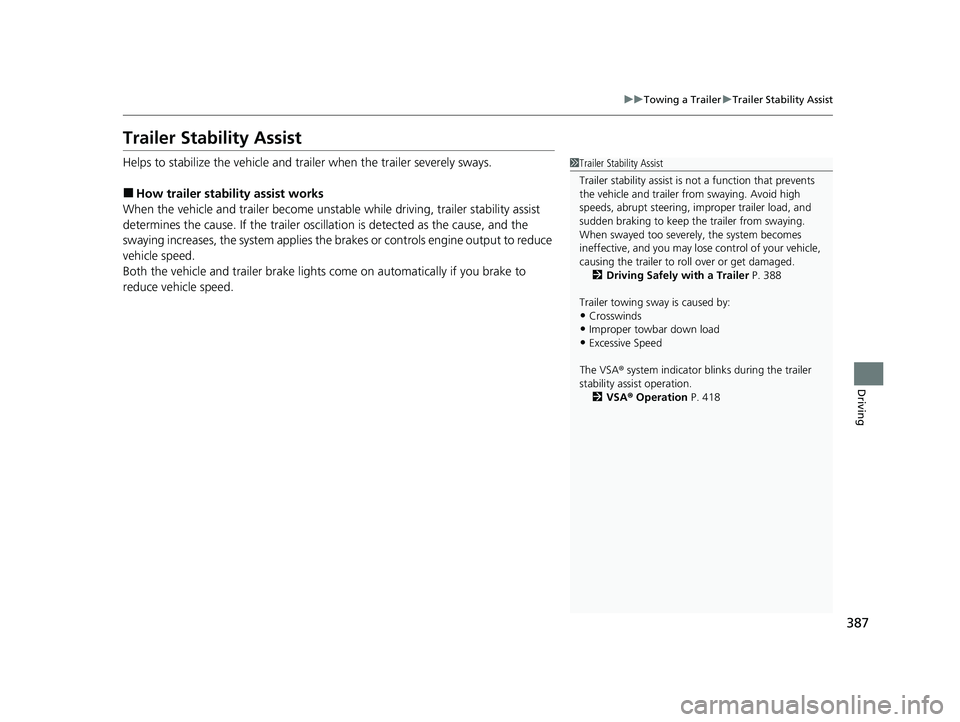

Trailer Stability Assist
Helps to stabilize the vehicle and tra iler when the trailer severely sways.
■How trailer stability assist works
When the vehicle and trailer become unstable while driving, trailer stability assist
determines the cause. If the trailer oscilla tion is detected as the cause, and the
swaying increases, the system applies the br akes or controls engine output to reduce
vehicle speed.
Both the vehicle and trailer brake lights co me on automatically if you brake to
reduce vehicle speed.
1 Trailer Stability Assist
Trailer stability assist is not a function that prevents
the vehicle and trailer from swaying. Avoid high
speeds, abrupt steering, improper trailer load, and
sudden braking to keep th e trailer from swaying.
When swayed too severely, the system becomes
ineffective, and you may lose control of your vehicle,
causing the trailer to ro ll over or get damaged.
2 Driving Safely with a Trailer P. 388
Trailer towing sway is caused by:
•Crosswinds
•Improper towbar down load
•Excessive Speed
The VSA ® system indicator blinks during the trailer
stability assist operation. 2 VSA ® Operation P. 418
21 PASSPORT-31TGS6200.book 387 ページ 2020年9月4日 金曜日 午後2時35分
Page 604 of 607

602
Index
Warning Indicator ................................ 38, 81
Seat Heaters .............................. 204, 205, 206
Seat Ventilation ........................................ 205
Seats .......................................................... 179
Adjusting ................................................. 179
Driver’s Seat Lumbar Support................... 180
Folding Down the Rear Seat..................... 184
Front Seats .............................................. 179
Rear Seats................................................ 183
Seat Heaters ............................ 204, 205, 206
Seat Ventilation ....................................... 205
Security System ......................................... 149
Immobilizer System Indicator ..................... 85
Security System Alarm Indicator ................. 85
Select Button ....................................... 22, 401
Operation .......................................... 22, 403
Selecting a Child Seat ................................. 64
Sequential Mode ...................................... 407
Sequential Mode Operation .................... 408
Setting the Clock ...................................... 122
Settings Arrange Apps .......................................... 119
Show Tachometer.................................... 120
Shift Button......................................... 22, 401
Shifting (Transmission) ....................... 22, 401
Shoulder Anchor ......................................... 41
Show Tachometer ..................................... 120
Show/Hide Apps ........................................ 118
Side Airbags ................................................ 53
Side Curtain Airbags ................................... 55
Siri Eyes Free ............................................. 291 SiriusXM
® Radio ........................................ 259
Snow Tires ................................................. 536
Social Playlist ............................................ 281
Spare Tire .......................................... 551, 583
Spark Plugs ............................................... 582
Specifications ............................................ 582
Specified Fuel ................................... 493, 582
Speedometer ............................................ 107
SRS Airbags (Airbags) ................................. 48
Starting Assist Brake Function ................. 414
Starting the Engine .................................. 392
Does Not Start......................................... 559
If the Battery Is Dead ............................... 562
Remote Engine Start................................ 394
Steering Wheel ......................................... 176
Adjusting ................................................ 176
Heater ..................................................... 207
Stopping ................................................... 480
Summer Tires ............................................ 536
Sunglasses Holder ..................................... 202
Sunshades ................................................. 203
Supplemental Restraint System (SRS) ........ 48
Switches (Around the Steering Wheel) ........ 6, 7, 156
SYNC Mode ............................................... 213
System Message Indicator .......................... 86
System Updates ........................................ 238T
Tachometer.............................................. 107
Tailgate ..................................................... 139
Unable to Open ...................................... 580
Temperature
Gauge .................................................... 106
Outside Temperature Display .................. 108
Temperature Gauge ................................ 106
Temperature Sensor ........................ 108, 216
Tie-down Anchors .................................... 208
Time (Setting) ........................................... 122
Tire Fill Assist ............................................ 570
Tire Pressure ............................................. 114
Tire Pressure Monitoring System (TPMS)
Indicator ................................................... 84
Tires .......................................................... 528
Air Pressure..................................... 529, 583
Checking and Maintaining ...................... 528
Inspection ............................................... 528
Labeling .................................................. 529
Puncture (Flat Tire) .................................. 551
Regulations ............................................. 531
Rotation.................................................. 535
Spare Tire ....................................... 551, 583
Summer .................................................. 536
Tire Chains.............................................. 536
Wear Indicators....................................... 533
Winter .................................................... 536
Tools ......................................................... 550
Towing a Trailer ....................................... 380
Equipment and Accessories ..................... 383
21 PASSPORT-31TGS6200.book 602 ページ 2020年9月4日 金曜日 午後2時35分
