washer fluid HONDA PASSPORT 2021 Navigation Manual (in English)

16
Quick Reference Guide
Wipers and Washers
(P168)
*1:Models with automatic intermittent operation
*2:Models with manual intermittent operation
Wiper/Washer Control Lever
MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO: Low speed wipe
HI : High speed wipe
Pull toward
you to spray
washer fluid.
Adjustment Ring
Low Sensitivity*1
Lower speed, fewer sweeps*2
High Sensitivity*1
Higher speed, more sweeps*2(+:
( +:(-:(-:
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Steering Wheel (P176)
●To adjust, push the adjustment lever
down, adjust to the desired position, then
pull up the lever back in place.
Models with automatic intermittent wipersUnlocking the Front
Doors from the Inside
(P136)
●Pull either front door inner handle to
unlock and open it at the same time.
21 PASSPORT-31TGS6200.book 16 ページ ２０２０年９月４日　金曜日　午後２時３５分

26
Quick Reference Guide
Maintenance (P497)
Under the Hood (P507)
●Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
●Check brake fluid.●Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull it up, and then raise the
hood. Once you have raised the hood slightly, you can
release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P519)
●Inspect all lights regularly.
Wiper Blades (P524)
●Replace blades if they leave streaks
across the windshield.
Tires (P528)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter
driving.
21 PASSPORT-31TGS6200.book 26 ページ ２０２０年９月４日　金曜日　午後２時３５分

93
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel

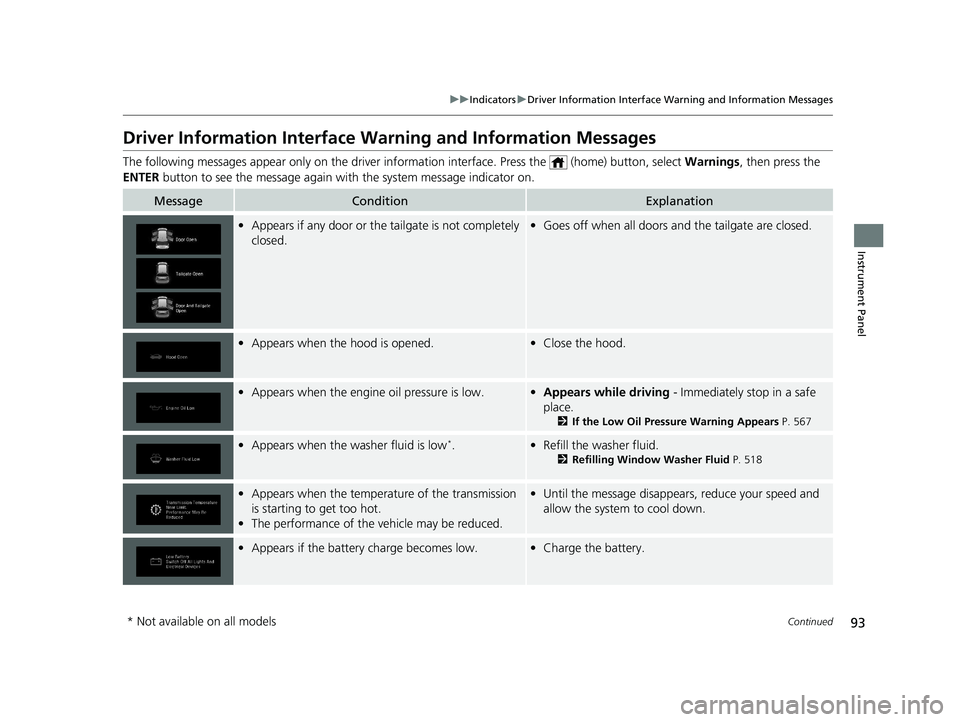

Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Press the (home) button, select Warnings, then press the
ENTER button to see the message again wi th the system message indicator on.
MessageConditionExplanation
•Appears if any door or the tailgate is not completely
closed.•Goes off when all doors and the tailgate are closed.
•Appears when the hood is opened.•Close the hood.
•Appears when the engine oil pressure is low.•Appears while driving - Immediately stop in a safe
place.
2 If the Low Oil Pressure Warning Appears P. 567
•Appears when the washer fluid is low*.•Refill the washer fluid.
2 Refilling Window Washer Fluid P. 518
•Appears when the temperature of the transmission
is starting to get too hot.
• The performance of the vehicle may be reduced.•Until the message disappears, reduce your speed and
allow the system to cool down.
•Appears if the battery charge becomes low.•Charge the battery.
* Not available on all models
21 PASSPORT-31TGS6200.book 93 ページ ２０２０年９月４日　金曜日　午後２時３５分

168
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*1/AUTO*2, LO,
HI)
Move the lever up or down to change the
wiper settings.
■Adjusting wiper operation*
Turn the adjustment ri ng to adjust wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the lever for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
*1: Models with manual intermittent operation
*2: Models with automati c intermittent operation
■Windshield Wipers/Washers1Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay se tting (+) and the LO setting become
the same.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defogge r or heated windshield
*
to warm the windshield, then turn the wipers on.
Models with intermittent time adjustment ring
Intermittent Time
Adjustment Ring*
MIST
INT
*1/AUTO*2OFF
LO: Low speed wipe
HI: High speed wipe Pull to
use
washer.
Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
21 PASSPORT-31TGS6200.book 168 ページ ２０２０年９月４日　金曜日　午後２時３５分

507
Maintenance

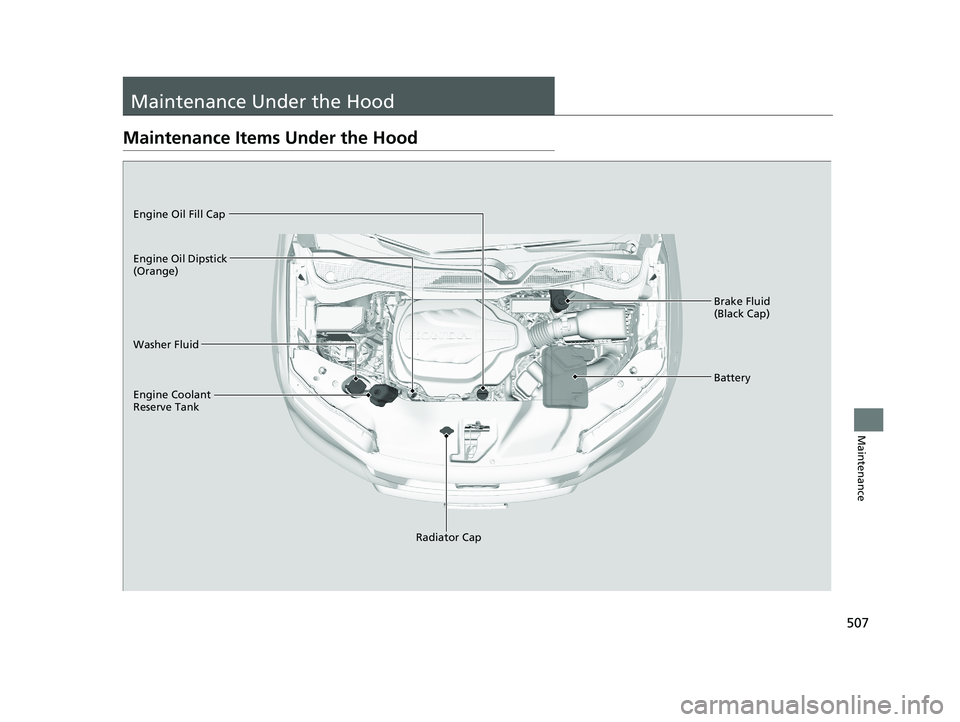

Maintenance Under the Hood
Maintenance Items Under the Hood
Brake Fluid
(Black Cap)
Washer Fluid
Radiator Cap
Engine Coolant
Reserve Tank Engine Oil Dipstick
(Orange) Engine Oil Fill Cap
Battery
21 PASSPORT-31TGS6200.book 507 ページ ２０２０年９月４日　金曜日　午後２時３５分

518
uuMaintenance Under the Hood uBrake Fluid
Maintenance

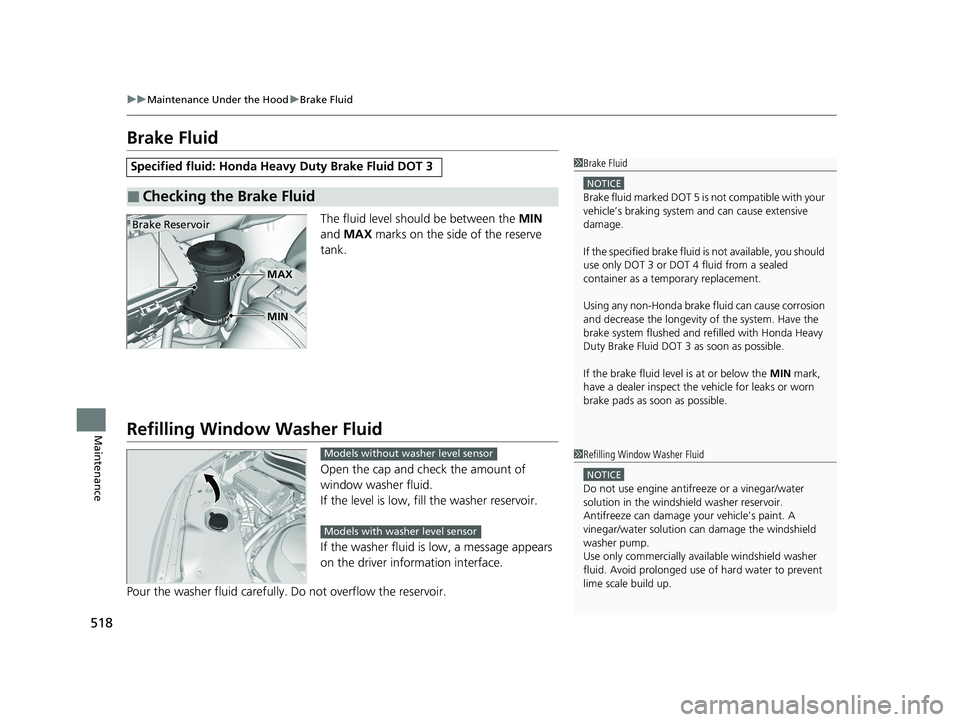

Brake Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.
Refilling Window Washer Fluid
Open the cap and check the amount of
window washer fluid.
If the level is low, fill the washer reservoir.
If the washer fluid is low, a message appears
on the driver information interface.
Pour the washer fluid carefully. Do not overflow the reservoir.
Specified fluid: Honda Heavy Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1Brake Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified br ake fluid is not av ailable, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.
Brake Reservoir
MIN
MAX
1 Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle’s paint. A
vinegar/water solution ca n damage the windshield
washer pump.
Use only commercially avai lable windshield washer
fluid. Avoid prolonged use of hard water to prevent
lime scale build up.
Models without washer level sensor
Models with washer level sensor
21 PASSPORT-31TGS6200.book 518 ページ ２０２０年９月４日　金曜日　午後２時３５分

582
Information
Specifications
■Vehicle Specifications
*1: 2WD models
*2: AWD models
ModelPassport
No. of Passengers:
Front 2
Rear 3
Total
5Weights:Gross Vehicle
Weight RatingSee the certification label
on the driver's doorjamb
Gross Axle Weight
Rating (Front)See the certification label
on the driver's doorjamb
Gross Axle Weight
Rating (Rear)See the certification label
on the driver's doorjamb
Gross Combined Weight
RatingU.S.:8,025 lbs (3,640 kg)*1
9,755 lbs (4,425 kg)*2
Canada:4,425 kg
■ Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 21.3 – 23.1 oz (605 – 655 g)
Lubricant TypeRL85HM (POE)
Quantity 7.75 – 9.33 cu-in (127 – 153 cm3)
Displacement211.8 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 19.5 US gal (73.8 L)
Tank CapacityU.S.: 4 US qt (3.8 L)Canada: 5.6 US qt (5.3 L)
■ Light Bulbs
*1: Models without navigation system
*2: Models with navigation system
Headlights (Low Beam)LED
Headlights (High Beam)60 W (HB3)*1
LED*2
Fog LightsLEDFront Turn Signal Lights28/8 W (Amber)Front Side Marker LightsLEDParking/Daytime Running LightsLEDSide Turn Signal Lights
(on Door Mirrors)*LED
Brake/TaillightsLEDRear Side Marker LightsLEDBack-Up Lights21 WRear Turn Signal Lights21 W (Amber)High-Mount Brake LightLEDRear License Plate LightsLEDInterior LightsFront Map Lights5 WRear Map Lights5 WAmbient LightsLEDVanity Mirror Lights *1.4 WDoor Courtesy Lights*3.8 WDoor Inner Handle Lights*LEDDoor Pocket Lights*LEDBeverage Holder Light*LEDFoot Lights*LEDConsole Compartment Light1.4 WGlove Box Light1.4 WCargo Area Lights8 W
* Not available on all models
21 PASSPORT-31TGS6200.book 582 ページ ２０２０年９月４日　金曜日　午後２時３５分

598

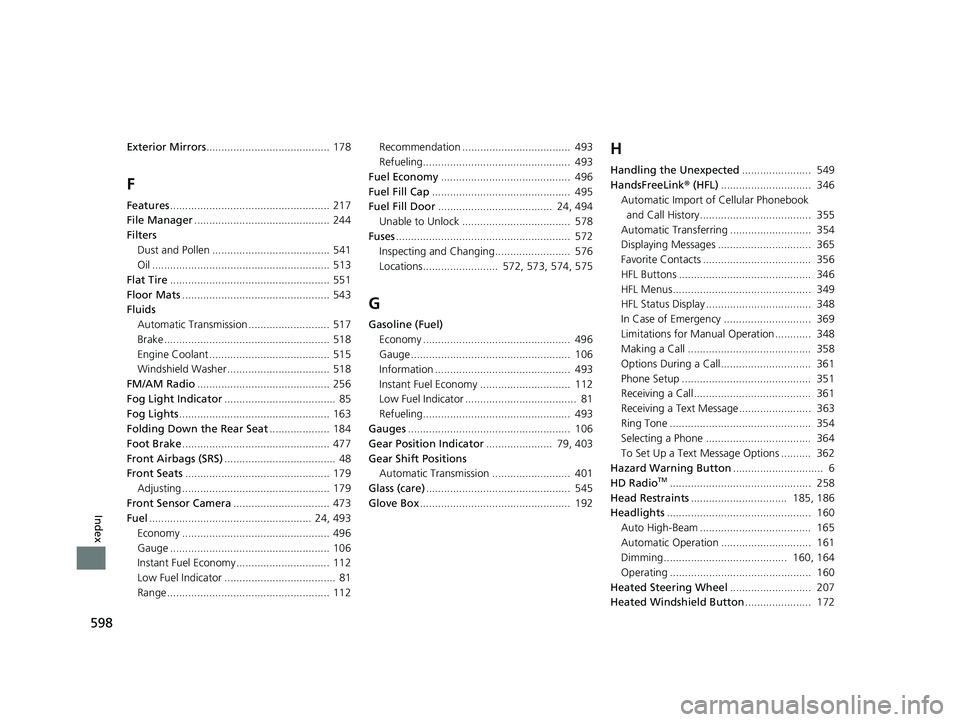

Index
Exterior Mirrors......................................... 178
F
Features..................................................... 217
File Manager ............................................. 244
Filters
Dust and Pollen ....................................... 541
Oil ........................................................... 513
Flat Tire ..................................................... 551
Floor Mats ................................................. 543
Fluids Automatic Transmission ........................... 517
Brake ....................................................... 518
Engine Coolant ........................................ 515
Windshield Washer .................................. 518
FM/AM Radio ............................................ 256
Fog Light Indicator ..................................... 85
Fog Lights .................................................. 163
Folding Down the Rear Seat .................... 184
Foot Brake ................................................. 477
Front Airbags (SRS) ..................................... 48
Front Seats ................................................ 179
Adjusting ................................................. 179
Front Sensor Camera ................................ 473
Fuel ...................................................... 24, 493
Economy ................................................. 496
Gauge ..................................................... 106
Instant Fuel Economy ............................... 112
Low Fuel Indicator ..................................... 81
Range ...................................................... 112 Recommendation .................................... 493
Refueling................................................. 493
Fuel Economy ........................................... 496
Fuel Fill Cap .............................................. 495
Fuel Fill Door ...................................... 24, 494
Unable to Unlock .................................... 578
Fuses .......................................................... 572
Inspecting and Changing......................... 576
Locations......................... 572, 573, 574, 575
G
Gasoline (Fuel)
Economy ................................................. 496
Gauge ..................................................... 106
Information ............................................. 493
Instant Fuel Economy .............................. 112
Low Fuel Indicator ..................................... 81
Refueling................................................. 493
Gauges ...................................................... 106
Gear Position Indicator ...................... 79, 403
Gear Shift Positions Automatic Transmission .......................... 401
Glass (care) ................................................ 545
Glove Box .................................................. 192
H
Handling the Unexpected ....................... 549
HandsFreeLink® (HFL).............................. 346
Automatic Import of Cellular Phonebook
and Call History..................................... 355
Automatic Transferring ........................... 354
Displaying Messages ............................... 365
Favorite Contacts .................................... 356
HFL Buttons ............................................ 346
HFL Menus.............................................. 349
HFL Status Display ................................... 348
In Case of Emergency ............................. 369
Limitations for Manual Operation ............ 348
Making a Call ......................................... 358
Options During a Call.............................. 361
Phone Setup ........................................... 351
Receiving a Call....................................... 361
Receiving a Text Message........................ 363
Ring Tone ............................................... 354
Selecting a Phone ................................... 364
To Set Up a Text Message Options .......... 362
Hazard Warning Button .............................. 6
HD Radio
TM............................................... 258
Head Restraints ................................ 185, 186
Headlights ................................................ 160
Auto High-Beam ..................................... 165
Automatic Operation .............................. 161
Dimming......................................... 160, 164
Operating ............................................... 160
Heated Steering Wheel ........................... 207
Heated Windshield Button ...................... 172
21 PASSPORT-31TGS6200.book 598 ページ ２０２０年９月４日　金曜日　午後２時３５分

603
Index
Load Limits ............................................. 380
Towing Your Vehicle ............................... 389
Emergency .............................................. 577
TPMS (Tire Pressure Monitoring System) Indicator ................................................... 84
TPMS with Tire Fill Assist ......................... 427
Indicator ................................................. 570
Tire Fill Assist .......................................... 570
Trailer Stability Assist ............................... 387
Transmission ....................................... 22, 401
Automatic......................................... 22, 401
Fluid ....................................................... 517
Gear Position Indicator ...................... 79, 403
Number .................................................. 584
Sequential Mode..................................... 407
Trip Computer .......................................... 111
Trip Meter ................................................ 112
Troubleshooting ...................................... 549
Blown Fuse ..................... 572, 573, 574, 575
Brake Pedal Vibrates ................................. 28
Buzzer Sounds When Opening Door ......... 29
Emergency Towing ................................. 577
Engine Won’t Start ................................. 559
Noise When Braking ................................. 29
Overheating ............................................ 565
Puncture/Flat Tire .................................... 551
Rear Door Won’t Open ..................... 28, 137
Warning Indicators.................................... 78
Turn Signals .............................................. 159
Indicators (Instrume nt Panel) ..................... 84U
Under-floor Storage Area ........................ 209
Units .......................................................... 116
Unlocking the Doors ................................ 127
Unlocking the Front Doors from the
Inside ....................................................... 135
USB Flash Drives ................................ 272, 303
USB Port .................................................... 219
V
Vanity Mirrors ............................................... 9
Vehicle Identification Number ................ 584
Vehicle Stability Assist
TM (VSA ®)............... 418
Off Button ............................................... 419
System Indicator ................................ 82, 418
Ventilation ............................................... 211
Viscosity (Oil) .................................... 510, 583
Voice Control Operation .......................... 253
Audio Commands ................................... 255
Phone Commands ................................... 255
Voice Portal Screen .................................. 254
Voice Recognition .................................... 253
W
Wallpaper ................................................. 228
Warning and Information Messages ......... 93
Warning Indicator On/Blinking ............... 567
Warning Labels ........................................... 76
Warnings ................................................... 113 Warranties (Warranty Manual
provided separately) .............................. 589
Watts ......................................................... 582
Wear Indicators (Tire) .............................. 533
Wheel Nut Wrench (Jack Handle) ........... 555
Wi-Fi Connection ...................................... 288
Window Washers ..................................... 168
Adding/Refilling Fluid .............................. 518
Switch ..................................................... 168
Windows (Opening and Closing) ............ 152
Windshield ................................................ 168
Cleaning ......................................... 542, 545
Defrosting/Defogging .............................. 211
Washer Fluid ........................................... 518
Wiper Blades ........................................... 524
Wipers and Washers................................ 168
Winter Tires .............................................. 536
Snow Tires .............................................. 536
Tire Chains .............................................. 536
Wipers and Washers ................................. 168
Automatic Intermittent Wipers ................ 169
Checking and Replacing Wiper Blades ..... 524
Front ....................................................... 168
Rear ........................................................ 170
Wireless Charger ...................................... 198
WMA ................................................. 272, 275
Worn Tires ................................................ 528
21 PASSPORT-31TGS6200.book 603 ページ ２０２０年９月４日　金曜日　午後２時３５分
