505

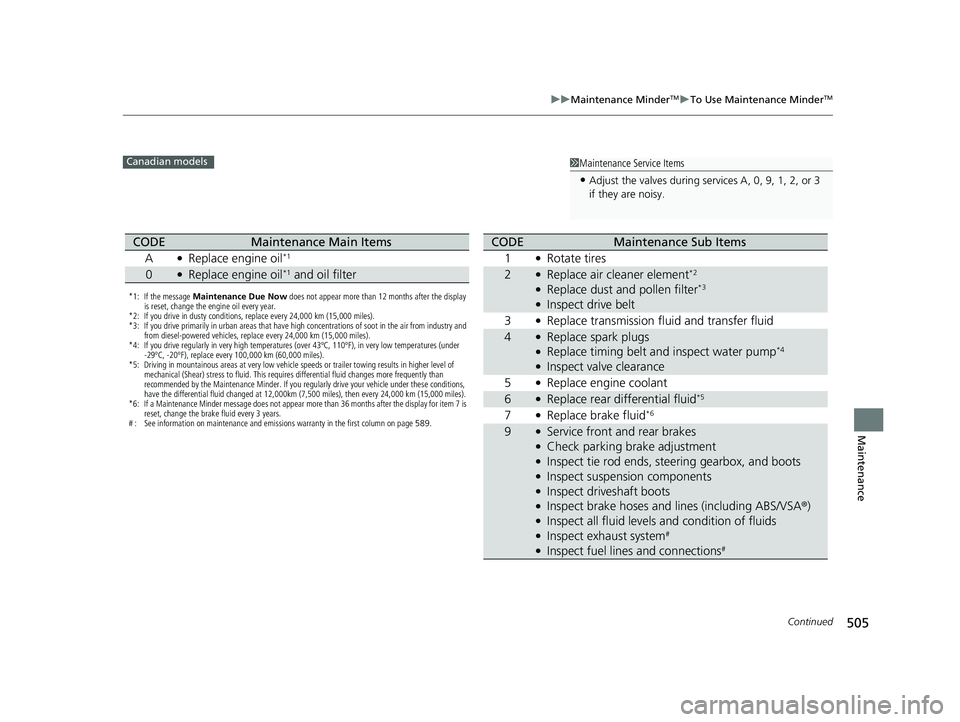

uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
1Maintenance Service Items
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If the message Maintenance Due Now does not appear more than 12 months after the display
is reset, change the engine oil every year.
*2: If you drive in dusty conditions, replace every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace every 24,000 km (15,000 miles).
*4: If you drive regularly in very high temperatures (over 43ºC, 110ºF), in very low temperatures (under -29ºC, -20ºF), replace every 100,000 km (60,000 miles).
*5: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher level of mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than
recommended by the Maintenance Minder. If you regularly drive your vehicle under these conditions,
have the differential fluid changed at 12,000km (7,500 miles), then every 24,000 km (15,000 miles).
*6: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty in the first column on page 589.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid and transfer fluid
4●Replace spark plugs●Replace timing belt and inspect water pump*4
●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*5
7●Replace brake fluid*6
9●Service front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, st eering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and lines (including ABS/VSA ®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
22 PASSPORT-31TGS6300.book 505 ページ ２０２１年１０月６日　水曜日　午前１０時２分

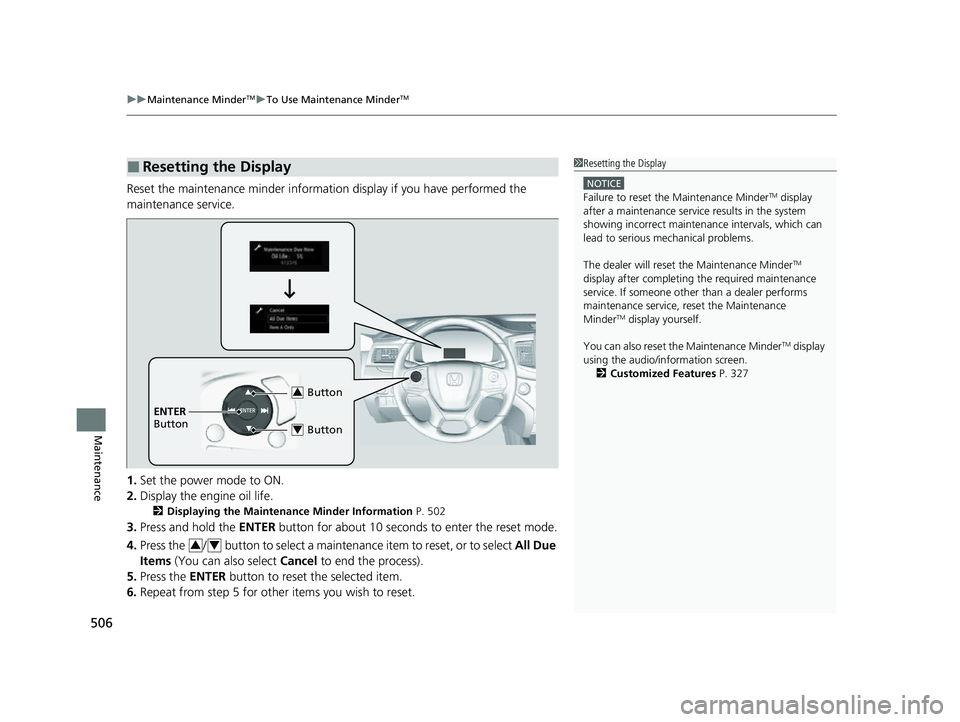

uuMaintenance MinderTMuTo Use Maintenance MinderTM
506
Maintenance
Reset the maintenance minder informati on display if you have performed the
maintenance service.
1. Set the power mode to ON.
2. Display the engine oil life.
2 Displaying the Maintenance Minder Information P. 502
3.Press and hold the ENTER button for about 10 seconds to enter the reset mode.
4. Press the / button to select a maintenance item to reset, or to select All Due
Items (You can also select Cancel to end the process).
5. Press the ENTER button to reset the selected item.
6. Repeat from step 5 for other items you wish to reset.
■Resetting the Display1Resetting the Display
NOTICE
Failure to reset the Maintenance MinderTM display
after a maintenance servic e results in the system
showing incorrect maintena nce intervals, which can
lead to serious mechanical problems.
The dealer will reset the Maintenance Minder
TM
display after completing th e required maintenance
service. If someone other than a dealer performs
maintenance service, reset the Maintenance
Minder
TM display yourself.
You can also reset the Maintenance Minder
TM display
using the audio/information screen. 2 Customized Features P. 327
Button3
ENTER
Button
Button4
34
22 PASSPORT-31TGS6300.book 506 ページ ２０２１年１０月６日　水曜日　午前１０時２分

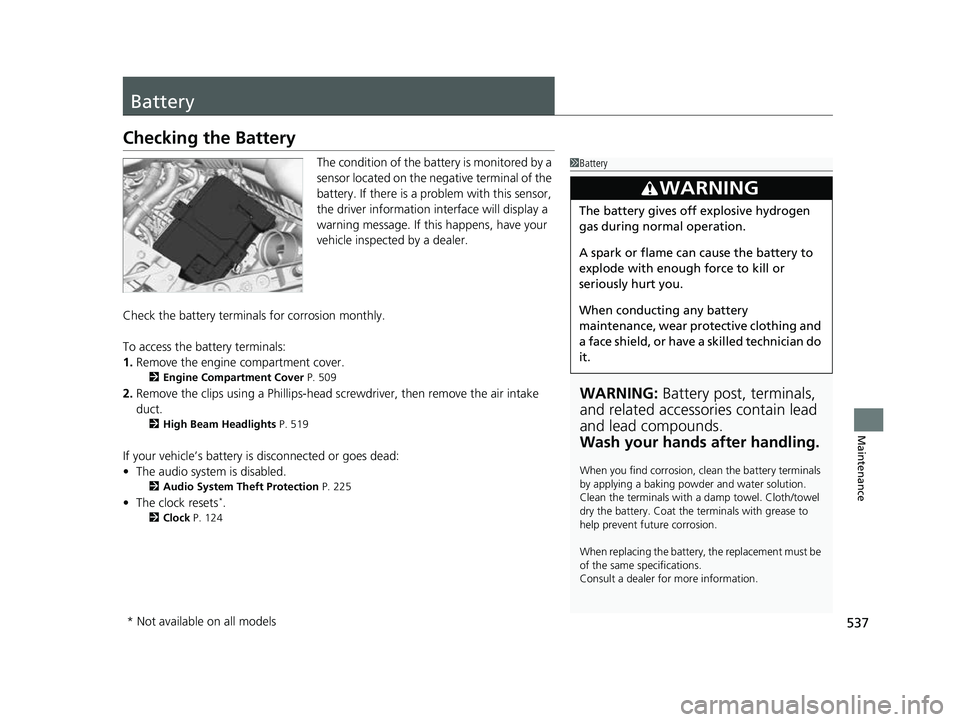

537
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information interface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery termin als for corrosion monthly.
To access the battery terminals:
1. Remove the engine compartment cover.
2 Engine Compartment Cover P. 509
2.Remove the clips using a Ph illips-head screwdriver, then remove the air intake
duct.
2 High Beam Headlights P. 519
If your vehicle’s battery is disconnected or goes dead:
•The audio system is disabled.
2 Audio System Theft Protection P. 225
•The clock resets*.
2 Clock P. 124
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
* Not available on all models
22 PASSPORT-31TGS6300.book 537 ページ ２０２１年１０月６日　水曜日　午前１０時２分

Index
595
Index
Index
A
AAC................................................... 276, 279
ABS (Anti-lock Brake System) .................. 478
AC Power Outlet ...................................... 200
Accessories and Modifications ................ 547
Accessory Power Sockets ......................... 199
Adaptive Cruise Control (ACC) ................ 446
Adaptive Cruise Control (ACC) Indicator
(Amber) ..................................................... 93
Adaptive Cruise Control (ACC) Indicator (Green) ...................................................... 93
Additives Coolant .................................................. 515
Engine Oil ............................................... 510
Washer ................................................... 518
Additives, Engine Oil ............................... 510
Adjusting
Armrest .................................................. 191
Front Seats.............................................. 181
Head Restraints ............................... 188, 189
Mirrors.................................................... 179
Rear Seats ............................................... 185
Steering Wheel ....................................... 178
Agile Handling Assist ............................... 422
Air Conditioning System
(Climate Control System) ....................... 213
Changing the Mode................................ 213
Defrosting the Windshield and
Windows .............................................. 214
Dust and Pollen Filter .............................. 541
Recirculation/Fresh Air Mode................... 214 Sensor ..................................................... 219
Synchronization Mode ............................. 216
Using Automatic Climate Control ............ 213
Air Pressure ....................................... 529, 583
Airbags ........................................................ 47
Advanced Airbags ..................................... 53
After a Collision ......................................... 51
Airbag Care ............................................... 61
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 50
Indicator .............................................. 58, 84
Passenger Airbag Off Indicator .................. 59
Sensors ...................................................... 47
Side Airbags .............................................. 55
Side Curtain Airbags .................................. 57
All-wheel drive (AWD) Indicator ............... 91
AM/FM Radio ............................................ 260
Android Auto ............................................ 298
Anti-lock Brake System (ABS) .................. 478
Indicator .................................................... 83
Apple CarPlay ........................................... 295
Armrest ..................................................... 191
AT&T Hotspot ........................................... 293
Audio Remote Controls ............................ 226
Audio System .................................... 222, 228
Adjusting the Sound ................................ 254
AM/FM Radio .......................................... 260
Android Auto .......................................... 298
Apple CarPlay .......................................... 295
AT&T Hotspot .......................................... 293
Audio/Information Screen ........................ 229 Auxiliary Input Jack.................................. 224
Changing the Screen Brightness .............. 255
Display Setup .......................................... 255
Error Messages ........................................ 302
File Manager ........................................... 248
General Information ................................ 305
HD Subchannel ....................................... 262
Home Screen........................................... 234
HondaLink
®........................................... 287
How to Delete a File ................................ 251
How to Transfer a File ............................. 248
How to Update Wirelessly ....................... 242
How to Update with a USB Device........... 246
iPod ........................................................ 273
Limitations for Manual Operation ............ 256
MP3/WMA/AAC .............................. 276, 279
My Honda Music ..................................... 279
Playing AM/FM Radio .............................. 260
Playing Bluetooth ® Audio ........................ 283
Playing SiriusXM ® Radio .......................... 263
Playing Social Playlist ............................... 285
Reactivating ............................................ 225
Remote Controls ..................................... 226
Security Code .......................................... 225
Selecting an Audio Source ....................... 256
Siri Eyes Free ........................................... 294
Status Area ............................................. 239
System Updates....................................... 242
Thef t Prot ect

ion ...................................... 225
Updating Apps ........................................ 240
USB Flash Drives .............................. 276, 306
22 PASSPORT-31TGS6300.book 595 ページ ２０２１年１０月６日　水曜日　午前１０時２分

598
Index
Displaying Maintenance Minder
Information............................................ 502
Engine Oil Low Warning .......................... 567
Recommended Engine Oil ........................ 510
Engine Oil Low Warning .......................... 567
ENGINE START/STOP Button .................... 158
EPS (Electric Power Steering) System ....... 569
Exhaust Gas Hazard (Carbon Monoxide) .. 77
Exterior Care (Cleaning) ........................... 544
Exterior Mirrors ......................................... 180
F
Features..................................................... 221
File Manager ............................................. 248
Filters
Dust and Pollen ....................................... 541
Oil ........................................................... 513
Flat Tire ..................................................... 551
Floor Mats ................................................. 543
Fluids
Automatic Transmission ........................... 517
Brake ....................................................... 518
Engine Coolant ........................................ 515
Windshield Washer .................................. 518
FM/AM Radio ............................................ 260
Fog Light Indicator ..................................... 87
Fog Lights .................................................. 165
Folding Down the Rear Seat .................... 186
Foot Brake ................................................. 477
Front Airbags (SRS) ..................................... 50 Front Seats
................................................ 181
Adjusting ................................................ 181
Front Sensor Camera ................................ 473
Fuel ...................................................... 24, 493
Economy ................................................. 496
Gauge ..................................................... 107
Instant Fuel Economy .............................. 113
Low Fuel Indicator ..................................... 83
Range ..................................................... 113
Recommendation .................................... 493
Refueling................................................. 493
Fuel Economy ........................................... 496
Fuel Fill Cap .............................................. 495
Fuel Fill Door ...................................... 24, 494
Unable to Unlock .................................... 578
Fuses .......................................................... 572
Inspecting and Changing......................... 576
Locations......................... 572, 573, 574, 575
G
Gasoline (Fuel) Economy ................................................. 496
Gauge ..................................................... 107
Information ............................................. 493
Instant Fuel Economy .............................. 113
Low Fuel Indicator ..................................... 83
Refueling................................................. 493
Gauges ...................................................... 107
Gear Position Indicator ...................... 81, 405 Gear Shift Positions
Automatic Transmission .......................... 403
Glass (care) ............................................... 545
Glove Box ................................................. 195
H
Handling the Unexpected ....................... 549
HandsFreeLink® (HFL).............................. 349
Automatic Import of Cellular Phonebook
and Call History..................................... 358
Automatic Transferring ........................... 357
Displaying Messages ............................... 368
Favorite Contacts .................................... 359
HFL Buttons ............................................ 349
HFL Menus.............................................. 352
HFL Status Display ................................... 351
In Case of Emergency ............................. 372
Limitations for Manual Operation ............ 351
Making a Call ......................................... 361
Options During a Call.............................. 364
Phone Setup ........................................... 354
Receiving a Call....................................... 364
Receiving a Text Message........................ 366
Ringtone ................................................. 357
Selecting a Phone ................................... 367
To Set Up a Text Message Options .......... 365
Hazard Warning Button .............................. 6
HD Radio
TM............................................... 262
Head Restraints ................................ 188, 189
22 PASSPORT-31TGS6300.book 598 ページ ２０２１年１０月６日　水曜日　午前１０時２分

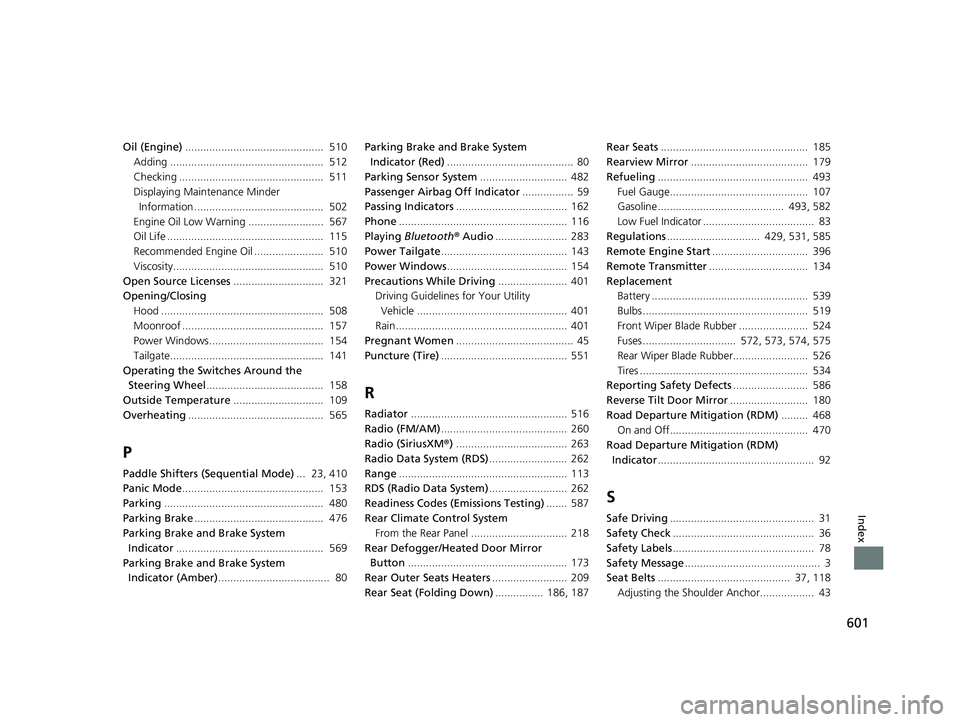

601
Index
Oil (Engine).............................................. 510
Adding ................................................... 512
Checking ................................................ 511
Displaying Maintenance Minder Information ........................................... 502
Engine Oil Low Warning ......................... 567
Oil Life .................................................... 115
Recommended Engine Oil ....................... 510
Viscosity.................................................. 510
Open Source Licenses .............................. 321
Opening/Closing
Hood ...................................................... 508
Moonroof ............................................... 157
Power Windows...................................... 154
Tailgate................................................... 141
Operating the Switches Around the Steering Wheel ....................................... 158
Outside Temperature .............................. 109
Overheating ............................................. 565
P
Paddle Shifters (Sequential Mode) ... 23, 410
Panic Mode ............................................... 153
Parking ..................................................... 480
Parking Brake ........................................... 476
Parking Brake and Brake System
Indicator ................................................. 569
Parking Brake and Brake System Indicator (Amber) ..................................... 80 Parking Brake and Brake System
Indicator (Red) .......................................... 80
Parking Sensor System ............................. 482
Passenger Airbag Off Indicator ................. 59
Passing Indicators ..................................... 162
Phone ........................................................ 116
Playing Bluetooth ® Audio ........................ 283
Power Tailgate .......................................... 143
Power Windows ........................................ 154
Precautions While Driving ....................... 401
Driving Guidelines for Your Utility
Vehicle .................................................. 401
Rain ......................................................... 401
Pregnant Women ....................................... 45
Puncture (Tire) .......................................... 551
R
Radiator.................................................... 516
Radio (FM/AM) .......................................... 260
Radio (SiriusXM ®) ..................................... 263
Radio Data System (RDS) .......................... 262
Range ........................................................ 113
RDS (Radio Data System) .......................... 262
Readiness Codes (Emissions Testing) ....... 587
Rear Climate Control System From the Rear Panel ................................ 218
Rear Defogger/Heated Door Mirror Button ..................................................... 173
Rear Outer Seats Heaters ......................... 209
Rear Seat (Folding Down) ................ 186, 187Rear Seats
................................................. 185
Rearview Mirror ....................................... 179
Refueling .................................................. 493
Fuel Gauge.............................................. 107
Gasoline .......................................... 493, 582
Low Fuel Indicator ..................................... 83
Regulations ............................... 429, 531, 585
Remote Engine Start ................................ 396
Remote Transmitter ................................. 134
Replacement Battery .................................................... 539
Bulbs ....................................................... 519
Front Wiper Blade Rubber ....................... 524
Fuses ............................... 572, 573, 574, 575
Rear Wiper Blade Rubber......................... 526
Tires ........................................................ 534
Reporting Safety Defects ......................... 586
Reverse Tilt Door Mirror .......................... 180
Road Departure Mitigation (RDM) ......... 468
On and Off.............................................. 470
Road Departure Mitigation (RDM) Indicator .................................................... 92
S
Safe Driving ................................................ 31
Safety Check ............................................... 36
Safety Labels ............................................... 78
Safety Message ............................................. 3
Seat Belts ............................................ 37, 118
Adjusting the Shoulder Anchor.................. 43
22 PASSPORT-31TGS6300.book 601 ページ ２０２１年１０月６日　水曜日　午前１０時２分

602
Index
Automatic Seat Belt Tensioners .................. 41
Checking ................................................... 46
Detachable Anchor .................................... 44
Fastening ................................................... 42
Installing a Child Seat with a Lap/Shoulder Seat Belt.................................... 70
Pregnant Women ...................................... 45
Reminder ................................................... 39
Warning Indicator ................................ 39, 83
Seat Heaters .............................. 207, 208, 209
Seat Ventilation ........................................ 208
Seats .......................................................... 181
Adjusting ................................................. 181
Driver’s Seat Lumbar Support................... 182
Folding Down the Rear Seat............. 186, 187
Front Seats .............................................. 181
Rear Seats................................................ 185
Seat Heaters ............................ 207, 208, 209
Seat Ventilation ....................................... 208
Security System ......................................... 151
Immobilizer System Indicator ..................... 87
Security System Alarm Indicator ................. 87
Select Button ....................................... 22, 403
Operation .......................................... 22, 405
Selecting a Child Seat ................................. 66
Sequential Mode ...................................... 409
Sequential Mode Operation .................... 410
Setting the Clock ...................................... 124
Settings Arrange Apps .......................................... 120
Show Tachometer.................................... 121 Shift Button
........................................ 22, 403
Shifting (Transmission) ....................... 22, 403
Shoulder Anchor ........................................ 43
Show Tachometer .................................... 121
Show/Hide Apps ....................................... 119
Side Airbags ................................................ 55
Side Curtain Airbags .................................. 57
Siri Eyes Free ............................................. 294
SiriusXM ® Radio ........................................ 263
Snow Tires ................................................. 536
Social Playlist ............................................ 285
Spare Tire .......................................... 551, 583
Spark Plugs ............................................... 582
Specifications ............................................ 582
Specified Fuel ................................... 493, 582
Speedometer ............................................ 108
SRS Airbags (Airbags) ................................. 50
Starting Assist Brake Function ................. 416
Starting the Engine .................................. 394
Does Not Start......................................... 559
If the Battery Is Dead ............................... 562
Remote Engine Start................................ 396
Steering Wheel ......................................... 178
Adjusting ................................................ 178
Heater ..................................................... 210
Stopping ................................................... 480
Summer Tires ............................................ 536
Sunglasses Holder ..................................... 205
Sunshades ................................................. 206
Supplemental Restraint System (SRS) ........ 50Switches (Around the Steering
Wheel) ............................................ 6, 7, 158
SYNC Mode .............................................. 216
System Message Indicator ......................... 88
System Updates ........................................ 242
T
Tachometer.............................................. 108
Tailgate ..................................................... 141
Unable to Open ...................................... 580
Temperature Gauge .................................................... 107
Outside Temperature Display .................. 109
Temperature Gauge ................................ 107
Temperature Sensor ........................ 109, 219
Tie-down Anchors .................................... 211
Time (Setting) ........................................... 124
Tire Fill Assist ............................................ 570
Tire Pressure ............................................. 115
Tire Pressure Monitoring System (TPMS)
Indicator ................................................... 86
Tires .......................................................... 528
Air Pressure..................................... 529, 583
Checking and Maintaining ...................... 528
Inspection ............................................... 528
Labeling .................................................. 529
Puncture (Flat Tire) .................................. 551
Regulations ............................................. 531
Rotation.................................................. 535
Spare Tire ....................................... 551, 583
22 PASSPORT-31TGS6300.book 602 ページ ２０２１年１０月６日　水曜日　午前１０時２分
