123
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 124
Locking and Unlocking the Doors Key Types and Functions .................. 126
Low Keyless Remote Signal Strength .... 128Locking/Unlocking the Doors from the Outside .......................................... 129
Locking/Unlocking the Doors from the Inside ............................................. 137
Childproof Door Locks ..................... 139
Auto Door Locking/Unlocking .......... 140
Opening and Closing the Tailgate ... 141
Security System ................................ 151
Opening and Closing the Windows ..... 154
Moonroof*........................................ 157
Operating the Switches Around the Steering Wheel ENGINE START/STOP Button............. 158
Turn Signals ..................................... 161
Light Switches.................................. 162
Fog Lights
*...................................... 165
Daytime Running Lights ................... 166
Auto High-Beam .............................. 167
Wipers and Washers ........................ 170
Rear Defogger/Heat ed Door Mirror
*
Button ........................................... 173
Brightness Control ........................... 175
Driving Position Memory System
*.... 176 Adjusting the Steering Wheel .......... 178
Adjusting the Mirrors Interior Rearview Mirror ................... 179
Power Door Mirrors ......................... 180
Adjusting the Seats
Front Seats ...................................... 181
Rear Seats........................................ 185
Armrest ........................................... 191
Interior Lights/Interior Convenience
ItemsInterior Lights .................................. 192
Interior Convenience Items .............. 195
Climate Control System ................... 213
* Not available on all models
22 PASSPORT-31TGS6300.book 123 ページ ２０２１年１０月６日　水曜日　午前１０時２分

151Continued
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains electronic transmitters that use electronic
signals to verify the key.
Pay attention to the follo wing when pressing the ENGINE START/STOP button:
• Do not allow objects that emit strong radio waves near the ENGINE START/
STOP button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle’s immobilizer system near the ENGINE
START/STOP button.
• Do not put the key near magnetic items. El ectronic device, such as televisions and
audio systems emit strong magnetic fiel ds. Note that even a key chain can
become magnetic.
Security System Alarm
The security system alarm activates when the tailgate, hood or doors are forcibly
opened. The alarm does not activate if the tailgate or doors are opened with the key,
remote transmitter or keyless access system.
However, the alarm activates if a door is op ened with the key and then the hood is
opened before the power mode is set to ON.
1 Immobilizer System
NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
1 Security System Alarm
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
The security alarm continues for a maximum of two
minutes until the security system alarm deactivates.
22 PASSPORT-31TGS6300.book 151 ページ ２０２１年１０月６日　水曜日　午前１０時２分

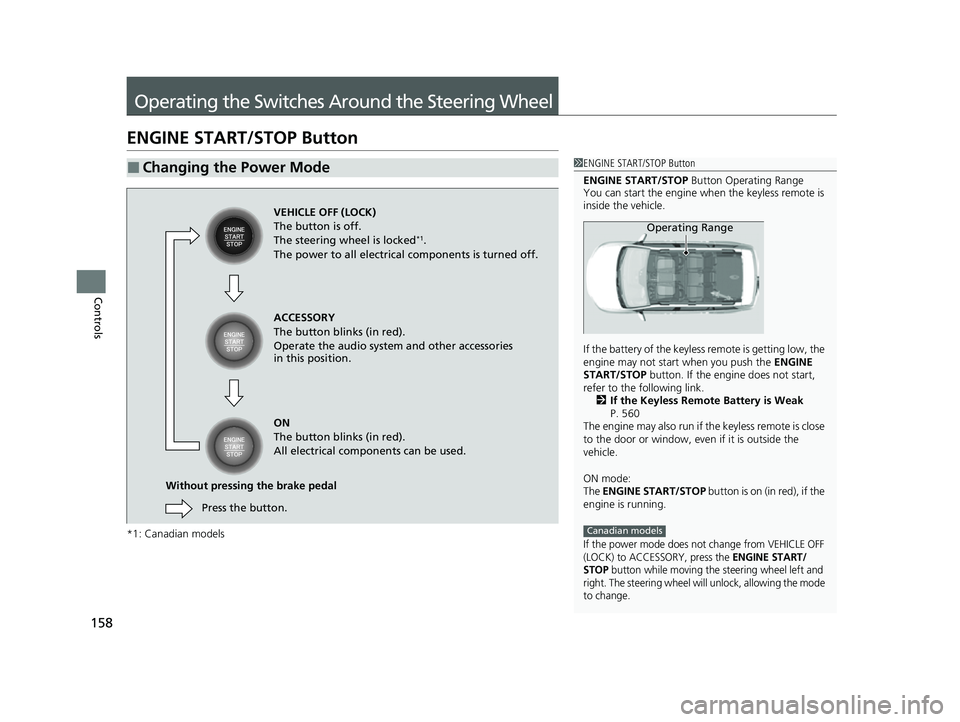

158
Controls
Operating the Switches Around the Steering Wheel
ENGINE START/STOP Button
*1: Canadian models
■Changing the Power Mode1ENGINE START/STOP Button
ENGINE START/STOP Button Operating Range
You can start the engine when the keyless remote is
inside the vehicle.
If the battery of the keyless remote is getting low, the
engine may not start when you push the ENGINE
START/STOP button. If the engi ne does not start,
refer to the following link. 2 If the Keyless Remote Battery is Weak
P. 560
The engine may also run if the keyless remote is close
to the door or window, even if it is outside the
vehicle.
ON mode:
The ENGINE START/STOP button is on (in red), if the
engine is running.
If the power mode does not change from VEHICLE OFF
(LOCK) to ACCESSORY, press the ENGINE START/
STOP button while moving the steering wheel left and
right. The steering wheel will unlock, allowing the mode
to change.
Operating Range
Canadian models
VEHICLE OFF (LOCK)
The button is off.
The steering wheel is locked
*1.
The power to all electrical components is turned off.
ACCESSORY
The button blinks (in red).
Operate the audio system and other accessories
in this position.
ON
The button blinks (in red).
All electrical components can be used.
Without pressing the brake pedal Press the button.
22 PASSPORT-31TGS6300.book 158 ページ ２０２１年１０月６日　水曜日　午前１０時２分

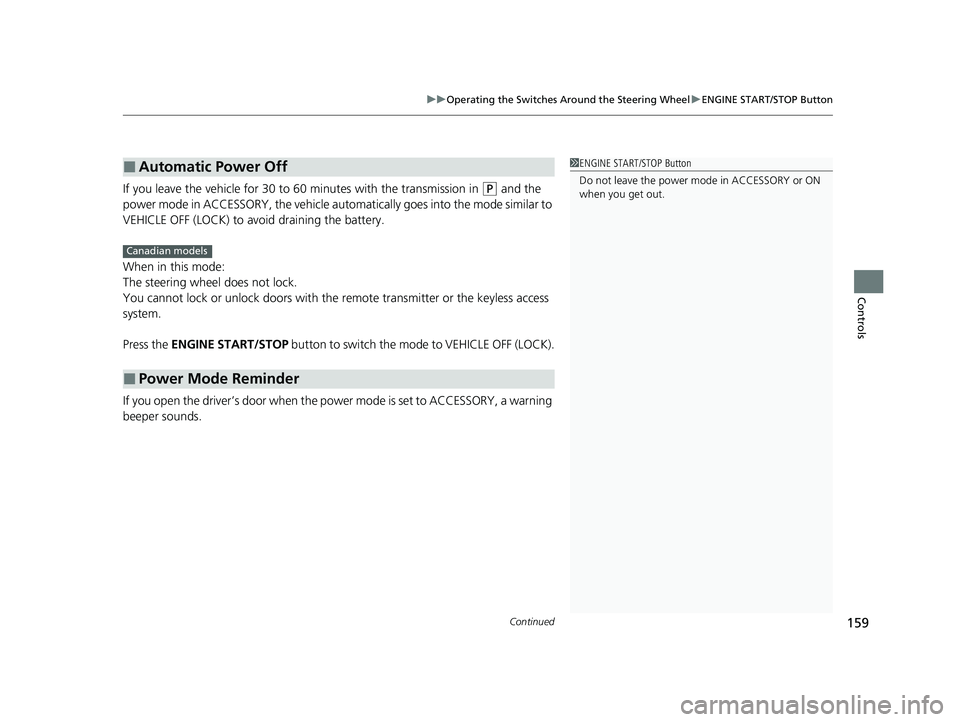

Continued159
uuOperating the Switches Around the Steering Wheel uENGINE START/STOP Button
Controls
If you leave the vehicle for 30 to 60 minutes with the transmission in (P and the
power mode in ACCESSORY, the vehicle automa tically goes into the mode similar to
VEHICLE OFF (LOCK) to avoid draining the battery.
When in this mode:
The steering wheel does not lock.
You cannot lock or unlock doors with the remote transmitter or the keyless access
system.
Press the ENGINE START/STOP button to switch the mode to VEHICLE OFF (LOCK).
If you open the driver’s door when the pow er mode is set to ACCESSORY, a warning
beeper sounds.
■Automatic Power Off
■Power Mode Reminder
1 ENGINE START/STOP Button
Do not leave the power mode in ACCESSORY or ON
when you get out.
Canadian models
22 PASSPORT-31TGS6300.book 159 ページ ２０２１年１０月６日　水曜日　午前１０時２分

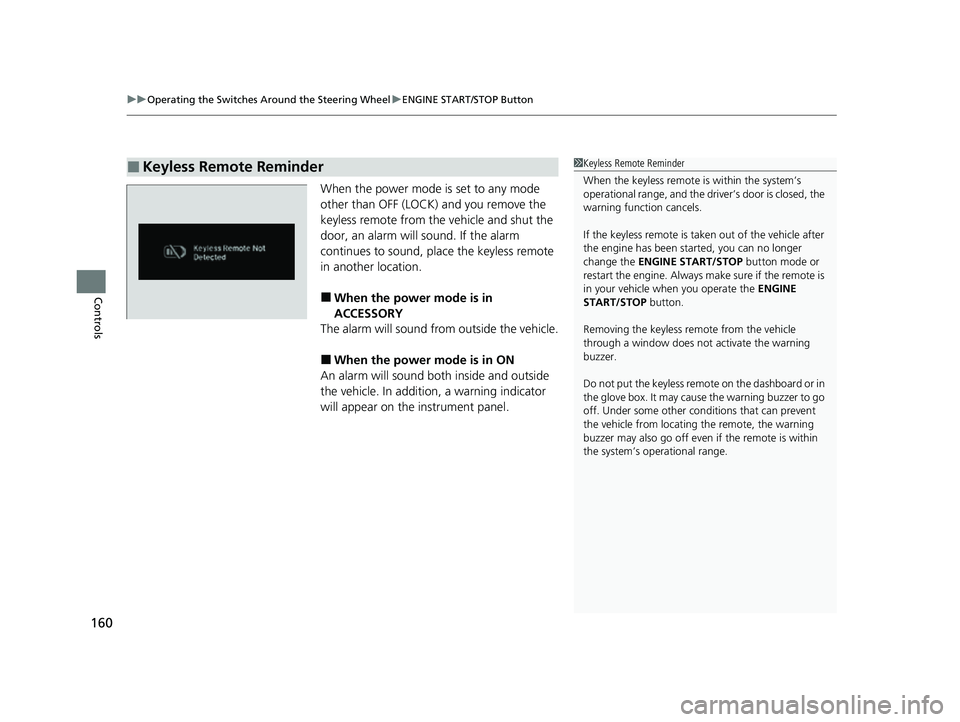

uuOperating the Switches Around the Steering Wheel uENGINE START/STOP Button
160
Controls
When the power mode is set to any mode
other than OFF (LOCK) and you remove the
keyless remote from the vehicle and shut the
door, an alarm will sound. If the alarm
continues to sound, pl ace the keyless remote
in another location.
■When the power mode is in
ACCESSORY
The alarm will sound from outside the vehicle.
■When the power mode is in ON
An alarm will sound both inside and outside
the vehicle. In addition, a warning indicator
will appear on the instrument panel.
■Keyless Remote Reminder1 Keyless Remote Reminder
When the keyless remote is within the system’s
operational range, and the driv er’s door is closed, the
warning function cancels.
If the keyless remote is taken out of the vehicle after
the engine has been st arted, you can no longer
change the ENGINE START/STOP button mode or
restart the engine. Always make sure if the remote is
in your vehicle when you operate the ENGINE
START/STOP button.
Removing the keyless remote from the vehicle
through a window does not activate the warning
buzzer.
Do not put the keyless remo te on the dashboard or in
the glove box. It may cause the warning buzzer to go
off. Under some other cond itions that can prevent
the vehicle from locating the remote, the warning
buzzer may also go off even if the remote is within
the system’s operational range.
22 PASSPORT-31TGS6300.book 160 ページ ２０２１年１０月６日　水曜日　午前１０時２分

uuClimate Control System uUsing Automatic Climate Control
214
Controls
■Switching between the recirc ulation and fresh air modes
Press the button and switch the mode depending on environmental conditions.
Recirculation Mode (indicator on): Recirculates air from the vehicle’s interior through
the system.
Fresh Air Mode (indicator off): Maintains outside ventilation. Keep the system in
fresh air mode in normal situations.
Pressing the button turns the air
conditioner system on and automatically
switches the system to fresh air mode.
Press the button again to turn off, the
system returns to the previous settings.
■Defrosting the Windshield and Windows
1 Using Automatic Climate Control
Pressing the ON/OFF button switches the
climate control system be tween on and off. When
turned on, the system returns to your last selection.
1 Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If you press the button during Auto Idle Stop, the
engine restarts automatically.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
22 PASSPORT-31TGS6300.book 214 ページ ２０２１年１０月６日　水曜日　午前１０時２分

394
Driving
When Driving
Starting the Engine
1.Make sure the parking brake is applied.
2. Depress the brake pedal.
3. Press the ENGINE START/STOP button
without depressing the accelerator pedal.1 Starting the Engine
Keep your foot firmly on the brake pedal when
starting the engine.
The engine is harder to st art in cold weather and in
thinner air found at al titudes above 8,000 feet
(2,400 meters).
When starting the engine in cold weather, turn off all
electrical accessories such as the lights, climate
control system and rear de fogger in order to reduce
battery drain.
If you live in a region where winter is extremely cold,
an engine block heater will improve starting and
warming of the engine. Cons ult a dealer for details.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by a dealer. There may be a problem with
the engine or exhaust system.
Bring the keyless remote close to the ENGINE
START/STOP button if the batte ry in the keyless
remote is weak. 2 If the Keyless Remote Battery is Weak
P. 560
The engine may not start if the keyless remote is
subjected to strong radio waves.
Brake Pedal
22 PASSPORT-31TGS6300.book 394 ページ ２０２１年１０月６日　水曜日　午前１０時２分

Continued395
uuWhen Driving uStarting the Engine
Driving
You can turn the engine off when the vehicle is completely stopped.
1. Put the transmission into
(P.
2. Press the ENGINE START/STOP button.
■Stopping the Engine1Starting the Engine
Do not hold the ENGINE START/STOP button to
start the engine.
If the engine does not start, wait at least 30 seconds
before starting the engine again.
The immobilizer system pr otects your vehicle from
theft.
If an improperly c oded device is used, the engine’s
fuel system is disabled. 2 Immobilizer System P. 151
22 PASSPORT-31TGS6300.book 395 ページ ２０２１年１０月６日　水曜日　午前１０時２分

uuWhen Driving uStarting the Engine
396
Driving
You can remotely start the engi ne on using the keyless remote.
■To start the engine
When started remotely, the engine automati cally shuts off after 10 minutes of idling
and/or the brake pedal and ENGINE START/STOP button have not been pressed
simultaneously.
■Remote Engine Start*1 Remote Engine Start*
If there are buildings an d obstacles between your
vehicle and the remote, th e range will be reduced.
This distance may vary by external electrical
interference.
3WARNING
Carbon monoxide ga s is toxic and can
rapidly accumulate in closed or even partly
enclosed areas.
Breathing it can cause unconsciousness and
even kill you.
Never use the remote engine starter with
the vehicle parked in a garage or other
areas with limited ventilation.
Press the button, then press and
hold the button.
Some exterior lights flash once.Go within the range,
and try again.
LED: Blinks when any button is pressed.
Some exterior lights flash
six times if the engine
starts successfully. Exterior lights will not
flash if the engine does
not start.
* Not available on all models
22 PASSPORT-31TGS6300.book 396 ページ ２０２１年１０月６日　水曜日　午前１０時２分

Continued397
uuWhen Driving uStarting the Engine
Driving
To extend the run time for another 10 mi nutes during the first run, press the
button, then press an d hold the button.
u Some exterior lights flash six times if a 10-minute extension request was
transmitted successfully.
■To stop the engine
1 Remote Engine Start*
The engine may not start by the remote engine start
if:
•You have disabled a remo te engine start setting
using the driver information interface.
•The power mode is not in VEHICLE OFF (LOCK).
•The transmission is in a position other than ( P.
•The hood is open, or any door or the tailgate is
unlocked.
•You have already used the remote twice to start
the engine.
•Another registered keyless remote is in the vehicle.
•There is any antenna failure.
•The door is unlocked with the built-in key.•The engine oil pressure is low.
•The engine coolant temper ature is extremely high.
•The telematics unit malfunctions.•The security system alarm is not set.
Press and hold the
button for
one second.
Go within the range, and try again.
The exterior lights will not flash when the remote
is out of the keyless access system range.
The engine will not stop.
The exterior lights flash once if the engine stops successfully.
* Not available on all models
22 PASSPORT-31TGS6300.book 397 ページ ２０２１年１０月６日　水曜日　午前１０時２分
