service indicator HONDA PASSPORT 2022 Owners Manual

Quick Reference Guide
27
Handling the Unexpected (P549)
Flat Tire (P551)
●Park in a safe location and replace the
flat tire with the compact spare tire
located in the cargo area.
Indicators Come On (P567)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P559)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P572)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P565)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P577)
●Call a professional towing service if you
need to tow your vehicle.
22 PASSPORT-31TGS6300.book 27 ページ ２０２１年１０月６日　水曜日　午前１０時２分

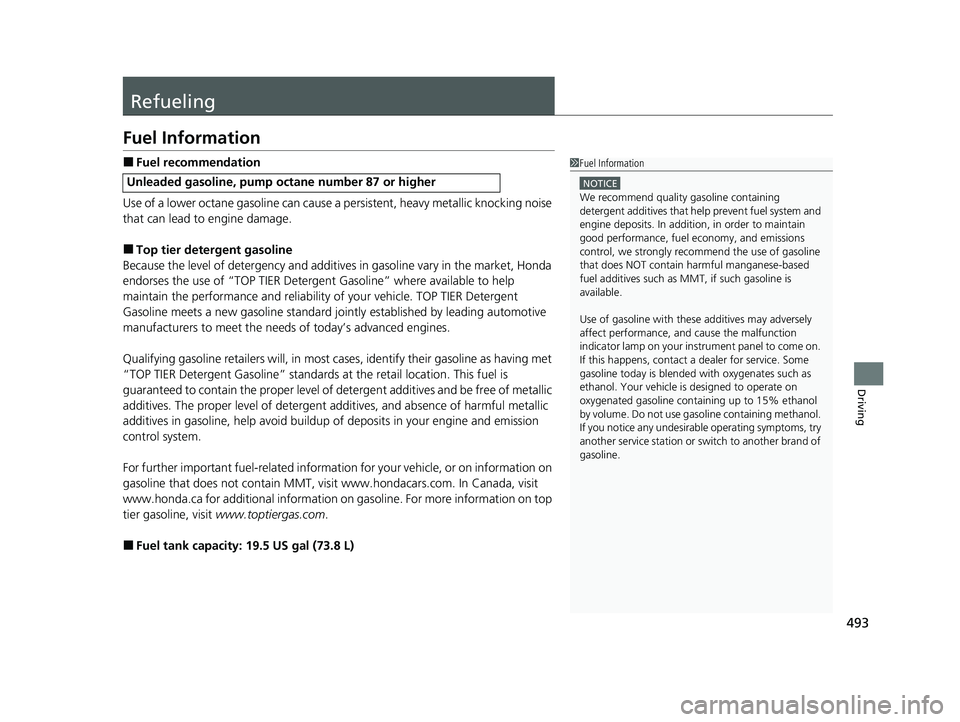

493
Driving
Refueling
Fuel Information
■Fuel recommendation
Use of a lower octane gasoline can cause a persistent, heavy metallic knocking noise
that can lead to engine damage.
■Top tier detergent gasoline
Because the level of detergency and additive s in gasoline vary in the market, Honda
endorses the use of “TOP TIER Detergent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard jointly established by leading automotive
manufacturers to meet the needs of today’s advanced engines.
Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of de tergent additives and be free of metallic
additives. The proper level of detergent ad ditives, and absence of harmful metallic
additives in gasoline, help avoid buildup of deposits in your engine and emission
control system.
For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, vi sit www.hondacars.com. In Canada, visit
www.honda.ca for additional information on gasoline. For more information on top
tier gasoline, visit www.toptiergas.com .
■Fuel tank capacity: 19.5 US gal (73.8 L)
Unleaded gasoline, pump octane number 87 or higher
1Fuel Information
NOTICE
We recommend quality ga soline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly reco mmend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.
Use of gasoline with these additives may adversely
affect performance, a nd cause the malfunction
indicator lamp on your inst rument panel to come on.
If this happens, contact a dealer for service. Some
gasoline today is blended with oxygenates such as
ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gaso line containing methanol.
If you notice any undesira ble operating symptoms, try
another service station or sw itch to another brand of
gasoline.
22 PASSPORT-31TGS6300.book 493 ページ ２０２１年１０月６日　水曜日　午前１０時２分

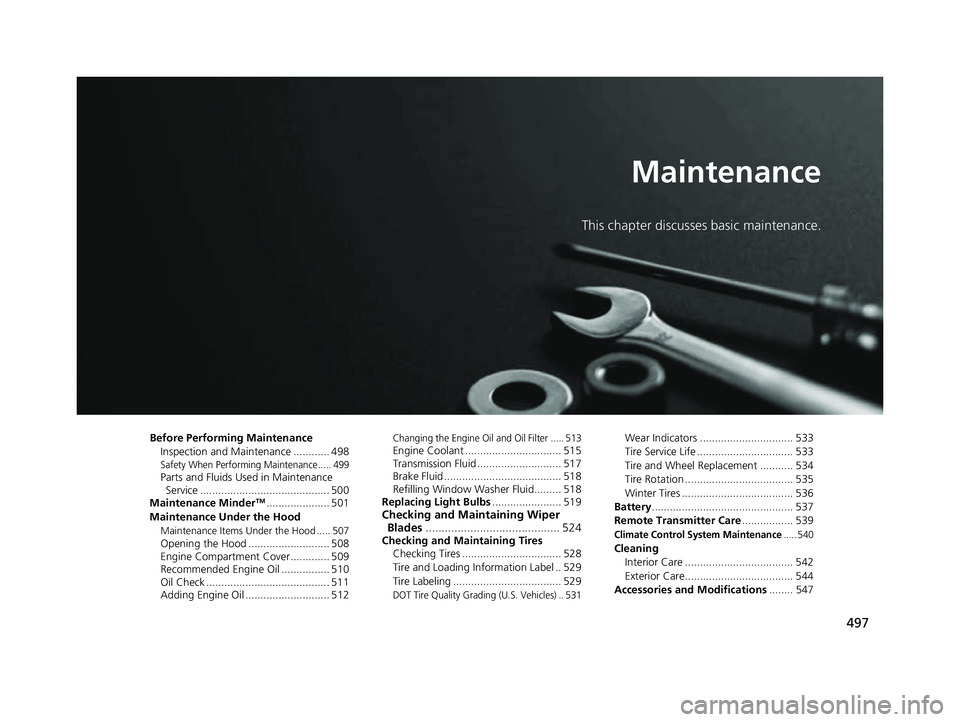

497
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 498
Safety When Performing Maintenance..... 499Parts and Fluids Used in Maintenance Service ........................................... 500
Maintenance Minder
TM..................... 501
Maintenance Under the Hood
Maintenance Items Under the Hood ..... 507Opening the Hood ........................... 508
Engine Compartment Cover ............. 509
Recommended Engine Oil ................ 510
Oil Check ......................................... 511
Adding Engine Oil ............................ 512
Changing the Engine Oil and Oil Filter ..... 513Engine Coolant ................................ 515
Transmission Fluid ............................ 517
Brake Fluid ....................................... 518
Refilling Window Washer Fluid......... 518
Replacing Light Bulbs ....................... 519
Checking and Maintaining Wiper
Blades .......................................... 524
Checking and Maintaining Tires
Checking Tires ................................. 528
Tire and Loading Information Label .. 529
Tire Labeling .................................... 529
DOT Tire Quality Grading (U.S. Vehicles) .. 531
Wear Indicators ............................... 533
Tire Service Life ................................ 533
Tire and Wheel Replacement ........... 534
Tire Rotation .................................... 535
Winter Tires ..................................... 536
Battery ............................................... 537
Remote Transmitter Care ................. 539
Climate Control System Maintenance..... 540
Cleaning
Interior Care .................................... 542
Exterior Care.................................... 544
Accessories and Modifications ........ 547
22 PASSPORT-31TGS6300.book 497 ページ ２０２１年１０月６日　水曜日　午前１０時２分

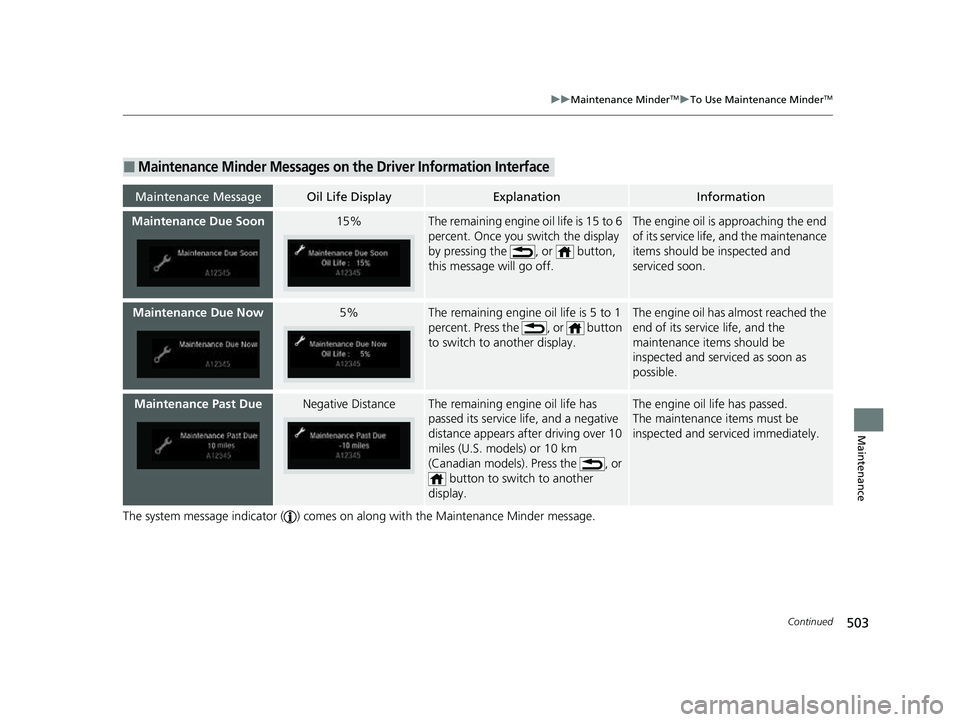

503
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
The system message indicator ( ) comes on along with the Maintenance Minder message.
■Maintenance Minder Messages on the Driver Information Interface
Maintenance MessageOil Life DisplayExplanationInformation
Maintenance Due Soon15%The remaining engine oil life is 15 to 6
percent. Once you switch the display
by pressing the , or button,
this message will go off.The engine oil is approaching the end
of its service life, and the maintenance
items should be inspected and
serviced soon.
Maintenance Due Now5%The remaining engine oil life is 5 to 1
percent. Press the , or button
to switch to another display.The engine oil has almost reached the
end of its service life, and the
maintenance items should be
inspected and servic ed as soon as
possible.
Maintenance Past DueNegative DistanceThe remaining engine oil life has
passed its service life, and a negative
distance appears after driving over 10
miles (U.S. models) or 10 km
(Canadian models). Press the , or button to switch to another
display.The engine oil life has passed.
The maintenance items must be
inspected and serviced immediately.
22 PASSPORT-31TGS6300.book 503 ページ ２０２１年１０月６日　水曜日　午前１０時２分

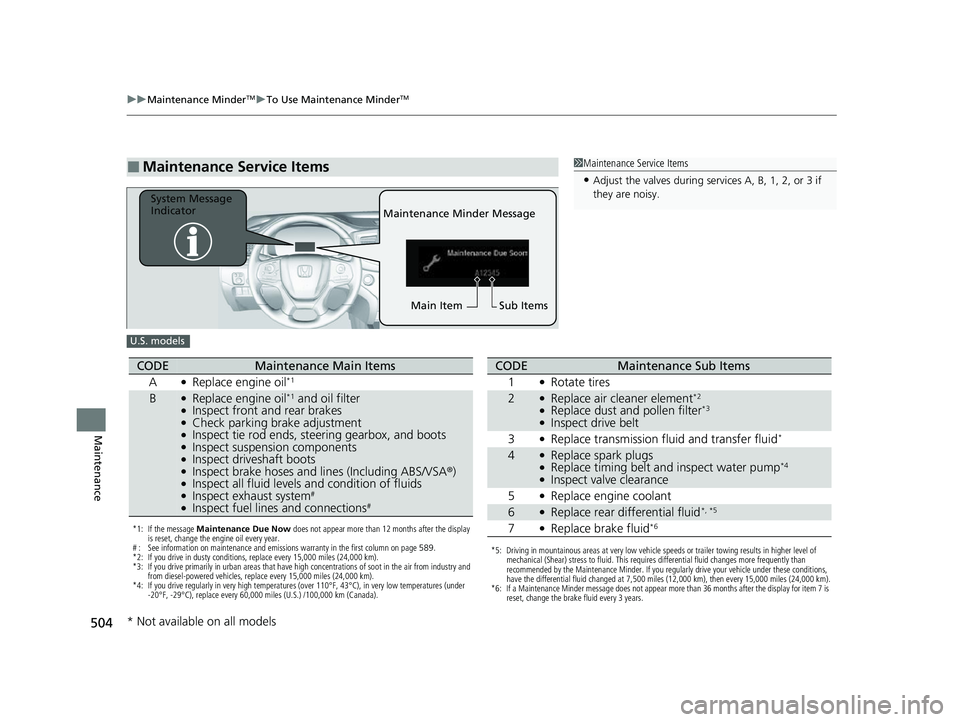

504
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If the message Maintenance Due Now does not appear more than 12 months after the display
is reset, change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 589.
*2: If you drive in dusty conditions, replace every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace every 15,000 miles (24,000 km).
*4: If you drive regularly in very high temperatures (over 110°F, 43°C), in very low temperatures (under -20°F, -29°C), replace every 60,000 miles (U.S.) /100,000 km (Canada).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*5: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher level of
mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than
recommended by the Maintenance Minder. If you regularly drive your vehicle under these conditions,
have the differential fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
*6: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid and transfer fluid*
4●Replace spark plugs●Replace timing belt and inspect water pump*4
●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*, *5
7●Replace brake fluid*6
* Not available on all models
22 PASSPORT-31TGS6300.book 504 ページ ２０２１年１０月６日　水曜日　午前１０時２分

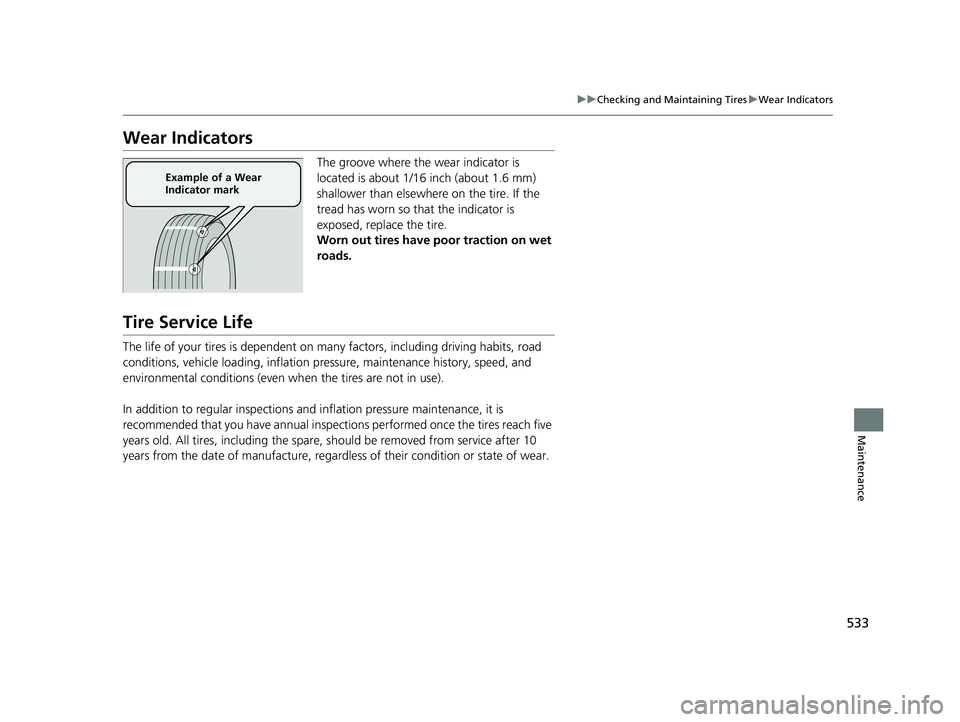

533
uuChecking and Maintaining Tires uWear Indicators
Maintenance
Wear Indicators
The groove where the wear indicator is
located is about 1/16 inch (about 1.6 mm)
shallower than elsewher e on the tire. If the
tread has worn so th at the indicator is
exposed, replace the tire.
Worn out tires have po or traction on wet
roads.
Tire Service Life
The life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even wh en the tires are not in use).
In addition to regular inspections and inflation pressure maintenance, it is
recommended that you have annual inspections performed once the tires reach five
years old. All tires, including the spare, should be removed from service after 10
years from the date of manufacture, regardle ss of their condition or state of wear.
Example of a Wear
Indicator mark
22 PASSPORT-31TGS6300.book 533 ページ ２０２１年１０月６日　水曜日　午前１０時２分

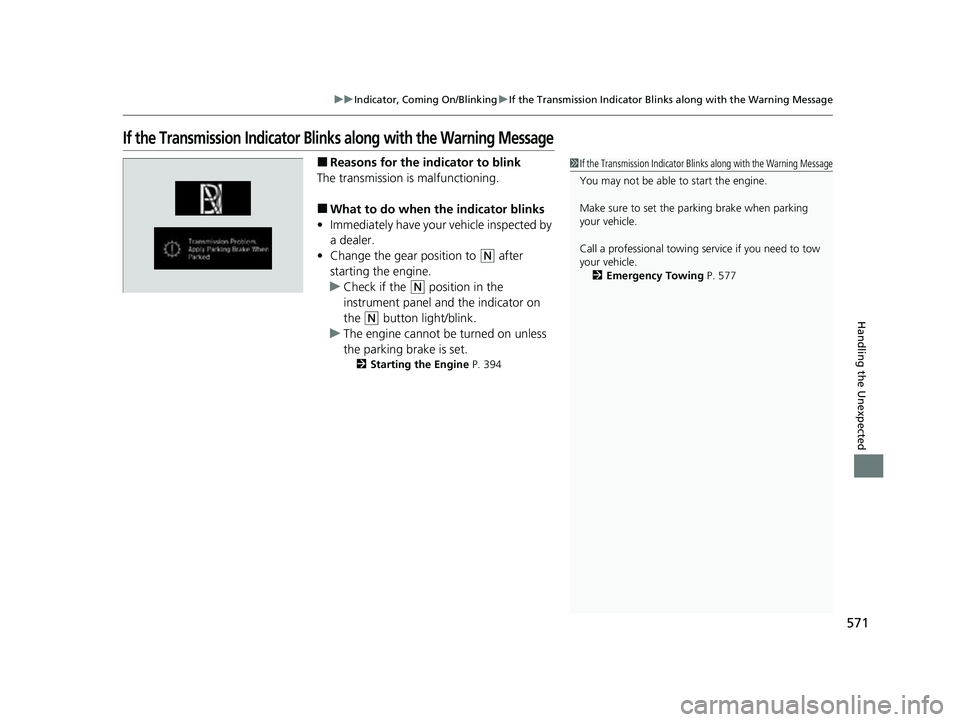

571
uuIndicator, Coming On/Blinking uIf the Transmission Indicator Blin ks along with the Warning Message
Handling the Unexpected
If the Transmission Indicator Blinks along with the Warning Message
■Reasons for the in dicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by
a dealer.
• Change the gear position to
(N after
starting the engine.
u Check if the
(N position in the
instrument panel and the indicator on
the
(N button light/blink.
u The engine cannot be turned on unless
the parking brake is set.
2 Starting the Engine P. 394
1If the Transmission Indicator Blin ks along with the Warning Message
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle.
2 Emergency Towing P. 577
22 PASSPORT-31TGS6300.book 571 ページ ２０２１年１０月６日　水曜日　午前１０時２分

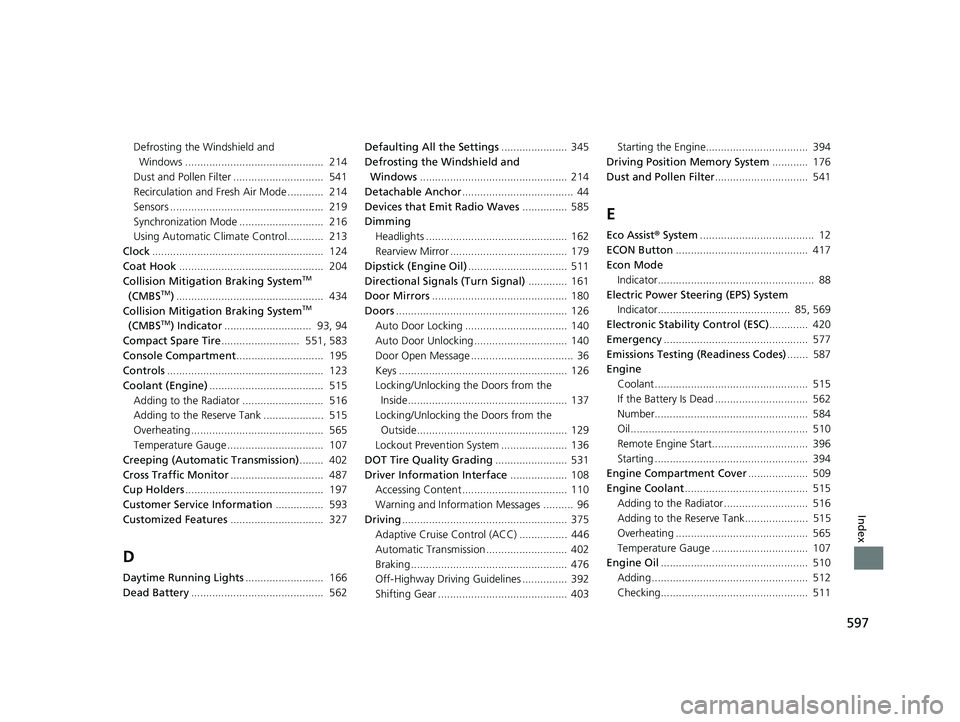

597
Index
Defrosting the Windshield and Windows .............................................. 214
Dust and Pollen Filter .............................. 541
Recirculation and Fresh Air Mode ............ 214
Sensors ................................................... 219
Synchronization Mode ............................ 216
Using Automatic Climate Control............ 213
Clock ......................................................... 124
Coat Hook ................................................ 204
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 434
Collision Mitigation Braking SystemTM
(CMBSTM) Indicator ............................. 93, 94
Compact Spare Tire .......................... 551, 583
Console Compartment ............................. 195
Controls .................................................... 123
Coolant (Engine) ...................................... 515
Adding to the Radiator ........................... 516
Adding to the Reserve Tank .................... 515
Overheating ............................................ 565
Temperature Gauge ................................ 107
Creeping (Automatic Transmission) ........ 402
Cross Traffic Monitor ............................... 487
Cup Holders .............................................. 197
Customer Service Information ................ 593
Customized Features ............................... 327
D
Daytime Running Lights .......................... 166
Dead Battery ............................................ 562 Defaulting All the Settings
...................... 345
Defrosting the Windshield and
Windows ................................................. 214
Detachable Anchor ..................................... 44
Devices that Emit Radio Waves ............... 585
Dimming Headlights ............................................... 162
Rearview Mirror ....................................... 179
Dipstick (Engine Oil) ................................. 511
Directional Signals (Turn Signal) ............. 161
Door Mirrors ............................................. 180
Doors ......................................................... 126
Auto Door Locking .................................. 140
Auto Door Unlocking ............................... 140
Door Open Message .................................. 36
Keys ........................................................ 126
Locking/Unlocking the Doors from the
Inside..................................................... 137
Locking/Unlocking the Doors from the
Outside.................................................. 129
Lockout Prevention System ...................... 136
DOT Tire Quality Grading ........................ 531
Driver Information Interface ................... 108
Accessing Content ................................... 110
Warning and Information Messages .......... 96
Driving ....................................................... 375
Adaptive Cruise Control (ACC) ................ 446
Automatic Transmission ........................... 402
Braking .................................................... 476
Off-Highway Driving Guidelines ............... 392
Shifting Gear ........................................... 403 Starting the Engine.................................. 394
Driving Position Memory System ............ 176
Dust and Pollen Filter ............................... 541
E
Eco Assist® System ...................................... 12
ECON Button ............................................ 417
Econ Mode Indicator.................................................... 88
Electric Power Steering (EPS) System Indicator............................................ 85, 569
Electronic Stability Control (ESC) ............. 420
Emergency ................................................ 577
Emissions Testing (Readiness Codes) ....... 587
Engine
Coolant ................................................... 515
If the Battery Is Dead ............................... 562
Number................................................... 584
Oil ........................................................... 510
Remote Engine Start................................ 396
Starting ................................................... 394
Engine Compartment Cover .................... 509
Engine Coolant ......................................... 515
Adding to the Radiator ............................ 516
Adding to the Reserve Tank..................... 515
Overheating ............................................ 565
Temperature Gauge ................................ 107
Engine Oil ................................................. 510
Adding .................................................... 512
Checking................................................. 511
22 PASSPORT-31TGS6300.book 597 ページ ２０２１年１０月６日　水曜日　午前１０時２分

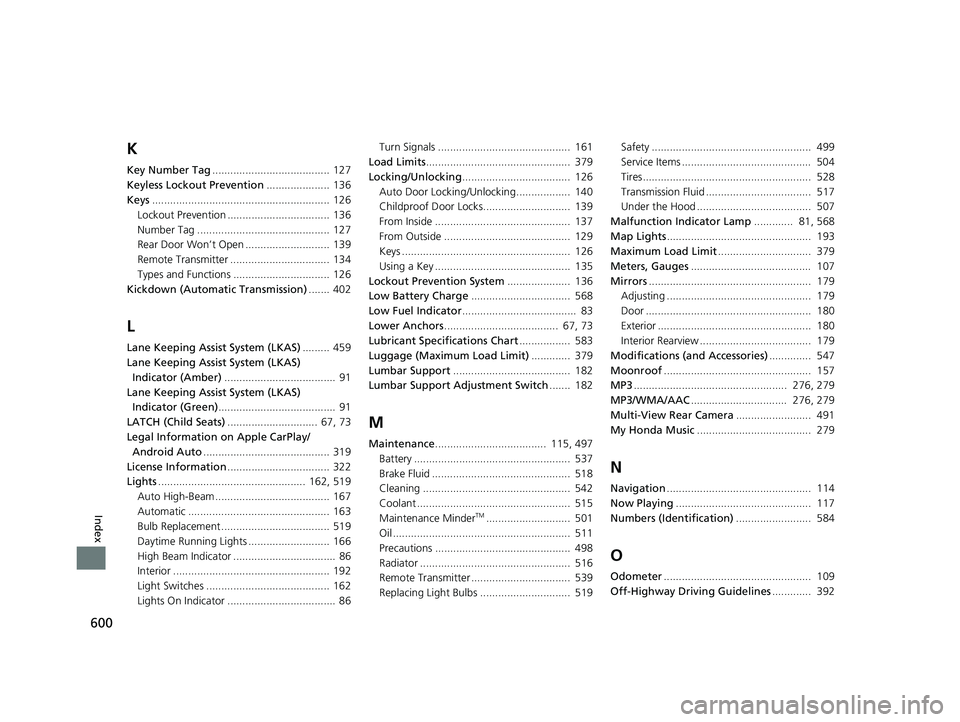

600
Index
K
Key Number Tag....................................... 127
Keyless Lockout Prevention ..................... 136
Keys ........................................................... 126
Lockout Prevention .................................. 136
Number Tag ............................................ 127
Rear Door Won’t Open ............................ 139
Remote Transmitter ................................. 134
Types and Functions ................................ 126
Kickdown (Automatic Transmission) ....... 402
L
Lane Keeping Assist System (LKAS)......... 459
Lane Keeping Assist System (LKAS) Indicator (Amber) ..................................... 91
Lane Keeping Assist System (LKAS) Indicator (Green) ....................................... 91
LATCH (Child Seats) .............................. 67, 73
Legal Information on Apple CarPlay/ Android Auto .......................................... 319
License Information .................................. 322
Lights ................................................. 162, 519
Auto High-Beam ...................................... 167
Automatic ............................................... 163
Bulb Replacement .................................... 519
Daytime Running Lights ........................... 166
High Beam Indicator .................................. 86
Interior .................................................... 192
Light Switches ......................................... 162
Lights On Indicator .................................... 86 Turn Signals ............................................ 161
Load Limits ................................................ 379
Locking/Unlocking .................................... 126
Auto Door Locking/Unlocking.................. 140
Childproof Door Locks............................. 139
From Inside ............................................. 137
From Outside .......................................... 129
Keys ........................................................ 126
Using a Key ............................................. 135
Lockout Prevention System ..................... 136
Low Battery Charge ................................. 568
Low Fuel Indicator ...................................... 83
Lower Anchors ...................................... 67, 73
Lubricant Specifications Chart ................. 583
Luggage (Maximum Load Limit) ............. 379
Lumbar Support ....................................... 182
Lumbar Support Adjustment Switch ....... 182
M
Maintenance..................................... 115, 497
Battery .................................................... 537
Brake Fluid .............................................. 518
Cleaning ................................................. 542
Coolant ................................................... 515
Maintenance Minder
TM............................ 501
Oil ........................................................... 511
Precautions ............................................. 498
Radiator .................................................. 516
Remote Transmitter ................................. 539
Replacing Light Bulbs .............................. 519 Safety ..................................................... 499
Service Items ........................................... 504
Tires........................................................ 528
Transmission Fluid ................................... 517
Under the Hood ...................................... 507
Malfunction Indicator Lamp ............. 81, 568
Map Lights ................................................ 193
Maximum Load Limit ............................... 379
Meters, Gauges ........................................ 107
Mirrors ...................................................... 179
Adjusting ................................................ 179
Door ....................................................... 180
Exterior ................................................... 180
Interior Rearview ..................................... 179
Modifications (and Accessories) .............. 547
Moonroof ................................................. 157
MP3 ................................................... 276, 279
MP3/WMA/AAC ................................ 276, 279
Multi-View Rear Camera ......................... 491
My Honda Music ...................................... 279
N
Navigation................................................ 114
Now Playing ............................................. 117
Numbers (Identification) ......................... 584
O
Odometer................................................. 109
Off-Highway Driving Guidelines ............. 392
22 PASSPORT-31TGS6300.book 600 ページ ２０２１年１０月６日　水曜日　午前１０時２分
