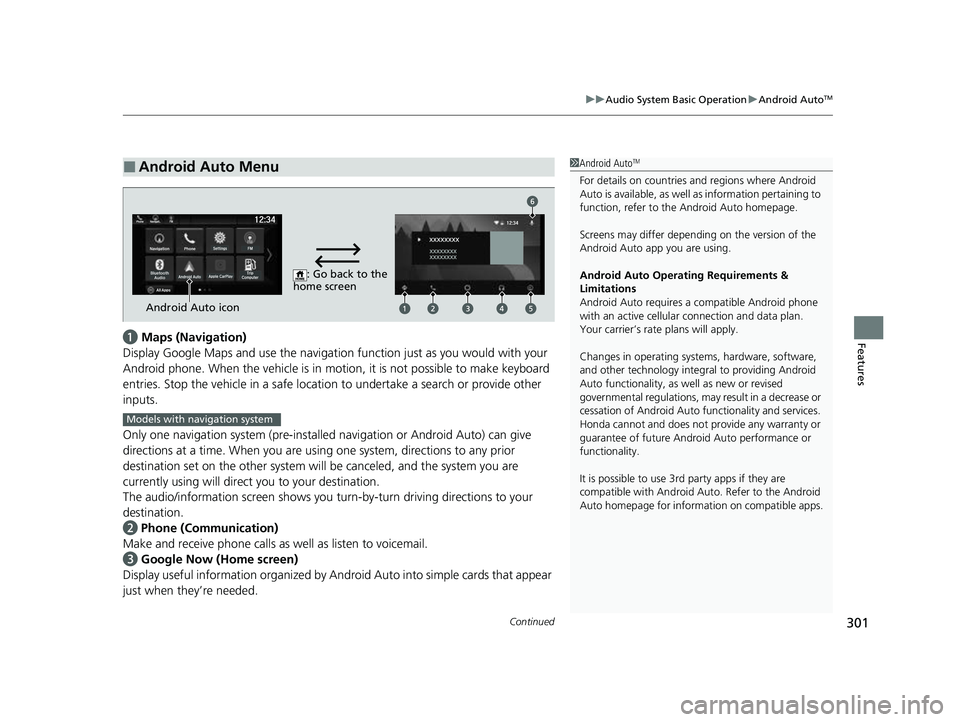

Continued301
uuAudio System Basic Operation uAndroid AutoTM
Featuresa Maps (Navigation)
Display Google Maps and use the navigation function just as you would with your
Android phone. When the vehicle is in motion, it is not possible to make keyboard
entries. Stop the vehicle in a safe locati on to undertake a search or provide other
inputs.
Only one navigation system (pre-installed navigation or Android Auto) can give
directions at a time. When you are using one system, directions to any prior
destination set on the other system will be canceled, and the system you are
currently using will direct you to your destination.
The audio/information screen shows you turn-by-turn dr iving directions to your
destination.
b Phone (Communication)
Make and receive phone calls as well as listen to voicemail.
c Google Now (Home screen)
Display useful information organized by Android Auto into simple cards that appear
just when they’re needed.
■Android Auto Menu1 Android AutoTM
For details on c ountries and regions where Android
Auto is available, as well as information pertaining to
function, refer to the Android Auto homepage.
Screens may differ depending on the version of the
Android Auto app you are using.
Android Auto Operating Requirements &
Limitations
Android Auto requires a compatible Android phone
with an active cellular connection and data plan.
Your carrier’s rate plans will apply.
Changes in operating systems, hardware, software,
and other technology integral to providing Android
Auto functionality, as well as new or revised
governmental regulations, may result in a decrease or
cessation of Android Auto functionality and services.
Honda cannot and does not pr ovide any warranty or
guarantee of future Android Auto performance or
functionality.
It is possible to use 3r d party apps if they are
compatible with Android Auto. Refer to the Android
Auto homepage for informat ion on compatible apps.
: Go back to the
home screen
Android Auto icon
Models with navigation system
23 PASSPORT-31TGS6400.book 301 ページ ２０２２年８月５日　金曜日　午後９時２分

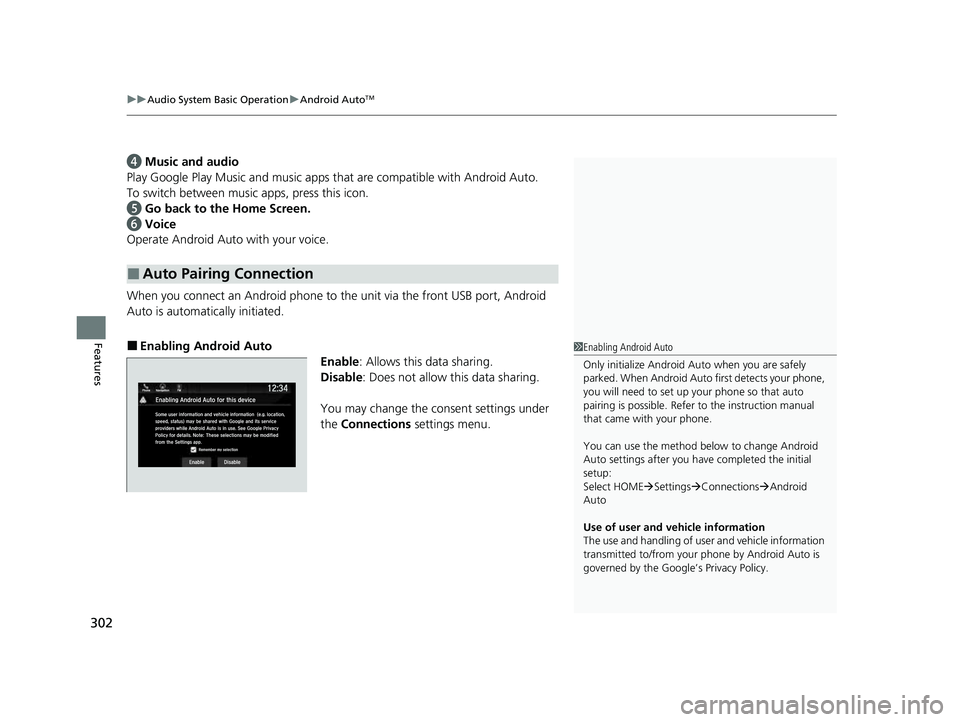

uuAudio System Basic Operation uAndroid AutoTM
302
Features
d Music and audio
Play Google Play Music and music apps that are compatible with Android Auto.
To switch between music apps, press this icon.
e Go back to the Home Screen.
f Voice
Operate Android Auto with your voice.
When you connect an Android phone to the unit via the front USB port, Android
Auto is automatically initiated.
■Enabling Android Auto Enable: Allows this data sharing.
Disable : Does not allow this data sharing.
You may change the consent settings under
the Connections settings menu.
■Auto Pairing Connection
1Enabling Android Auto
Only initialize Android Au to when you are safely
parked. When Android Auto first detects your phone,
you will need to set up your phone so that auto
pairing is possibl e. Refer to the instruction manual
that came with your phone.
You can use the method below to change Android
Auto settings after you have completed the initial
setup:
Select HOME Settings Connections Android
Auto
Use of user and vehicle information
The use and handling of user and vehicle information
transmitted to/from your phone by Android Auto is
governed by the Google’s Privacy Policy.
23 PASSPORT-31TGS6400.book 302 ページ ２０２２年８月５日　金曜日　午後９時２分

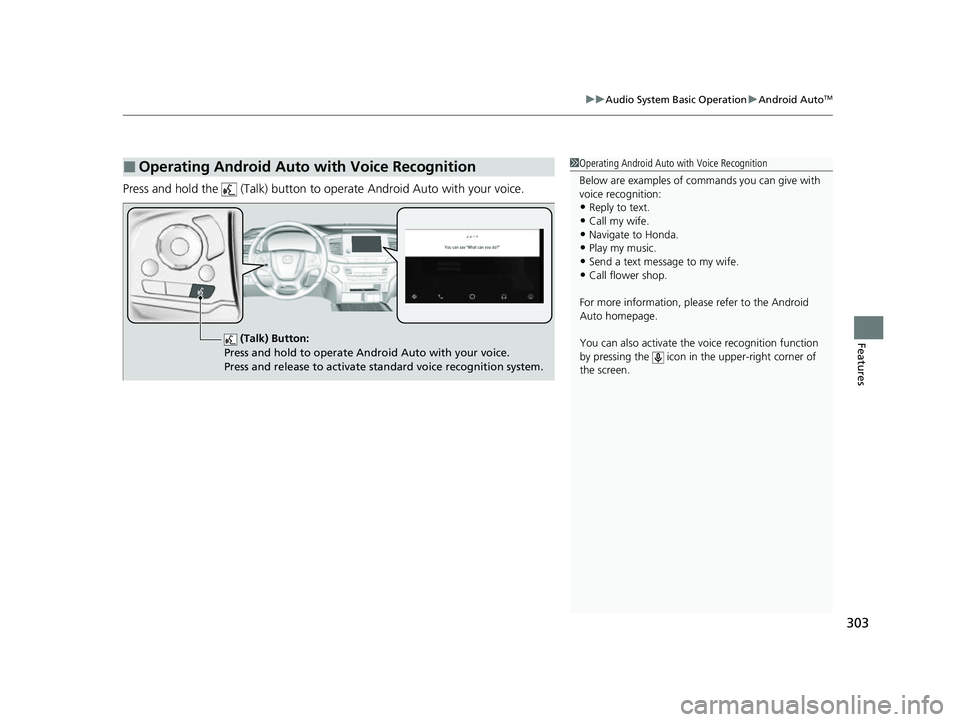

303
uuAudio System Basic Operation uAndroid AutoTM
Features
Press and hold the (Talk) button to operate Android Auto with your voice.
■Operating Android Auto with Voice Recognition1Operating Android Auto with Voice Recognition
Below are examples of co mmands you can give with
voice recognition:
•Reply to text.
•Call my wife.•Navigate to Honda.
•Play my music.
•Send a text message to my wife.•Call flower shop.
For more information, please refer to the Android
Auto homepage.
You can also activate the voice recognition function
by pressing the icon in the upper-right corner of
the screen.
(Talk) Button:
Press and hold to operate Android Auto with your voice.
Press and release to activate standard voice recognition system.
23 PASSPORT-31TGS6400.book 303 ページ ２０２２年８月５日　金曜日　午後９時２分

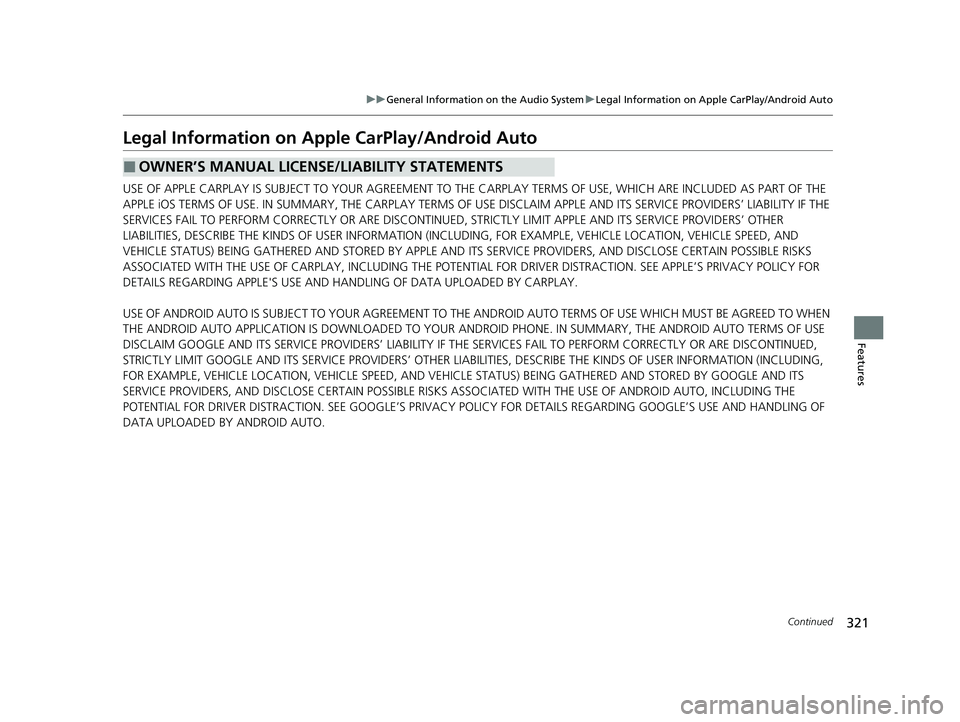

321
uuGeneral Information on the Audio System uLegal Information on Apple CarPlay/Android Auto
Continued
Features
Legal Information on Appl e CarPlay/Android Auto
USE OF APPLE CARPLAY IS SUBJECT TO YOUR AGREEMENT TO THE CARPLAY TERMS OF USE, WHICH ARE INCLUDED AS PART OF THE
APPLE iOS TERMS OF USE. IN SUMMARY, THE CARPLAY TERMS OF USE DISCLAIM APPLE AND ITS SERVICE PROVIDERS’ LIABILITY IF THE
SERVICES FAIL TO PERFORM CORRECTLY OR ARE DISCONTINUED, STRICTLY LIMIT APPLE AND ITS SERVICE PROVIDERS’ OTHER
LIABILITIES, DESCRIBE THE KINDS OF USER INFORMATION (INCLUDING, FOR EXAMPL E, VEHICLE LOCATION, VEHICLE SPEED, AND
VEHICLE STATUS) BEING GATHERED AND STORED BY APPLE AND IT S SERVICE PROVIDERS, AND DISCLOSE CERTAIN POSSIBLE RISKS
ASSOCIATED WITH THE USE OF CARPLAY, INCLUDING THE POTENTIAL FOR DRIVER DISTRACTION. SEE APPLE’S PRIVACY POLICY FOR
DETAILS REGARDING APPLE'S USE AND HANDL ING OF DATA UPLOADED BY CARPLAY.
USE OF ANDROID AUTO IS SUBJECT TO YOUR AGREEMENT TO THE ANDROID AUTO TERMS OF USE WHICH MUST BE AGREED TO WHEN\

THE ANDROID AUTO APPLICATION IS DOWNLOADED TO YOUR ANDR OID PHONE. IN SUMMARY, THE ANDROID AUTO TERMS OF USE
DISCLAIM GOOGLE AND ITS SERVICE PROVIDERS’ LIABILITY IF THE SERVICES FAIL TO PERFORM CORRECTLY OR ARE DISCONTINUED,
STRICTLY LIMIT GOOGLE AND ITS SERVICE PROV IDERS’ OTHER LIABILITIES, DESCRIBE THE KINDS OF USER INFORMATION (INCLUDING,
FOR EXAMPLE, VEHICLE LOCATION, VEHI CLE SPEED, AND VEHICLE STATUS) BEING GATHERED AND STORED BY GOOGLE AND ITS
SERVICE PROVIDERS, AND DISCLOSE CERTAIN POSSIBLE RISKS ASSOCIATED WITH THE USE OF ANDROID AUTO, INCLUDING THE
POTENTIAL FOR DRIVER DISTRACTION. SEE GOOGLE’S PRIVACY PO LICY FOR DETAILS REGARDING GOOGLE’S USE AND HANDLING OF
DATA UPLOADED BY ANDROID AUTO.
■OWNER’S MANUAL LICENSE/LIABILITY STATEMENTS
23 PASSPORT-31TGS6400.book 321 ページ ２０２２年８月５日　金曜日　午後９時２分

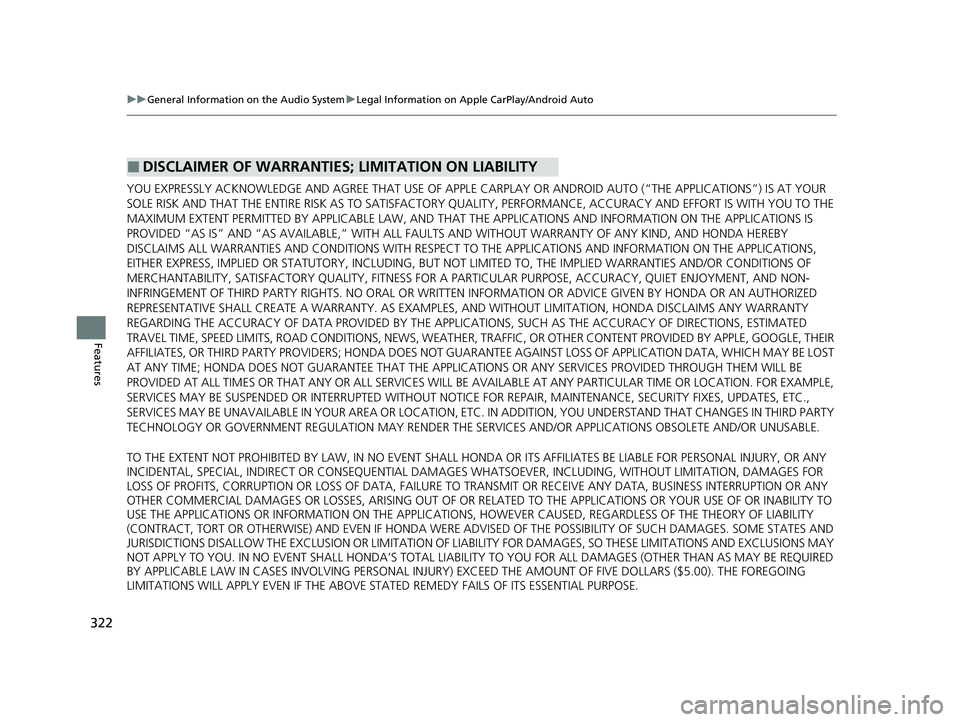

322
uuGeneral Information on the Audio System uLegal Information on Apple CarPlay/Android Auto
Features
YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT USE OF APPLE CARPLAY OR ANDROID AUTO (“THE APPLICATIONS”) IS AT YOUR
SOLE RISK AND THAT THE ENTIRE RISK AS TO SATISFACTORY QUALITY, PERFORMANCE, ACCURACY AND EFFORT IS WITH YOU TO THE
MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, AND THAT TH E APPLICATIONS AND INFORMATION ON THE APPLICATIONS IS
PROVIDED “AS IS” AND “AS AVAILABLE,” WITH ALL FAULTS AND WITHOUT WARRANTY OF ANY KIND, AND HONDA HEREBY
DISCLAIMS ALL WARRANTIES AND CONDITIONS WITH RESPECT TO TH E APPLICATIONS AND INFORMATION ON THE APPLICATIONS,
EITHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, TH E IMPLIED WARRANTIES AND/OR CONDITIONS OF
MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PART ICULAR PURPOSE, ACCURACY, QUIET ENJOYMENT, AND NON-
INFRINGEMENT OF THIRD PARTY RIGHTS. NO ORAL OR WRI TTEN INFORMATION OR ADVICE GIVEN BY HONDA OR AN AUTHORIZED
REPRESENTATIVE SHALL CREATE A WARRANT Y. AS EXAMPLES, AND WITHOUT LIMITATION, HONDA DISCLAIMS ANY WARRANTY
REGARDING THE ACCURACY OF DATA PROVIDED BY THE APPL ICATIONS, SUCH AS THE ACCURACY OF DIRECTIONS, ESTIMATED
TRAVEL TIME, SPEED LIMITS, ROAD CONDITIONS, NEWS, WEATHER, TRAFFIC, OR OTHER CONTENT PROVIDED BY APPLE, GOOGLE, THEIR
AFFILIATES, OR THIRD PARTY PROVIDERS; HONDA DOES NOT GUARANTEE AGAINST LOSS OF APPLICATION DATA, WHICH MAY BE LOST
AT ANY TIME; HONDA DOES NOT GUARANTEE THAT THE APPLICATION S OR ANY SERVICES PROVIDED THROUGH THEM WILL BE
PROVIDED AT ALL TIMES OR THAT ANY OR ALL SERVICES WILL BE AVAILABLE AT ANY PA RTICULAR TIME OR LOCATION. FOR EXAMPLE,
SERVICES MAY BE SUSPENDED OR INTERRUPTED WITHOUT NOTICE FOR REPAIR, MAINTENANCE, SECURITY FIXES, UPDATES, ETC.,
SERVICES MAY BE UNAVAILABLE IN YOUR AREA OR LOCATION, ETC. IN ADDITION, YOU UNDERSTAND THAT CHANGES IN THIRD PARTY
TECHNOLOGY OR GOVERNMENT REGULATION MAY RENDER THE SERVICES AND/OR APPLICATIONS OBSOLETE AND/OR UNUSABLE.
TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT SHALL HONDA OR ITS AFFILIATES BE LIABLE FOR PERSONAL INJURY, OR ANY
INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAG ES WHATSOEVER, INCLUDING, WITHOUT LIMITATION, DAMAGES FOR
LOSS OF PROFITS, CORRUPTION OR LOSS OF DATA, FAILURE TO TRANSMIT OR RECEIV E ANY DATA, BUSINESS INTERRUPTION OR ANY
OTHER COMMERCIAL DAMAGES OR LOSSES, ARISING OUT OF OR RELATE D TO THE APPLICATIONS OR YOUR USE OF OR INABILITY TO
USE THE APPLICATIONS OR INFORMATION ON THE APPLICATIONS, HOWEVER CAUSED, REGARDLESS OF THE THEORY OF LIABILITY
(CONTRACT, TORT OR OTHERWISE) AND EVEN IF HONDA WERE AD VISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME STATES AND
JURISDICTIONS DISALLOW THE EXCLUSION OR LIMITATION OF LI ABILITY FOR DAMAGES, SO THESE LIMITATIONS AND EXCLUSIONS MAY
NOT APPLY TO YOU. IN NO EVENT SHALL HONDA’S TOTAL LIABILIT Y TO YOU FOR ALL DAMAGES (OTHER THAN AS MAY BE REQUIRED
BY APPLICABLE LAW IN CASES INVOLVING PERSONAL INJURY) EXC EED THE AMOUNT OF FIVE DOLLARS ($5.00). THE FOREGOING
LIMITATIONS WILL APPLY EVEN IF THE ABOVE STA TED REMEDY FAILS OF ITS ESSENTIAL PURPOSE.
■DISCLAIMER OF WARRANTIES; LIMITATION ON LIABILITY
23 PASSPORT-31TGS6400.book 322 ページ ２０２２年８月５日　金曜日　午後９時２分

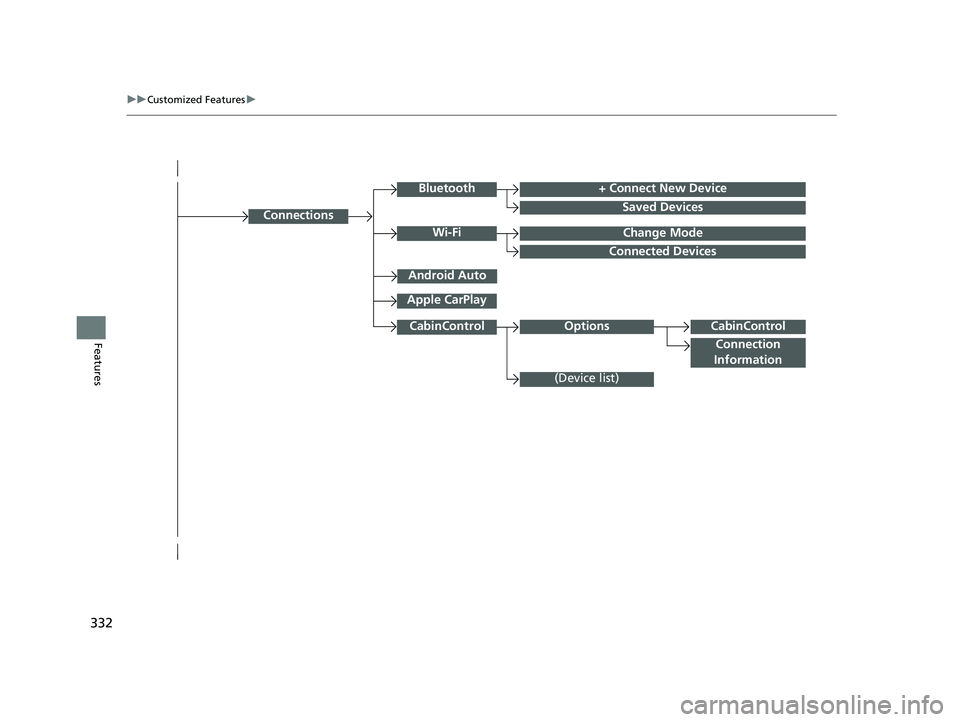

332
uuCustomized Features u
Features
Connections
+ Connect New Device
Saved Devices
Change Mode
Android Auto
Apple CarPlay
Bluetooth
Wi-Fi
Connected Devices
CabinControl
Connection
Information
(Device list)
CabinControlOptions
23 PASSPORT-31TGS6400.book 332 ページ ２０２２年８月５日　金曜日　午後９時２分

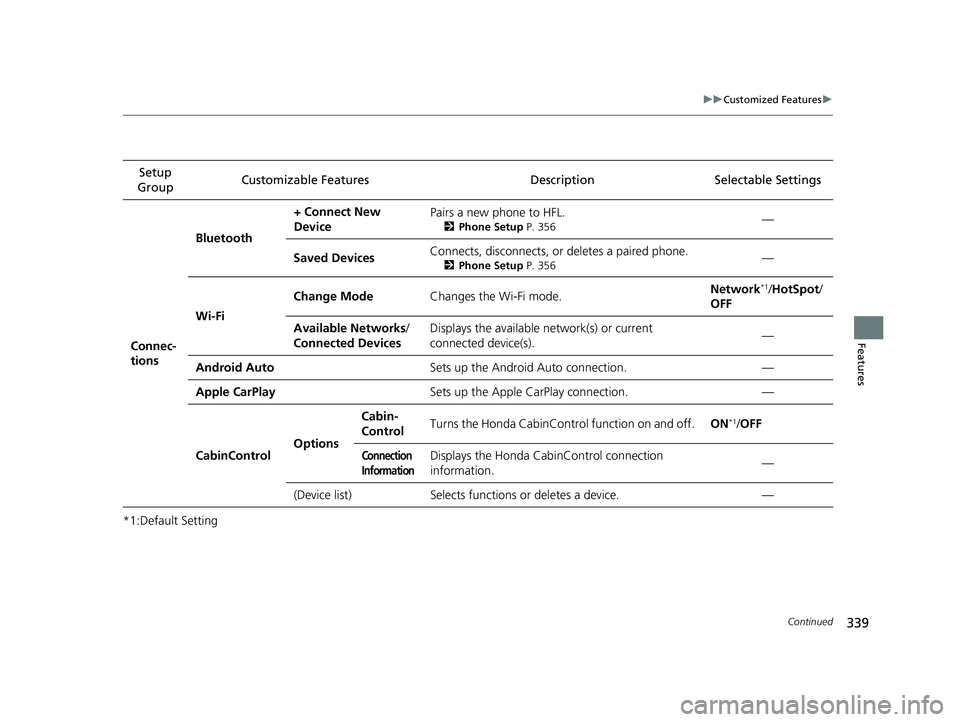

339
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Connec-
tions Bluetooth
+ Connect New
Device
Pairs a new phone to HFL.
2
Phone Setup P. 356—
Saved Devices Connects, disconnects, or deletes a paired phone.
2
Phone Setup P. 356—
Wi-Fi Change Mode
Changes the Wi-Fi mode. Network
*1/
HotSpot/
OFF
Available Networks /
Connected Devices Displays the available network(s) or current
connected device(s).
—
Android Auto Sets up the Android Auto connection. —
Apple CarPlay Sets up the Apple CarPlay connection. —
CabinControl OptionsCabin-
Control
Turns the Honda CabinControl function on and off.
ON
*1/OFF
Connection
InformationDisplays the Honda CabinControl connection
information. —
(Device list)Selects functions or deletes a device.—
23 PASSPORT-31TGS6400.book 339 ページ ２０２２年８月５日　金曜日　午後９時２分

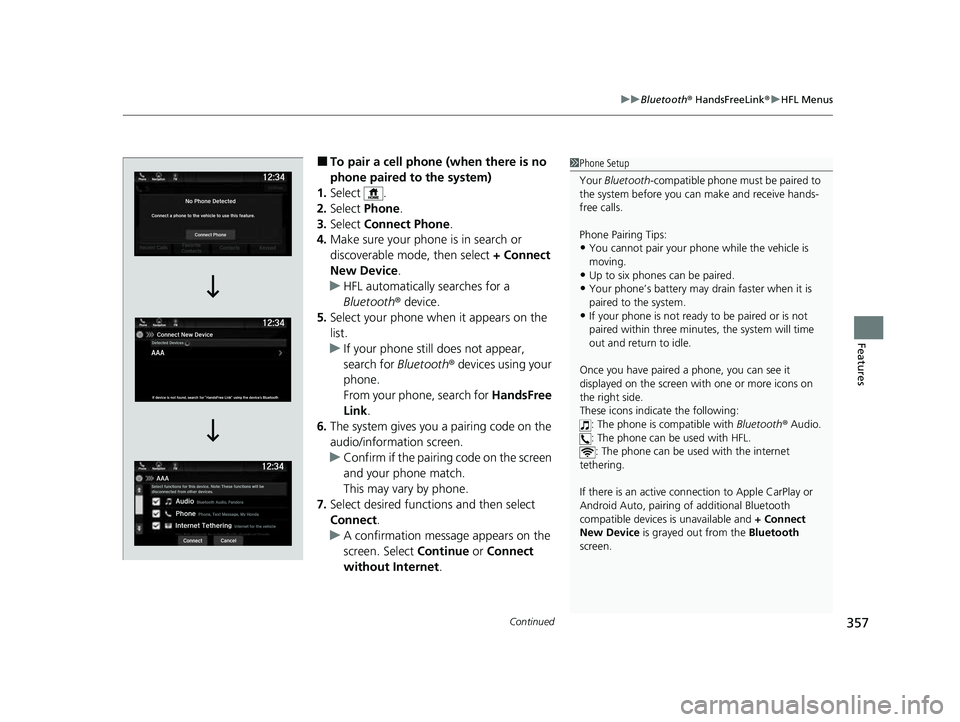

Continued357
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■To pair a cell phone (when there is no
phone paired to the system)
1. Select .
2. Select Phone.
3. Select Connect Phone .
4. Make sure your phone is in search or
discoverable mode, then select + Connect
New Device .
u HFL automatically searches for a
Bluetooth ® device.
5. Select your phone when it appears on the
list.
u If your phone still does not appear,
search for Bluetooth® devices using your
phone.
From your phone, search for HandsFree
Link .
6. The system gives you a pairing code on the
audio/information screen.
u Confirm if the pairing code on the screen
and your phone match.
This may vary by phone.
7. Select desired functions and then select
Connect .
u A confirmation message appears on the
screen. Select Continue or Connect
without Internet .1Phone Setup
Your Bluetooth -compatible phone must be paired to
the system before you ca n make and receive hands-
free calls.
Phone Pairing Tips:
•You cannot pair your phone while the vehicle is
moving.
•Up to six phones can be paired.
•Your phone’s battery may dr ain faster when it is
paired to the system.
•If your phone is not ready to be paired or is not
paired within three minutes, the system will time
out and return to idle.
Once you have paired a phone, you can see it
displayed on the screen with one or more icons on
the right side.
These icons indicate the following: : The phone is compatible with Bluetooth ® Audio.
: The phone can be used with HFL. : The phone can be used with the internet
tethering.
If there is an active connection to Appl e CarPlay or
Android Auto, pairing of additional Bluetooth
compatible devices is unavailable and + Connect
New Device is grayed out from the Bluetooth
screen.
23 PASSPORT-31TGS6400.book 357 ページ ２０２２年８月５日　金曜日　午後９時２分

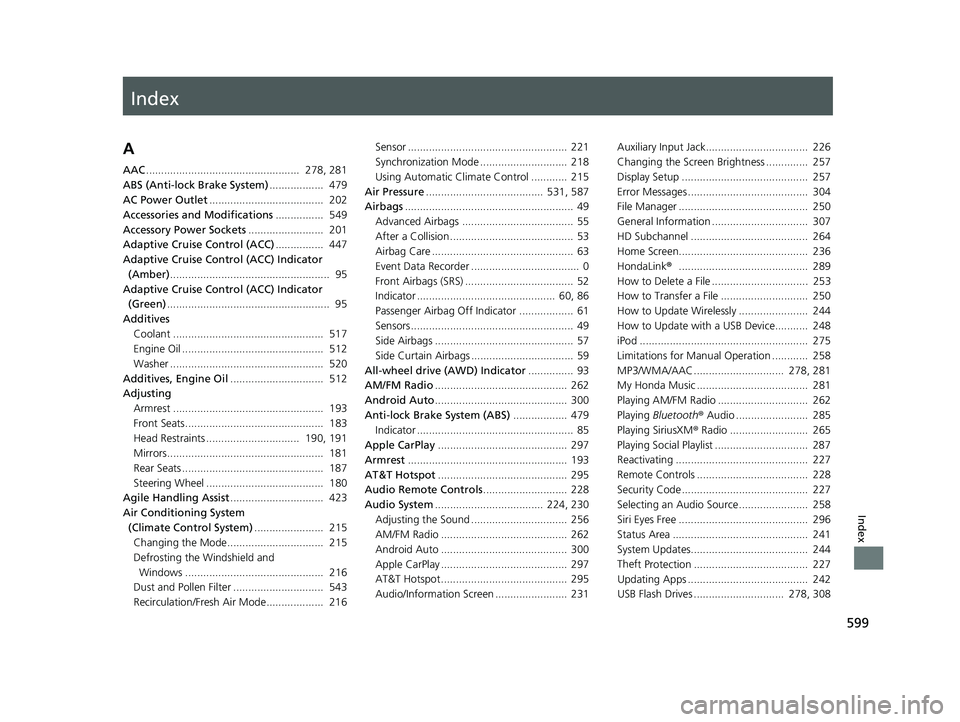

Index
599
Index
Index
A
AAC................................................... 278, 281
ABS (Anti-lock Brake System) .................. 479
AC Power Outlet ...................................... 202
Accessories and Modifications ................ 549
Accessory Power Sockets ......................... 201
Adaptive Cruise Control (ACC) ................ 447
Adaptive Cruise Control (ACC) Indicator
(Amber) ..................................................... 95
Adaptive Cruise Control (ACC) Indicator (Green) ...................................................... 95
Additives Coolant .................................................. 517
Engine Oil ............................................... 512
Washer ................................................... 520
Additives, Engine Oil ............................... 512
Adjusting
Armrest .................................................. 193
Front Seats.............................................. 183
Head Restraints ............................... 190, 191
Mirrors.................................................... 181
Rear Seats ............................................... 187
Steering Wheel ....................................... 180
Agile Handling Assist ............................... 423
Air Conditioning System
(Climate Control System) ....................... 215
Changing the Mode................................ 215
Defrosting the Windshield and
Windows .............................................. 216
Dust and Pollen Filter .............................. 543
Recirculation/Fresh Air Mode................... 216 Sensor ..................................................... 221
Synchronization Mode ............................. 218
Using Automatic Climate Control ............ 215
Air Pressure ....................................... 531, 587
Airbags ........................................................ 49
Advanced Airbags ..................................... 55
After a Collision ......................................... 53
Airbag Care ............................................... 63
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 52
Indicator .............................................. 60, 86
Passenger Airbag Off Indicator .................. 61
Sensors ...................................................... 49
Side Airbags .............................................. 57
Side Curtain Airbags .................................. 59
All-wheel drive (AWD) Indicator ............... 93
AM/FM Radio ............................................ 262
Android Auto ............................................ 300
Anti-lock Brake System (ABS) .................. 479
Indicator .................................................... 85
Apple CarPlay ........................................... 297
Armrest ..................................................... 193
AT&T Hotspot ........................................... 295
Audio Remote Controls ............................ 228
Audio System .................................... 224, 230
Adjusting the Sound ................................ 256
AM/FM Radio .......................................... 262
Android Auto .......................................... 300
Apple CarPlay .......................................... 297
AT&T Hotspot .......................................... 295
Audio/Information Screen ........................ 231 Auxiliary Input Jack.................................. 226
Changing the Screen Brightness .............. 257
Display Setup .......................................... 257
Error Messages ........................................ 304
File Manager ........................................... 250
General Information ................................ 307
HD Subchannel ....................................... 264
Home Screen........................................... 236
HondaLink
®........................................... 289
How to Delete a File ................................ 253
How to Transfer a File ............................. 250
How to Update Wirelessly ....................... 244
How to Update with a USB Device........... 248
iPod ........................................................ 275
Limitations for Manual Operation ............ 258
MP3/WMA/AAC .............................. 278, 281
My Honda Music ..................................... 281
Playing AM/FM Radio .............................. 262
Playing Bluetooth ® Audio ........................ 285
Playing SiriusXM ® Radio .......................... 265
Playing Social Playlist ............................... 287
Reactivating ............................................ 227
Remote Controls ..................................... 228
Security Code .......................................... 227
Selecting an Audio Source ....................... 258
Siri Eyes Free ........................................... 296
Status Area ............................................. 241
System Updates....................................... 244
Thef t Prot ect

ion ...................................... 227
Updating Apps ........................................ 242
USB Flash Drives .............................. 278, 308
23 PASSPORT-31TGS6400.book 599 ページ ２０２２年８月５日　金曜日　午後９時２分

604
Index
K
Key Number Tag....................................... 129
Keyless Lockout Prevention ..................... 138
Keys ........................................................... 128
Lockout Prevention .................................. 138
Number Tag ............................................ 129
Rear Door Won’t Open ............................ 141
Remote Transmitter ................................. 136
Types and Functions ................................ 128
Kickdown (Automatic Transmission) ....... 404
L
Lane Keeping Assist System (LKAS)......... 460
Lane Keeping Assist System (LKAS) Indicator (Amber) ..................................... 93
Lane Keeping Assist System (LKAS) Indicator (Green) ....................................... 93
LATCH (Child Seats) .............................. 69, 75
Legal Information on Apple CarPlay/ Android Auto .......................................... 321
License Information .................................. 324
Lights ................................................. 164, 521
Auto High-Beam ...................................... 169
Automatic ............................................... 165
Bulb Replacement .................................... 521
Daytime Running Lights ........................... 168
High Beam Indicator .................................. 88
Interior .................................................... 194
Light Switches ......................................... 164
Lights On Indicator .................................... 88 Turn Signals ............................................ 163
Load Limits ................................................ 381
Locking/Unlocking .................................... 128
Auto Door Locking/Unlocking.................. 142
Childproof Door Locks............................. 141
From Inside ............................................. 139
From Outside .......................................... 131
Keys ........................................................ 128
Using a Key ............................................. 137
Lockout Prevention System ..................... 138
Low Battery Charge ................................. 571
Low Fuel Indicator ...................................... 85
Lower Anchors ...................................... 69, 75
Lubricant Specifications Chart ................. 587
Luggage (Maximum Load Limit) ............. 381
Lumbar Support ....................................... 184
Lumbar Support Adjustment Switch ....... 184
M
Maintenance..................................... 117, 499
Battery .................................................... 539
Brake Fluid .............................................. 520
Cleaning ................................................. 544
Coolant ................................................... 517
Maintenance Minder
TM............................ 503
Oil ........................................................... 513
Precautions ............................................. 500
Radiator .................................................. 518
Remote Transmitter ................................. 541
Replacing Light Bulbs .............................. 521 Safety ..................................................... 501
Service Items ........................................... 506
Tires........................................................ 530
Transmission Fluid ................................... 519
Under the Hood ...................................... 509
Malfunction Indicator Lamp ............. 83, 571
Map Lights ................................................ 195
Maximum Load Limit ............................... 381
Meters, Gauges ........................................ 109
Mirrors ...................................................... 181
Adjusting ................................................ 181
Door ....................................................... 182
Exterior ................................................... 182
Interior Rearview ..................................... 181
Modifications (and Accessories) .............. 549
Moonroof ................................................. 159
MP3 ................................................... 278, 281
MP3/WMA/AAC ................................ 278, 281
Multi-View Rear Camera ......................... 492
My Honda Music ...................................... 281
N
Navigation................................................ 116
Now Playing ............................................. 119
Numbers (Identification) ......................... 588
O
Odometer................................................. 111
Off-Highway Driving Guidelines ............. 394
23 PASSPORT-31TGS6400.book 604 ページ ２０２２年８月５日　金曜日　午後９時２分
