recommended oil HONDA PASSPORT 2023 Owners Manual

497
Driving
Fuel Economy and CO2 Emissions
Improving Fuel Economy and Reducing CO2 Emissions
Achieving fuel economy and reducing CO2 emissions is dependent on several
factors, including driving conditions, load weight, idling time, driving habits, and
vehicle condition. Depending on these and other factors, you may not achieve the
rated fuel economy of this vehicle.
You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accord ance with the messages displayed on the
driver information interface.
• Use engine oil with the viscosity recommended.
2 Recommended Engine Oil P. 512
•Maintain the specified tire pressure.
• Do not load the vehicle with excess cargo.
• Keep your vehicle clean. A buildup of snow or mud on your vehicle’s underside
adds weight and increases wind resistance.
■Maintenance and Fuel Economy
1Improving Fuel Economy and Reducing CO2 Emissions
Direct calculation is the recommended method to
determine actual fuel consumed while driving.
In Canada, posted fuel economy numbers are
established following a simulated test.
For more information on how this test is performed,
please visit https://www.nrcan.gc.ca and search for
“fuel consumption testing” in the search field at the
top of the page.
Miles driven Gallons of
fuel Miles per
Gallon
100 Liter of fuel Kilometers
driven L per 100 km
23 PASSPORT-31TGS6400.book 497 ページ ２０２２年８月５日　金曜日　午後９時２分

499
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 500
Safety When Performing Maintenance..... 501Parts and Fluids Used in Maintenance Service ........................................... 502
Maintenance Minder
TM..................... 503
Maintenance Under the Hood
Maintenance Items Under the Hood ..... 509Opening the Hood ........................... 510
Engine Compartment Cover ............. 511
Recommended Engine Oil ................ 512
Oil Check ......................................... 513
Adding Engine Oil ............................ 514
Changing the Engine Oil and Oil Filter ..... 515Engine Coolant ................................ 517
Transmission Fluid ............................ 519
Brake Fluid ....................................... 520
Refilling Window Washer Fluid......... 520
Replacing Light Bulbs ....................... 521
Checking and Maintaining Wiper
Blades .......................................... 526
Checking and Maintaining Tires
Checking Tires ................................. 530
Tire and Loading Information Label .. 531
Tire Labeling .................................... 531
DOT Tire Quality Grading (U.S. Vehicles) .. 533
Wear Indicators ............................... 535
Tire Service Life ................................ 535
Tire and Wheel Replacement ........... 536
Tire Rotation .................................... 537
Winter Tires ..................................... 538
Battery ............................................... 539
Remote Transmitter Care ................. 541
Climate Control System Maintenance..... 542
Cleaning
Interior Care .................................... 544
Exterior Care.................................... 546
Accessories and Modifications ........ 549
23 PASSPORT-31TGS6400.book 499 ページ ２０２２年８月５日　金曜日　午後９時２分

506
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
Adjust the valves during services A, B, 1, 2, or 3 if they are noisy.*1: If the message Maintenance Due Now does not appear more than 12 months after the display
is reset, change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 593.
*2: If you drive in dusty conditions, replace every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace every 15,000 miles (24,000 km).
*4: If you drive regularly in very high temperatures (over 110°F, 43°C), in very low temperatures (under -20°F, -29°C), replace every 60,000 miles (U.S.) /100,000 km (Canada).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*5: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher level of
mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than
recommended by the Maintenance Minder. If you regularly drive your vehicle under these conditions,
have the differential fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
*6: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid and transfer fluid*
4●Replace spark plugs●Replace timing belt and inspect water pump*4
●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*, *5
7●Replace brake fluid*6
* Not available on all models
23 PASSPORT-31TGS6400.book 506 ページ ２０２２年８月５日　金曜日　午後９時２分

507
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
Canadian models
Adjust the valves during services A, 0, 9, 1, 2, or 3 if they are noisy.
*1: If the message Maintenance Due Now does not appear more than 12 months after the display
is reset, change the engine oil every year.
*2: If you drive in dusty conditions, replace every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace every 24,000 km (15,000 miles).
*4: If you drive regularly in very high temperatures (over 43ºC, 110ºF), in very low temperatures (under -29ºC, -20ºF), replace every 100,000 km (60,000 miles).
*5: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher level of mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than
recommended by the Maintenance Minder. If you regularly drive your vehicle under these conditions,
have the differential fluid changed at 12,000km (7,500 miles), then every 24,000 km (15,000 miles).
*6: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty in the first column on page 593.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid and transfer fluid
4●Replace spark plugs●Replace timing belt and inspect water pump*4
●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*5
7●Replace brake fluid*6
9●Service front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, st eering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and lines (including ABS/VSA ®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
23 PASSPORT-31TGS6400.book 507 ページ ２０２２年８月５日　金曜日　午後９時２分

512
uuMaintenance Under the Hood uRecommended Engine Oil
Maintenance
Recommended Engine Oil
Use a genuine engine oil or another commer cial engine oil of suitable type and
viscosity (for the ambient temperature) as shown in the image that follows.
Oil is a major contributor to your engine’s performance and longevity. If you drive
the vehicle with insufficient or deteriorat ed oil, the engine may fail or be damaged.
*1:Formulated to improve fuel economy.
■Synthetic oil
You may also use synthetic motor oil if it is labeled with the API Certification Seal
and is the specified viscosity grade.
Genuine Engine OilCommercial Engine Oil
●Honda Genuine Motor Oil●Premium-grade 0W-20 detergent oil
with an API Certification Seal on the
container.
1 Recommended Engine Oil
Engine Oil Additives
Your vehicle does not require oil additives. In fact,
they may adversely affect the engine performance
and durability.
The following seal indica tes the oil is energy
conserving and that it meets the American Petroleum
Institute’s late st requirements.
Ambient TemperatureAmbient Temperature
23 PASSPORT-31TGS6400.book 512 ページ ２０２２年８月５日　金曜日　午後９時２分

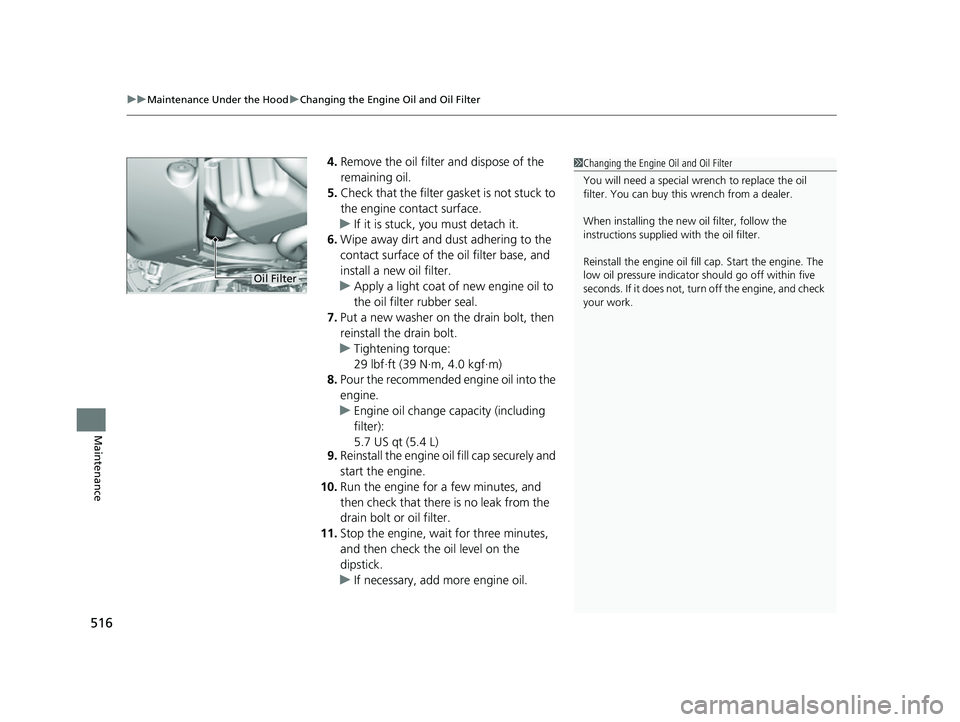

uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
516
Maintenance
4. Remove the oil filter and dispose of the
remaining oil.
5. Check that the filter ga sket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
6. Wipe away dirt and dust adhering to the
contact surface of the oil filter base, and
install a new oil filter.
u Apply a light coat of new engine oil to
the oil filter rubber seal.
7. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque:
29 lbf∙ft (39 N∙m, 4.0 kgf∙m)
8. Pour the recommended engine oil into the
engine.
u Engine oil change capacity (including
filter):
5.7 US qt (5.4 L)
9. Reinstall the engine oi l fill cap securely and
start the engine.
10. Run the engine for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.
11. Stop the engine, wait for three minutes,
and then check the oil level on the
dipstick.
u If necessary, add more engine oil.1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.
Oil Filter
23 PASSPORT-31TGS6400.book 516 ページ ２０２２年８月５日　金曜日　午後９時２分

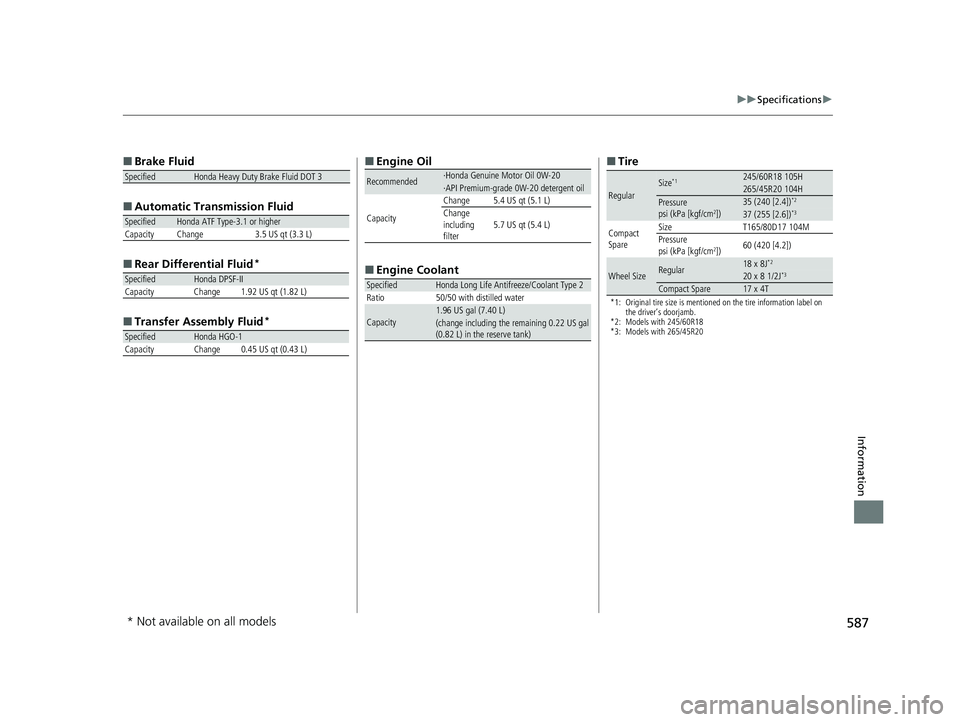

587
uuSpecifications u
Information
■
Brake Fluid
■ Automatic Tran smission Fluid
■ Rear Differential Fluid
*
■Transfer Assembly Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF Type-3.1 or higher
Capacity Change 3.5 US qt (3.3 L)
SpecifiedHonda DPSF-II
Capacity Change 1.92 US qt (1.82 L)
SpecifiedHonda HGO-1CapacityChange0.45 US qt (0.43 L)
■ Engine Oil
■ Engine Coolant
Recommended·Honda Genuine Motor Oil 0W-20·API Premium-grade 0W-20 detergent oil
Capacity
Change5.4 US qt (5.1 L)Change
including
filter5.7 US qt (5.4 L)
SpecifiedHonda Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity1.96 US gal (7.40 L)(change including the remaining 0.22 US gal
(0.82 L) in the reserve tank)
■ Tire
*1: Original tire size is mentioned on the tire information label on
the driver’s doorjamb.
*2: Models with 245/60R18
*3: Models with 265/45R20
RegularSize*1245/60R18 105H265/45R20 104HPressure
psi (kPa [kgf/cm2])35 (240 [2.4])*2
37 (255 [2.6])*3
Compact
SpareSizeT165/80D17 104MPressure
psi (kPa [kgf/cm2])60 (420 [4.2])
Wheel SizeRegular18 x 8J*2
20 x 8 1/2J*3
Compact Spare17 x 4T
* Not available on all models
23 PASSPORT-31TGS6400.book 587 ページ ２０２２年８月５日　金曜日　午後９時２分

602
Index
Displaying Maintenance Minder
Information............................................ 504
Engine Oil Low Warning .......................... 570
Recommended Engine Oil ........................ 512
Engine Oil Low Warning .......................... 570
ENGINE START/STOP Button .................... 160
EPS (Electric Power Steering) System ....... 572
Exhaust Gas Hazard (Carbon Monoxide) .. 79
Exterior Care (Cleaning) ........................... 546
Exterior Mirrors ......................................... 182
F
Features..................................................... 223
File Manager ............................................. 250
Filters
Dust and Pollen ....................................... 543
Oil ........................................................... 515
Flat Tire ..................................................... 553
Floor Mats ................................................. 545
Fluids
Automatic Transmission ........................... 519
Brake ....................................................... 520
Engine Coolant ........................................ 517
Windshield Washer .................................. 520
FM/AM Radio ............................................ 262
Fog Light Indicator ..................................... 89
Fog Lights .................................................. 167
Folding Down the Rear Seat .................... 188
Foot Brake ................................................. 478
Front Airbags (SRS) ..................................... 52 Front Seats
................................................ 183
Adjusting ................................................ 183
Front Sensor Camera ................................ 474
Fuel ...................................................... 26, 494
Economy ................................................. 497
Gauge ..................................................... 109
Instant Fuel Economy .............................. 115
Low Fuel Indicator ..................................... 85
Range ..................................................... 115
Recommendation .................................... 494
Refueling................................................. 494
Fuel Economy ........................................... 497
Fuel Fill Cap .............................................. 496
Fuel Fill Door ...................................... 26, 495
Unable to Unlock .................................... 581
Fuses .......................................................... 575
Inspecting and Changing......................... 579
Locations......................... 575, 576, 577, 578
G
Gasoline (Fuel) Economy ................................................. 497
Gauge ..................................................... 109
Information ............................................. 494
Instant Fuel Economy .............................. 115
Low Fuel Indicator ..................................... 85
Refueling................................................. 494
Gauges ...................................................... 109
Gear Position Indicator ...................... 83, 407 Gear Shift Positions
Automatic Transmission .......................... 405
Glass (care) ............................................... 547
Glove Box ................................................. 197
H
Handling the Unexpected ....................... 551
HandsFreeLink® (HFL).............................. 351
Automatic Import of Cellular Phonebook
and Call History..................................... 360
Automatic Transferring ........................... 359
Displaying Messages ............................... 370
Favorite Contacts .................................... 361
HFL Buttons ............................................ 351
HFL Menus.............................................. 354
HFL Status Display ................................... 353
In Case of Emergency ............................. 374
Limitations for Manual Operation ............ 353
Making a Call ......................................... 363
Options During a Call.............................. 366
Phone Setup ........................................... 356
Receiving a Call....................................... 366
Receiving a Text Message........................ 368
Ringtone ................................................. 359
Selecting a Phone ................................... 369
To Set Up a Text Message Options .......... 367
Hazard Warning Button .............................. 8
HD Radio
TM............................................... 264
Head Restraints ................................ 190, 191
Headlights ................................................ 164
23 PASSPORT-31TGS6400.book 602 ページ ２０２２年８月５日　金曜日　午後９時２分

605
Index
Oil (Engine).............................................. 512
Adding ................................................... 514
Checking ................................................ 513
Displaying Maintenance Minder Information ........................................... 504
Engine Oil Low Warning ......................... 570
Oil Life .................................................... 117
Recommended Engine Oil ....................... 512
Viscosity.................................................. 512
Open Source Licenses .............................. 323
Opening/Closing
Hood ...................................................... 510
Moonroof ............................................... 159
Power Windows...................................... 156
Tailgate................................................... 143
Operating the Switches Around the Steering Wheel ....................................... 160
Outside Temperature .............................. 111
Overheating ............................................. 568
P
Paddle Shifters (Sequential Mode) ... 25, 412
Panic Mode ............................................... 155
Parking ..................................................... 481
Parking Brake ........................................... 477
Parking Brake and Brake System
Indicator ................................................. 572
Parking Brake and Brake System Indicator (Amber) ..................................... 82 Parking Brake and Brake System
Indicator (Red) .......................................... 82
Parking Sensor System ............................. 483
Passenger Airbag Off Indicator ................. 61
Passing Indicators ..................................... 164
Phone ........................................................ 118
Playing Bluetooth ® Audio ........................ 285
Power Tailgate .......................................... 145
Power Windows ........................................ 156
Precautions While Driving ....................... 403
Driving Guidelines for Your Utility
Vehicle .................................................. 403
Rain ......................................................... 403
Pregnant Women ....................................... 47
Puncture (Tire) .......................................... 553
R
Radiator.................................................... 518
Radio (FM/AM) .......................................... 262
Radio (SiriusXM ®) ..................................... 265
Radio Data System (RDS) .......................... 264
Range ........................................................ 115
RDS (Radio Data System) .......................... 264
Readiness Codes (Emissions Testing) ....... 591
Rear Climate Control System From the Rear Panel ................................ 220
Rear Defogger/Heated Door Mirror Button ..................................................... 175
Rear Outer Seats Heaters ......................... 211
Rear Seat (Folding Down) ................ 188, 189Rear Seats
................................................. 187
Rearview Mirror ....................................... 181
Refueling .................................................. 494
Fuel Gauge.............................................. 109
Gasoline .......................................... 494, 586
Low Fuel Indicator ..................................... 85
Regulations ............................... 430, 533, 589
Remote Engine Start ................................ 398
Remote Transmitter ................................. 136
Replacement Battery .................................................... 541
Bulbs ....................................................... 521
Front Wiper Blade Rubber ....................... 526
Fuses ............................... 575, 576, 577, 578
Rear Wiper Blade Rubber......................... 528
Tires ........................................................ 536
Reporting Safety Defects ......................... 590
Reverse Tilt Door Mirror .......................... 182
Road Departure Mitigation (RDM) ......... 469
On and Off.............................................. 471
Road Departure Mitigation (RDM) Indicator .................................................... 94
S
Safe Driving ................................................ 33
Safety Check ............................................... 38
Safety Labels ............................................... 80
Safety Message ............................................. 4
Seat Belts ............................................ 39, 120
Adjusting the Shoulder Anchor.................. 45
23 PASSPORT-31TGS6400.book 605 ページ ２０２２年８月５日　金曜日　午後９時２分
