This indicator alerts you
that the passenger’s side
airbag has been automatically shut
of f . It does mean there is a
problem with your side airbags.
To reduce the risk of injury f rom an
inf lating side airbag, your vehicle has
an automatic cutoff system for the
passenger’s side airbag.
Although Honda does not encourage
children to ride in f ront, this system
is designed to shut of f the side
airbag if a child leans sideways and
the child’s head is in the side airbag
deployment path.
If a short adult leans sideways, or a
larger adult slouches and leans
sideways into the side airbag
deployment path, the system may
also shut off the side airbag.
The SRS indicator alerts
you to a potential problem
with your f ront airbags, side airbags,
or f ront seat belt tensioners (see
page ).
When you turn the ignition to ON
(II), this indicator will light brief ly
then go out. This tells you that the
system is working properly.
If the indicator comes on at any
other time, or does not come on at all,
you should have the system checked
by your dealer. For example:
If the SRS indicator does not come
on after you turn the ignition
switch to ON (II).
If the indicator stays on after the
engine starts.
If the indicator comes on or
flashesonandoff whileyoudrive. If you see any of these indications,
the airbags and seat belt tensioners
may not work properly when you
need them.
48
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
How the Side Airbag Of f
Indicator Works
How the SRS Indicator Works
not
23
Ignoring the SRS indicator light
can result in serious injury or
death if the airbag systems, or
tensioners do not work properly.
Have your vehicle checked by a
dealer as soon as possible if
the SRS indicator alerts you to
a possible problem.

This indicator has two f unctions: This indicator normally comes on f ora f ew seconds when you turn the
ignition switch to ON (II), and when
the ignition switch is turned to
START (III). If it comes on at any
other time, there is a problem in the
ABS. If this happens, have your
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but not
anti-lock. For complete inf ormation,
see page .
Itcomesonwhenyouturnthe
ignition switch to ON (II). It is a
reminder to check the parking
brake. Driving with the parking
brake not f ully released can
damage the brakes and tires.
A chime also sounds if you try to
drive with the parking brake on.
If it remains lit af ter you have f ully
released the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For complete inf ormation,
see page . This indicator also blinks several
times when you turn the ignition
switch f rom ON (II) to ACCESSORY
(I) or LOCK (0). This indicator comes on f or a f ew
seconds when you turn the ignition
switch to ON (II). It will go of f if you
have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink
and the engine will not start (see
page ).
1.
2.
145
208 62
Inst rument s and Cont rols
Parking Brake and Brake System
Indicator
Anti-lock Brake System (ABS)
Indicator Immobilizer System
Indicator
Instrument Panel
49
U.S. Canada
U.S. Canada

This indicator monitors the
temperature of the automatic
transmission f luid. It comes on f or a
f ew seconds when you turn the
ignition switch to ON (II). If it comes
on while driving, it indicates the
transmission fluid temperature is too
high. Pull to the side of the road
when it is saf e, shif t to Park, and let
the engine idle until the light goes
out.This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II). If this
indicator comes on at any other time,
there is a problem in the 4WD
system. Have your vehicle checked
by a dealer.
If the indicator blinks while driving,
pull to the side of the road when it is
saf e, shif t to Park, and let the engine
idle until the indicator goes out.
Inst rument s and Cont rols
A/T Temperature
Indicator
VTM-4 Indicator
Instrument Panel
52
Continuing to drive with the VTM-4
indicator blinking may cause serious
damage to the 4WD system.
Continuing to drive with the A/T
Temperature indicator on may cause
serious damage to the transmission.

This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle white mark. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to the
upper white mark. If it reaches the
red (Hot) mark, pull saf ely to the
side of the road. Turn to page f or
instructions and precautions on
checking the engine’s cooling
system.The temperature sensor is in the
f ront bumper. Theref ore, the temper-
ature reading can be af f ected by heat
ref lection f rom the road surf ace, en-
gine heat, and the exhaust f rom
surrounding traf f ic. This can cause
an incorrect temperature reading
when your speed is under
19 mph (30 km/h). This indicator displays the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models). To see the outside
temperature, press and release the
Select/Reset button until the
temperature is displayed.
The sensor delays the display update
until it reaches the correct out side
temperature, this may take several
minutes.In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
204On EX model
Temperature Gauge Outside Temperature Indicator
Gauges
Inst rument s and Cont rols55

µ
µ If the driver’s
window runs into any obstacle while
it is closing automatically, it will
reverse direction and then stop. To
close the window, remove the
obstacle, then use the window switch
again.
If the power windows do not operate
properly af ter resetting, have your
vehicle checked by a Honda dealer. If your vehicle’s battery is
disconnected or goes dead, or the
driver’s window f use is removed, the
AUTO f unction will be disabled. The
power window system needs to be
reset af ter reconnecting the battery
or installing the f use.
Start the engine. Push down and
hold the driver’s window switch
until the window is f ully open.
Pull and hold the driver’s window
switch to close the window
completely, then hold the switch
f or a second or two more.
Turn the ignition switch to ON (II)
toraiseorloweranywindow.To
open the window, push the switch
downandholdit.Releasetheswitch
when you want the window to stop.
Pull back on the switch and hold it to
close the window. To open/close the driver’s
window, push the window switch
f irmly down or up to the second
detent, and release it. The window
will automatically go up or down all
the way. To stop the window, pull/
push on the window switch brief ly.
If the MAIN switch is OFF, the
passenger windows cannot be raised
or lowered. Keep the MAIN switch
off whenyouhavechildreninthe
vehicle so they do not injure
themselves by operating the
windows unintentionally. 1.
2. AUTO REVERSE
AUTO
Power Windows
Inst rument s and Cont rols73

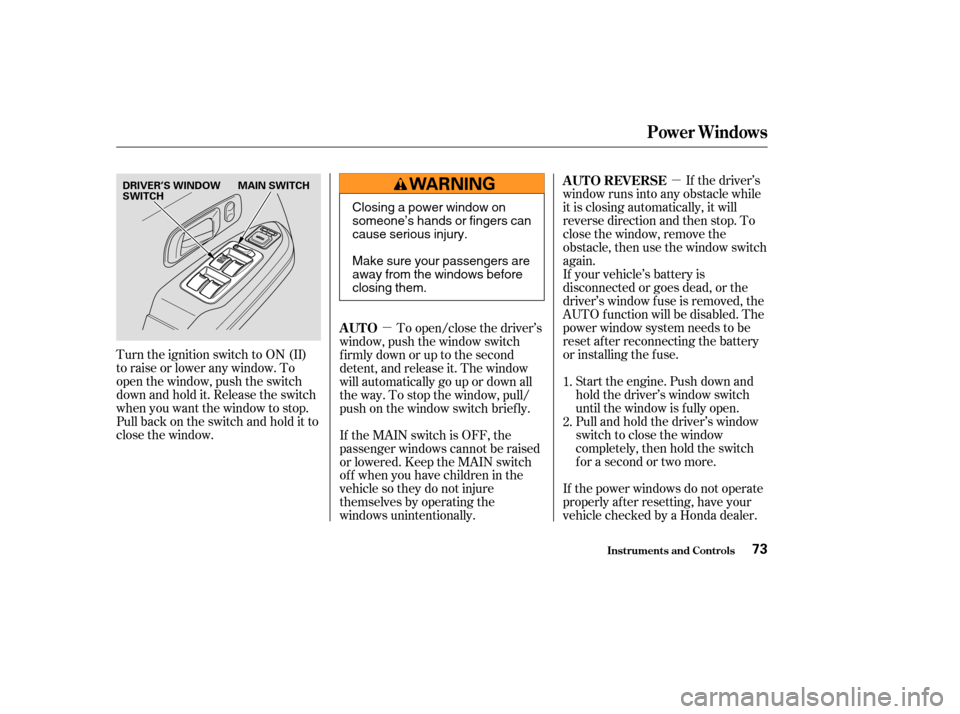

DRIVER’S WINDOW
SWITCH MAIN SWITCH
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.

There are various types of DVDs
available. Some of them are not
compatible with your system.
The DVD player in your Rear
Entertainment System can play
DVDs and CDs bearing the above
marks on their packages or jackets.
Those packages or jackets should
also bear the designation of ‘‘1’’ or
‘‘ALL’’. DVD-ROMs cannot be played
in this system.If you see an error message in the
display while operating the DVD
player,findthecauseinthechartto
the right. If you cannot clear the
message, take your vehicle to a
Honda dealer.
Error Message
Cause Solution
FOCUS Error
Mechanical Error, or a
DVD has been loaded in
the CD player
High Temperature
Low Vehicle Battery
VoltagePress the EJECT button and pull out the DVD.
Check if it is inserted correctly in the DVD
Player.MakesuretheDVDisnotscratchedor
damaged.
Press the EJECT button and pull out the DVD.
Check it f or damage or def ormation. If the
DVD cannot be pulled out, or the error
message does not disappear after the DVD is
ejected, see a Honda dealer. Do not try to force
the DVD out of the player.
Will disappear when the temperature returns to
normal.
Run the engine to recharge the battery.
DVD Specif ications
Comf ort and Convenience Feat ures
Playable DVDs
DVD Player Error Messages
112

Wait a f ew minutes af ter turning the
engine of f bef ore you check the oil.Remove the dipstick (orange
handle).
Wipe of f the dipstick with a clean
cloth or paper towel.
Insert it all the way back into its
tube. Remove the dipstick again and
check the level. It should be
between the upper and lower
marks.
If it is near or below the lower mark,
see on page . Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see
on page f or
inf ormation on adding the proper
coolant.
Refer to on page f or inf ormation
on checking other items in your
Honda.
1.
2.
3. 4.
163174
171
Service Station Procedures
Bef ore Driving
Oil Check
A dding OilEngine Coolant Check
A dding
Engine Coolant
Owner’s Maintenance
Checks
127
UPPER MARK
LOWER MARK MAX
MINRESERVE TANK
DIPSTICK

Try to maintain a constant speed.
Everytimeyouslowdownand
speed up, your vehicle uses extra
fuel.Usethecruisecontrolwhen
appropriate.
Combine several short trips into
one.
The air conditioning puts an extra
load on the engine which makes it
usemorefuel.Usethefresh-air
ventilation when possible.
Always maintain your vehicle
according to the maintenance
schedule. See
(see page
).
an underinf lated tire
causes more ‘‘rolling resistance,’’
which uses f uel.
The build-up of snow or mud on
your vehicle’s underside adds
weight and rolling resistance.
Frequent cleaning helps your f uel
mileage and reduces the chance of
corrosion.
Drive moderately. Rapid
acceleration, abrupt cornering and
hard braking use more f uel.
Always drive in the highest gear
possible. 163
For example,
Fuel Economy
Improving Fuel Economy
Owner’s
Maintenance Checks
Bef ore Driving128

Your vehicle has a higher ground
clearance that allows you to travel
over bumps, obstacles, and rough
terrain. It also provides good
visibility so you can anticipate
problems earlier.
Because your vehicle rides higher
of f the ground, it has a high center
of gravity that can cause it to roll
over if you make abrupt turns. Utility
vehicles have a signif icantly higher
roll over rate than other types of
vehicles.
To prevent rollovers or loss of
control:Take corners at slower speeds
than you would with a passenger
vehicle.
Avoid sharp turns and abrupt
maneuvers whenever possible. When you start the engine, check
the gauges and indicator lights in
the instrument panel (see page
).
Make sure the doors and the
tailgate are securely closed and
locked. Check the steering wheel
adjustment (see page ). Check the adjustment of the
inside and outside mirrors (see
page ). Check the seat adjustment (see
page ). Check that any items you may be
carrying are stored properly or
f astened down securely.
Visually check the tires. If a tire
looks low, use a gauge to check its
pressure. Make sure all windows, mirrors,
and outside lights are clean and
unobstructed. Remove f rost, snow,
or ice.
Youshoulddothefollowingchecks
and adjustments bef ore you drive
your vehicle. Do not carry heavy cargo on the
roof . Do not modif y your vehicle in any
way that would raise the center of
gravity.
Fasten your seat belt. Check that
your passengers have f astened
their seat belts (see page ).
3.
2. 1. 4.
5.
6.
7.
8.
9.
61
74
68
12
47
See page f or additional driving of f - highway guidelines. 155
Driving Guidelines
Driving
Preparing to Drive
136

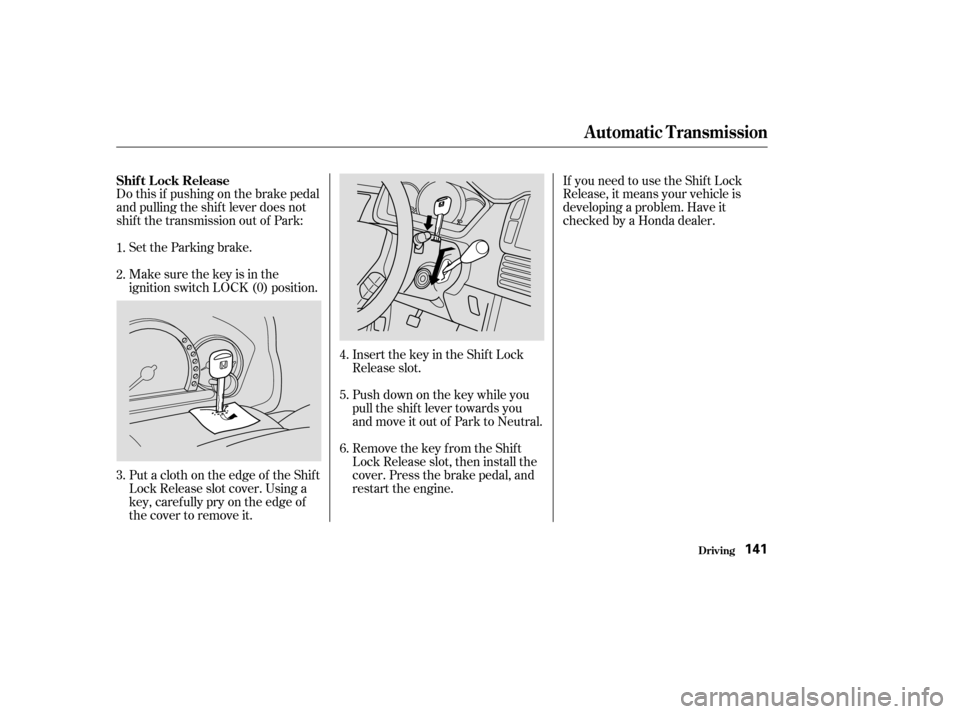

Do this if pushing on the brake pedal
and pulling the shif t lever does not
shif t the transmission out of Park:Set the Parking brake. If you need to use the Shif t Lock
Release, it means your vehicle is
developing a problem. Have it
checked by a Honda dealer.
Put a cloth on the edge of the Shif t
Lock Release slot cover. Using a
key, caref ully pry on the edge of
the cover to remove it. Make sure the key is in the
ignition switch LOCK (0) position. Insert the key in the Shift Lock
Release slot.
Push down on the key while you
pull the shif t lever towards you
and move it out of Park to Neutral.
Remove the key from the Shift
Lock Release slot, then install the
cover. Press the brake pedal, and
restart the engine.
3. 4.
5.
6.
1.
2. Shif t L ock Release
Automatic Transmission
Driving141
