Check trailer light requirements f or
the areas where you plan to tow.
To get to your vehicle’s trailer
lighting connector, open the tailgate,
remove the cargo cover, then
remove the rear panel trim. The
connector is on the lef t side. We
recommend that you have your
Honda dealer install a Honda wiring
harness and converter.If you use a non-Honda trailer
lighting harness and converter, you
cangetthematingconnectorand
pins that mate with the connector in
your vehicle f rom your Honda dealer.
When towing a trailer, we
recommend that you carry a f ull-size
spare wheel and tire for your vehicle
and trailer. See page f or proper
tire size, page f or how to store a
full size wheel and tire, and page
f or inf ormation on changing a
flat tire.
Remember to unhitch the trailer
bef ore changing a f lat. Ask your
trailer sales or rental agency where
and how to store the trailer’s spare
tire. Foryoursafetyandthesafetyof
others, take time to practice driving
maneuvers bef ore heading f or the
open road, and f ollow the guidelines
below.
Towing perf ormance can be
af f ected by high altitude, high
temperature, or when climbing
steep grades. Theref ore, premium
fuelisrecommendedwhentowing
more than 3,500 lbs (1,590 kg).
Avoid towing a trailer during your
vehicle’s f irst 600 miles (1,000 km).
Drive slower than normal in all
driving conditions.
Maketurnsmoreslowlyandwider
than normal. The trailer has a
smaller arc and it can hit or run
over something the vehicle misses.
191
197 200
T railer L ights
Spare Tires
Towing a Trailer, Trailer Driving Tips
Driving
Driving Saf ely With a T railer
152
GROUND
(BLACK)BACK-UP LIGHT
(GREEN/BLACK) LEFT TURN SIGNAL
(GREEN/WHITE)
RIGHT TURN SIGNAL
(GREEN/YELLOW) BRAKE LIGHT
(WHITE/BLACK)
TAILLIGHT
(RED/BLACK)
Connector-98530-00006-00
Terminal Kit-07JAZ-001-030A

To saf ely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inf lated.
The f ollowing pages give more
detailed inf ormation on how to take
care of your tires and what to do
when they need to be replaced.Keeping the tires properly inf lated
provides the best combination of
handling, tread lif e, and riding
comf ort.
Underinf lated tires wear unevenly,
adversely affect handling and fuel
economy, and are more likely to
fail from being overheated.
Overinf lated tires can make your
vehicleridemoreharshly,are
more prone to damage f rom road
hazards, and wear unevenly.
We recommend that you visually
check your tires every day. If you
think a tire might be low, check it
immediately with a tire gauge. Thecompactsparetirepressureis:
For convenience, the recommended
tire sizes and cold air pressures are
on a label on the driver’s doorjamb.
For additional technical information,
see page .
Use a gauge to measure the air
pressure at least once a month. Even
tires that are in good condition may
lose one to two psi (10 to 20 kPa, 0.1
to 0.2 kgf /cm ) per month.
Remember to check the spare tire at
thesametime.
220
Tire Size Cold Tire Pressure
for Normal Driving
Tires
Tires Inf lation
Maint enance188
60 psi (420 kPa , 4.2 kgf/cm)
32 psi (220 kPa , 2.2
kgf/cm
)
P235/70R16 104S
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.

......................
Compact Spare Tire .196
....................
Changing a Flat Tire .197
..........
If Your Engine Won’t Start . 201
................................
Jump Starting .202
............
If Your Engine Overheats . 204
................
Low Oil Pressure Light . 206
..........
Charging System Indicator . 206
..................
Malf unction Indicator . 207
...............
Brake System Indicator . 208
......................
Emergency Towing .208
..............................................
Fuses .209
..............................
Fuse Locations .212
T aking Care of t he Unexpect ed
Taking Care of the Unexpected
195

Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or replaced
and put it back on your vehicle as
soon as you can.
Check the inf lation pressure of the
compact spare tire every time you
check the other tires. It should be
inf lated to:Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
same wheel. The spare tire is not
designed to be mounted on a regular
wheel, and the spare wheel is not
designed f or mounting a regular tire.
Follow these precautions:
Never exceed 50 mph (80 km/h).
This tire gives a harsher ride and
less traction on some road sur-
f aces. Use greater caution while
driving.
Do not mount snow chains on it.
Do not use the compact spare tire
if you are towing a trailer.
Do not use your compact spare
tire on another vehicle unless it is
thesamemakeandmodel.
Compact Spare Tire
T aking Care of t he Unexpect ed196
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
60 psi (420 kPa , 4.2 kgf/cm)

Park the vehicle on f irm, level, and
non-slippery ground. Put the
transmission in Park. Apply the
parking brake.
Turn on the hazard warning lights,
and turn the ignition switch to
LOCK (0). Have all the
passengers get out of the vehicle
while you change the tire.Thetoolsandjackarebehinda
cover in the cargo area on the
driver’s side. Remove the cover by
pushing the top of it.
Turn the jack’s end
counterclockwise to loosen it, then
remove the jack and tools.
If you have a f lat tire while driving,
stop in a saf e place to change it.
Drive slowly along the shoulder until
you get to an exit or an area that is
far away from the traffic lanes.
2. 1.3.
4.
Changing a Flat T ire
T aking Care of t he Unexpect ed197
JACK
SPARE TIRE
TOOLS COVER
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.

Ú
The spare tire is stored
underneath the rear cargo area.
Remove the plastic cover on the
cargo area lining to access the
shaft for the spare tire hoist. Put the wheel nut wrench on the
hoist shaf t. Turn the wrench
counterclockwise to lower the
spare tire to the ground. Keep
turning the wheel wrench to
create slack in the cable.
Remove the bracket from the
spare tire.Placethejackunderthejacking
point nearest the tire you need to
change. It is pointed to by a
mark molded into the underside of
the body. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
restinginthejacknotch.
Loosen each wheel nut 1/2 turn
with the wheel wrench.
8. 7. 6.
5. 9.
Changing a Flat T ire
T aking Care of t he Unexpect ed198
SPARETIREWRENCHBRACKET
JACKING POINT

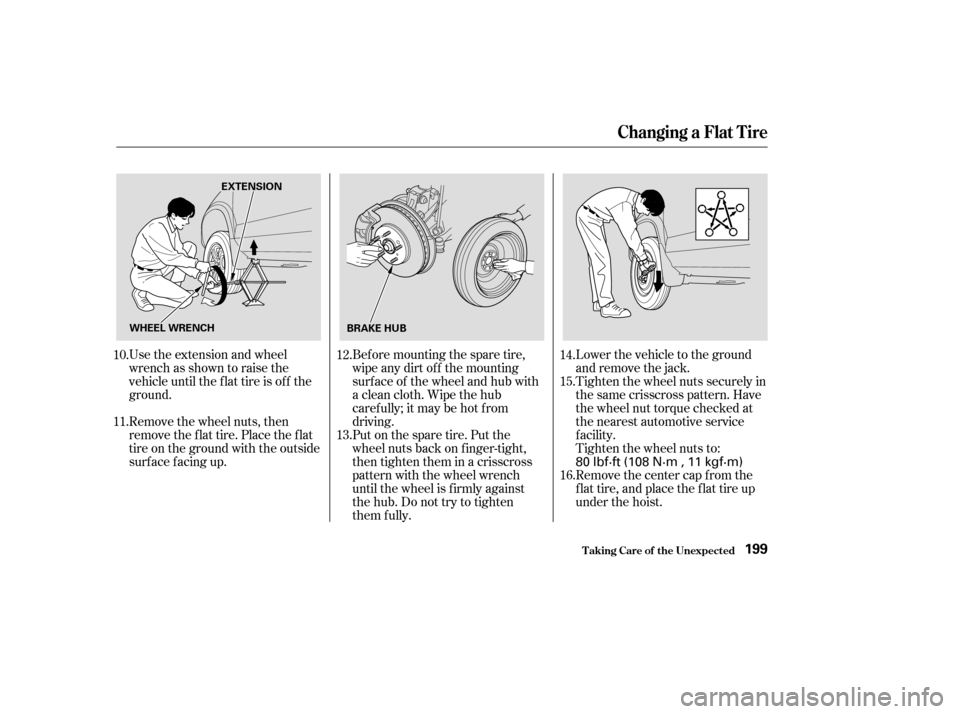

Use the extension and wheel
wrench as shown to raise the
vehicle until the f lat tire is of f the
ground.
Remove the wheel nuts, then
remove the flat tire. Place the flat
tire on the ground with the outside
surface facing up.Bef ore mounting the spare tire,
wipeanydirtoff themounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving.
Lower the vehicle to the ground
and remove the jack.
Put on the spare tire. Put the
wheel nuts back on f inger-tight,
then tighten them in a crisscross
pattern with the wheel wrench
until the wheel is f irmly against
the hub. Do not try to tighten
them f ully. Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
f acility.
Tighten the wheel nuts to:
Remove the center cap from the
flat tire, and place the flat tire up
under the hoist.
14.
10.
11. 12.
13.
16. 15.
Changing a Flat T ire
T aking Care of t he Unexpect ed199
WHEEL WRENCHEXTENSION
BRAKE HUB
80 lbf·ft (108 N·m , 11 kgf·m)

Insert the hoist bracket into the
center hole of the f lat tire.
Slowly turn the wheel wrench
clockwisetotake uptheslackof
the hoist cable. Make sure the
bracketisseatedinthecenter
hole of the spare tire.
Turn the wheel wrench clockwise
until the f lat tire rests against the
underbody of the vehicle and you
hear the hoist click.Store the jack in its holder. Turn
the jacks’ end bracket to lock it in
place and replace the tools and
cover.
17. 18.
19. 20.
Changing a Flat T ire
T aking Care of t he Unexpect ed200
NOTICE:
Loose items can fly around the
interior in a crash and could
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving. Always raise the spare tire
hoist, even if you are not stowing a tire.
If the hoist is lef t down, it will be
damaged during driving and need to be
replaced.

µ µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Specif ications
T echnical Inf ormation219
Lights
Battery
Fuses
Engine
Alignment
Tires
60 W/55 W
12 V
60 psi (420 kPa , 4.2 kgf/cm
)
32 psi (220 kPa , 2.2 kgf/cm)
T155/90D16 110M P235/70R16 104S 1°88’
0°50’ 0°50’
0.00 in (0.0 mm)
0.00 in (0.0 mm) 10.0 : 1
211.8 cu-in (3,471 cm
)
3.50 x 3.66 in (89.0 x 93.0 mm)
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V 12 V
12 V
12 V
5W
27 W/8 W
5W
21 W/5 W
21 W/5 W
21 CP (18 W)
5W
18 W
6.2 W
5W
1.1 W
3.8 W
12 V 65 AH/20 HR 14 V 12 V 12.4 W 1.4 W
Headlights
Front side marker lights
Front turn signal lights/
Parking lights
Rear side marker lights
Rear turn signal/hazard lights
Stop/Taillights
Backup lights
License plate lights
High-mount brake light
Individual map lights
Tailgate light
Vanity mirror light
Door (Courtesy) light
Grabrail lights
Console lights
Capacity Interior
Under-hood
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Water cooled 4-stroke SOHC,
V6 gasoline engine
Toe-in
Camber
Caster
Size
Pressure See page
213or the fuse label
attached to the dashboard.
See page 213or the fuse label
attached to the inside of the fuse
box door under the dashboard.
See page 212or the fuse box
cover.
PZFR5F-11
PKJ16CR-L11
Front/Rear
Spare
Front/Rear
Spare Front
Rear
Front
Rear
Front
Driver’s side
Passenger’s side
(1157 NA)
(168)
(7443)
(7443) (921)
(168)
(921)
(204)
(HB2)
(168)
Front
Rear
Front
Rear
Front NGK:
DENSO:

Î
................................
Cancel Button .117
............................
Capacities Chart .218
.............
Carbon Monoxide Hazard . 42
........................
Cargo, .131
Cassette Player ..............................................
Care .95
.....................................
Operation .98
..............
CAUTION, Explanation of . ii
...........................................
CD Care .95
.....................................
CD Changer .94
.........
CD Changer Error Message . 97
.........................................
CD Player .93
.............
CD Player Error Message . 96
........................
Certif ication Label .216
...................................
Chains, .192
....................
Changing a Flat Tire .197
Change Oil ........................................
How to .172
.............................
When to .164, 165
...
Charging System Indicator . 48,206
............
Checklist, Bef ore Driving . 136
..................
Childproof Door Locks . 65
.....................................
Child Saf ety .25
..............................
Booster Seats .39 ...................................
Child Seats .30
.....
Important Saf ety Reminders . 25
..........................................
Inf ants .29
..........................
Larger Children .38
.........................................
LATCH .33
......................
Risks with Airbags .26
.............................
Small Children .30
.........................................
Tethers .37
.........
Where Should a Child Sit? . 26
Child Seats .........................................
LATCH .33
...........................
Lower Anchors .33
..........
Tether Anchorage Points . 37
.................
Climate Control System . 86
.........................
Clock, Setting the .103
..............................................
Clock .103
.....................
Code, Audio System .102
........................
CO in the Exhaust .223
............
Cold Weather, Starting in . 137
.......................
Compact Spare .196
...................
Console Compartment . 77
...............
Consumer Inf ormation . 230
.............
Controls, Instruments and . 45
Coolant ........................................
Adding .174
....................................
Checking .127 .........................
Proper Solution .174
...................
Temperature Gauge . 55
Crankcase Emissions Control ........................................
System .223
................
Cruise Control Indicator . 51
............
Cruise Control Operation . 116
.....................................
Cup Holders .77
....
Customer Service Inf ormation . 230
................
DANGER, Explanation of . ii
...................................
Dashboard .2, 46
................
Daytime Running Lights . 59
Daytime Running Lights .......................................
Indicator .51
.................................
Dead Battery .202
............
Def ects, Reporting Saf ety . 232
................
Def ogger, Rear Window . 60
..........
Def rosting the Windows . 83,85
....................................
Dimensions .218
...............
Dimming the Headlights . 58
Dipstick ..........
Automatic Transmission . 176
..................................
Engine Oil .127
..........................
Directional Signals .58
how to carry
tires tire
Index
C
D
II
