Page 240 of 273

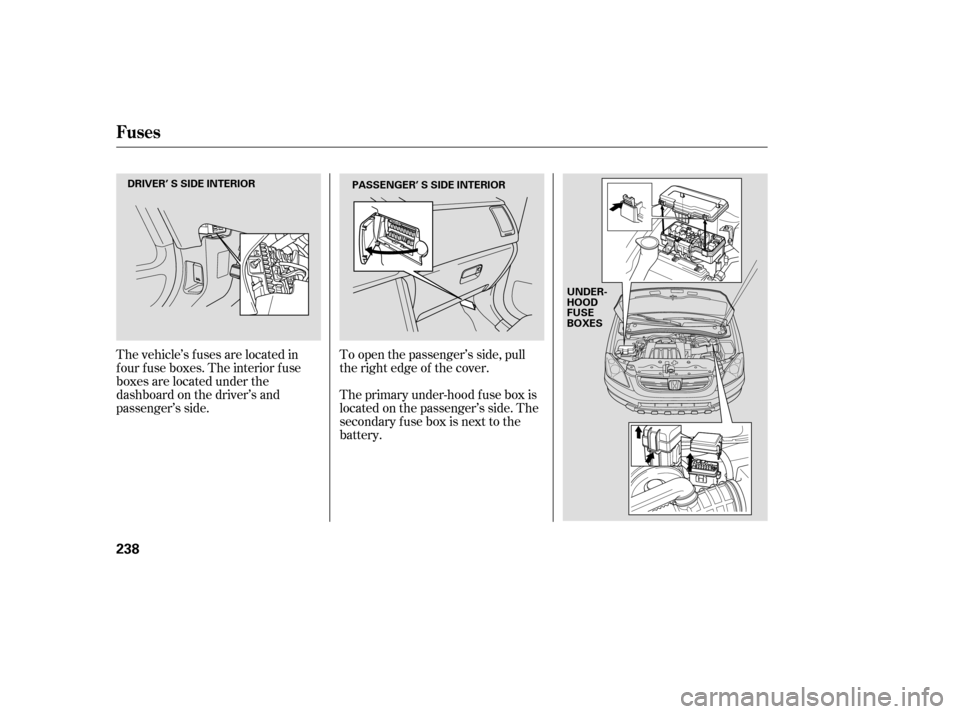

The vehicle’s f uses are located in
f our f use boxes. The interior f use
boxes are located under the
dashboard on the driver’s and
passenger’s side.To open the passenger’s side, pull
the right edge of the cover.
The primary under-hood f use box is
locatedonthepassenger’sside.The
secondary f use box is next to the
battery.
Fuses
238
UNDER-
HOOD
FUSE
BOXES
PASSENGER’ S SIDE INTERIOR
DRIVER’ S SIDE INTERIOR
Page 241 of 273
If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine f rom the chart on pagesand , or the diagram on the
fuse box lid, which fuse or fuses
control that device. The diagram f or
theinteriordriver’ssidefuseboxis
on the kick panel below the f use box.
Check those f uses f irst, but check all
the f uses bef ore deciding that a
blown f use is the cause. Replace any
blown f uses, and check if the device
works.
Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are off.
Remove the cover f rom the f use
box. Check each of the large f uses in
the primary under-hood f use box
by looking through the top at the
wire inside. Remove the screws
with a Phillips-head screwdriver.
Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse boxes by
pulling out each f use with the f use
puller provided in the primary
under-hood f use box.
Look f or a burned wire inside the
f use. If it is burned, replace it with
one of the spare f uses of the same
rating or lower.
1.
2. 3.
4.
5.
241 242
CONT INUED
Checking and Replacing Fuses
Fuses
T aking Care of t he Unexpect ed
239
BLOWN
BLOWN
Page 242 of 273
If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can.If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualif ied mechanic.
If a trailer light is burned out, check
if these f uses are blown when you
replace the light bulbs:
If thosefusesareOK,butthetrailer
lights still do not work, there are two
blown 7.5 amp f uses in the trailer
hitch wiring. To access the 7.5 amp
f uses:
Open the tailgate and remove the
cargo f loor lid.
Pull out the bottom of the tailgate
rubber seal.
Remove rear trim panel by pulling
up on the inside edge of the rear
trim panel, and unhooking the f our
clips and tabs.
Af ter replacing f uses, and reinstall
the rear trim panel in the reverse
order of removal. Primary under-hood f use box
fuses5,7,and24
Interior driver’s side f use box: 10
Interior passenger’s side f use box:
10
If the radio f use is removed, the
audio system will disable itself . The
nexttimeyouturnontheradioyou
will see ‘‘COdE’’ in the f requency
display. Use the preset buttons to
enter the f ive-digit code (see page ).
6.
1.
2.
3.
4.
123
On EX and EX-L model
Trailer Fuses
Fuses
240
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
Page 243 of 273
µµ
No. Amps. Circuits Protected No. Circuits Protected
No. Amps. Circuits Protected No. Amps. Circuits Protected Amps.
1
2
3
4
5
6
7
8
9
10
11
12
13 20 A
30 A
20 A
15 A
15 A
20 A
20 A
20 A
40 A
40 A
30 A
40 A Spare Fuse
Spare Fuse
Right Headlight
ACG S
Hazard
Not used
Stop
Lef t Headlight
Radio
Power Window Motor
Power Seat
Rear Defroster
Back Up, ACC 14
15
16
17
18
19
20
21
22
23
24
Rear A/C
Heater Motor
Cooling Fan
Spare Fuse
Spare Fuse
Spare Fuse
Battery
Condenser Fan
MG Clutch
IGI Main
Trailer (accessory)
1
2
3
4
5
6 40 A
20 A
30 A
40 A
20 A
20 A ABS F/S Relay
VSA F/S Relay
VSA Motor
ABS Motor
4WD
Rear Accessory Socket 7
8
9
10
11 15 A
15 A
15 A
7.5 A
(15 A) ET CS
IG Coil
LAF
TPMS
(FR FOG)
30 A
40 A
30 A
7.5 A 10 A
15 A
120 A 30 A
7.5 A 50 A
Fuse Locations
T aking Care of t he Unexpect ed
241
PRIMARY UNDER-HOOD FUSE BOX
SECONDARY UNDER-HOOD FUSE BOX
Page 244 of 273
µµ
Î Î
Î Î
Î
No. No.
Amps. Amps.
Circuits Protected Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
13 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
15 A
10 A
7.5 A
7.5 A
7.5 A 15 A
7.5 A
7.5 A 10 A
7.5 A
7.5 A 30 A 20 A
20 A
20 A
20 A
10 A
20 A
20 A
15 A
15 A
10 A
20 A
7.5 A
7.5 A 20 A
20 A
Fuel Pump
SRS
Heater Control, A/C Clutch
Relay, Cooling Fan Relay
Power Mirror, VTM-4
Daytime Running Light
ECU(PCM),CruiseControl
OPDS, Rear Wiper
ACC Relay
Back-up Lights, Instrument
Lights
Turn Signals
VTM-4
Front Wiper
Not used
Driver’s Power Window
Driver’s Power Seat Reclining
Heated Seat
Driver’s Power Seat Sliding
Not used
Daytime Running Light
Driver’s side Rear Power
Window
Front Passenger’s Power
Window
Front Accessory Socket, Radio
Small Light
Interior Light, Navi
Power Door Lock
Back Up
Moonroof
Moonroof
Passenger’s Side Rear Power
Window
Canadian models
:
Canadian models
Fuse Locations
242
Driver’s Side INTERIOR FUSE BOX
Passenger’s Side
Front Front
:
Page 249 of 273
µ µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Specif ications
T echnical Inf ormation
247
Battery
Fuses
Engine
Alignment
Tires
Lights
60 W/55 W
12 V
60 psi (420 kPa , 4.2 kgf/cm
)
32 psi (220 kPa , 2.2 kgf/cm)
T155/90D16 110M P235/70R16 104S 1°88’
0°50’ 0°50’
0.00 in (0.0 mm)
0.00 in (0.0 mm) 10.0 : 1
211.8 cu-in (3,471 cm
)
3.50 x 3.66 in (89.0 x 93.0 mm)
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V 12 V
12 V
12 V
5W
27 W/8 W
5W
21 W/5 W
21 W/5 W
21 CP (18 W)
5W
18 W
6.2 W
5W
1.1 W
3.8 W
12 V 65 AH/20 HR 14 V 12 V 12.4 W 1.4 W
Capacity Interior
Under-hood
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Water cooled 4-stroke SOHC,
V6 gasoline engine
Toe-in
Camber
Caster
Size
Pressure IZFR5K-11
SKJ16DR-M11
Headlights
Front side marker lights
Front turn signal lights/
Parking lights
Rear side marker lights
Rear turn signal/hazard lights
Stop/Taillights
Backup lights
License plate lights
High-mount brake light
Individual map lights
Tailgate light
Vanity mirror light
Door (Courtesy) light
Grab rail lights
Console lights See page
242or the fuse label
attached to the dashboard.
See page 242or the fuse label
attached to the inside of the fuse
box door under the dashboard.
See page 241or the fuse box
cover.
Front/Rear
Spare
Front/Rear
Spare Front
Rear
Front
Rear
Front
Driver’s side
Passenger’s side
(1157 NA)
(168)
(7443)
(7443) (921)
(168)
(921)
(204)
(HB2)
(168)
Front
Rear
Front
Rear
Front NGK:
DENSO:
