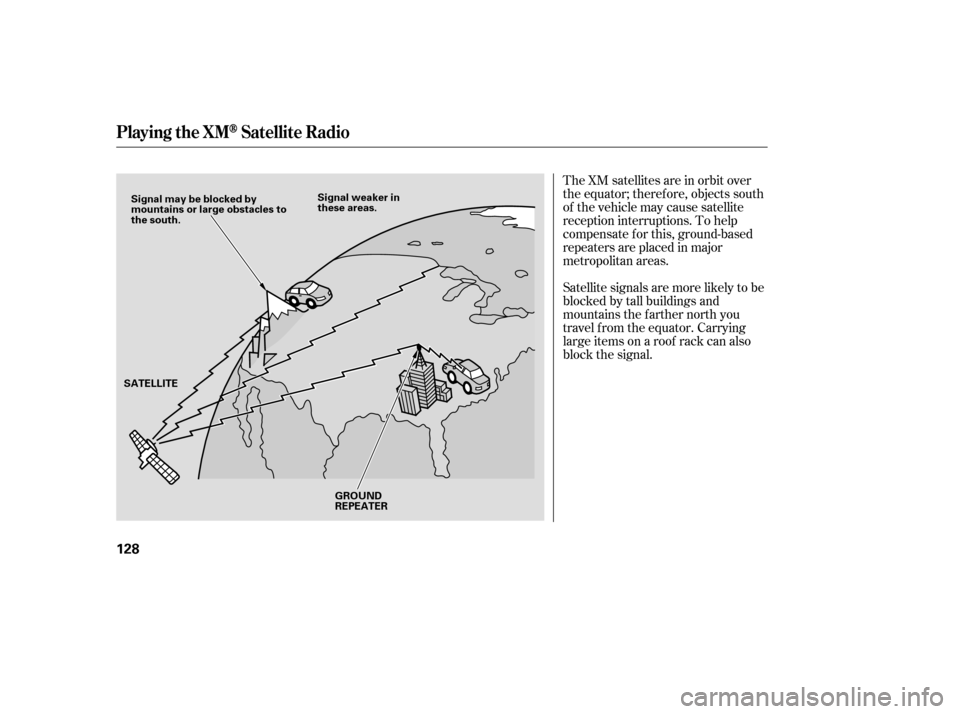

The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel f rom the equator. Carrying
large items on a roof rack can also
block the signal.
Playing the XMSatellite Radio
128
Signal may be blocked by
mountains or large obstacles to
the south.Signal weaker in
these areas.
SATELLITE GROUND
REPEATER

Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels.
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you. After you’ve registered with XM
Radio, keep your audio system in the
satellite radio mode while you wait
f or activation. This should take about
30 minutes.
Driving on the north side of an
east/west mountain road.
Large items carried on a roof rack.
There may be other geographic
situations that could af f ect XM radio
reception. While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated, you’ll be
able to listen to XM radio broadcasts.
XM Radio will continue to send an
activation signal to your vehicle f or
at least 12 hours from the activation
request. If the service has not been
activated after 36 hours, contact XM
Radio.
If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM satellite radio. With the
ignition switch in the ACCESSORY
(I) or the ON (II) position, push the
PWR/VOL knob to turn on the audio
system and press the XM RADIO
button. A variety of music types and
styles will play.
If you decide to purchase XM
satellite radio service, contact XM
Radio at
, or at
1-800-852-9696. You will need to give
them your radio I.D. number and
your credit card number. To get your
radio I.D. number, turn the TUNE knob until ‘‘0’’ appears in the display.
Your I.D. will appear in the display.As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
www.xmradio.com
Receiving Satellite Radio Service
Playing the XMSatellite Radio
Features
129

Playing a Disc
130

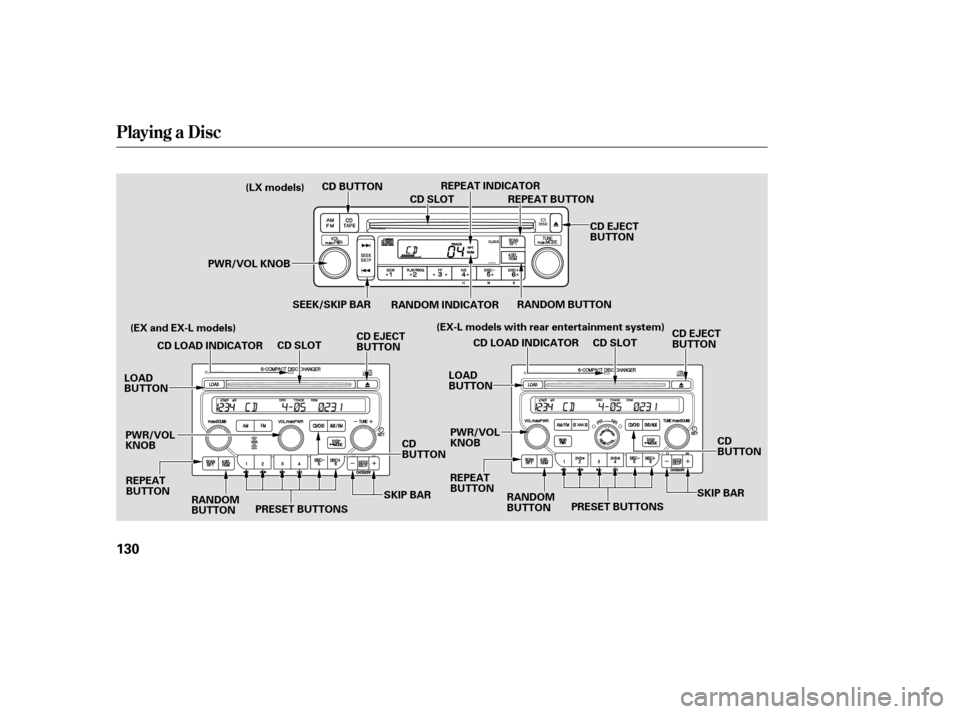

PWR/VOL KNOBREPEAT INDICATOR
CD SLOT
CD EJECT
BUTTON
CD SLOT
PWR/VOL
KNOB SEEK/SKIP BAR
RANDOM INDICATOR
CD BUTTON
CD EJECT
BUTTON
RANDOM BUTTON
RANDOM
BUTTON
REPEAT
BUTTON REPEAT BUTTON
CD LOAD INDICATOR
LOAD
BUTTON
CD
BUTTON
PRESET BUTTONS CD EJECT
BUTTON
CD SLOT
PWR/VOL
KNOB RANDOM
BUTTON
REPEAT
BUTTON CD LOAD INDICATOR
LOAD
BUTTON
CD
BUTTON
PRESET BUTTONS
SKIP BAR
SKIP BAR
(LX models)
(EX and EX-L models) (EX-L models with rear entertainment system)

µ
To load or play CDs, the ignition
switch must be in the ACCESSORY
(I) or the ON(II) position.
You operate the CD player/CD
changer with the same controls used
for the radio. To select the CD
player/CD changer, press the CD
button. The number of the track
playing is shown in the display. With
the in-dash CD changer, the disc and
track numbers are displayed. The
system will continuously play a CD
until you change modes.
Insert a CD about half way into the
CD slot. The drive will pull the CD in
the rest of the way and begin to play
it. When the system reaches the end
of the disc, it will return to the
beginning and play the disc again.
You cannot load and play 3-inch
(8-cm)discsinthissystem.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f . To listen to satellite radio when a CD
is playing, press the AUX/XM or XM
button.
To play the radio when a CD is
playing, press the AM/FM button
(AM or FM button). Press the CD
button again to switch back to the
CD player.
To select a dif f erent disc, press the
appropriate preset button (1 6). On
models with navigation system,
touch the appropriate disc icon. If
youselectanemptypositioninthe
CD changer, the system will go into
the loading sequence.
On models with Satellite Radio
LX models
Playing a Disc, Disc Changer
To Play a CD
Features
131
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.

µ´
µ
´
µ
µ
µ
You cannot load and play 3-inch
(8-cm)discsinthissystem. Press and hold the LOAD button
until you hear a beep and see
‘‘LOAD’’ in the display, then
release the button.
To load only one CD, press and
release the LOAD button.
Insert the CD into the CD slot.
Insert it only about halfway; the
drive will pull it in the rest of the
way. You will see ‘‘BUSY’’ in the
display. The CD loaded indicator
turns red and blinks as the CD is
loaded. Ontheupperleftsideof the
display, the disc number f or an
empty position will begin blinking,
and the green CD load indicator
will come on. When ‘‘LOAD’’ appears again in
the display, insert the next CD into
the CD slot.
Do not try to insert a disc until
‘‘LOAD’’ appears. You could
damage the audio unit.
Repeat this until all six positions
are loaded. The system will then
begin playing the last CD loaded.
If you are not loading CDs into all six
positions, press the LOAD button
again after the last CD has loaded.
The system will begin playing the
last CD loaded.
If you stop loading CDs bef ore all six
positions are f illed, the system will
wait f or 10 seconds, then stop the
load operation and begin playing the
last CD loaded. Each time you press and
release /( ), the player skips
f orward to the beginning of the next
track. Press and release /( )
to skip backward to the beginning of
the previous track.
To move rapidly within a track, press
andholdthe /( )or /
( ). You will see CUE or REW in
the display.
To continuously replay
a track, press and release the RPT
button. You will see RPT in the
display. Press it again to turn it of f .
This f eature plays the
tracks in random order. To activate
random play, press and release the
RDM button. You will see RDM in
the display. This continues until you
press the RDM button again.
1.
2.
3.
4.
5.
Except f or LX model
L oading CDs in the In-dash CD
Changer
SK IP
REPEAT
RANDOM
Playing a Disc, Disc Changer
132

On vehicles with navigation system
On vehicles with navigation system
On vehicles with navigation system On LX models
When you press the RDM button or
touch the TRACK RANDOM icon on
the screen, the system plays the
tracks of the current disc in random
order. You will see RDM (TRACK
RANDOM) in the display. To turn
this feature off, press the RDM
button (touch TRACK RANDOM)
again.
Press the eject button ( ) to
remove the CD. If you eject the CD,
but do not remove it f rom the slot,
the system will automatically reload
the CD af ter 10 seconds and put it in
pause mode. To begin playing, press
the CD button.
Press the AM/FM button to switch
to the radio while a CD is playing.
Press the CD button to play the CD.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the CD will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f .
When you press and release the RPT
button or touch the TRACK
REPEAT icon on the screen, the
system continuously replays the
current track. As a reminder, you
will see RPT (TRACK REPEAT) in
the display. To turn this feature off,
press the RPT button, or touch the
TRACK REPEAT icon again.
WhenyoupressandholdtheRPT
button until D-RPT (DISC REPEAT)
is in the display, or when you touch
the DISC REPEAT icon on the
screen, the system continuously
replays the current disc. As a
reminder, you will see D-RPT in the
display.
Playing a Disc, Disc Changer
Random Play within a Disc T o Stop Playing a CD
T rack Repeat
Disc Repeat
Features
133

µ´
To remove the disc currently in play,
press the eject ( ) button. When
a disc is removed f rom a slot, the
system automatically begins the load
sequence so you can load another
CD in that position. If you do not
remove the disc f rom the changer
within 15 seconds, the system
returns to the previous mode (AM/
FM or satellite radio). The disc will
reload into the system and will
remainthereinapausemode. To remove a dif f erent CD f rom the
changer,firstselectitwiththe
appropriate preset button. When that
CD begins playing, press the eject
button. Continue pressing the eject
button to remove all the discs from
the changer.
You can also eject discs when the
ignition switch is of f . The disc that
was last selected is ejected f irst.
To eject one disc, press and release
the eject button.
To eject all discs, press and hold the
eject button until the system beeps.
Load the desired CDs into the
magazine, and load the magazine
into the changer according to the
instructions that came with the unit.
To select the CD changer, press the
CD button. The CD and track
numbers will be displayed. To select
a dif f erent CD, use the preset 5
(DISC ) or preset 6 (DISC )
button. If you select an empty slot in
the magazine, the changer will, af ter
f inding that slot empty, try to load
the CD in the next slot.
Except f or LX model
Optional on LX models
Playing a Disc, Disc Changer
Removing CDs f rom the In-dash
CD ChangerOperating the Optional CD
Changer
134

When using CD-R discs, use only
high quality CDs labeled f or audio
use.When a CD is not being played, store
it in its case to protect it f rom dust
and other contamination. To prevent
warpage, keep CDs out of direct
sunlight and extreme heat.
To clean a CD, use a clean sof t cloth.
Wipe across the CD f rom the center
to the outside edge.
AnewCDmayberoughonthe
inner and outer edges. The small
plastic pieces causing this roughness
can f lake of f and f all on the re-
cording surf ace of the CD, causing
skipping or other problems. Remove
these pieces by rubbing the inner
and outer edges with the side of a
pencil or pen. Handle a CD by its edges; never
touch either surf ace. Do not place
stabilizer rings or labels on the CD.
These, along with contamination
f rom f ingerprints, liquids, and f elt-tip
pens, can cause the CD to not play
properly or possibly jam in the drive.
Never try to insert f oreign objects in
the CD player or the CD changer.
When recording a CD-R or
CD-RW, the recording must be
closedforittobeusedbythe
system.
Play only standard round CDs.
Odd-shaped CDs may jam in the
driveorcauseotherproblems.
Handle your CDs properly to
prevent damage and skipping. See
this page.
General Inf ormation Protecting Discs
Protecting Your Discs
Features
135
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.

Error MessageCause Solution
Cause
Error Message Solution
FOCUS Error
Mechanical Error,
or a DVD has
been loaded in the
CD player
High TemperaturePress the EJECT button and pull out the CD.
Check if it is inserted correctly in the CD player.
Make sure the CD is not scratched or damaged.
Press the EJECT button and pull out the CD.
Check the CD for damage or deformation. If
the CD cannot be pulled out, or the error
message does not disappear after the CD is
ejected, see your dealer.
Will disappear when the temperature returns to
normal.
FOCUS Error
Mechanical Error,
or a DVD has
been loaded in the
CD player
High Temperature Press the EJECT button and pull out the CD.
Check if it is inserted correctly in the CD player.
Make sure the CD is not scratched or damaged.
Press the EJECT button and pull out the CD.
Check the CD for damage or deformation. If
the CD cannot be pulled out, or the error
message does not disappear after the CD is
ejected, see your dealer.
Will disappear when the temperature returns to
normal.
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
Theaudiosystemwilltrytoplaythe
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.LX models
EX and EX-L models
Disc Player Error Messages
136

Error MessageCause Solution
FOCUS Error
No CD in the CD
magazine
Mechanical Error
High Temperature
No CD magazine in the
CD changer.Press the magazine EJECT button and pull it
out. Check f or an error message, and insert the
magazine again. If the message does not
disappear or the magazine cannot be pulled out,
see your dealer.
Insert a CD.
Press the magazine EJECT button and pull it
out. Check for an error message and insert the
magazine again. If the message does not
disappear or the magazine cannot be pulled out,
see your dealer.
T his message should disappear when the
temperature returns to normal.
Insert the CD magazine.
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
Theaudiosystemwilltrytoplaythe
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.Optional on LX models
Disc Changer Error Messages
Features
137
