Put your fingers under the front
edge of the hood near the center.
Slide your hand to the left until
you feel the hood latch handle.
Push this handle up to release it.
Lift up the hood.
If the hood latch handle moves
stiffly, or if you can open the hood
without lifting the handle, the
mechanism should be cleaned and
lubricated.
Park
the vehicle, and set the
parking brake. Pull the hood
release handle located under the
lower left corner of the dashboard.
The hood will pop up slightly.
Screw
the fuel fill cap back on
until it clicks at least once. If you
do not properly tighten the cap,
the malf unction indicator lamp
maycomeon(seepage ).You
will also see a ‘‘CHECK FUEL
CAP’’ message on the inf ormation
display.
Push the f uel f ill door closed until
it latches. 2.
1.
5.
6. 277
Service Station Procedures
Opening and Closing the Hood
188
LATCH
SLIT
ATTACHMENT FUEL FILL CAP HOOD RELEASE HANDLE

Remove the dipstick again, and
check the level. It should be
between the upper and lower
marks.
If it is near or below the lower mark,
see on page .
Wait a f ew minutes af ter turning the
engine of f bef ore you check the oil.
Remove the dipstick (orange loop).
Wipe of f the dipstick with a clean
cloth or paper towel.
Insert the dipstick all the way back
into its hole.
Holding the grip, pull the support
rod out of its clip. Insert the end
into the designated hole in the
hood.
To close the hood, lif t it up slightly to
remove the support rod f rom the
hole. Put the support rod back into
its holding clip. Lower the hood to
about a f oot (30 cm) above the
f ender, then let it drop. Make sure it
is securely latched. 1.
2.
3.
4.
3. 239
Service Station Procedures
A dding Engine Oil
Oil Check
Bef ore Driving
189
DIPSTICK
UPPER MARK
LOWER MARK
SUPPORT ROD CLIP GRIP

Try to maintain a constant speed.
Everytimeyouslowdownand
speed up, your vehic le uses extra
fuel. Use cruise control when
appropriate.
Combine several short trips into
one.
The air conditioning puts an extra
load on the engine which makes it
usemorefuel.Usethefresh-air
ventilation when possible.
Always
maintain your vehicle
according to the maintenance
messages displayed in the
information display. See
on page
.
Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see
on page for
info rmation on adding the proper
coolan t.
Refer to
on page f or inf ormation
about checking other items on your
vehicle. Always drive in the highest gear
possible. Drive moderately. Rapid
acceleration, abrupt cornering,
and hard braking use more f uel. The build-up of snow or mud on
your vehicle’s underside adds
weight and rolling resistance.
Frequent cleaning helps your f uel
mileage and reduces the chance of
corrosion.an underinf lated tire
causes more ‘‘rolling resistance,’’
which uses more f uel. 234
For example,
242
234
Service Station Procedures, Fuel Economy
Owner’s
Maintenance Checks
Engine Coolant Check
A dding
Engine Coola

nt
Owner’s Maintenance
Checks
190
RESERVE TANK
MAX
MIN
Improving Fuel Economy

Your dealer has Honda accessories
that allow you to personalize your
vehicle. These accessories have
been designed and approved for your
vehicle, and are covered by warranty.
When properly installed, cellular
phones, alarms, two-way radios, and
low-powered audio systems should
not interfere with your vehicle’s
computer controlled systems, such
as your airbags and anti-lock brakes. Befo
re installing any accesso ry:
Make sure the accessory does not
obscure any lights, or interfere
with proper vehicle operation or
performance.
Befo re installing any electronic
accessory, have the insta ller
contact your dealer for assistance.
If possible, have your dealer
insp ect the final installation.
Modifying
your vehicle, or installing
some non-Honda accessories, can
make it unsafe. Before you make any
modifications or add any accessories,
be sure to read the following
info rmation.
Al though non-Honda accessories
may fit on your vehicle, they may not
meet factory specifications, and
could adversely affect your vehicle’s
handling and stability. Be sure electronic accessories do
not overload electrical circuits
(see page ) or interf ere with
proper operation of your vehicle.
Do not install accessories on the
side pillars or across the rear
windows as these may interf ere
with proper operation of the side
curtain airbags.283
A ccessories
A ccessories and Modif ications
Bef ore Driving
191
Improper accessories or
modifications can affect your
vehicle’s handling, stability, and
performance, and cause a
crash in which you can be hurt
or killed.
Follow all instructions in this
owner’s manual regarding
accessories and modifications.

Removing parts f rom your vehicle,
or replacing components with
non-Honda components could
seriously af f ect your vehicle’s
handling, stability, and reliability.Raising your vehicle with a
non-Honda suspension kit can
af f ect the handling and stability.
Herearesomeexamples:
Lowering your vehicle with a
non-Honda suspension kit that
signif icantly reduces ground
clearance can allow the
undercarriage to hit speed bumps
or other raised objects, which
could cause the airbags to deploy. If you plan to modif y your vehicle,
consult your dealer.Modif ying your steering wheel or
any other part of your vehicle’s
safety features can make the
systems inef f ective. Larger or smaller wheels and tires
can interf ere with the operation of
your vehicle’s anti-lock brakes and
other systems. Non-Honda wheels, because they
are a universal design, can cause
excessive stress on suspension
components and will not be
compatible with the tire pressure
monitoring system (TPMS).
Modif ying Your Vehicle
A ccessories and Modif ications
192

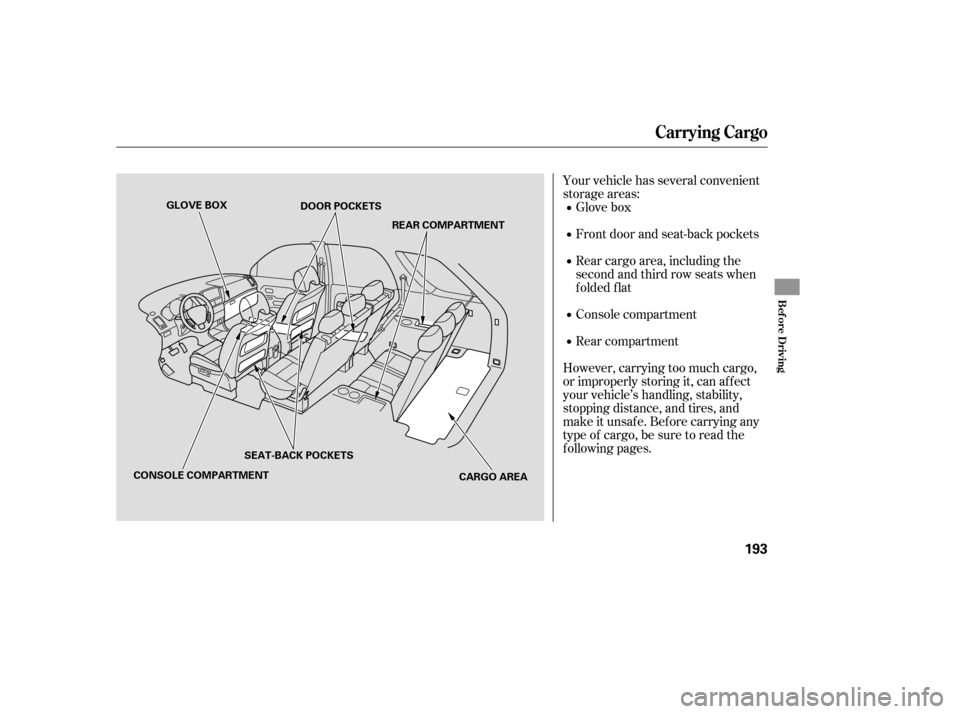

Your vehicle has several convenient
storage areas:Glove box
Front door and seat-back pockets
Rear cargo area, including the
second and third row seats when
folded flat
Console compartment
Rear compartment
However, carrying too much cargo,
or improperly storing it, can af f ect
your vehicle’s handling, stability,
stopping distance, and tires, and
make it unsaf e. Bef ore carrying any
type of cargo, be sure to read the
f ollowing pages.
Carrying Cargo
Bef ore Driving
193
GLOVE BOX
CARGO AREA
CONSOLE COMPARTMENT DOOR POCKETS
SEAT-BACK POCKETS REAR COMPARTMENT

µ·
Determine
the combined weight
of the driver and passengers that
will be riding in your vehicl e.
The resulting figure equals the
available amount of cargo and
luggage load capaci ty. Determine
the combined weight
of luggage and cargo being loaded
on the vehicle. That weight may
not safely exceed the available
cargo and luggage load capaci ty
calc ulated in step 4.
To
determine the correct cargo and
luggage load limit:
If your vehicle will be towing a
trailer, load from your trailer will
be tran sferred to your vehicle.
Consult this manual to determine
how this reduces the available
cargo and luggage load capacity of
yourvehicle(seepage ).
In addition, the total weight of the
vehicle, all occupants, accessories,
cargo, and trailer tongue load must
not exceed the gross vehicle weight
rating (GVWR) or the gross axle
weight rating (GAWR). Both are on
a label on the driver’s doorjamb.
The maximum load f or your vehicle
is 1,322 lbs (600 kg). This f igure
includes the total weight of all
occupants, cargo, and accessories,
and the tongue load if you are towing
a trailer.
Locate the statement, ‘‘the
combined weight of occupants and
cargo should never exceed 1,322
lbs ’’ on your vehicle’s placard.
(The placard is driver’s doorjamb.)
Subtract the combined weight of
the driver and passengers f rom
For example, if the maximum load
is 1,322 lbs and there will be eight
150 lb. passengers in your vehicle,
the amount of available cargo and
luggage load capacity is 122 lbs.
(1,322 750 (8 150) = 122 lbs.)
1.
2.
5.
6.
3.
4. 213
Load Limits
Carrying Cargo
194
Overloading or improper
loading can affect handling and
stability and cause a crash in
which you can be hurt or killed.
Follow all load limits and other
loading guidelines in this
manual.
1,322 lbs (600 kg).

Store or secure all items that could
be thro wn around and hurt
someone during a crash. If
you use an accessory roof rack,
the roof rack weight limit may be
lower. Refer to the info rmation that
came with your roof rack.
Theseparationnetcanbeusedto
hold back soft, lightweight items
stored in the cargo area. Heavy
items should be properly secured on
the floor of the cargo area. The net
may not prevent heavy items from
being thrown forward in a crash or a
sudden stop.
Be
sure items placed on the floor
behind the front seats cannot roll
under the seats and interfere with
the driver’s ability to operate the
pedals, the proper operation of the
seats, or proper operation of the
sensors under the seats.
Keep the glove box closed while
driving. If it is open, a passenger
could injure their knees during a
crash or sudden stop. The
cargo cover can be used to
cover the cargo area behind the third
row seats. When the third row seats
are folded down, the cargo cover can
be exte nded over the larger area. Do
not install the cover over the larger
area if the third row seats are not
folded down.
Ifyoufoldthesecondorthirdrow
seats
down, tie down items that
could be thrown about the vehicle
during a crash or sudden stop.
Also, keep all cargo below the
bottom of the windows. If it is
higher, it could interfere with the proper operation of the side
curtain airbags.
If you carry large items that
prevent you f rom closing the
tailgate, exhaust gas can enter the
passenger area. To avoid the
possibility of
, f ollow the instructions
on page . Distribute cargo evenly on the
f loor of the cargo area, placing the
heaviest items on the bottom and
as far forward as possible. Tie
down items that could be thrown
about the vehicle during a crash or
sudden stop.
If you carry any items on a roof
rack,besurethetotalweightof
the rack and the items does not
exceed 165 lbs (75 kg). 57
Carrying Cargo
Optional Separation Net
Optional Cargo Cover
Carrying Items in the Passenger
Compartment
carbon monoxide
poisoning
Carrying Cargo in the Cargo A rea
Bef ore Driving
195

Thehooksoneachsideof the
tailgate and on the underside of the
cargo area storage compartment lid
are f or plastic grocery bags. To use
the hook on the storage
compartment lid, open the lid, and
attach the cord to one of the shafts
of the third seat center head
restraint.You can use the cargo net to secure
items in the cargo area, and store
small items between the two halves
of the net. To install the cargo net,
hook the loops on the f our corners of
the net to the tabs at both sides of
the tailgate sill.
If equipped
Carrying Cargo
Cargo Net
196

This section gives you tips on
starting the engine under various
conditions, and how to operate the
automatic transmission. It also
includes important inf ormation on
parking your vehicle, the braking
system, the VTM-4 system (4WD
models only), the VSA system, the
tire pressure monitoring system, and
f acts you need if you are planning to
tow a trailer.........................
Driving Guidelines .198
.......................
Starting the Engine .199
..............
Automatic Transmission .200
..............................
VTM-4 System .204
Tire Pressure Monitoring
........................
System (TPMS) .205
..................................
Parking Tips .207
.............................
Braking System .208
...............
Anti-lock Brakes (ABS) .209
Vehicle Stability Assist (VSA)
........................................
System .211
.........................
VSA Of f Switch .212
...........................
Towing a Trailer .213
......................
Trailer Driving Tips .219
Towing Your Vehicle Behind a
................................
Motorhome .221
Of f -Highway Driving ..................................
Guidelines .222
Driving
Driving
197
