Check each of the large f uses in
the primary under-hood f use box
by looking through the top at the
wire inside. Remove the screws
with a Phillips-head screwdriver.Look f or a blown wire inside the
f use. If it is blown, replace it with
one of the spare f uses of the same
rating or lower.
Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse boxes by
pulling out each f use with the f use
puller.
The f use puller is in the primary
under-hood f use box.
3. 4. 5.
Fuses
T aking Care of t he Unexpect ed
287
BLOWN BLOWN
FUSE PULLER
\f—\f—\fy


y
(+\fy\fy
2008 Pilot

If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can.If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualif ied technician.
If a trailer light is burned out, check
if these f uses are blown when you
replace the light bulbs:
If thosefusesareOK,butthetrailer
lights still do not work, there are two
blown 7.5 amp f uses in the trailer
hitch wiring. To access the 7.5 amp
f uses:
Open the tailgate and remove the
cargo f loor lid.
Pull out the bottom of the tailgate
rubber seal.
Remove rear trim panel by pulling
up on the inside edge of the rear
trim panel, and unhooking the f our
clips and tabs.
Af ter replacing f uses, and reinstall
the rear trim panel in the reverse
order of removal.
Primary under-hood f use box
fuses5,7,and24
Interior driver’s side f use box: 10
Interior passenger’s side f use box:
10
If the radio f use is removed, the
audio system will disable itself . The
nexttimeyouturnontheradioyou
will see ‘‘ENTER CODE’’ in the
f requency display. Use the preset
buttons to enter the digit code (see
page ).
If the driver’s power window f use is
removed, the AUTO function of the
driver’s window may be disabled.
You should reset the AUTO f eature,
(see page ).
6.
1.
2.
3.
4.
95
141
Except f or LX models
Trailer Fuses
Fuses
288
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
\f—\f—\fy


y
(+\fy\fy
2008 Pilot

µµ
No. Amps. No. Circuits Protected
No. Circuits ProtectedAmps.
Amps.
Circuits Protected
Circuits Protected
No. Amps.
CONT INUED
1
2
3
4
5
6
7
8
9
10
11
12
13 20 A
30 A
20 A
15 A
15 A
20 A
20 A
20 A
40 A
40 A
30 A
40 A 14
15
16
17
18
19
20
21
22
23
24
Rear A/C
Heater Motor
Cooling Fan
Spare Fuse
Spare Fuse
Spare Fuse
Battery
Condenser Fan
MG Clutch
IGI Main
Trailer (accessory)
7
8
9
10
11 ET CS
IG Coil
LAF
TPMS
(FR FOG)
30 A
40 A
30 A
7.5 A 10 A
15 A
120 A 30 A
7.5 A 50 A
15 A
15 A
15 A
7.5 A
(20 A)
Spare Fuse
Spare Fuse
Right Headlight
ACG S
Hazard
Not used
Stop, Horn
Left Headlight
Radio
Power Window Motor
Power Seat
Rear Defroster
Back Up, ACC
AC INVERTER
VSA F/S Relay
VSA Motor
VTM-4
ACM
Rear Accessory Socket
1
2
3
4
5
6 20 A
40 A
30 A
20 A
10 A
15 A
Fuse Locations
T aking Care of t he Unexpect ed
289
PRIMARY UNDER-HOOD FUSE BOX
SECONDARY UNDER-HOOD FUSE BOX
\f—\f—\fy


y
(+\fy\fy
2008 Pilot

µ
µ
ÃŽ
ÃŽÃŽ ÃŽ
No. No. Amps.Amps. Circuits Protected Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
13 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 20 A
20 A
20 A
20 A
10 A
20 A
20 A
15 A
15 A
10 A
20 A
7.5 A
7.5 A 20 A
20 A
15 A
10 A
7.5 A
7.5 A 10 A
15 A
7.5 A
7.5 A 10 A
7.5 A
7.5 A 30 A Fuel Pump
SRS
Heater Control, A/C Clutch
Relay, Cooling Fan Relay
Power Mirror, ABS
Daytime Running Light
ECU(PCM),CruiseControl
OPDS, Rear Wiper
ACC Relay
Back-up Lights, Instrument
Lights
Turn Signals
VTM-4
Front Wiper
Not used Driver’s Power Window
Driver’s Power Seat Reclining
Heated Seat
Driver’s Power Seat Sliding
Not used
Daytime Running Light
Driver’s side Rear Power
Window
Front Passenger’s Power
Window
Front Accessory Socket
Small Light
Interior Light
Power Door Lock
Back Up
Moonroof
Moonroof
Passenger’s Side Rear Power
Window
Canadian models
:
Canadian models
Fuse Locations
290
Driver’s Side
INTERIOR FUSE BOX
Passenger’s Side
Front Front
:
\f—\f—\fy

y
(+\fy\fy
2008 Pilot

µ
Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.
................
Identif ication Numbers .292
................................
Specif ications .294
..........
DOT Tire Quality Grading .296
Unif orm Tire Quality ..................................
Grading .296
.................................
Treadwear .296
......................................
Traction .296
.............................
Temperature .297
.................................
Tire Labeling .298
Tire Pressure Monitoring
System (TPMS) Required .............
Federal Explanation .300
.......................
Emissions Controls .302
.....................
The Clean Air Act .302
Crankcase Emissions Control
....................................
System .302
Evaporative Emissions Control ....................................
System .302
Onboard Ref ueling Vapor ................................
Recovery .302
...
Exhaust Emissions Controls .303
....................
PGM-FI System .303
Ignition Timing Control
................................
System .303
Exhaust Gas Recirculation ...................
(EGR) System .303 Three Way Catalytic
...........................
Converter .303
....................
Replacement Parts .303
..
Three Way Catalytic Converter .304
........................
Emissions Testing .305
....
Testing of Readiness Codes .305
T echnical Inf ormation
Technical Inf ormation
291
\f—\f—\fy

y
(+\fy\fy
2008 Pilot

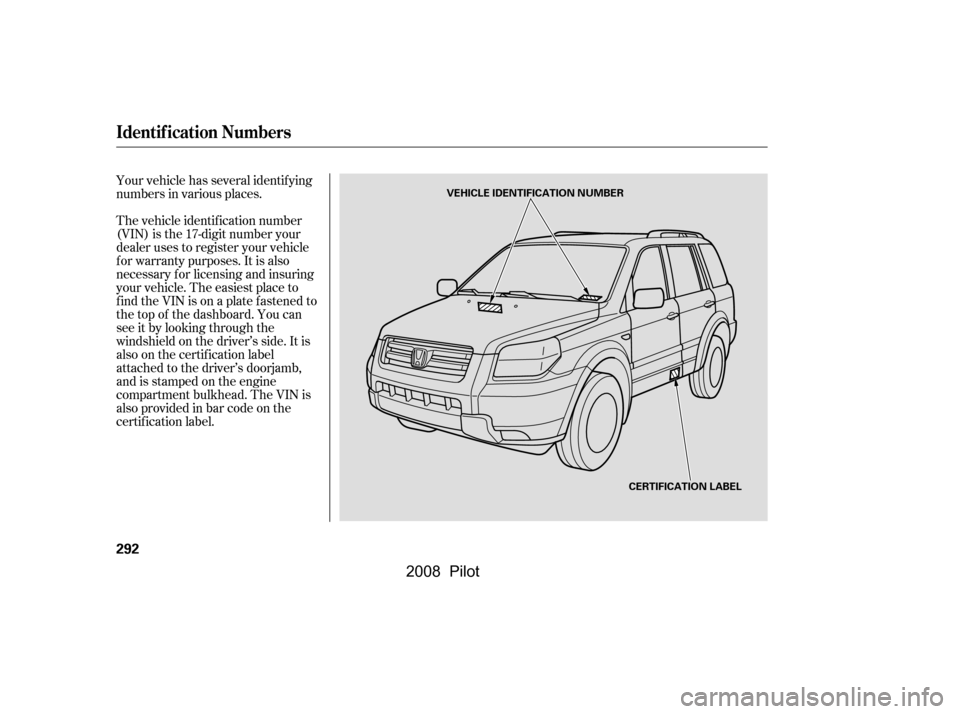

Your vehicle has several identif ying
numbers in various places.
The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
Identif ication Numbers
292
VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL
\f—\f—\fy

y
(+\fy\fy
2008 Pilot

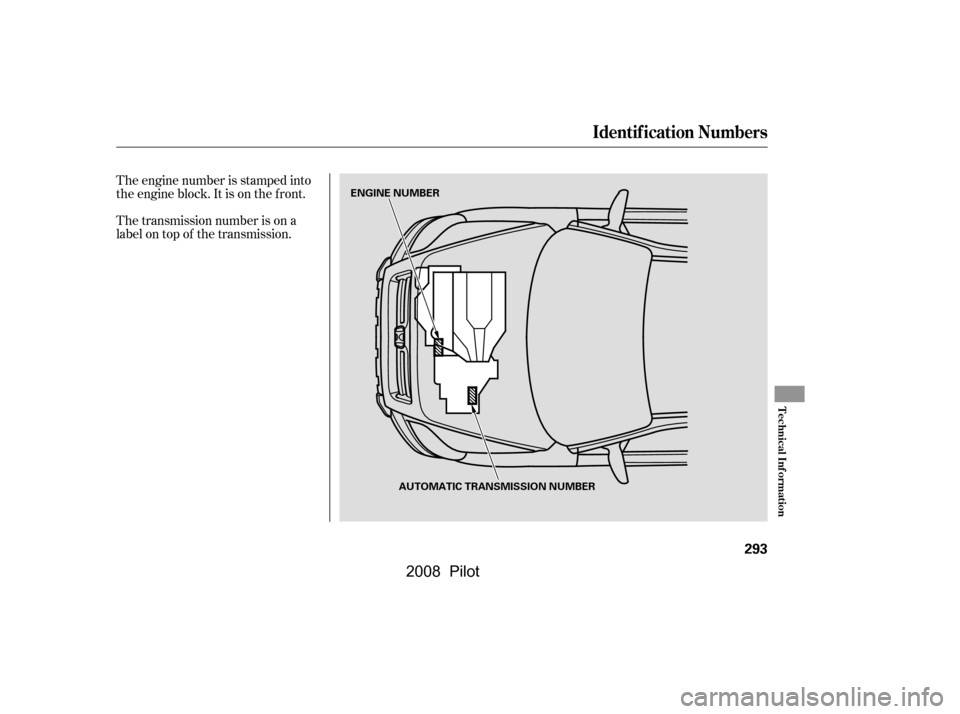

The transmission number is on a
label on top of the transmission.
The engine number is stamped into
the engine block. It is on the f ront.
Identif ication Numbers
Technical Inf ormation
293
ENGINE NUMBERAUTOMATIC TRANSMISSION NUMBER
\f—\f—\fy

y
(+\fy\fy
2008 Pilot

ÃŽÃŽ ÃŽ
ÃŽ
ÃŽ
ÃŽ
ÃŽ
ÃŽ
ÃŽ
ÃŽ
ÃŽ
ÃŽ
ÃŽ
ÃŽ
µ
ÃŽÃŽ
Specif ications
294
Dimensions
Weights
Battery
Capacities
Seating Capacities 1.93 US gal (7.3
)
2.43 US gal (9.2)
4.5 US qt (4.3
)
4.2 US qt (4.0
)
5.3 US qt (5.0
)
20.34 US gal (77.0
)
188.0 in (4,775 mm)
76.5 in (1,943 mm)
Length
Width
Height
Wheelbase
Track 66.3 in (1,685 mm) 106.3 in (2,700 mm)
70.5 in (1,790 mm)
Gross vehicle weight rating
Gross combined weight
rating (GCWR) See the tire information label atta-
ched to the driver’s doorjamb.
9,700 lbs (4,400 kg)
77.5 in (1,968 mm)
71.7 in (1,821 mm)
70.1 in (1,780 mm)
71.3 in (1,811 mm)
66.5 in (1,690 mm)
66.5 in (1,690 mm)
66.7 in (1,694 mm)
12 V 20 AH/5 HR
Capacity Excluding the oil remaining in the engine
0.193 US gal (0.73
)
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity: 2.79 US qt (2.64
)
4.8 US qt (4.5
)
Fuel tank
Engine
coolant
Engine oil
Automatic
transmission
fluid
Rear
differential
fluid (4WD)
Windshield
washer
reservoir
8.3 US qt (7.9
)
3.5 US qt (3.3
)
8.9 US qt (8.4
)
4.0 US qt (3.8
)
Equipped with transmission fluid cooler and power steering
fluid cooler.
The GCWR must be reduced 2 percent for every 1,000 feet (305
meters) of elevation.
Total
Front
Rear 8
2
3
3 Approx.
1:
2:
1:
2: Front
Rear
4WD
2WD
Front
Rear
4WD
2WD Change
Total
Change
Including
filter
Without
filter
Total
Change
Total
Change 4WD
2WD
4WD
2WD
Second row
Third row
1 : LX and LX-VP models 2 : EX, EX-L, and EX-SE models
2
1 1
2
1
2
1
2
1
2
\f—\f—\fy



y
(+\fy\fy
2008 Pilot

µ
µ
µ
µ µµ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
ÃŽ
ÃŽ
ÃŽ
ÃŽ
Specif ications
Technical Inf ormation
295
Lights
Fuses Engine
Air Conditioning
Alignment
Tires
Headlights
Front side marker lights
Front position lights
Front turn signal lights
Side turn signal lights
Front fog lights
Rear side marker lights
Rear turn signal/hazard lights
Stop/Taillights
Backup lights
License plate lights
High-mount brake light
Front map lights
Rear map lights
Cargo area light
Vanity mirror light
Door (Courtesy) light
21 W/5 W
5W
12 V
12 V
3CP
21 CP (18 W)
8W
4CP
5W
5W
21 W
3CP
55 W
3CP
12 V
12 V 1.1 W
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V 21 W/5 W 5W
12 V
12 V
12 V
12 V
12 V
Interior
Under-hood Type
BorexStroke
Displacement
Compression ratio
Spark plugs
SKJ16DR-M11IZFR5K-1110.0 : 1
211.8 cu-in (3,471 cm
)
3.50 x 3.66 in (89.0 x 93.0 mm) Water cooled 4-stroke SOHC,
i-VTEC V6 gasoline engine (2WD) Water cooled 4-stroke SOHC,
VTEC V6 gasoline engine (4WD)
12 V
12 V
55 W
60 W
Refrigerant type
Charge quantity
Lubricant type
Toe-in
Camber
Caster
Size
Pressure 60 psi (420 kPa , 4.2 kgf/cm
)
32 psi (220 kPa , 2.2 kgf/cm)
T155/90D16 110M P235/70R16 104S
1°98’ 1°88’
0°50’
0°50’
0°76’
0°66’ 0.00 in (0.0 mm)
0.00 in (0.0 mm)
3.8 W
21 CP (18 W) HFC-134a (R-134a)
24.7 26.5 oz (700 750 g) ND-OIL8
See page290or the fuse label
attached to the dashboard.
See page290or the fuse label
attached to the inside of the fuse
box door under the dashboard.
See page289or the fuse box
cover. Front/Rear
Spare
Front/Rear
Spare
Front
Rear
Front
Rear
Front
Driver’s side
Passenger’s side NGK:
DENSO:
(2WD)
(2WD)
(2WD)(4WD)
(4WD)
(4WD)
High
Low
(AMBER)
(H11)(HB3)
(H11)
1 : EX-L and EX-SE models
2 : LX, LX-VP, and EX models
1 2
\f—\f—\fy

\fy
(+\fy\f\f\fy
2008 Pilot

Quality grades can be f ound where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate.The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades.
DOT Tire Quality Grading (U.S. Vehicles)
Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A T readwear T raction
296
\f—\f—\fy

\fy
(+\fy\f\f
y
2008 Pilot
