HONDA PILOT 2009 2.G Owners Manual

Open the overhead screen by
pushing the OPEN button. The
screen will swing down part-way.
Pivot the screen the rest of the way.
If you pivot the screen too f ar
f orward, past the second detent, the
display will turn of f . Pivot the screen
back to the second or first detent to
turn the display back on. To close
the screen, pivot it up until it latches.
To operate the rear entertainment
system f rom the f ront panel, press
the REAR SOURCE button. You will
hear two beeps and the indicator in
the button comes on to show that the
control panel is enabled.
The media that the rear passengers
are listening to will then be heard
f rom the f ront speakers.
If you do not operate the rear
entertainment system f rom the f ront
panel within 10 seconds, the
indicator goes of f and the FRONT
SOURCE indicator comes on
automatically.
To play the radio, the buttons for the
f ront entertainment system have the
same f unctions. If discs are loaded in the disc
changer of the upper part, select the
CD/AUX button. If a disc is loaded
in the lower player, select the DVD
button.
The DVD player in your rear
entertainment system can play DVD
video discs, audio CDs, video CDs,
MP3/WMA discs and DTS CDs.
CONT INUED
To Select Rear Entertainment
f rom the Front Control Panel
Operating the DVD Player f rom
the Front Control Panel
Rear Entertainment System
Features
317
REAR CONTROL PANEL
OPEN BUTTON
OVERHEAD SCREEN
——
y
y
(/yy
2009 Pilot

µµ
Insert a DVD into the lower DVD/
CD slot in the audio unit.
Push the DVD in half way, the drive
will pull it in the rest of the way.
Press the button if
the DVD does not start playing
automatically.
Press the button to
pause the DVD. Press the button
again or press PLAY to resume.
Pause works only with the DVD
player.
When the DVD menu is displayed,
‘‘DVD MENU’’ and ‘‘Push to
start’’ appears. Press button to
play the DVD.
Rear Entertainment System
PL AY
PAUSE
On vehicles wit h navigat ion syst em
318
PLAY/PAUSE
BUTTON
SKIP BAR EJECT BUTTON
——
y
y
(/yy
2009 Pilot

µ
µ Press the eject button to
remove the DVD from the drive.
To return f ront panel control to the
f ront audio system, press the
FRONT SOURCE button. You will
hear a beep and the indicator in the
button comes on. The indicator also
comes on automatically when you do
not operate the rear entertainment
system f or 10 seconds. To turn on the rear entertainment
system f rom the rear control panel,
press the PWR button. Use the AM/
FM button, XM RADIO button, CD
button, or DVD/AUX button to
select the entertainment source. The
selected source will be shown in the
display. Make sure the rear control
operation has not been disabled with
the REAR CTRL button on the front
panel. When the audio system is of f
or the f ront side rear power is of f ,
the rear control panel cannot be
turned on.
Press and hold the
side of the SKIP bar to move
f orward; you will see the time
elapsed shown in the overhead
screen advances rapidly. Press and
hold the side of the SKIP bar to
move backward; you will see the
time elapsed shown in the overhead
screen decreases. Release the bar
when the system reaches the point
you want.
Each time you press the side of
the SKIP bar and release it, the
system skips f orward to the
beginning of the next track or
chapter. Press and release the side of the SKIP bar to skip
backward to the beginning of the
current track. Press and release it
again to skip to the beginning of the
previous track or chapter. EJECT
To Return to Front Audio
Controls
Using the Rear Control Panel
SEEK /SK IP
Rear Entertainment System
Features
319
——
y

y
(/yy
2009 Pilot

ÛÝÛÝ
Usethe,,,or
button to highlight SEEK,
TUNE, AUTO SELECT, SCAN, or
one of the preset radio stations on
the overhead screen. You can enter
the highlighted f unction by pressing
the ENT button. These f unctions
have the same features as those of
the f ront audio system. You can also
use the or buttons to seek
up/down and or to tune
up/down.
You can also use the orbuttons to change categories
up/down and or to change
channels up/down within a category
(in CATEGORY mode) or up/down
f or all channels (in CH mode).
Usethe,,,or button to highlight CATE (to
change categories), CHAN (to
change channels), MODE (to change category or channel mode),
SCAN, or one of the preset channels
on the overhead screen. You can
enter the highlighted f unction by
pressing the ENT button. These
functions have the same features as
those of the f ront audio system.
To Play the Radio f rom the Rear
Control Panel
To Play the XM Radio f rom the
Rear Control Panel
Rear Entertainment System
320
REAR CONTROL PANEL
——
y


y
(/yy
2009 Pilot

ÛÝ
Û
Û
Ý
Ý ÝÛ
ÛÝ
While the overhead screen is closed,
you can see the XM radio
inf ormation in the subsidiary display
in the ceiling. Pressing the DISP
MODE button repeatedly changes
the subsidiary display f rom the
channel number, to the category
name, to the music title, to the artist
name, and to the channel name, and
then back to the channel number.
To change mode, press and hold the
DISP MODE button f or 5 seconds.
Usethe,,,or
button to highlight REPEAT,
RANDOM, SCAN, , (skip), , or (cue) on the overhead
screen. You can enter the
highlighted f unction by pressing the
ENT button. These f unctions have
the same features as those of the
f ront audio system. If discs are loaded in the disc
changer, select them by pressing the
CD button.
To change the disc currently playing,
usethe,,,or button to highlight your
selected disc icon, and press ENT.
If CDs are loaded in the CD changer
and the overhead screen is not open,
pressing the or button changes
the discs. If an iPod
or USB f lash memory
device is connected to the USB
adapter cable in the console
compartment, you can select f iles to
play.
For an iPod
,usethe , ,
, or button to highlight
REPEAT, RANDOM, , (skip), , or (cue) on
the overhead screen.
For a USB f lash memory device, use
the,,,or button to highlight REPEAT,
RANDOM, SCAN, , (skip), , or (cue) on the overhead
screen.
Rear Entertainment System
To Play a Disc in the 6-Disc
Changer f rom the Rear Control
Panel To Play an iPodor USB Flash
Memory Device f rom the Rear
Control Panel
Features
321
——
y

y
(/yy
2009 Pilot

The video screen is f or use by rear
seat passengers only. The driver and
f ront seat passenger should not try
to view the screen while driving.
Open the overhead screen by
pushing the OPEN button. The
screen will swing down part-way.
Pivot the screen the rest of the way.
If you pivot the screen too f ar
f orward, past the second detent, the
display will turn of f . Pivot the screen
back to the second or first detent to
turn the display back on. To close
the screen, pivot it up until it latches.
Press the button when you
want to pause the DVD. Press this
button again to go back to PLAY.
Pressthe buttontoskiptothe
beginning of the next chapter. Press
the button to return to the
beginning of the current chapter.Press the button again quickly
to go to the previous chapter.
To move rapidly within a chapter,
press and hold the or
button. The system will
continue to move through the
chapter. Press the button to
move forward, or the button to
move backward. Release the button
when the system reaches the point
you want. ToselectthemenuontheDVD,
press the MENU/SCROLL button.
Usethe,,,and
buttons to move to the desired
menu selection, then press the ENT
button to enter your selection.
To Play a DVD from the Rear
Control Panel
Rear Entertainment System
322
REAR CONTROL PANEL
OPEN
BUTTON
OVERHEAD SCREEN
——
y

y
(/yy
2009 Pilot

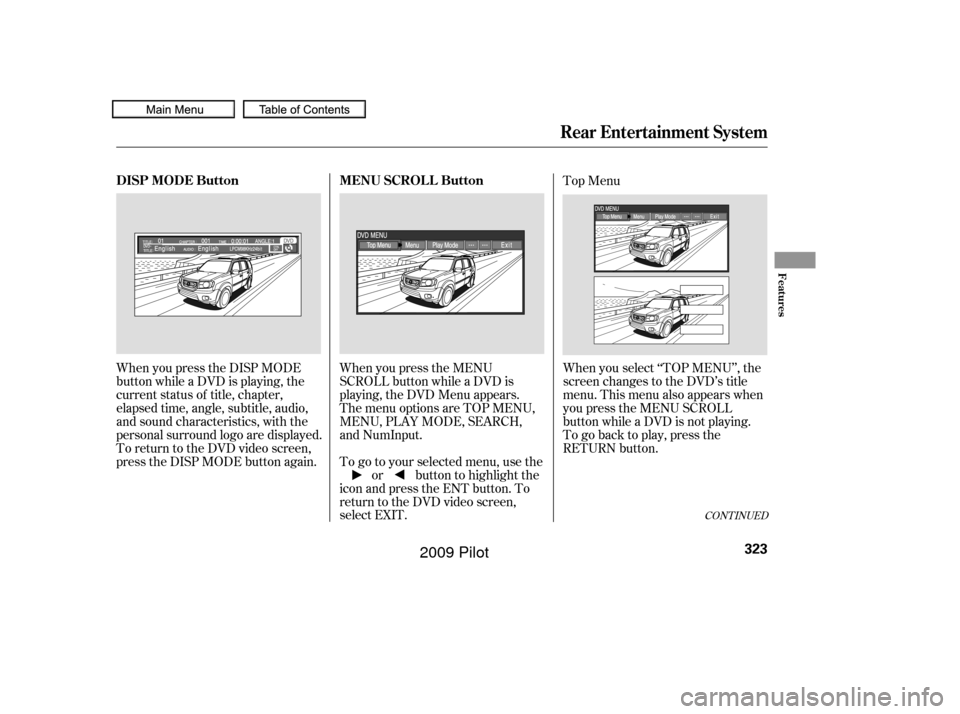

When you press the MENU
SCROLL button while a DVD is
playing, the DVD Menu appears.
ThemenuoptionsareTOPMENU,
MENU, PLAY MODE, SEARCH,
and NumInput.
To go to your selected menu, use theor button to highlight the
icon and press the ENT button. To
return to the DVD video screen,
select EXIT. When you select ‘‘TOP MENU’’, the
screen changes to the DVD’s title
menu. This menu also appears when
you press the MENU SCROLL
button while a DVD is not playing.
To go back to play, press the
RETURN button. Top Menu
When you press the DISP MODE
button while a DVD is playing, the
current status of title, chapter,
elapsed time, angle, subtitle, audio,
and sound characteristics, with the
personal surround logo are displayed.
To return to the DVD video screen,
press the DISP MODE button again.
CONT INUED
Rear Entertainment System
MENU SCROLL Button
DISP MODE Button
Features
323
——
y


y
(/yy
2009 Pilot

ÛÝ
Menu
Play Mode

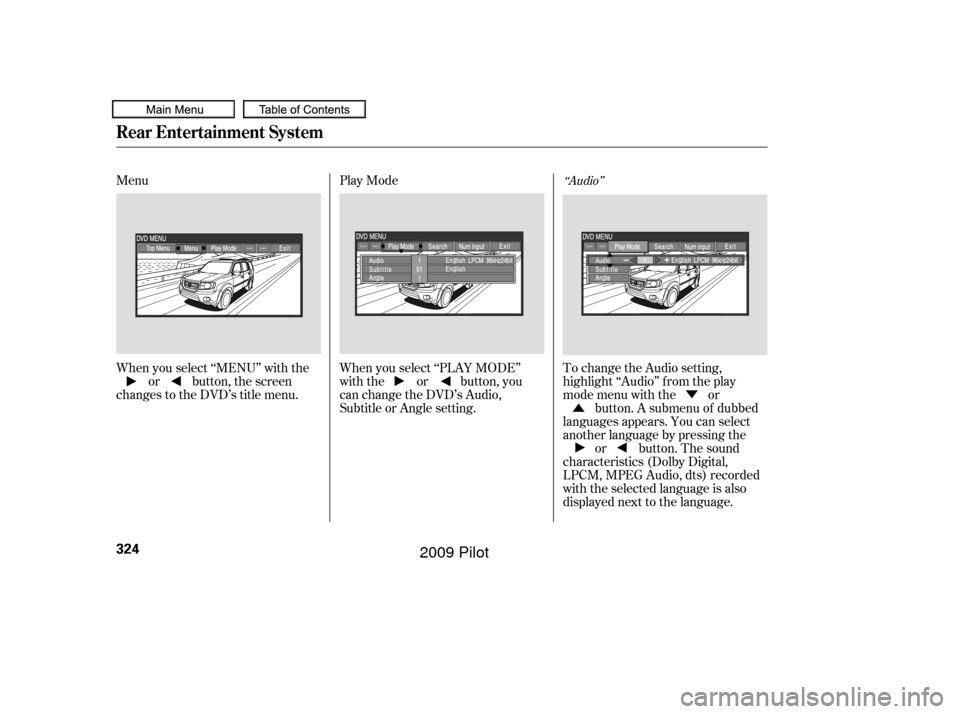

When you select ‘‘MENU’’ with the or button, the screen
changes to the DVD’s title menu. When you select ‘‘PLAY MODE’’
with the or button, you
can change the DVD’s Audio,
Subtitle or Angle setting.To change the Audio setting,
highlight ‘‘Audio’’ f rom the play
mode menu with the or
button. A submenu of dubbed
languages appears. You can select
another language by pressing the or button. The sound
characteristics (Dolby Digital,
LPCM, MPEG Audio, dts) recorded
with the selected language is also
displayed next to the language.
‘‘Audio’’
Rear Entertainment System
324
——
y

y
(/yy
2009 Pilot

ÝÛÝ
Û ÝÛ
CONT INUED
‘‘Subtitle’’The selectable languages vary f rom
DVD to DVD, and this f eature may
notbeavailableonsomeDVDs.
Press the RETURN button or cursor
back with the or button to
go back to the top of the Play Mode
menu. Press the RETURN button
again to exit completely.
Af ter selecting your desired subtitle,
press the RETURN button or cursor
back with the or button to
go back to the top of the Play Mode
menu. Press the RETURN button
again to exit completely.

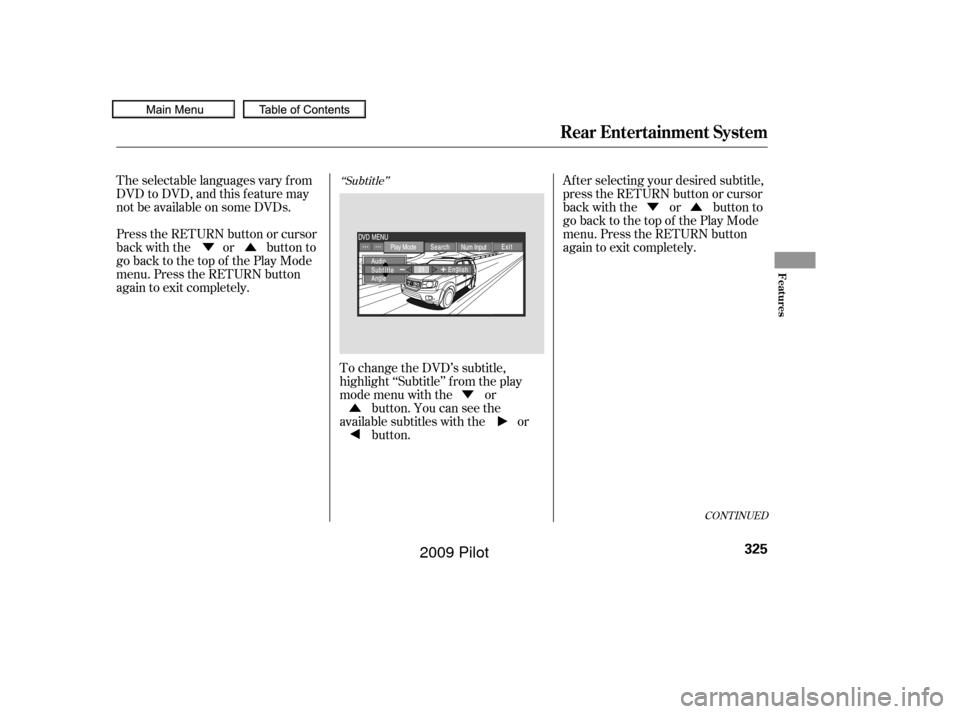

To change the DVD’s subtitle,
highlight ‘‘Subtitle’’ f rom the play
mode menu with the or button. You can see the
available subtitles with the or button.
Rear Entertainment System
Features
325
——
y

y
(/yy
2009 Pilot

ÝÛ
ÛÝ
‘‘Angle’’

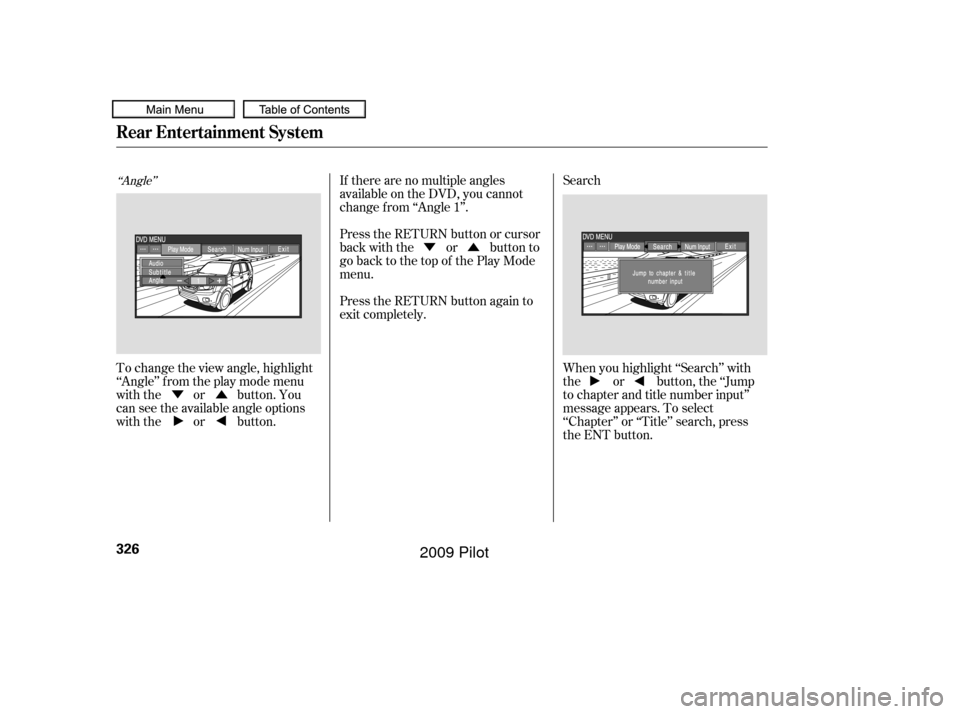

When you highlight ‘‘Search’’ with
the or button, the ‘‘Jump
to chapter and title number input’’
message appears. To select
‘‘Chapter’’ or ‘‘Title’’ search, press
the ENT button. Search
If there are no multiple angles
available on the DVD, you cannot
change f rom ‘‘Angle 1’’.
Press the RETURN button or cursor
back with the or button to
go back to the top of the Play Mode
menu.
Press the RETURN button again to
exit completely.
To change the view angle, highlight
‘‘Angle’’ f rom the play mode menu
with the or button. You
can see the available angle options
with the or button.
Rear Entertainment System
326
——
y


y
(/y
y
2009 Pilot
