Push the new bulb straight into
the socket until it bottoms.
Turn on the lights to make sure
the new bulb is working.
Put the socket back into the light
assembly, and turn it clockwise to
lock it in place.
Each outside mirror has side turn
signal lights. The lights should be
replaced by your dealer.
Align the two tabs on the light
assembly with the mounting holes
and install the rear light assembly
in the rear pillar. Tighten the two
bolts securely.
Pull the bulb straight out of its
socket.
Remove the socket by turning it
one-quarter turn counterclockwise.
Determine which of the f our bulbs
is burned out: stop/taillight,
back-up light, side marker light, or
turn signal light.
6.
7.
8.
9.
10.
11.
5.
On Touring models
Lights
Side T urn Signal L ights
Maint enance
487
BULB
TABS
SOCKET
——
y

y
(/
yy
2010 Pilot

Place a cloth on the edge of the
lens segment to prevent scratches.
Remove each lens segment by
caref ully prying on its edge with a
small f lat-tip screwdriver.
Remove the screw under each lens.
Pull the high-mount brake light
assembly out of the vehicle.
Remove the lens f rom the light
assembly.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Turn on the lights to make sure
the new bulb is working.
Put the lens back on the light
assembly, and tighten the
mounting bolts securely.
Put the light assembly back into
the vehicle. Install the screws and
tighten them securely.
Reinstall the lens segments.
Remove the two mounting screws
f rom the light assembly.
1.
2.
3.
4.
5.
7.
8.
9.
6.
Lights
Replacing a High-mount Brake
Light Bulb
488
LENS SEGMENT
——
y

y
(/
yy
2010 Pilot

Turn on the parking lights and
check that the new bulb is
working.
Put the lens back into the light
assembly, right side f irst. Push on
the lef t edge until it snaps into
place.

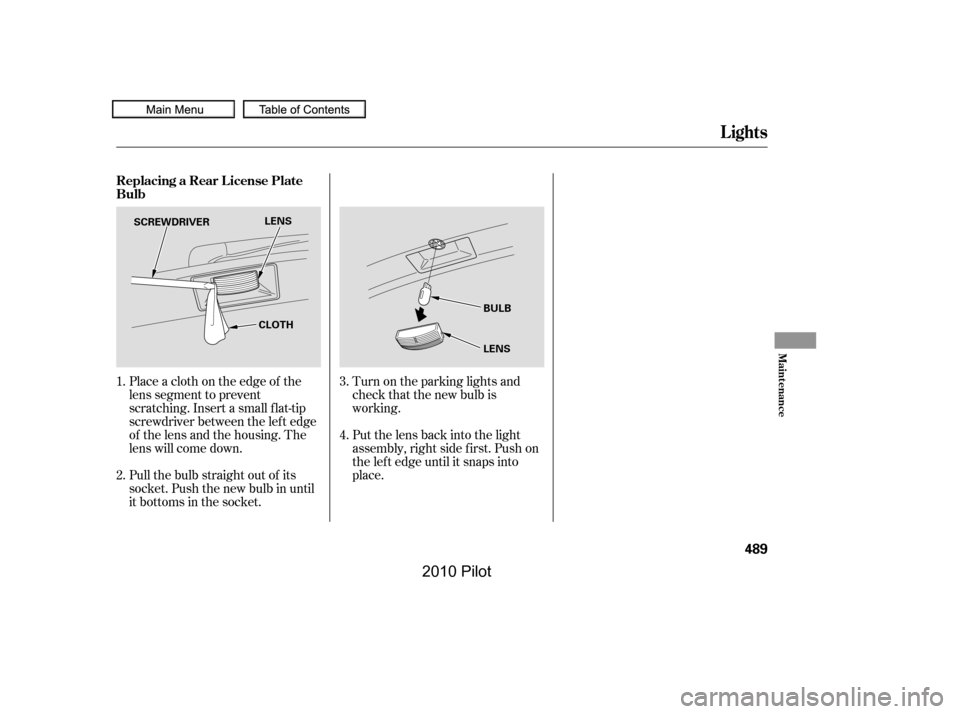

Place a cloth on the edge of the
lens segment to prevent
scratching. Insert a small f lat-tip
screwdriver between the lef t edge
of the lens and the housing. The
lens will come down.
Pull the bulb straight out of its
socket. Push the new bulb in until
it bottoms in the socket.
3.
4.
1.
2.
Replacing a Rear License Plate
Bulb
Lights
Maint enance
489
BULB
LENS
SCREWDRIVERLENS
CLOTH
——
y

y
(/
yy
2010 Pilot

If your seat belts get dirty, use a sof t
brush with a mixture of mild soap
and warm water to clean them. Do
not use bleach, dye, or cleaning
solvents. Let the belts air-dry bef ore
you use the vehicle.
This f ilter removes the dust and
pollenthatisbroughtinfromthe
outside through the heating and
cooling system/climate control
system.
Have your dealer replace the filter
when this service is indicated by a
maintenance message on the
inf ormation display or multi-
inf ormation display (depending on
the models). It should be replaced
every 15,000 miles (24,000 km) if you
drive primarily in urban areas that
have high concentrations of soot in
the air, or if the flow from the
heating and cooling system/climate
control system becomes less than
usual.

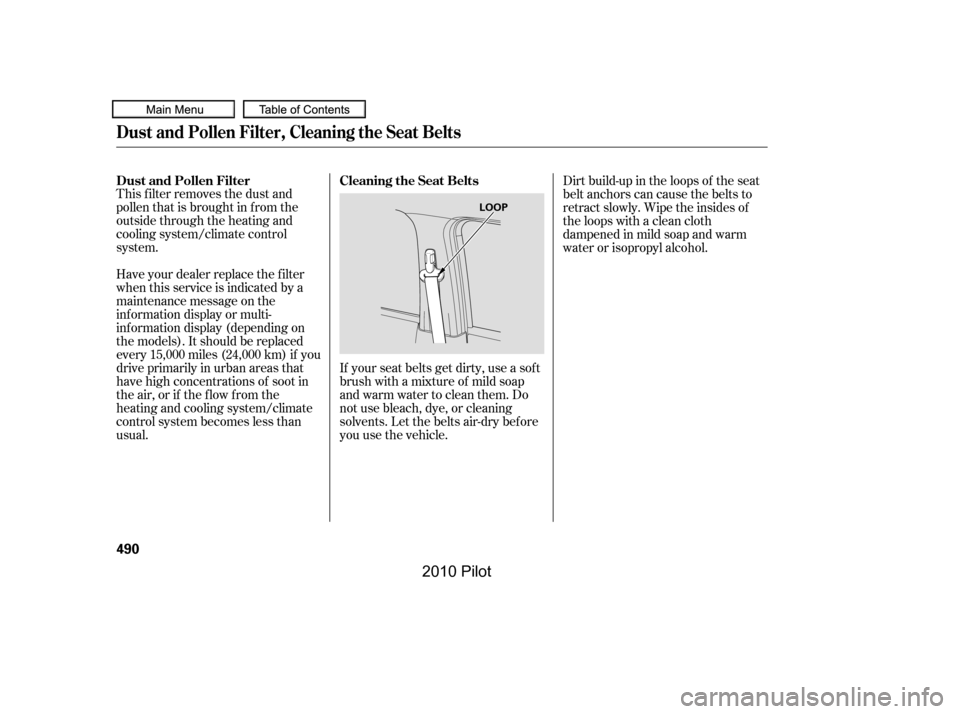

Dirt build-up in the loops of the seat
belt anchors can cause the belts to
retract slowly. Wipe the insides of
the loops with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol.
Cleaning the Seat BeltsDust and Pollen Filter
Dust and Pollen Filter, Cleaning the Seat Belts
490
LOOP
——
y

y
(/
yy
2010 Pilot

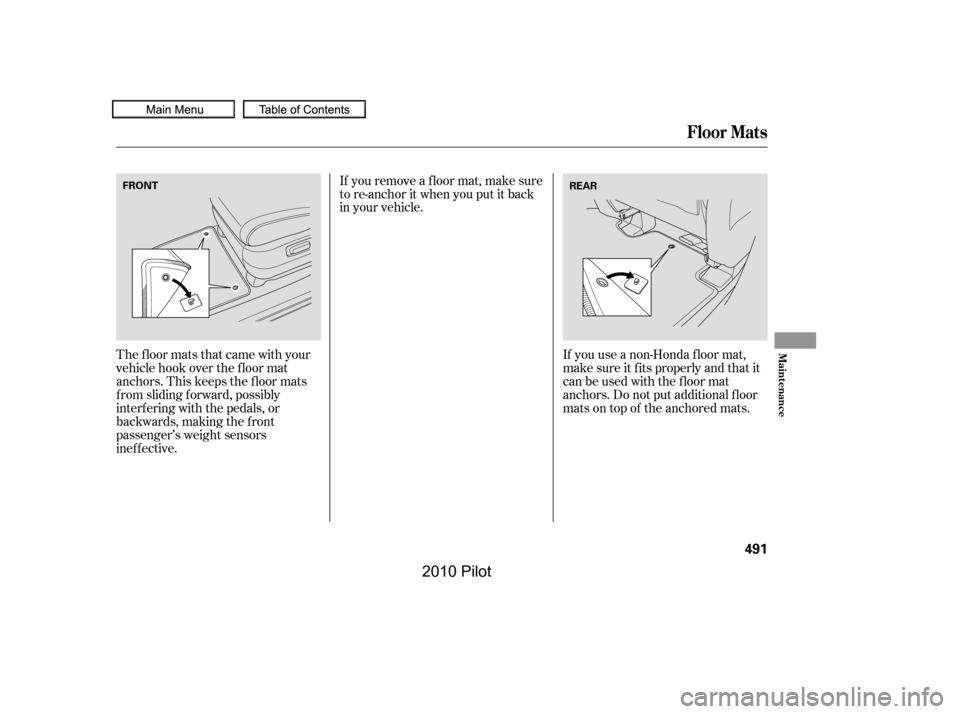

The floor mats that came with your
vehicle hook over the f loor mat
anchors. This keeps the f loor mats
f rom sliding f orward, possibly
interf ering with the pedals, or
backwards, making the f ront
passenger’s weight sensors
inef f ective.
If you remove a f loor mat, make sure
tore-anchoritwhenyouputitback
in your vehicle.
If you use a non-Honda f loor mat,
make sure it f its properly and that it
canbeusedwiththefloormat
anchors. Do not put additional f loor
mats on top of the anchored mats.
Floor Mat s
Maint enance
491
FRONTREAR
——
y

y
(/
yy
2010 Pilot

Check the condition of the wiper
blades at least every 6 months.
Replace them if you f ind signs of
cracking in the rubber, and areas
that are getting hard or if they leave
streaks and unwiped areas when
used.

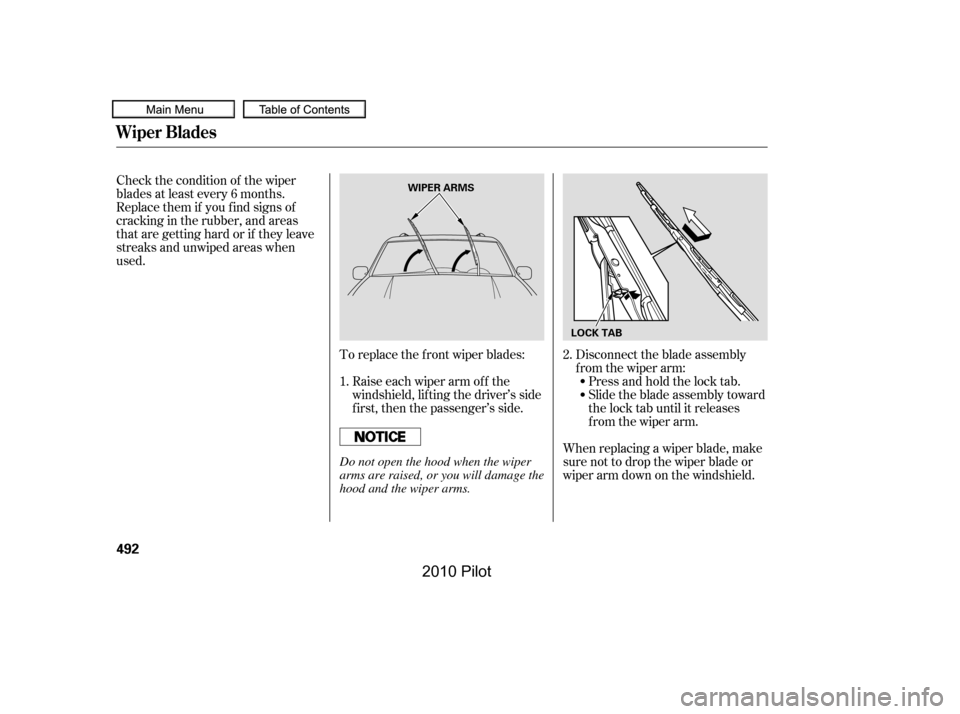

To replace the f ront wiper blades:
Raise each wiper arm of f the
windshield, lif ting the driver’s side
first, then the passenger’s side.
Disconnect the blade assembly
from the wiper arm:
Press and hold the lock tab.
Slide the blade assembly toward
the lock tab until it releases
from the wiper arm.
When replacing a wiper blade, make
sure not to drop the wiper blade or
wiper arm down on the windshield.
2.
1.
Wiper Blades
492
WIPER ARMS
LOCK TAB
Do not open the hood when the wiper
arms are raised, or you will damage the
hood and the wiper arms.
——
y
y
(/
yy
2010 Pilot

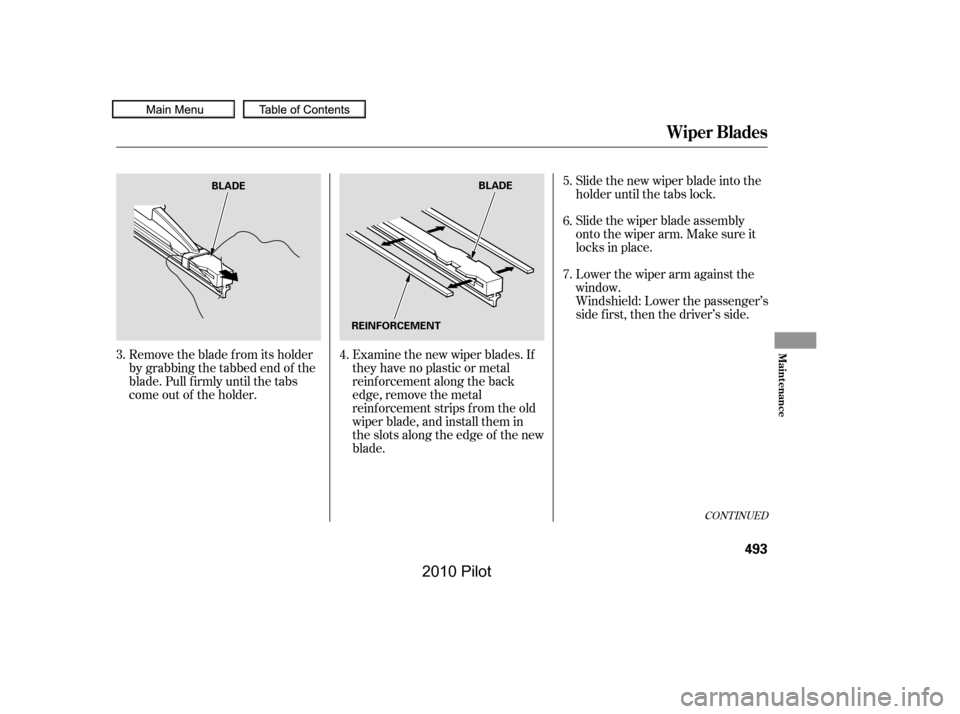

Examine the new wiper blades. If
they have no plastic or metal
reinf orcement along the back
edge, remove the metal
reinf orcement strips f rom the old
wiper blade, and install them in
the slots along the edge of the new
blade.
Slide the new wiper blade into the
holder until the tabs lock.
Slide the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
Lower the wiper arm against the
window.
Windshield: Lower the passenger’s
side first, then the driver’s side.
Remove the blade f rom its holder
by grabbing the tabbed end of the
blade. Pull f irmly until the tabs
come out of the holder.
6.
7.
4.
5.
3.
CONT INUED
Wiper Blades
Maint enance
493
BLADEBLADE
REINFORCEMENT
——
y


y
(/
yy
2010 Pilot

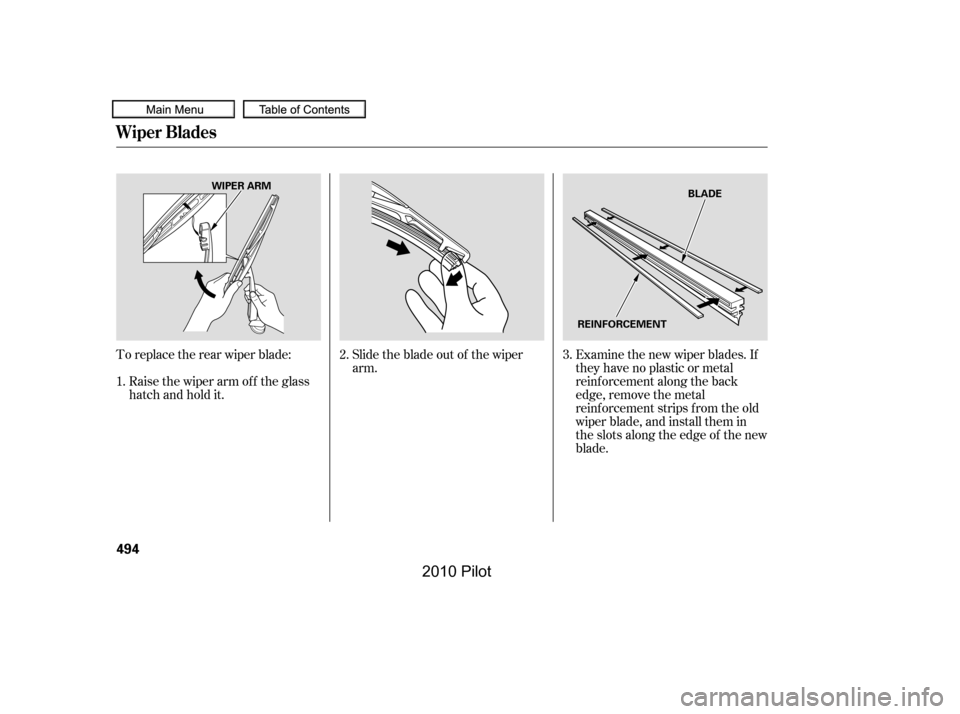

Toreplacetherearwiperblade: Slidethebladeoutof thewiper
arm.
Examine the new wiper blades. If
they have no plastic or metal
reinf orcement along the back
edge, remove the metal
reinf orcement strips f rom the old
wiper blade, and install them in
the slots along the edge of the new
blade.
Raise the wiper arm of f the glass
hatch and hold it.
3.
1.
2.
Wiper Blades
494
BLADE
REINFORCEMENT
WIPER ARM
——
y

y
(/
yy
2010 Pilot

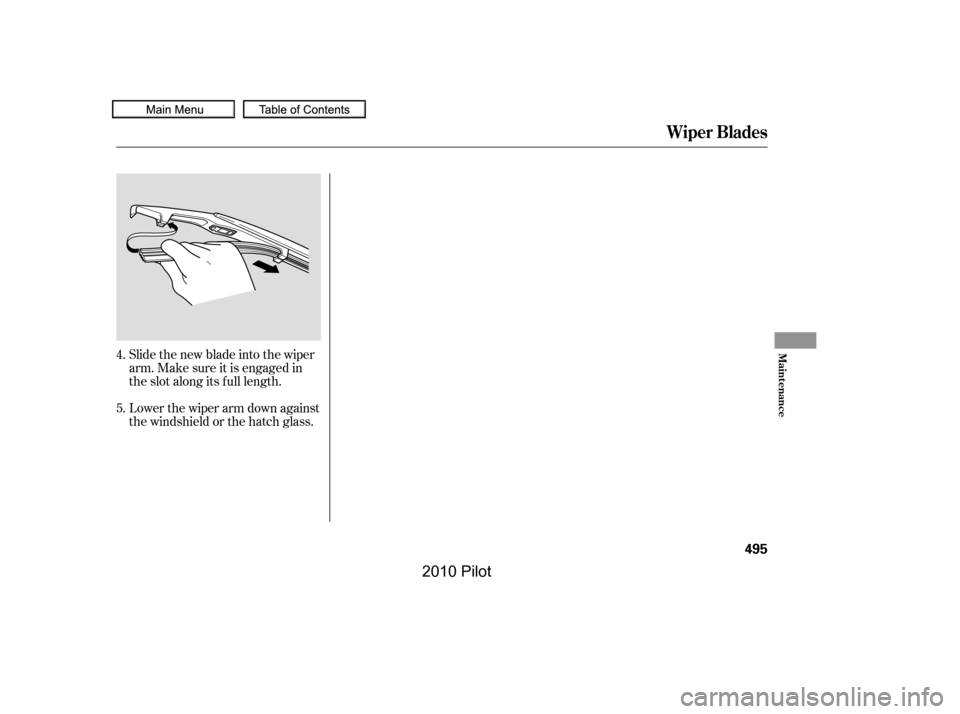

Slide the new blade into the wiper
arm. Make sure it is engaged in
the slot along its f ull length.
Lower the wiper arm down against
the windshield or the hatch glass.
4.
5.
Wiper Blades
Maint enance
495
——
y
y
(/
yy
2010 Pilot

To saf ely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inf lated.
Keeping the tires properly inf lated
provides the best combination of
handling, tread lif e, and riding
comf ort.
The f ollowing pages give more
detailed inf ormation on how to take
care of your tires and what to do
when they need to be replaced.
Underinf lated tires wear unevenly,
adversely affect handling and fuel
economy, and are more likely to
fail from being overheated.
Overinf lated tires can make your
vehicleridemoreharshly,are
more prone to damage f rom road
hazards, and wear unevenly.
Thetirepressuremonitoringsystem
(TPMS) warns you when a tire
pressure is low. See page or
f or more inf ormation.
Even though your vehicle is
equipped with TPMS, we
recommend that you visually check
your tires every day. If you think a
tire might be low, check it
immediately with a tire gauge.
Use a gauge to measure the air
pressure in each tire at least once a
month. Even tires that are in good
condition may lose 1 to 2 psi (10 to
20 kPa, 0.1 to 0.2 kgf /cm ) per
month. Remember to check the
sparetireatthesametime.
420
423
Inf lation Guidelines
Tires
496
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
——
