Control HONDA PILOT 2012 2.G User Guide

Your airbag systems are virtually
maintenance f ree, and there are no
parts you can saf ely service.
However, you must have your
vehicle serviced if:Any airbag
that has deployed must be
replaced along with the control
unit and other related parts. Any
seat belt tensioner that activates
must also be replaced. Together, airbags and
seat belts provide the best
protection.
Tampering could cause
the airbags to deploy, possibly
causing very serious injury.
If water or
another liquid soaks into a seat-
back, it can prevent the side airbag
cutof f system f rom working
properly.
Take your vehicle to an
authorized dealer as soon as
possible. If you ignore this
indication, your airbags may not
operate properly.
Do not try to remove or replace
anyairbagbyyourself.Thismust
be done by an authorized dealer or
a knowledgeable body shop.
We recommend against the use of
salvaged airbag system
components, including the airbag,
tensioners, sensors, and control
unit. Even if your
airbags do not inflate, your dealer
should inspect the driver

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations . 64 ............................
Instrument Panel . 65
..........
Instrument Panel Indicators . 67
.............................................
Gauges . 80
.............
Multi-Inf ormation Display . 85
Controls Near the Steering
.........................................
Wheel . 122
Windshield Wipers and .................................
Washers . 123
Rear Window Wiper and
...................................
Washer . 124
.......
Turn Signals and Headlights . 125
...............
Hazard Warning Button . 129
...............
Rear Window Def ogger . 129
......
Instrument Panel Brightness . 130
........
Steering Wheel Adjustment . 132
.............................
Keys and Locks . 133
......................
Immobilizer System . 134
..............................
Ignition Switch . 136
....................................
Door Locks . 137
............
Childproof Door Locks . 143
.............
Tailgate and Glass Hatch . 143
..........................
Power Tailgate . 144
...............................
Glass Hatch . 148
.....................
Remote Transmitter . 150
...............................................
Seats . 154
...................
Detachable Anchor . 163 ..................................
Seat Heaters . 165
............................
Power Windows . 167
.......................................
Moonroof . 170
...............................
Parking Brake . 171
...........................................
Mirrors . 172
Driving Position Memory
........................................
System . 174
...............................
Interior Lights . 176
.........
Interior Convenience Items . 179
.........................
Center Console . 180
.......
Console Compartments . 180
.....................
Beverage Holders . 181
..............
Storage Compartment . 182
..................................
Glove Box . 183
..............
Integrated Sunshades . 183
....................
Sunglasses Holder . 183
................
Conversation Mirror . 184
...................................
Sun Visor . 184
............................
Vanity Mirror . 185
................................
Coat Hooks . 185
........
Accessory Power Sockets . 186
.......................
AC Power Outlet . 187
Cargo Floor Storage
........................
Compartment . 188
..................................
Cargo Net . 188
Instruments and Controls
Inst rument s and Cont rols
63
Main Menu

Î
ÎÎ
Î
Î ÎÎÎ
: If equipped

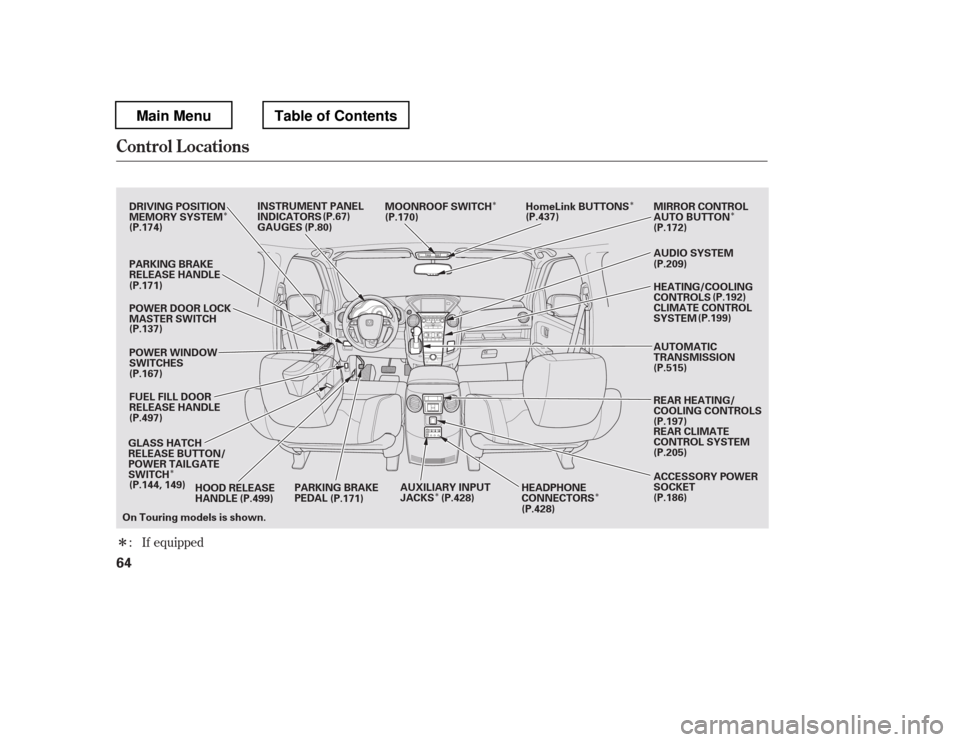

Control L ocations
64
POWER WINDOW
SWITCHES
POWER DOOR LOCK
MASTER SWITCH INSTRUMENT PANEL
INDICATORS
GAUGES
FUEL FILL DOOR
RELEASE HANDLE MOONROOF SWITCH MIRROR CONTROL
AUTO BUTTON
HEATING/COOLING
CONTROLS
AUTOMATIC
TRANSMISSION
REAR HEATING/
COOLING CONTROLS
AUDIO SYSTEM
CLIMATE CONTROL
SYSTEM
REAR CLIMATE
CONTROL SYSTEM
PARKING BRAKE
RELEASE HANDLE
DRIVING POSITION
MEMORY SYSTEM
GLASS HATCH
RELEASE BUTTON/
POWER TAILGATE
SWITCH HOOD RELEASE
HANDLE (P.197)(P.199)
(P.192)
(P.67)
On Touring models is shown. AUXILIARY INPUT
JACKS
HEADPHONE
CONNECTORS ACCESSORY POWER
SOCKET
(P.186)
(P.80)
(P.172)
(P.171)
(P.137)
PARKING BRAKE PEDAL(P.171)
(P.174)
(P.167)
(P.497)
(P.499) (P.428)
(P.428) (P.205)
(P.515)
(P.209)
(P.437)
(P.170) HomeLink BUTTONS
(P.144, 149)
Main MenuTable of Contents

Î Î
Î
Î
Î
Î Î
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the tex
t.
4WD models only
If equipped
1:2:

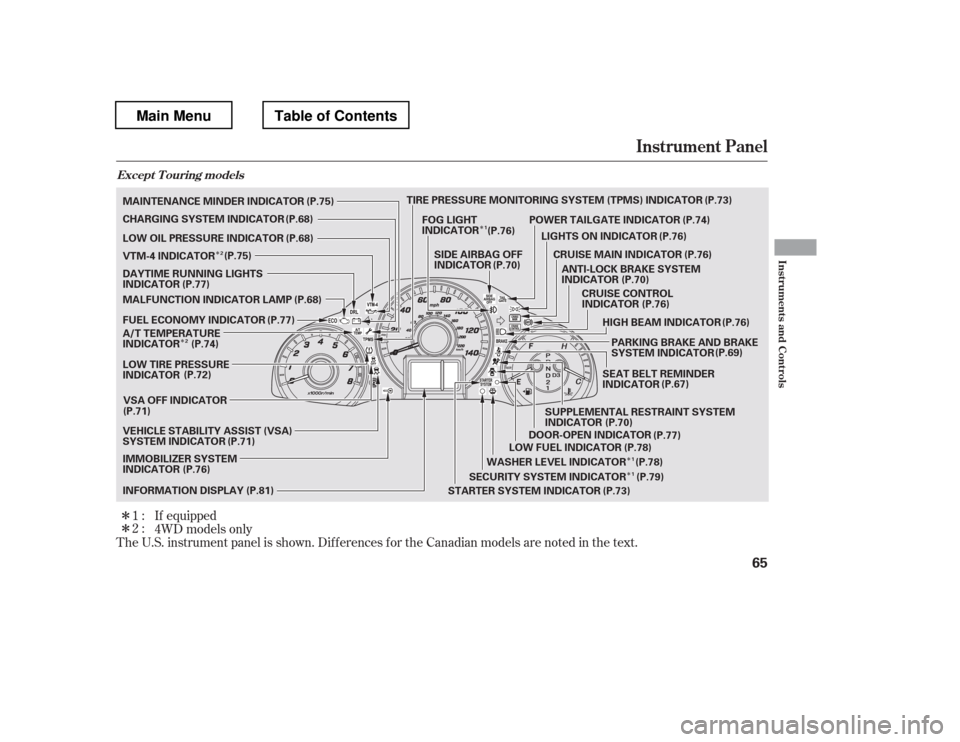

Instrument Panel
Inst rument s and Cont rols
Except T ouring models
65
CRUISE MAIN INDICATOR
PARKING BRAKE AND BRAKE
SYSTEM INDICATOR
STARTER SYSTEM INDICATOR LOW FUEL INDICATOR
MALFUNCTION INDICATOR LAMP
SECURITY SYSTEM INDICATORWASHER LEVEL INDICATOR
SIDE AIRBAG OFF
INDICATOR
LOW OIL PRESSURE INDICATOR
VTM-4 INDICATOR
CHARGING SYSTEM INDICATOR
FUEL ECONOMY INDICATOR
A/T TEMPERATURE
INDICATOR
LOW TIRE PRESSURE
INDICATOR
VEHICLE STABILITY ASSIST (VSA)
SYSTEM INDICATOR
INFORMATION DISPLAY
IMMOBILIZER SYSTEM
INDICATOR TIRE PRESSURE MONITORING SYSTEM (TPMS) INDICATOR
FOG LIGHT
INDICATOR LIGHTS ON INDICATOR
POWER TAILGATE INDICATOR
ANTI-LOCK BRAKE SYSTEM
INDICATORCRUISE CONTROL
INDICATOR
SEAT BELT REMINDER
INDICATOR
DOOR-OPEN INDICATOR
MAINTENANCE MINDER INDICATOR (P.75)
(P.68)
(P.68)
(P.75)
DAYTIME RUNNING LIGHTS
INDICATOR (P.77) (P.68)
(P.77)
(P.74)
(P.72)
VSA OFF INDICATOR
(P.76) (P.81) (P.76)
(P.70) (P.73)
(P.74)
(P.76)
(P.76)
(P.70) (P.76)
HIGH BEAM INDICATOR (P.76)
(P.69)
(P.67)
SUPPLEMENTAL RESTRAINT SYSTEM
INDICATOR (P.70)
(P.77)
(P.78)
(P.78)
(P.79)
(P.73)
(P.71)
(P.71)
1
1
2
2 1
Main MenuTable of Contents

Î
Î
Î
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the tex
t.
: 4WD models only

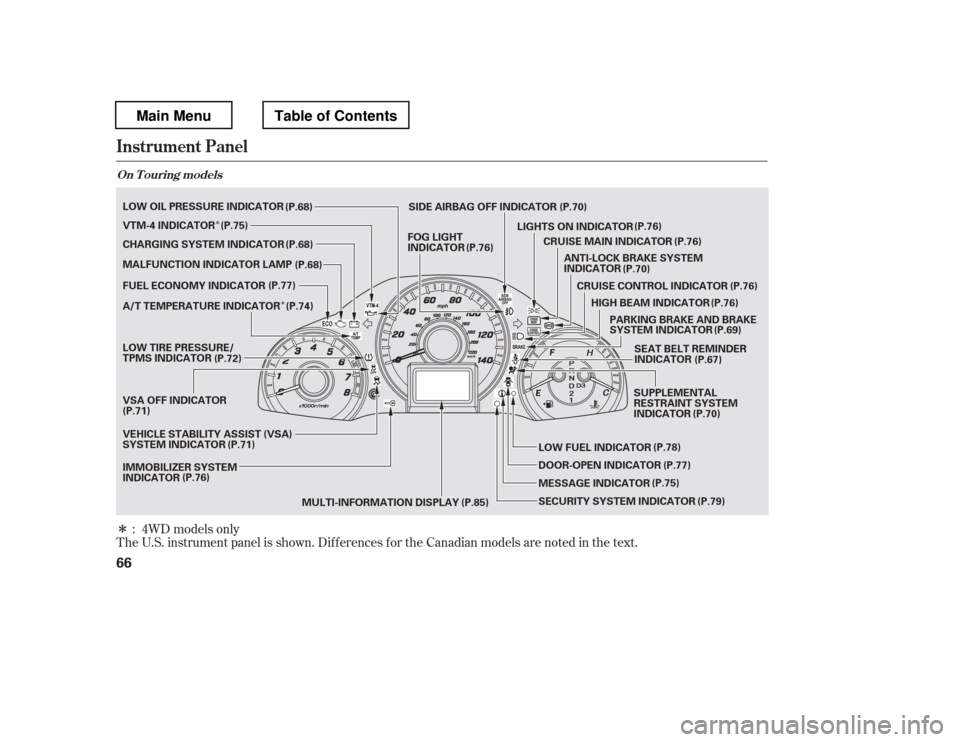

Instrument Panel
On T ouring models
66
CRUISE MAIN INDICATOR
FOG LIGHT
INDICATOR
DOOR-OPEN INDICATOR
MESSAGE INDICATOR
SECURITY SYSTEM INDICATOR
IMMOBILIZER SYSTEM
INDICATOR
MULTI-INFORMATION DISPLAY LOW FUEL INDICATOR
LIGHTS ON INDICATOR
CRUISE CONTROL INDICATOR
LOW TIRE PRESSURE/
TPMS INDICATOR SIDE AIRBAG OFF INDICATOR
A/T TEMPERATURE INDICATOR
FUEL ECONOMY INDICATOR
MALFUNCTION INDICATOR LAMP
CHARGING SYSTEM INDICATOR
VTM-4 INDICATOR
LOW OIL PRESSURE INDICATOR
VEHICLE STABILITY ASSIST (VSA)
SYSTEM INDICATOR (P.68)
(P.75) (P.68)
(P.68)
(P.77) (P.74)
(P.72)
VSA OFF INDICATOR
(P.76) (P.85)(P.76)
(P.70)
(P.76)(P.76)
ANTI-LOCK BRAKE SYSTEM
INDICATOR (P.70)
(P.76)
(P.78) (P.77)
(P.75)
(P.79)
HIGH BEAM INDICATOR
PARKING BRAKE AND BRAKE
SYSTEM INDICATOR
SEAT BELT REMINDER
INDICATOR (P.76)
(P.69)
(P.67)
SUPPLEMENTAL
RESTRAINT SYSTEM
INDICATOR (P.70)
(P.71)
(P.71)
Main MenuTable of Contents

This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button (see
page ).
This indicator comes on when you
set the cruise control. See pagef or inf ormation on operating the
cruise control.
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. This indicator
will also come on when the light
switch is in AUTO and the lights
turn on automatically. If you turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position without
turning of f the light switch, this
indicator will remain on. A reminder
chime will also sound when you open
the driver

ÛÝÛÝ
ÛÝ
To change the display, press the
INFO( / )buttononthesteering
wheel repeatedly until the main
menu appears (see page ).With the ignition switch in the ON
(II) position, the multi-inf ormation
display changes as shown on the
next page each time you press the
INFO ( / ) button or the SEL/
RESET button.
When you turn the ignition switch to
the ON (II) position, your last
selection is displayed.
In the multi-information display, the
system message is also displayed
(see page ) and you can
customize your vehicle control
settings (see page ).
The multi-inf ormation display in the
instrument panel displays various
inf ormation and messages when the
ignition switch is in the ON (II)
position. Some of the messages help
you operate your vehicle more
comf ortably. Others help to keep
you aware of the periodic
maintenance your vehicle needs f or
continued trouble-f ree driving.
You can also change the display by
pressing the select/reset knob in the
instrument panel.
When you open the driver

To enter the customizing mode,
press the SEL/RESET button.If you turn the ignition switch to the
ACCESSORY (I) or the LOCK (0)
position, or move the shif t lever out
of Park, the display will change to
the normal screen.
If you want the settings as they were
when the vehicle lef t the f actory,
select DEFAULT ALL, as described
on page .
Ref er to the table on the f ollowing
pages about the settings you want to
customize.
If you want to change any vehicle
control settings, select CHG
SETTING, then press the SEL/
RESET button.
To change the settings, the ignition
switch must be in the ON (II)
position, and the vehicle must be
stopped with the transmission in
Park. You can customize some vehicle
control settings f or ‘‘DRIVER 1

Û
Ý
ÛÝ
ÛÝ
You can customize some of the
vehicle control settings to your
pref erence. Here are the settings
you can customize:
METER SETUP
LIGHTING SETUP
POSITION SETUP
DOOR/WINDOW SETUP Each time you press the INFO ( /
) button, the screen changes as
shownonthenextpage.Pressthe
INFO( / )buttonuntilyousee
the setup you want to customize,
then press the SEL/RESET button
to enter your selection.
When you want to change the
vehicle control settings, press the
INFO ( / ) button to select CHG
SETTING, then press the SEL/
RESET button.
CONT INUED
Mult i-Inf ormation Display
Customize Settings
Inst rument s and Cont rols
99
Touring model is shown.
Main MenuTable of Contents

Î
Î
Î
Î Î
Î
Î Î
Î
Î
Î
Î
Î ÎÎÎTo use the horn, press the center pad of the steering wheel.
Only on vehicles equipped with navigation system. Ref er to the navigati
on system manual.
If equipped
1:2: 3:
4 : 4WD models only

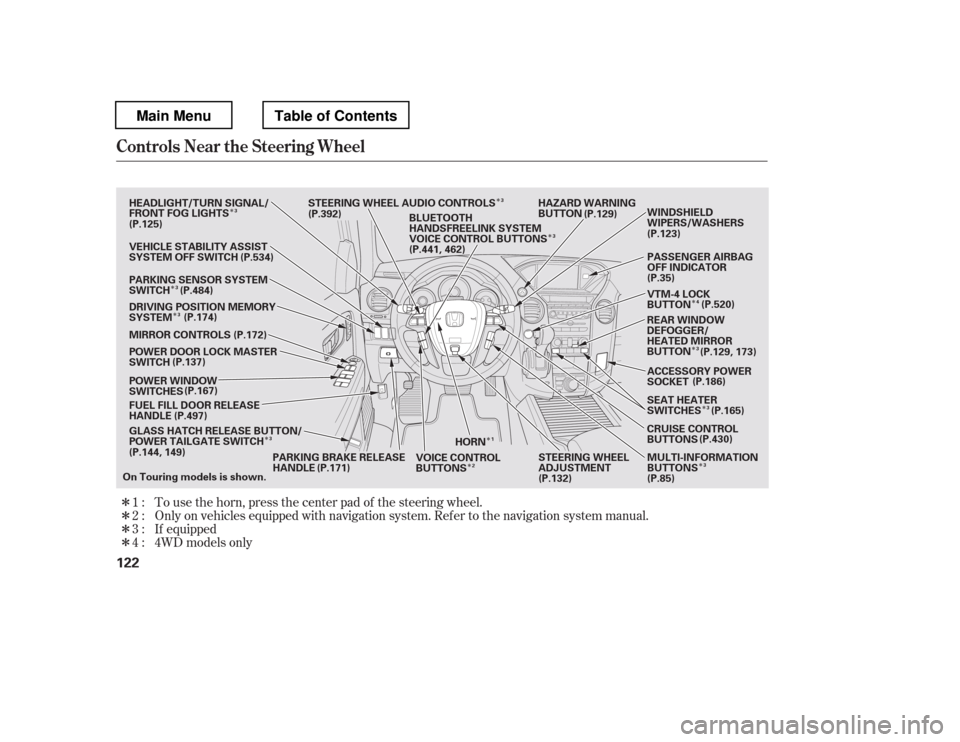

Controls Near the Steering Wheel
122
HORN HAZARD WARNING
BUTTON
GLASS HATCH RELEASE BUTTON/
POWER TAILGATE SWITCH
FUEL FILL DOOR RELEASE
HANDLE
POWER WINDOW
SWITCHES
POWER DOOR LOCK MASTER
SWITCH
MIRROR CONTROLS
DRIVING POSITION MEMORY
SYSTEM
VEHICLE STABILITY ASSIST
SYSTEM OFF SWITCH
PARKING SENSOR SYSTEM
SWITCH
HEADLIGHT/TURN SIGNAL/
FRONT FOG LIGHTS
STEERING WHEEL AUDIO CONTROLS
PARKING BRAKE RELEASE
HANDLE STEERING WHEEL
ADJUSTMENT
VOICE CONTROL
BUTTONS PASSENGER AIRBAG
OFF INDICATOR
VTM-4 LOCK
BUTTON
ACCESSORY POWER
SOCKET
SEAT HEATER
SWITCHES
CRUISE CONTROL
BUTTONS MULTI-INFORMATION
BUTTONS (P.186)
BLUETOOTH
HANDSFREELINK SYSTEM
VOICE CONTROL BUTTONS
REAR WINDOW
DEFOGGER/
HEATED MIRROR
BUTTONWINDSHIELD
WIPERS/WASHERS
On Touring models is shown. (P.125)
(P.137)
(P.144, 149) (P.129)
(P.123)
(P.35)
(P.85)
(P.132)
(P.534)
(P.484) (P.174) (P.172)
(P.167)
(P.497)
(P.171) (P.430)
(P.165)
(P.129, 173)
(P.520)
(P.392)
(P.441, 462)
1
3
3
3 3
3
2 4
3
3
3
3
