For added protection, the f ront seat
belts are equipped with automatic
seat belt tensioners. When activated,
the tensioners immediately tighten
the belts to help hold the driver and
a f ront passenger in position.
The lap/shoulder belts in the center
seat of the second row and both of
the third row seats are equipped with
a detachable anchor that has two
parts: a small latch plate and a
buckle.
The detachable seat belt should
normally be latched whenever the
seat-backs are in an upright position.
For more inf ormation about the
detachable seat belt, see page .
163
Additional Inf ormation About Your Seat Belts
A utomatic Seat Belt T ensioners
24
DETACHABLE ANCHOR
Allowing a child to play with a
seat belt or wrap one around
their neck can result in serious
injury or death.
Instruct children not to play with
any seat belt and make sure
any unused seat belt a child
can reach is buckled, fully
retracted, and locked.
Table of ContentsMain Menu

If a seat belt is worn during a crash,
you should have your dealer inspect
the belt, and replace it if necessary.
A belt that has been worn during a
crash may not provide the same level
of protection in a subsequent crash.
The dealer should also inspect the
anchors f or damage and replace
them if needed. If the automatic seat
belt tensioners activate during a
crash, they must be replaced.
For saf ety, you should check the
condition of your seat belts regularly.
Pull each belt out f ully, and look f or
f rays, cuts, burns, and wear. Check
that the latches work smoothly and
the belts retract easily. If a belt does
not retract easily, cleaning the belt
may correct the problem (see page
). Any belt that is not in good
condition or working properly will
not provide good protection and
should be replaced as soon as
possible.
Honda provides a limited warranty
on seat belts. See your booklet f or
details.
The tensioners can also be activated
during a collision in which the f ront
airbags . In this case, the
airbags would not be needed, but the
extra tension in the seat belt could
be helpf ul.
If the tensioner is activated, the SRS
indicator comes on and the tensioner
must be replaced.
593
Honda
Warranty Inf ormation
do not deploy
Additional Inf ormation About Your Seat Belts
Seat Belt Maintenance
Driver and Passenger Saf ety
25
Not checking or maintaining
seat belts can result in serious
injury or death if the seat belts
do not work properly whenneeded.
Check your seat belts regularly
and have any problem
corrected as soon as possible.
Table of ContentsMain Menu

Additional Inf ormation About Your Airbags
A irbag System Components
26
(5)
(2)
(1)
(6) (4)
(5) (10)
(4)
(8)
(12)
(13)
(15) (16)(15)
(7)(11)
(13)
(14)
(9)
(3)
(17)
(16)
(4) Front Seat Belt Tensioners
(5) Side Airbags
(6) Driver’s Seat Position Sensor
(7) Front Passenger’s Weight Sensors
(8) Side Impact Sensors (First)
(9) Passenger Airbag Off Indicator
(10) Occupant Position Detection System (OPDS) Sensors
(11) Front Passenger’s Weight Sensors Control Unit/ OPDS Sensors Control Unit
(12) Supplemental Restraint System ( SRS) Indicator
(13) Front Impact Sensors
(14) Rear Safing Sensor
(15) Side Impact Sensors (Second)
(16) Side Impact Sensors (Third)
(17) Side Curtain Airbags
(1) Driver’s Front Airbag
(2) Passenger’s Front Airbag
(3) Control Unit/Rollover Sensor
Table of ContentsMain Menu

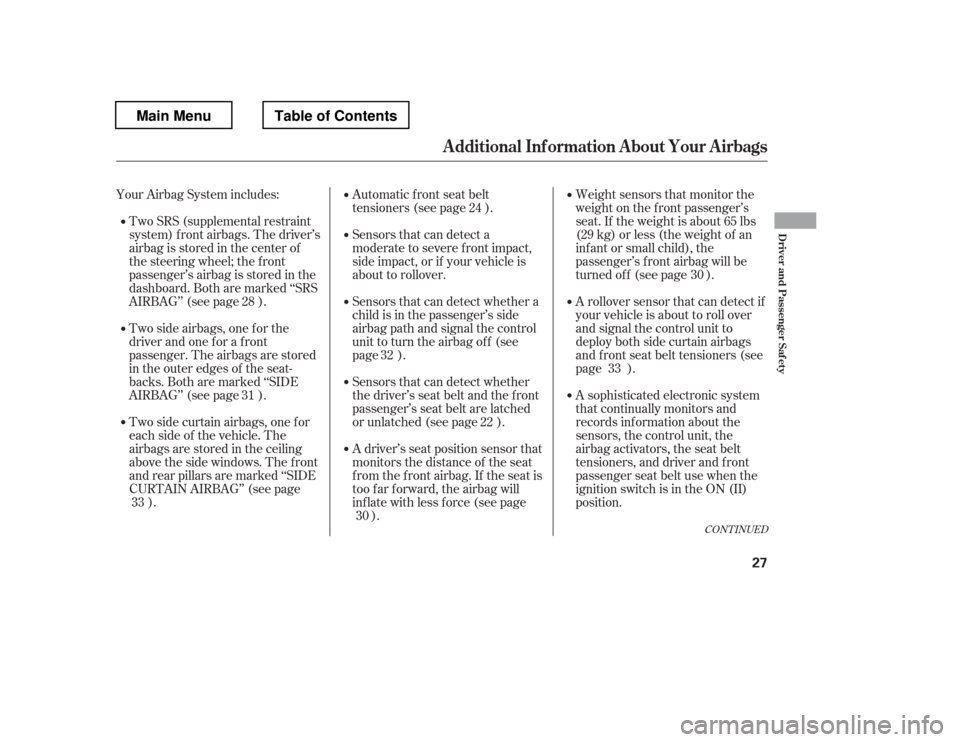

Weight sensors that monitor the
weight on the f ront passenger

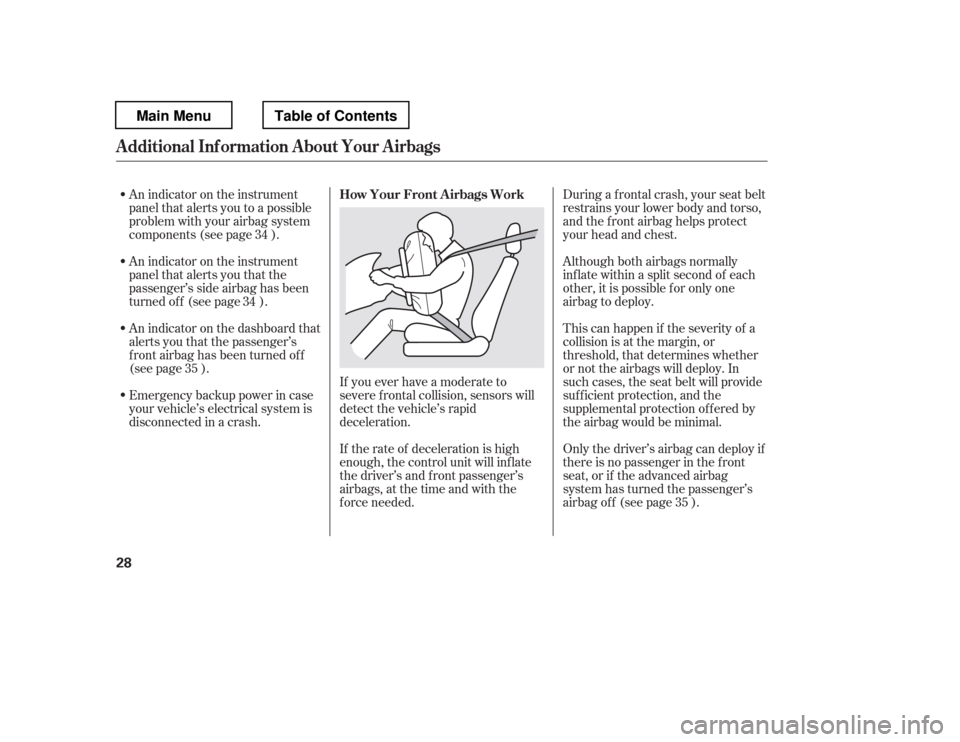

During a frontal crash, your seat belt
restrains your lower body and torso,
and the front airbag helps protect
your head and chest.
Although both airbags normally
inf late within a split second of each
other, it is possible f or only one
airbag to deploy.
This can happen if the severity of a
collision is at the margin, or
threshold, that determines whether
or not the airbags will deploy. In
such cases, the seat belt will provide
suf f icient protection, and the
supplemental protection of f ered by
the airbag would be minimal.
Only the driver

Your vehicle is equipped with dual-
stage, multiple-threshold f ront
airbags (SRS). During a f rontal crash
severe enough to cause one or both
f ront airbags to deploy, the airbags
can inf late at dif f erent rates,
depending on the severity of the
crash, whether or not the seat belts
are latched, and/or other factors.
Front airbags are designed to
supplement the seat belts to help
reduce the likelihood of head and
chest injuries in f rontal crashes.
After a crash, you may see what
looks like smoke. This is actually
powder f rom the airbag

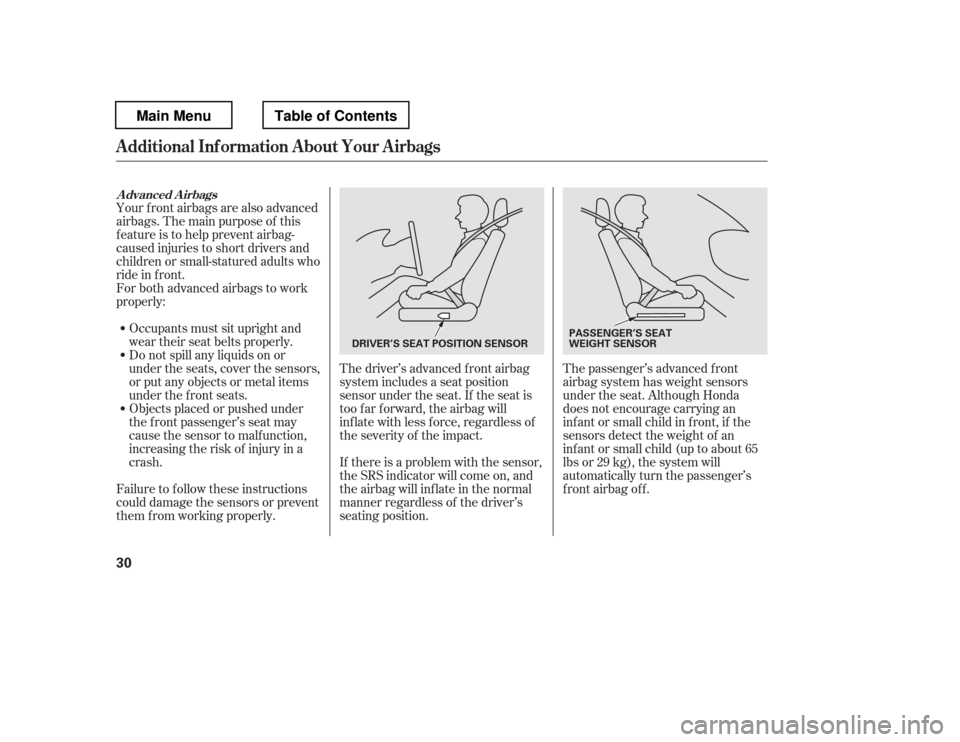

Your front airbags are also advanced
airbags. The main purpose of this
feature is to help prevent airbag-
caused injuries to short drivers and
children or small-statured adults who
ride in f ront.The driver

Be aware that objects placed on the
passenger

To get the best protection f rom the
side airbags, front seat occupants
should wear their seat belts and sit

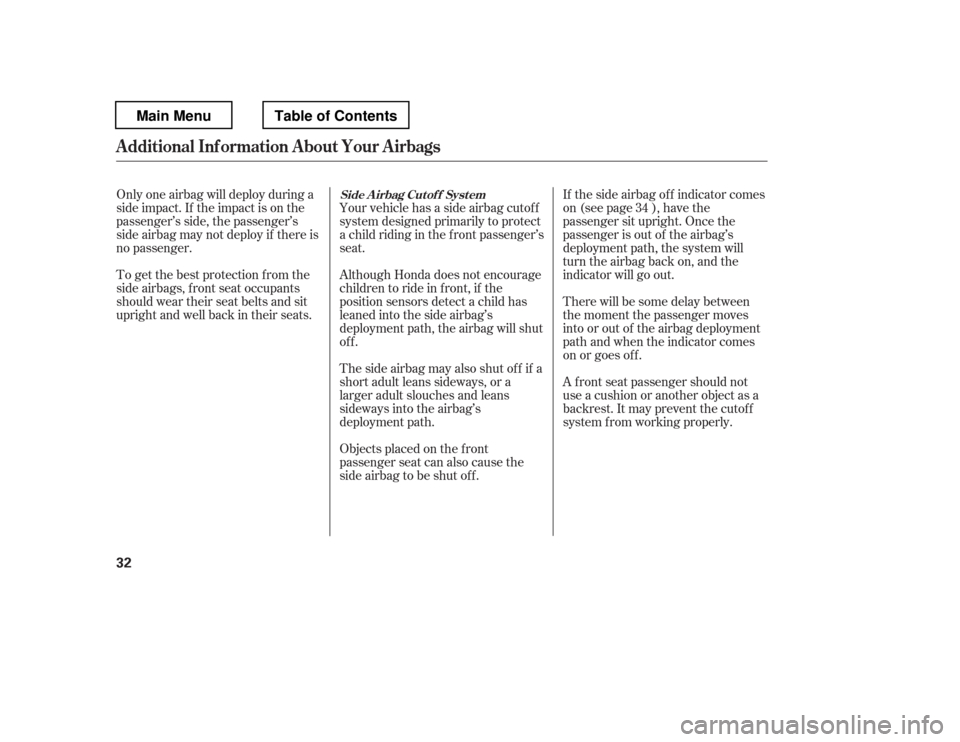

upright and well back in their seats.Your vehicle has a side airbag cutof f
system designed primarily to protect
a child riding in the f ront passenger

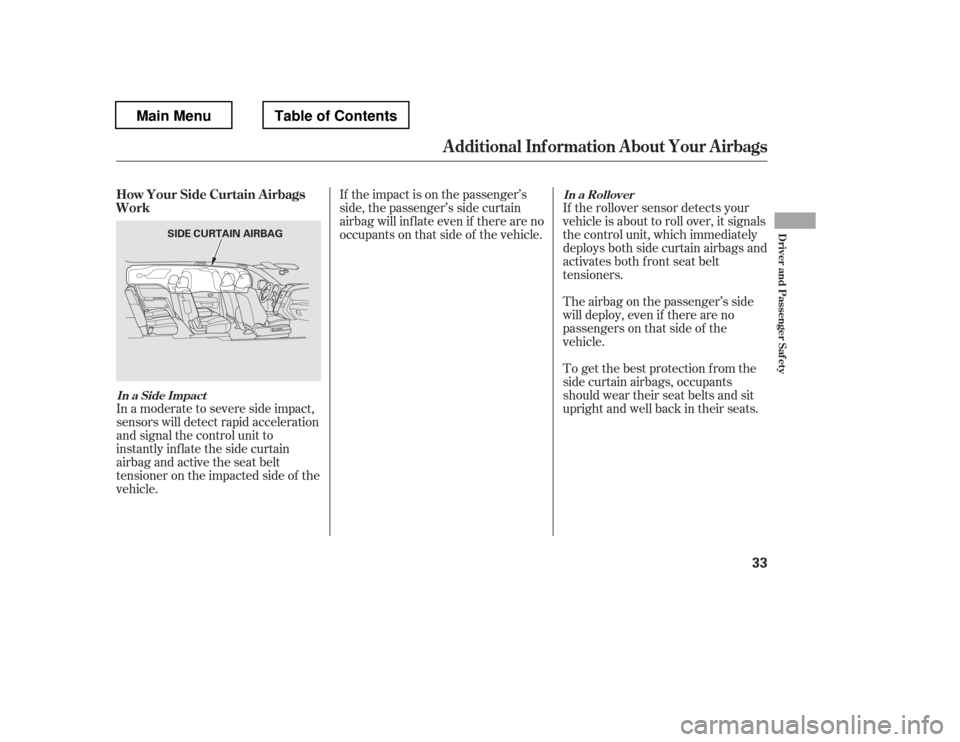

If the impact is on the passenger
