Page 491 of 681

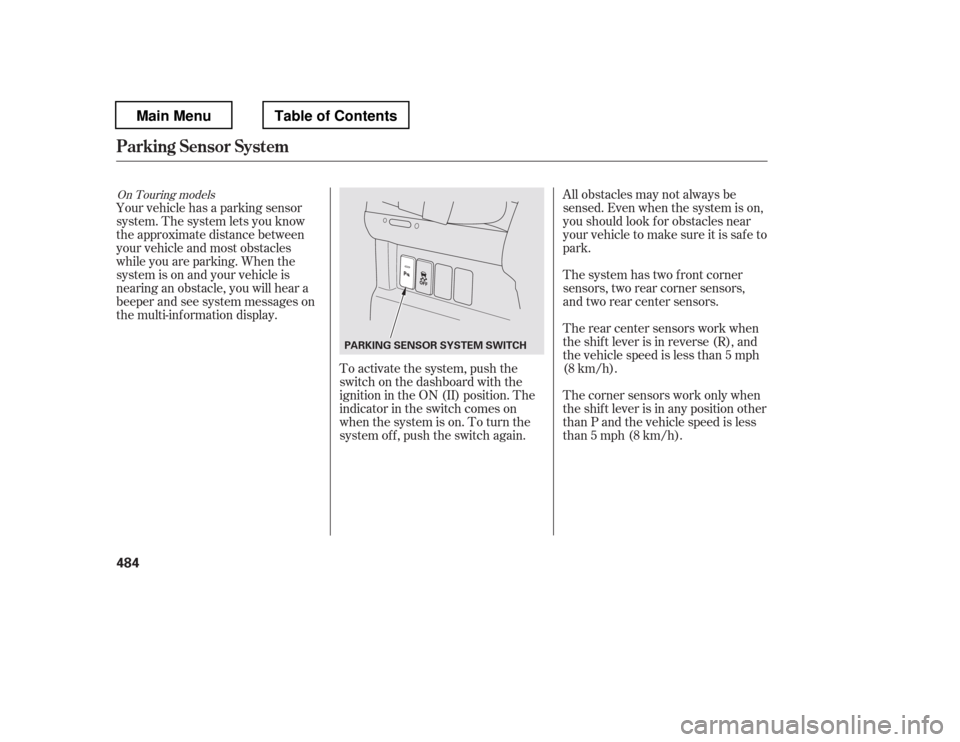

HONDA PILOT 2012 2.G Owners Manual To activate the system, push the
switch on the dashboard with the
ignition in the ON (II) position. The
indicator in the switch comes on
when the system is on. To turn the
system of f , push the swit

Page 492 of 681

HONDA PILOT 2012 2.G Owners Manual CONT INUED

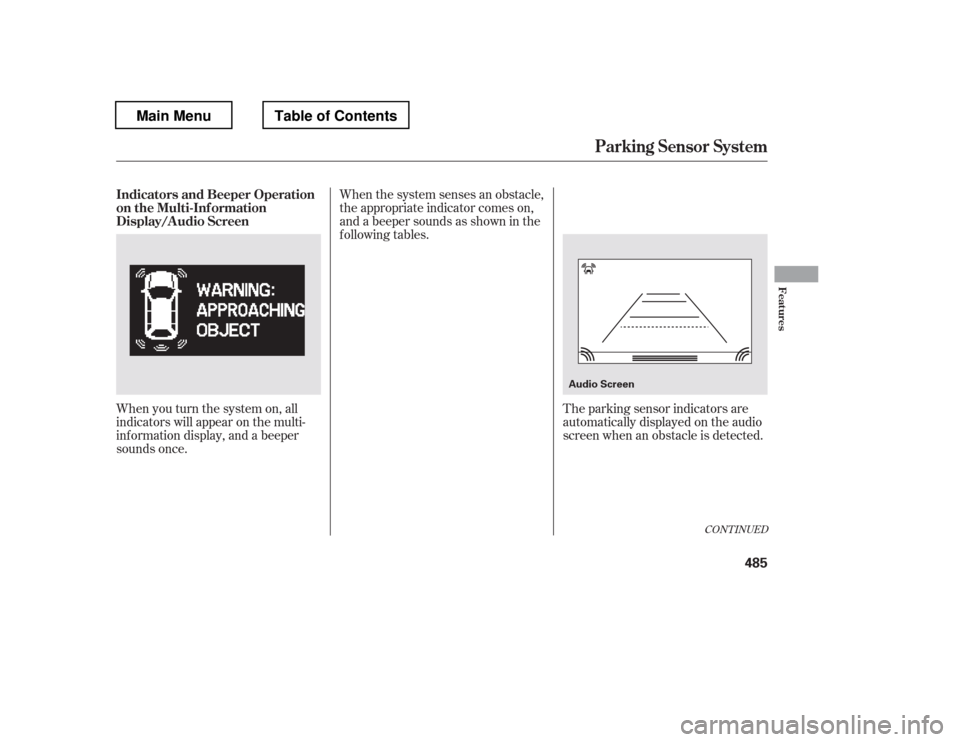

When the system senses an obstacle,
the appropriate indicator comes on,
and a beeper sounds as shown in the
f ollowing tables.
When you turn the system on, all
indicators will appear on th

Page 493 of 681

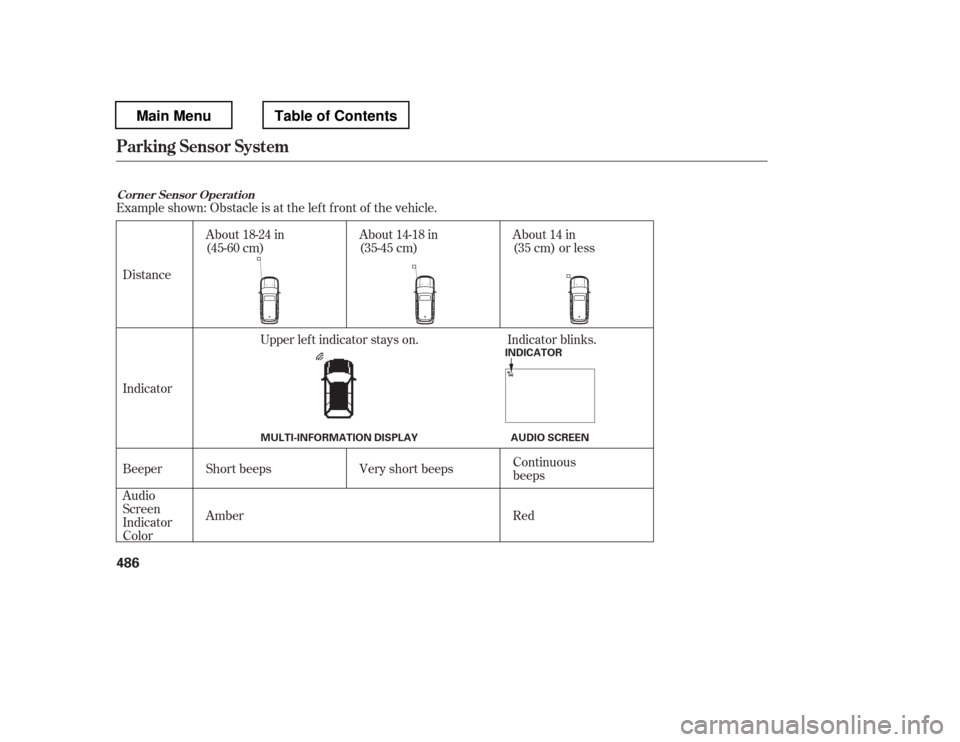

HONDA PILOT 2012 2.G Owners Manual Example shown: Obstacle is at the lef t f ront of the vehicle.Beeper
Indicator
Audio
Screen
Indicator
Color
Distance
About 14 in
(35 cm) or less
About 14-18 in
(35-45 cm)
About 18-24 in
(45-60 cm)

Page 494 of 681

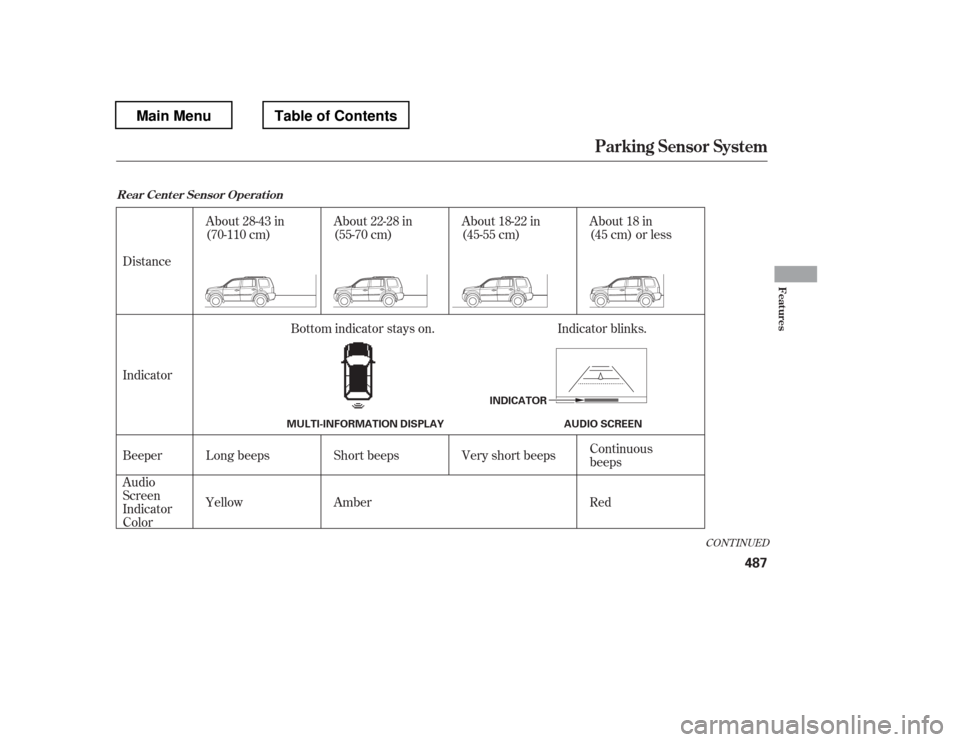

HONDA PILOT 2012 2.G Owners Manual CONT INUED
Distance
Indicator
Beeper
Audio
Screen
Indicator
ColorAbout 28-43 in
(70-110 cm)
About 18 in
(45 cm) or less
About 18-22 in
(45-55 cm)
About 22-28 in
(55-70 cm)
Long beeps Continuous
be

Page 495 of 681

HONDA PILOT 2012 2.G Owners Manual If there is a problem with any of the
operational sensors, the indicators
f or these sensors will appear
constantly in red.
Very of ten, a sensor covered with
mud, ice, snow, etc. is the cause of
t

Page 496 of 681

HONDA PILOT 2012 2.G Owners Manual Do not put any accessories on or
around the sensors.The system may not f unction
properly under these conditions:
The sensors are covered with
snow,ice,mud,etc.
When the vehicle is on a rough
road,

Page 497 of 681

HONDA PILOT 2012 2.G Owners Manual The parking sensor system must be
turned of f bef ore beginning this
procedure.When you shif t to reverse (R), the
LED indicator in the switch will blink
as a reminder that the rear sensors
are disa

Page 498 of 681

HONDA PILOT 2012 2.G Owners Manual Whenever you shif t to reverse (R)
with the ignition switch in the ON
(II) position, the rearview is shown
on the display.The camera display has parking
guide lines that indicate distance
f rom you

Page 499 of 681

HONDA PILOT 2012 2.G Owners Manual For the best picture, always keep
the rearview camera clean, and do
not cover the camera lens. To
avoid scratching the lens when
you clean it, use a moist, sof t cloth.
The rearview camera has a un

Page 500 of 681

HONDA PILOT 2012 2.G Owners Manual Bef ore you begin driving your
vehicle, you should know what
gasoline to use and how to check the
levels of important f luids. You also
need to know how to properly store
luggage or packages. The
inf
