375
Driving
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not in
stall accessories on the windsh ield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not in
stall accessories on the side pillars or across the side windows.
Accessories installed in these areas may in
terfere with proper operation of the
side curtain airbags.
• Be sure electron
ic accessories do not overload electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 454
• Before installing any electro nic accessory, have the installer contact a dealer for
assistance. If possible, have a deal er inspect the final installation.
Modifications
Do not modify your vehicle or use non- Honda components that can affect its
handling, stability, and reliability.
Overall vehicle performance can be affect ed. Always make sure all equipment
is
properly installed and maintained, and that it meets federal, state, province,
territory, and local regulations.
1 Accessories and Modifications
Honda Genuine accessor ies are recommended to
ensure proper operati on on your vehicle.
3 WARNING
Improper accessories or modifications can
affect your vehicle's handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner's
manual regarding accessories and
modifications.

433
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 434
If a Tire Goes Flat Changing a Flat Tire ......................... 435
Engine Does Not Start Checking the Engine ........................ 444
Jump Starting ..........
.......................... 445
Shift Lever Does Not Move .........
..... 447
Overheating How to Handle Overheating ............. 448 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 450
If the Charging System Indicator Comes
On ................................................. 450
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 451
If the Brake System Indicator (Red) Comes On ................................................. 452
If the Low Tire Pressure Indicator Comes On ................................................. 452
If the TPMS Indicator Comes On ...... 453 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 453
Fuses Fuse Locations ................................. 454
Inspecting and Changing Fuses ........ 458
Emergency Towing ..............
............. 459
When You Cannot Open the Tailgate..... 461

444
Handling the Unexpected

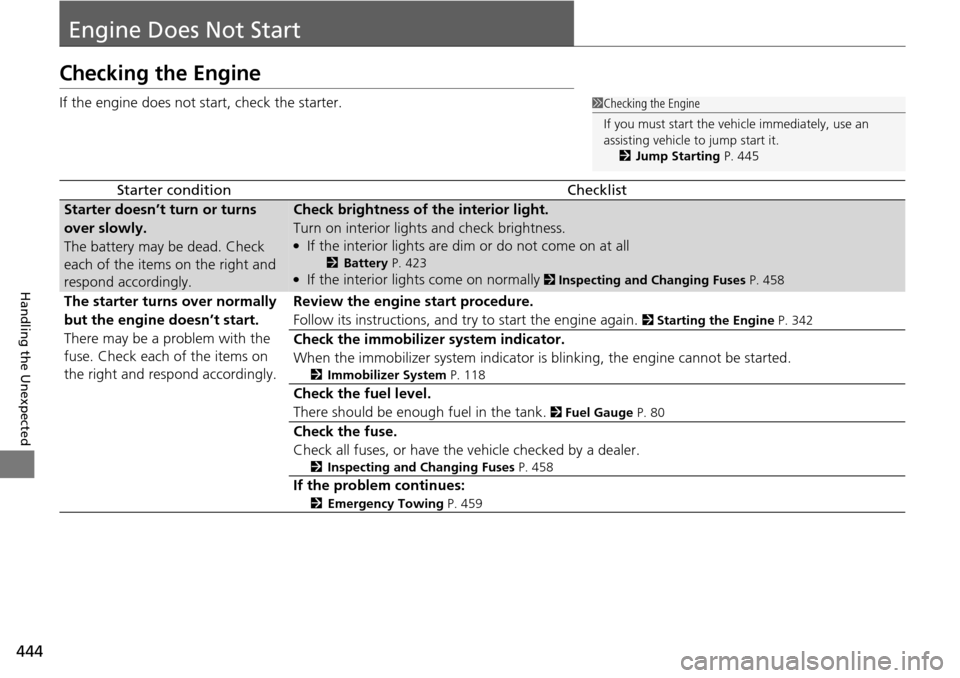

Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.
Check brightness of the interior light.
Turn on interior lights and check brightness.
●If the interior lights are dim or do not come on at all
2 Battery P. 423●If the interior lights come on normally 2 Inspecting and Changing Fuses P. 458
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.
Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2 Starting the Engine P. 342
Check the immobilizer system indicator.
When the immobilizer system indicator is bl
inking, the engine cannot be started.
2Immobilizer System P. 118
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 80
Check the fuse.
Check all fuses, or have the vehicle
checked by a dealer.
2Inspecting and Changing Fuses P. 458
If the problem continues:
2 Emergency Towing P. 459
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 445

454
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0
and
check to see if any appl icable fuse is blown.
Fuse locations are shown on the fuse box
co
ver. Locate the fuse in question by the
fuse number and box cover number.
Located on the passenger’s side, near the
wi
ndshield washer reservoir. Push the tabs
to open the box.
■Engine Compartment Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Main Fuse120 A
−−
2OP Main80 A
IG Main50 A
3Blower40 A
AC Inverter30 A
4 Head Light Main
50 A
Power Window Main 40
A
5−−
6 Condenser Fan 30
A
7Cooling Fan30 A
8 Rear Defogger 30
A
9−−
10 Fog Lights *(20 A)
11Sub15 A
12 ACM 10
A
13Front Passenger’s Power
Seat Reclining *(20 A)
14 Front Passenger’s Power
S
eat Slide *(20 A)
15Oil Level7.5 A
16 FI ECU (7.5
A)
17Radio20 A
18 IG Coil 15
A
19Main15 A
20 MG Clutch 7.5 A
21DBW15 A
22 Interior Lights 7.5
A
23Back Up10 A
Circuit ProtectedAmps
* Not available on all models

455
uu Fuses u Fuse Locations
Continued

Handling the Unexpected
Located near the battery. Push the tabs to
open the box.
■Engine Compartment Sub Fuse
Box■Circuit protected and fuse rating
Circuit ProtectedAmps
1Power Tailgate Motor *(40 A)
2 VTM-4 *(20 A)
3Trailer Main(30 A)
4VSA FSR 40 A
5Rear Blower30 A
6 VSA Motor 30
A
7Hazard15 A
8 Power Tailgate Closer *(20 A)
9Driver’s Power Seat
Reclining *(20 A)
10 Driver’s Power Seat Slide
*(20 A)
11Stop & Horn20 A
12 Rear Console Accessory
Socket 15

A
13Rear Wiper10 A
14 Trailer E-Brake (20
A)
15Front Heated Seat *(20 A)
16 Center Console Accessory
Socket 15

A
17Trailer Charge(20 A)
18 Front Accessory Socket 15
A
19Rear Accessory Socket15 A
20 Glass Hatch Motor 20
A
21Rear Heated Seat *(15 A)
22 Head Light Washer Motor (30 A)
* Not available on all models

456
uu Fuses u Fuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
nu

mber and label number.
■Circuit protected and fuse rating
■Interior Fuse Box
Fuse Box
Circuit ProtectedAmps
1VTM-4 *(7.5 A)
2Fuel Pump20 A
3ACG10 A
4VSA7.5 A
5−−
6−−
7Auto Light10 A
8Auto Light7.5 A
9ODS7.5 A
10Meter7.5 A
11 SRS 10
A
12Right Daytime Running
Light10 A
13 Left Daytime Running Light 10
A
14Small Lights (Interior)7.5 A
15 Small Lights (Exterior) 10
A
16Right Head Light Low15 A
17 Left Head Light Low 15
A
18Daytime Running Light
Main20 A
19 Small Lights Main 15
A
20−−
TPMS7.5 A
21 Head Light Low Main 20
A
22VBSOL27.5 A
23 STRLD 7.5
A
24−−
25 −
−
26Driver’s Power Window20 A
27 HAC OP 20
A
28Moonroof(20 A)
29 Door Lock 20
A
30Front Passenger’s Power
Window20 A
31 Audio Amp (30
A)
Circuit ProtectedAmps
32Passenger’s Side Rear
Power Window20 A
33 Driver’s Side Rear Power
Win
dow 20 A
34−−
35 ACC 10
A
36HAC10 A
37 Day Light 7.5
A
38Wiper30 A
Circuit ProtectedAmps
* Not available on all models

457
uu Fuses u Fuse Locations
Handling the Unexpected
Located on the left side of cargo area.
Remove the cover by prying on the edge of
the cover using a fl at-tip screwdriver.
uWrap the flat-tip screwdriver with a
cloth to prevent scratches.
Fuse locations are shown on the fuse box
cov
er.
Locate the fuse in question by the fuse
number and box
cover number.
■Circuit protected and fuse rating
■Cargo Area Fuse Box
Circuit ProtectedAmps
1Small Light20 A
2Stop Light(7.5 A)
3Back Light(7.5 A)
4Turn Light Hazard(7.5 A)

458
uu Fuses u Inspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0
. Turn
headlights and all accessories off.
2. R
emove the fuse box cover.
3.Check
the large fuse in the engine
compartment.
u If
the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect
the small fuses in the engine
compartment and the vehicle interior.
u If
there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 454 to 457.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Blown Fuse
Fuse Puller

480
Index
Locking/Unlocking the Doors 
from the Inside ...................................... 103
Locking/Unlocking the Doors 
from the Outside ................................... 101
Lockout Prevention System ...................... 102
DOT Tire Quality Grading ...................
..... 417
Driver’s Seat Lumbar Support .............
..... 137
Driving ........
............................................... 323
Automatic Transmission ........................... 345
Braking .................................................... 360
Cruise Control ......................................... 348
Off-Highway Driving Guidelines ............... 340
Shifting Gear ........................................... 346
Starting the Engine .................................. 342
Driving Position Memory System ........
..... 132
Dust and Pollen Filter .....
.......................... 427
E
Elapsed Time....................................... 88, 177
Electronic Stability Control (ESC) ........
..... 352
Emergency ..
............................................... 459
Emissions Testing (R
eadiness Codes)....... 470
Engine ........
............................................... 466
Coolant ................................................... 397
Jump Starting .......................................... 445
Oil ........................................................... 392
Starting ................................................... 342
Switch Buzzer .......................................... 124
Engine Coolant ...............
.......................... 397
Adding to the Radiator ............................ 398Adding to the Reserve Tank.....................
397
Overheating ............................................ 448
Temperature Gauge .................................. 80
Engine Oil ......
........................................... 392
Adding .................................................... 394
Checking................................................. 393
Displaying Oil Life ............................ 381, 385
Low Oil Pressure Indicator ................. 68, 450
Recommended Engine Oil ....................... 392
Exhaust Gas Hazard 
(Carbon Monoxide) ..........
........................ 65
Exterior Care (Cleaning) .....
...................... 430
Exterior Mirrors ..................
...................... 136
F
Features.................................................... 171
Filters
Dust and Pollen ....................................... 427
Oil ........................................................... 395
Flat Tire ..........
........................................... 435
Floor Mats ......
........................................... 429
Fluids Automatic Transmission .......................... 399
Brake ...................................................... 400
Engine Coolant ....................................... 397
Power Steering ........................................ 400
Windshield Washer ................................. 401
Fog Light Indicator .............
........................ 75
Folding Down the Rear Seats ..
146, 147, 148
Foot Brake .....
........................................... 361 Front Airbags (SRS)
...............
..................... 40
Front Seats ........
........................................ 137
Adjusting ................................................ 137
Fuel ...................
.................................. 15, 371
Economy................................................. 374
Gauge ...................................................... 80
Instant Fuel Economy .......................... 82, 88
Low Fuel Indicator ..................................... 70
Range ................................................. 82, 88
Recommendation.................................... 371
Refueling ................................................ 371
Fuel Economy ...
........................................ 374
Fuel Fill Cap ......
.................................. 15, 373
Message ................................................. 451
Fuel Fill Door ....
.................................. 15, 372
Fuses .................
........................................ 454
Inspecting and Changing ........................ 458
Locations ........................ 454, 455, 456, 457
G
Gasoline (Fuel)
Economy................................................. 374
Gauge ...................................................... 80
Information............................................. 371
Instant Fuel Economy .......................... 82, 88
Low Fuel Indicator ..................................... 70
Refueling ................................................ 371
Gauges ..............
.......................................... 80
Gear Shift Lever Positions
Automatic Transmission .......................... 346
