torque HONDA PILOT 2014 2.G Owners Manual

71
uu Indicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage *
ABS (Anti-lock
Brake System)
Indicator
●Comes on for a few seconds when
you turn the igniti on switch to ON
(w
, then goes off.●If it comes on at any other time, there
is a problem with the ABS.
●Stays on constantly - Have the vehicle
checked by
a dealer. With this indicator
on, your vehicle still has normal braking
ability but no an ti-lock function.
2ABS (Anti-lock Brake System) P. 362
Supplemental
Restraint System
Indicator
●Comes on for a few seconds when
you turn the igniti on switch to ON
(w
, then goes off.●Comes on if a problem with any of
the following is detected:
-Supplemental restraint system
- Side air
bag system
-Side curtain
airbag system
-Seat belt tensioner
●Stays on constantly or does not come
on at all
- Have the vehicle checked by a
dealer.
VTM-4 ® System
Indicator *
●Comes on for a few seconds when
you turn the igniti on switch to ON
(w
, then goes off.●Comes on if there is a problem with
the VTM-4 ®.
●Blinks when the VTM-4 ® system is
overheated. The system is inactive.
●Stays on constantly - Have the vehicle
checked by
a dealer.
●Blinks while driving - The VTM-4® fl uid
temperature is too high. Stop in a safe
place, shift to
(P
, and idle the engine
until the indicator goes off. If the
indicator does not stop blinking, take
your vehicle to a dealer.
2 VTM (Variable Torque
Management)-4 r System * P. 354
—
* Not available on all models

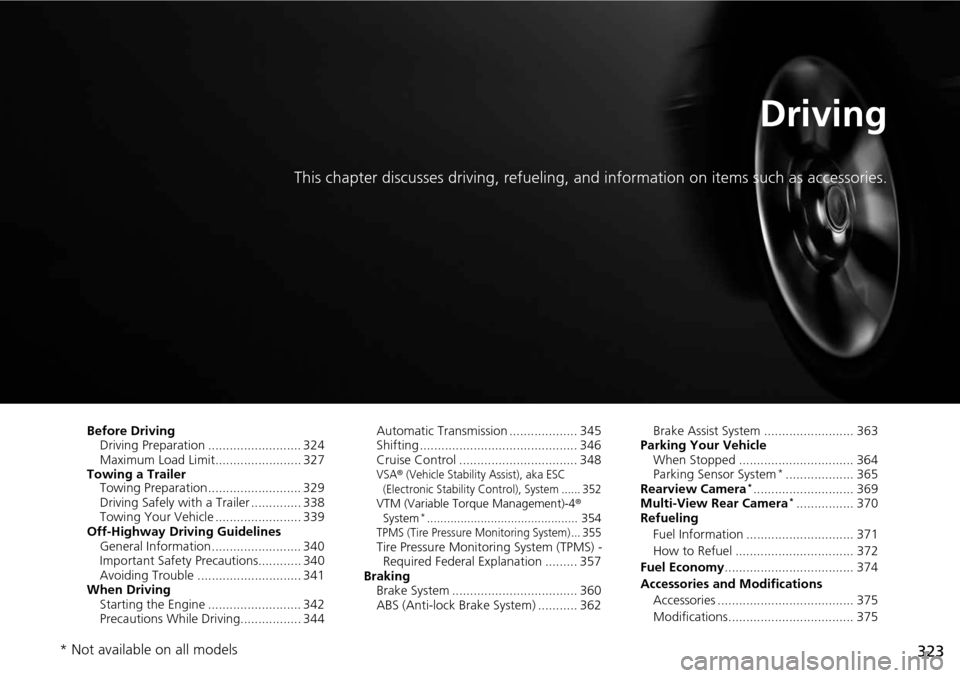

323
Driving
This chapter discusses driving, refueling, and information on items such as accessories.
Before Driving
Driving Preparation .......................... 324
Maximum Load Limit........................ 327
Towing a Trailer Towing Preparation .......................... 329
Driving Safely with a Trailer .............. 338
Towing Your Vehicle ........................ 339
Off-Highway Driving Guidelines General Information ......................... 340
Important Safety Precautions............ 340
Avoiding Trouble ............................. 341
When Driving Starting the Engine .......................... 342
Precautions While Driving................. 344 Automatic Transmission ................... 345
Shifting ............................................ 346
Cruise Control ................................. 348
VSA® (Vehicle Stability Assist), aka ESC
(Electronic Stability Control), System ...... 352
VTM (Variable Torque Management)-4 r
System *.............................................354TPMS (Tire Pressure Monitoring System) ... 355Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ......... 357
Braking Brake System ................................... 360
ABS (Anti-lock Brake System) ........... 362 Brake Assist System ......................... 363
Parking Your Vehicle When Stopped ................................ 364
Parking Sensor System
*...................365
Rearview Camera *............................369
Multi-View Rear Camera *................370
Refueling
Fuel Information .............................. 371
How to Refuel ................................. 372
Fuel Economy ..
.................................. 374
Accessories and Modifications Accessories ...................................... 375
Modifications................................... 375
* Not available on all models

354
uu When Driving u VTM (Variable Torque Management)-4 r System *
Driving
VTM (Variable Torque Management)-4 r System *
Senses a traction loss caused by a road condition change, and automatically
transfers some power to the rear wheels.
Use the VTM-4 r
LOCK to increase more to rque to the rear wheels.
1. Stop
your vehicle with the engine running.
2.Move the shift lever to
(1
, (2
, or (R
.
3. Press the VTM-4r LOCK button.
u The
indicator in the button comes on.
Any of the following disengages the VTM-4 r LOCK
:
• Pressing the VTM-4r LOCK button again
.
• Moving the
shift lever to (D
or (d
.
• Turning the ignition switch
to the LOCK (0
position.
■To Engage the VTM-4 r LOCK
■To Disengage the VTM-4 r LOCK
1 VTM (Variable Torque Management)-4 r System *
NOTICE
Do not continuously spin the front tires of your
vehicle. Continuously spinning the front tires can
cause transmission or re ar differential damage.
1To Engage the VTM-4 r LOCK
Do not use the VTM-4r LOCK button on dry, paved
roads. Driving on dry, paved roads with VTM-4 r
LOCK on may damage the r ear differential when
making a turn. Strange noise and vibration can also
result.
The VTM-4 r LOCK can be used to help free your
vehicle from being stuck in mud, sand, or gravel.
When the lock is engaged, apply light pressure to the
accelerator pedal.
When more torque is applied, the rear tires are not
likely to spin. This is normal.
If you are not able to fr ee the vehicle, stop and
reverse direction.
As soon as this featur e is no longer needed,
disengage the VTM-4 r LOCK.
1 To Disengage the VTM-4 r LOCK
The VTM-4 r LOCK temporarily disengages when the
vehicle speed exceeds 18 mph (30 km/h). The
indicator in the button remains on.
* Not available on all models

uu Maintenance Under the Hood u Changing the Engine Oil and Oil Filter
396
Maintenance
4. Remove the oil filter and dispose of the
remaining oil.
5.Check that the filter ga sket is not stuck to
the engine contact surface.
u If it
is stuck, you must detach it.
6. Wipe away
dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Appl
y a light coat of new engine oil to
the filter gasket.
7. Pu
t a new washer on the drain bolt, then
reinstall the drain bolt.
u Tighte
ning torque:
29 lbf∙ft (39 N∙m, 4.0 kgf∙m)
8. P
our the recommended engine oil into the
engine.
u Engi
ne oil change capacity (including
filter):
4.5 US qt (4.3 L)
9. Reins
tall the engine oil fill cap securely and
start the engine.
10. Run the engin
e for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.
11. S
top the engine, wait for three minutes,
and then check the oil level on the
dipstick.
u If neces
sary, add more engine oil.
1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.
Oil Filter

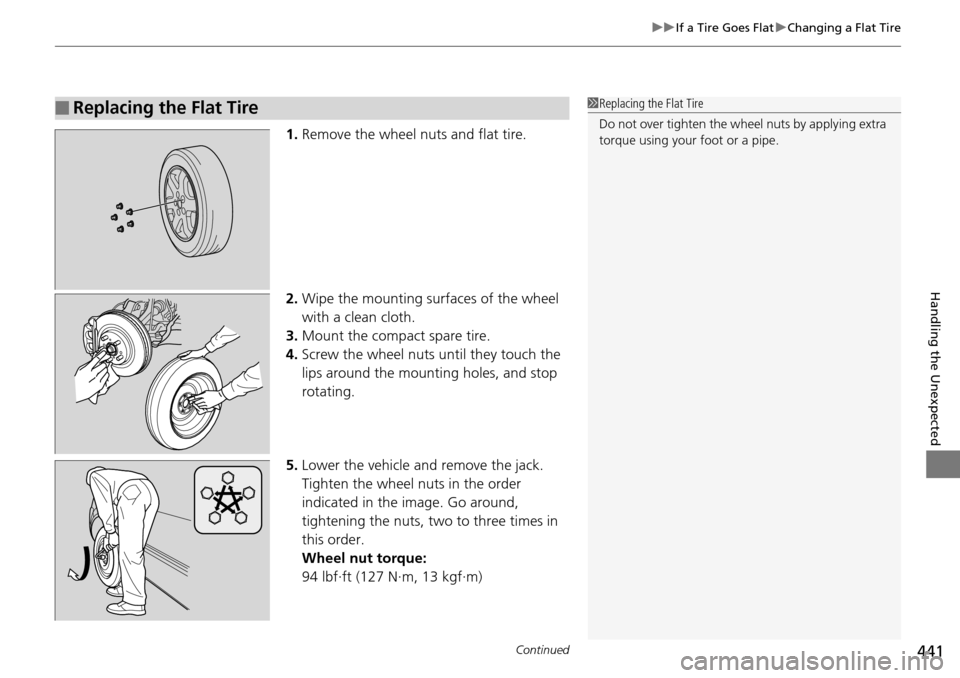

Continued441
uu If a Tire Goes Flat u Changing a Flat Tire
Handling the Unexpected
1. Remove the wheel nuts and flat tire.
2.Wipe the mounting surfaces of the wheel
with a clean cloth.
3. Mount t
he compact spare tire.
4.Screw
the wheel nuts until they touch the
lips around the mounting holes, and stop
rotating.
5. Lower the
vehicle and remove the jack.
Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.
Wheel nut torque:
94 lbf∙ft (127 N∙m, 13 kgf∙m)
■Replacing the Flat Tire1 Replacing the Flat Tire
Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.

485
Index
Warning Indicators.................................... 68
Turn Signals.............................................. 125
Indicators (Instru ment Panel)
..................... 75
U
Unlocking the Doors ................................ 101
USB Adapter Cable ..........
................ 172, 173
USB Flash Drives ...............
........................ 275
V
Valet Key.................................................. 100
Vanity Mirrors ..................
............................ 5
Vehicle Identification Number .............
... 466
Vehicle Stability Assist (VSA ®) ..............
... 352
Off............................................................ 72
Off Button .............................................. 353
System ...................................................... 72
Viscosity (Oil) ....................
................ 392, 465
VSA ® (Veh
icle Stability Assist) ................. 352
VTM (Variable Torque Management)  System ........
............................................. 354
W
Wallpaper................................................. 179
Warning and Info rmation Messages ...
..... 78
Warning Indicator On/Blinking ............
... 450
Warning Labels ................
.......................... 66
Warranties (Warranty Manual provided
separately
).............................................. 472 Watts
...............
.......................................... 464
Wear Indicators (Tire) ..........
..................... 419
Wheel Nut Wrench (Jack Handle) ...........
439
Window Washers .................
..................... 128
Adding/Refilling Fluid ............................... 401
Switch ..................................................... 128
Windows (Opening and Closing) .............
120
Windshield ......
.......................................... 128
Cleaning .................................................. 431
Defrosting/Defogging .............................. 166
Washer Fluid ........................................... 401
Wiper Blades ........................................... 410
Wipers and Washers ................................ 128
Winter Tires ....
.......................................... 422
Snow Tires ............................................... 422
Tire Chains .............................................. 422
Wipers and Washers ............
..................... 128
Checking and Replacing Wiper Blades ..... 410
Front ....................................................... 128
Rear ........................................................ 129
WMA ...............
.................. 193, 207, 226 , 244
Worn Tires .......
.......................................... 414
X
XM® Radio ................................................. 223
