HONDA PILOT 2015 2.G Owners Manual

uuGauges and Displays uMulti-Information Display*
90
Instrument Panel
Use the multi-information display to customize certain features.
■How to customize
Select the CUSTOMIZE SETTINGS by pressing the / button while the
ignition switch is in ON
(w, and the vehicle is at a complete stop. Press the SEL/
RESET button to change the display to the CHG SETTING.
■Customized Features1Customized Features
To customize other features, press the /
button.
2 List of customizable options P. 92
2 Example of customization settings P. 94
Customization is possible when you see the driver’s
ID ( DRIVER 1 or DRIVER 2) on the CHG SETTING
screen.
The driver’s ID indicates which remote transmitter
you have used to unlock the driver’s door.
The customized settings are recalled every time you
unlock the driver’s door with that remote.
When you customize settings:
Shift to
( P.
SEL/RESET Button
Enters the selected item. / Button
Changes the customize
menu and items.

91
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel

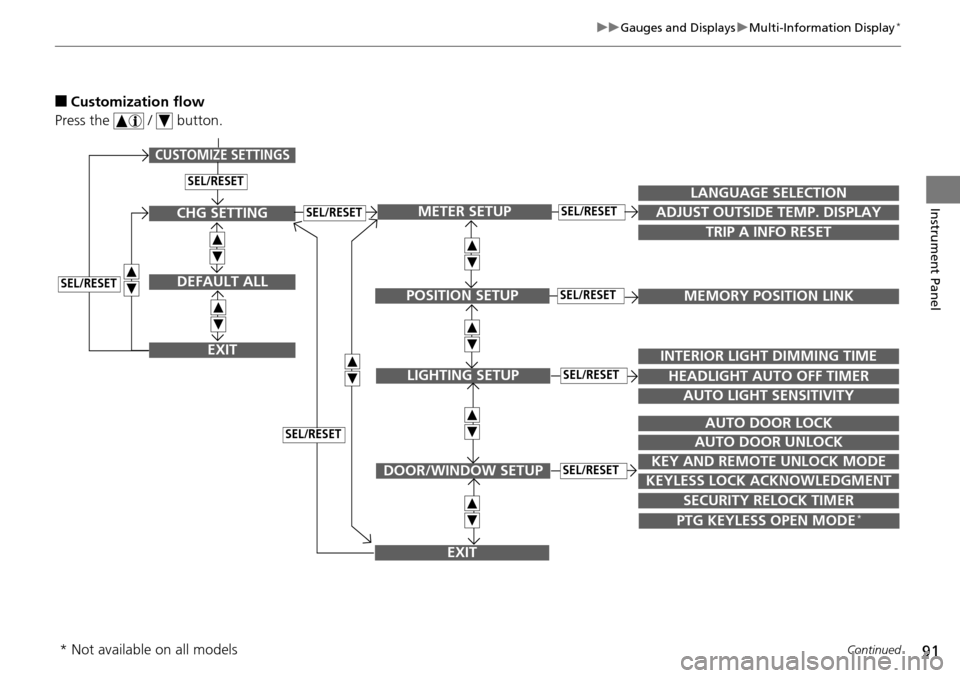

■Customization flow
Press the / button.
SEL/RESET
CUSTOMIZE SETTINGS
SECURITY RELOCK TIMER
TRIP A INFO RESET
LANGUAGE SELECTION
ADJUST OUTSIDE TEMP. DISPLAY
MEMORY POSITION LINK
INTERIOR LIGHT DIMMING TIME
HEADLIGHT AUTO OFF TIMER
AUTO LIGHT SENSITIVITY
AUTO DOOR LOCK
AUTO DOOR UNLOCK
KEY AND REMOTE UNLOCK MODE
KEYLESS LOCK ACKNOWLEDGMENT
METER SETUP
POSITION SETUP
LIGHTING SETUP
DOOR/WINDOW SETUP
SEL/RESET
SEL/RESET
SEL/RESET
SEL/RESET
PTG KEYLESS OPEN MODE*
EXIT
CHG SETTING
DEFAULT ALL
EXIT
SEL/RESET
SEL/RESET
SEL/RESET
* Not available on all models

92
uuGauges and Displays uMulti-Information Display*
Instrument Panel

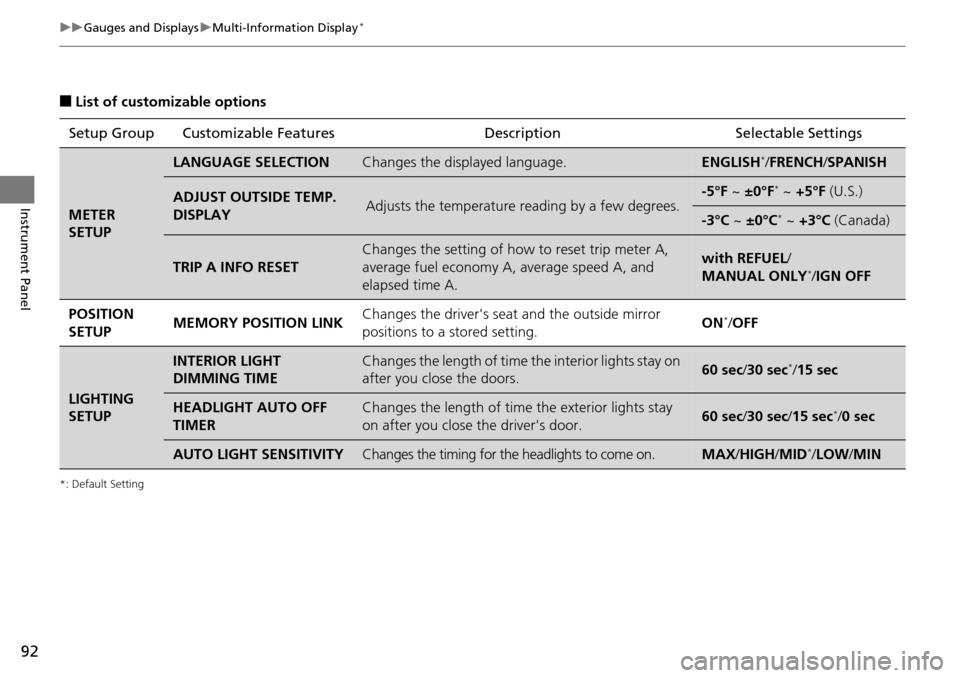

■List of customizable options
*: Default Setting
Setup Group Customizable Features DescriptionSelectable Settings
METER
SETUP
LANGUAGE SELECTIONChanges the displayed language.ENGLISH*/FRENCH /SPANISH
ADJUST OUTSIDE TEMP.
DISPLAYAdjusts the temperature reading by a few degrees.-5°F ~ ±0°F* ~ +5°F (U.S.)
-3°C ~ ±0°C* ~ +3°C (Canada)
TRIP A INFO RESET
Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.with REFUEL /
MANUAL ONLY*/ IGN OFF
POSITION
SETUP MEMORY POSITION LINK
Changes the driver's seat
and the outside mirror
positions to a stored setting. ON
*/
OFF
LIGHTING
SETUP
INTERIOR LIGHT
DIMMING TIMEChanges the length of time the interior lights stay on
after you close the doors.60 sec/ 30 sec*/15 sec
HEADLIGHT AUTO OFF
TIMERChanges the length of time the exterior lights stay
on after you close the driver's door.60 sec/ 30 sec/15 sec*/0 sec
AUTO LIGHT SENSITIVITYChanges the timing for the headlights to come on.MAX /HIGH /MID*/ LOW /MIN

93
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
*1:Not available on all models

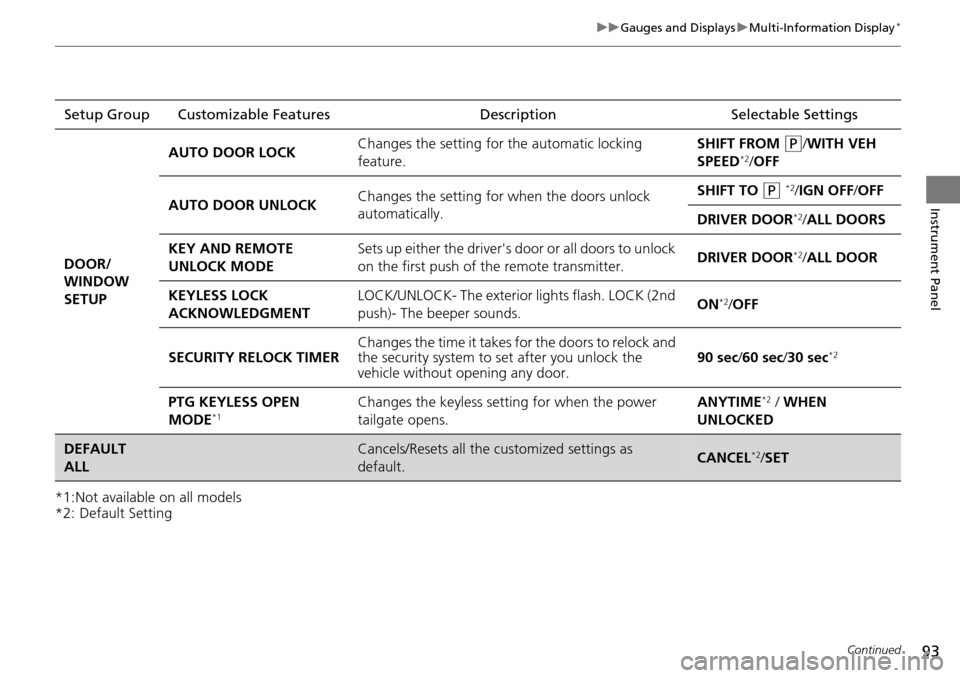

*2: Default SettingSetup Group Customizable Features
Description Selectable Settings
DOOR/
WINDOW
SETUP AUTO DOOR LOCK
Changes the setting for
the automatic locking
feature. SHIFT FROM

(P/WITH VEH
SPEED*2/ OFF
AUTO DOOR UNLOCK Changes the setting for
when the doors unlock
automatically. SHIFT TO

(P *2/IGN OFF /OFF
DRIVER DOOR
*2/ ALL DOORS
KEY AND REMOTE
UNLOCK MODE Sets up either the driver's door or all doors to unlock
on the first push of the remote transmitter.
DRIVER DOOR
*2/
ALL DOOR
KEYLESS LOCK
ACKNOWLEDGMENT LOCK/UNLOCK- The exterior
lights flash. LOCK (2nd
push)- The beeper sounds. ON
*2/
OFF
SECURITY RELOCK TIMER Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without op
ening any door. 90 sec
/60 sec/ 30 sec
*2
PTG KEYLESS OPEN
MODE*1Changes the keyless setting for when the power
tailgate opens. ANYTIME*2 / WHEN
UNLOCKED
DEFAULT
ALLCancels/Resets all the customized settings as
default.CANCEL*2/ SET

94
uuGauges and Displays uMulti-Information Display*
Instrument Panel

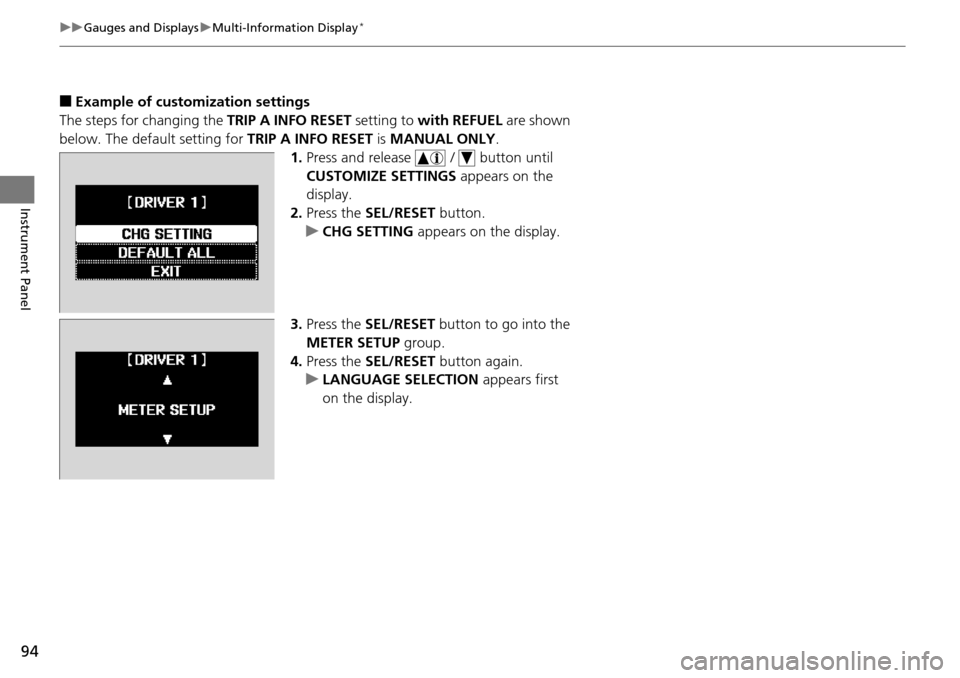

■Example of customization settings
The steps for changing the TRIP A INFO RESET setting to with REFUEL are shown
below. The default setting for TRIP A INFO RESET is MANUAL ONLY .
1. Press and release / button until
CUSTOMIZE SETTINGS appears on the
display.
2. Press the SEL/RESET button.
u CHG SETTING appears on the display.
3. Press the SEL/RESET button to go into the
METER SETUP group.
4. Press the SEL/RESET button again.
u LANGUAGE SELECTION appears first
on the display.

95
uuGauges and Displays uMulti-Information Display*
Instrument Panel

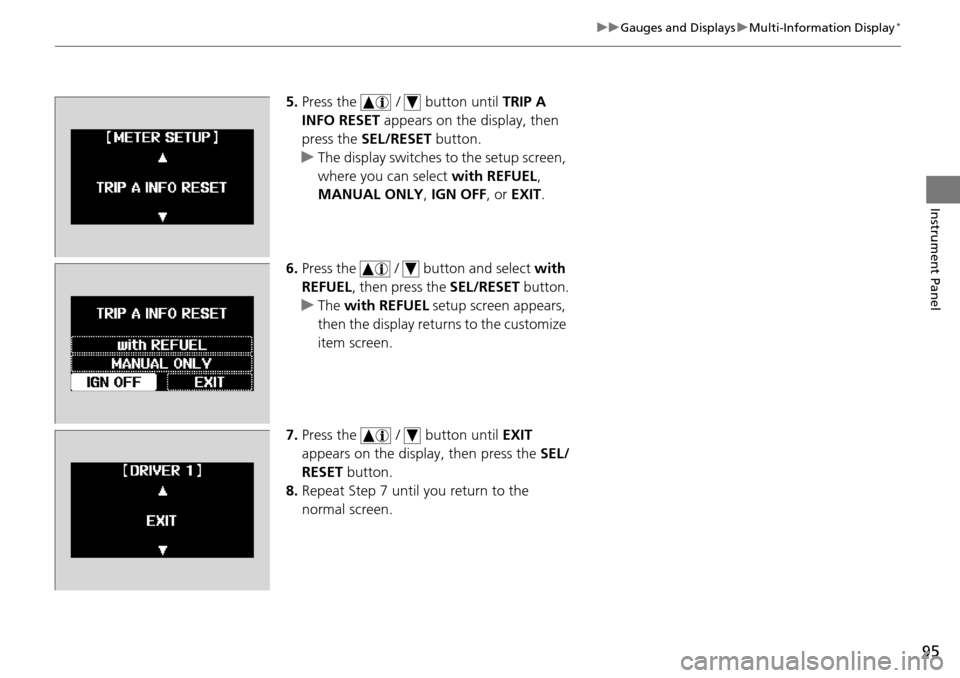

5. Press the / button until TRIP A
INFO RESET appears on the display, then
press the SEL/RESET button.
u The display switches to the setup screen,
where you can select with REFUEL,
MANUAL ONLY , IGN OFF, or EXIT .
6. Press the / button and select with
REFUEL , then press the SEL/RESET button.
u The with REFUEL setup screen appears,
then the display retu rns to the customize
item screen.
7. Press the / button until EXIT
appears on the display, then press the SEL/
RESET button.
8. Repeat Step 7 until you return to the
normal screen.

96

97
Controls
This chapter explains how to operate the various controls necessary for driving.
Setting the Clock................................ 98
Locking and Unlocking the Doors
Key Types and Functions .................... 99
Locking/Unlocking the Doors from the Outside .......................................... 101
Locking/Unlocking the Doors from the Inside ............................................. 103
Childproof Door Locks ..................... 104
Auto Door Locking/Unlocking .......... 105
Opening and Closing the Tailgate ... 110
Security System ................................ 118
Immobilizer System .......................... 118
Security System Alarm
*.................... 118Opening and Closing the Windows ..... 120
Opening and Closing the Moonroof*...... 123Operating the Switches Around the
Steering Wheel Ignition Switch ................................. 124
Turn Signals ..................................... 125
Light Switches.................................. 125
Fog Lights
*...................................... 127
Daytime Running Lights ................... 127
Wipers and Washers ........................ 128
Brightness Control ........................... 130
Rear Defogger/Heat ed Door Mirror
*
Button ........................................... 131
Driving Position Memory System
*.... 132
Adjusting the Steering Wheel........... 134 Adjusting the Mirrors
....................... 135
Interior Rearview Mirror ................... 135
Power Door Mirrors ......................... 136
Adjusting the Seats .......................... 137
Adjusting the Seat Positions ............. 137
Interior Lights/Interior Convenience Items ................................................ 150
Interior Lights .................................. 150
Interior Convenience Items .............. 152
Climate Control System ................... 165
Using Automatic Climate Control .... 165Automatic Climate Control Sensors ...... 170
* Not available on all models

98
Controls
Setting the Clock
Clock
You can adjust the time in the clock display, using the CLOCK button with the
ignition switch in ON (w.
1.Press the CLOCK button to access the clock
adjustment mode screen.
2. Press to select the item you want to
adjust (12/24 hour mode, hour, minute).
3. Rotate to make the adjustment.
4. Press to enter your selection. Repeat
steps 2 to 4 to adjust other items.
5. To enter the selection, press and select
EXIT , then press .
Models with audio/information screen1Clock
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
You can also press the SETUP button to access the
clock adjustment mode screen.
1. Press the SETUP button.
2. Rotate to select CLOCK ADJUST on the
screen.
3. Press , CLOCK ADJUST appears.
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
Models with navigation system

99Continued
Controls

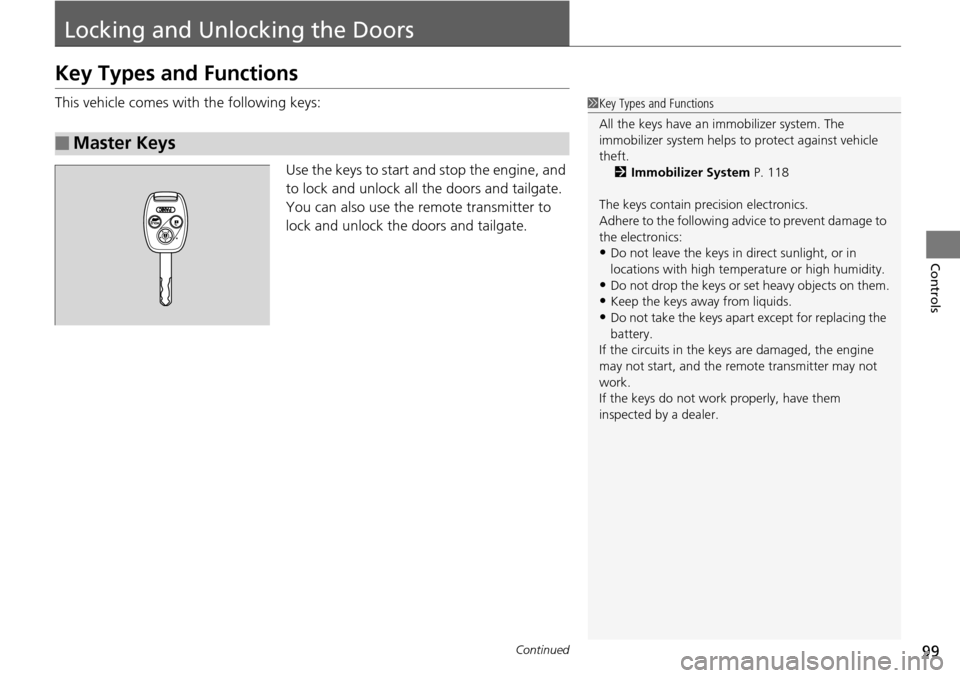

Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
Use the keys to start and stop the engine, and
to lock and unlock all the doors and tailgate.
You can also use the remote transmitter to
lock and unlock the doors and tailgate.
■Master Keys
1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 118
The keys contain precision electronics.
Adhere to the following advi ce to prevent damage to
the electronics:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.
•Keep the keys away from liquids.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
