HONDA PILOT 2015 2.G Owners Manual

470
Information

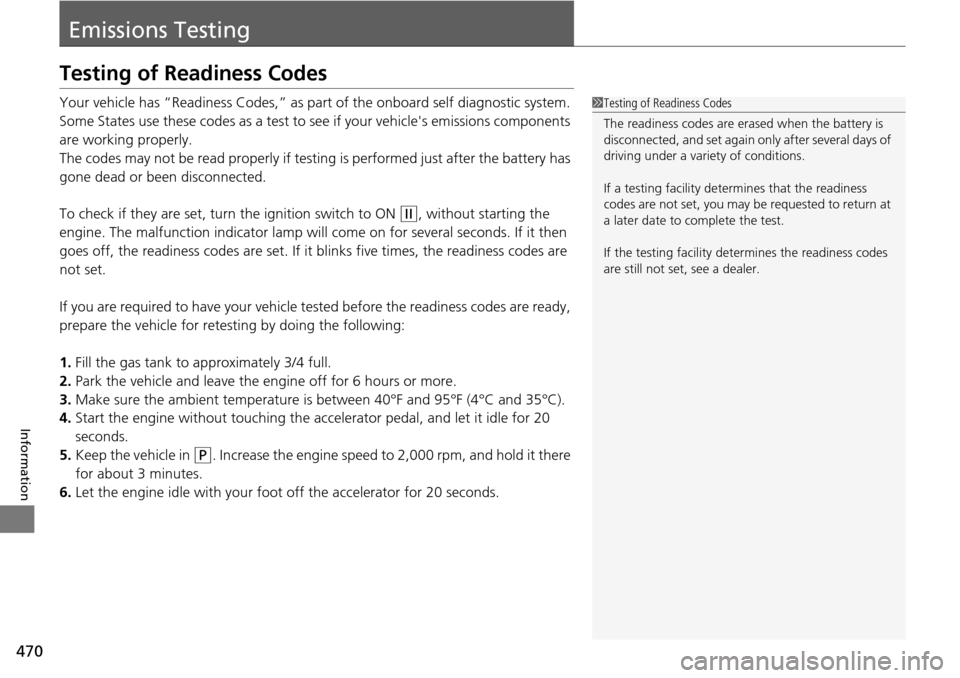

Emissions Testing
Testing of Readiness Codes
Your vehicle has “Readiness Codes,” as part of the onboard self diagnostic system.
Some States use these codes as a test to see if your vehicle's emissions components
are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w, without starting the
engine. The malfunction indicator lamp will come on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the en gine off for 6 hours or more.
3. Make sure the ambient temperature is be tween 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.

471
uuEmissions Testing uTesting of Readiness Codes
Information

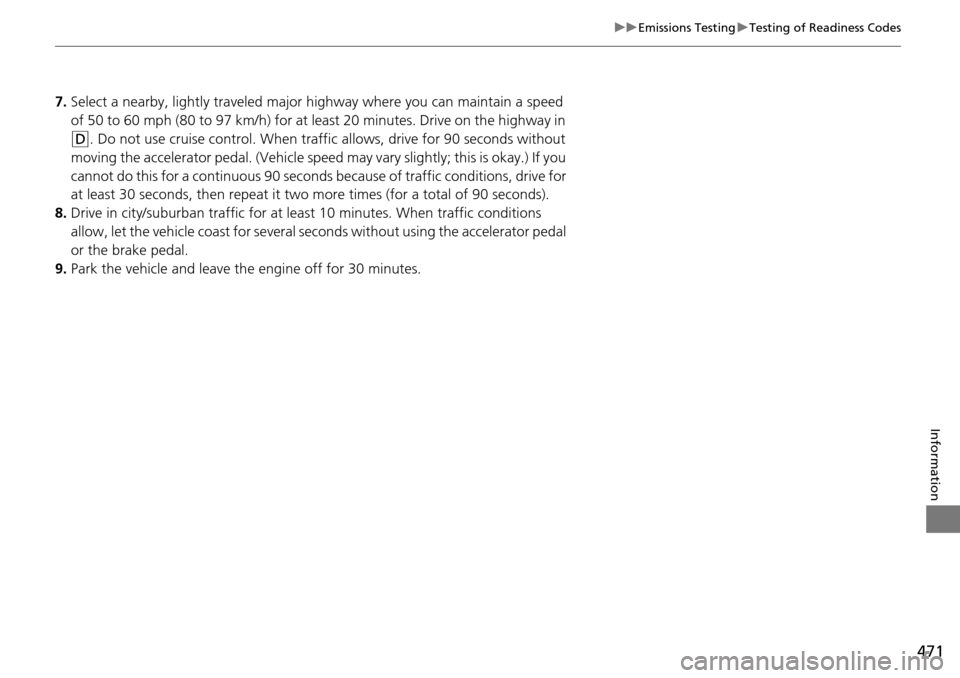

7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When traffi c allows, drive for 90 seconds without
moving the accelerator pedal. (V ehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at leas t 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.

472
Information

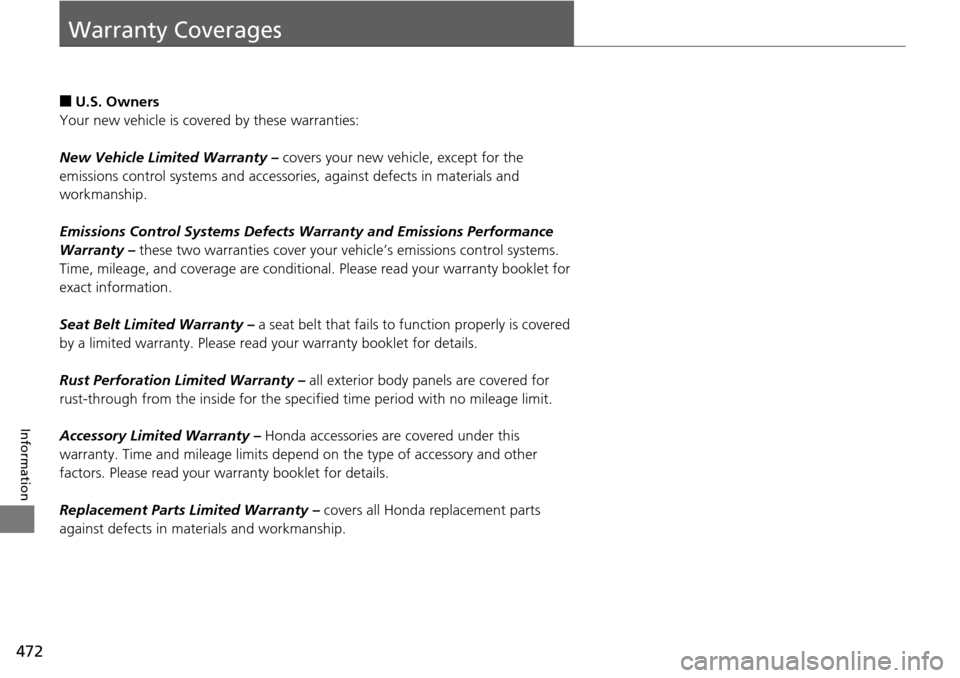

Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessori es, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered for
rust-through from the inside for the specified time period with no mileage limit.
Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in materials and workmanship.

473
uuWarranty Coverages u
Information

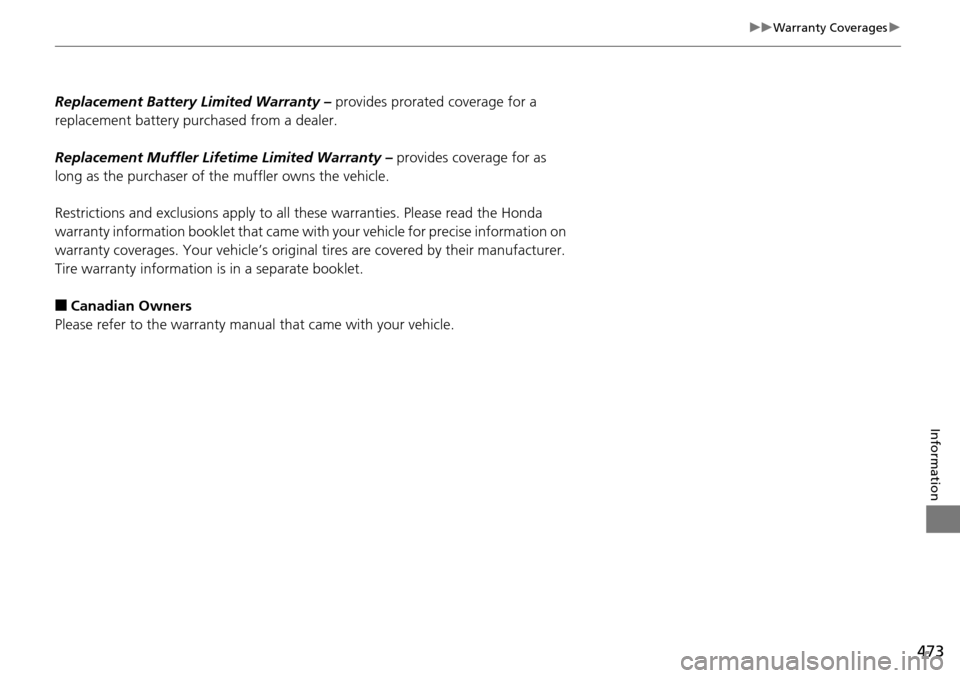

Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from a dealer.
Replacement Muffler Lifeti me Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to all these warranties. Please read the Honda
warranty information booklet th at came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.

474
Information

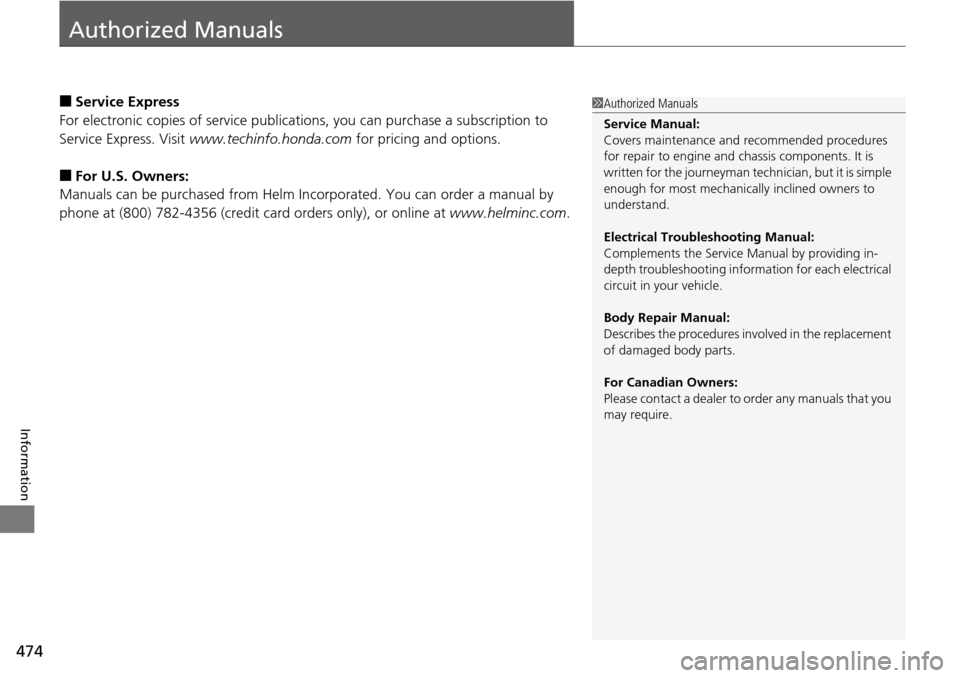

Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners:
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at (800) 782-4356 (credit card orders only), or online at www.helminc.com.
1Authorized Manuals
Service Manual:
Covers maintenance and recommended procedures
for repair to engine and chassis components. It is
written for the journeyman te chnician, but it is simple
enough for most mechanically inclined owners to
understand.
Electrical Troubleshooting Manual:
Complements the Service Manual by providing in-
depth troubleshooting inform ation for each electrical
circuit in your vehicle.
Body Repair Manual:
Describes the procedures involved in the replacement
of damaged body parts.
For Canadian Owners:
Please contact a dealer to order any manuals that you
may require.

475
Information

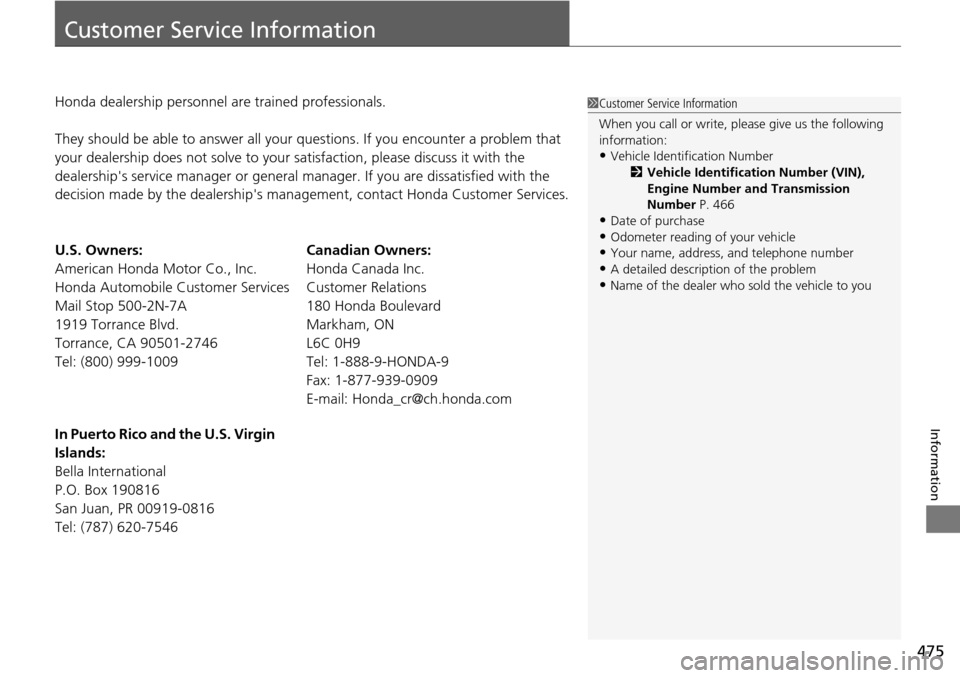

Customer Service Information
Honda dealership personnel are trained professionals.
They should be able to answer all your questions. If you encounter a problem that
your dealership does not solve to your satisfaction, please discuss it with the
dealership's service manager or general ma nager. If you are dissatisfied with the
decision made by the dealership's mana gement, contact Honda Customer Services.
U.S. Owners:
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 500-2N-7A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: (800) 999-1009 Canadian Owners:
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands:
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-75461 Customer Service Information
When you call or write, pl ease give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number and Transmission
Number P. 466
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you

476
Information

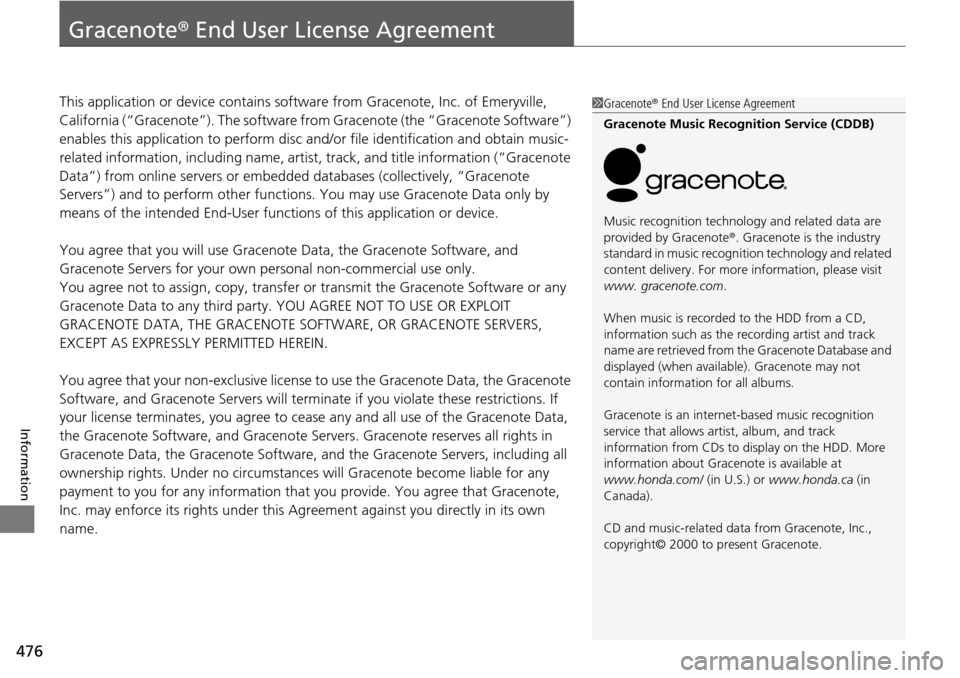

Gracenote® End User License Agreement
This application or device contains softw are from Gracenote, Inc. of Emeryville,
California (“Gracenote”). Th e software from Gracenote (t he “Gracenote Software”)
enables this application to perform disc and/or file identification and obtain music-
related information, including name, artist , track, and title information (“Gracenote
Data”) from online servers or embedded databases (collectively, “Gracenote
Servers”) and to perform other function s. You may use Gracenote Data only by
means of the intended End-User functions of this application or device.
You agree that you will use Gracenot e Data, the Gracenote Software, and
Gracenote Servers for your own pe rsonal non-commercial use only.
You agree not to assign, copy, transfer or transmit the Gracenote Software or any
Gracenote Data to any third party. YOU AGREE NOT TO USE OR EXPLOIT
GRACENOTE DATA, THE GRACENOTE SOFTWARE, OR GRACENOTE SERVERS,
EXCEPT AS EXPRESSLY PERMITTED HEREIN.
You agree that your non-exclusive license to use the Gracenote Data, the Gracenote
Software, and Gracenote Servers will terminate if you violate these restrictions. If
your license terminates, you agree to cease any and all use of the Gracenote Data,
the Gracenote Software, and Gracenote Serve rs. Gracenote reserves all rights in
Gracenote Data, the Gracenote Software, and the Gracenote Servers, including all
ownership rights. Under no circumstances will Gracenote become liable for any
payment to you for any information that you provide. You agree that Gracenote,
Inc. may enforce its rights under this Ag reement against you directly in its own
name.1 Gracenote ® End User License Agreement
Gracenote Music Recognition Service (CDDB)
Music recognition technolog y and related data are
provided by Gracenote ®. Gracenote is the industry
standard in music recogniti on technology and related
content delivery. For more information, please visit
www. gracenote.com .
When music is recorded to the HDD from a CD,
information such as the recording artist and track
name are retrieved from the Gracenote Da tabase and
displayed (when availabl e). Gracenote may not
contain information for all albums.
Gracenote is an internet -based music recognition
service that allows artist, album, and track
information from CDs to display on the HDD. More
information about Grace note is available at
www.honda.com/ (in U.S.) or www.honda.ca (in
Canada).
CD and music-related data from Gracenote, Inc.,
copyright© 2000 to present Gracenote.

477
uuGracenote ® End User License Agreement u
Information

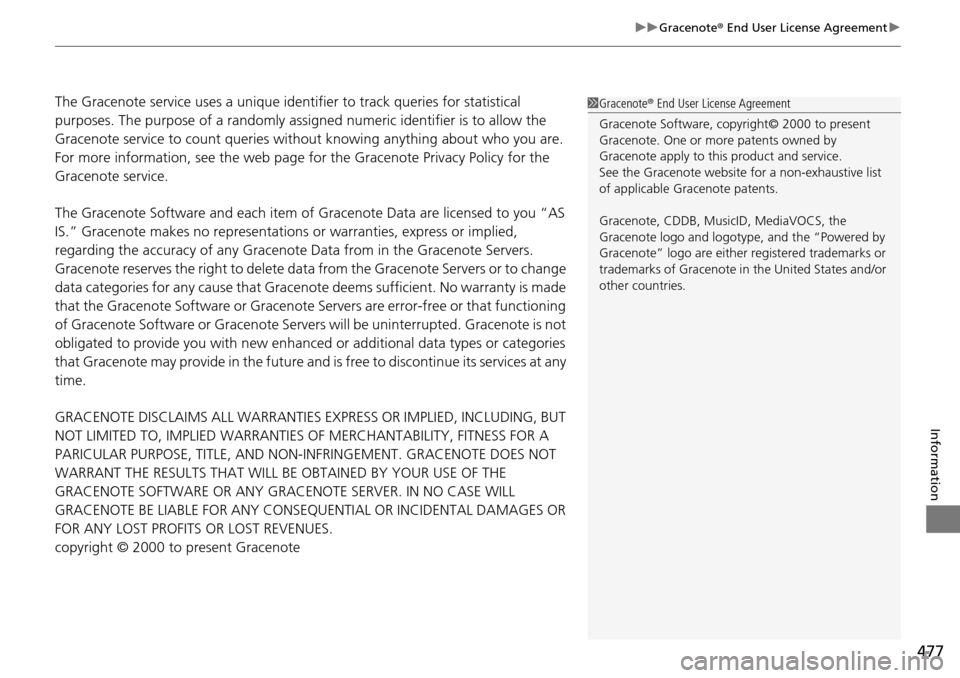

The Gracenote service uses a unique identifier to track queries for statistical
purposes. The purpose of a randomly assi gned numeric identifier is to allow the
Gracenote service to count queries withou t knowing anything about who you are.
For more information, see the web page for the Gracenote Privacy Policy for the
Gracenote service.
The Gracenote Software and each item of Gracenote Data are li censed to you “AS
IS.” Gracenote makes no re presentations or warranties, express or implied,
regarding the accuracy of any Gracenote Data from in the Gracenote Servers.
Gracenote reserves the right to delete data from the Gracenote Servers or to change
data categories for any cause that Gracenot e deems sufficient. No warranty is made
that the Gracenote Software or Gracenote Servers are error-free or that functioning
of Gracenote Software or Gracenote Servers will be uninterrupted. Gracenote is not
obligated to provide you with new enhanced or additional data types or categories
that Gracenote may provide in the future and is free to discontinue its services at any
time.
GRACENOTE DISCLAIMS ALL WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARICULAR PURPOSE, TITLE, AND NON- INFRINGEMENT. GRACENOTE DOES NOT
WARRANT THE RESULTS THAT WILL BE OBTAINED BY YOUR USE OF THE
GRACENOTE SOFTWARE OR ANY GRACEN OTE SERVER. IN NO CASE WILL
GRACENOTE BE LIABLE FOR ANY CONSEQ UENTIAL OR INCIDENTAL DAMAGES OR
FOR ANY LOST PROFITS OR LOST REVENUES.
copyright © 2000 to present Gracenote1Gracenote ® End User License Agreement
Gracenote Software, copyright© 2000 to present
Gracenote. One or mo re patents owned by
Gracenote apply to this product and service.
See the Gracenote website for a non-exhaustive list
of applicable Gracenote patents.
Gracenote, CDDB, MusicID, MediaVOCS, the
Gracenote logo and logotype, and the “Powered by
Gracenote” logo are either registered trademarks or
trademarks of Gracenote in the United States and/or
other countries.

Index
478
Index
Index
A
ABS (Anti-lock Brake System)................... 362
AC Power Outlet ....................................... 158
Accessories and Modifications ................. 375
Accessory Power Sockets .......................... 156
Additives Coolant ................................................... 397
Engine Oil ................................................ 392
Washer .................................................... 401
Additives, Engine Oil ................................ 392
Adjusting
Armrest ................................................... 149
Front Seats .............................................. 137
Head Restraints........................................ 141
Mirrors .................................................... 135
Rear Seats................................................ 146
Steering Wheel ........................................ 134
Temperature .............................................. 87
Air Conditioning System
(Climate Control System) ........................ 165
Changing the Mode ................................ 165
Defrosting the Windshield and
Windows ............................................... 166
Dust and Pollen Filter ............................... 427
Recirculation/Fresh Air Mode ................... 165
Sensors .................................................... 170
Synchronized Mode ................................. 167
Using Automatic Climate Control ............ 165
Air Pressure ....................................... 415, 465 Airbags
........................................................ 37
Advanced Airbags ..................................... 43
After a Collision ........................................ 41
Airbag Care............................................... 51
Front Airbags (SRS) .................................... 40
Indicator........................................ 48, 71, 75
Passenger Airbag Off Indicator .................. 49
Sensors ..................................................... 37
Side Airbag Cutoff System......................... 46
Side Airbag Off Indicator ........................... 50
Side Airbags .............................................. 44
Side Curtain Airbags.................................. 47
AM/FM Radio .................................... 186, 219
Anti-lock Brake System (ABS) .................. 362
Indicator.................................................... 71
Armrest ..................................................... 149
Audio Remote Controls ................... 184, 217
Audio System ............................................ 172
Adjusting the Sound........................ 185, 218
Auxiliary Input Jack.................................. 173
Error Messages ........................................ 266
General Information ................................ 272
iPod ®....................................................... 240
MP3/WMA/AAC .............................. 207, 244
Reactivate ............................................... 174
Recommended CDs ................................. 273
Recommended Devices............................ 275
Remote Controls ............................. 184, 217
Security Code .......................................... 174
Theft Protection ...................................... 174 USB Adapter Cable ................................. 173
USB Flash Drives...................................... 275
Audio/Information Display ...................... 176
Authorized Manuals ................................ 474
Auto Door Locking/Unlocking ................ 105
Customize ........................................ 93, 106
Automatic Lighting .................................. 126
Automatic Transmission .......................... 345
Creeping................................................. 345
Fluid ....................................................... 399
Kickdown ............................................... 345
Operating the Shift Lever .................. 16, 347
Shift Lever Does Not Move ...................... 447
Shifting ................................................... 346
Auxiliary Input Jack ................................. 173
Average Fuel Economy ........................ 82, 88
Average Speed ................................... 88, 177
B
Battery...................................................... 423
Charging System Indicator ................ 69, 450
Jump Starting ......................................... 445
Maintenance (Checking the Battery) ....... 423
Maintenance (Replacing) ......................... 424
Belts (Seat) .................................................. 29
Beverage Holders ..................................... 154
Bluetooth ® Audio ............................. 211, 248
Bluetooth ® HandsFreeLink ®............. 278, 301
Booster Seats (For Children) ...................... 64

479
Index
Brake System............................................ 360
Anti-lock Brake System (ABS) .................. 362
Brake Assist System................................. 363
Fluid ....................................................... 400
Foot Brake .............................................. 361
Indicator ........................................... 68, 452
Parking Brake.......................................... 360
Brightness Control (Instrument Panel) ... 130
Bulb Replacement .................................... 402
Brake Light, Tailligh t, Back-Up Light,
Rear Turn Signal Light and
Rear Side Marker Light .......................... 406
Fog Lights ............................................... 403
Front Turn Signal/ Parking Light and
Front Side Marker Light ......................... 405
Headlights .............................................. 402
High-Mount Brake Light.......................... 409
Rear License Plate Light ........................... 408
Side Turn Signal/
Emergency Indicator Light ..................... 404
Bulb Specifications ................................... 464
C
Carbon Monoxide Gas ............................... 65
Cargo Hook .............................................. 160
Cargo Net ................................................. 159
Carrying Cargo ................................. 325, 327
CD Library ................................................. 197
CD Player .......................................... 193, 226
Certification Label ................................... 466 Changing Bulbs
......................................... 402
Charging System Indicator ................. 69, 450
Child Safety ................................................. 52
Childproof Door Locks ............................. 104
Child Seat .................................................... 52
Booster Seats ............................................. 64
Child Seat for Infants ................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/ Shoulder Seat Belt ................................... 60
Larger Children .......................................... 63
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Childproof Door Locks ............................. 104
Cleaning the Exterior ............................... 430
Cleaning the Interior ................................ 428
Climate Control System ............................ 165
Changing the Mode ................................ 165
Defrosting the Windshield and Windows ............................................... 166
Dust and Pollen Filter ............................... 427
Recirculation/Fresh Air Mode ................... 165
Sensors .................................................... 170
Synchronized Mode ................................. 167
Using Automatic Climate Control ............ 165
Clock ............................................................ 98
Coat Hook ................................................. 159
Compact Spare Tire .......................... 435, 465
Console Compartment ............................. 152
Controls ....................................................... 97 Coolant (Engine)
...................................... 397
Adding to the Radiator ............................ 398
Adding to the Reserve Tank..................... 397
Overheating ............................................ 448
Creeping (Automatic Transmission) ........ 345
Cruise Control ........................................... 348
Indicator.................................................... 77
Cup Holders .............................................. 154
Customer Service Information ................. 475
Customized Features .................................. 90
D
Daytime Running Lights .......................... 127
Dead Battery ............................................. 445
Defrosting the Windshield and
Windows ................................................. 166
Detachable Anchor .................................... 34
Devices that Emit Radio Waves ............... 467
Dimming Headlights ............................................... 125
Rearview Mirror....................................... 135
Dipstick (Engine Oil) ................................. 393
Directional Signals (Turn Signal) ............. 125
Display/Information Button ....................... 85
Door Mirrors ............................................. 136
Doors ........................................................... 99
Auto Door Locking .................................. 105
Auto Door Unlocking .............................. 105
Door Open Indicator............................ 28, 72
Keys .......................................................... 99
