45Continued
System Setup

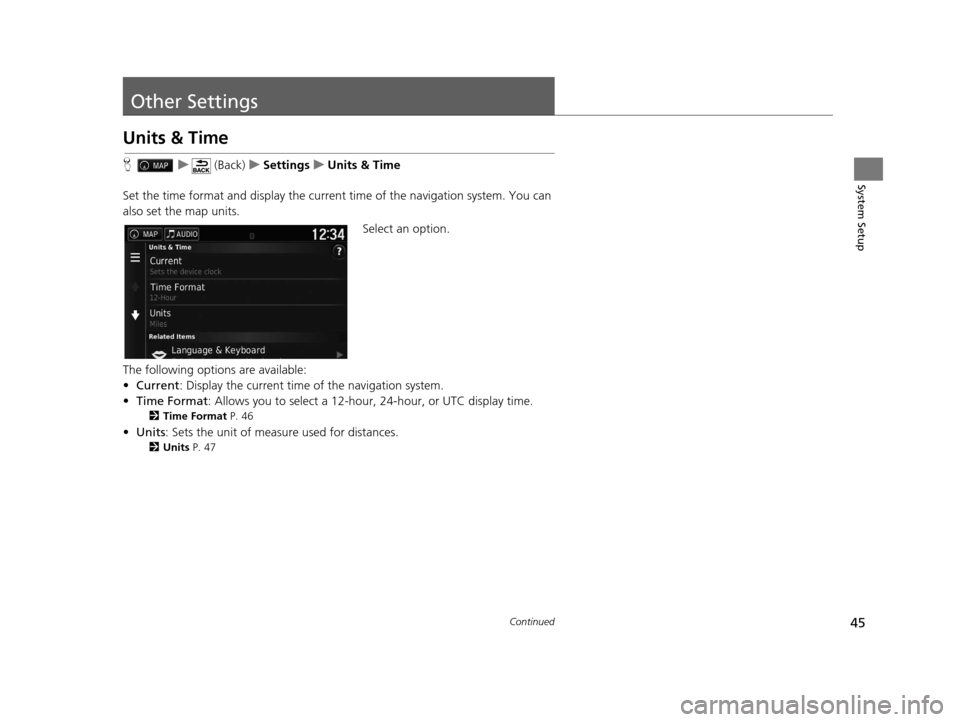

Other Settings
Units & Time
Hu (Back) uSettings uUnits & Time
Set the time format and display the current time of the navigation system. You can
also set the map units.
Select an option.
The following options are available:
• Current : Display the current time of the navigation system.
• Time Format : Allows you to select a 12-hour, 24-hour, or UTC display time.
2Time Format P. 46
•Units : Sets the unit of measure used for distances.
2Units P. 47
16 PILOT NAVI-31TG78000.book 45 ページ ２０１５年４月２１日　火曜日　午前８時３０分

48
uuOther Settings uLanguage & Keyboard
System Setup

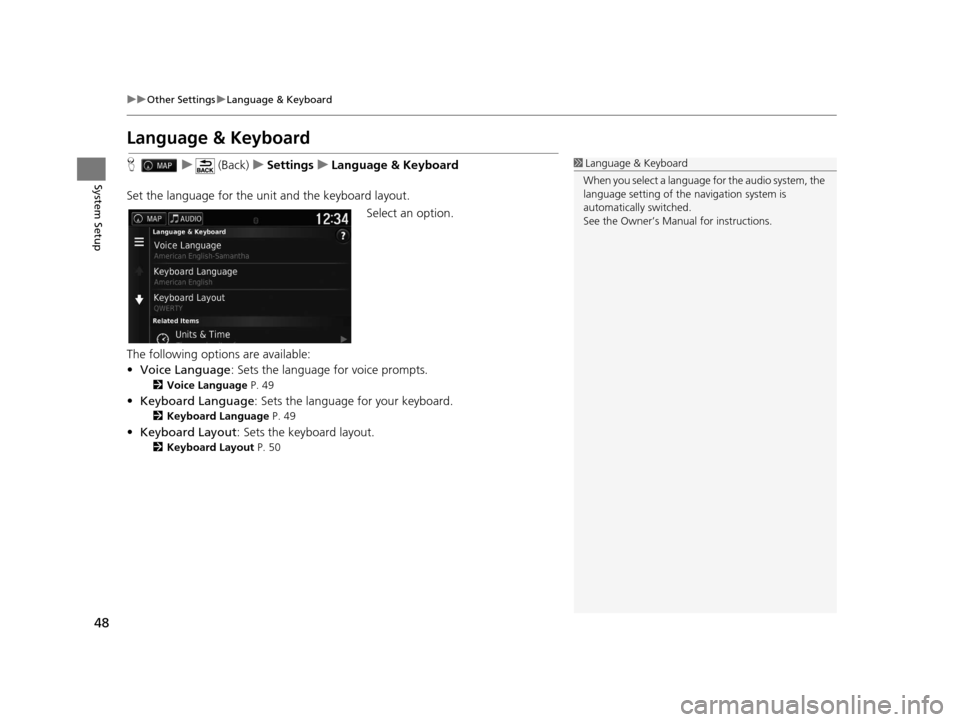

Language & Keyboard
H u (Back) uSettings uLanguage & Keyboard
Set the language for the un it and the keyboard layout.
Select an option.
The following options are available:
• Voice Language : Sets the language for voice prompts.
2Voice Language P. 49
•Keyboard Language : Sets the language for your keyboard.
2Keyboard Language P. 49
•Keyboard Layout : Sets the keyboard layout.
2Keyboard Layout P. 50
1Language & Keyboard
When you select a language for the audio system, the
language setting of the navigation system is
automatically switched.
See the Owner’s Manual for instructions.
16 PILOT NAVI-31TG78000.book 48 ページ ２０１５年４月２１日　火曜日　午前８時３０分

51
uuOther Settings uDevice
Continued
System Setup

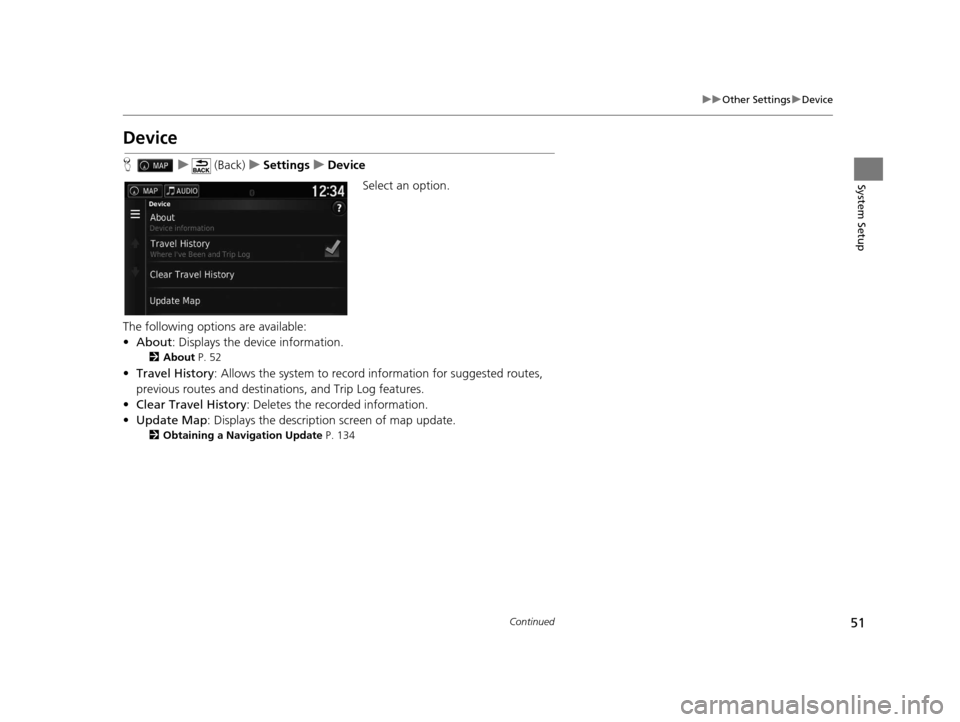

Device
H u (Back) uSettings uDevice
Select an option.
The following options are available:
• About : Displays the device information.
2About P. 52
•Travel History: Allows the system to record information for suggested routes,
previous routes and destinations, and Trip Log features.
• Clear Travel History: Deletes the recorded information.
• Update Map : Displays the description screen of map update.
2Obtaining a Navigation Update P. 134
16 PILOT NAVI-31TG78000.book 51 ページ ２０１５年４月２１日　火曜日　午前８時３０分

56
Navigation

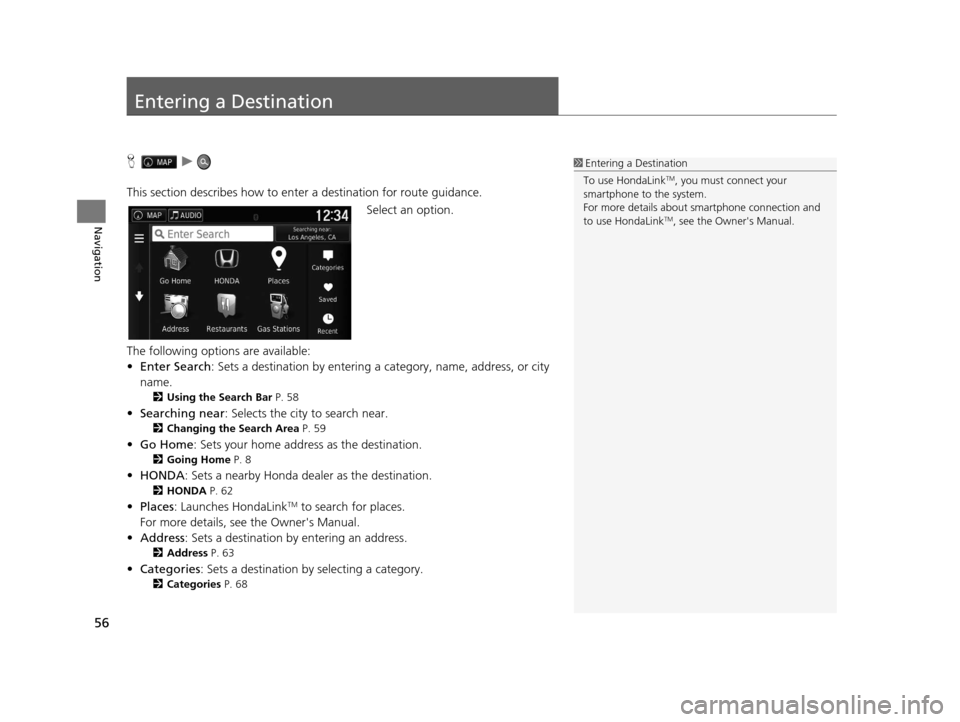

Entering a Destination
Hu
This section describes how to enter a destination for route guidance. Select an option.
The following options are available:
• Enter Search : Sets a destination by entering a category, name, address, or city
name.
2 Using the Search Bar P. 58
•Searching near : Selects the city to search near.
2Changing the Search Area P. 59
•Go Home : Sets your home address as the destination.
2Going Home P. 8
•HONDA: Sets a nearby Honda dealer as the destination.
2 HONDA P. 62
•Places: Launches HondaLinkTM to search for places.
For more details, see the Owner's Manual.
• Address : Sets a destination by entering an address.
2Address P. 63
•Categories : Sets a destination by selecting a category.
2Categories P. 68
1Entering a Destination
To use HondaLink
TM, you must connect your
smartphone to the system.
For more details about sm artphone connection and
to use HondaLink
TM, see the Owner's Manual.
16 PILOT NAVI-31TG78000.book 56 ページ ２０１５年４月２１日　火曜日　午前８時３０分

Continued59
uuEntering a Destination u
Navigation

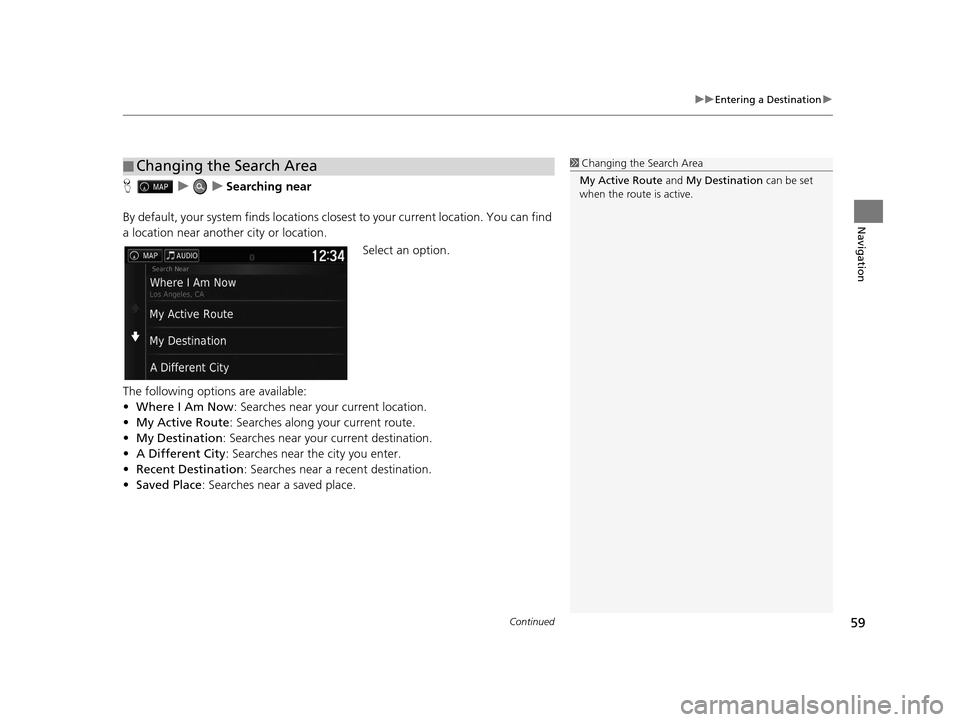

HuuSearching near
By default, your system finds locations closest to your current location. You can find
a location near another city or location. Select an option.
The following options are available:
• Where I Am Now : Searches near your current location.
• My Active Route : Searches along your current route.
• My Destination : Searches near your current destination.
• A Different City : Searches near the city you enter.
• Recent Destination : Searches near a recent destination.
• Saved Place : Searches near a saved place.
■Changing the Search Area1
Changing the Search Area
My Active Route and My Destination can be set
when the route is active.
16 PILOT NAVI-31TG78000.book 59 ページ ２０１５年４月２１日　火曜日　午前８時３０分

63
uuEntering a Destination uAddress
Continued
Navigation

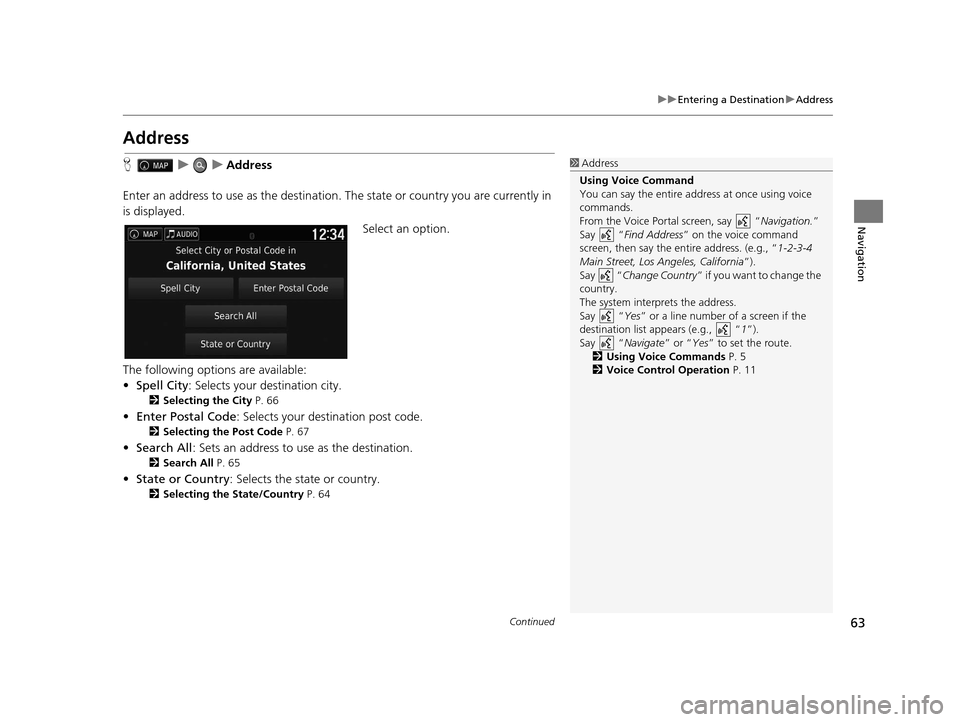

Address
H uuAddress
Enter an address to use as th e destination. The state or country you are currently in
is displayed.
Select an option.
The following options are available:
• Spell City : Selects your destination city.
2Selecting the City P. 66
•Enter Postal Code : Selects your destination post code.
2Selecting the Post Code P. 67
•Search All : Sets an address to use as the destination.
2Search All P. 65
•State or Country : Selects the state or country.
2Selecting the State/Country P. 64
1Address
Using Voice Command
You can say the entire a ddress at once using voice
commands.
From the Voice Portal screen, say “ Navigation.”
Say “ Find Address ” on the voice command
screen, then say the entire address. (e.g., “1-2-3-4
Main Street, Los Angeles, California ”).
Say “ Change Country ” if you want to change the
country.
The system interprets the address.
Say “ Yes” or a line number of a screen if the
destination list appears (e.g., “ 1”).
Say “ Navigate” or “Yes ” to set the route.
2 Using Voice Commands P. 5
2 Voice Control Operation P. 11
16 PILOT NAVI-31TG78000.book 63 ページ ２０１５年４月２１日　火曜日　午前８時３０分

Continued65
uuEntering a Destination uAddress
Navigation

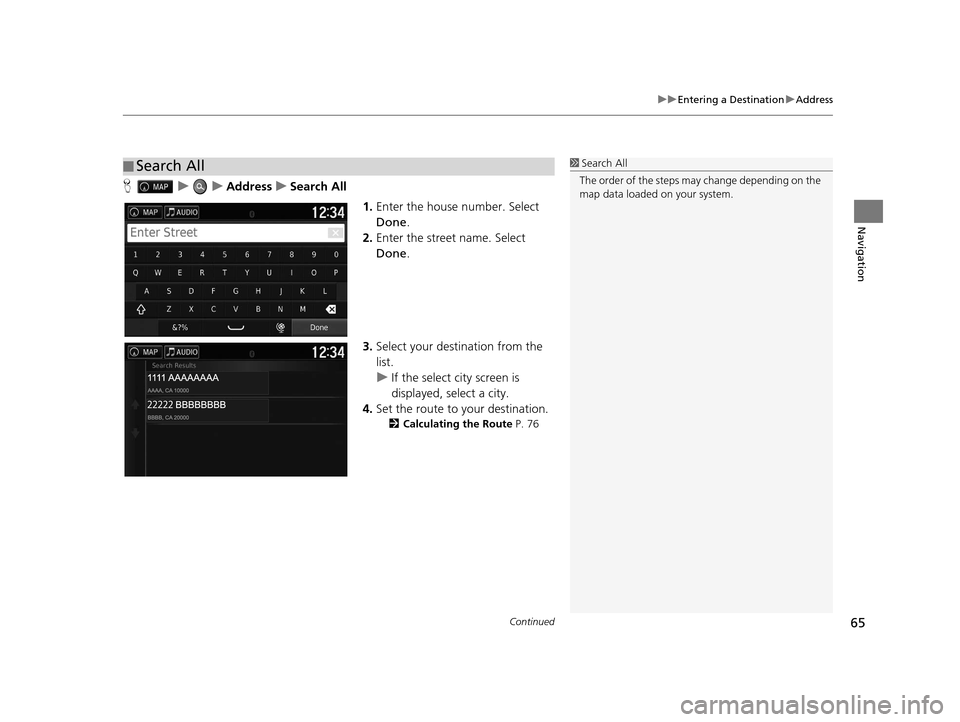

H uuAddressuSearch All
1.Enter the house number. Select
Done .
2. Enter the street name. Select
Done .
3. Select your destination from the
list.
u If the select city screen is
displayed, select a city.
4. Set the route to your destination.
2 Calculating the Route P. 76
■Search All1
Search All
The order of the steps may change depending on the
map data loaded on your system.
16 PILOT NAVI-31TG78000.book 65 ページ ２０１５年４月２１日　火曜日　午前８時３０分

uuEntering a Destination uAddress
66
Navigation

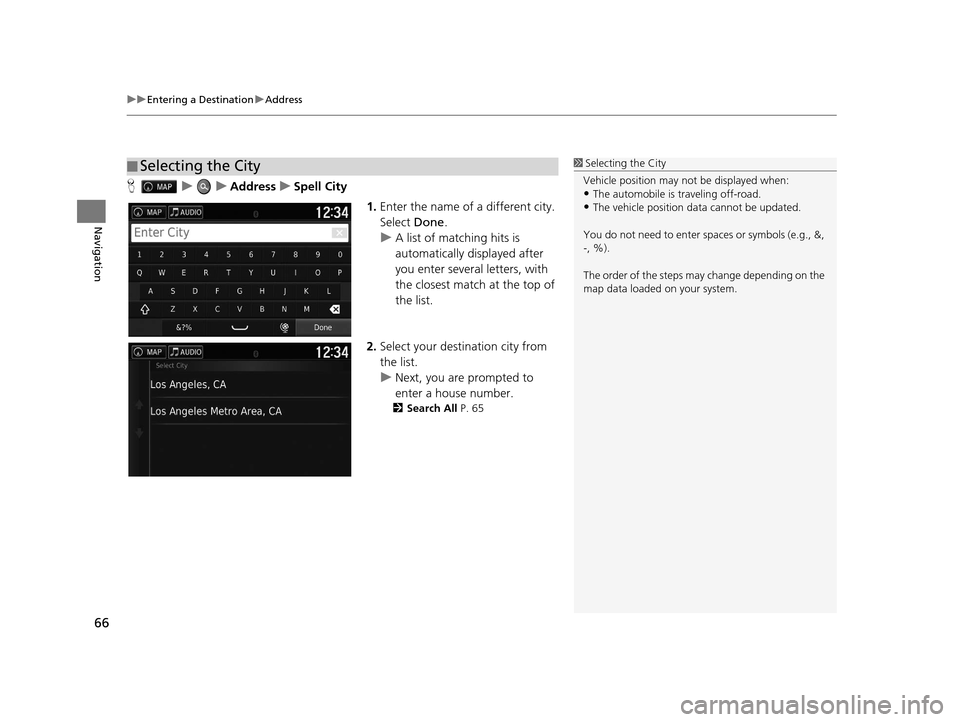

H uuAddressuSpell City
1.Enter the name of a different city.
Select Done.
u A list of matching hits is
automatically displayed after
you enter several letters, with
the closest match at the top of
the list.
2. Select your destination city from
the list.
u Next, you are prompted to
enter a house number.
2 Search All P. 65
■Selecting the City1
Selecting the City
Vehicle position may not be displayed when:
•The automobile is traveling off-road.
•The vehicle position data cannot be updated.
You do not need to enter spaces or symbols (e.g., &,
-, %).
The order of the steps may change depending on the
map data loaded on your system.
16 PILOT NAVI-31TG78000.book 66 ページ ２０１５年４月２１日　火曜日　午前８時３０分

67
uuEntering a Destination uAddress
Navigation

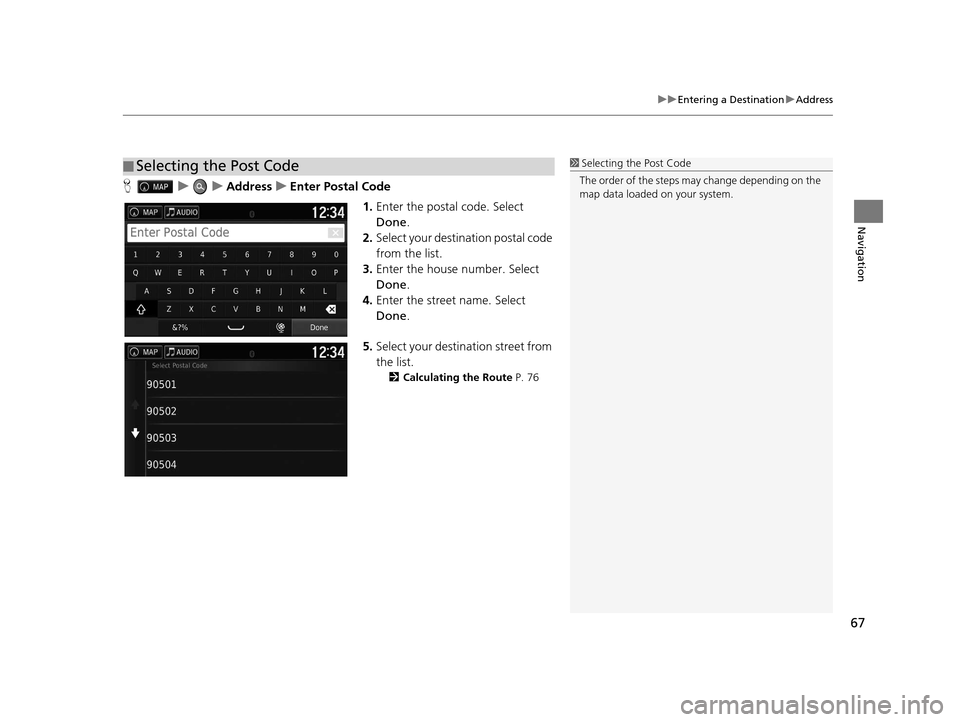

H uuAddressuEnter Postal Code
1.Enter the postal code. Select
Done .
2. Select your destination postal code
from the list.
3. Enter the house number. Select
Done .
4. Enter the street name. Select
Done .
5. Select your destination street from
the list.
2 Calculating the Route P. 76
■Selecting the Post Code1
Selecting the Post Code
The order of the steps may change depending on the
map data loaded on your system.
16 PILOT NAVI-31TG78000.book 67 ページ ２０１５年４月２１日　火曜日　午前８時３０分

76
Navigation

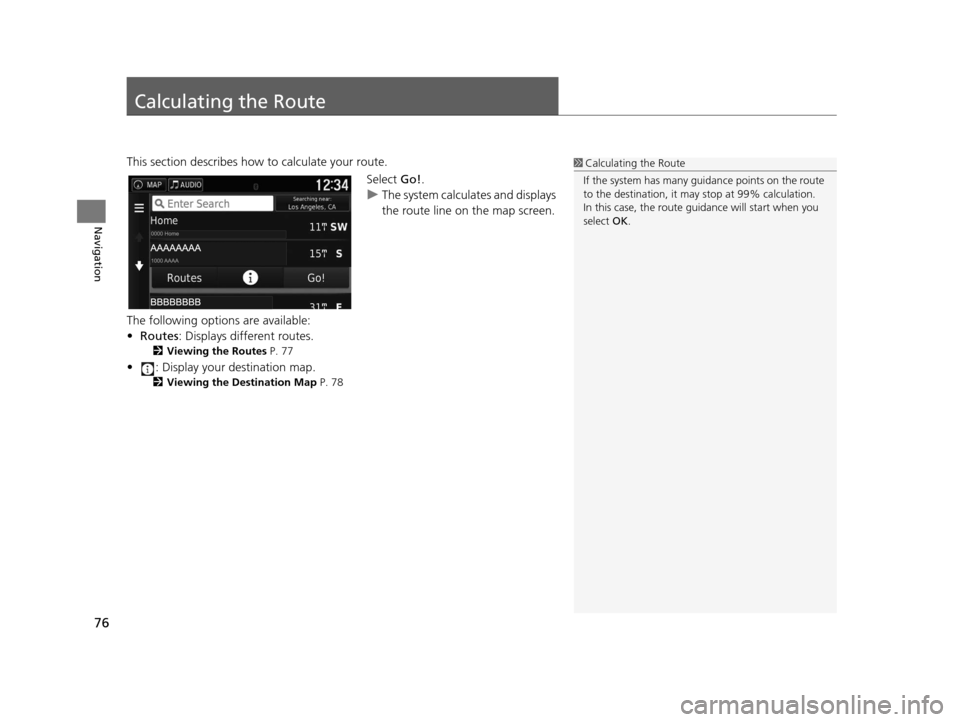

Calculating the Route
This section describes how to calculate your route.Select Go!.
u The system calculates and displays
the route line on the map screen.
The following options are available:
• Routes : Displays different routes.
2Viewing the Routes P. 77
• : Display your destination map.
2Viewing the Destination Map P. 78
1Calculating the Route
If the system has many guidance points on the route
to the destination, it may stop at 99% calculation.
In this case, the route guidance will start when you
select OK.
