HONDA PILOT 2018 Navigation Manual (in English)

109
Other Features

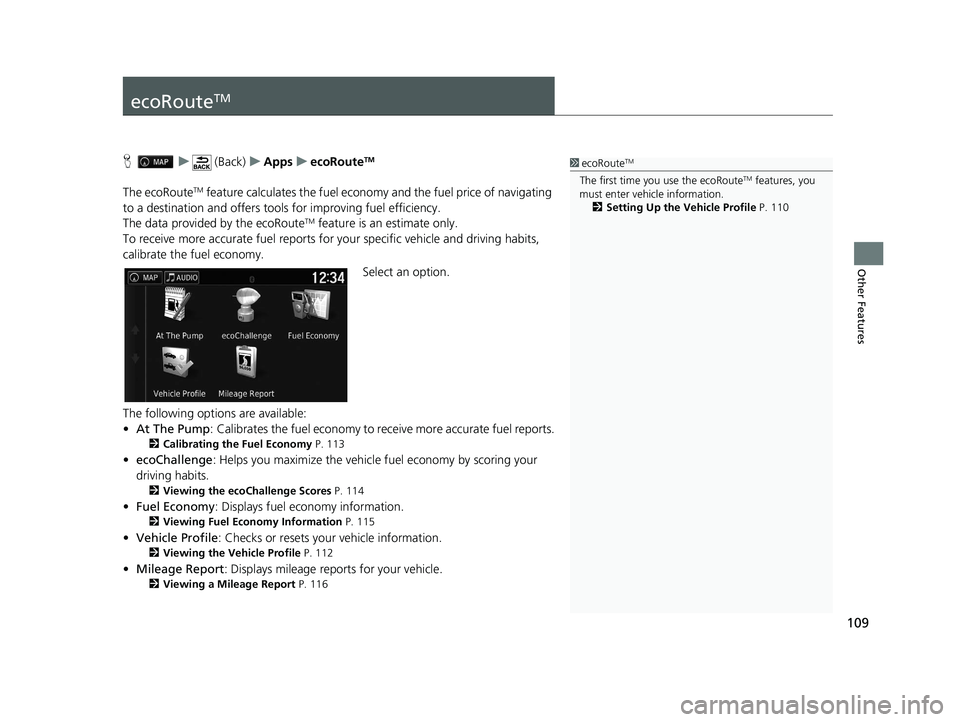

ecoRouteTM
Hu (Back) uApps uecoRouteTM
The ecoRouteTM feature calculates the fuel econom y and the fuel price of navigating
to a destination and of fers tools for improving fuel efficiency.
The data provided by the ecoRoute
TM feature is an estimate only.
To receive more accurate fuel reports for your specific vehicle and driving habits,
calibrate the fuel economy.
Select an option.
The following options are available:
• At The Pump : Calibrates the fuel economy to re ceive more accurate fuel reports.
2Calibrating the Fuel Economy P. 113
•ecoChallenge : Helps you maximize the vehicle fuel economy by scoring your
driving habits.
2 Viewing the ecoChallenge Scores P. 114
•Fuel Economy : Displays fuel economy information.
2Viewing Fuel Economy Information P. 115
•Vehicle Profile: Checks or resets your vehicle information.
2 Viewing the Vehicle Profile P. 112
•Mileage Report : Displays mileage repo rts for your vehicle.
2Viewing a Mileage Report P. 116
1ecoRouteTM
The first time you use the ecoRouteTM features, you
must enter vehicle information.
2 Setting Up the Vehicle Profile P. 110
18 PILOT NAVI-31TG78200.book 109 ページ ２０１７年１０月１７日　火曜日　午前１０時５８分

110
uuecoRouteTMuSetting Up the Vehicle Profile
Other Features
Setting Up the Vehicle Profile
H u (Back) uApps uecoRouteTM
The first time you use the ecoRouteTM features, you must enter vehicle information.
1.Select Yes.
2. Select a fuel type.
3. Select Next.
18 PILOT NAVI-31TG78200.book 110 ページ ２０１７年１０月１７日　火曜日　午前１０時５８分

111
uuecoRouteTMuSetting Up the Vehicle Profile
Other Features

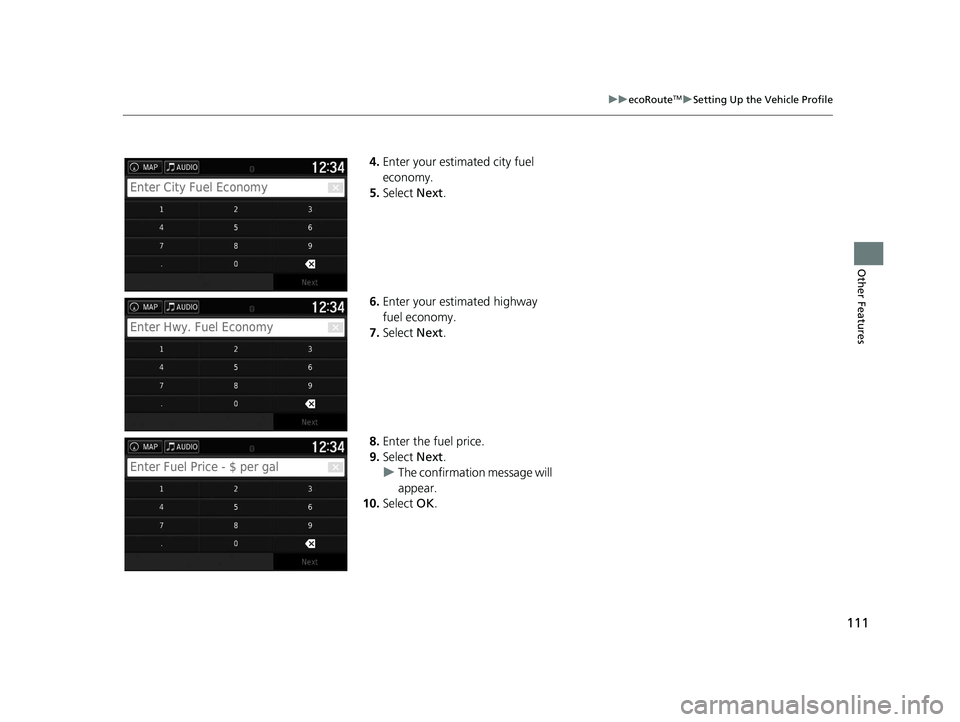

4. Enter your estimated city fuel
economy.
5. Select Next.
6. Enter your estimated highway
fuel economy.
7. Select Next.
8. Enter the fuel price.
9. Select Next.
u The confirmation message will
appear.
10. Select OK.
18 PILOT NAVI-31TG78200.book 111 ページ ２０１７年１０月１７日　火曜日　午前１０時５８分

112
uuecoRouteTMuViewing the Vehicle Profile
Other Features
Viewing the Vehicle Profile
H u (Back) uApps uecoRouteTM
Select Vehicle Profile .
u If you want to reset the Vehicle
Profile , select Reset.
18 PILOT NAVI-31TG78200.book 112 ページ ２０１７年１０月１７日　火曜日　午前１０時５８分

113
uuecoRouteTMuCalibrating the Fuel Economy
Other Features

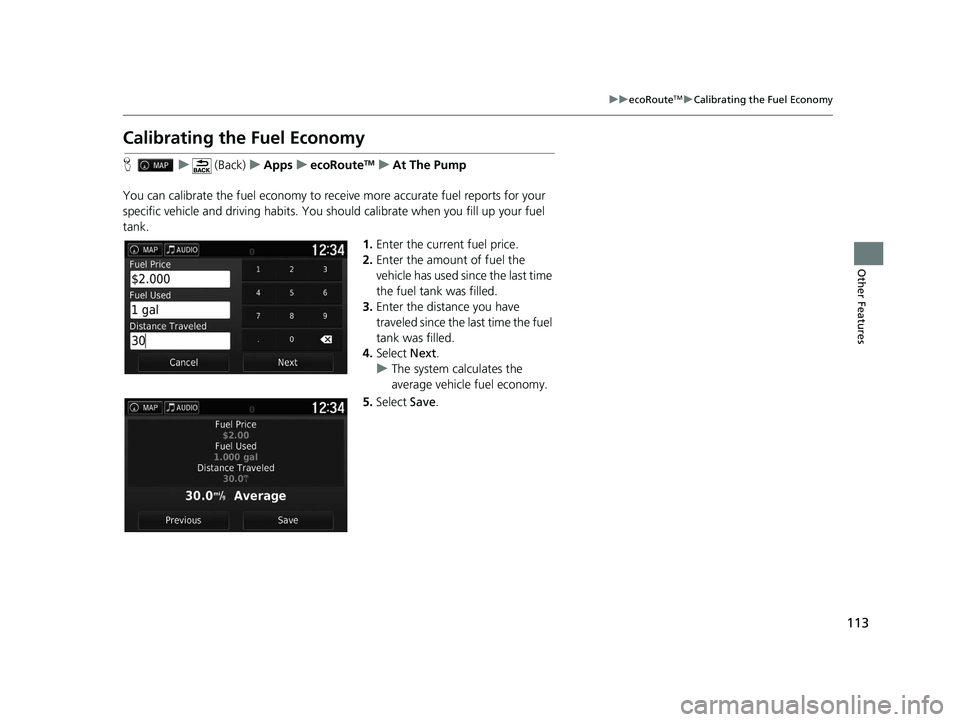

Calibrating the Fuel Economy
H u (Back) uApps uecoRouteTMuAt The Pump
You can calibrate the fuel economy to rece ive more accurate fuel reports for your
specific vehicle and driving habits. You should calibrate when you fill up your fuel
tank.
1.Enter the current fuel price.
2. Enter the amount of fuel the
vehicle has used si nce the last time
the fuel tank was filled.
3. Enter the distance you have
traveled since the last time the fuel
tank was filled.
4. Select Next.
u The system calculates the
average vehicle fuel economy.
5. Select Save.
18 PILOT NAVI-31TG78200.book 113 ページ ２０１７年１０月１７日　火曜日　午前１０時５８分

114
uuecoRouteTMuViewing the ecoChallenge Scores
Other Features

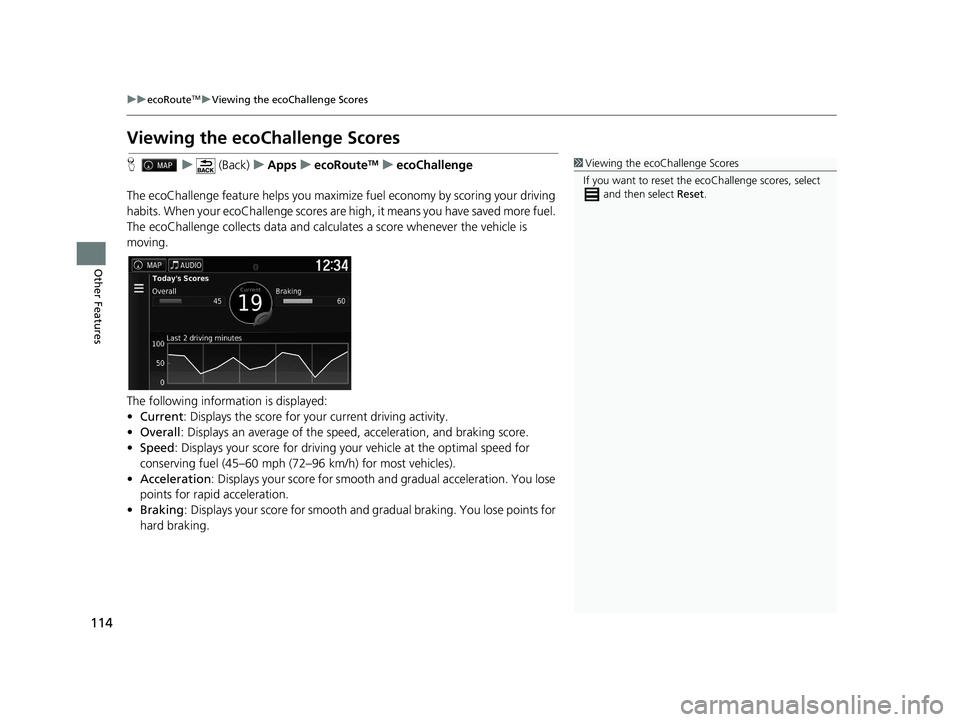

Viewing the ecoChallenge Scores
H u (Back) uApps uecoRouteTMuecoChallenge
The ecoChallenge feature help s you maximize fuel economy by scoring your driving
habits. When your ecoChallenge scores are high, it means you have saved more fuel.
The ecoChallenge collects da ta and calculates a score whenever the vehicle is
moving.
The following information is displayed:
• Current : Displays the score for your current driving activity.
• Overall : Displays an average of the speed, acceleration, and braking score.
• Speed : Displays your score for driving yo ur vehicle at the optimal speed for
conserving fuel (45–60 mph (72–96 km/h) for most vehicles).
• Acceleration : Displays your score for smooth and gradual acceleration. You lose
points for rapid acceleration.
• Braking : Displays your score for smooth and gradual braking. You lose points for
hard braking.1 Viewing the ecoChallenge Scores
If you want to reset the ec oChallenge scores, select
and then select Reset.
18 PILOT NAVI-31TG78200.book 114 ページ ２０１７年１０月１７日　火曜日　午前１０時５８分

115
uuecoRouteTMuViewing Fuel Economy Information
Other Features

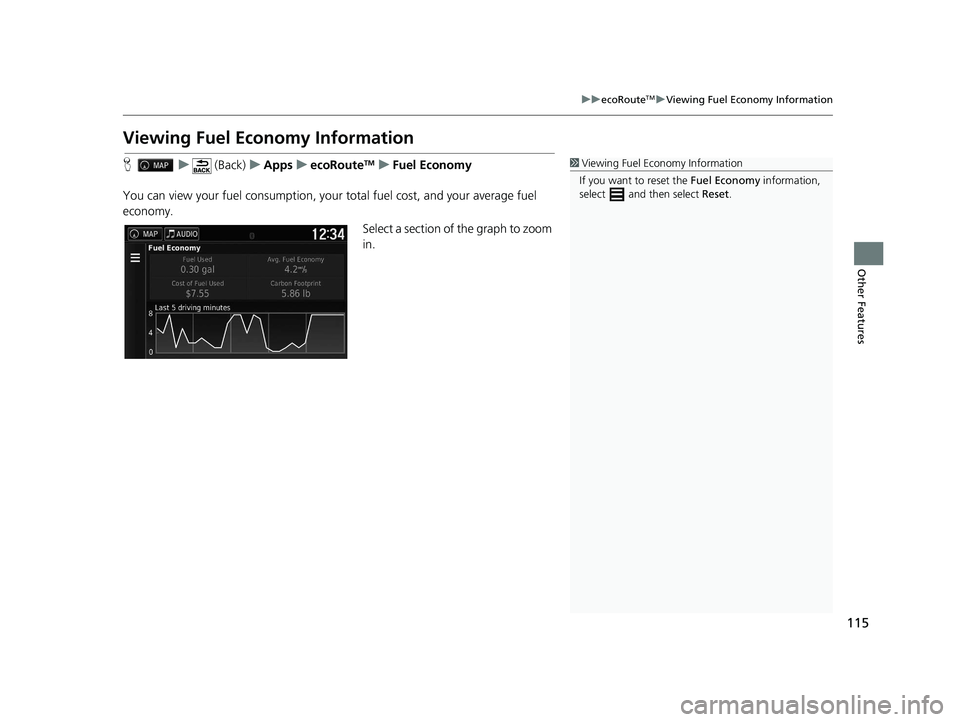

Viewing Fuel Economy Information
H u (Back) uApps uecoRouteTMuFuel Economy
You can view your fuel consumption, your total fuel cost, and your average fuel
economy. Select a section of the graph to zoom
in.1Viewing Fuel Economy Information
If you want to reset the Fuel Economy information,
select and then select Reset.
18 PILOT NAVI-31TG78200.book 115 ページ ２０１７年１０月１７日　火曜日　午前１０時５８分

116
uuecoRouteTMuViewing a Mileage Report
Other Features

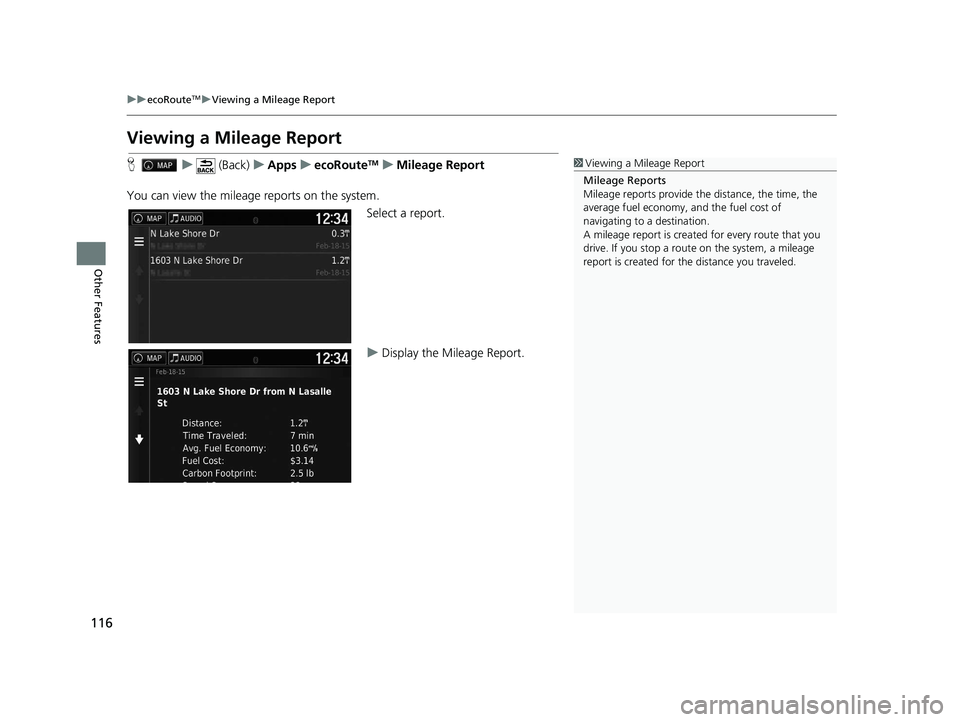

Viewing a Mileage Report
H u (Back) uApps uecoRouteTMuMileage Report
You can view the mileage reports on the system.
Select a report.
uDisplay the Mileage Report.1Viewing a Mileage Report
Mileage Reports
Mileage reports provide th e distance, the time, the
average fuel economy, and the fuel cost of
navigating to a destination.
A mileage report is created for every route that you
drive. If you stop a rout e on the system, a mileage
report is created for the distance you traveled.
18 PILOT NAVI-31TG78200.book 116 ページ ２０１７年１０月１７日　火曜日　午前１０時５８分

117Continued
Other Features

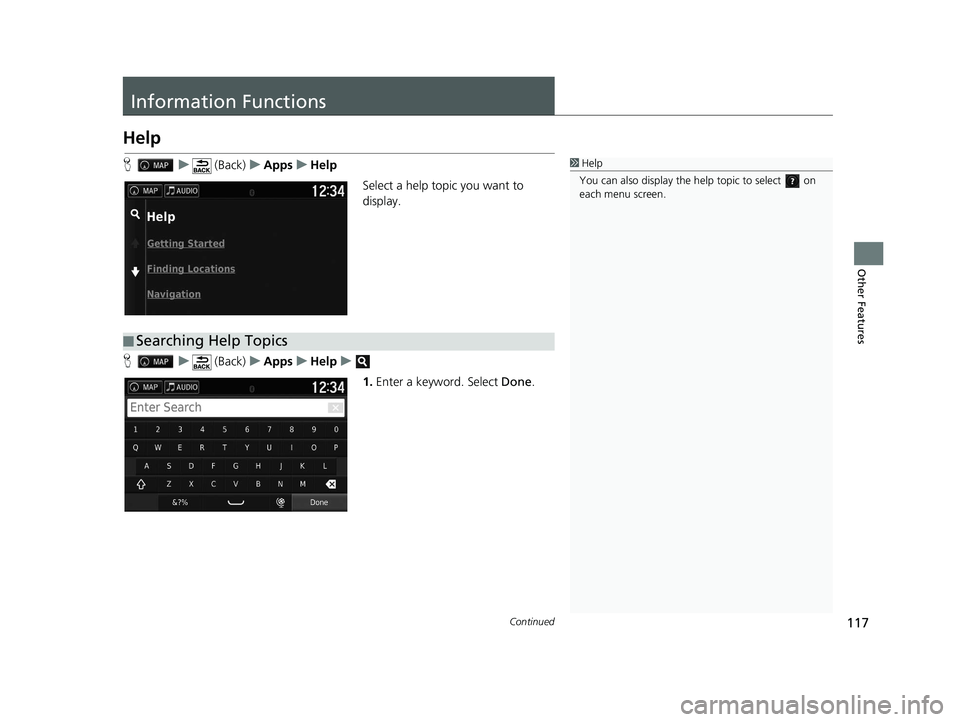

Information Functions
Help
Hu (Back) uApps uHelp
Select a help topic you want to
display.
H u (Back) uApps uHelp u
1.Enter a keyword. Select Done.1Help
You can also display the he lp topic to select on
each menu screen.
■ Searching Help Topics
18 PILOT NAVI-31TG78200.book 117 ページ ２０１７年１０月１７日　火曜日　午前１０時５８分

uuInformation Functions uWhere I've Been
118
Other Features
2. Select a help topic you want to
display.

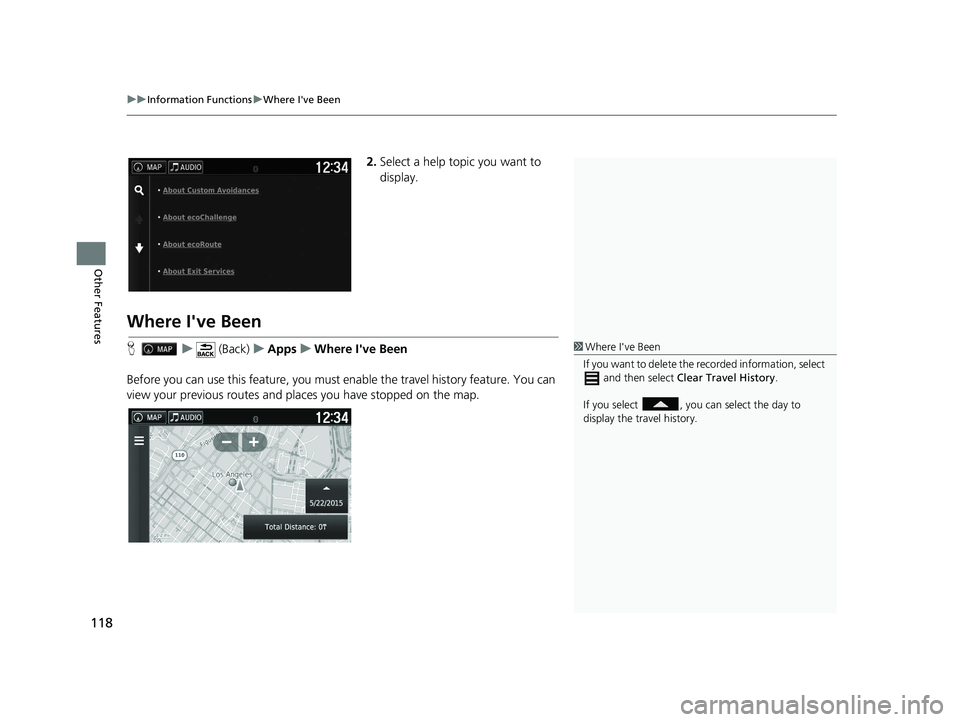

Where I've Been
H u (Back) uApps uWhere I've Been
Before you can use this feature, you must enable the travel history feature. You can
view your previous routes and places you have stopped on the map.1 Where I've Been
If you want to delete the re corded information, select
and then select Clear Travel History .
If you select , you ca n select the day to
display the travel history.
18 PILOT NAVI-31TG78200.book 118 ページ ２０１７年１０月１７日　火曜日　午前１０時５８分
