HONDA PILOT 2018 Navigation Manual (in English)

19
uuPersonal Information uSaved Locations
Continued
System Setup

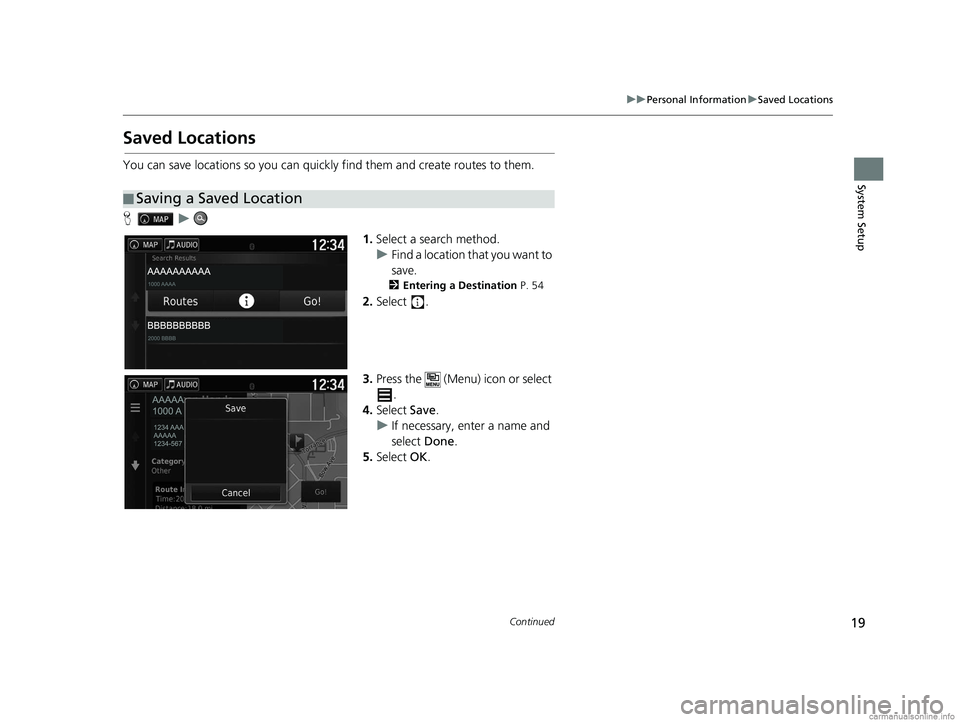

Saved Locations
You can save locations so you can quickly find them and create routes to them.
H u
1.Select a search method.
u Find a location that you want to
save.
2 Entering a Destination P. 54
2.Select .
3. Press the (Menu) icon or select
.
4. Select Save.
u If necessary, enter a name and
select Done.
5. Select OK.
■Saving a Saved Location
18 PILOT NAVI-31TG78200.book 19 ページ ２０１７年１０月１７日　火曜日　午前１０時５８分

20
uuPersonal Information uSaved Locations
System SetupH u (Back) uView Map
1.Select a destination from the map.
2 Map Input P. 73
2.Select the destination name at the
bottom of the map.
3. Press the (Menu) icon or select
.
4. Select Save.
u On some places other than POI,
you can edit the place name.
5. Select OK.

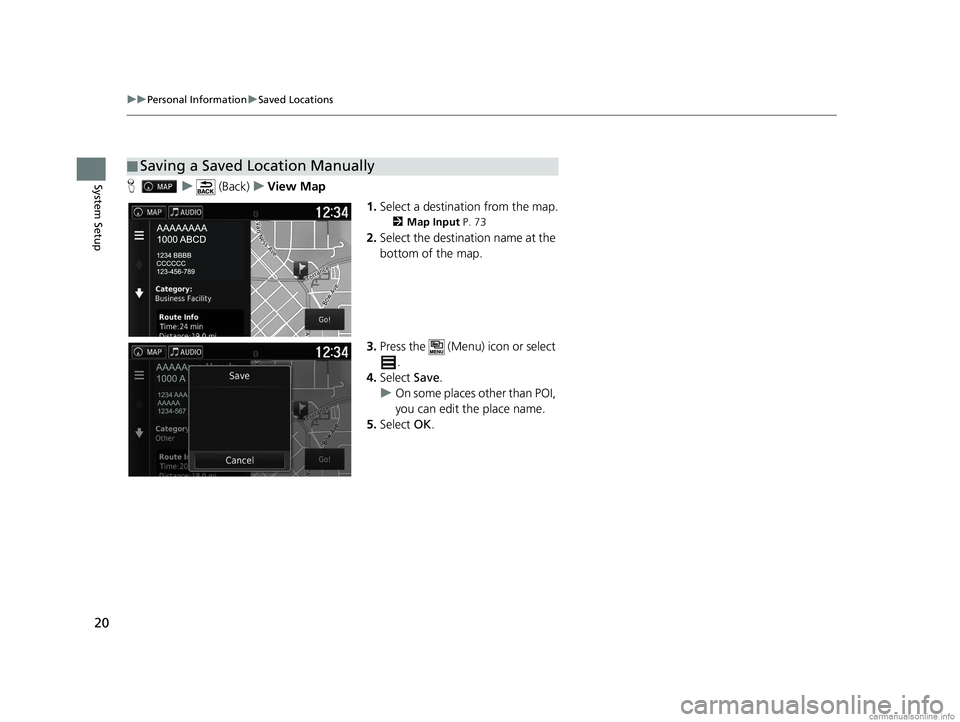

■Saving a Saved Location Manually
18 PILOT NAVI-31TG78200.book 20 ページ ２０１７年１０月１７日　火曜日　午前１０時５８分

Continued21
uuPersonal Information uSaved Locations
System SetupH u (Back) uView Map
1.Select the vehicle icon.
2. Select Save.
3. Enter a name of the location.
4. Select Done.
5. Select OK.

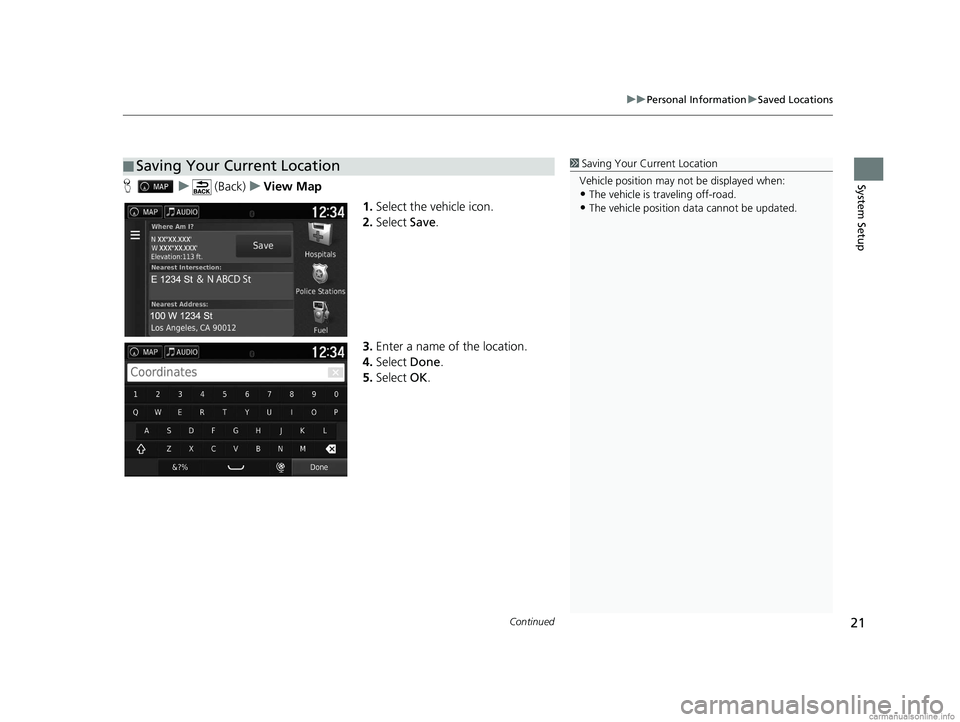

■Saving Your Current Location1
Saving Your Current Location
Vehicle position may not be displayed when:
•The vehicle is traveling off-road.
•The vehicle position da ta cannot be updated.
18 PILOT NAVI-31TG78200.book 21 ページ ２０１７年１０月１７日　火曜日　午前１０時５８分

22
uuPersonal Information uSaved Locations
System SetupH uuSaved
1.Select a saved location you want
to edit.
2. Select .
3. Press the (Menu) icon or select
.
4. Select Edit.

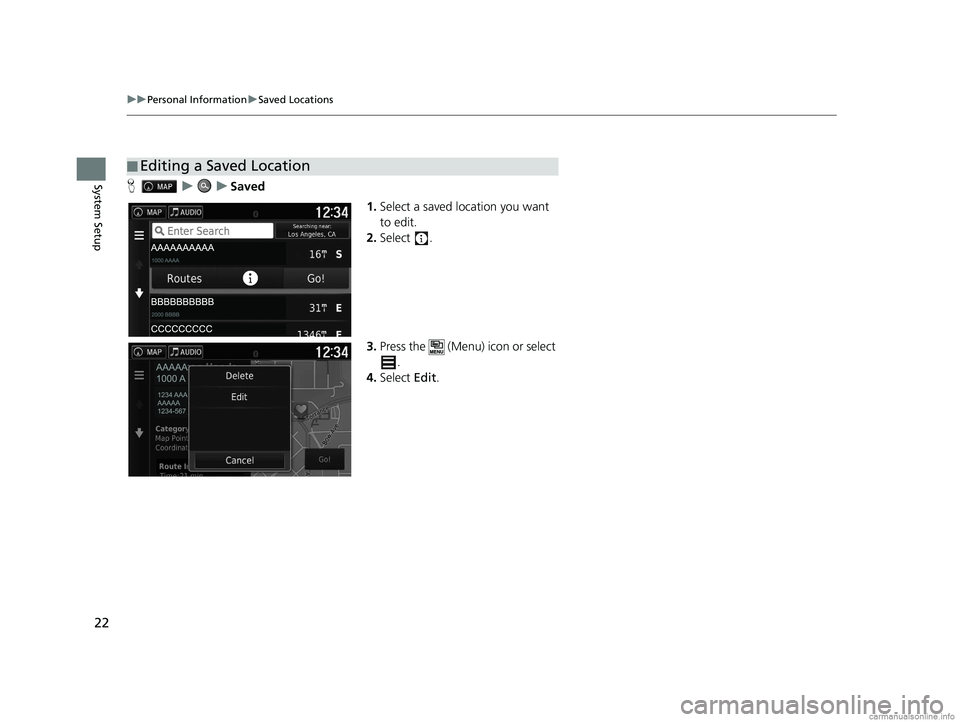

■Editing a Saved Location
18 PILOT NAVI-31TG78200.book 22 ページ ２０１７年１０月１７日　火曜日　午前１０時５８分

23
uuPersonal Information uSaved Locations
Continued
System Setup

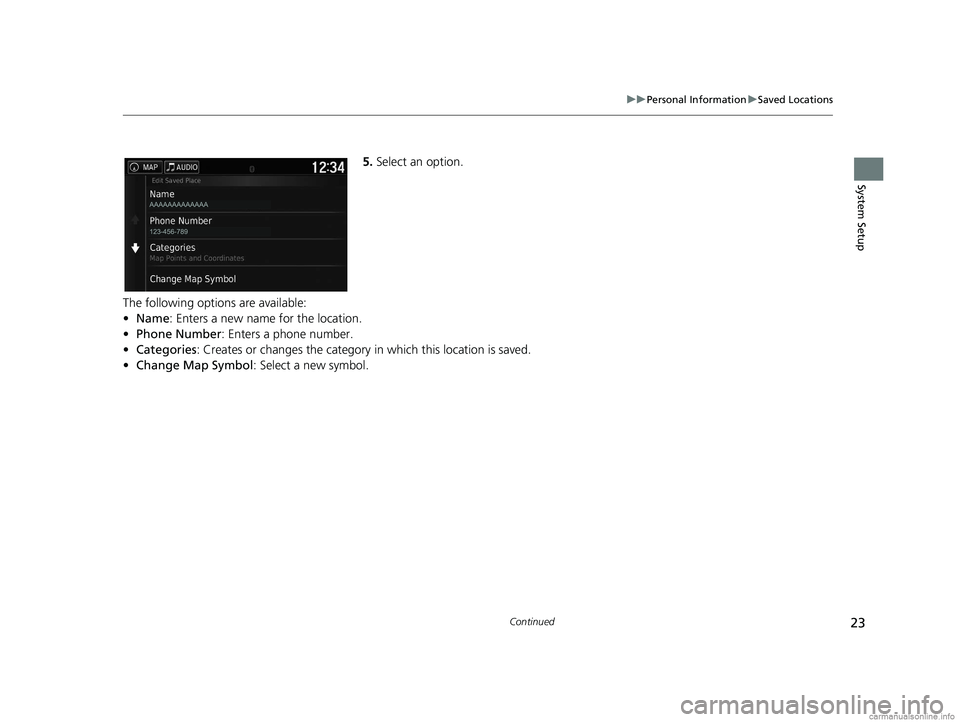

5. Select an option.
The following options are available:
• Name: Enters a new name for the location.
• Phone Number: Enters a phone number.
• Categories : Creates or changes the category in which this location is saved.
• Change Map Symbol : Select a new symbol.
18 PILOT NAVI-31TG78200.book 23 ページ ２０１７年１０月１７日　火曜日　午前１０時５８分

24
uuPersonal Information uSaved Locations
System SetupH uuSaved
1.Select a saved location you want
to delete.
2. Select .
3. Press the (Menu) icon or select
.
4. Select Delete.
5. Select Yes.

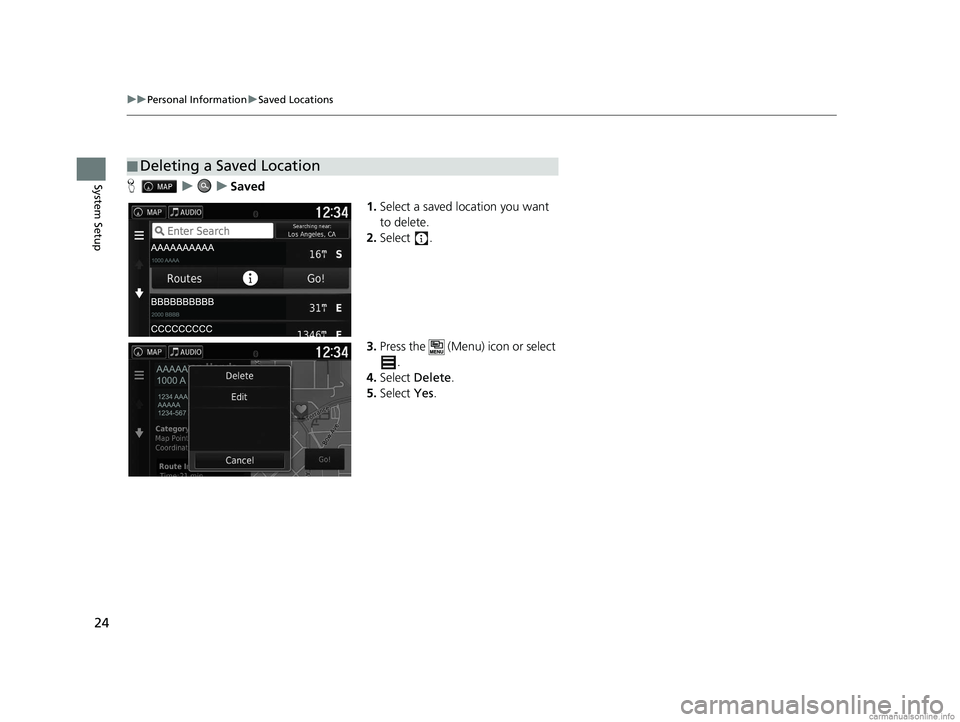

■Deleting a Saved Location
18 PILOT NAVI-31TG78200.book 24 ページ ２０１７年１０月１７日　火曜日　午前１０時５８分

25
uuPersonal Information uSaved Locations
System SetupH uuSaved
1.Press the (Menu) icon or select
.
2. Select Delete Saved Places .
3. Select a saved location you want
to delete.
u Select Select All to delete all
saved locations.
4. Select Delete .
5. Select Yes.

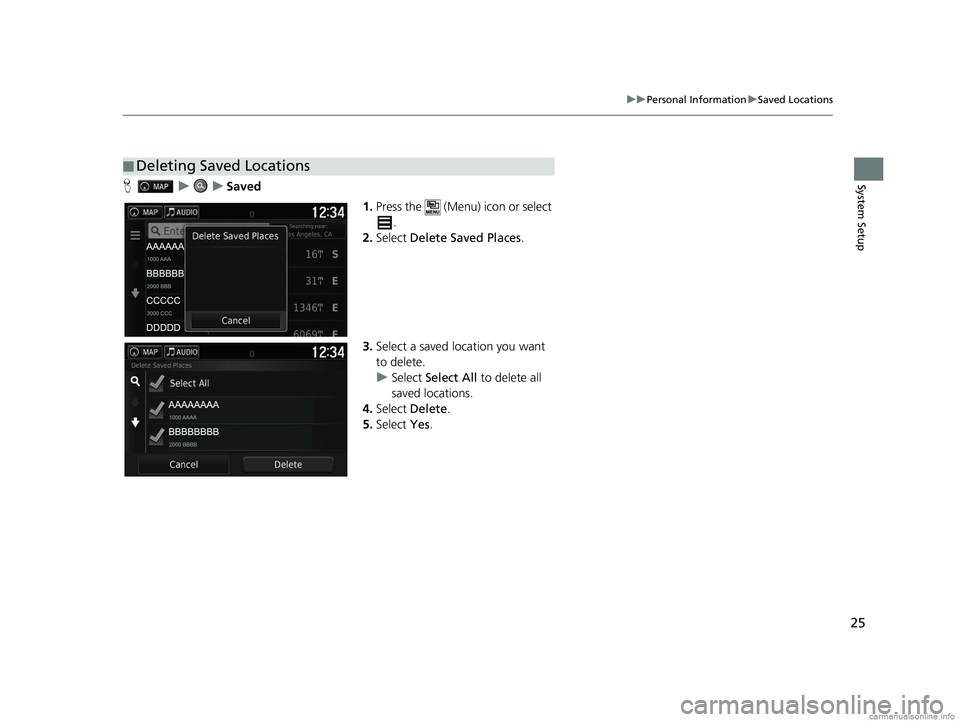

■Deleting Saved Locations
18 PILOT NAVI-31TG78200.book 25 ページ ２０１７年１０月１７日　火曜日　午前１０時５８分

26
System Setup

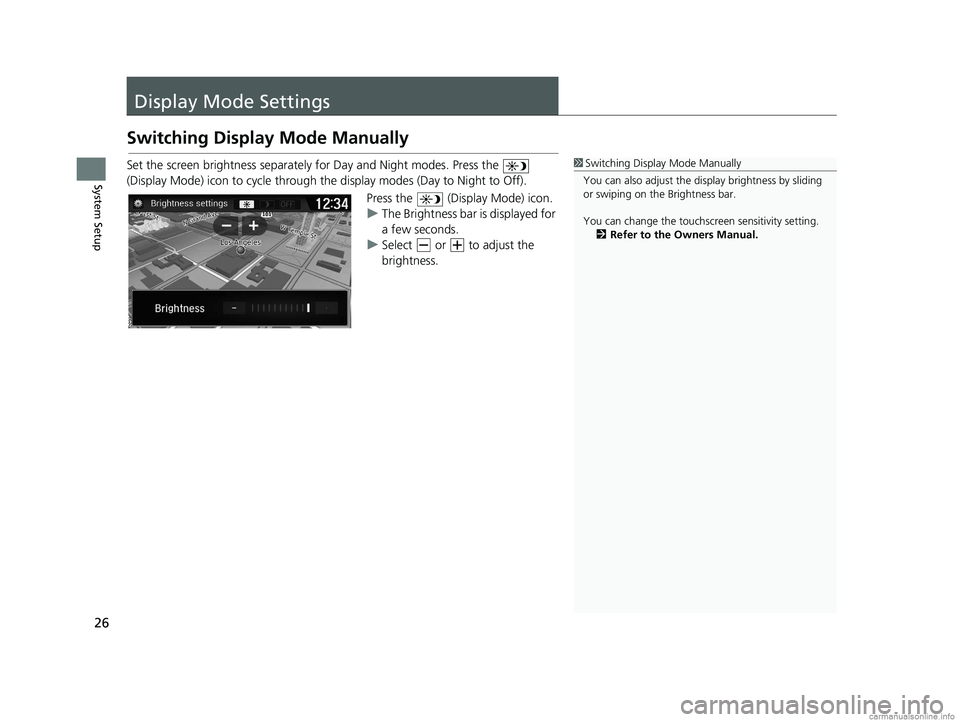

Display Mode Settings
Switching Display Mode Manually
Set the screen brightness separately for Day and Night modes. Press the
(Display Mode) icon to cycle through the display modes (Day to Night to Off).
Press the (Display Mode) icon.
uThe Brightness bar is displayed for
a few seconds.
u Select or to adjust the
brightness.1Switching Display Mode Manually
You can also adjust the display brightness by sliding
or swiping on the Brightness bar.
You can change the touchs creen sensitivity setting.
2 Refer to the Owners Manual.
18 PILOT NAVI-31TG78200.book 26 ページ ２０１７年１０月１７日　火曜日　午前１０時５８分

27

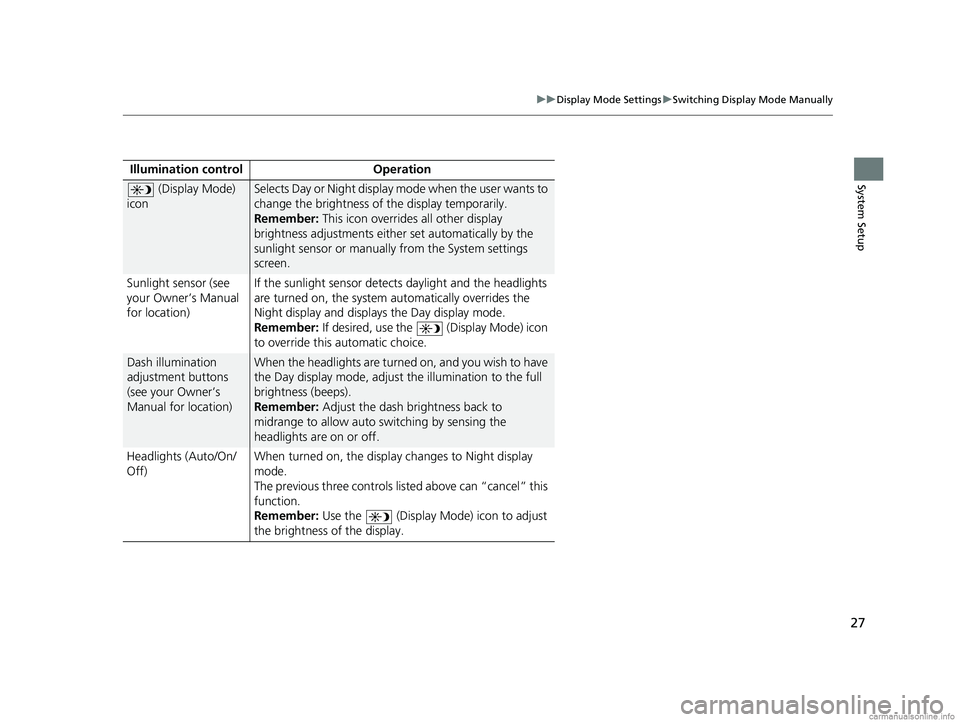

uuDisplay Mode Settings uSwitching Display Mode Manually
System SetupIllumination control Operation
(Display Mode)
iconSelects Day or Night display mode when the user wants to
change the brightness of the display temporarily.
Remember: This icon overrides all other display
brightness adjustments either set automatically by the
sunlight sensor or manually from the System settings
screen.
Sunlight sensor (see
your Owner’s Manual
for location) If the sunlight sensor detects daylight and the headlights
are turned on, the system
automatically overrides the
Night display and displays the Day display mode.
Remember: If desired, use the (Display Mode) icon
to override this automatic choice.
Dash illumination
adjustment buttons
(see your Owner’s
Manual for location)When the headlights are turned on, and you wish to have
the Day display mode, adjust the illumination to the full
brightness (beeps).
Remember: Adjust the dash brightness back to
midrange to allow auto switching by sensing the
headlights are on or off.
Headlights (Auto/On/
Off) When turned on, the displa
y changes to Night display
mode.
The previous three controls lis ted above can “cancel” this
function.
Remember: Use the (Display Mode) icon to adjust
the brightness of the display.
18 PILOT NAVI-31TG78200.book 27 ページ ２０１７年１０月１７日　火曜日　午前１０時５８分

28
System Setup

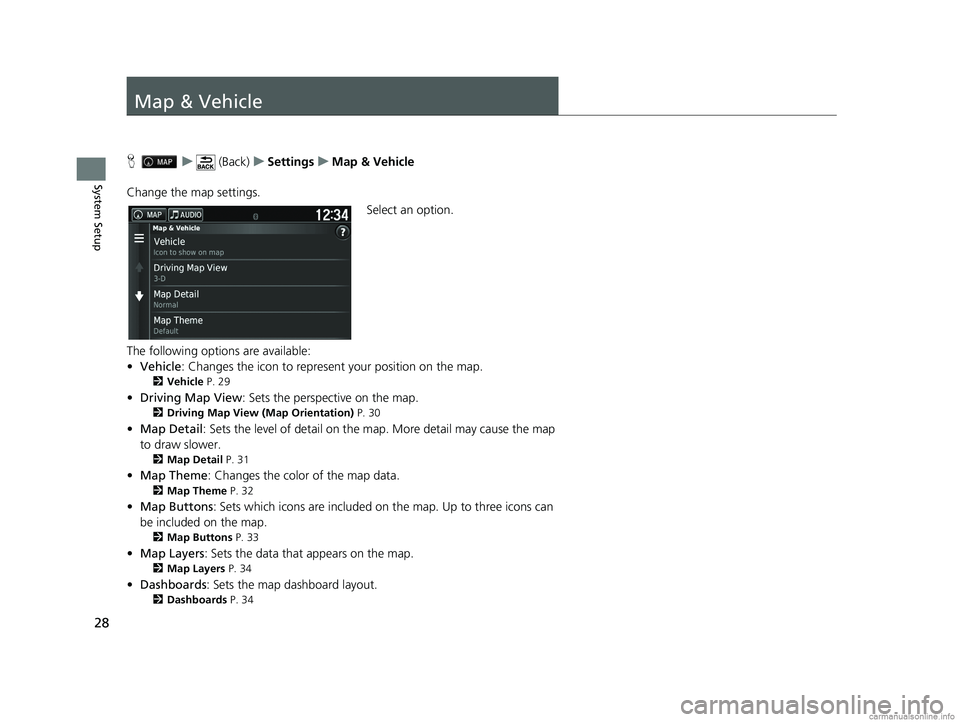

Map & Vehicle
Hu (Back) uSettings uMap & Vehicle
Change the map settings. Select an option.
The following options are available:
• Vehicle : Changes the icon to represent your position on the map.
2Vehicle P. 29
•Driving Map View: Sets the perspective on the map.
2 Driving Map View (Map Orientation) P. 30
•Map Detail : Sets the level of detail on the map. More detail may cause the map
to draw slower.
2 Map Detail P. 31
•Map Theme : Changes the color of the map data.
2Map Theme P. 32
•Map Buttons : Sets which icons are included on the map. Up to three icons can
be included on the map.
2 Map Buttons P. 33
•Map Layers : Sets the data that appears on the map.
2Map Layers P. 34
•Dashboards : Sets the map dashboard layout.
2Dashboards P. 34
18 PILOT NAVI-31TG78200.book 28 ページ ２０１７年１０月１７日　火曜日　午前１０時５８分
