HONDA PILOT 2018 (in English) Owner's Guide

19
Quick Reference Guide
/AUDIO (Power/
Audio) Icon
(Home) Icon
VOL (Volume)
Icons
(Menu) Icon
(Back) Icon
(Day/Night) Icon
Audio/Information Screen
Multi-Information Display
APPS Icon
For navigation system operation () See the Navigation System Manual
Models with Display Audio
(Eject) Button
Disc Slot
18 PILOT-31TG76200.book 19 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

20
Quick Reference Guide

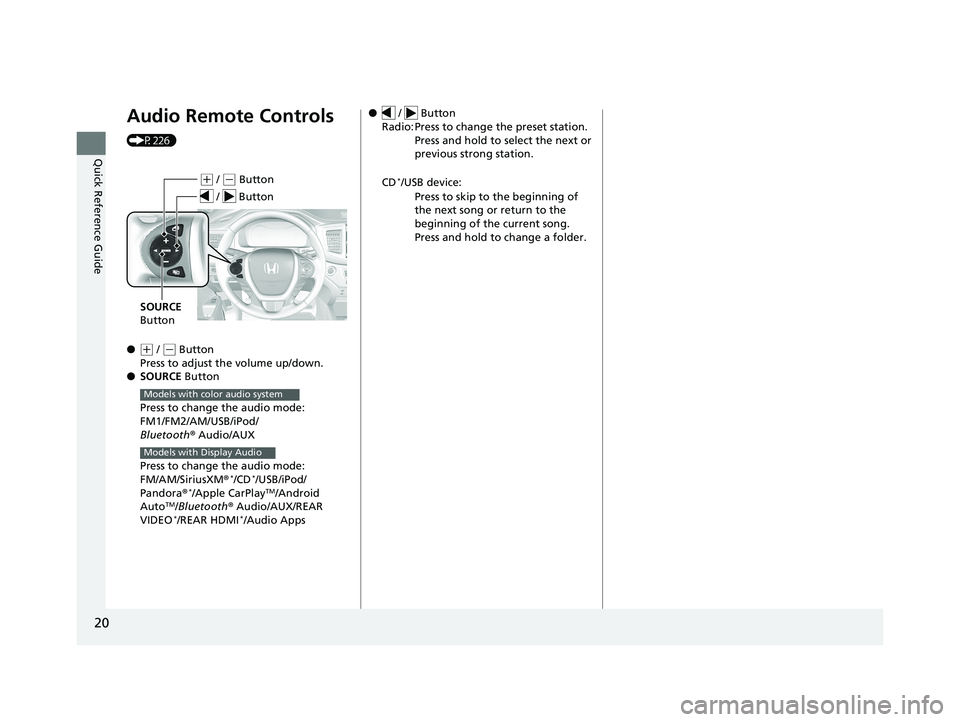

Audio Remote Controls
(P226)
●
(+ / ( - Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode:
FM1/FM2/AM/USB/iPod/
Bluetooth ® Audio/AUX
Press to change the audio mode:
FM/AM/SiriusXM ®
*/CD*/USB/iPod/
Pandora®*/Apple CarPlayTM/Android
AutoTM/Bluetooth ® Audio/AUX/REAR
VIDEO*/REAR HDMI*/Audio Apps
( + / (- Button
SOURCE
Button
/ Button
Models with color audio system
Models with Display Audio
● / Button
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
CD
*/USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
18 PILOT-31TG76200.book 20 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

21
Quick Reference Guide

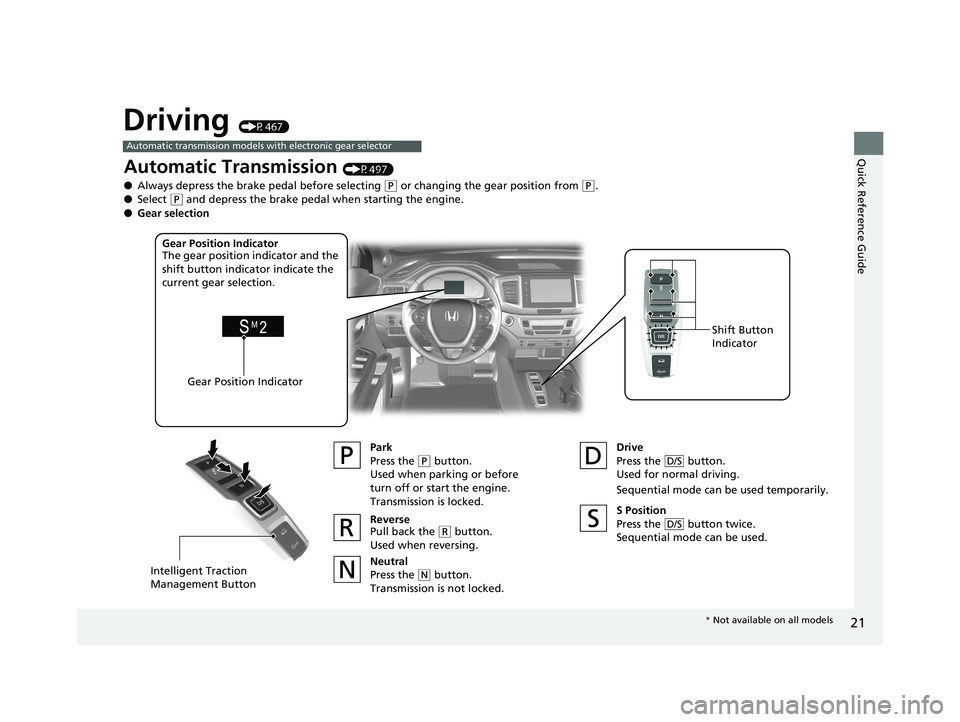

Driving (P467)
Automatic transmission models with electronic gear selector
Automatic Transmission (P497)
● Always depress the brake pedal before selecting
(P or changing the gear position from (P.
● Select (P and depress the brake pedal when starting the engine.
Park
Press the
(P button.
Used when parking or before
turn off or start the engine.
Transmission is locked.
Reverse
Pull back the
( R button.
Used when reversing.
Neutral
Press the
( N button.
Transmission is not locked. Drive
Press the button.
Used for normal driving.
Sequential mode can be used temporarily.
D/S
Gear Position Indicator
The gear position indicator and the
shift button indicator indicate the
current gear selection.
Gear Position Indicator Shift Button
Indicator
●
Gear selection
S Position
Press the button twice.
Sequential mode can be used.
D/S
Intelligent Traction
Management Button
* Not available on all models
18 PILOT-31TG76200.book 21 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

22
Quick Reference Guide

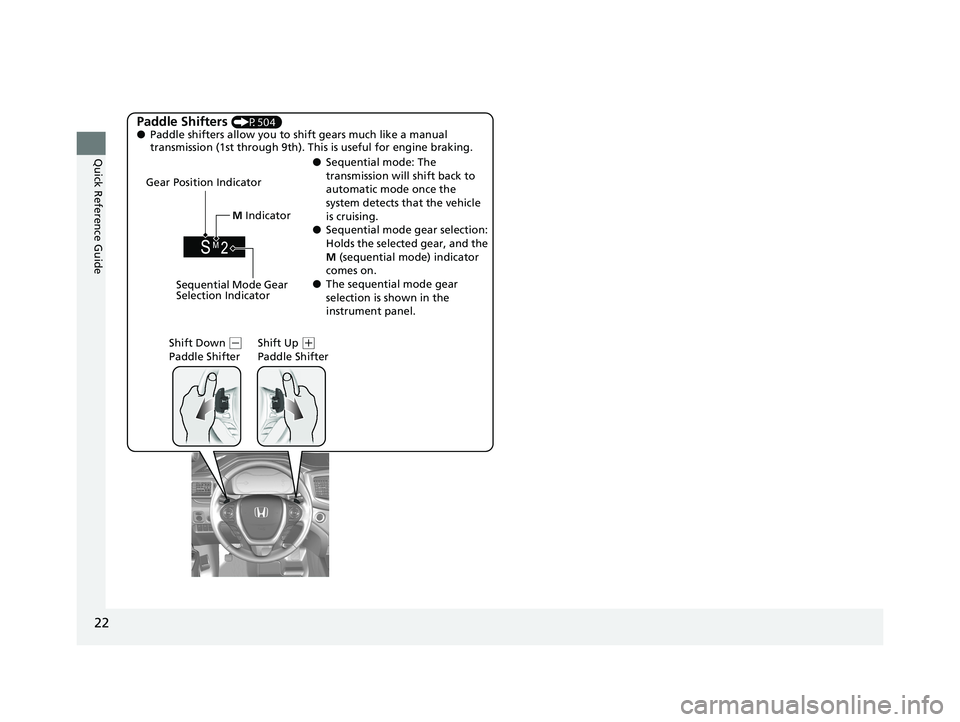

Paddle Shifters (P504)
● Paddle shifters allow you to shift gears much like a manual
transmission (1st through 9th). This is useful for engine braking.
● Sequential mode: The
transmission will shift back to
automatic mode once the
system detects that the vehicle
is cruising.
● Sequential mode gear selection:
Holds the selected gear, and the
M (sequential mode) indicator
comes on.
● The sequential mode gear
selection is shown in the
instrument panel.
Gear Position Indicator
Shift Down
(-
Paddle Shifter Shift Up (
+
Paddle Shifter
Sequential Mode Gear
Selection Indicator M
Indicator
18 PILOT-31TG76200.book 22 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

23
Quick Reference Guide
Automatic transmission models with shift lever
Release Button
Depress the brake pedal and press the
release button to move out of
( P.
Move the shift leve r without pressing
the release button. Press the release button to move the
shift lever.
Automatic Transmission (P495)
● Shift to
(P and depress the brake pedal when starting the engine.
● Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
Shift Lever
Intelligent Traction
Management ButtonLow●Used to further increase engine braking.●Used when going up or down hills.
Drive (D4)
Press the button while the shift lever is in
( D.
Used when:
●Going up or down hills.
D4
ButtonD4
18 PILOT-31TG76200.book 23 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

24
Quick Reference Guide
VSA® On and Off (P544)
● The Vehicle Stability Assist ® (VSA ®) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To partially disable VSA® functionality/
features, press and hold it until you hear
a beep.
Cruise Control* (P513)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press the –/SET button once
you have achieved the desired speed
(above 25 mph or 40 km/h).
CMBSTM On and
Off
*(P562)
● When a possible collision is likely
unavoidable, the CMBS
TM can help you to
reduce the vehicle sp eed and the severity
of the collision.
● To turn the CMBS
TM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring System (TPMS) with Tire
Fill Assist
(P551, 657)
● The TPMS monitors tire pressure.
● TPMS is turned on automatically every time you start the engine.
● TPMS fill assist provides audible and visual guidance during tire pressure adjustment.
Refueling (P579)
aPress the fuel fill door
release button.
bAfter refueling, wait for
about five seconds
before removing the
filler nozzle.
Fuel recommendation: Unleaded gaso line, pump octane number 87 or
higher
Fuel tank capacity: 19.5 US gal (73.8 ℓ)
18 PILOT-31TG76200.book 24 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

25
Quick Reference Guide

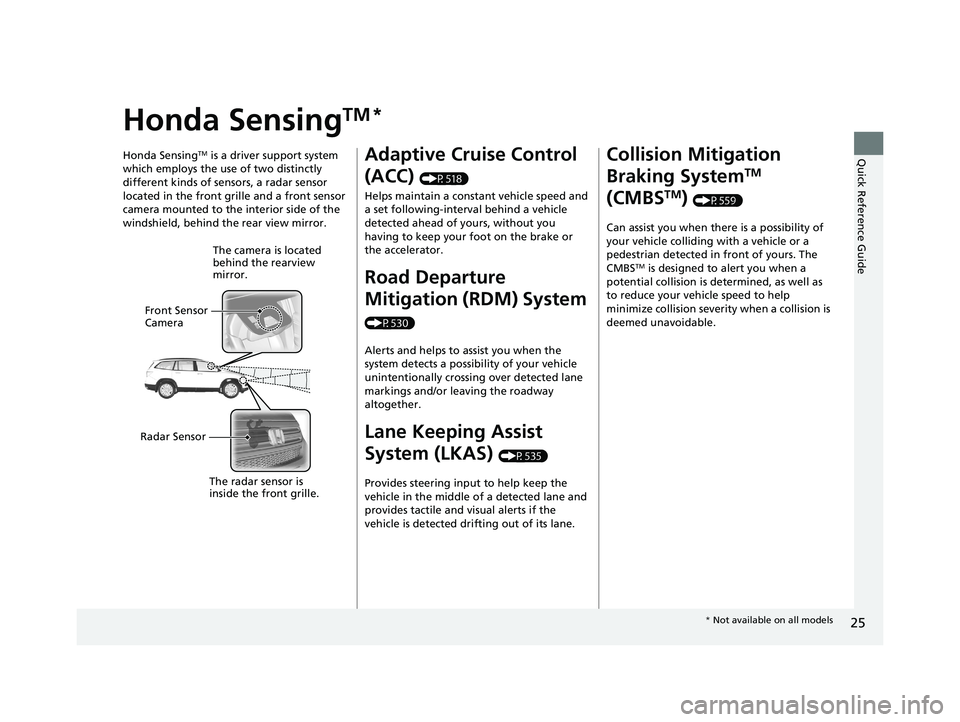

Honda SensingTM *
Honda SensingTM is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located in the front grille and a front sensor
camera mounted to the interior side of the
windshield, behind the rear view mirror.
The camera is located
behind the rearview
mirror.
Front Sensor
Camera
Radar Sensor The radar sensor is
inside the front grille.
Adaptive Cruise Control
(ACC)
(P518)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours, without you
having to keep your foot on the brake or
the accelerator.
Road Departure
Mitigation (RDM) System
(P530)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.
Lane Keeping Assist
System (LKAS)
(P535)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Collision Mitigation
Braking System
TM
(CMBS
TM) (P559)
Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBS
TM is designed to alert you when a
potential collision is determined, as well as
to reduce your vehi cle speed to help
minimize collision severity when a collision is
deemed unavoidable.
* Not available on all models
18 PILOT-31TG76200.book 25 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

26
Quick Reference Guide
Maintenance (P583)
Under the Hood (P591)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull it up, and then raise the
hood. Once you have raised the food slightly, you can
release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P603)
● Inspect all lights regularly.
Wiper Blades (P609)
● Replace blades if they leave streaks
across the windshield.
Tires (P613)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
18 PILOT-31TG76200.book 26 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

Quick Reference Guide
27

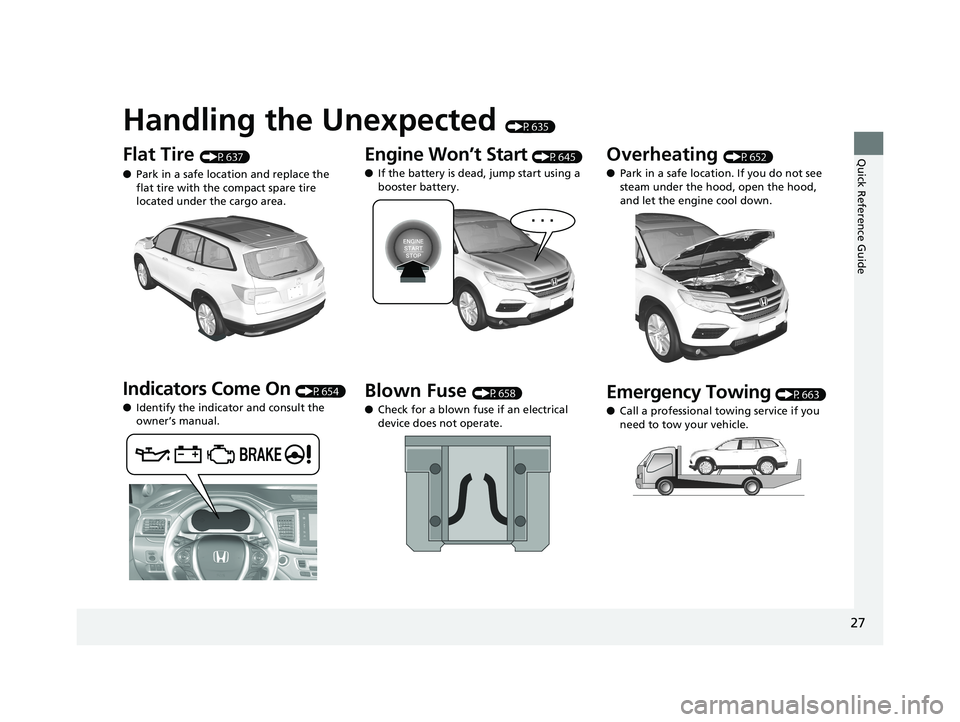

Handling the Unexpected (P635)
Flat Tire (P637)
● Park in a safe location and replace the
flat tire with the compact spare tire
located under the cargo area.
Indicators Come On (P654)
● Identify the indica tor and consult the
owner’s manual.
Engine Won’t Start (P645)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P658)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P652)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P663)
● Call a professional towing service if you
need to tow your vehicle.
18 PILOT-31TG76200.book 27 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

28
Quick Reference Guide

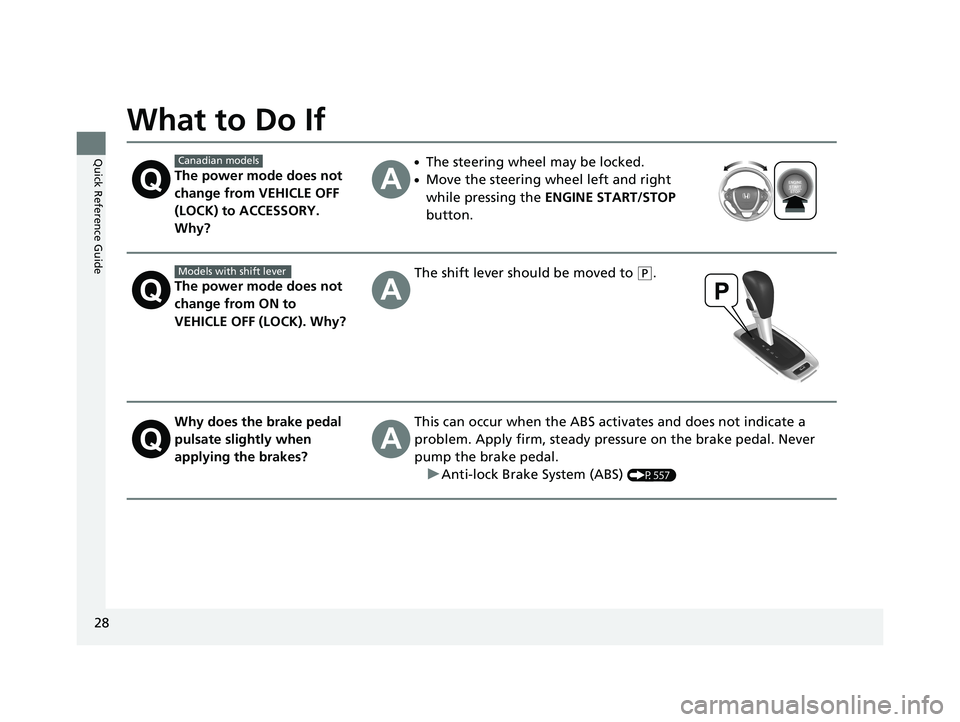

What to Do If
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
●The steering wheel may be locked.
●Move the steering wheel left and right
while pressing the ENGINE START/STOP
button.
The power mode does not
change from ON to
VEHICLE OFF (LOCK). Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
u Anti-lock Brake System (ABS)
(P557)
Canadian models
Models with shift lever
18 PILOT-31TG76200.book 28 ページ ２０１８年３月３０日　金曜日　午前１１時５１分
