HONDA PILOT 2019 (in English) Owner's Guide

19
Quick Reference Guide

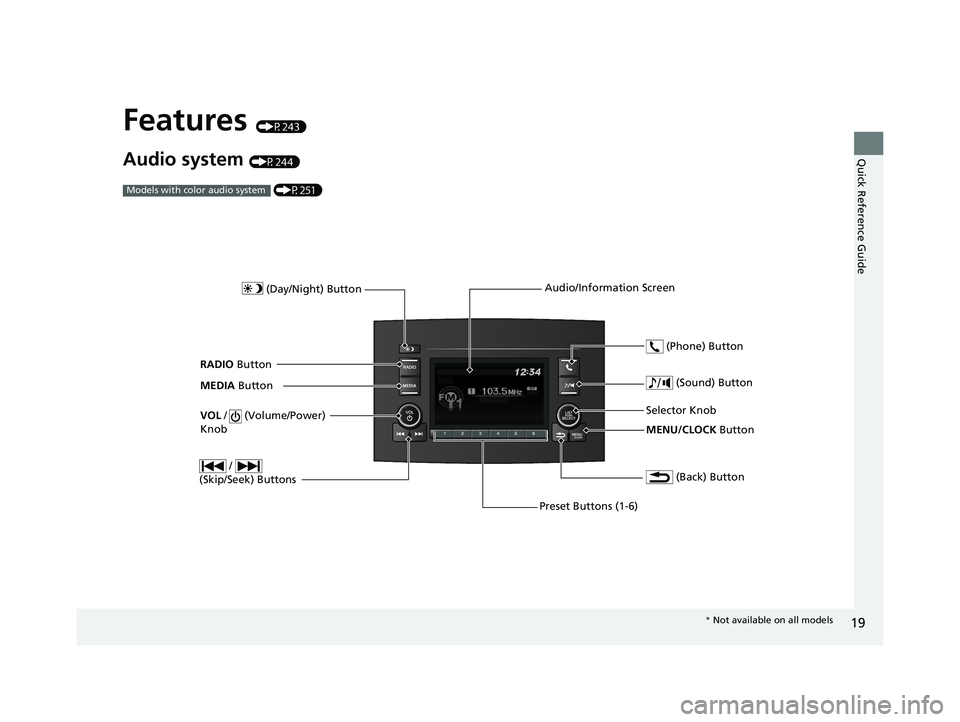

Features (P243)
Audio system (P244) (P251)
Models with color audio system
MENU/CLOCK Button
Selector Knob
(Day/Night) Button
(Back) Button
(Sound) Button
VOL
/ (Volume/Power)
Knob
Preset Buttons (1-6) (Phone) Button
RADIO
Button
/
(Skip/Seek) Buttons
MEDIA Button Audio/Information Screen
*
Not available on all models
19 PILOT HMA ELP-31TG76310.book 19 ページ ２０１９年３月１５日　金曜日　午後６時８分

20
Quick Reference Guide
VOL/ AUDIO (Volume/Power) Knob
(Home) Icon
(Back) Icon
(Day/Night) Icon
Audio/Information Screen
(P 269)
For navigation system operation () See the Navigation System ManualModels with Display Audio
(Eject) Button
Disc Slot
Models with Blu-rayTM player
19 PILOT HMA ELP-31TG76310.book 20 ページ ２０１９年３月１５日　金曜日　午後６時８分

21
Quick Reference Guide

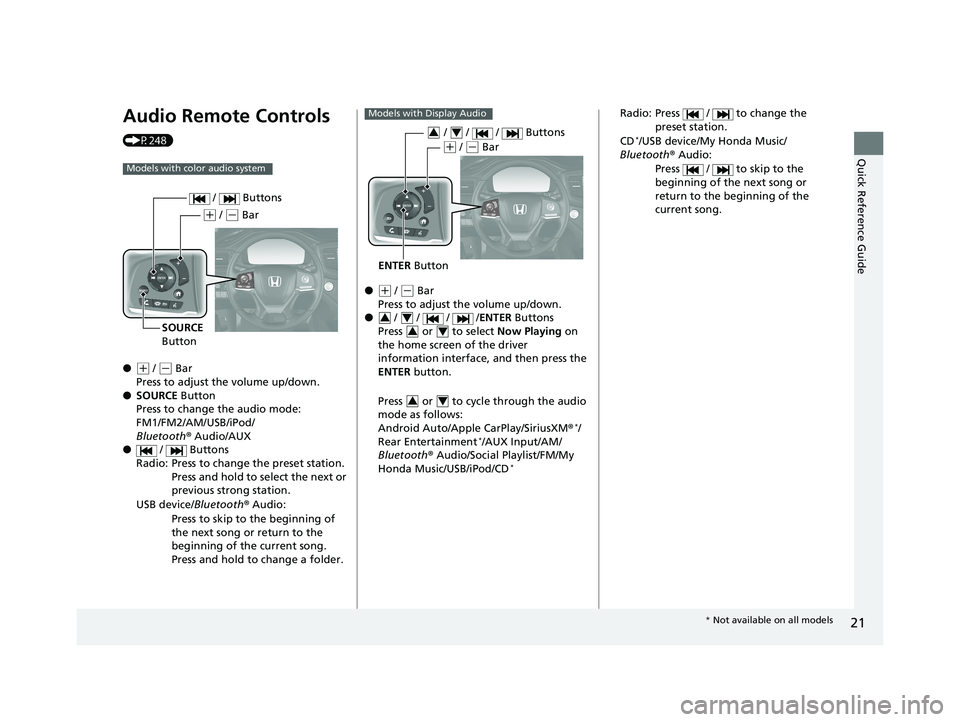

Audio Remote Controls
(P248)
●
(+ / (- Bar
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode:
FM1/FM2/AM/USB/iPod/
Bluetooth ® Audio/AUX
● / Buttons
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
USB device/ Bluetooth® Audio:
Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Models with color audio system
( + / (- Bar
SOURCE
Button / Buttons
●(
+ / (- Bar
Press to adjust the volume up/down.
● / / / /ENTER Buttons
Press or to select Now Playing on
the home screen of the driver
information interface, and then press the
ENTER button.
Press or to cycle through the audio
mode as follows:
Android Auto/Apple CarPlay/SiriusXM ®
*/
Rear Entertainment*/AUX Input/AM/
Bluetooth ® Audio/Social Playlist/FM/My
Honda Music/USB/iPod/CD
*
Models with Display Audio
ENTER Button
/ / / Buttons34
(+ / (- Bar
34
34
34
Radio: Press / to change the
preset station.
CD
*/USB device/My Honda Music/
Bluetooth ® Audio:
Press / to skip to the
beginning of the next song or
return to the beginning of the
current song.
* Not available on all models
19 PILOT HMA ELP-31TG76310.book 21 ページ ２０１９年３月１５日　金曜日　午後６時８分

22
Quick Reference Guide

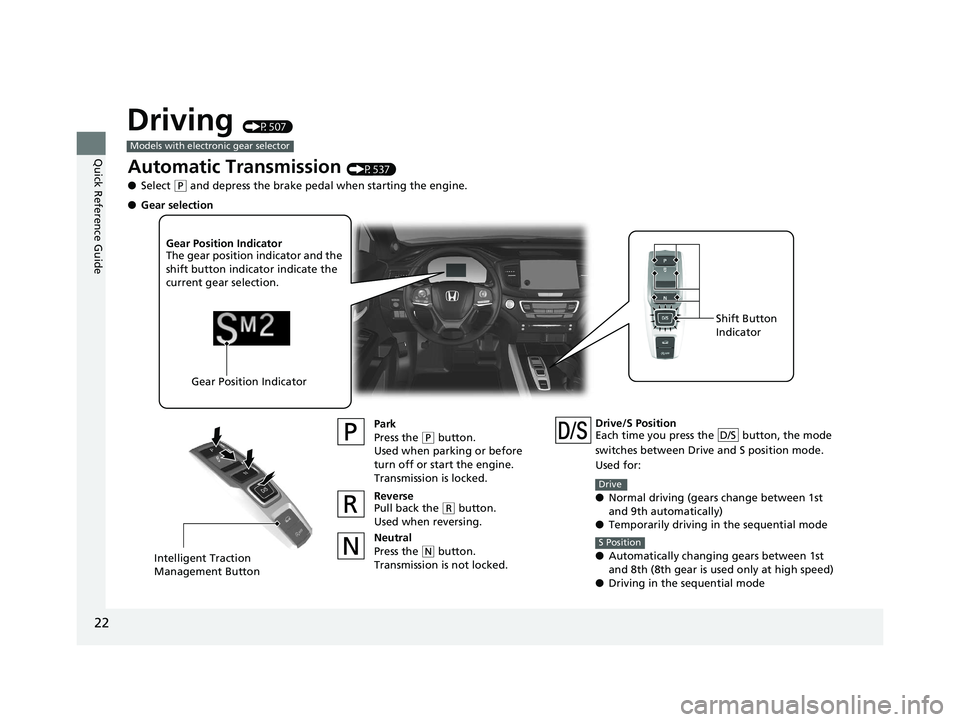

Driving (P507)
Models with electronic gear selector
Automatic Transmission (P537)
● Select
(P and depress the brake pedal when starting the engine.
Park
Press the
(P button.
Used when parking or before
turn off or start the engine.
Transmission is locked.
Reverse
Pull back the
( R button.
Used when reversing.
Neutral
Press the
( N button.
Transmission is not locked.
Gear Position Indicator
The gear position indicator and the
shift button indicator indicate the
current gear selection.
Gear Position Indicator Shift Button
Indicator
●
Gear selection
Intelligent Traction
Management Button
Drive/S Position
Each time you press the button, the mode
switches between Drive and S position mode.
Used for:
●Normal driving (gears change between 1st
and 9th automatically)
● Temporarily driving in the sequential mode
● Automatically changing gears between 1st
and 8th (8th gear is used only at high speed)
● Driving in the sequential modeD/S
Drive
S Position
19 PILOT HMA ELP-31TG76310.book 22 ページ ２０１９年３月１５日　金曜日　午後６時８分

23
Quick Reference Guide

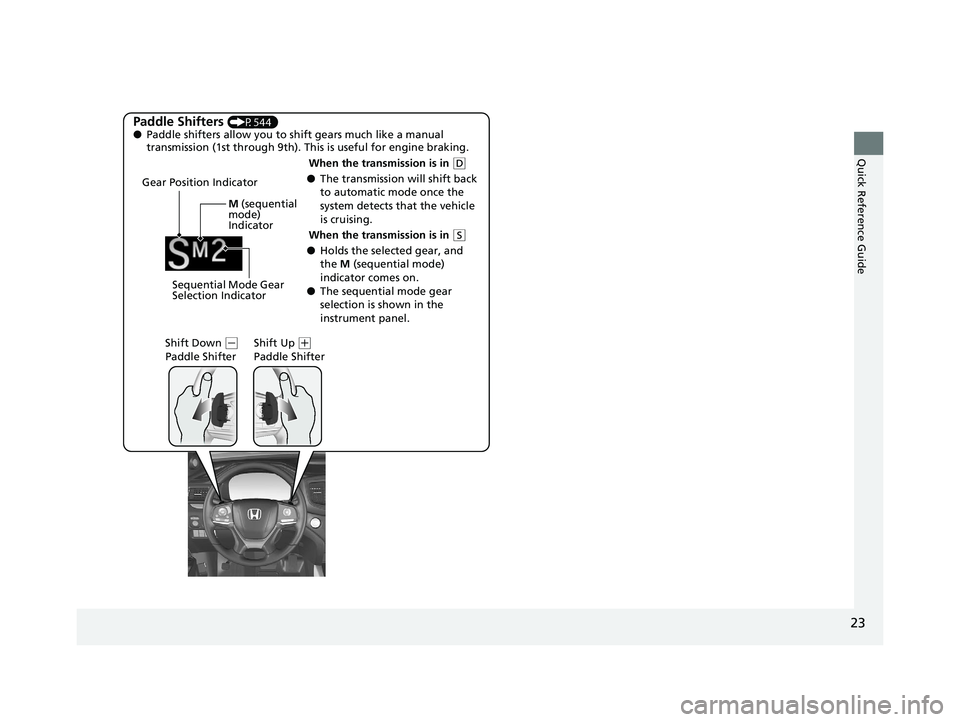

Paddle Shifters (P544)
● Paddle shifters allow you to shift gears much like a manual
transmission (1st through 9th). This is useful for engine braking.
● The transmission will shift back
to automatic mode once the
system detects that the vehicle
is cruising.
Gear Position Indicator
Shift Down
(-
Paddle Shifter Shift Up (
+
Paddle Shifter
Sequential Mode Gear
Selection Indicator M
(sequential
mode)
Indicator
When the transmission is in ( D
● Holds the selected gear, and
the M (sequential mode)
indicator comes on.
● The sequential mode gear
selection is shown in the
instrument panel.
When the transmission is in
(
S
19 PILOT HMA ELP-31TG76310.book 23 ページ ２０１９年３月１５日　金曜日　午後６時８分

24
Quick Reference Guide
Models with shift lever
Release Button
Depress the brake pedal and press the
release button to move out of
( P.
Move the shift leve r without pressing
the release button. Press the release button to move the
shift lever.
Automatic Transmission (P535)
● Shift to
(P and depress the brake pedal when starting the engine.
● Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
Shift Lever
Intelligent Traction
Management ButtonLow●Used to further increase engine braking.●Used when going up or down hills.
Drive (D4)
Press the button while the shift lever is in
( D.
Used when:
●Going up or down hills.
D4
ButtonD4
19 PILOT HMA ELP-31TG76310.book 24 ページ ２０１９年３月１５日　金曜日　午後６時８分

25
Quick Reference Guide

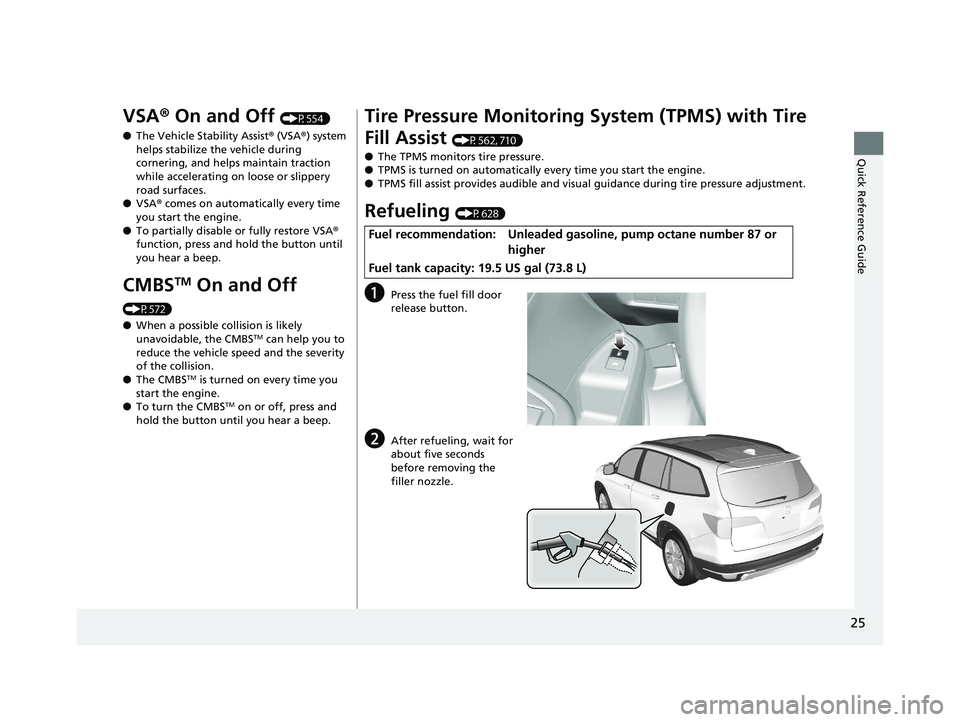

VSA® On and Off (P554)
● The Vehicle Stability Assist ® (VSA® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To partially disable or fully restore VSA ®
function, press and ho ld the button until
you hear a beep.
CMBSTM On and Off
(P572)
● When a possible collision is likely
unavoidable, the CMBS
TM can help you to
reduce the vehicle speed and the severity
of the collision.
● The CMBS
TM is turned on every time you
start the engine.
● To turn the CMBS
TM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring System (TPMS) with Tire
Fill Assist
(P562, 710)
● The TPMS monitors tire pressure.
● TPMS is turned on automatically every time you start the engine.
● TPMS fill assist provides audible and visual guidance during tire pressure adjustment.
Refueling (P628)
aPress the fuel fill door
release button.
bAfter refueling, wait for
about five seconds
before removing the
filler nozzle.
Fuel recommendation: Unleaded gasoline, pump octane number 87 or
higher
Fuel tank capacity: 19.5 US gal (73.8 L)
19 PILOT HMA ELP-31TG76310.book 25 ページ ２０１９年３月１５日　金曜日　午後６時８分

26
Quick Reference Guide
Honda Sensing®(P566)
Honda Sensing ® is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located behind the emblem and a front
sensor camera mounted to the interior side
of the windshield, behind the rear view
mirror.
The camera is located
behind the rearview
mirror.
Front Sensor
Camera
Radar Sensor The radar sensor is
behind the emblem.
Collision Mitigation
Braking System
TM
(CMBS
TM) (P569)
Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBS
TM is designed to alert you when a
potential collision is determined, as well as
to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
Adaptive Cruise Control
(ACC)
(P581)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours, without you
having to keep your foot on the brake or
the accelerator.
Lane Keeping Assist
System (LKAS)
(P594)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Road Departure
Mitigation (RDM) System
(P603)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.
19 PILOT HMA ELP-31TG76310.book 26 ページ ２０１９年３月１５日　金曜日　午後６時８分

27
Quick Reference Guide
Maintenance (P633)
Under the Hood (P643)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull it up, and then raise the
hood. Once you have raised the hood slightly, you can
release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P655)
● Inspect all lights regularly.
Wiper Blades (P660)
● Replace blades if they leave streaks
across the windshield.
Tires (P664)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
19 PILOT HMA ELP-31TG76310.book 27 ページ ２０１９年３月１５日　金曜日　午後６時８分

28
Quick Reference Guide
Handling the Unexpected (P687)
Flat Tire (P689)
● Park in a safe location and replace the
flat tire with the compact spare tire
located under the cargo area.
Indicators Come On (P707)
● Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P697)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P711)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P705)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P716)
● Call a professional towing service if you
need to tow your vehicle.
