uuIndicator, Comin g On/BlinkinguIf the Brake System Indicator (Red) Comes On
Handling the Unexpected

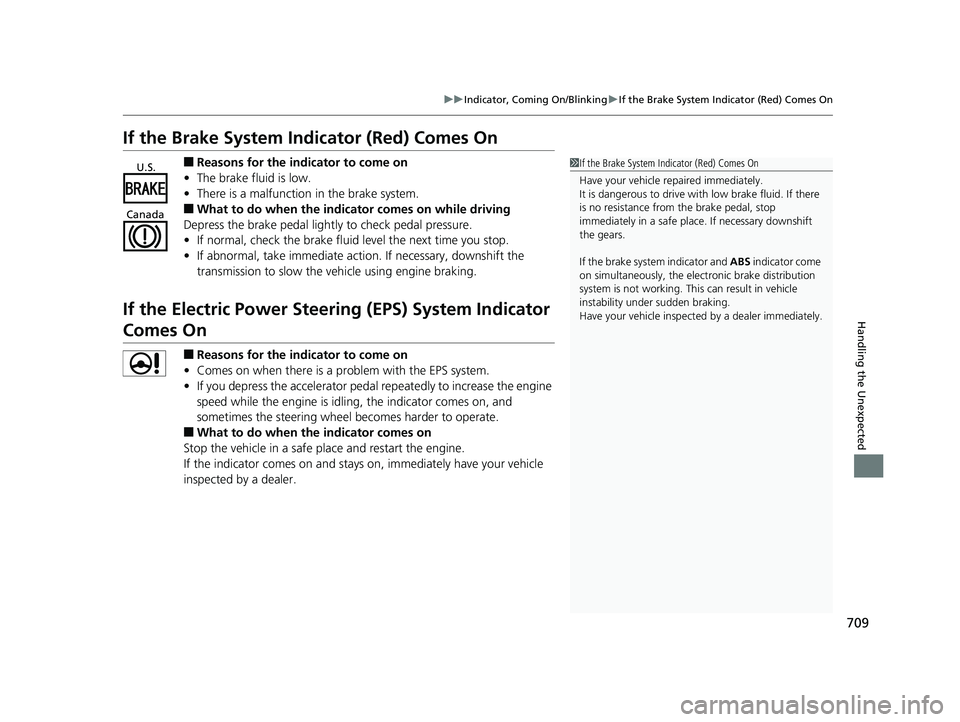

If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indica tor comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when th e indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
19 PILOT HMA ELP-31TG76310.book 709 ページ ２０１９年３月１５日　金曜日　午後６時８分

710
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/Tire Pressure Monitoring System (TPMS) Indicator Comes On or Blinks
Handling the Unexpected

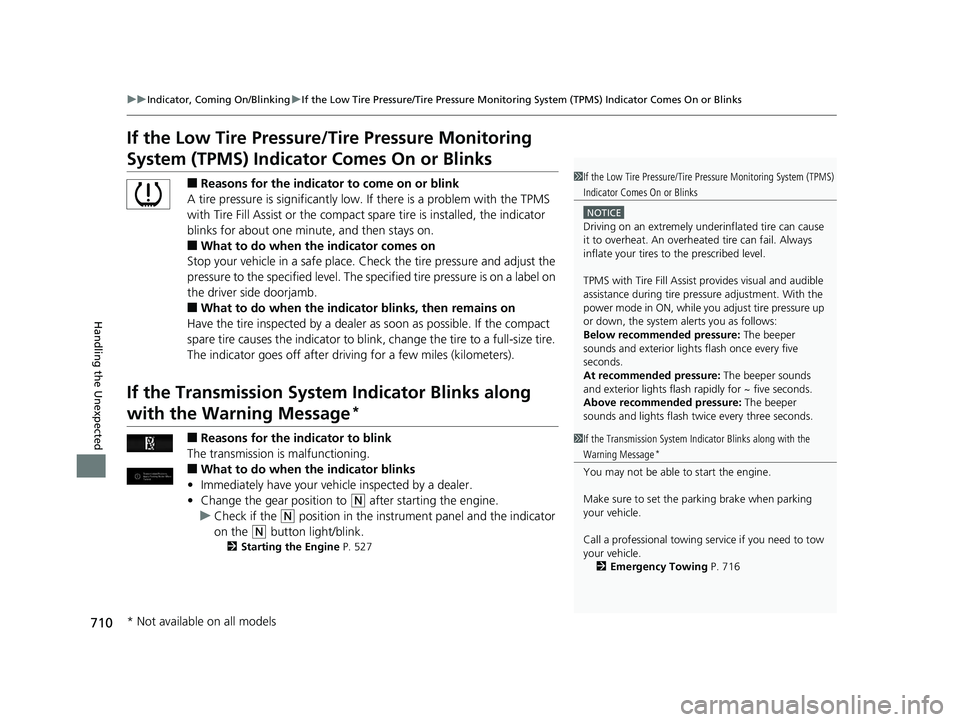

If the Low Tire Pressure/Tire Pressure Monitoring
System (TPMS) Indicato r Comes On or Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the compact spare tire is installed, the indicator
blinks for about one mi nute, and then stays on.
■What to do when the indicator comes on
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driv ing for a few miles (kilometers).
If the Transmission System Indicator Blinks along
with the Warning Message*
■Reasons for the indicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehi cle inspected by a dealer.
• Change the gear position to
(N after starting the engine.
u Check if the
(N position in the instrume nt panel and the indicator
on the
(N button light/blink.
2 Starting the Engine P. 527
1If the Low Tire Pressure/Tire Pressure Monitoring System (TPMS)
Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS with Tire Fill Assist provides visual and audible
assistance during tire pre ssure adjustment. With the
power mode in ON, while y ou adjust tire pressure up
or down, the system alerts you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for ~ five seconds.
Above recommended pressure: The beeper
sounds and lights flash twice every three seconds.
1 If the Transmission System In dicator Blinks along with the
Warning Message*
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 716
* Not available on all models
19 PILOT HMA ELP-31TG76310.book 710 ページ ２０１９年３月１５日　金曜日　午後６時８分

711Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the passenger's side damper
house. Push the tabs to open the box.
■Engine Compartment Fuse
Box Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
−(70 A)
RR BLOWER30 A
ABS/VSA MTR40 A
ABS/VSA FSR20 A
MAIN FAN30 A
MAIN FUSE150 A
2
SUB FAN30 A
WIP MTR30 A
WASHER20 A
SUNSHADE*(20 A)
ENGINE MOUNT30 A
FR BLOWER40 A
A/C INVERTER*(30 A)
STANDARD AMP*1(30 A)
RR DEF40 A
−(30 A)
PREMIUM AMP*(20 A)
3
−−
−−
−−
−−
4 PARKING LIGHT 10 A
5CRUISE CANCEL SW*(7.5 A)
6 STOP LIGHT 10 A
7FI SUB VSS*(10 A)*1:Models with Display Audio
*2:Models with color audio system 8L H/L LO 10 A
9−−
10 R H/L LO 10 A
11IGPS7.5 A
12 INJECTOR 20 A
13H/L LO MAIN20 A
14 FI-ECU BACKUP*(10 A)
15FR FOG*(10 A)
16 HAZARD 15 A
17PASSENGER P/
SEAT(RECLINE)*(20 A)
18 PASSENGER P/SEAT(SLIDE)
*(20 A)
19PREMIUM AMP*(20 A)
20 MG CLUTCH 7.5 A
21MAIN RLY15 A
22 FI SUB 15 A
23IG COIL15 A
24 DBW 15 A
25SMALL/STOP MAIN20 A
26 BACK UP 10 A
27HTD STRG WHEEL*(15 A)
28 HORN 10 A
29RADIO15 A*1
20 A*2
Circuit ProtectedAmps
* Not available on all models
19 PILOT HMA ELP-31TG76310.book 711 ページ ２０１９年３月１５日　金曜日　午後６時８分

715
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage
Confirm the specified amperage using the charts on
P. 711 to P. 714.
There is a fuse puller in the engine compartment fuse
box.
Combined
Fuse Blown Fuse
Fuse Puller
19 PILOT HMA ELP-31TG76310.book 715 ページ ２０１９年３月１５日　金曜日　午後６時８分

738
Index
Warning and Information Messages........... 96
Driving ....................................................... 507
Adaptive Cruise Control (ACC) ................ 581
Automatic Transmission ........................... 534
Braking .................................................... 611
Off-Highway Driving Guidelines ............... 525
Shifting Gear ........................................... 537
Starting the Engine .................................. 527
Driving Position Memory System ............. 189
Dust and Pollen Filter ............................... 679
E
Eco Assist® System ....................................... 10
ECON Button ............................................. 550
Econ Mode
Indicator .................................................... 89
Electric Power Steering (EPS) System
Indicator ............................................ 86, 709
Electronic Stability Control (ESC) ............. 553
Emergency ................................................. 716
Emissions Testing (Readiness Codes) ....... 728
Engine Coolant ................................................... 651
Jump Starting .......................................... 702
Number ................................................... 724
Oil ........................................................... 646
Remote Engine Start ................................ 529
Starting ................................................... 527
Engine Compartment Cover .................... 645Engine Coolant
......................................... 651
Adding to the Radiator ............................ 652
Adding to the Reserve Tank..................... 651
Overheating ............................................ 705
Temperature Gauge ................................ 110
Engine Oil ................................................. 646
Adding .................................................... 648
Checking................................................. 647
Displaying Maintenance Minder Information ........................................... 638
Low Oil Pressure Symbol.......................... 707
Recommended Engine Oil ....................... 646
ENGINE START/STOP Button .................... 171
EPS (Electric Power Steering) System ...... 709
Exhaust Gas Hazard (Carbon Monoxide) .. 76
Exterior Care (Cleaning) ........................... 682
Exterior Mirrors ........................................ 193
F
Features.................................................... 243
File Manager ............................................. 290
Filters Dust and Pollen ....................................... 679
Oil ........................................................... 649
Flat Tire ..................................................... 689
Floor Mats ................................................. 681
Fluids Automatic Transmission .......................... 653
Brake ...................................................... 654
Engine Coolant ....................................... 651 Windshield Washer ................................. 654
FM/AM Radio ................................... 258, 302
Fog Light Indicator .................................... 88
Fog Lights ................................................. 178
Folding Down the Second Row Seat ...... 205
Folding Down the Third Row Seat .......... 206
Foot Brake ................................................ 612
Front Airbags (SRS) .................................... 50
Front Seats ................................................ 194
Adjusting ................................................ 194
Front Sensor Camera ............................... 608
Fuel ..................................................... 25, 628
Economy................................................. 631
Gauge .................................................... 110
Instant Fuel Economy .............................. 116
Low Fuel Indicator..................................... 84
Range ..................................................... 116
Recommendation.................................... 628
Refueling ................................................ 628
Fuel Economy ........................................... 631
Fuel Fill Cap .............................................. 630
Fuel Fill Door ...................................... 25, 629
Unable to Unlock .................................... 717
Fuses ......................................................... 711
Inspecting and Changing ........................ 715
Locations ........................ 711, 712, 713, 714
G
Gasoline (Fuel)
Economy................................................. 631
19 PILOT HMA ELP-31TG76310.book 738 ページ ２０１９年３月１５日　金曜日　午後６時８分

741
Index
M
Maintenance.................................... 118, 633
Battery .................................................... 673
Brake Fluid .............................................. 654
Cleaning ................................................. 680
Coolant .................................................. 651
Maintenance Minder
TM............................ 637
Oil .......................................................... 647
Precautions ............................................. 634
Radiator .................................................. 652
Remote Control ...................................... 676
Remote Transmitter ................................ 675
Replacing Light Bulbs .............................. 655
Safety ..................................................... 635
Service Items ........................................... 640
Tires........................................................ 664
Transmission Fluid ................................... 653
Under the Hood ...................................... 643
Wireless Headphone ............................... 677
Malfunction Indicator Lamp ............. 81, 708
Map Lights ................................................ 210
Maximum Load Limit ............................... 511
Meters, Gauges ........................................ 110
Mirrors ...................................................... 192
Adjusting ................................................ 192
Door ....................................................... 193
Exterior ................................................... 193
Interior Rearview ..................................... 192
Modifications (and Accessories) .............. 685
Moonroof ................................................. 169
MP3 ................................... 263, 316, 322, 325 MP3/WMA/AAC
................ 263, 316, 322, 325
Multi-View Rear Camera .......................... 626
My Honda Music ....................................... 325
N
Navigation................................................ 117
Now Playing .............................................. 120
Numbers (Identification) .......................... 724
O
Odometer.................................................. 112
Off-Highway Driving Guidelines ............. 525
Oil (Engine) ............................................... 646
Adding .................................................... 648
Checking ................................................. 647
Displaying Maintenance Minder Information ........................................... 638
Low Oil Pressure Symbol .......................... 707
Oil Life ..................................................... 118
Recommended Engine Oil ........................ 646
Viscosity .................................................. 646
Open Source Licenses ............................... 371
Opening/Closing Hood ....................................................... 644
Moonroof................................................ 169
Power Windows ...................................... 166
Tailgate ................................................... 153
Operating the Switches Around the Steering Wheel ....................................... 171 Outside Temperature Display
.................. 112
Overheating .............................................. 705
P
Paddle Shifters (Sequential Mode) .... 23, 544
Panic Mode ............................................... 165
Panoramic Roof ........................................ 170
Parking ...................................................... 615
Parking Brake ........................................... 611
Parking Brake and Brake System Indicator .................................................. 709
Parking Brake and Brake System
Indicator (Amber) ..................................... 80
Parking Brake and Brake System Indicator (Red) .......................................... 80
Parking Sensor System ............................. 617
Passenger Airbag Off Indicator ................. 58
Passing Indicators ..................................... 175
Phone ........................................................ 119
Playing Bluetooth ® Audio ................ 266, 329
Power Tailgate ......................................... 155
Hands Free Access ................................... 155
Power Windows ....................................... 166
Precautions While Driving ....................... 533
Driving Guidelines for Your Utility Vehicle .................................................. 533
Rain ........................................................ 533
Pregnant Women ....................................... 45
Puncture (Tire) .......................................... 689
19 PILOT HMA ELP-31TG76310.book 741 ページ ２０１９年３月１５日　金曜日　午後６時８分
