HONDA PILOT 2019 Owner's Manual (in English)

Continued499
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

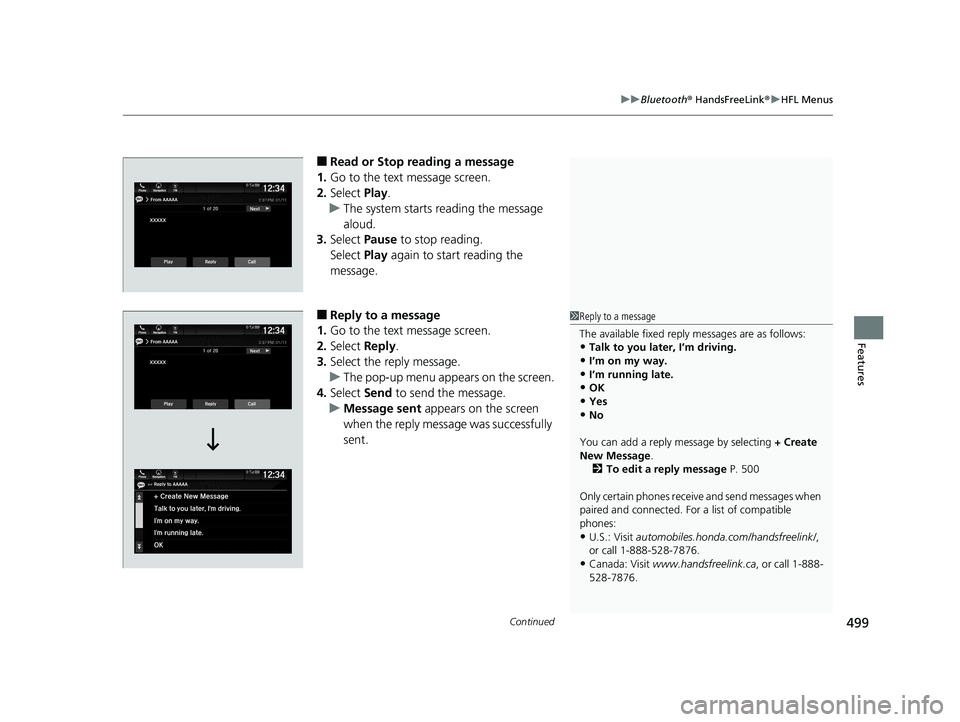

■Read or Stop reading a message
1. Go to the text message screen.
2. Select Play.
u The system starts reading the message
aloud.
3. Select Pause to stop reading.
Select Play again to start reading the
message.
■Reply to a message
1. Go to the text message screen.
2. Select Reply.
3. Select the reply message.
u The pop-up menu appears on the screen.
4. Select Send to send the message.
u Message sent appears on the screen
when the reply message was successfully
sent.1 Reply to a message
The available fixed reply messages are as follows:
•Talk to you later, I’m driving.
•I’m on my way.
•I’m running late.•OK
•Yes
•No
You can add a reply message by selecting + Create
New Message .
2 To edit a reply message P. 500
Only certain phones receiv e and send messages when
paired and connected. For a list of compatible
phones:
•U.S.: Visit automobiles.honda.com /handsfreelink/,
or call 1-888-528-7876.
•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
19 PILOT HMA ELP-31TG76310.book 499 ページ ２０１９年３月１５日　金曜日　午後６時８分

uuBluetooth ® HandsFreeLink ®u HFL Menus
500
Features

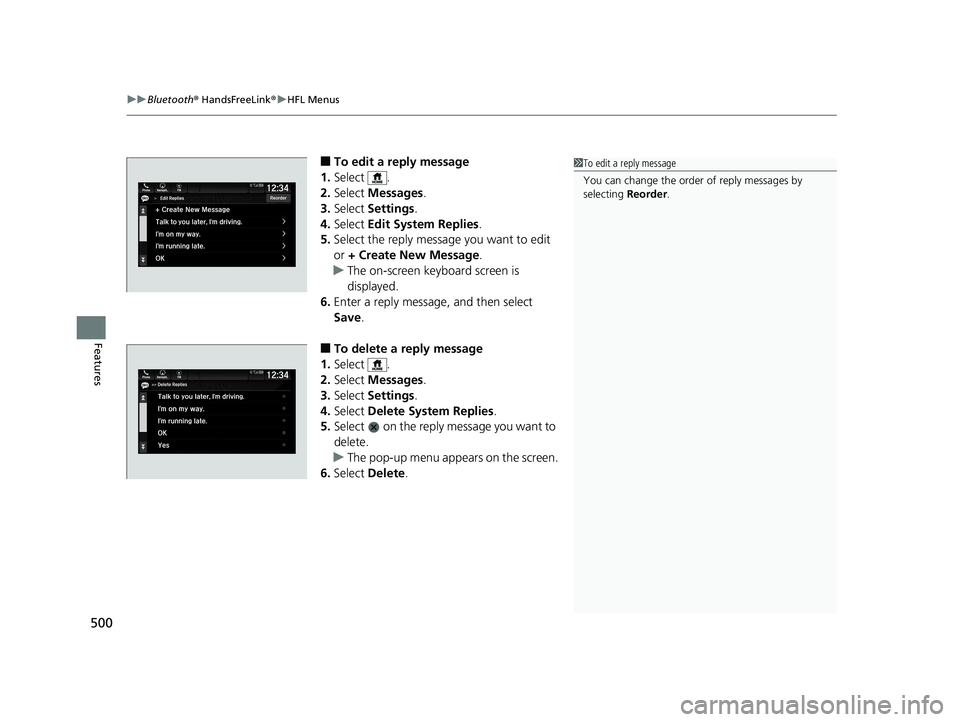

■To edit a reply message
1. Select .
2. Select Messages .
3. Select Settings .
4. Select Edit System Replies .
5. Select the reply message you want to edit
or + Create New Message .
u The on-screen keyboard screen is
displayed.
6. Enter a reply message, and then select
Save.
■To delete a reply message
1. Select .
2. Select Messages .
3. Select Settings .
4. Select Delete System Replies .
5. Select on the reply message you want to
delete.
u The pop-up menu appears on the screen.
6. Select Delete.
1To edit a reply message
You can change the order of reply messages by
selecting Reorder.
19 PILOT HMA ELP-31TG76310.book 500 ページ ２０１９年３月１５日　金曜日　午後６時８分

501
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features

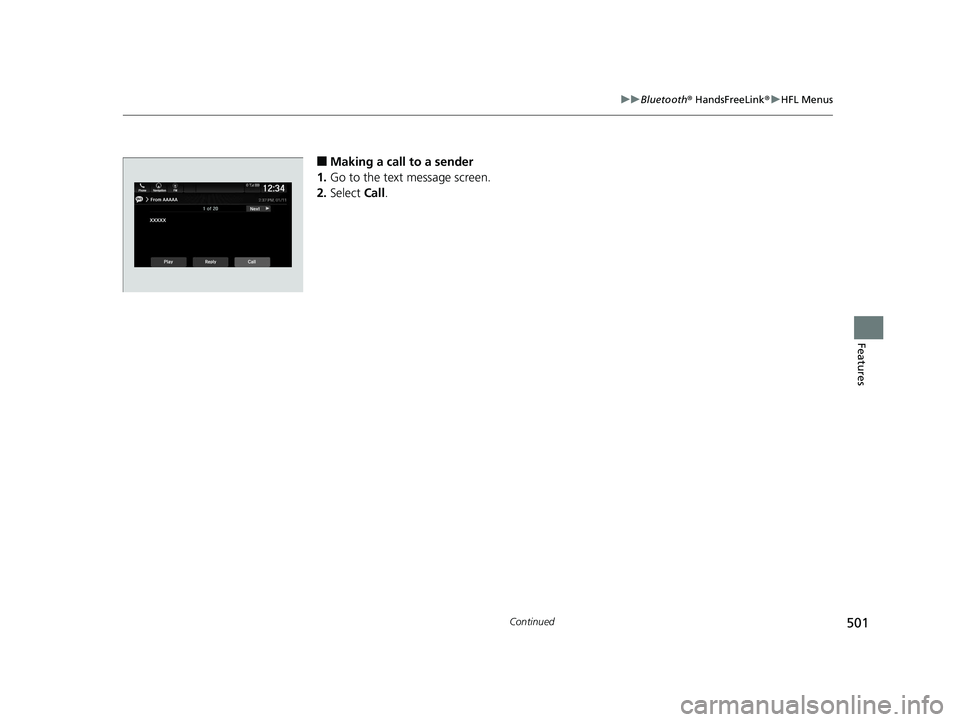

■Making a call to a sender
1. Go to the text message screen.
2. Select Call.
19 PILOT HMA ELP-31TG76310.book 501 ページ ２０１９年３月１５日　金曜日　午後６時８分

uuBluetooth ® HandsFreeLink ®u HFL Menus
502
Features

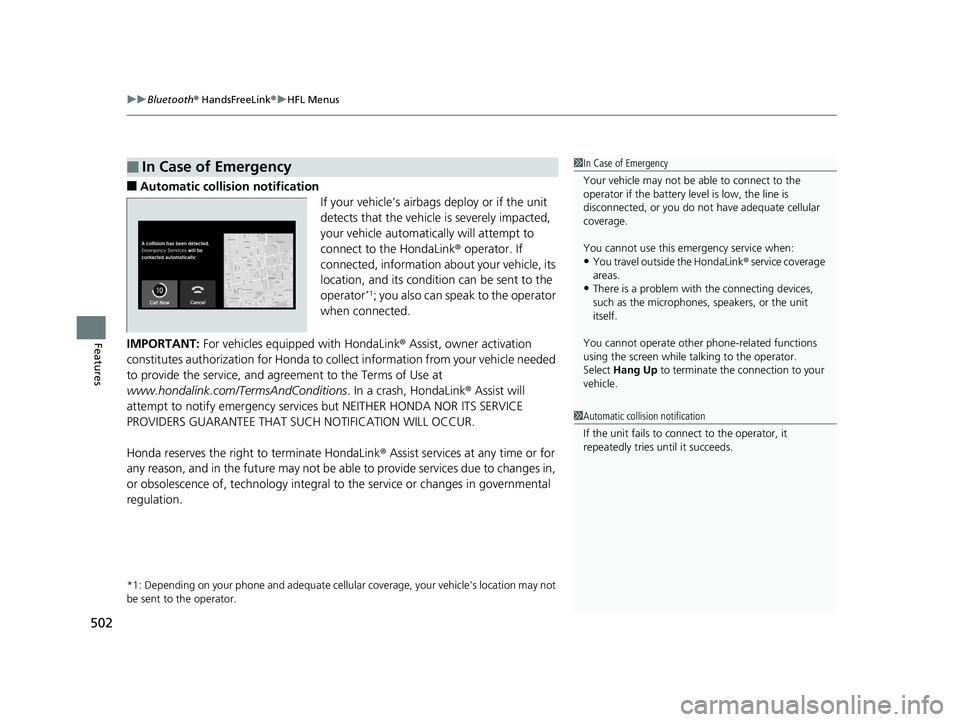

■Automatic collisi on notification
If your vehicle’s airbags deploy or if the unit
detects that the vehicle is severely impacted,
your vehicle automatically will attempt to
connect to the HondaLink ® operator. If
connected, information about your vehicle, its
location, and its condition can be sent to the
operator
*1; you also can speak to the operator
when connected.
IMPORTANT: For vehicles equipp ed with HondaLink® Assist, owner activation
constitutes authorization for Honda to collect information from your vehicle needed
to provide the service, and agr eement to the Terms of Use at
www.hondalink.com/TermsAndConditions . In a crash, HondaLink® Assist will
attempt to notify emergency services but NEITHER HONDA NOR ITS SERVICE
PROVIDERS GUARANTEE THAT S UCH NOTIFICATION WILL OCCUR.
Honda reserves the right to terminate HondaLink ® Assist services at any time or for
any reason, and in the future may not be ab le to provide services due to changes in,
or obsolescence of, technology integral to the service or changes in governmental
regulation.
*1: Depending on your phone and adequate cellular coverage, y our vehicle’s location may not
be sent to the operator.
■In Case of Emergency1 In Case of Emergency
Your vehicle may not be able to connect to the
operator if the battery level is low, the line is
disconnected, or you do not have adequate cellular
coverage.
You cannot use this emergency service when:
•You travel outside the HondaLink ® service coverage
areas.
•There is a problem with the connecting devices,
such as the microphones, speakers, or the unit
itself.
You cannot operate othe r phone-related functions
using the screen while talking to the operator.
Select Hang Up to terminate the connection to your
vehicle.
1 Automatic collision notification
If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.
19 PILOT HMA ELP-31TG76310.book 502 ページ ２０１９年３月１５日　金曜日　午後６時８分

Continued503
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

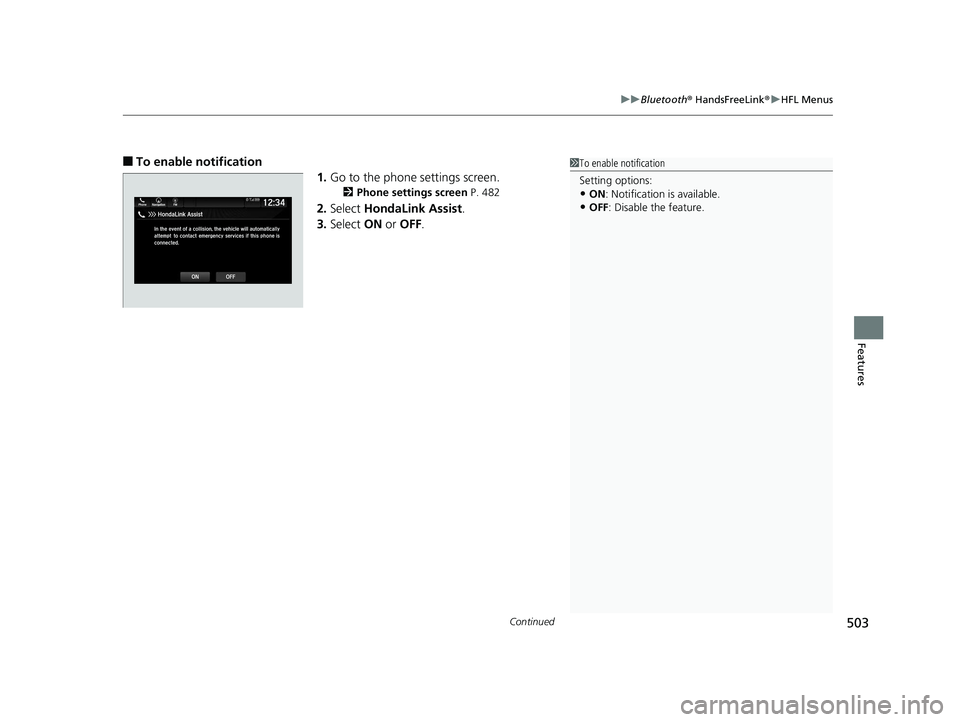

■To enable notification
1.Go to the phone settings screen.
2 Phone settings screen P. 482
2.Select HondaLink Assist .
3. Select ON or OFF .
1To enable notification
Setting options:
•ON : Notification is available.
•OFF: Disable the feature.
19 PILOT HMA ELP-31TG76310.book 503 ページ ２０１９年３月１５日　金曜日　午後６時８分

uuBluetooth ® HandsFreeLink ®u HFL Menus
504
Features

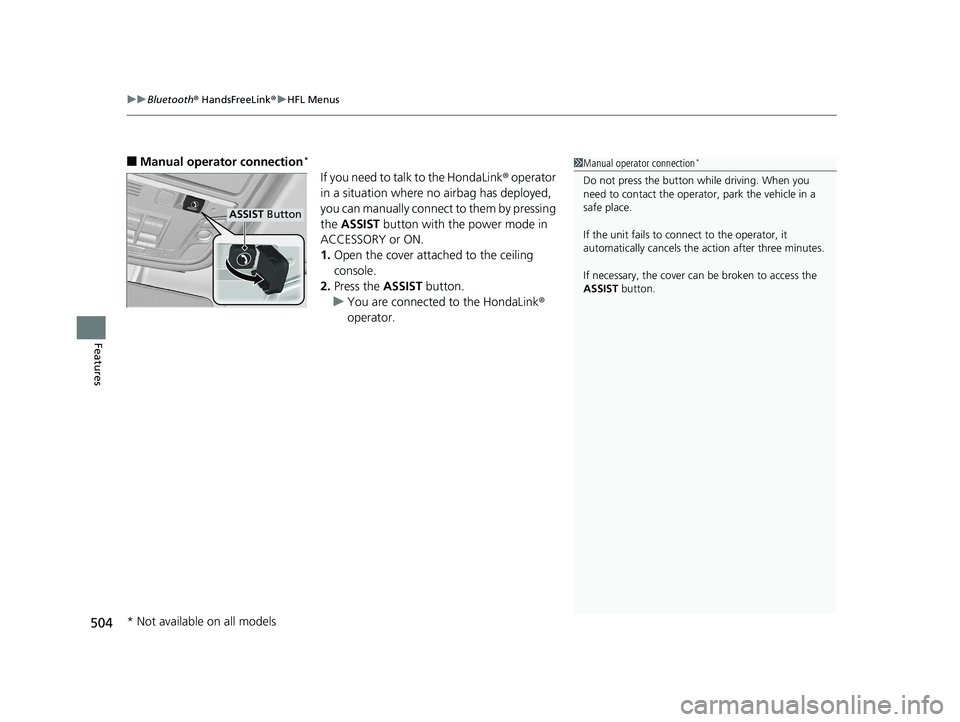

■Manual operator connection*
If you need to talk to the HondaLink ® operator
in a situation where no airbag has deployed,
you can manually connect to them by pressing
the ASSIST button with the power mode in
ACCESSORY or ON.
1. Open the cover attached to the ceiling
console.
2. Press the ASSIST button.
u You are connected to the HondaLink ®
operator.
1 Manual operator connection*
Do not press the button while driving. When you
need to contact the operato r, park the vehicle in a
safe place.
If the unit fails to connect to the operator, it
automatically cancels the action after three minutes.
If necessary, the cover can be broken to access the
ASSIST button.
ASSIST Button
* Not available on all models
19 PILOT HMA ELP-31TG76310.book 504 ページ ２０１９年３月１５日　金曜日　午後６時８分

505
Features

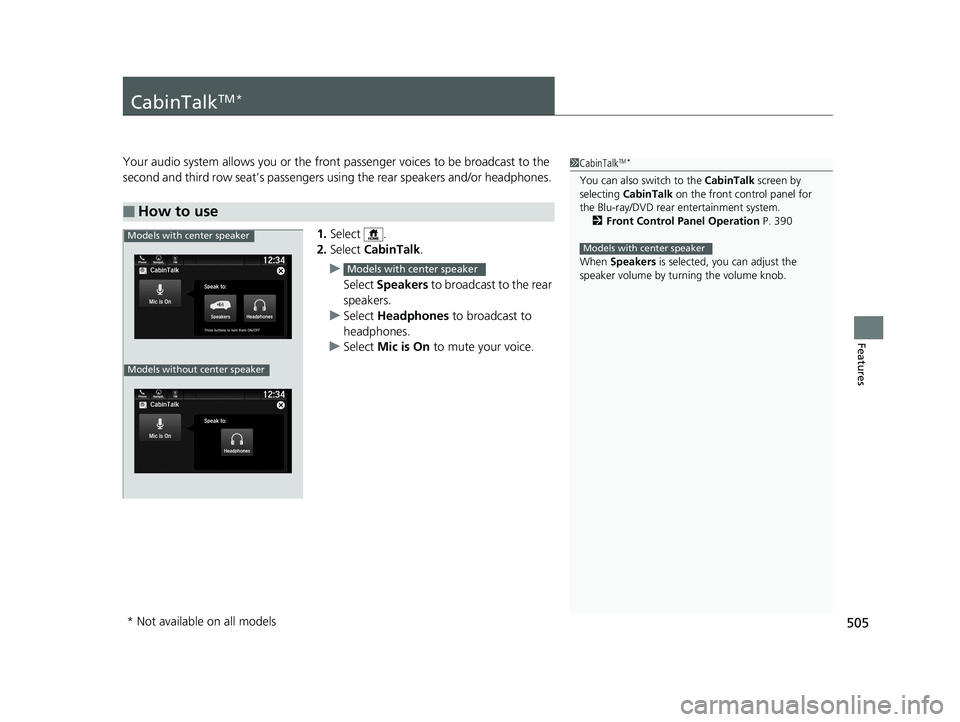

CabinTalkTM *
Your audio system allows you or the front passenger voices to be broadcast to the
second and third row seat’s passengers us ing the rear speakers and/or headphones.
1. Select .
2. Select CabinTalk .
u Select Speakers to broadcast to the rear
speakers.
u Select Headphones to broadcast to
headphones.
u Select Mic is On to mute your voice.
■How to use
1CabinTalkTM *
You can also switch to the CabinTalk screen by
selecting CabinTalk on the front control panel for
the Blu-ray/DVD rear entertainment system. 2 Front Control Panel Operation P. 390
When Speakers is selected, you can adjust the
speaker volume by tu rning the volume knob.
Models with center speakerModels with center speaker
Models without center speaker
Models with center speaker
* Not available on all models
19 PILOT HMA ELP-31TG76310.book 505 ページ ２０１９年３月１５日　金曜日　午後６時８分

506
19 PILOT HMA ELP-31TG76310.book 506 ページ ２０１９年３月１５日　金曜日　午後６時８分

507
Driving
This chapter discusses driving and refueling.
Before Driving................................... 508
Towing a Trailer ................................ 514
Off-Highway Driving Guidelines ..... 525
When Driving Starting the Engine .......................... 527
Automatic Transmission ................... 534
Shifting .................................... 535, 537
Auto Idle Stop
*................................ 545
ECON Mode .................................... 550
Intelligent Traction Management
*.... 551Vehicle Stability Assist ® (VSA ®), aka Electronic
Stability Control (ESC), System............ 553
Agile Handling Assist ....................... 555
Blind spot information System*........ 556
LaneWatchTM*.................................. 559 Intelligent Variable To
rque Management (i-
VTM4
TM) AWD System*.................. 561
Tire Pressure Monitoring System (TPMS) with Tire Fill Assist .......................... 562
Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ......... 564
Honda Sensing ®................................ 566
Collision Mitigati on Braking System
TM
(CMBSTM) ....................................... 569
Adaptive Cruise Control (ACC)......... 581
Lane Keeping Assist System (LKAS) .. 594
Road Departure Mitigation (RDM)
System ....................................... 603
Front Sensor Camera ....................... 608
Radar Sensor.................................... 610 Braking
Brake System ................................... 611
Anti-lock Brake System (ABS) ........... 613
Brake Assist System ......................... 614
Parking Your Vehicle
When Stopped ................................ 615
Parking Sensor System
*................... 617
Cross Traffic Monitor*..................... 622
Multi-View Rear Camera .................. 626
Refueling Fuel Information .............................. 628
How to Refuel ................................. 629
Fuel Economy and CO
2 Emissions
Improving Fuel Economy and Reducing CO
2 Emissions ................................ 631
* Not available on all models
19 PILOT HMA ELP-31TG76310.book 507 ページ ２０１９年３月１５日　金曜日　午後６時８分

508
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on th e windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheel s, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressures, and check for damage and excessive wear.
2Checking and Maintaining Tires P. 664
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you’ve parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
19 PILOT HMA ELP-31TG76310.book 508 ページ ２０１９年３月１５日　金曜日　午後６時８分
