HONDA PILOT 2019 Owner's Manual (in English)

629
uuRefueling uHow to Refuel
Continued
Driving

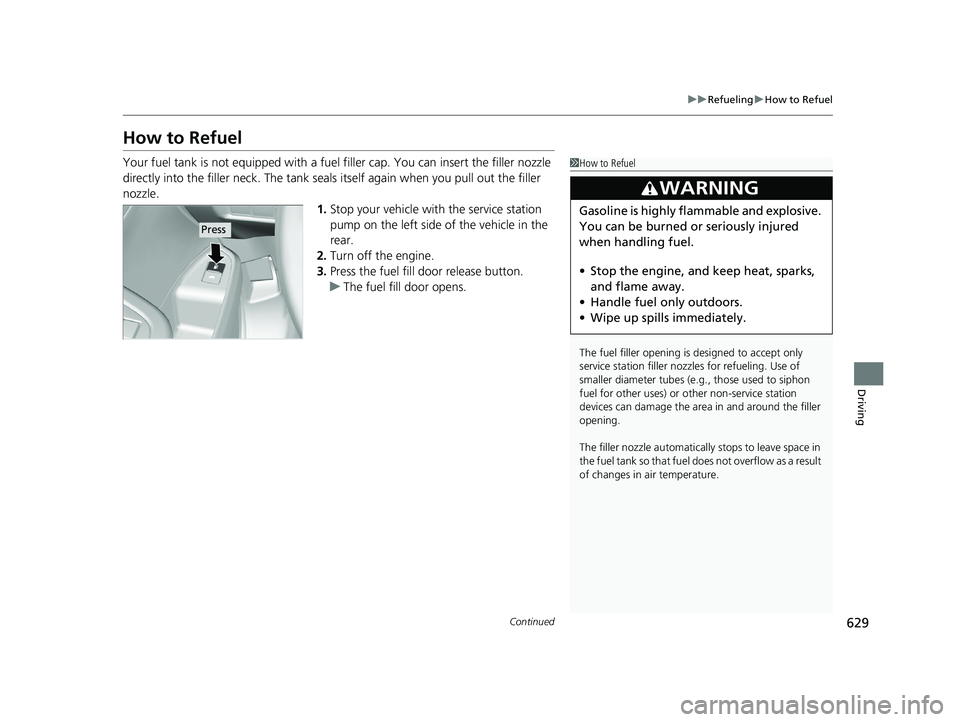

How to Refuel
Your fuel tank is not equipped with a fuel filler cap. You can insert the filler nozzle
directly into the filler neck. The tank seals itself again when you pull out the filler
nozzle. 1.Stop your vehicle with the service station
pump on the left side of the vehicle in the
rear.
2. Turn off the engine.
3. Press the fuel fill door release button.
u The fuel fill door opens.1How to Refuel
The fuel filler opening is designed to accept only
service station filler nozzles for refueling. Use of
smaller diamet er tubes (e.g., those used to siphon
fuel for other uses) or other non-service station
devices can damage the area in and around the filler
opening.
The filler nozzle automatically stops to leave space in
the fuel tank so that fuel does not overflow as a result
of changes in air temperature.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Press
19 PILOT HMA ELP-31TG76310.book 629 ページ ２０１９年３月１５日　金曜日　午後６時８分

uuRefueling uHow to Refuel
630
Driving

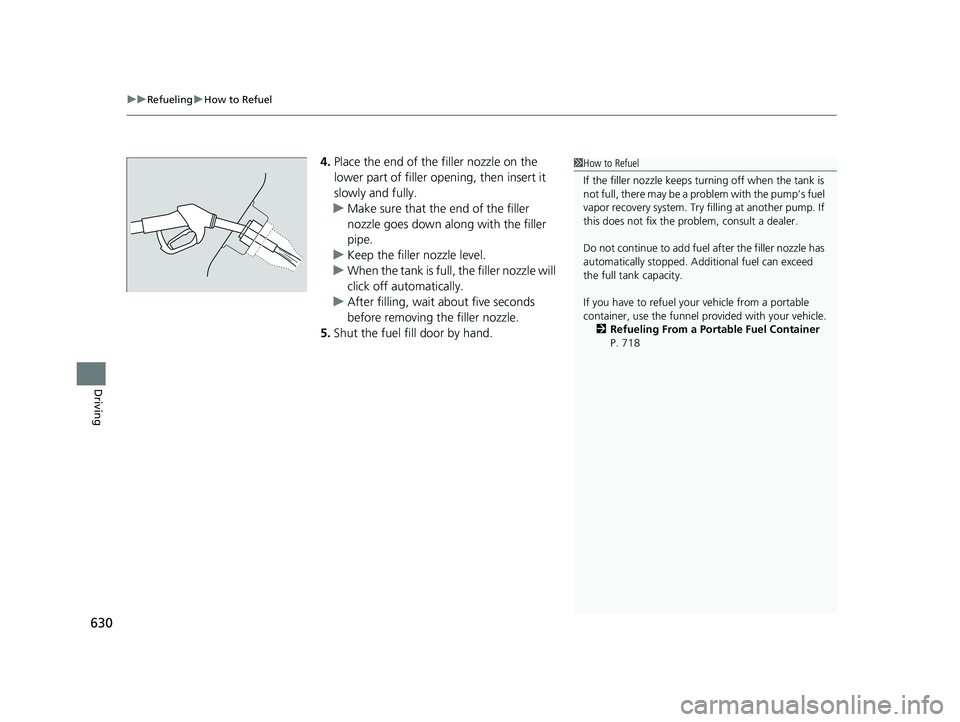

4. Place the end of the filler nozzle on the
lower part of filler opening, then insert it
slowly and fully.
u Make sure that the end of the filler
nozzle goes down along with the filler
pipe.
u Keep the filler nozzle level.
u When the tank is full, the filler nozzle will
click off automatically.
u After filling, wait about five seconds
before removing th e filler nozzle.
5. Shut the fuel fill door by hand.1How to Refuel
If the filler nozzle keeps tu rning off when the tank is
not full, there may be a problem with the pump’s fuel
vapor recovery system. Try fi lling at another pump. If
this does not fix the problem, consult a dealer.
Do not continue to add fuel after the filler nozzle has
automatically stopped. Addi tional fuel can exceed
the full tank capacity.
If you have to refuel y our vehicle from a portable
container, use the funnel pr ovided with your vehicle.
2 Refueling From a Portable Fuel Container
P. 718
19 PILOT HMA ELP-31TG76310.book 630 ページ ２０１９年３月１５日　金曜日　午後６時８分

631
Driving

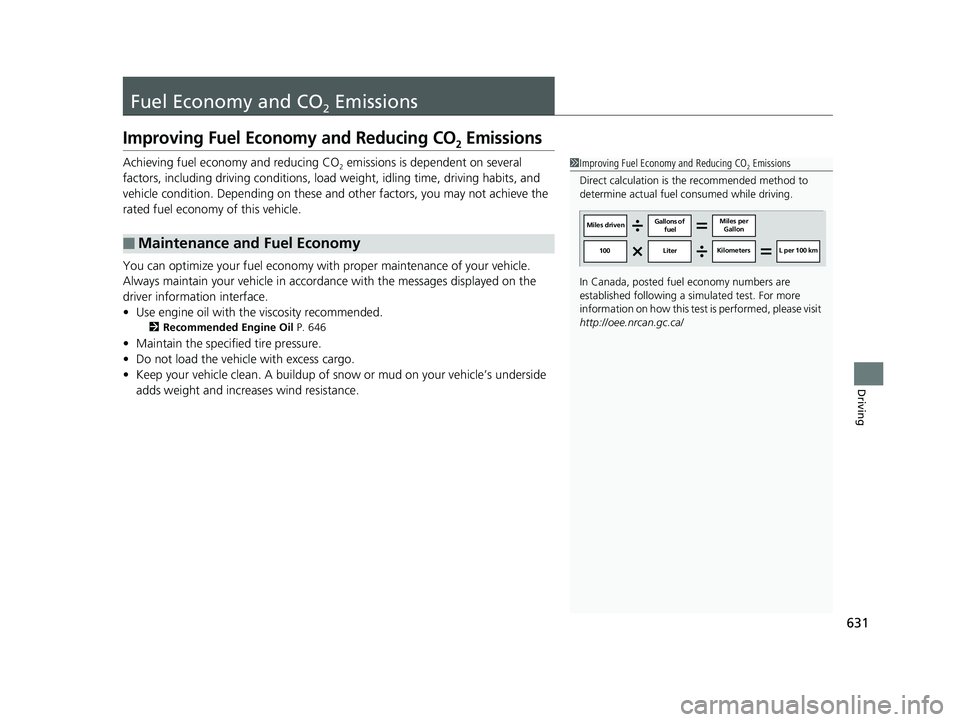

Fuel Economy and CO2 Emissions
Improving Fuel Economy and Reducing CO2 Emissions
Achieving fuel economy and reducing CO2 emissions is dependent on several
factors, including driving conditions, load weight, idling time, driving habits, and
vehicle condition. Depending on these and other factors, you may not achieve the
rated fuel economy of this vehicle.
You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accord ance with the messages displayed on the
driver information interface.
• Use engine oil with the viscosity recommended.
2 Recommended Engine Oil P. 646
•Maintain the specified tire pressure.
• Do not load the vehicle with excess cargo.
• Keep your vehicle clean. A buildup of snow or mud on your vehicle’s underside
adds weight and increases wind resistance.
■Maintenance and Fuel Economy
1Improving Fuel Economy and Reducing CO2 Emissions
Direct calculation is the recommended method to
determine actual fuel consumed while driving.
In Canada, posted fuel economy numbers are
established following a simulated test. For more
information on how this test is performed, please visit
http://oee.nrcan.gc.ca/
Miles driven Gallons of
fuel Miles per
Gallon
100 Liter Kilometers L per 100 km
19 PILOT HMA ELP-31TG76310.book 631 ページ ２０１９年３月１５日　金曜日　午後６時８分

632
19 PILOT HMA ELP-31TG76310.book 632 ページ ２０１９年３月１５日　金曜日　午後６時８分

633
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 634
Safety When Performing Maintenance ..635
Parts and Fluids Used in Maintenance Service ........................................... 636
Maintenance Minder
TM..................... 637
Maintenance Under the Hood Maintenance Items Under the Hood .. 643
Opening the Hood ........................... 644
Engine Compartment Cover ............. 645
Recommended Engine Oil ................ 646
Oil Check ......................................... 647
Adding Engine Oil ............................ 648
Changing the Engine Oil and Oil Filter ...649 Engine Coolant ................................ 651
Transmission Fluid ............................ 653
Brake Fluid ....................................... 654
Refilling Window Washer Fluid......... 654
Replacing Light Bulbs ....................... 655Checking and Maintaining Wiper Blades... 660Checking and Maintaining Tires
Checking Tires ................................. 664
Tire and Loading Information Label .. 665
Tire Labeling .................................... 665
DOT Tire Quality Grading (U.S. Vehicles).. 667Wear Indicators................................ 669
Tire Service Life ................................ 669 Tire and Wheel Replacement ........... 670
Tire Rotation .................................... 671
Winter Tires ..................................... 672
Battery ............................................... 673
Remote Transmitter Care ................. 675
Remote Control and Wireless Headphone Care
*........................... 676Heating and Cooling System*/Climate
Control System* Maintenance............. 678Cleaning Interior Care .................................... 680
Exterior Care.................................... 682
Accessories and Modifications ........ 685
* Not available on all models
19 PILOT HMA ELP-31TG76310.book 633 ページ ２０１９年３月１５日　金曜日　午後６時８分

634
Maintenance

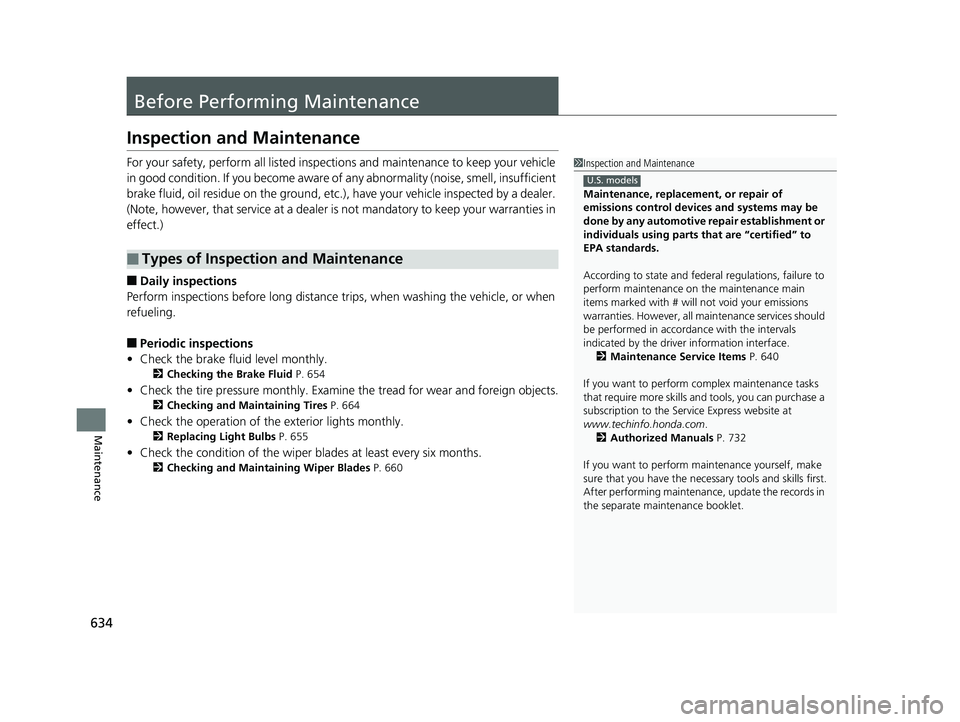

Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.)
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake fluid level monthly.
2 Checking the Brake Fluid P. 654
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 664
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 655
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 660
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the driver information interface.
2 Maintenance Service Items P. 640
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 732
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet.
U.S. models
19 PILOT HMA ELP-31TG76310.book 634 ページ ２０１９年３月１５日　金曜日　午後６時８分

635
uuBefore Performing Maintenance uSafety When Performing Maintenance
Maintenance
Safety When Performing Maintenance
Some of the most important safe ty precautions are given here.
However, we cannot warn you of every conceivable hazard that can arise in performing
maintenance. Only you can decide whether you should perform a given task.
•To reduce the possibility of fire or explos ion, keep cigarettes, sparks, and flames
away from the battery and all fuel related parts.
• Never leave rags, towels, or other flammable objects under the hood.
u Heat from the engine and exhaust can ignite them, causing a fire.
•To clean parts, use a commercially available degreaser or parts cleaner, not gasoline.
•Wear eye protection and prot ective clothing when working with the battery or
compressed air.
• Engine exhaust contains carbon monoxide, which is poisonous and can kill you.
u Only operate the engine if th ere is sufficient ventilation.
• The vehicle must be in a stationary condition.
u Make sure your vehicle is parked on le vel ground, the parking brake is set, and
the engine is off.
• Be aware that hot parts can burn you.
u Make sure to let the engine and exhaust system cool thoroughly before
touching vehicle parts.
• Be aware that moving parts can injure you.
u Do not start the engine unless instruct ed, and keep your hands and limbs away
from moving parts.
u Do not open the hood while the Auto Idle Stop function is activated.
■Maintenance Safety
■Vehicle Safety
1Safety When Performing Maintenance
3WARNING
Improperly maintaining this vehicle or
failing to correct a pr oblem before driving
can cause a crash in which you can be
seriously hurt or killed.
Always follow the inspection and
maintenance recommendations according
to the schedules in this owner’s manual.
3WARNING
Failure to properly follow maintenance
instructions and prec autions can cause you
to be seriously hurt or killed.
Always follow the procedures and
precautions in this owner’s manual.
Models with Auto Idle Stop
19 PILOT HMA ELP-31TG76310.book 635 ページ ２０１９年３月１５日　金曜日　午後６時８分

636
uuBefore Performing Maintenance uParts and Fluids Used in Maintenance Service
Maintenance

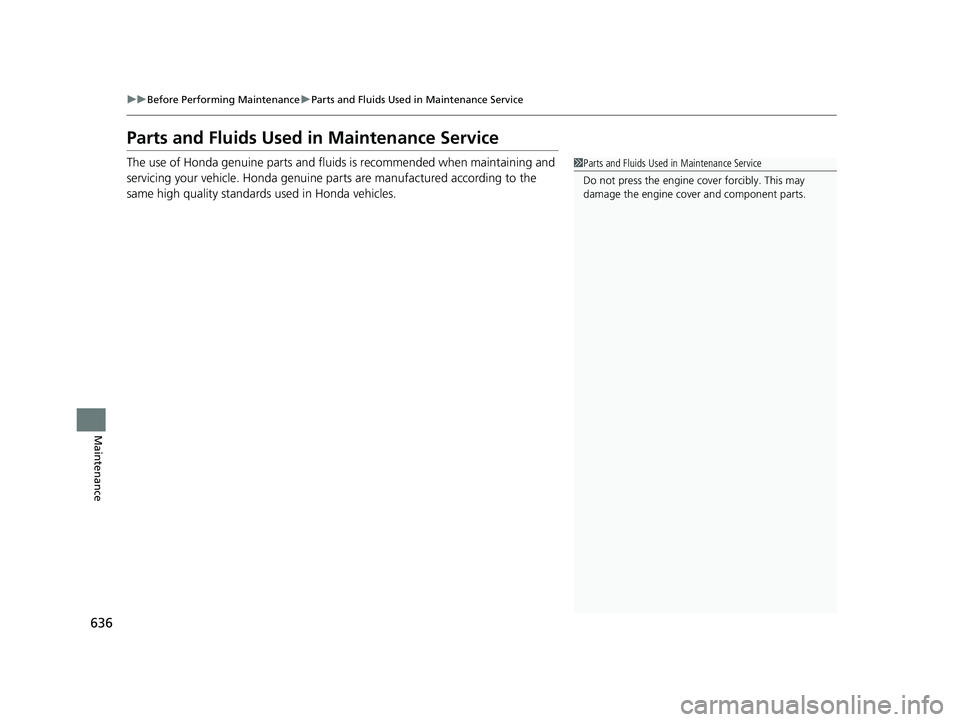

Parts and Fluids Used in Maintenance Service
The use of Honda genuine parts and fluids is recommended when maintaining and
servicing your vehicle. Honda genuine parts are manufactured according to the
same high quality standards used in Honda vehicles.1Parts and Fluids Used in Maintenance Service
Do not press the engine cover forcibly. This may
damage the engine cover and component parts.
19 PILOT HMA ELP-31TG76310.book 636 ページ ２０１９年３月１５日　金曜日　午後６時８分

637
Maintenance

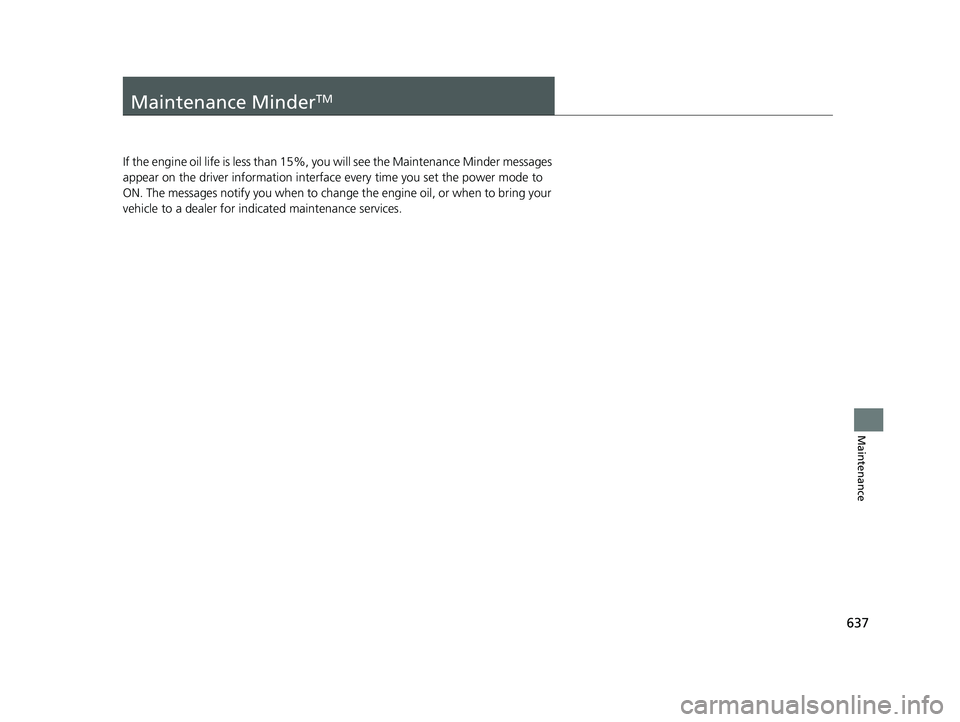

Maintenance MinderTM
If the engine oil life is less than 15%, you will see the Maintenance Minder messages
appear on the driver inform ation interface every time you set the power mode to
ON. The messages notify you when to change the engine oil, or when to bring your
vehicle to a dealer for indicated maintenance services.
19 PILOT HMA ELP-31TG76310.book 637 ページ ２０１９年３月１５日　金曜日　午後６時８分

638
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance

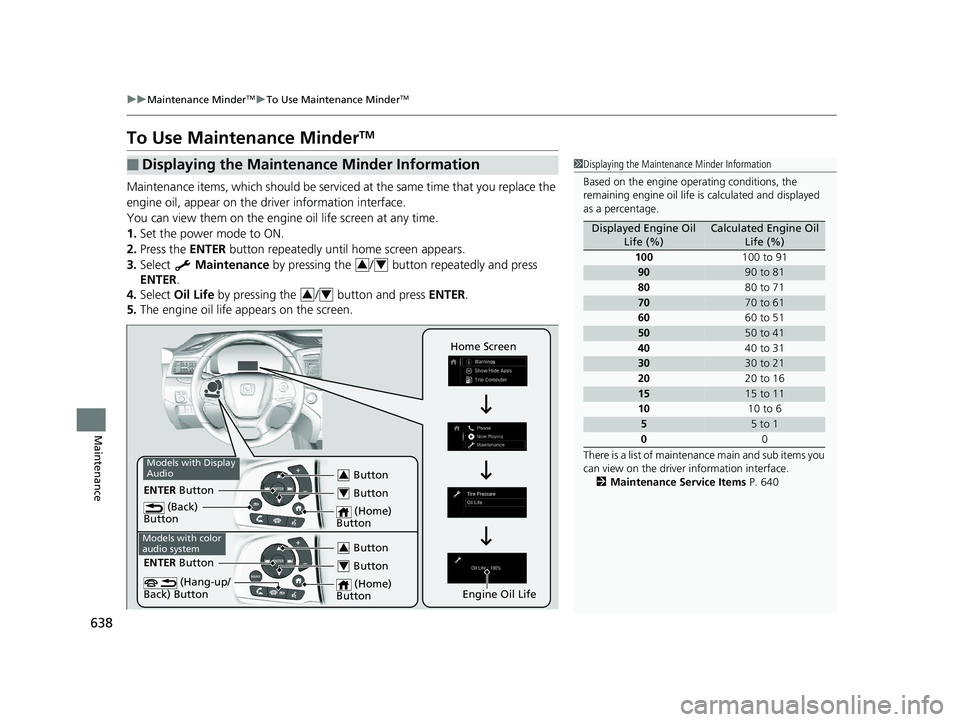

To Use Maintenance MinderTM
Maintenance items, which should be serviced at the same time that you replace the
engine oil, appear on the driver information interface.
You can view them on the engine oil life screen at any time.
1. Set the power mode to ON.
2. Press the ENTER button repeatedly until home screen appears.
3. Select Maintenance by pressing the / button repeatedly and press
ENTER .
4. Select Oil Life by pressing the / button and press ENTER.
5. The engine oil life appears on the screen.
■Displaying the Maintenance Minder Information1Displaying the Maintena nce Minder Information
Based on the engine ope rating conditions, the
remaining engine oi l life is calculated and displayed
as a percentage.
There is a list of maintena nce main and sub items you
can view on the driver information interface.
2 Maintenance Service Items P. 640
Displayed Engine Oil
Life (%)Calculated Engine Oil Life (%)
100 100 to 91
9090 to 81
80 80 to 71
7070 to 61
60 60 to 51
5050 to 41
40 40 to 31
3030 to 21
20 20 to 16
1515 to 11
10 10 to 6
55 to 1
0 0
34
34
ENTER Button
Engine Oil Life
(Back)
Button
(Hang-up/
Back) Button
Button3
Button4
(Home)
Button
Home Screen
ENTER Button
Models with color
audio system
Models with Display
Audio
Button3
Button4
(Home)
Button
19 PILOT HMA ELP-31TG76310.book 638 ページ ２０１９年３月１５日　金曜日　午後６時８分
