engine HONDA PILOT 2020 Owner's Manual (in English)

713
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage
Confirm the specified amperage using the charts on
P. 709 to P. 712.
There is a fuse puller in the engine compartment fuse
box.
Combined
Fuse Blown Fuse
Fuse Puller
20 PILOT-31TG76401.book 713 ページ ２０１９年７月２４日　水曜日　午後３時３２分

716
Handling the Unexpected

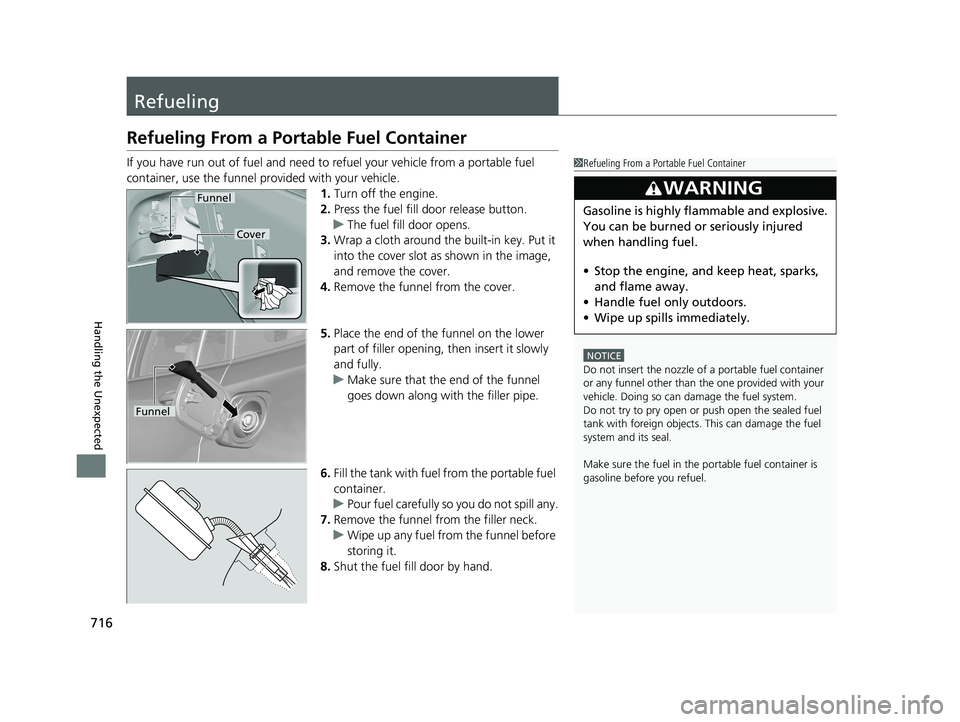

Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel pr ovided with your vehicle.
1.Turn off the engine.
2. Press the fuel fill door release button.
u The fuel fill door opens.
3. Wrap a cloth around the built-in key. Put it
into the cover slot as shown in the image,
and remove the cover.
4. Remove the funnel from the cover.
5. Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
6. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
7. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
8. Shut the fuel fill door by hand.1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.Funnel
Cover
Funnel
20 PILOT-31TG76401.book 716 ページ ２０１９年７月２４日　水曜日　午後３時３２分

719

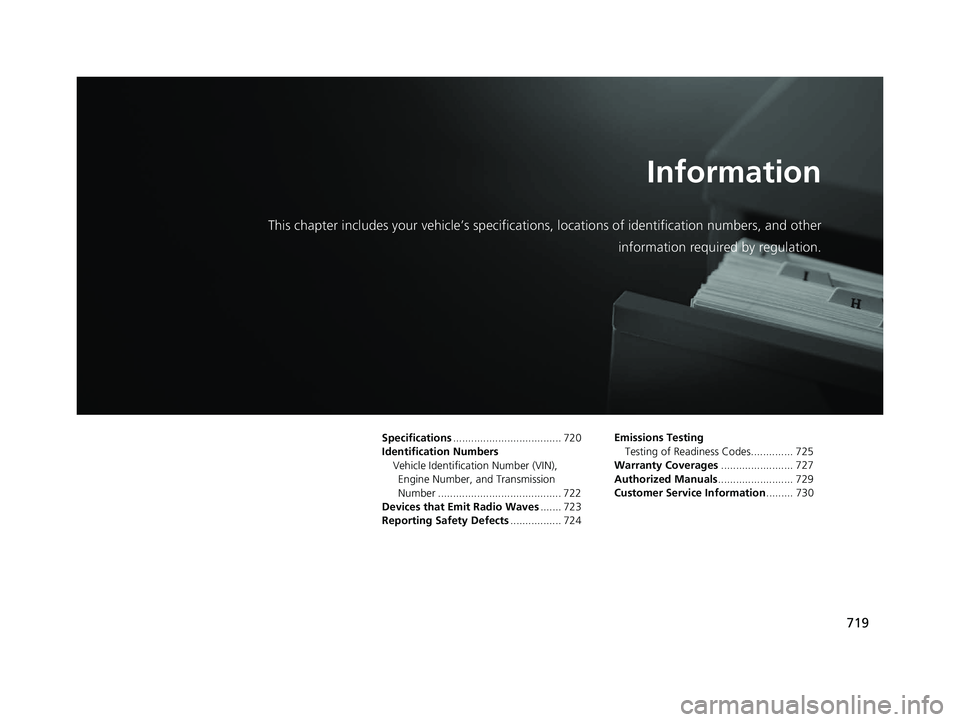

Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 720
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 722
Devices that Emit Radio Waves ....... 723
Reporting Safety Defects ................. 724Emissions Testing
Testing of Readiness Codes.............. 725
Warranty Coverages ........................ 727
Authorized Manuals ......................... 729
Customer Service Information ......... 730
20 PILOT-31TG76401.book 719 ページ ２０１９年７月２４日　水曜日　午後３時３２分

720
Information

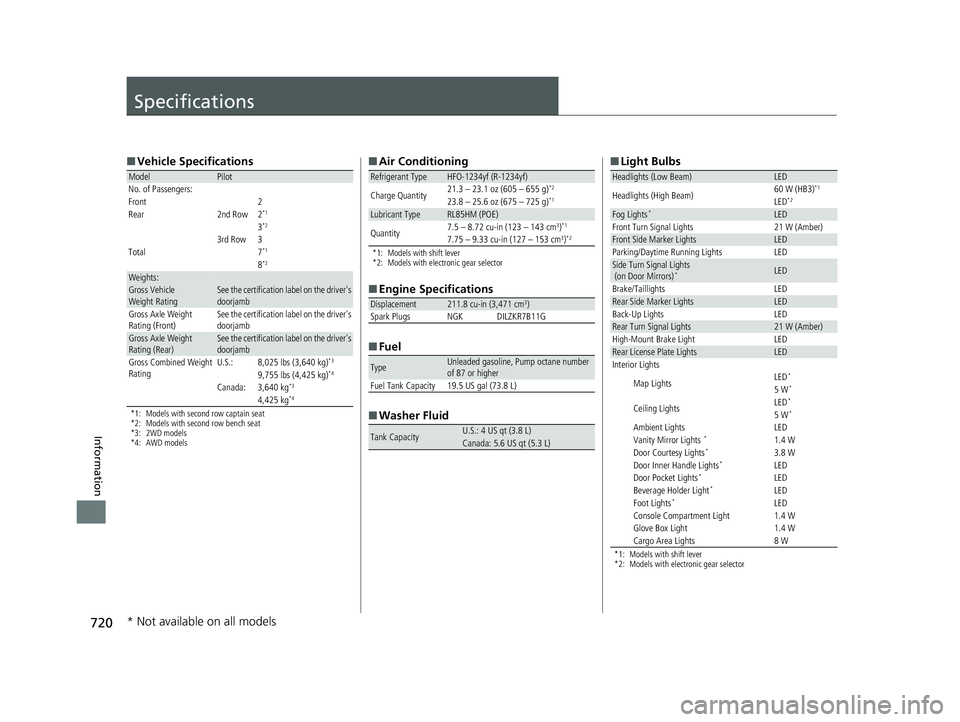

Specifications
■Vehicle Specifications
*1: Models with second row captain seat
*2: Models with second row bench seat
*3: 2WD models
*4: AWD models
ModelPilot
No. of Passengers:
Front 2
Rear 2nd Row 2
*1
3*2
3rd Row 3
Total7*1
8*2
Weights:Gross Vehicle
Weight RatingSee the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver's
doorjamb
Gross Combined Weight
RatingU.S.:8,025 lbs (3,640 kg)*3
9,755 lbs (4,425 kg)*4
Canada:3,640 kg*3
4,425 kg*4
■ Air Conditioning
*1: Models with shift lever
*2: Models with electronic gear selector
■Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 21.3 – 23.1 oz (605 – 655 g)*2
23.8 – 25.6 oz (675 – 725 g)*1
Lubricant TypeRL85HM (POE)
Quantity7.5 – 8.72 cu-in (123 – 143 cm3)*1
7.75 – 9.33 cu-in (127 – 153 cm3)*2
Displacement211.8 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 19.5 US gal (73.8 L)
Tank CapacityU.S.: 4 US qt (3.8 L)Canada: 5.6 US qt (5.3 L)
■ Light Bulbs
*1: Models with shift lever
*2: Models with electronic gear selector
Headlights (Low Beam)LED
Headlights (High Beam)60 W (HB3)*1
LED*2
Fog Lights*LEDFront Turn Signal Lights21 W (Amber)Front Side Marker LightsLEDParking/Daytime Running LightsLEDSide Turn Signal Lights
(on Door Mirrors)*LED
Brake/TaillightsLEDRear Side Marker LightsLEDBack-Up LightsLEDRear Turn Signal Lights21 W (Amber)High-Mount Brake LightLEDRear License Plate LightsLEDInterior Lights
Map LightsLED*
5 W*
Ceiling LightsLED*
5 W*
Ambient LightsLEDVanity Mirror Lights *1.4 WDoor Courtesy Lights*3.8 WDoor Inner Handle Lights*LEDDoor Pocket Lights*LEDBeverage Holder Light*LEDFoot Lights*LEDConsole Compartment Light1.4 WGlove Box Light1.4 WCargo Area Lights8 W
* Not available on all models
20 PILOT-31TG76401.book 720 ページ ２０１９年７月２４日　水曜日　午後３時３２分

721

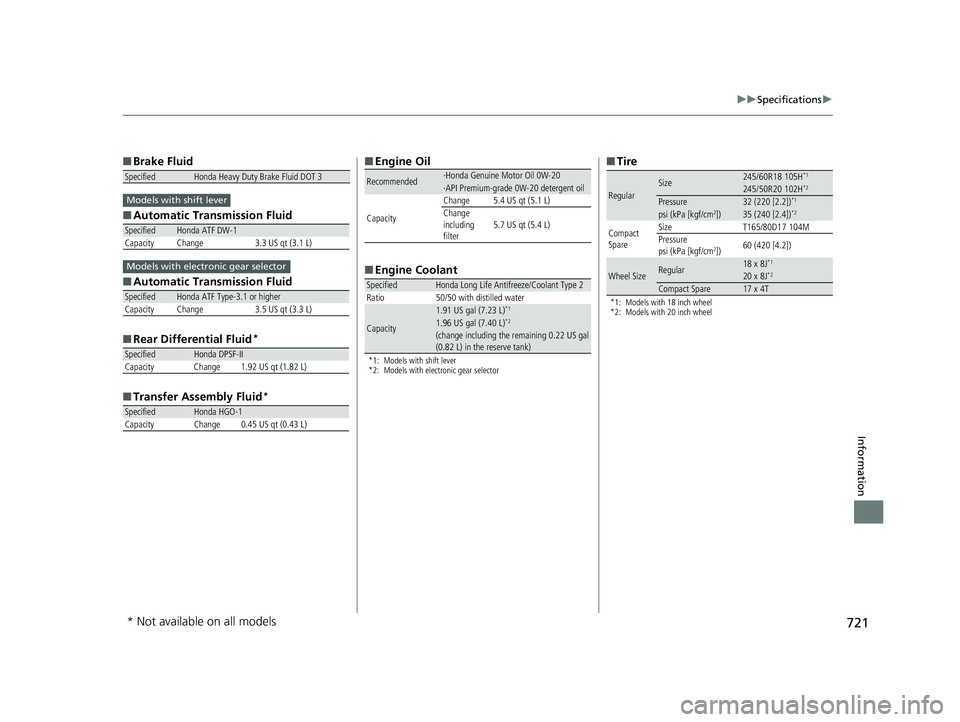

uuSpecifications u
Information
■Brake Fluid
■ Automatic Transmission Fluid
■ Automatic Transmission Fluid
■ Rear Differential Fluid
*
■Transfer Assembly Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
Capacity Change 3.3 US qt (3.1 L)
SpecifiedHonda ATF Type-3.1 or higher
Capacity Change 3.5 US qt (3.3 L)
SpecifiedHonda DPSF-II
Capacity Change 1.92 US qt (1.82 L)
SpecifiedHonda HGO-1CapacityChange0.45 US qt (0.43 L)
Models with shift lever
Models with electronic gear selector
■ Engine Oil
■ Engine Coolant
*1: Models with shift lever
*2: Models with electronic gear selector
Recommended·Honda Genuine Motor Oil 0W-20·API Premium-grade 0W-20 detergent oil
Capacity
Change5.4 US qt (5.1 L)Change
including
filter5.7 US qt (5.4 L)
SpecifiedHonda Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity
1.91 US gal (7.23 L)*1
1.96 US gal (7.40 L)*2
(change including the remaining 0.22 US gal
(0.82 L) in the reserve tank)
■ Tire
*1: Models with 18 inch wheel
*2: Models with 20 inch wheel
RegularSize245/60R18 105H*1
245/50R20 102H*2
Pressure32 (220 [2.2])*1
psi (kPa [kgf/cm2])35 (240 [2.4])*2
Compact
SpareSizeT165/80D17 104MPressure
psi (kPa [kgf/cm2])60 (420 [4.2])
Wheel SizeRegular18 x 8J*1
20 x 8J*2
Compact Spare17 x 4T
* Not available on all models
20 PILOT-31TG76401.book 721 ページ ２０１９年７月２４日　水曜日　午後３時３２分

722
Information

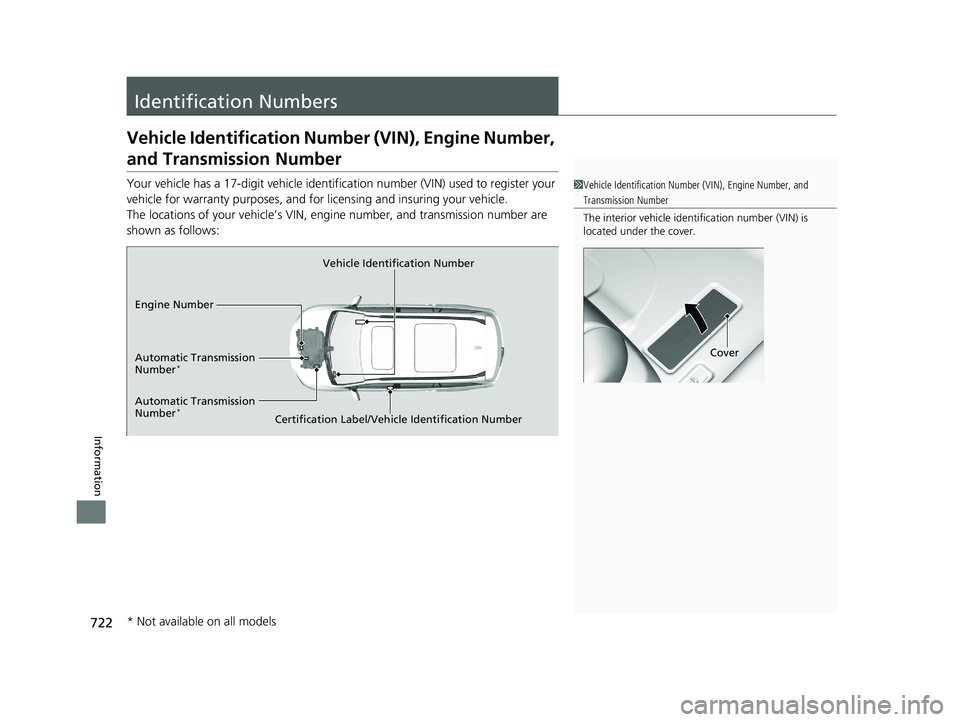

Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, en gine number, and transmission number are
shown as follows:1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/Vehicle Identification Number
Automatic Transmission
Number
*
Automatic Transmission
Number*
* Not available on all models
20 PILOT-31TG76401.book 722 ページ ２０１９年７月２４日　水曜日　午後３時３２分

725Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
20 PILOT-31TG76401.book 725 ページ ２０１９年７月２４日　水曜日　午後３時３２分

726

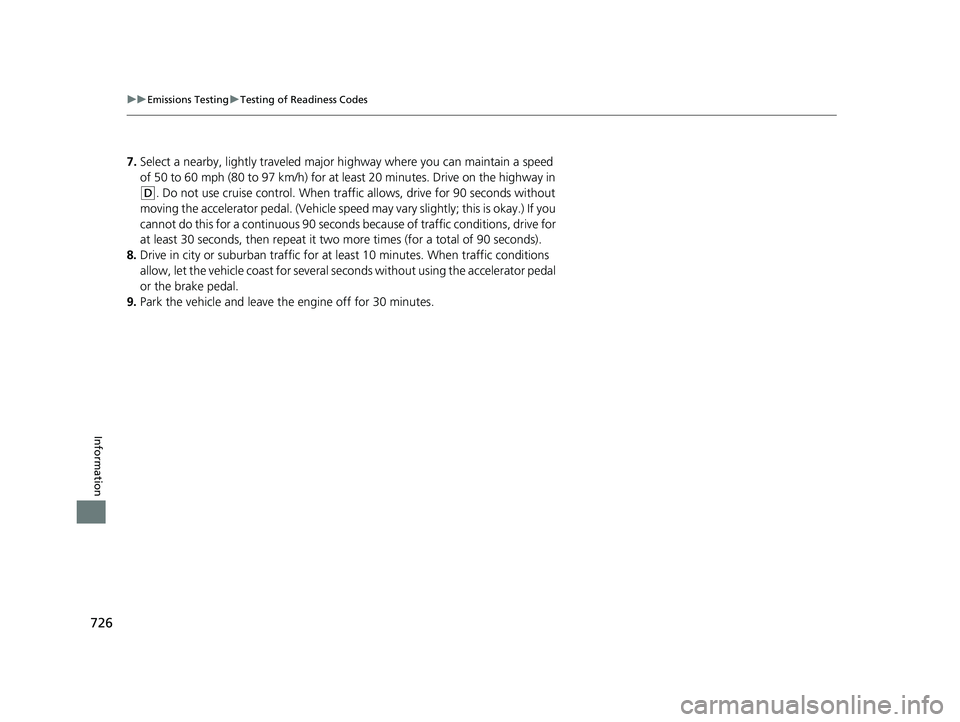

uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When tra ffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle spee d may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two mo re times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
20 PILOT-31TG76401.book 726 ページ ２０１９年７月２４日　水曜日　午後３時３２分

730
Information
Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolv e to your satisfaction, contact Honda
Customer Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 100-5E-8A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009 Canadian Owners
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Customer Service Information
When you call or write, pl ease give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 722
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
20 PILOT-31TG76401.book 730 ページ ２０１９年７月２４日　水曜日　午後３時３２分

Index
731
Index
Index
A
AAC................................... 263, 316, 322, 325
ABS (Anti-lock Brake System) .................. 612
AC Power Outlet ...................................... 218
Accessories and Modifications ................ 683
Accessory Power Sockets ......................... 217
Adaptive Cruise Control (ACC) ................ 580
Adaptive Cruise Control (ACC) Indicator
(Amber) ..................................................... 93
Adaptive Cruise Control (ACC) Indicator (Green) ...................................................... 93
Additives Coolant .................................................. 649
Engine Oil ............................................... 644
Washer ................................................... 652
Additives, Engine Oil ............................... 644
Adjusting
Armrest .................................................. 207
Front Seats.............................................. 194
Head Restraints ....................... 200, 201, 202
Mirrors.................................................... 192
Rear Seats ............................................... 204
Second Row Seats................................... 198
Steering Wheel ....................................... 191
third row seat ......................................... 199
Agile Handling Assist ............................... 554
Air Conditioning System (Climate Control System) ...................................... 235
Changing the Mode................................ 235
Defrosting the Windshield and Windows .............................................. 236 Dust and Pollen Filter ............................... 677
Recirculation/Fresh Air Mode ................... 236
Sensor ..................................................... 241
Synchronization Mode ............................. 238
Using Automatic Climate Control ............ 235
Air Conditioning System (Heating and Cooling System) ...................................... 230
Cooling ................................................... 232
Defrosting the Windshield and Windows ............................................... 233
Heating ................................................... 231
Air Pressure ....................................... 663, 721
Airbags ........................................................ 47
Advanced Airbags ..................................... 53
After a Collision ......................................... 51
Airbag Care ............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 50
Indicator .............................................. 57, 85
Passenger Airbag Off Indicator .................. 58
Sensors ...................................................... 47
Side Airbags .............................................. 54
Side Curtain Airbags .................................. 56
All-wheel drive (AWD) Indicator ............... 90
AM/FM Radio .................................... 258, 302
Android Auto ............................................ 344
Anti-lock Brake System (ABS) .................. 612
Indicator .................................................... 84
Apple CarPlay ........................................... 341
Armrest ..................................................... 207
Audio Remote Controls ............................ 248 Audio System
............................ 244, 251, 269
Adjusting the Sound........................ 256, 296
AM/FM Radio .................................. 258, 302
Android Auto .......................................... 344
Apple CarPlay.......................................... 341
Audio/Information Screen................ 252, 270
Auxiliary Input Jack.................................. 246
Changing the Screen Brightness .............. 297
Display Setup .................................. 257, 297
Error Messages ........................................ 348
File Manager ........................................... 290
General Information ................................ 353
HD Subchannel ....................................... 305
Home Screen........................................... 276
HondaLink ®............................................. 333
How to Delete a File ................................ 293
How to Transfer a File ............................. 290
How to Update Wirelessly ....................... 284
How to Update with a USB Device........... 288
iPod ................................................ 260, 319
Limitations for Manual Operation ............ 298
MP3/WMA/AAC .............. 263, 316, 322, 325
My Honda Music ..................................... 325
Playing a CD............................................ 316
Playing AM/FM Radio .............................. 302
Playing Bluetooth ® Audio ................ 266, 329
Playing SiriusXM ® Radio
.......................... 306
Playing Social Playlist ............................... 331
Reactivating ............................................ 247
Recommended CDs ................................. 354
Remote Controls ..................................... 248
20 PILOT-31TG76401.book 731 ページ ２０１９年７月２４日　水曜日　午後３時３２分
