button row HONDA PILOT 2020 Owner's Manual (in English)

7
Quick Reference Guide
❙Accessory Power Socket* (P218)
❙LATCH to Secure a Child Seat (P65)
❙Seat Belt (Installing a Child Seat) (P69)
❙Third Row Seat (P199)
❙Second Row Seat (P198)
❙Seat Belt to Secure a Child Seat (P71)
❙Cargo Area Light (P212)
❙Side Curtain Airbags (P56)
❙Second Row Outer Seat Heater Buttons* (P226)
❙AC Power Outlet* (P218)
❙HDMITM Port* (P381)
❙USB Ports* (P246)
❙Sun Visors
❙Vanity Mirrors
❙Moonroof Switch* (P169)
❙Panoramic Roof Switch* (P170)
❙Map Lights (P210)
❙Sunglasses Holder (P222)
❙Seat Belt with Detachable Anchor (P44)
❙Side Airbags (P54)
❙Seat Belts (P39)
❙Blu-ray/DVD Rear Entertainment
System* (P378)
❙Grab Handle
❙Coat Hook (P221)
❙Front Seat (P194)
* Not available on all models
20 PILOT-31TG76401.book 7 ページ ２０１９年７月２４日　水曜日　午後３時３２分

200
uuAdjusting the Seats uHead Restraints
Controls

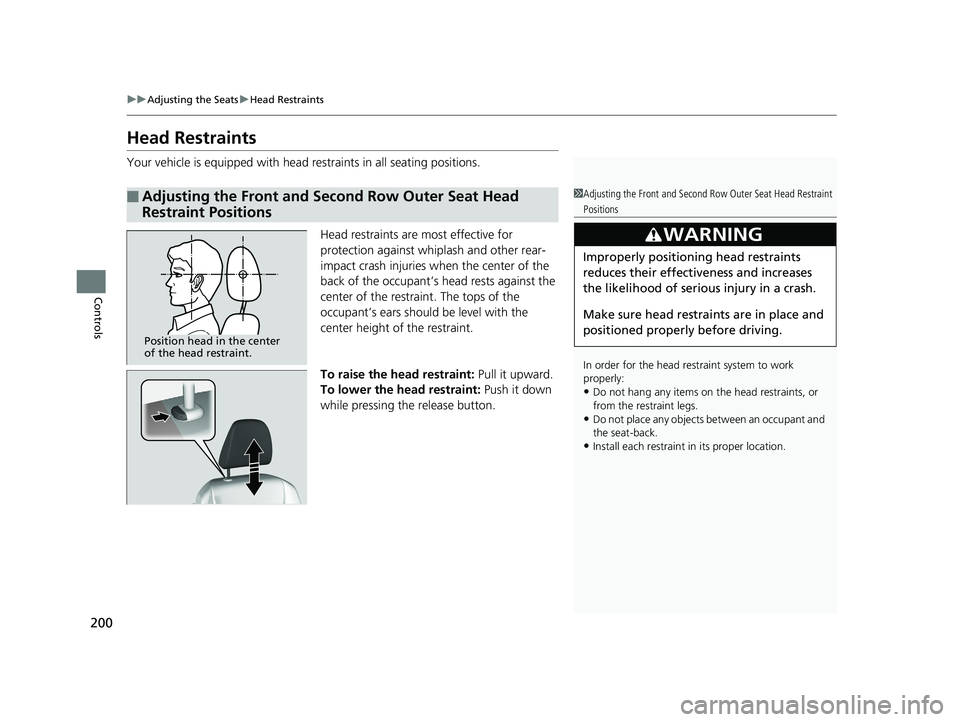

Head Restraints
Your vehicle is equipped with head restraints in all seating positions.
Head restraints are most effective for
protection against whiplash and other rear-
impact crash injuries when the center of the
back of the occupant’s head rests against the
center of the restraint. The tops of the
occupant’s ears should be level with the
center height of the restraint.
To raise the head restraint: Pull it upward.
To lower the head restraint: Push it down
while pressing the release button.
■Adjusting the Front and Second Row Outer Seat Head
Restraint Positions1 Adjusting the Front an d Second Row Outer Seat Head Restraint
Positions
In order for the head restraint system to work
properly:
•Do not hang any items on the head restraints, or
from the restraint legs.
•Do not place any objects between an occupant and
the seat-back.
•Install each restraint in its proper location.
3WARNING
Improperly positioning head restraints
reduces their effectiveness and increases
the likelihood of serious injury in a crash.
Make sure head restraints are in place and
positioned properly before driving.
Position head in the center
of the head restraint.
20 PILOT-31TG76401.book 200 ページ ２０１９年７月２４日　水曜日　午後３時３２分

Continued201
uuAdjusting the Seats uHead Restraints
Controls
A passenger sitting in the second and third
row center seating position should adjust the
height of their head restraint to an
appropriate position before the vehicle begins
moving.
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release
button(s).
Head restraints can be removed for cleaning or repair.
To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release button, and pull the
restraint up and out.
Pull the restraint up as far as it will go . Then push the release buttons which are
located on the both legs at the same time, and pull the restraint up and out.
■Changing the Second Row*/Third Row Center Seat Head
Restraint Position
■Removing and Reinstalling the Head Restraints1 Removing and Reinstalling the Head Restraints
3WARNING
Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.
Always replace the he ad restraints before
driving.
Except third row outer seat head restraints
Front and second row outer seat head restraint
Second row/third row center seat head restraint
* Not available on all models
20 PILOT-31TG76401.book 201 ページ ２０１９年７月２４日　水曜日　午後３時３２分

202
uuAdjusting the Seats uHead Restraints
Controls
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release button(s). Pull up on the restraint to make sure it is locked
in position.
A passenger in the third row seating position
should put the head restraint in the upright
position before the vehicle begins moving.
To fold down the head restraint:
Pull the strap.
To put the head restraint back in the
upright position:
Pull up the head restra int and push rearward
until it latches.
■Folding Down the Third Row Outer Head Restraint
Strap
20 PILOT-31TG76401.book 202 ページ ２０１９年７月２４日　水曜日　午後３時３２分

204
uuAdjusting the Seats uRear Seats
Controls

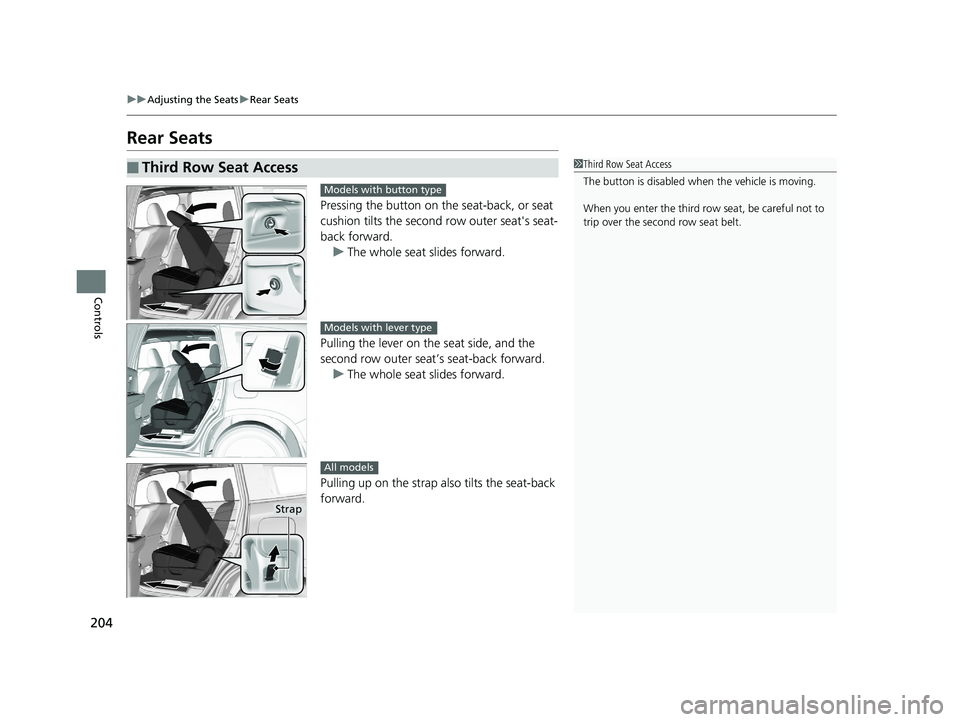

Rear Seats
Pressing the button on the seat-back, or seat
cushion tilts the second row outer seat's seat-
back forward.
u The whole seat slides forward.
Pulling the lever on the seat side, and the
second row outer seat’s seat-back forward. u The whole seat slides forward.
Pulling up on the strap also tilts the seat-back
forward.
■Third Row Seat Access1 Third Row Seat Access
The button is disabled wh en the vehicle is moving.
When you enter the third row seat, be careful not to
trip over the second row seat belt.
Models with button type
Models with lever type
Strap
All models
20 PILOT-31TG76401.book 204 ページ ２０１９年７月２４日　水曜日　午後３時３２分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
226
Controls
The power mode must be in ON to use the
seat heaters.
There is no heater in the rear center seating
position.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF se tting (no indicators on)
■Second Row Outer Seat Heaters*1Second Row Outer Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
After a certain period of time, the strength setting for
the rear seat heaters will automatically be reduced by
one level at a time until the rear seat heat er shuts off.
The elapsed time varies according to the interior
environment.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
20 PILOT-31TG76401.book 226 ページ ２０１９年７月２４日　水曜日　午後３時３２分

343
uuAudio System Basic Operation uApple CarPlay
Features

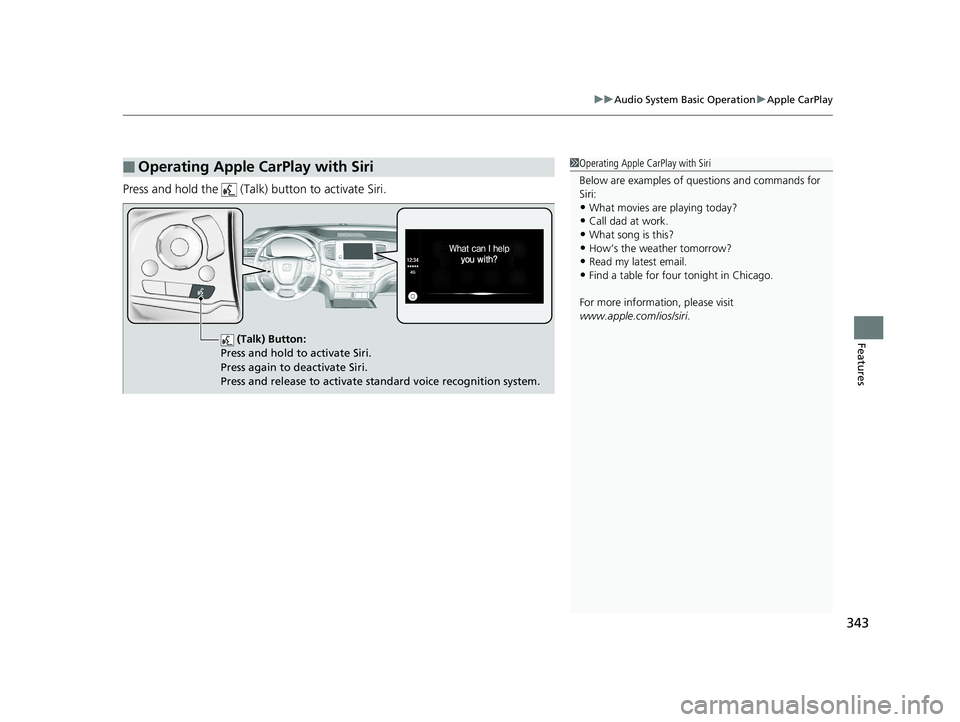

Press and hold the (Talk) button to activate Siri.
■Operating Apple CarPlay with Siri1Operating Apple CarPlay with Siri
Below are examples of questions and commands for
Siri:
•What movies are playing today?
•Call dad at work.
•What song is this?•How’s the weather tomorrow?
•Read my latest email.
•Find a table for four tonight in Chicago.
For more information, please visit
www.apple.com/ios/siri .
(Talk) Button:
Press and hold to activate Siri.
Press again to deactivate Siri.
Press and release to activate st andard voice recognition system.
20 PILOT-31TG76401.book 343 ページ ２０１９年７月２４日　水曜日　午後３時３２分

734
Index
Warning and Information Messages........... 96
Driving ....................................................... 507
Adaptive Cruise Control (ACC) ................ 580
Automatic Transmission ........................... 533
Braking .................................................... 610
Off-Highway Driving Guidelines ............... 524
Shifting Gear ........................................... 536
Starting the Engine .................................. 526
Driving Position Memory System ............. 189
Dust and Pollen Filter ............................... 677
E
Eco Assist® System ....................................... 10
ECON Button ............................................. 549
Econ Mode
Indicator .................................................... 89
Electric Power Steering (EPS) System
Indicator ............................................ 86, 707
Electronic Stability Control (ESC) ............. 552
Emergency ................................................. 714
Emissions Testing (Readiness Codes) ....... 725
Engine Coolant ................................................... 649
Jump Starting .......................................... 700
Number ................................................... 722
Oil ........................................................... 644
Remote Engine Start ................................ 528
Starting ................................................... 526
Engine Compartment Cover .................... 643Engine Coolant
......................................... 649
Adding to the Radiator ............................ 650
Adding to the Reserve Tank..................... 649
Overheating ............................................ 703
Temperature Gauge ................................ 110
Engine Oil ................................................. 644
Adding .................................................... 646
Checking................................................. 645
Displaying Maintenance Minder Information ........................................... 636
Low Oil Pressure Symbol.......................... 705
Recommended Engine Oil ....................... 644
ENGINE START/STOP Button .................... 171
EPS (Electric Power Steering) System ...... 707
Exhaust Gas Hazard (Carbon Monoxide) .. 76
Exterior Care (Cleaning) ........................... 680
Exterior Mirrors ........................................ 193
F
Features.................................................... 243
File Manager ............................................. 290
Filters Dust and Pollen ....................................... 677
Oil ........................................................... 647
Flat Tire ..................................................... 687
Floor Mats ................................................. 679
Fluids Automatic Transmission .......................... 651
Brake ...................................................... 652
Engine Coolant ....................................... 649 Windshield Washer ................................. 652
FM/AM Radio ................................... 258, 302
Fog Light Indicator .................................... 88
Fog Lights ................................................. 178
Folding Down the Second Row Seat ...... 205
Folding Down the Third Row Seat .......... 206
Foot Brake ................................................ 611
Front Airbags (SRS) .................................... 50
Front Seats ................................................ 194
Adjusting ................................................ 194
Front Sensor Camera ............................... 607
Fuel ..................................................... 25, 627
Economy................................................. 630
Gauge .................................................... 110
Instant Fuel Economy .............................. 116
Low Fuel Indicator..................................... 84
Range ..................................................... 116
Recommendation.................................... 627
Refueling ................................................ 627
Fuel Economy ........................................... 630
Fuel Fill Door ...................................... 25, 628
Unable to Unlock .................................... 715
Fuses ......................................................... 709
Inspecting and Changing ........................ 713
Locations ........................ 709, 710, 711, 712
G
Gasoline (Fuel) Economy................................................. 630
Gauge .................................................... 110
20 PILOT-31TG76401.book 734 ページ ２０１９年７月２４日　水曜日　午後３時３２分

738
Index
R
Radiator..................................................... 650
Radio (FM/AM) .................................. 258, 302
Radio (SiriusXM ®)...................................... 306
Radio Data System (RDS) .................. 259, 304
Range ........................................................ 116
RDS (Radio Data System) .................. 259, 304
Readiness Codes (Emissions Testing) ....... 725
Rear Climate Control System From the Rear Panel................................. 240
Rear Defogger/Heated Door Mirror
Button ...................................................... 186
Rear Entertainment System ..................... 378
Rear Seats .................................................. 204
Second Row Seat ............................. 204, 205
Third Row Seat ........................................ 206
Rearview Mirror ........................................ 192
Refueling ................................................... 627
Fuel Gauge .............................................. 110
Gasoline .......................................... 627, 720
Low Fuel Indicator ..................................... 84
Regulations ............................... 563, 665, 723
Remote Engine Start ................................ 528
Remote Transmitter .................................. 147
Replacement
Battery..................................... 673, 674, 675
Bulbs ....................................................... 653
Front Wiper Blade Rubber ........................ 658
Fuses ............................... 709, 710, 711, 712
Rear Wiper Blade Rubber ......................... 660
Tires ........................................................ 668 Reporting Safety Defects
......................... 724
Reverse Tilt Door Mirror .......................... 193
Road Departure Mitigation (RDM) ......... 602
On and Off.............................................. 604
Road Departure Mitigation (RDM)
Indicator .................................................... 92
S
Safe Driving ................................................ 33
Safety Check ............................................... 38
Safety Labels ............................................... 77
Safety Message ............................................. 1
Seat Belts .................................................... 39
Adjusting the Shoulder Anchor.................. 43
Automatic Seat Belt Tensioners ................. 41
Checking................................................... 46
Detachable Anchor.................................... 44
Fastening .................................................. 42
Installing a Child Seat with a Lap/ Shoulder Seat Belt ................................... 69
Pregnant Women ...................................... 45
Reminder .................................................. 40
Warning Indicator ............................... 40, 84
Seat Heaters .............................. 224, 225, 226
Seat Ventilation ........................................ 225
Seats .......................................................... 194
Adjusting ................................................ 194
Driver’s Seat Lumbar Support .................. 194
Front Seats .............................................. 194
Rear Seats ............................................... 204 Seat Heaters ........................... 224, 225, 226
Seat Ventilation ...................................... 225
Second Row Seat ............................ 204, 205
Third Row Seat ....................................... 206
Second Row Outer Seats Heaters ............ 226
Second Row Seat (Folding Down) ........... 205
Security System ........................................ 163
Immobilizer System Indicator..................... 88
Security System Alarm Indicator ................ 88
Select Button ...................................... 22, 536
Operation ......................................... 22, 538
Select Lever ........................................ 24, 534
Operation ......................................... 24, 535
Selecting a Child Seat ................................ 64
Selector Knob (Audio) ............................. 251
Sequential Mode ...................................... 542
Sequential Mode Operation ................... 543
Setting the Clock ...................................... 136
Settings
Arrange Apps ......................................... 123
Show Tachometer ................................... 124
Shift Button ........................................ 22, 536
Shift Lever .......................................... 24, 534
Does Not Move ....................................... 699
Releasing ................................................ 699
Shifting (Transmission) ........ 22, 24, 534, 536
Shoulder Anchor ........................................ 43
Show Tachometer .................................... 124
Show/Hide Apps ....................................... 122
Side Airbags ............................................... 54
Side Curtain Airbags .................................. 56
20 PILOT-31TG76401.book 738 ページ ２０１９年７月２４日　水曜日　午後３時３２分
