keyless HONDA PILOT 2020 Owner's Manual (in English)

127
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel
Default All
ENTER
ENTER
Auto Door Lock
Security Relock Timer
Auto Door Unlock
Key And Remote Unlock Mode
Keyless Lock Answer BackDoor Setup
Exit
3
4
3
4
3
4
3
4
3
4
Walk Away Auto Lock
20 PILOT-31TG76401.book 127 ページ ２０１９年７月２４日　水曜日　午後３時３２分

130
uuGauges and Displays uDriver Information Interface
Instrument Panel
*1:Default SettingSetup Group Customizable Features
Description Selectable settings
Door Setup
Auto Door LockChanges the setting for when the doors
automatically lock.With Vehicle Speed*1/Shift
From P /OFF
Auto Door UnlockChanges the setting for when the doors
automatically unlock.
All Doors When Driver’s Door
Opens*1/All Doors When
Shifted To Park /All Doors When
Ignition Switched OFF /OFF
Key And Remote
Unlock ModeSets up either the driver’s do or or all doors to unlock
on the first operation of the remote or built-in key.Driver Door*1/All Doors
Walk Away Auto LockChanges the settings for the auto lock function
when you walk away from the vehicle.ON /OFF*1
Keyless Lock Answer
BackLOCK/UNLOCK - The exterior lights flash.
LOCK (2nd push)- The beeper sounds.ON*1/OFF
Security Relock Timer
Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening a door.
90sec /60sec/ 30sec*1
Default All —Cancels customized changes you have made or
restores them to their default setting. Cancel
/Set
20 PILOT-31TG76401.book 130 ページ ２０１９年７月２４日　水曜日　午後３時３２分

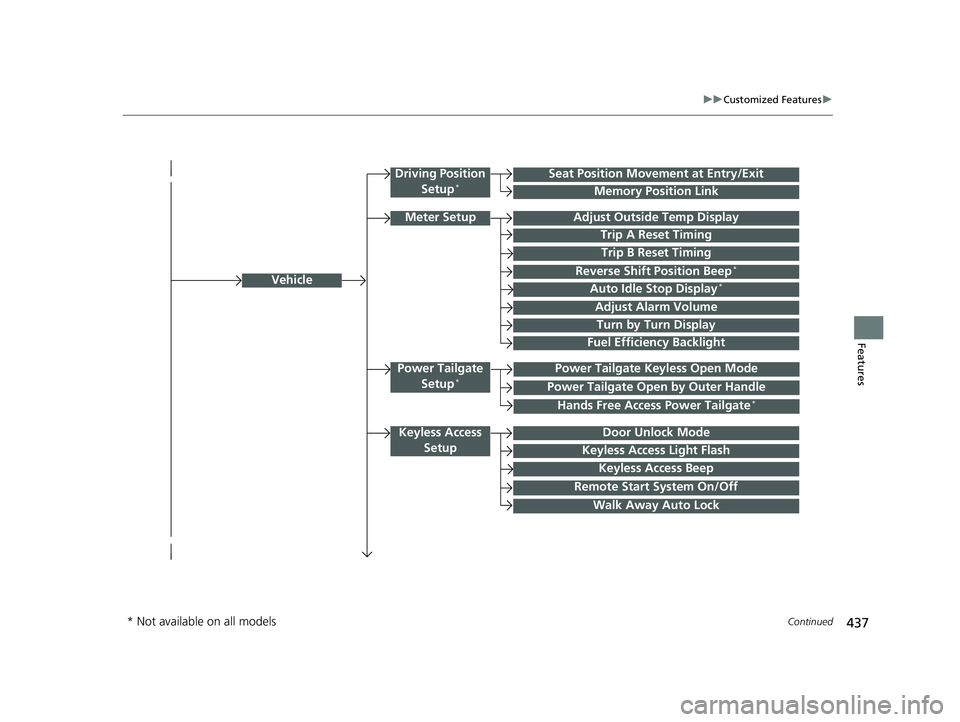

437
uuCustomized Features u
Continued
Features
Vehicle
Driving Position
Setup*Seat Position Movement at Entry/Exit
Memory Position Link
Meter SetupAdjust Outside Temp Display
Trip A Reset Timing
Trip B Reset Timing
Reverse Shift Position Beep*
Auto Idle Stop Display*
Adjust Alarm Volume
Turn by Turn Display
Power Tailgate
Setup*Power Tailgate Keyless Open Mode
Power Tailgate Open by Outer Handle
Keyless Access SetupDoor Unlock Mode
Keyless Access Light Flash
Keyless Access Beep
Remote Start System On/Off
Walk Away Auto Lock
Fuel Efficiency Backlight
Hands Free Access Power Tailgate*
* Not available on all models
20 PILOT-31TG76401.book 437 ページ ２０１９年７月２４日　水曜日　午後３時３２分

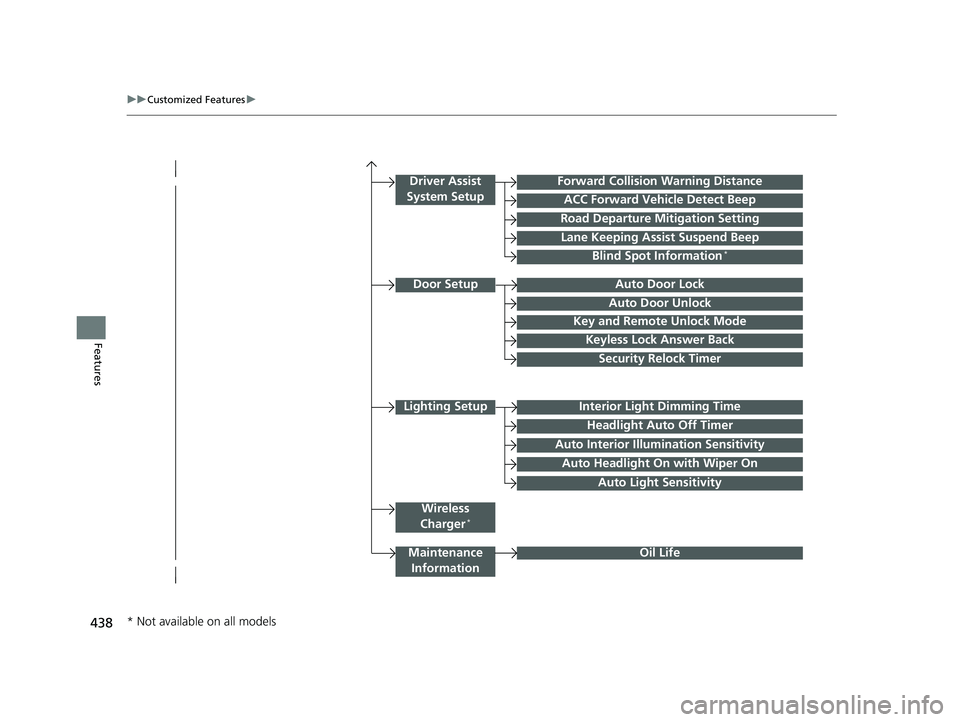

438
uuCustomized Features u
Features
Lighting SetupInterior Light Dimming Time
Headlight Auto Off Timer
Forward Collision Warning Distance
ACC Forward Vehicle Detect Beep
Auto Interior Illumi nation Sensitivity
Door SetupAuto Door Lock
Auto Door Unlock
Key and Remote Unlock Mode
Keyless Lock Answer Back
Security Relock Timer
Maintenance
Information
Driver Assist
System Setup
Oil Life
Road Departure Mitigation Setting
Lane Keeping Assist Suspend Beep
Blind Spot Information*
Wireless
Charger*
Auto Headlight On with Wiper On
Auto Light Sensitivity
* Not available on all models
20 PILOT-31TG76401.book 438 ページ ２０１９年７月２４日　水曜日　午後３時３２分

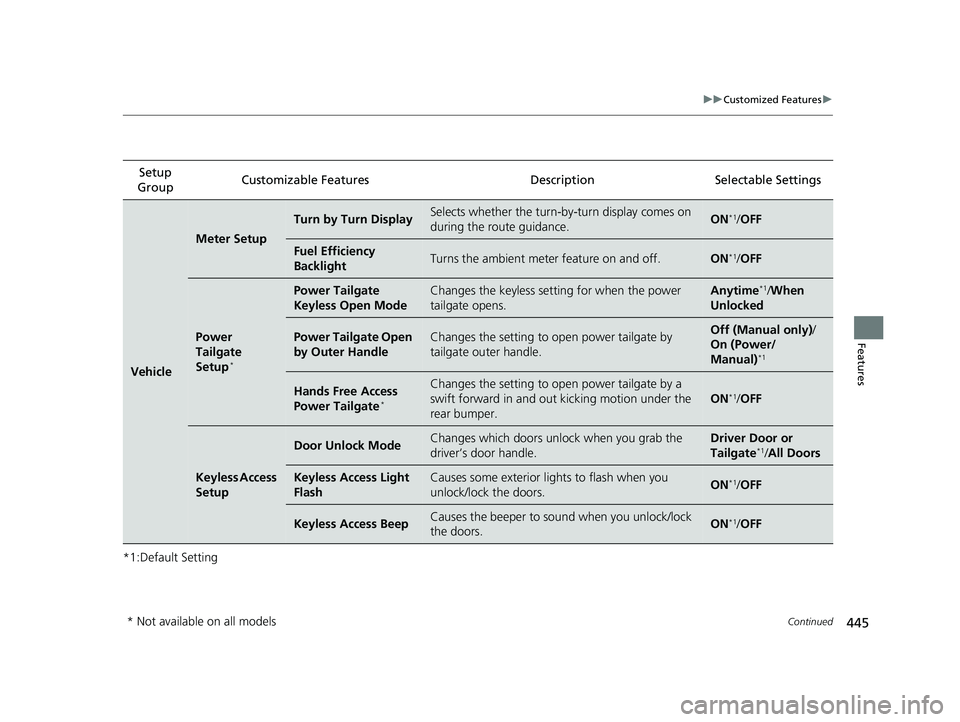

445
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features
DescriptionSelectable Settings
Vehicle
Meter Setup
Turn by Turn DisplaySelects whether the turn-by-turn display comes on
during the route guidance.ON*1/OFF
Fuel Efficiency
BacklightTurns the ambient meter feature on and off.ON*1/OFF
Power
Tailgate
Setup
*
Power Tailgate
Keyless Open ModeChanges the keyless setting for when the power
tailgate opens.Anytime*1/When
Unlocked
Power Tailgate Open
by Outer HandleChanges the setting to open power tailgate by
tailgate outer handle.Off (Manual only) /
On (Power/
Manual)
*1
Hands Free Access
Power Tailgate*
Changes the setting to open power tailgate by a
swift forward in and out kicking motion under the
rear bumper.
ON*1/ OFF
Keyless Access
Setup
Door Unlock ModeChanges which doors unlo ck when you grab the
driver’s door handle.Driver Door or
Tailgate*1/ All Doors
Keyless Access Light
FlashCauses some exterior lights to flash when you
unlock/lock the doors.ON*1/OFF
Keyless Access BeepCauses the beeper to so und when you unlock/lock
the doors.ON*1/ OFF
* Not available on all models
20 PILOT-31TG76401.book 445 ページ ２０１９年７月２４日　水曜日　午後３時３２分

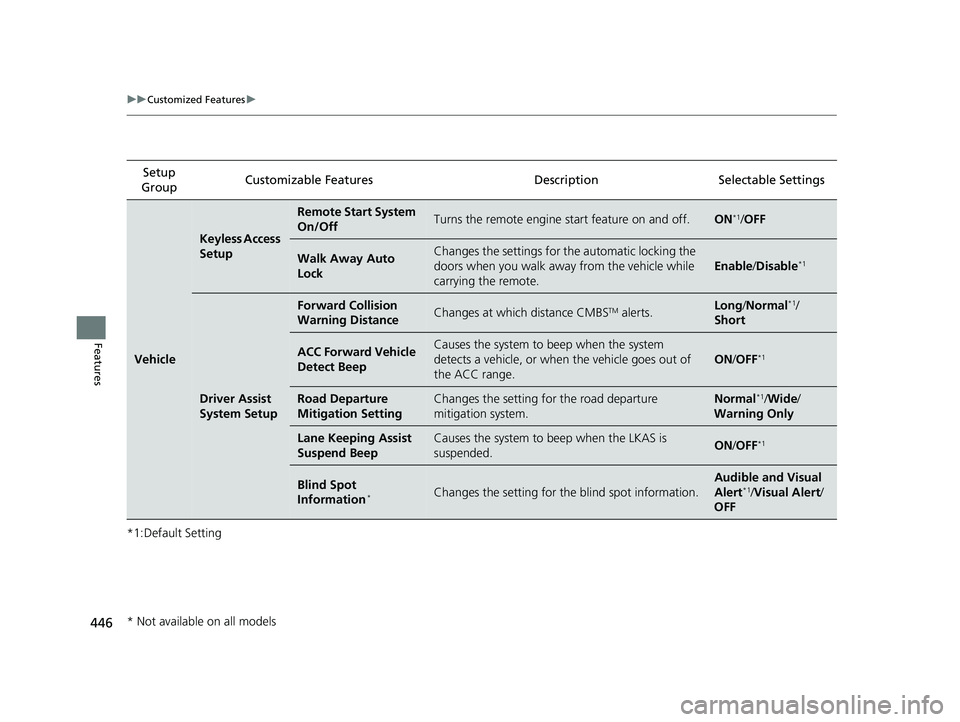

446
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Keyless Access
Setup
Remote Start System
On/OffTurns the remote engine start feature on and off.ON*1/
OFF
Walk Away Auto
LockChanges the settings for the automatic locking the
doors when you walk away from the vehicle while
carrying the remote.
Enable /Disable*1
Driver Assist
System Setup
Forward Collision
Warning DistanceChanges at which distance CMBSTM alerts.Long /Normal*1/
Short
ACC Forward Vehicle
Detect BeepCauses the system to beep when the system
detects a vehicle, or when the vehicle goes out of
the ACC range.
ON /OFF*1
Road Departure
Mitigation SettingChanges the setting for the road departure
mitigation system.Normal*1/ Wide /
Warning Only
Lane Keeping Assist
Suspend BeepCauses the system to b eep when the LKAS is
suspended.ON /OFF*1
Blind Spot
Information*Changes the setting for th e blind spot information.
Audible and Visual
Alert*1/Visual Alert /
OFF
* Not available on all models
20 PILOT-31TG76401.book 446 ページ ２０１９年７月２４日　水曜日　午後３時３２分

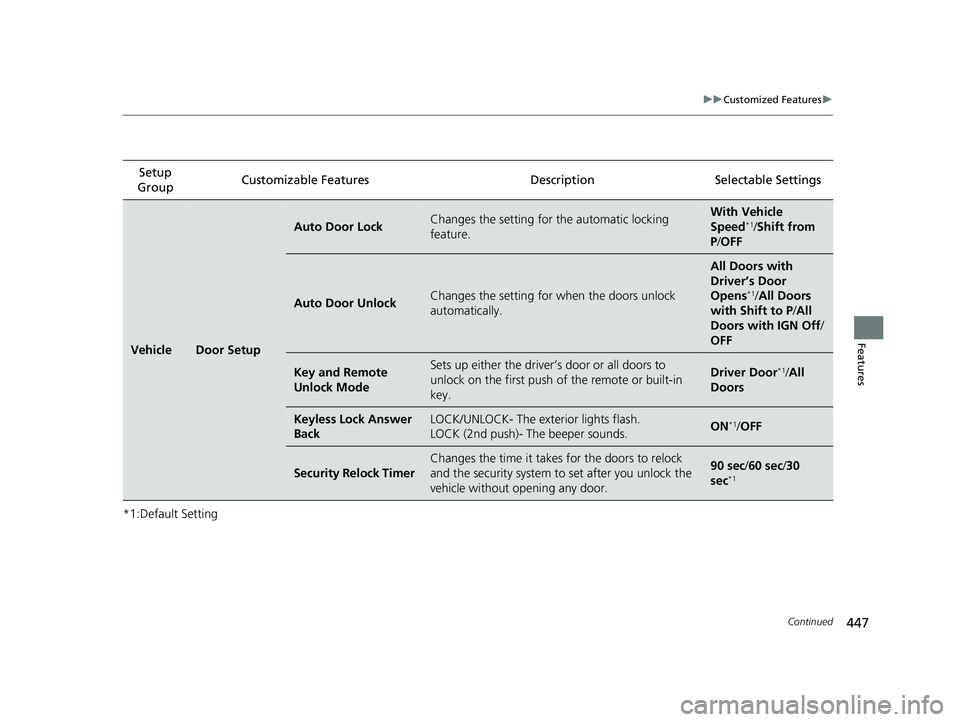

447
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features
DescriptionSelectable Settings
VehicleDoor Setup
Auto Door LockChanges the setting for the automatic locking
feature.With Ve hicle
Speed*1/ Shift from
P /OFF
Auto Door UnlockChanges the setting for when the doors unlock
automatically.
All Doors with
Driver’s Door
Opens
*1/ All Doors
with Shift to P /All
Doors with IGN Off /
OFF
Key and Remote
Unlock ModeSets up either the driver’s door or all doors to
unlock on the first push of the remote or built-in
key.Driver Door*1/ All
Doors
Keyless Lock Answer
BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.ON*1/ OFF
Security Relock Timer
Changes the time it takes for the doors to relock
and the security system to set after you unlock the
vehicle without opening any door.90 sec/ 60 sec/30
sec*1
20 PILOT-31TG76401.book 447 ページ ２０１９年７月２４日　水曜日　午後３時３２分

736
Index
Lane Keeping Assist System (LKAS) (Amber) ................................................... 91
Lane Keeping Assist System (LKAS) (Green) .................................................... 91
Lights On ................................................... 87
Low Fuel .................................................... 84
Low Oil Pressure Symbol .......................... 705
Low Tire Pressure/TPMS ..................... 87, 708
Malfunction Indicator Lamp ............... 81, 706
Parking Brake and Br ake System .............. 707
Parking Brake and Brake System (Amber) ... 80
Parking Brake and Brake System (Red) ....... 80
Road Departure Mitigation (RDM) .............. 92
Seat Belt Reminder .............................. 40, 84
Security System Alarm ............................... 88
Supplemental Restraint System ............ 57, 85
System Message ........................................ 89
Transmission System .................................. 82
Turn Signal ................................................ 87
Vehicle Stability Assist
TM (VSA ®) OFF ... 86, 553
Vehicle Stability AssistTM (VSA ®)
System ............................................. 85, 552
Information ............................................... 719
Instant Fuel Economy ............................... 116
Instrument Panel ........................................ 79
Brightness Control ................................... 188
Intelligent Traction Management System ...................................................... 550
Intelligent VTM4 (i-VTM4) ....................... 560
Interior Lights ........................................... 209
Interior Rearview Mirror .......................... 192iPad
........................................................... 356
iPhone ....................................................... 356
iPod ........................................... 260, 319, 356
J
Jack (Wheel Nut Wrench) ........................ 691
Jump Starting ........................................... 700
K
Key Number Tag ....................................... 140
Keyless Lockout Prevention ..................... 148
Keys ........................................................... 139
Lockout Prevention.................................. 148
Number Tag ............................................ 140
Rear Door Won’t Open............................ 151
Remote Transmitter ................................. 147
Types and Functions ................................ 139
Kickdown (Automatic Transmission) ....... 533
L
Lane Keeping Assist System (LKAS)......... 593
Lane Keeping Assist System (LKAS)
Indicator (Amber) ..................................... 91
Lane Keeping Assist System (LKAS) Indicator (Green) ...................................... 91
LaneWatch
TM............................................. 558
LATCH (Child Seats) .............................. 65, 71
Legal Information on Apple CarPlay/
Android Auto .......................................... 370 License Information
................................. 373
Lights ................................................ 175, 653
Automatic............................................... 176
Bulb Replacement ................................... 653
Daytime Running Lights .......................... 182
High Beam Indicator ................................. 87
Interior.................................................... 209
Light Switches......................................... 175
Lights On Indicator.................................... 87
Turn Signals ............................................ 174
Load Limits ............................................... 511
Locking/Unlocking ................................... 139
Auto Door Locking/Unlocking ................. 152
Childproof Door Locks ............................ 151
From Inside ............................................. 149
From Outside .......................................... 142
Keys........................................................ 139
Using a Key............................................. 148
Lockout Prevention System ..................... 148
Low Battery Charge ................................. 705
Low Fuel Indicator ..................................... 84
Low Oil Pressure Symbol ......................... 705
Lower Anchors ..................................... 65, 71
Lubricant Specifications Chart ................ 721
Luggage (Maximum Load Limit) ............. 511
Lumbar Support ............................... 194, 195
Lumbar Support Adjustment Switch ...... 195
20 PILOT-31TG76401.book 736 ページ ２０１９年７月２４日　水曜日　午後３時３２分
